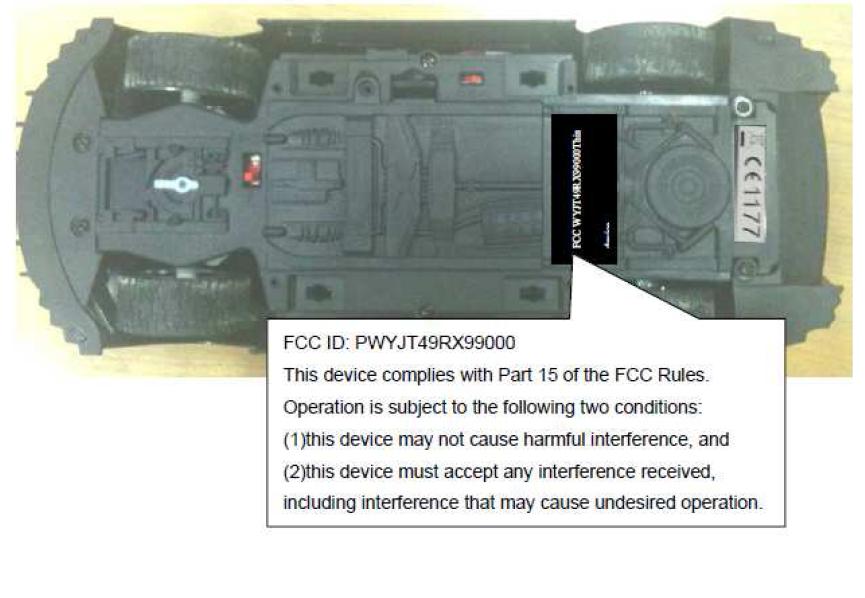

PWYJT49RX990001:16 BATTLE MACHINE

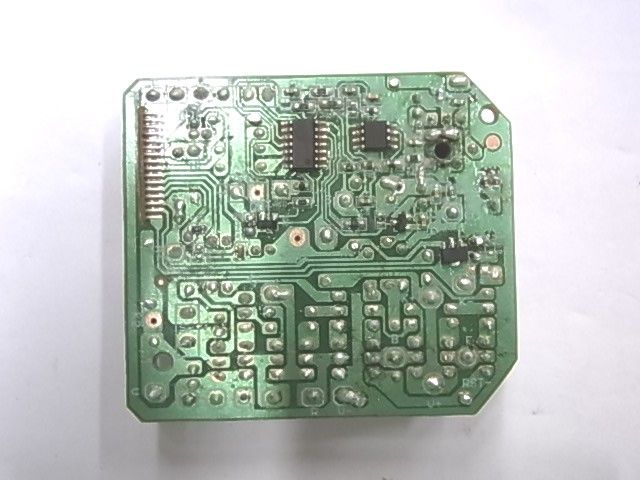

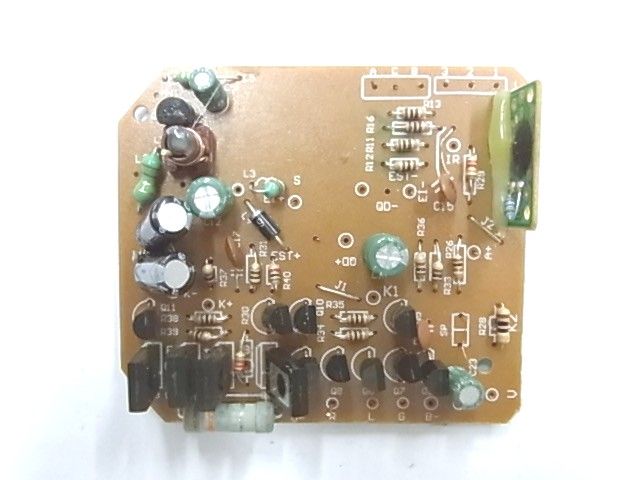

JADA TOYS CO., LTD Project No. : 83196,83197, 84712,84713, 84045 Model Name : 1:16 Battle Machine RC (Single and Twin Pack) Transmitter and Receiver Circuitry Operating Description In Transmit Mode: Transmitter: When the power switch S1 turns to “ON”, Q1 and the Y1 crystal produce a carrier frequency, press one of the keys FIRE, R, L, F, B, The Encode IC1 U12501B pin8 gives the signal out to Q2, and mixed the carrier frequency signal, after Q2 amplifier the signal and transmit from antenna. There are three sets of modulation signal can be selected by Band Selecting Switch S2. A 9V battery supplies energy. In Receive Mode: Receiver: When the power switch S1 turns to “ON”, The modulation signal receive from the antenna and pass to local oscillation and demodulation from Q1, The encoding signal transfer to Signal Amplifier IC IC1 SC010, Encoding IC IC2 SN8P2501B and Voice IC IC3 SNC113, after decoding the direct control signal go to the motor driver unit. The Q11,Q12,Q13,Q14,Q115 & Q16 control motor M2 to control Forward and Backward function, the Q5~Q10 control motor M1 to control Left and Right function. In Auto Mode: Receiver: When the Auto Mode Switch S1 turns to “AUTO”, the Encoder IC IC2 SN8P2501B Pin 12, 13 and 14 communicate with Voice IC IC3SNC113 Pin 3, 4 and 18, and controls motor driver of M1 and M2 to perform the Auto motion. In Battle Mode: Receiver - Fire Action: The modulation signal receive form the antenna through Q1 and Signal Amplifier IC IC1 SC010 to Encoding IC IC2 SN8P2501B, the Encoding IC controls LED D1 lights up and IR emitter D2 to give out an Infrared signal. Receiver - Being Hit: The IR Receiver HM338 receive an IR signal and pass to Pin 2 of Voice IC SNC113. The Voice IC controls Health indicating LED D3, D4 and D5 and Speaker to play sound FX. Receiver - Reset: Press the Reset switch S3 to reset the Encoding IC SN8P2501B and Voice IC SNC113. The Health Indicating LED D3, D4 and D5 will back to original. Energy is supplied by 4x AA size (1.5V) battery..

Q15 B882(3A) Q13B882(3A) Q14 B772(3A) Q12B772(3A) R371K R38100R Q169014 Q119014 R39 100R L322UH C14470UF C13104 C2347UF 3.6V SPK1 8R/0.5W/36MM D3 R20220R D5 D4 R8220R D1 QDRED LED 3.6V DATACLKBUSY C15104 R21100K S1-A (2P3T)Auto_mode S6SOUND SELE. R2810 L5* E?ANTENNA C1100P Q11815YC2* L1* C3* L2* R1240K+ C54.7UF R2470 C4* R33K3 C6103 R41K C7104 R51M C8470P R62K2 C9104 R73M9 C10222 C11104 C12470uF BAT6V 6.0V Vin 2 GND 1 Vout 3 IC4SC2022 L36E (SOT-89) 3V6 + C19470uF + C20470uF 12 3 4 5 678 IC1 SC010 (SOP8) Q4 8050D R31100R R450.33 OHM 2W R3022K C18104 C17104 R11 100R R12 100R R13 100R CLK BUSYDATA R92R2 D2 DIEIIR (D=3MM) Q2 8050D R10510R 6.0V D21N5819 891011121314 IC2SN8P2501B (SOP14) R14100K R15100R R16100R RST 01 1234567 S3 RESET 8P/P1.2 12 43 S4 BAND (A/B/C) IR RE CLK DATA RL R0 120K 1% 3.6V Q38050D R26510R R272R2 6.0V C16104 R251K 12345678910 11121314151617181920 F B 123 RST 01 BUSY IC3SNC113 (DICE) R32100K CVDD CVDD 8P/P1.2 IR RE R2922K IR MODULE R401K A - + MOTOR Q9 8050D Q78050D Q8 8550D Q68550D R331K R34100R C*104P Q109014 Q59014 R35 100R 6.0V R36 1K L R F B 123 JADA TOYS CO., LTD. 1/16 BATTLE MACHINE RX CIRCUIT DIAGRAM (27M/40M/49M)2010/03/29 S1-B (2P3T)ON/OFF S1-C (2P3T)OFF 放电 R14220R P20P21P22 P23P24P25 VDD VSS XINP1.1 XIOUT/P1.2 RST/P1.3 P5.4/PWMP1.0P0.0 3.6V 27MHZ40MHZ49MHZ L1 L2 L5 C2 C3 C4 7.5UH 4.7UH 10UH 39P 47P 302J 5.6UH 3.3UH 10UH 27P 33P 332J 6.8UH 3.3UH 10UH 22P 33P 332J R M L M C*104P C*104P C*104P L** L** R M L M A - + MOTOR C*104P C*104P C*104P C*104P L** L** F M B M B M F M

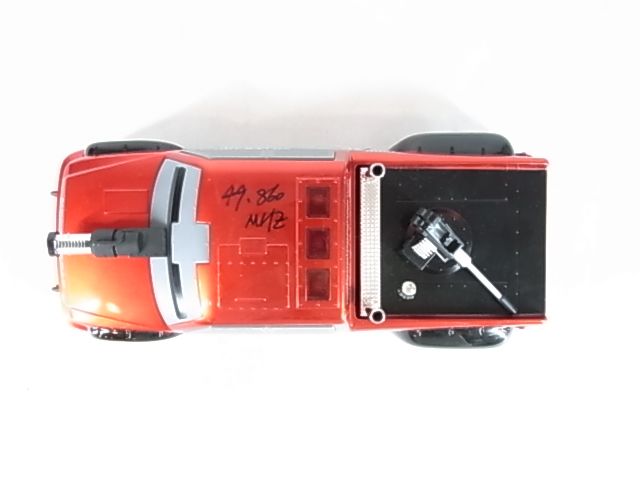

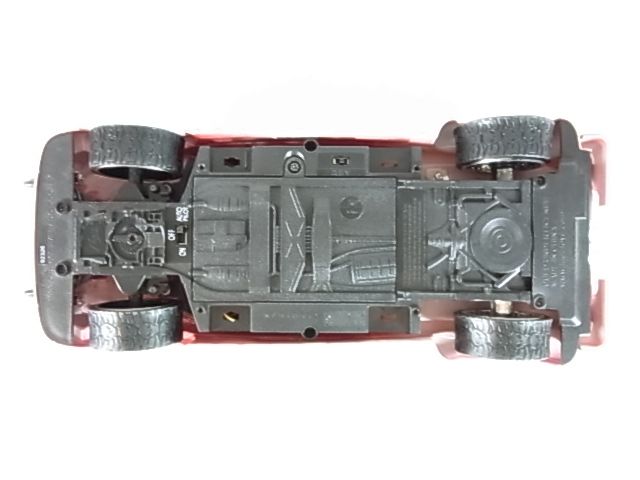

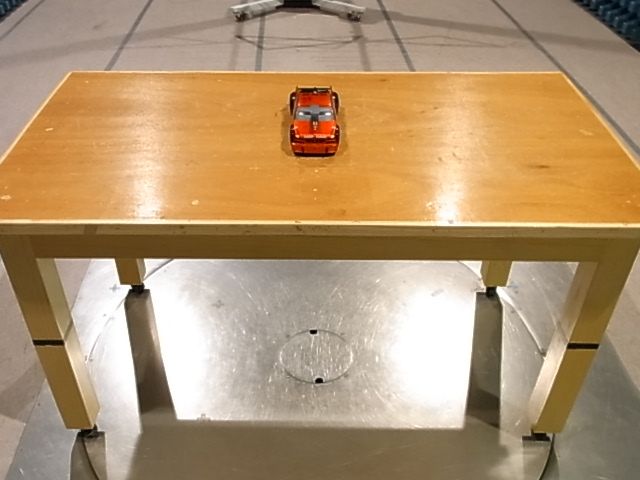

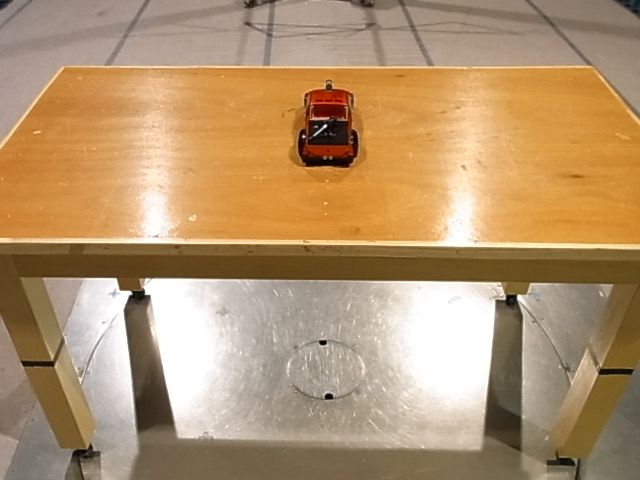

TEST REPORT Report No. : AM0017617 Date : 2010-05-10 Page 1 of 11 FCC ID: PWYJT49RX99000 This document is issued subject to CMA Testing standard TEARMS AND CONDITIONS, and shall not be reproduced except in full or with written approval by CMA Testing. CMA Industrial Development Foundation Limited Room 1302, Yan Hing Centre, 9-13 Wong Chuk Yeung St.., Fo Tan, Shatin, Hong Kong. Tel: (852) 2698 8198 Fax: (852) 2695 4177 E-mail: [email protected] Web Site: http://www.cmatcl.com Application No. : LM220349 Applicant : Jada Toys Co., Ltd. Unit 305-308, 3/F., Tower B, New Mandarin Plaza, 14 Science Musuem Road, Tsim Sha Tsui East, Kowloon, Hong Kong Sample Description : One (1) submitted sample(s) stated to be 1:16 Battle Machine of Model No. 84712, 83196, 83197, 84713 and 84045 Radio Frequency : 49.860MHz Receiver Rating : 4 x 1.5V AA size batteries No. of submitted sample : Two (2) piece(s) Date Received : 2010-03-29. Test Period : 2010-03-31 to 2010-04-13. Test Requested : FCC Part 15 Certification. Test Method : 47 CFR Part 15 (10-1-09 Edition) ANSI C63.4 – 2003 Test Result : See attached sheet(s) from page 2 to 11. Conclusion : The submitted sample was found to comply with requirement of FCC Part 15 Subpart B. Remark : All five models are the same in circuitry and components; and therefore model 84712 was chosen to be the representative of the test sample. There are three channels and channel B was tested. The different of three channels is the pattern of coding. For and on behalf of CMA Industrial Development Foundation Limited Authorized Signature : ____________________________________________________ Mr. Wong Lap-pong, Andrew Assistant Manager Electrical Division TEST REPORT Report No. : AM0017617 Date : 2010-05-10 Page 2 of 11 FCC ID: PWYJT49RX99000 This document is issued subject to CMA Testing standard TEARMS AND CONDITIONS, and shall not be reproduced except in full or with written approval by CMA Testing. CMA Industrial Development Foundation Limited Room 1302, Yan Hing Centre, 9-13 Wong Chuk Yeung St.., Fo Tan, Shatin, Hong Kong. Tel: (852) 2698 8198 Fax: (852) 2695 4177 E-mail: [email protected] Web Site: http://www.cmatcl.com Table of Contents 1 General Information............................................................................................................................. 3 1.1 General Description ..................................................................................................................... 3 1.2 Location of the test site................................................................................................................ 4 1.3 List of measuring equipment ....................................................................................................... 5 1.4 Measurement Uncertainty............................................................................................................ 5 2 Description of the radiated emission test............................................................................................. 6 2.1 Test Procedure ............................................................................................................................. 6 2.2 Test Result ................................................................................................................................... 6 2.3 Radiated Emission Measurement Data ........................................................................................ 7 3 Description of the Line-conducted Test .............................................................................................. 8 3.1 Test Procedure ............................................................................................................................. 8 3.2 Test Result ................................................................................................................................... 8 3.3 Graph and Table of Conducted Emission Measurement Data .................................................... 8 4 Photograph ........................................................................................................................................... 9 4.1 Photographs of the Test Setup for Radiated Emission and Conducted Emission ....................... 9 4.2 Photographs of the External and Internal Configurations of the EUT ........................................ 9 5 Supplementary document .................................................................................................................. 10 5.1 Bandwidth.................................................................................................................................. 10 5.2 Duty cycle .................................................................................................................................. 10 5.3 Transmission time...................................................................................................................... 10 6 Appendices ........................................................................................................................................ 11 TEST REPORT Report No. : AM0017617 Date : 2010-05-10 Page 3 of 11 FCC ID: PWYJT49RX99000 This document is issued subject to CMA Testing standard TEARMS AND CONDITIONS, and shall not be reproduced except in full or with written approval by CMA Testing. CMA Industrial Development Foundation Limited Room 1302, Yan Hing Centre, 9-13 Wong Chuk Yeung St.., Fo Tan, Shatin, Hong Kong. Tel: (852) 2698 8198 Fax: (852) 2695 4177 E-mail: [email protected] Web Site: http://www.cmatcl.com 1 General Information 1.1 General Description The equipment under test (EUT) is a receiver for 1:16 Battle Machine. It operates at 49.860MHz and the oscillation of radio control is generated by a LRC circuit. The EUT is powered by 4 x 1.5V AA size batteries. There are one ON/OFF switch and one coding switch on the EUT. The coding switch is used to change coding to prevent interference. When it s…
