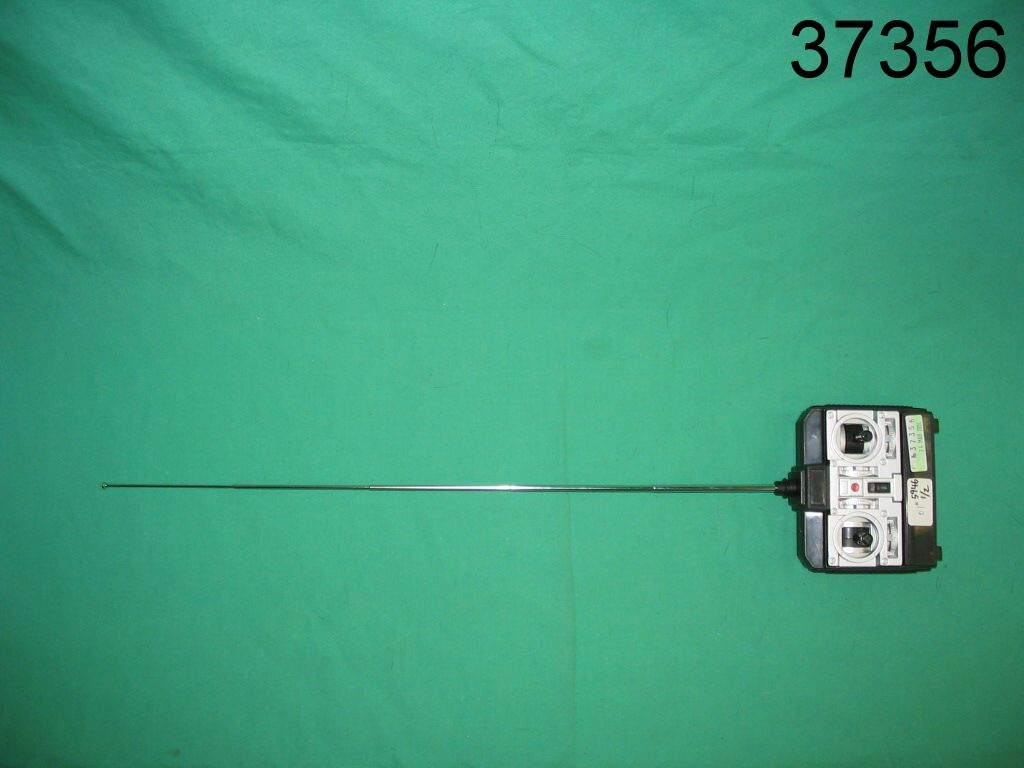

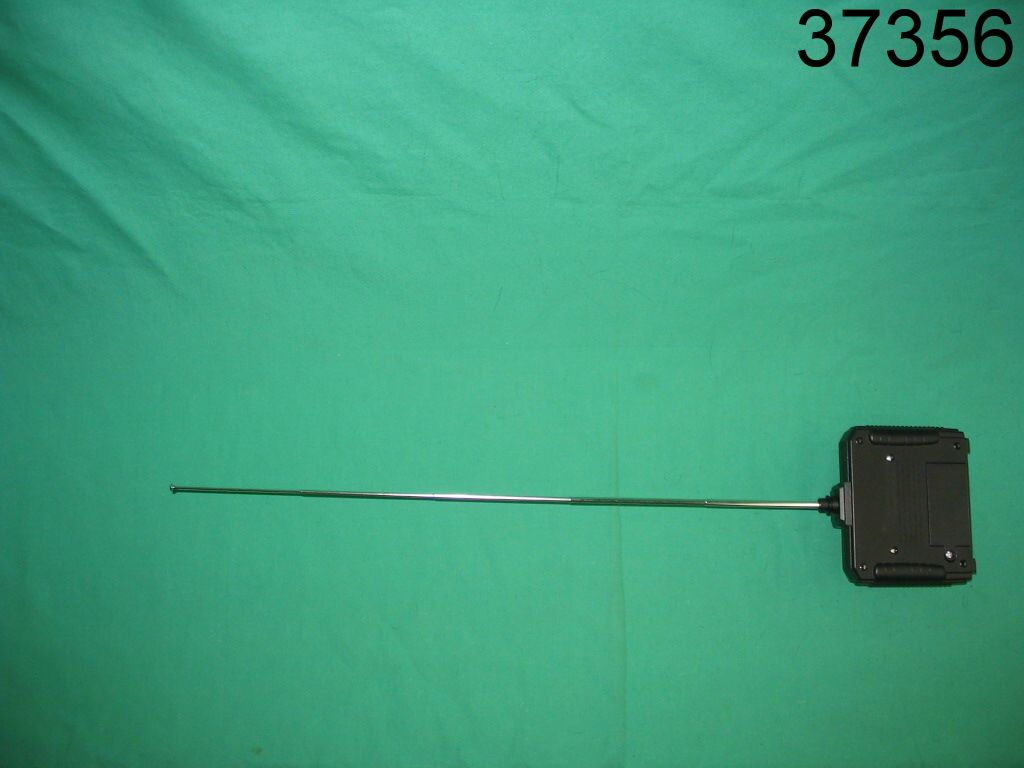

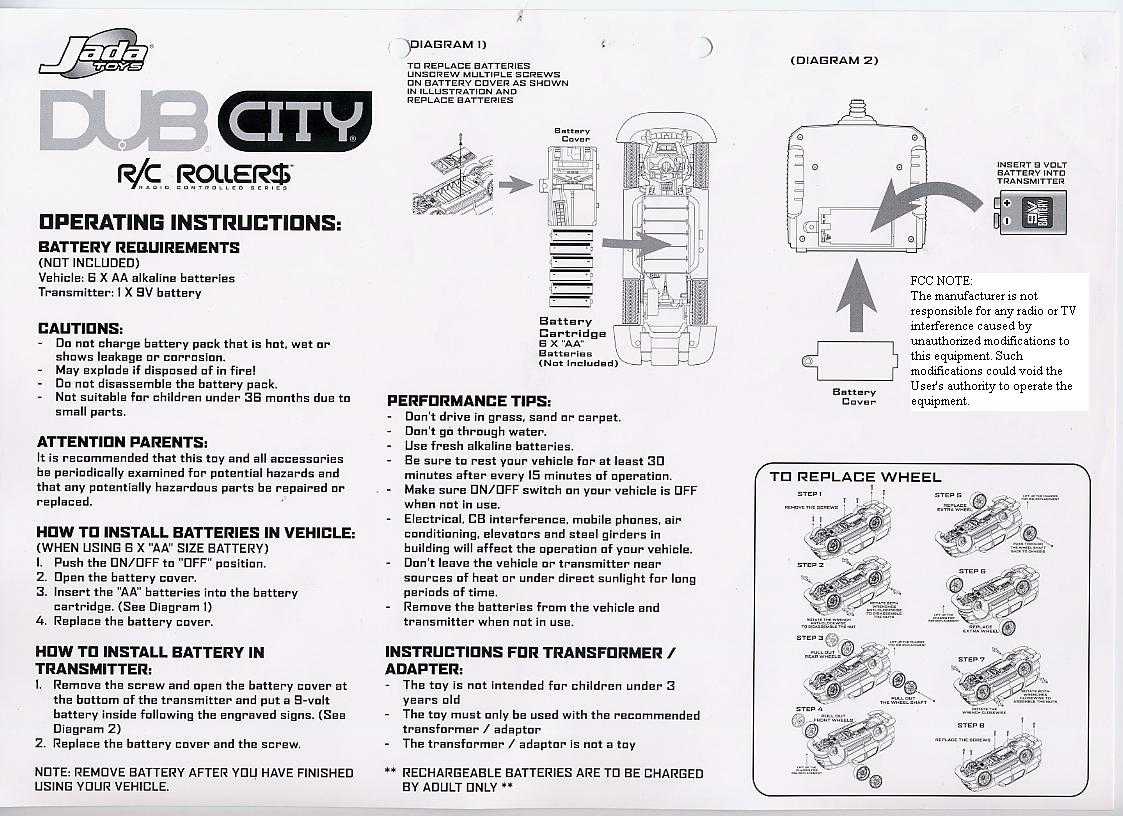

PWYJT49TX60000Remote Control Car Hand Set

Unit 1-2 & 4-6, 9 th floor, Energy Plaza, 92 Granville Road, Kowloon, Hong Kong. Tel: (852) 2156 1968 Fax: 2168 9399 E-mail: [email protected]

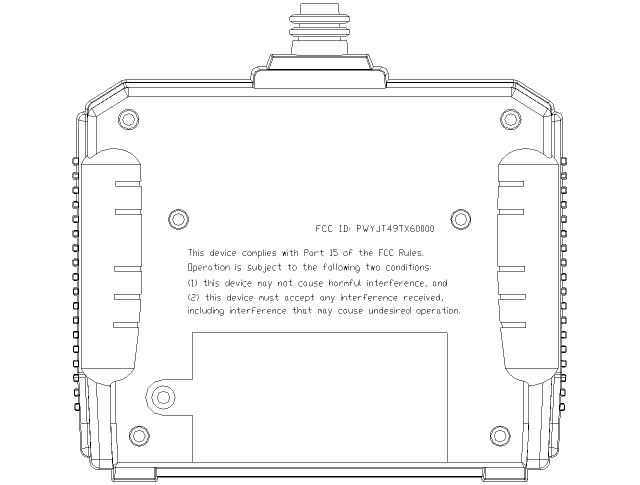

Unit 1-2 & 4-6, 9 th floor, Energy Plaza, 92 Granville Road, Kowloon, Hong Kong. Tel: (852) 2156 1968 Fax: 2168 9399 E-mail: [email protected] FCC ID: PWYJT49TX60000 This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must be accept any interference received, including interference that may cause undesired operation. This is to certify that the label shown above production label to be used on Production units of model R/C Car Hand Set (transmitter 49MHz, PWYJT49TX60000), FCCID number: PWYJT49TX60000. Signature: Name: CM Lee Title: RC Car Engineer

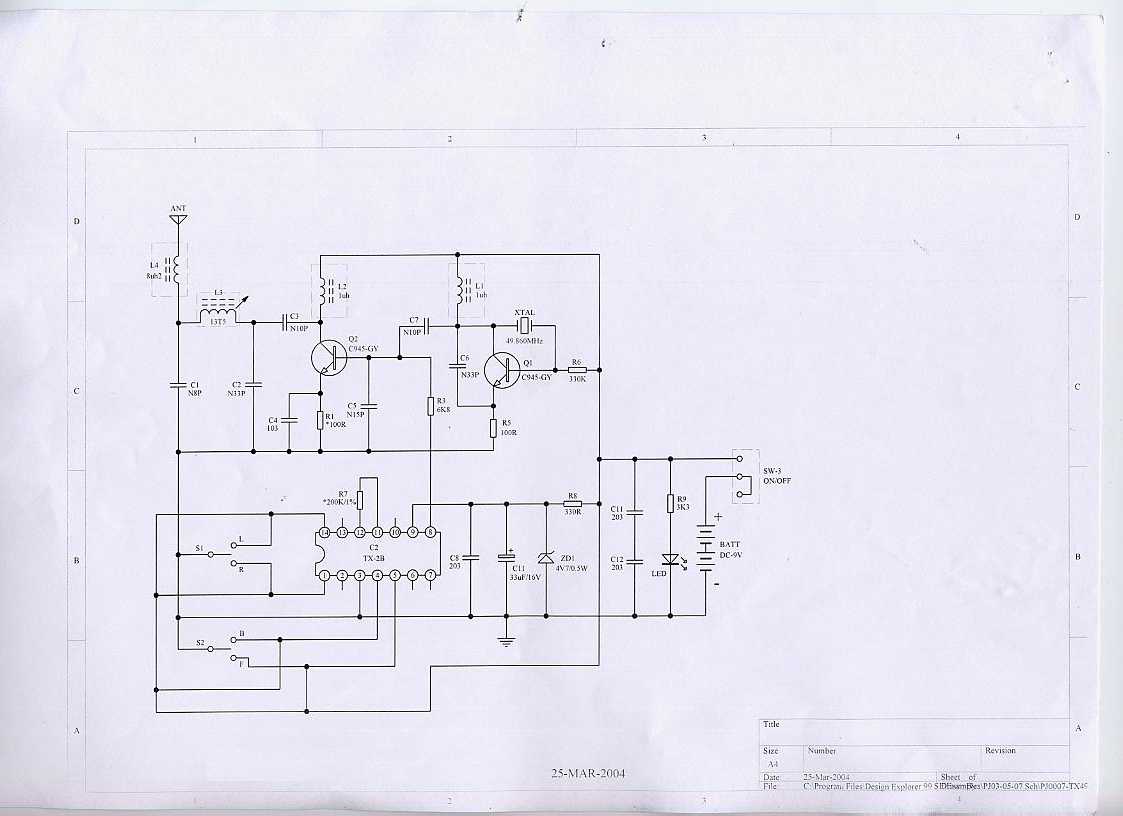

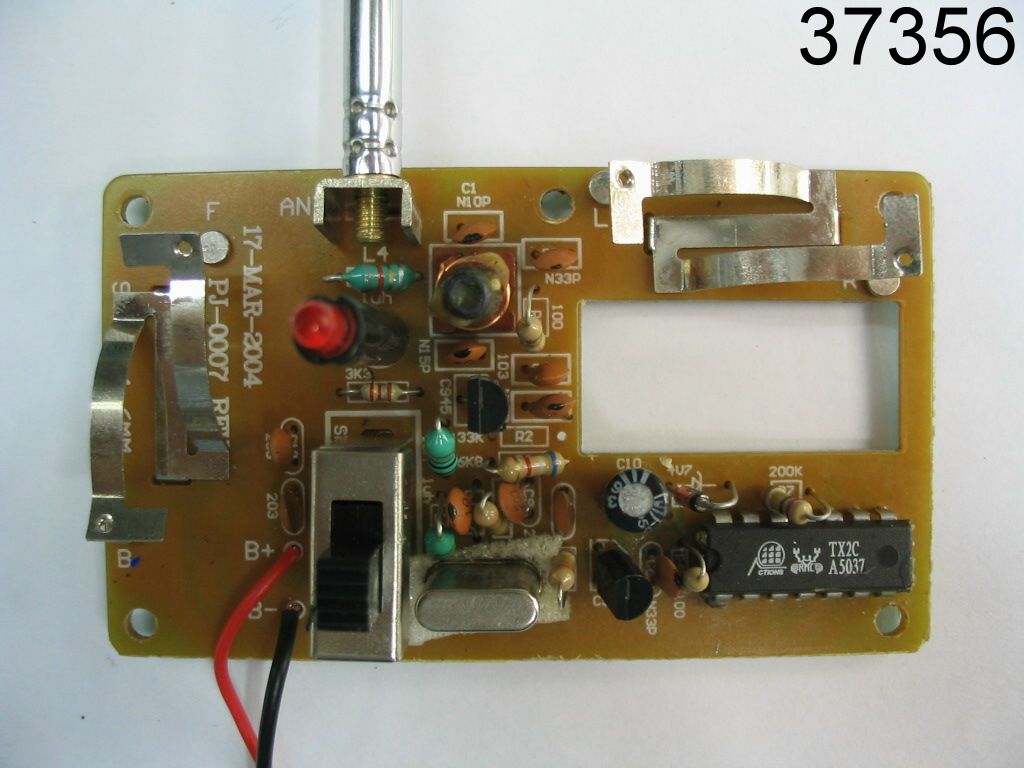

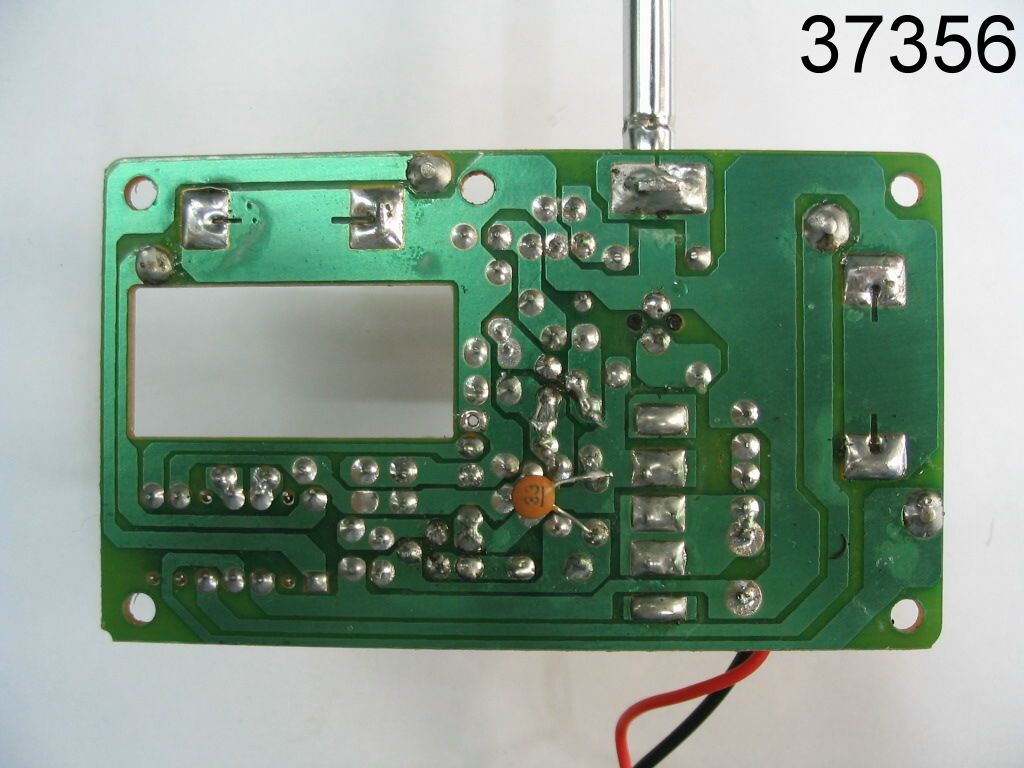

Unit 1-2 & 4-6, 9 th floor, Energy Plaza, 92 Granville Road, Kowloon, Hong Kong. Tel: (852) 2156 1968 Fax: 2168 9399 E-mail: [email protected] Operational description RC Car Transmitter Schematic Circuit Description A transmitter is a device which generates 49MHz frequency Power, which, by means of a suitable antenna, is radiated (or transmitted) through space (or other suitable media). Forward, Backward, Left and Right signal will be generated from TX2 IC and then With 49MHz carrier signal at Q1. The 49MHz carrier signal will be thru in Q2 Transmitting signal to Antenna. Power On will be Light On for a LED.

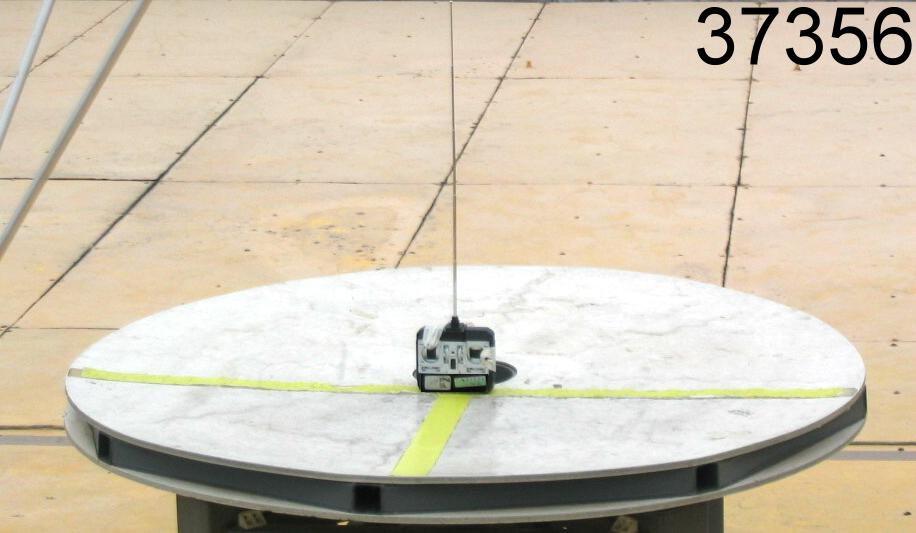

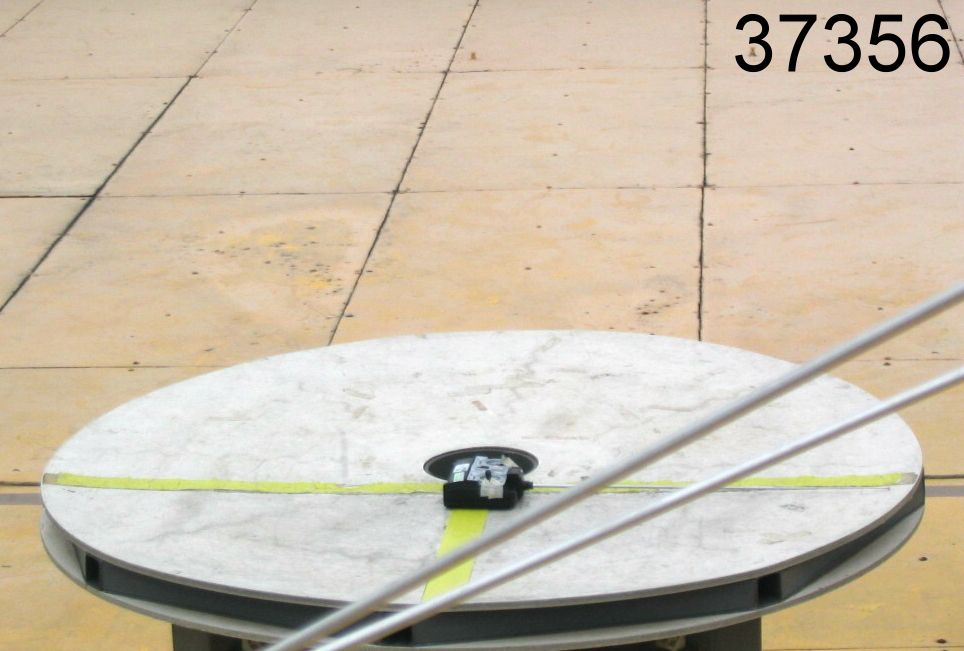

F F C C C C - - T T E E S S T T R R E E P P O O R R T T REPORT NO.: 37356/4/400F FCC – Test Report No. 37356/4/400F Date: 2004-04-07 Page 2 of 13 FCC listed testlab acc. to Section 2.948 of the FCC - Rules in compliance with the requirements of ANSI C63.4 - 1992 Product : Remote Control Car Hand Set Product Class : Low Power Communication Device Transmitter Model : PWYJT49TX60000 Brand Name : JADA Applicant : JADA TOYS COMPANY LIMITED FCC – Test Report No. 37356/4/400F Date: 2004-04-07 Page 3 of 13 TABLE OF CONTENTS 1. Cover sheet 2. Introduction 3. Table of Contents 4. Laboratory Report 5. Summary of Testresults 6. Test Equipment List 7. Radiated Emission Testprocedure (> 30MHz) 8. Radiated Emission Testprocedure (9kHz-30MHz) 9. Interference Radiation (Datasheet) 10. Interference Radiation (Datasheet) 11. Notes for Radiation Measurement (acc. to ANSI C63.4 - 1992) 12. Measurement of Emissions within Band Edges (Band Edges Plot) 13. Notes for Measurement of Emissions within Band Edges FCC – Test Report No. 37356/4/400F Date: 2004-04-07 Page 4 of 13 LABORATORY - REPORT APPLICANT: ADDRESS: JADA TOYS COMPANY LIMITED Unit 1-2 & 4-6, 9th Floor, Energy Plaza, 92 Granville Road, Tsimshatsui East, Kowloon, HONG KONG DATE OF SAMPLE RECEIVED: 2004-03-09 DATE OF TESTING: 2004-03-29 DESCRIPTION OF SAMPLE: Product:Remote Control Car Hand Set Product class:Low Power Communication Device Transmitter Brand name:JADA Model number:PWYJT49TX60000 Rating:DC 9V ('AA' Size Battery x 6) INVESTIGATIONS REQUESTED: Measurements to the relevant clauses of F.C.C. Rules and Regulations Part 15 Subpart C - Intentional Radiators RESULTS: See the attached test sheets CONCLUSIONS: From the measurement data obtained, the tested sample was considered to have COMPLIED with the requirements for the relevant clauses of Federal Communications Commission Rules as specified above. _____________________________ Authorized Signature Remark : Purpose of those tests in this report is to provide the applicant with the necessary test data of their device for the submission to FCC with application for Equipment Authorization under the FCC Equipment Authorization Program. The tests themselves are not Approval Tests FCC – Test Report No. 37356/4/400F Date: 2004-04-07 Page 5 of 13 Summary of Test Results Interference Radiation: Test result:O.K. Test data:See attached data sheet Interference Voltage: Test result:N.A. Test data:N.A. Measurement of Emissions within Band Edges Test result:O.K. Test data:See attached data sheet PHOTOGRAPH OF THE SAMPLE FCC – Test Report No. 37356/4/400F Date: 2004-04-07 Page 6 of 13 TEST EQUIPMENT LIST EquipmentManufacturerModelSerial No.Remark Test ReceiverRohde & Schwarz ESH 3863497/01510KHz – 30MHz Test ReceiverRohde & Schwarz ESVP860688/02225MHz – 1,300 MHz Artificial Mains Network (LISN) SchwarzbeckNSLK 8127-- 2 x 10A, 50Ω, 50μH 10KHz-30MHz Antenna SystemSchwarzbeckBBA 9106 / UHALP 9107 --30MHz – 1000MHz Antenna Mast System SchwarzbeckAM9104--Max. 4 meters height Spectrum Analyzer with Q. Peak Tektronix2712B0230069KHz – 1.8GHz Interface for Spectrum 2712 TektronixTD3F14A-- Loop AntennaRohde & Schwarz HFH2-Z2871336/489KHz-30MHz Test ReceiverRohde & Schwarz ESH 3892580/00610KHz – 30MHz Test ReceiverRohde & Schwarz ESVP863512/01225MHz – 1,300 MHz Impulse LimiterRohde & Schwarz ESH-3-Z2-- Antenna SystemSchwarzbeckBBA 9106 / UHALP 9107 --30MHz – 1000MHz Signal GeneratorRohde & Schwarz SWS 2879113/42100KHz – 1040 MHz Digital MultimeterTektronixDM2510GDM- 2510GTW10555 10KHz – 30MHz Turntable with Controller DrehtischDT312-- φ120 cm FCC – Test Report No. 37356/4/400F Date: 2004-04-07 Page 7 of 13 Radiated Emission Test Procedure (> 30MHz) Equipment under test (on turntable) Test receiver ESVP R & S Required test distance: 3m Antenna system Schwarzbeck BBA 9106/ UHALP 9107 FCC – Test Report No. 37356/4/400F Date: 2004-04-07 Page 8 of 13 Radiated Emission Test Procedure ( 9kHz – 30MHz) Test distance : 3 m Loop antenna HFH2-Z2 Rohde & Schwarz Equipment under test (on turntable) Test Receiver ESH3 Rohde & Schwarz 91 Interference Radiation Date: 2004-04-07 Measurement of Radiated Emissions Page: 9 of 13 Acc: FCC Part 15 Subpart C IECC Ref:37356/4/400F Test Equipment Model:PWYJT49TX60000 Receiver: ESVP Rohde & Schwarz Applicant:JADA TOYS COMPANY LIMITED Antenna: Schwarzbeck BBA 9106 and UHALP 9107 Ser.Nr.:1 Set under test:Remote Control Car Hand Set Connected sets: - Operating mode:Transmitter - Power "On" Frequency (MHz) Horz. Reading dB(μV) Vert. Reading dB(μV) Antenna Factor (dB) Horiz. Test Result dB(μV/m) Vert. Test Result dB(μV/m) Limit dB(μV/m) Peak49.86536011.7 64.771.7100.0 Av.49.8649.556.511.761.268.280.0 Harm. 299.72<16<1610.3<26.3 <26.343.5 Harm. 3149.58<16<1615.0<31.0 <31.043.5 Harm. 4199.44<16<1616.5<32.5 <32.543.5 Harm. 5249.3<16<1617.7<33.7 <33.746.0 Harm. 6299.16<16<1620.0<36.0 <36.046.0 Harm. 7349.02<16<1617.4<33.4 <33.446.0 Harm. 8398.88<16<1618.3<34.3 <34.346.0 Harm. 9448.74<16<1619.0<35.0 <35.046.0 Harm. 10498.6<16<1619.7<35.7 <35.746.0 Harm. 11548.46<16<1620.2<36.2 <36.246.0 Harm. 12598.32<16<1620.9<36.9 <36.946.0 Harm. 13648.18<16<1621.6<37.6 <37.646.0 Harm. 14698.04<16<1622.4<38.4 <38.446.0 Harm. 15747.9<16<1623.0<39.0 <39.046.0 Harm. 16797.76<16<1623.7<39.7 <39.746.0 Harm. 17847.62<16<1624.3<40.3 <40.346.0 Harm. 18897.48<16<1625.0<41.0 <41.046.0 Harm. 19947.34<16<1625.7<41.7 <41.746.0 Harm. 20997.2<16<1626.5<42.5 <42.554.0 Remark:All frequencies in the required range have been scanned and only those significant and representative readings are reported above. All emissions not reported above are all well below the limit. Note:Unless otherwise indicated, the recorded readings are in quasi-peak values. 92 Interference Radiation Date : 2004-04-07 Page: 10 of 13 Measurement of Radiated Emissions Acc: FCC Part 15 Subpart C IECC Ref:37356/4/400F Test Equipment Model:PWYJT49TX60000 Receiver: ESVP Rohde & Schwarz Applicant:JADA TOYS COMPANY LIMITED Antenna: Schwarzbeck BBA 9106 and UHALP 9107 Sample No…
