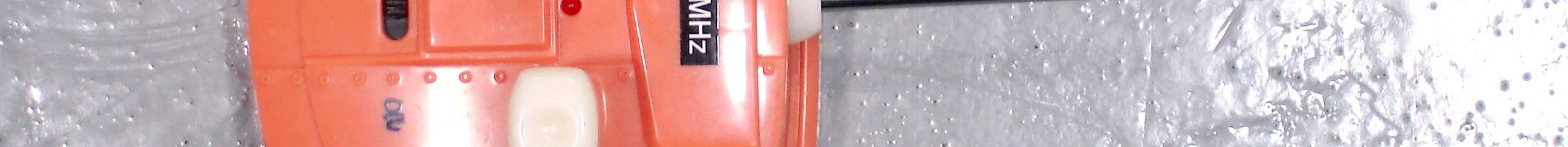

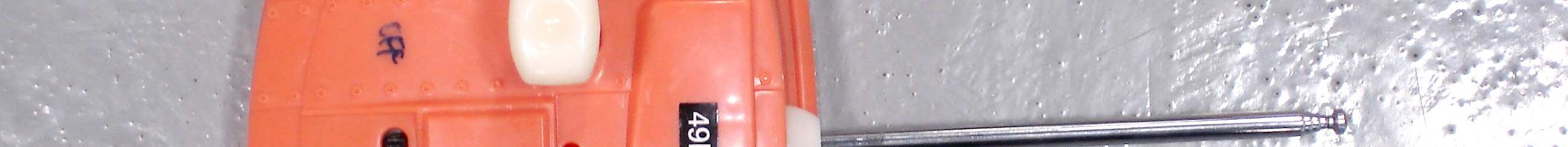

PWYJT49TX89000RC Transmitter 49 MHz

Operational Description 1:16 Dub City Big Time Muscle R/C Car IC TX2C is a remote encoder IC; it works with Q1, Q2 and other components as transmitter circuit. This unit use of an antenna (45 cm in length) to transmit the RF signal. The car will receive this RF signal by a super-regenerate circuit. Then the decoder IC (RX2C) will decode the signal to control the motor driver circuit. Power is supplied by 6x1.5V AA size batteries for CAR and 1 PC 9.0V 6F22 size battery for controller. The detail Function as below: 1. Turn the power switch of controller and car to ìONî position. 2. Press key FF: TX2C Pin9 output one forward signal, the car unit RX2C Pin11 output High level to control the move forward. 3. Press key BF: TX2C Pin9 output one back signal, RX2C Pin10 output high level to control car move back. 4. Press key R or L: TX2C Pin9 out turn right or left signal, RX2C Pin6 or Pin7 output high level to control the steering motor run to right or left.

TEST REPORT Report No. : AF024200-001 Date : 2005 October 25 Page 1 of 11 FCC ID: PWYJT49TX89000 This document shall not be reproduced either in full or in part except with written approval by the Authorized Representative of CMA Testing. Room 1302, Yan Hing Centre, 9-13 Wong Chuk Yeung St.., Fo Tan, Shatin, Hong Kong. Tel: (852) 2698 8198 Fax: (852) 2695 4177 E-mail: [email protected] Web Site: http://www.cmatcl.com Application No. : LF215944(3) Applicant : Jada Toys Co. Ltd Unit 901, 9/F., Energy Plaza, 92 Granville Road, TST East, Kowloon, Hong Kong. Sample Description : One(1) submitted sample(s) stated to be: 1:16 Dub City Big Time Muscle R/C Car of Model No. 83015 Rating : 1 x 9V size battery No. of submitted sample : Two (2) piece(s) Date Received : 2005 September 29 Test Period : 2005 September 29 – 2005 October 25 Test Requested : FCC Part 15 Certification. Test Method : FCC Rules and Regulations Part 15 – July 2004 ANSI C63.4 – 2003 Test Result : See attached sheet(s) from page 2 to 11. Conclusion : The submitted sample was found to comply with requirement of FCC Part 15 Subpart C. For and on behalf of CMA Testing and Certification Laboratories Authorized Signature : Danny Chui EMC Engineer - EL. Division TEST REPORT Report No. : AF024200-001 Date : 2005 October 25 Page 2 of 11 FCC ID: PWYJT49TX89000 This document shall not be reproduced either in full or in part except with written approval by the Authorized Representative of CMA Testing. Room 1302, Yan Hing Centre, 9-13 Wong Chuk Yeung St.., Fo Tan, Shatin, Hong Kong. Tel: (852) 2698 8198 Fax: (852) 2695 4177 E-mail: [email protected] Web Site: http://www.cmatcl.com Table of Contents 1 General Information ..................................................................................................................................3 1.1 General Description ...........................................................................................................................3 1.2 Location of the test site......................................................................................................................4 1.3 List of measuring equipment .............................................................................................................5 2 Description of the radiated emission test...................................................................................................6 2.1 Test Procedure ...................................................................................................................................6 2.2 Test Result .........................................................................................................................................6 2.3 Radiated Emission Measurement Data ..............................................................................................7 3 Description of the Line-conducted Test ....................................................................................................8 3.1 Test Procedure ...................................................................................................................................8 3.2 Test Result .........................................................................................................................................8 3.3 Graph and Table of Conducted Emission Measurement Data...........................................................8 4 Photograph.................................................................................................................................................9 4.1 Photographs of the Test Setup for Radiated Emission and Conduction Emission ............................9 4.2 Photographs of the External and Internal Configurations of the EUT ..............................................9 5 Supplementary document ........................................................................................................................10 5.1 Bandwidth........................................................................................................................................10 5.2 Duty cycle........................................................................................................................................10 5.3 Transmission time............................................................................................................................10 6 Appendices ..............................................................................................................................................11 TEST REPORT Report No. : AF024200-001 Date : 2005 October 25 Page 3 of 11 FCC ID: PWYJT49TX89000 This document shall not be reproduced either in full or in part except with written approval by the Authorized Representative of CMA Testing. Room 1302, Yan Hing Centre, 9-13 Wong Chuk Yeung St.., Fo Tan, Shatin, Hong Kong. Tel: (852) 2698 8198 Fax: (852) 2695 4177 E-mail: [email protected] Web Site: http://www.cmatcl.com Test Result : 1 General Information 1.1 General Description The equipment under test (EUT) is a transmitter for 1:16 Dub City Big Time Muscle R/C Car. Operating at 49.860MHz which is controlled by a crystal. The EUT is powered by a 9V size battery. There are two control sticks in front of the EUT. When it turns on, it will transmit different radio signal to the receiver. The brief circuit description is listed as follows : - Y1, Q1 and associated circuit act as oscillator. - Q2 and associated circuit act as RF amplifier. - U3 and associated circuit act as encoder. - C34, L4, C10 and associated circuit act as low pass fitter. TEST REPORT Report No. : AF024200-001 Date : 2005 October 25 Page 4 of 11 FCC ID: PWYJT49TX89000 This document shall not be reproduced either in full or in part except with written approval by the Authorized Representative of CMA Testing. Room 1302, Yan Hing Centre, 9-13 Wong Chuk Yeung St.., Fo Tan, Shatin, Hong Kong. Tel: (852) 2698 8198 Fax: (852) 2695 4177 E-mail: info@cmatc…

Text truncated - open the document above for the full version.

CMA Testing and Certification Laboratories Job No.: J00041607 WF-EL-EMC-15 Edition 3 2005 Mar 29 Page of Bandwidth Plot Bandwidth 1

CMA Testing and Certification Laboratories Job No.: J00041607 WF-EL-EMC-15 Edition 3 2005 Mar 29 Page of Duty Cycle Duty Cycle 1 Duty Cycle 2 CMA Testing and Certification Laboratories Job No.: J00041607 WF-EL-EMC-15 Edition 3 2005 Mar 29 Page of Duty Cycle 3
