PWYJT49TX95000RC Car

Changes or modifications to this unit not expressly approvedby the party responsible for compliance could void the user'sauthority to operate the equipment. Industry Canada Warning:1) Carrier frequency: 49.860 MHz, Field strength: 64.6 dBuV/mat3m2) Operation is subject to the following two conditions: (1) thisdevice may not cause interference, and (2) this device mustaccept any interference, including interference that may causeundesired operation of the device3)This Category II radiocommunication device complies withIndustry Canada Standard RSS-310.Ce dispositif de radiocommunication de catégorie II respecte lanorme CNR-310 d'Industrie Canada.

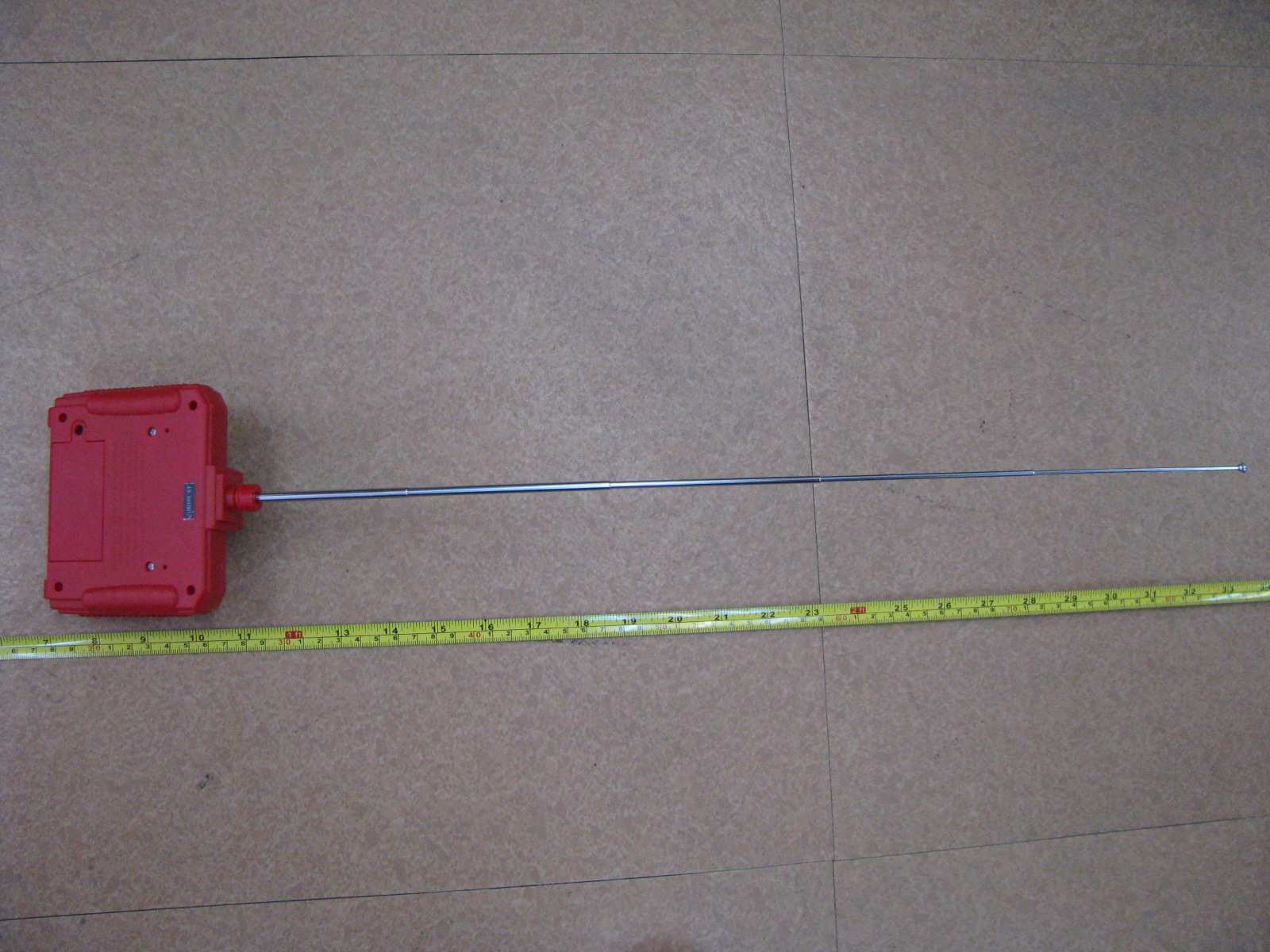

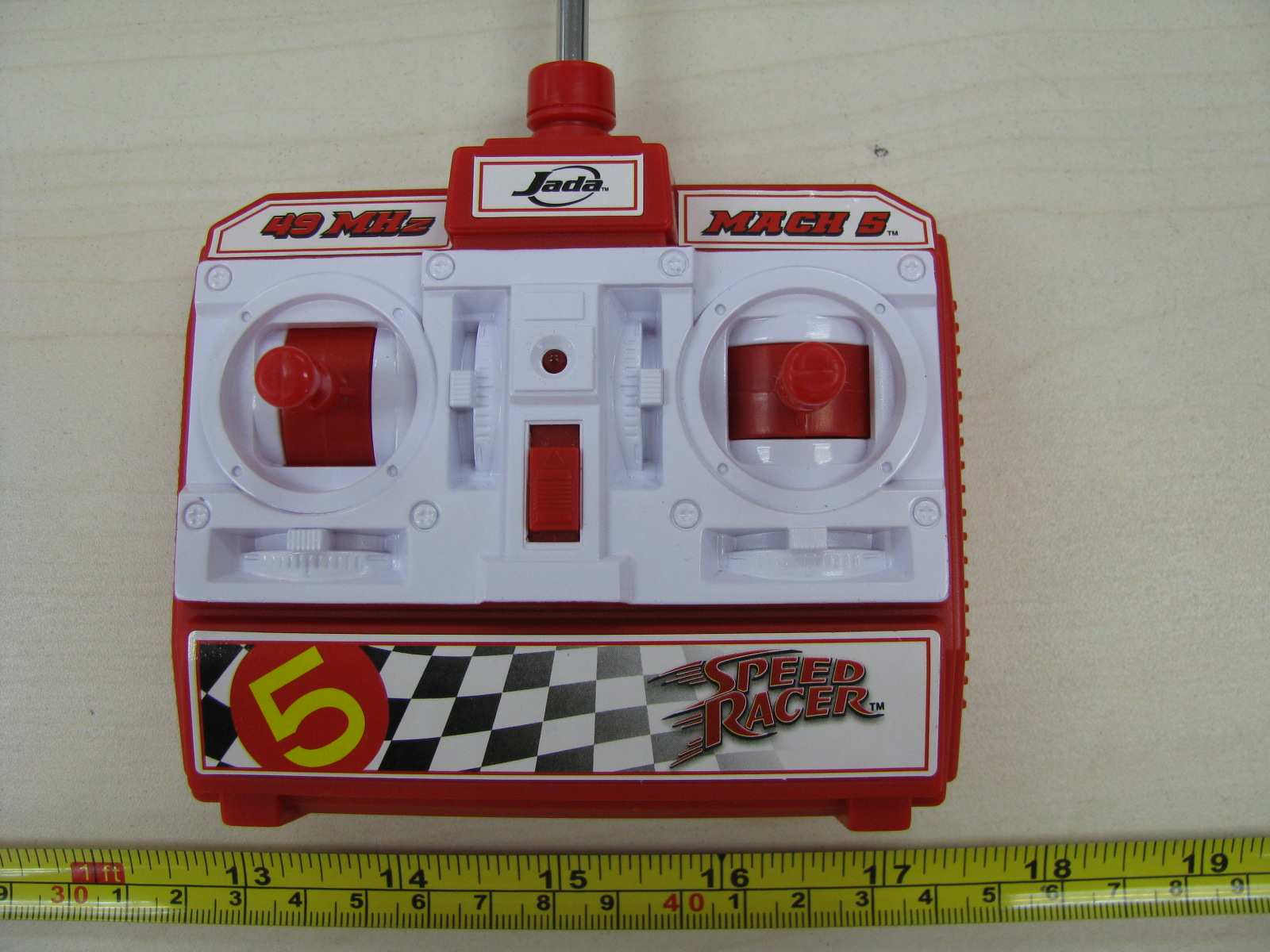

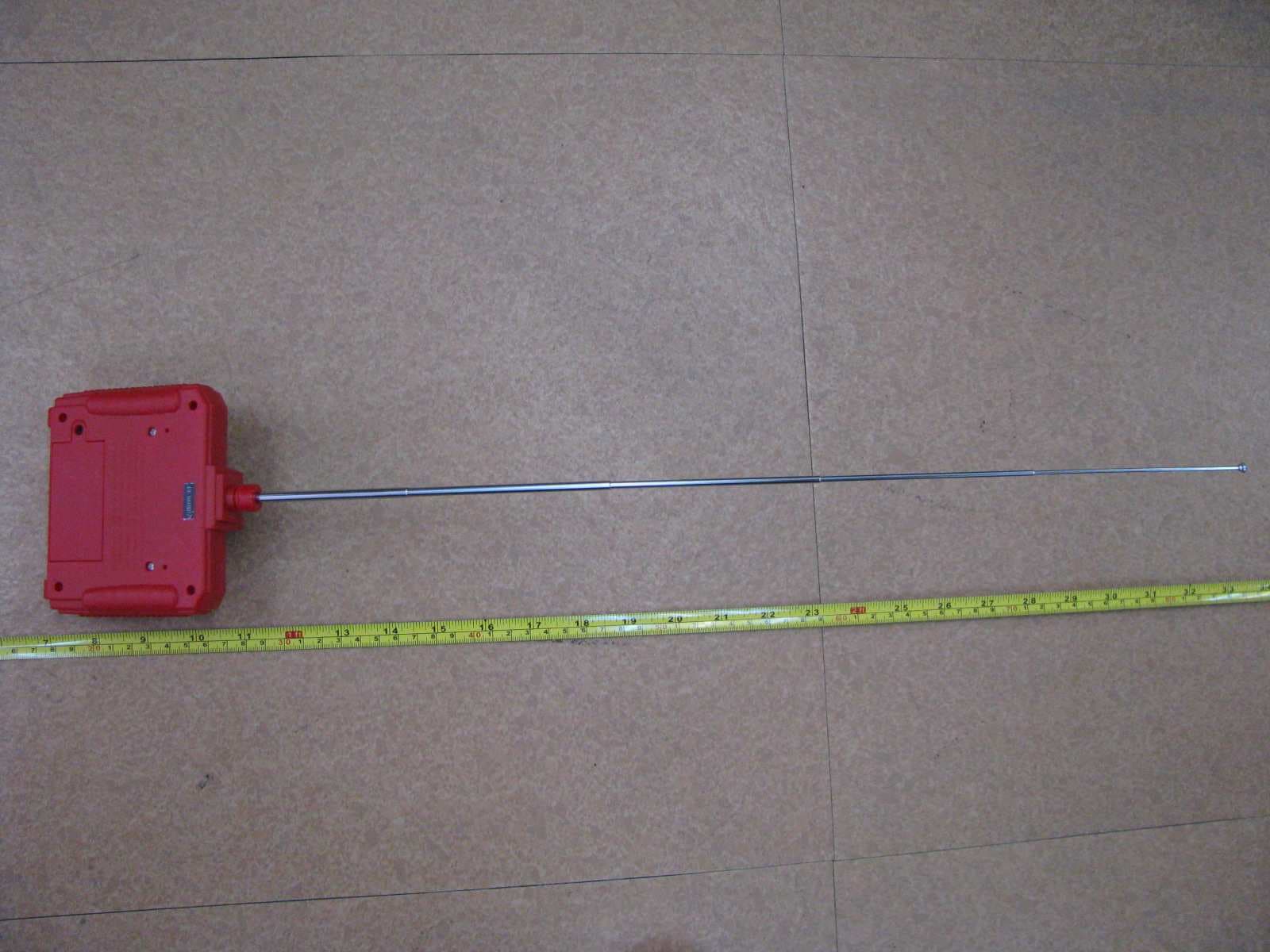

External Photos

Internal Photos

Circuit Description Description Function Component Antenna transmit modulated RF signal Ant Low Pass Filter suppression of spurious emissions C7, C8, L3 RF Power Amplifier and Modulator modulate the carrier and amplify the modulated RF signal Q2 Oscillator generate 49.86 MHz carrier Y1, Q1 Encode IC generate code signal to modulator IC1 Type of antenna: Telescope-type antenna with unique antenna connector

1 2 34 ABCD 4 3 2 1 D CBA Y1 49.860MHz Q1 945 Q2945 R3240K R4 300 R5 22K R2 470 C6 101 C5 47 C3 18 C2 104 C1 104 D1 3.9V R1 240K k1 LR B F +9V ANT C847 C7 101 12345678 9101112 1314 IC1 L2 1.0uH L1 1.0uH L3 1.8uH D2 LED R6 2.2K C2 104 C6 101 1 1 10 12-August-2007 01 Product serial number: Sanction: Design: Product name: Painting: Paper number: Date: Frequency: A4 Edition number: Time: Sheet of 91835 49.860MHz SCTX2B

FCC ID : PWYJT49TX95000 January 09 2008 Jada Toys Company Limited 92 Granville Road, Unit 901, 9F, Energy Plaza TST East, Kowloon, Hong Kong Dear Thomas Poon, Enclosed you will find your file copy of a Part 15 Certification (FCC ID: PWYJT49TX95000). For your reference, review normally take 1 week. Approval will then be granted when no query is sorted. Please contact me if you have any questions regarding the enclosed material. Sincerely, Shawn Xing Assistant Manager Enclosure • The test results reported in this test report shall refer only to the sample actually tested and shall not refer or be deemed to refer to bulk from which such a sample may be said to have been obtained. • This report shall not be reproduced except in full without prior authorization from Intertek Testing Services Shenzhen Ltd. Guangzhou Branch • For Terms And Conditions of the services, it can be provided upon request. • The evaluation data of the report will be kept for 3 years from the date of issuance. Intertek Testing Services Shenzhen Ltd. Guangzhou Branch 1~8th floor, Block E2, 11 Cai Pin Road, Science city, Guangzhou Economic Development Zone, Guangzhou, P. R. China Tel: (8620) 8213 9688 Fax: (8620) 3205 7538 FCC ID : PWYJT49TX95000 Jada Toys Company Limited Application For Certification (FCC ID: PWYJT49TX95000) Transmitter Sample Description : Speed Racer Mach Model : 91835 We hereby certify that the sample of the above item is considered to comply with the requirements of FCC Part 15, Subpart C for Intentional Radiator, mention 47 CFR [20-9-2007] GZ07120861-1 Louisa Lu January 09 2008 INTERTEK TESTING SERVICES FCC ID: PWYJT49TX95000 i LIST OF EXHIBITS INTRODUCTION EXHIBIT 1: General Description EXHIBIT 2: System Test Configuration EXHIBIT 3: Emission Results EXHIBIT 4: Equipment Photographs EXHIBIT 5: Product Labelling EXHIBIT 6: Technical Specifications EXHIBIT 7: Instruction Manual EXHIBIT 8: Miscellaneous Information INTERTEK TESTING SERVICES FCC ID: PWYJT49TX95000 ii MEASUREMENT/TECHNICAL REPORT Jada Toys Company Limited - MODEL: 91835 FCC ID: PWYJT49TX95000 January 09 2008 This report concerns (check one:) Original Grant X Class II Change Equipment Type: Low Power Transmitter (example: computer, printer, modem, etc.) Deferred grant requested per 47 CFR 0.457(d)(1)(ii)? Yes No X If yes, defer until: date Company Name agrees to notify the Commission by: date of the intended date of announcement of the product so that the grant can be issued on that date. Transition Rules Request per 15.37? Yes No X If no, assumed Part 15, Subpart C for intentional radiator − the new 47 CFR [09-20-07 Edition] provision. Report prepared by: Shawn Xing Intertek Testing Services Shenzhen Ltd. Guangzhou Branch 1~8th floor, Block E2, 11 Cai Pin Road, Sciencecity, Guangzhou Economic Development Zone, Guangzhou, P. R.China. Phone: (8620) 8213 9688 Fax: (8620) 3205 7538 INTERTEK TESTING SERVICES FCC ID: PWYJT49TX95000 iii Table of Contents 1.0 General Description................................................................................................ 2 1.1 Product Description ............................................................................................. 2 1.2 Related Submittal(s) Grants................................................................................. 2 1.3 Test Methodology ................................................................................................ 3 1.4 Test Facility ......................................................................................................... 3 2.0 System Test Configuration..................................................................................... 5 2.1 Justification.......................................................................................................... 5 2.2 EUT Exercising Software ..................................................................................... 5 2.3 Special Accessories ............................................................................................ 5 2.4 Equipment Modification ....................................................................................... 6 2.5 Measurement Uncertainty.................................................................................... 6 2.6 Support Equipment List and Descripition ............................................................ 6 3.0 Emission Results .................................................................................................... 8 3.1 Field Strength Calculation .................................................................................... 9 3.1 Field Strength Calculation (cont’d) ..................................................................... 10 3.2 Radiated Emission Configuration Photograph .................................................... 11 3.3 Radiated Emission Data .................................................................................... 12 4.0 Equipment Photographs....................................................................................... 15 5.0 Product Labelling.................................................................................................. 17 6.0 Technical Specifications....................................................................................... 19 7.0 Instruction Manual ................................................................................................ 21 8.0 Miscellaneous Information.................................................................................. 23 8.1 Measured Bandwidth......................................................................................... 24 8.2 Discussion of Pulse Desensitization................................................................... 25 8.3 Calculation of Average Factor ............................................................................ 26 8.4 Emission Test Procedures ............................................................................... 27 INTERTEK…

Text truncated - open the document above for the full version.

Radiated Emission Photos
