PWZDC0011Door Chime Receiver

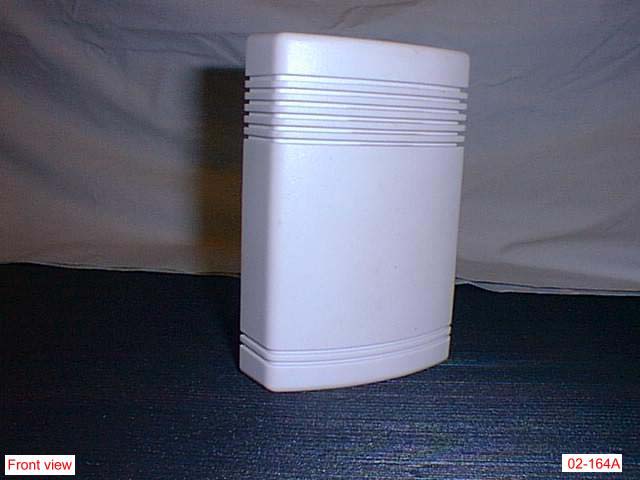

Front of Unit Rear of Unit

Front of PCB Back of PCB

Description of operation The unit receives the 315 MHz signal and then a low pass amplifier will extract the code on the 315 MHz signal. The decoder IC compares the code with the setting code of dip-switch then sends a interrupt signal to the micro-processor if they had the same code. Once the micro-processor received the interrupt signal will output a analog melody to make the bell sound.

RF Emissions Test Report To Determine Compliance With: FCC, Part 15 Rules and Regulations Model number: DC0011 November 4, 2002 Manufacturer: All-Line Taipei 9FL., No. 102 Kuang Fu South Rd. Taipei, Taiwan EMC Testing Laboratories, Inc. authorizes the above company to reproduce this report provided it is reproduced in its entirety EMC Testing Lab. (770) 781-9228 Test report no. 02-164A Page 2 2 of 1 1 3 3 Contents Section General Information ....................................................................... 1 Test Summary.................................................................................. 2 Standard Reference ........................................................................ 3 Test Method .......................................................................... 4 Radiated Emissions Measurements ................................................ 5 EMC Testing Lab. (770) 781-9228 Test report no. 02-164A Page 3 3 of 1 1 3 3 Section 1 General Information Manufacturer: All-Line Taipei 9FL., No. 102 Kuang Fu South Rd. Taipei, Taiwan Manufacturer representative: Mr. Orson Ou Equipment covered by this report: Model no. DC0011 Options covered by this report: None Equipment serial no. Prototype Test specifications: To determine compliance with: FCC, Part 15, Subpart B Rules and Regulations, Class B Test report number: 02-164A Test commenced: July 1, 2002 Test completed: July 1, 2002 Test engineer: Kent Stewart Test Facility: The test facility used to perform these tests is on file with the FCC under file 31040/SIT, 1300F2 and located at: EMC Testing Laboratories, Inc. 2420 Oak Street West Cumming, GA. 30041-6456 EMC Testing Lab. (770) 781-9228 Test report no. 02-164A Page 4 4 of 1 1 3 3 Section 2 Test report summary sheet 1 of 2 Summary: Tests Results FCC, Part 15, Class B, Radiated emissions: Pass FCC, Part 15, Class B, Conducted emissions: N/A 1- The product(s) covered by this report was found to comply with the Class B radiated and conducted emission limits of the FCC, Part 15, Subpart B Rules and Regulations. 2- The minimum margin of compliance was –1.8 dBμv/m at 936.0 Mhz followed by –5.9 dBμv/m at 314.5 Mhz. 3- The test results apply only to the products identified on the test report. 4- The conducted emissions measurement was considered unnecessary since the product has no means for connection to public mains. Product description: The product(s) covered by this report consisted of a model DC0011 receiver, which is intended for receiving a signal from a wireless door bell transmitter. The unit was set to receive data at 314.5 Mhz. The unit is powered by 3 “C” cell alkaline batteries. The enclosure is constructed of plastic with overall dimensions measuring 13.3cm tall by 8.9cm wide by 3.5cm deep and house’s the following components: 1- A printed wiring board manufactured by All-Line Taipei, part number DC0011. Test configuration: The Equipment Under Test (EUT) was set-up and configured as specified by the manufacturer as follows: 1- The EUT was connected to the following support peripherals. A) None Section 2 cont... EMC Testing Lab. (770) 781-9228 Test report no. 02-164A Page 5 5 of 1 1 3 3 Test report summary sheet 2 of 2 2- The EUT utilized the following cables and were connected as indicated below: A) None Test operation: For all measurements, the equipment under test was caused to function in a continuous mode of operation for maximum electrical activity as specified by the manufacturer. Specifically, the EUT was powered on and waiting to receive. Modifications: The following modifications were required to comply with the indicated limits: 1- None Engineering Statement: All measurement data, of this test report, was taken in accordance with the FCC, Part 15, Subpart B Rules and Regulations and ANSI C63.4-1992 by EMC Testing Laboratories, Inc., located in Cumming, Georgia. Although this data is taken under stringent laboratory conditions and to the best of our knowledge, represents accurate data, it must be recognized that emissions from or immunity to this type equipment may be greatly affected by the final installation of the equipment. Therefore, EMC Testing Laboratories, Inc., while supporting the accuracy of the data in this report, takes no responsibility for use of equipment based on these tests. The manufacturer of this equipment must take full responsibility for any field problems which may arise, and agrees that EMC Testing Laboratories, Inc., in performing its functions in accordance with its objectives and purposes, does not assume or undertake to discharge any responsibility of the manufacturer to any other party or parties. Conclusion: With the above indicated modifications, the product(s) covered by this report has been tested and found to comply with the limits for a Class B device in accordance with the FCC, Part 15, Subpart B Rules and Regulations. Tested by: Reviewed by: Kent Stewart Gene J. Bailey Laboratory Manager Engineering Manager EMC Testing Laboratories, Inc. November 4, 2002 EMC Testing Lab. (770) 781-9228 Test report no. 02-164A Page 6 6 of 1 1 3 3 Section 2 cont... This page intentionally left blank. (Reserved for future use) EMC Testing Lab. (770) 781-9228 Test report no. 02-164A Page 7 7 of 1 1 3 3 Section 3 STANDARD REFERENCE The following primary standards were used for this test: 1) ANSI C63.4-1992: Method of Measurements of Radio-Noise Emissions from Low- Voltage Electrical and Electronic Equipment in the 9 Khz to 40 Ghz. 2) US Code of Federal Regulations (CFR) (1998): Title 47, Part 15, Radio Frequency Devices, Subpart B, Unintentional Radiators. EMC Testing Lab. (770) 781-9228 Test report no. 02-164A Page 8 8 of 1 1 3 3 Section 4 TEST METHOD INTRODUCTION: The product(s) covered by this report were subjected to electromagnetic interference emissions measurements to determine compliance with the FCC, Part 15 requirements. Radiated and conducted emissions were measured in accordance with Methods of Measurement of Radio-Noise Emis…

Text truncated - open the document above for the full version.

Front View of Setup Rear View of Setup
