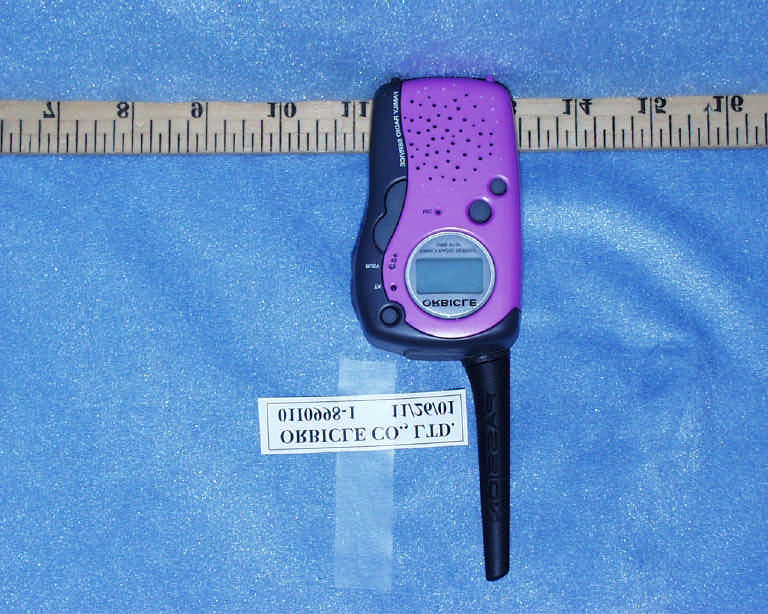

PX4ORB-R15FFamily Radio Service Transceiver

Cautions The Users who will use our FRS should be recommended to read below first, and observe following guidelines : - To maintain compliance with the FCC’s RF exposure guidelines, hold the transmitter and antenna at least 2 inches (5 cm) away from your face, and speak in a normal voice. Point the antenna up and away from your face. - supplied belt clip for this product and when transmitting, take it out of the belt to ensure that the antenna is at least 1 inch (2.5 cm) from the body. - damage the transmitter and may violate FCC regulations. Your New RADIO(ORB-R15F) ORBICLE'sORB-R15F operate on Family Radio Service(FRS) designated frequencies. This license-free, short range, two-way radio service was established specifically for family and group recreational use. Use of this radio outside the country where it was intended to be distributed is subject to government regulations and may be prohibited. Batteries ORB-R15Fradios operate with 4 AAAalkaline batteries providing approximately 35hours of use. That is almost 5 hours of talk and over 30 hours of standby time. To Install 1. Above all, Power off with radio. 2. Remove belt clip on back cover and cover pull down. 3. Insert 4 AAAbatteries as well-fitting polarity. 4. Shut a cover and Power on. To Communicate ORB-R15F two-way radios have 14 channels. To communicate with others, all radios in your group must be set to the same channel. Turn The Radio On : 1. A Long press the POWER Button. Radio will beep and LED Indicator Light will flash to confirm. The display will show current channel and code. 2. To turn radio off, long press the POWER Button, Again. You can hear a beep and display disappears. Monitor Button The Monitor[mon] button lets you hear the radio's volume level when you are not receiving so you can adjust the volume. It is also used to check activity on current before transmitting. Adjust The Volume Press Volume buttonknob, you reach a comfortable listening level. Press the Button Up to increase and Downto decrease volume. Set The Channel 1. With radio on, press the Function Button, Current Channel (88) will begin to flash. 2. Press Up/DownButton to change channel while flashing. 3. Press PTTbutton or Functionbutton after set new channel. Set The Tone Code 1. With radio on, press the Function Button, Current Channel (88-small size) will begin to flash. 2. Press Up/DownButton to change code while flashing. 3. Press PTTbutton or Functionbutton after setting new code. Function The PTT(Transmission) 1. Transmit the signal and turn on the red color LED while press the PTTButton. 2. Change the stand-by mode if set free the PTTButton. Call Tone The Call Tone gets other's attention before you start talking. Press PTTButton two times continuous and users on your channel will hear your Call Beep. PASSION has 5 Call beep. Set The Call Tone 1. With the radio on, press FunctionButton. Current Call Beep will begin to flash [C 01]. 2. Use Up/Down Button to change and hear Call Beep while flashing. 3. Press FunctionButton to set new Call Beep. Function The Monitor 1. Press Monitor(MON)Button and hear all signal of receiving in set channels while turn on the green color LED. 2. Keep Monitor Mode without press button while press 5 second continuously. 3. Set free after press MONButton one time. Lock Button Just turn on the menu lock by pressing the ScanButton for three seconds. Now you'll see a lock on the display. You can turn off the menu lock by pressing the Scan Button for three seconds again. Lamp Button Press MONButton one time, turn on the LCD back-light for three seconds. If press Button of up/down, Function, scan, etc and turn on the LCD back-light too. Battery Meter The Battery Meter, located on the front display, is divided into three bars. As power is used, the bars will disappear. 1. Flash empty battery icon, you must change batteries. 2. The meter will not work accurately with rechargeable batteries. Note : Remove batteries before storing your radio for extended periods. Batteries corrode over time and may cause permanent damage to your radio. External Speaker / Mic ORB-R15Fhas a External Ear / Micjack. (option) How to Special Function Scan 1. Just change scan mode as press ScanButton one time, will see [scan] icon on the front display. You can release scan mode as press ScanButton one time again. 2. Stop scanning in use channel if importing signal during scan channel. disappear signal in channel, stay for three seconds and scanning channel again. VOX You can transmit without press PTTButton and can use with external mic. Power on pressing PTTButton, turn on VOXmode and you'll see VOX icon on display. 1. Set the Sensitivity of VOX: Display [VoLo] or [VoHi] in VOX Sensitivity mode, set press channel up/downbutton to [Lo / Hi]. In High sensitivity state, work more closely in even weak sound. You can store sensitivity setting by PTTButton one time shortly at that state. 2. For releasing VOX mode, Power on without pressing any button again. Specifications General Frequency Range(Option) ------- 462.562MHz ~ 467.7125MHz Distance Range ------------------- 3Km avg Step -------------------------------- 12.5KHz T-SQ Channel -------------------- 38 Tones Voltage Operation ---------------- DC 4.8V ~ 6V Temperature ---------------------- -10C ~ 50C Transmitter ----------------------- CRYSTAL CONTROLLED PLLSYNTHESIZER Receiver -------------------------- SUPERHETERODYNESYSTEM Dimension ------------------------ H-94mm, W-47mm, D-30.5mm Weight ---------------------------- 98g(Battery Excluded) Power Supply -------------------- AAA size(1.5V) 4pcs Transmitter OUTPUT POWER--------------- 500mW Frequency Stability ------------- 2.5PPm Modulation ----------------------- F3E Deviation Maximum------------- 2.5KHz Distortion ------------------------- 5% CTCSS Modulation ------------- 0.5KHz Receiver Sensitivity --------------------------- 0.25V Selectivity --------------------------- -60dB Adjacent Channel ------------------ -60dB Signal & Noise -------…

Text truncated - open the document above for the full version.

From: Denise Teng Sent: Monday, December 17, 2001 11:56 AM To: Mike Kuo Cc: CLIENT ADVOCATES; Scott Wang; Steve Cheng; Kerwin Corpuz Subject: RE: ORBICLE CO., LTD, FCC ID:PX4ORB-R15F, AN01T1690 Hi Mike, Please disregard the previous email. Please see the attachment. Thanks! regards, -----Original Message----- From: Mike Kuo Sent: Tuesday, December 11, 2001 4:05 PM To: Denise Teng Cc: CLIENT ADVOCATES; Scott Wang; Steve Cheng; Kerwin Corpuz Subject: RE: ORBICLE CO., LTD, FCC ID:PX4ORB-R15F, AN01T1690 Dear Denise and Steve: Your answer to my question #1 is not acceptable. Please provide test data. M.Kuo -----Original Message----- From: Denise Teng Sent: Tuesday, December 11, 2001 10:12 AM To: Mike Kuo Cc: CLIENT ADVOCATES; Scott Wang; Steve Cheng; Kerwin Corpuz Subject: RE: ORBICLE CO., LTD, FCC ID:PX4ORB-R15F, AN01T1690 Hi Mike, Q1: No (as Steve told you) Q2: Steve will get back to you later today. Q3: Please see attachment. Thanks! regards, Denise -----Original Message----- From: Mike Kuo Sent: Monday, December 03, 2001 4:32 PM To: Steve Cheng; Kerwin Corpuz Cc: CLIENT ADVOCATES; Scott Wang Subject: FW: ORBICLE CO., LTD, FCC ID:PX4ORB-R15F, AN01T1690 -----Original Message----- From: CERTADM Sent: Monday, December 03, 2001 4:31 PM To: '[email protected]' Subject: ORBICLE CO., LTD, FCC ID:PX4ORB-R15F, AN01T1690 Notice_content ------------- Question #1:This device is equipped with low pass filer as indicated in the theory of opeation. Please provide test data in compliance with 95.637(b) requirements. Question #2: Please provide and justify emission designator by using Carson rules. Question #3: There is RF exposure information included in the user manual. Please provide revised user manual. Best Regards Mike Kuo / TCB Certifier The items indicated above must be submitted before processing can continue on the above referenced application. Failure to provide the requested information within 60 days of the original e-mail date may result in application dismissal and forfeiture of the filing fee. Also, please note that partial responses increase processing time and should not be submitted. Any questions about the content of this correspondence should be directed to the e-mail address listed below the name of the sender.

PROPOSED FCC ID LABEL AND LOCATION FCC ID LABEL ORBICLE CO., LTD This device complies with Part 95 of FCC rules. FCC ID: PX4ORB-R15F

Theory of Operation 1. PLL Frequency Synthesizer PLL Frequency synthesizer is composed with X2 which is crystal oscillator, VCO which is voltage control oscillator, Phase Comparer, Pre-scaler, U1 (PLL IC) which is embedded programmable divider, and RC LPF(low-pass filter). This PLL Frequency synthesizer is designed to generate the setting frequency according to the control of CPU. 1-1) X-TAL Oscillator The frequency of X2(X-TAL Oscillator) is used for the reference frequency of U1(PLL IC), also is used for the local frequency of U2(IF IC). 1-2) PLL IC PLL IC(U1) is controlled by CPU, and receives the transmitting/receiving frequency data per each channel which is memorized to EEPROM through CPU. U1 divide the VCO oscillation frequency which is received in Pin 16 of U1 by Prescaler and Programmable Divider, and then compares the phase with reference frequency, at this time the frequency is determined. The output detected from the internal Phase Comparer, via Pin14 of U1, is transmitted to the “C53, R35, C54, R36, and C55”that is PLL LPF, and finally generates DC voltage to adjust the VCO output frequency wanted. 1-3) PLL Lock Detector Internal Phase Comparer of PLL IC(U1) compares the frequency and phase which is loaded from the Reference signal and the signal from VCO, and via the Pin14 of U1, output the differential DC voltage which is the difference of two signal. This DC voltage is loaded to the VCO, and finally the VCO frequency is changed. Above series of operation is repeated continuously and the frequency is to be set to the frequency wanted. The frequency stability at this time, is to be same with the stability of X2, and this status is called as “Locked”. 1-4) Voltage Control Oscillator (VCO) VCO has the “transmitting/receiving Voltage Control Oscillator” which is adjusted by the DC voltage that comes from PLL LPF. Local Oscillation Frequency is determined by C58, C60, L16, C65, C66, D8, and VC2, and transmitting / receiving is switched by Q10. The frequency is oscillated and amplified at Q8, and Q9, when receiving, the receiving local oscillation frequency is loaded to the Mixer Q6, and when transmitting, the transmitting return frequency is loaded to the Q4 (TX amplification Driver) 2. Receiving Part 2-1. Transmitting/Receiving change switching circuit The signal received from the antenna, via the LPF(low pass filter) composed with L1~L3, C1, C2, C3, C4 and C5, is loaded to the “Transmitting/Receiving change switching circuit”. By the D1 (transmitting change switching Diode) is to be off, via L19, received signal is transmitted to the foregoing Band-Pass-Filter which is located before the receiving part. 2-2. Front-End Front-End is composed two SAW (Surface Acoustic Wave) Filter and one LNA (Low Noise Amplifier). 2-3. 1st Mixer Mixer Q6 is “RF AMP TR”, add the VCO local signal with the received signal which is received from input BASE, load the added signal to the EMITTER, enforce the non-linear operation of amplifier, generate co-modulation frequency between the receiving signal frequency of COLLECTOR and Local signal frequency, and the one of them is the 1 st medium frequency signal (21.7 MHz). 2-4. MCF (Monolithic Crystal Filter) MCF is a input/output matching circuit of FL3, is the BPF which have high selectivity. MCF has very narrow band-pass width of 3.75, and the function that eliminating the ripple among the band- pass width, also MCF meet the attenuation characteristic of Stop Band. Among various signal generated from 1 st Mixer, MCF select IF 21.7 MHz signal, and suppress other signal unwanted. 2-5. IF Amp Q7 amplifies the amount that the loss of MCF and the Gain which is needed afterward circuit, and load the 21.7 MHz IF Signal to the Mixer Input Pin16 of the narrow-band Fm IF IC U2. 2-6. IF IC 2 nd Mixer, IF AMP, Osc., FM Detection, Noise Squelch, and RSSI circuit is embedded on the IF IC U2. By the mixing with “1 st IF signal 21.7 MHz of internal 2 nd Mixer in IF IC” and “2 nd local frequency 21.25 MHz of X2 that is connected to Pin1”, IF IC generates 2 nd IF signal 450 kHz. Via Pin3, this 450 kHz signal is loaded to 450 kHz Ceramic Filter FL4, filtered, and then is loaded again to the 2 nd IF AMP(450 kHz) PIN 5, and then finally this 450 KHz signal is amplified. 450 KHz IF AMP transmit the signal that have sufficient Gain to the internal Detector circuit, and demodulate the signal. The demodulation type is a quadrature detector type, the demodulation is conducted by Resonator X3 that is connected to the IC Pin8, and the Audio Signal is transmitted to the Pin9 through internal LPF. Among the detected output, first the noise ingredient is loaded to the Pin8 (which is Internal Filter input terminal) of U2. By R29, R28, R27, C38, C39, and C37, this loaded Noise is amplified and frequency bandwidth is limited. The Squelch Operation is controlled by the changing of noise quantity in “Noise Comparer Section” of U2. If the Squelch is in open status, SQ Detector terminal Pin13 of U2 is loaded to CPU with the Logic High State, and make the CPU output the signal that release the Signal Mute and Audio Mute. If the Squelch is in close status, SQ Detector terminal Pin13 of U2 is loaded to CPU with the Logic Low State, and make the CPU can not output the signal that release the Signal Mute and Audio Mute. 2-7. Audio High-pass Bandwidth Filter and Audio Amplifier Demodulated Audio signal is passed the De-Emphasis circuit which has –6 dB/OCT characteristic, and the high-pass bandwidth is attenuated that is emphasized at TX, and finally the signal is changed to flat frequency response characteristic. The Audio Signal is loaded to Pin17 of U5, and is adjusted with appropriate level, and is transmitted to the Audio last AMP U7 Pin 2. The amplified Audio signal is outputted to U7 Pin5 , and then via External Speaker Jack J2A, and drive the internal Speaker. (Nominal output is larger than 0.25) Belonging to the varying of the voltage of Pin6 in U7 by Q19, and Q20, the Audio Mute is co…

Text truncated - open the document above for the full version.

Tune-up Procedure 1. PLL VCO Part Connect Voltage meter to the TP terminal(C54+), adjust VC2 that receiving voltage is to be 1.0V at 1 st channel (462.5625 MHz). At this time, the transmitting Voltage should be in 1.0 ~ 1.5V range. 2. Receiving Part (Measurement Frequency : 462.5625MHz) 1) Set the SSG with “the channel frequency to be 462 467MHz, Signal Voltage of 1mV, 1KHz to be 1.5 KHz FM modulation”, and then connect the SSG to the Antenna Jack. 2) Connect Oscilloscope to the DET terminal of J2, check that Vp-p is the maximum status, and then up and down the “Volume Adjust Knob”, make the wave to be the square wave(0.5~ 0.7V) 3. Transmitting Part (Measurement Frequency : 462.5625MHz) 1) Adjust finely the VC1 that the frequency is to be accurate transmitting frequency. 2) Set the VR1 to the maximum position(counter clockwise), load 1.0 KHz, –20dBm (which don’t have the tone) to the MIC+ terminal, and then adjust VR1, make the frequency deviation to be 2.1 KHz. 3) Load TONE 67Hz(CTCSS), check that the frequency deviation is below than 0.6 ~ 0.7KHz. 4) When modulating “the 1KHz Audio signal and the signal which has tone”, check that the value is less than 2.5KHz.

. FCC CFR47 PART 95 REQUIREMENT CERTIFICATION REPORT FOR FAMILY RADIO SERVICE TRANSCEIVER MODEL: ORB-R15F FCC ID: PX4ORB-R15F REPORT NUMBER: 01I0998-1 ISSUE DATE: NOVEMBER 26, 2001 Prepared for ORBICLE CO., LTD. 3MA 201, SHIWA INDUSTRIAL COMPLEX #1374 JUNG WANG, SIHUNG-SI, KYONGGI-DO KOREA Prepared by COMPLIANCE ENGINEERING SERVICES, INC. 561F MONTEREY ROAD, MORGAN HILL, CA 95037, USA TEL: (408) 463-0885 REPORT NO: 01I0998-1 DATE: NOVEMBER 26, 2001 FCC ID: PX4ORB-R15F EUT: FRS DEVICE Page 2 of 53 COMPLIANCE CERTIFICATION SERVICES DOCUMENT NO: CCSUP4031C 561F MONTEREY ROAD, MORGAN HILL, CA 95037 USA TEL: (408) 463-0885 FAX: (408) 463-0888 This report shall not be reproduced except in full, without the written approval of CCS. This document may be altered or revised by Compliance Certification Services personnel only, and shall be noted in the revision section of the document. TABLE OF CONTENTS 1. VERIFICATION OF COMPLIANCE...........................................................................3 2. GENERAL INFORMATION..........................................................................................4 2.1. PRODUCT DESCRIPTION......................................................................................4 2.2. MEASURED CHARACTERISTICS OF EUT..........................................................4 2.3. TEST METHODOLOGY..........................................................................................5 2.4. TEST FACILITY.......................................................................................................5 2.5. ACCREDITATION AND LISTING.........................................................................5 2.6. MEASURING INSTRUMENT CALIBRATION.....................................................5 3. REQUIREMENTS OF PROVISION.............................................................................6 3.1. GENERAL TECHNICAL REQUIMENTS...............................................................6 3.2. LABELING REQUIREMENT..................................................................................6 3.3. USER INFORMATION.............................................................................................6 4. OUTPUT POWER MEASUREMENT..........................................................................7 4.1. PROVISION APPLICABLE......................................................................................7 4.2. MEASUREMENT PROCEDURE.............................................................................7 4.3. OUTPUT POWER TEST EQUIPMENT.................................................................11 4.4. MEASUREMENT RESULT....................................................................................11 5. MODULATION CHARACTERISTICS......................................................................12 5.1. PROVISIONS APPLICABLE.................................................................................12 5.2. MEASUREMENT METHOD..................................................................................12 5.3. MEASUREMENT INSTRUMENT.........................................................................13 5.4. MEASUREMENT RESULT....................................................................................14 6. EMISSION BANDWIDTH............................................................................................19 6.1. PROVISIONS APPLICABLE.................................................................................19 6.2. MEASUREMENT METHOD..................................................................................19 6.3. MEASUREMENT INSTRUMENT.........................................................................20 6.4. MEASUREMENT RESULT....................................................................................20 7. FIELD STRENTH OF SPURIOUS EMISSION.........................................................26 7.1. PROVISIONS APPLICABLE.................................................................................26 7.2. MEASUREMENT PROCEDURE...........................................................................27 7.3. MEASUREMENT INSTRUMENT.........................................................................30 7.4. MEASUREMENT RESULT....................................................................................31 8. FREQUENCY STABILITY MEASUREMENT.........................................................33 8.1. PROVISIONS APPLICABLE.................................................................................33 8.2. MEASUREMENT METHOD..................................................................................33 8.3. MEASUREMENT INSTRUMENT.........................................................................35 8.4. MEASUREMENT RESULT....................................................................................36 9. APPENDIX.....................................................................................................................37 REPORT NO: 01I0998-1 DATE: NOVEMBER 26, 2001 FCC ID: PX4ORB-R15F EUT: FRS DEVICE Page 3 of 53 COMPLIANCE CERTIFICATION SERVICES DOCUMENT NO: CCSUP4031C 561F MONTEREY ROAD, MORGAN HILL, CA 95037 USA TEL: (408) 463-0885 FAX: (408) 463-0888 This report shall not be reproduced except in full, without the written approval of CCS. This document may be altered or revised by Compliance Certification Services personnel only, and shall be noted in the revision section of the document. 1. VERIFICATION OF COMPLIANCE Inspection Institution: COMPLIANCE ENGINEERING SERVICES INC. 561F MONTEREY ROAD, MORGAN HILL, CA 95037, USA TEL: (408) 463-0885 FAX: (604) 463-0888 Applicant: ORBICLE CO., LTD Manufacturer: ORBICLE CO., LTD. Brand Name: ORBICLE Model No/Name: ORB-R15F Serial No: OB0109-002 & OB0109-001 ITEM TESTING ITEM APPLIED SPECIFICATION TESTING RESULTS TESTING EQUIPMENT REMARK 1 Channel Frequency Section 95.627(a) Complied Note 1 2 Type of Communication Section 95.193 Complied Note 1 3 Frequency Toleration Se…

Text truncated - open the document above for the full version.

Emission Designator of Orbicle FCC I: PX40RB-R15F Necessary bandwidth calculation Bn=2M+2DK M=3000 Hz D=2010 Hz K=1 Bn=10.02 KHz Emission Designator = 10K0F3E

REPORT NO: 01I0998-1 DATE: NOVEMBER 26, 2001 FCC ID: PX4ORB-R15F EUT: FRS DEVICE Page 10 of 53 COMPLIANCE CERTIFICATION SERVICES DOCUMENT NO: CCSUP4031C 561F MONTEREY ROAD, MORGAN HILL, CA 95037 USA TEL: (408) 463-0885 FAX: (408) 463-0888 This report shall not be reproduced except in full, without the written approval of CCS. This document may be altered or revised by Compliance Certification Services personnel only, and shall be noted in the revision section of the document. Radiated Emission Setup 30 – 1000 MHz Radiated Emission Substitution Setup 30 – 1000 MHz REPORT NO: 01I0998-1 DATE: NOVEMBER 26, 2001 FCC ID: PX4ORB-R15F EUT: FRS DEVICE Page 13 of 53 COMPLIANCE CERTIFICATION SERVICES DOCUMENT NO: CCSUP4031C 561F MONTEREY ROAD, MORGAN HILL, CA 95037 USA TEL: (408) 463-0885 FAX: (408) 463-0888 This report shall not be reproduced except in full, without the written approval of CCS. This document may be altered or revised by Compliance Certification Services personnel only, and shall be noted in the revision section of the document. Modulation Characteristic Setup 5.3. MEASUREMENT INSTRUMENT EQUIPMENT MANUFACTURE MODEL NO. SERIAL NO. CAL. DUE DATE Modulation Analyzer HP 8901B 3438A05272 05/31/02 Synthesizer Generator HP 3325A 2652A24749 N/A Power Supply HP 6235A 2450A-08312 N/A REPORT NO: 01I0998-1 DATE: NOVEMBER 26, 2001 FCC ID: PX4ORB-R15F EUT: FRS DEVICE Page 19 of 53 COMPLIANCE CERTIFICATION SERVICES DOCUMENT NO: CCSUP4031C 561F MONTEREY ROAD, MORGAN HILL, CA 95037 USA TEL: (408) 463-0885 FAX: (408) 463-0888 This report shall not be reproduced except in full, without the written approval of CCS. This document may be altered or revised by Compliance Certification Services personnel only, and shall be noted in the revision section of the document. 6. EMISSION BANDWIDTH 6.1. PROVISIONS APPLICABLE According to CFR 47 section 95.633(3), the authorized bandwidth for emission type FRS unit is 12.5 KHz. 6.2. MEASUREMENT METHOD a). Check the calibration of the measurement instrument using either an internal calibrator or a known signal from an external generator. b). Set-up the test equipments as shown in the following Figure (5). Figure 5: Emission Bandwidth measurement configuration Emission Mask / Occupied Bandwidth Setup EUT Synthesizer Generator Modulation Analyzer Power Supply Spectrum Analyzer REPORT NO: 01I0998-1 DATE: NOVEMBER 26, 2001 FCC ID: PX4ORB-R15F EUT: FRS DEVICE Page 29 of 53 COMPLIANCE CERTIFICATION SERVICES DOCUMENT NO: CCSUP4031C 561F MONTEREY ROAD, MORGAN HILL, CA 95037 USA TEL: (408) 463-0885 FAX: (408) 463-0888 This report shall not be reproduced except in full, without the written approval of CCS. This document may be altered or revised by Compliance Certification Services personnel only, and shall be noted in the revision section of the document. Radiated Emission – Substitution Method setup Radiated Emission above 1 GHz measurement setup RF Test Receiver Ant 1m m 2m 0.8m 1m Ground Plane Turn Table SG Substitution Ant REPORT NO: 01I0998-1 DATE: NOVEMBER 26, 2001 FCC ID: PX4ORB-R15F EUT: FRS DEVICE Page 30 of 53 COMPLIANCE CERTIFICATION SERVICES DOCUMENT NO: CCSUP4031C 561F MONTEREY ROAD, MORGAN HILL, CA 95037 USA TEL: (408) 463-0885 FAX: (408) 463-0888 This report shall not be reproduced except in full, without the written approval of CCS. This document may be altered or revised by Compliance Certification Services personnel only, and shall be noted in the revision section of the document. Above 1 GHz Substitution Method Setup 7.3. MEASUREMENT INSTRUMENT EQUIPMENT MANUFACTURE MODEL NO. SERIAL NO. CAL. DUE DATE Spectrum Analyzer HP 8566B 2140A01296 05/04/02 Amplifier MITEQ NSP2600-44 646456 04/12/02 Horn Antenna EMCO 3115 9001-3245 06/20/02 Horn Antenna EMCO 3115 2238 06/20/02 Signal Generator HP 83732B US34490599 03/21/02 Detector Function Setting of Test Receiver Frequency Range (MHz) Detector Function Resolution Bandwidth Video Bandwidth 30 to 1000 Quasi Peak/Peak 120 KHz/100 KHz 120 KHz/100 KHz Above 1000 Average/ Peak 1 MHz 1 MHz REPORT NO: 01I0998-1 DATE: NOVEMBER 26, 2001 FCC ID: PX4ORB-R15F EUT: FRS DEVICE Page 34 of 53 COMPLIANCE CERTIFICATION SERVICES DOCUMENT NO: CCSUP4031C 561F MONTEREY ROAD, MORGAN HILL, CA 95037 USA TEL: (408) 463-0885 FAX: (408) 463-0888 This report shall not be reproduced except in full, without the written approval of CCS. This document may be altered or revised by Compliance Certification Services personnel only, and shall be noted in the revision section of the document. Figure 6: Frequency stability measurement configuration Frequency Stability VS Environment Temperature Setup Chamber DC Power Spectrum Analyzer EUT REPORT NO: 01I0998-1 DATE: NOVEMBER 26, 2001 FCC ID: PX4ORB-R15F EUT: FRS DEVICE Page 35 of 53 COMPLIANCE CERTIFICATION SERVICES DOCUMENT NO: CCSUP4031C 561F MONTEREY ROAD, MORGAN HILL, CA 95037 USA TEL: (408) 463-0885 FAX: (408) 463-0888 This report shall not be reproduced except in full, without the written approval of CCS. This document may be altered or revised by Compliance Certification Services personnel only, and shall be noted in the revision section of the document. Frequency Stability VS Input Voltage Setup 8.3. MEASUREMENT INSTRUMENT EQUIPMENT MANUFACTURE MODEL NO. SERIAL NO. CAL. DUE DATE Spectrum Analyzer HP 8566B 2140A01296 05/04/02 Environmental Chamber THERMOTRON SE-600-10-10 29800 03/23/02 Power Supply HP 6235A 2450A-08312 N/A
