PXBKFM-1256Win Drive

Win Drive User Manual Version 2.33 FCC NOTICE THIS DEVICE COMPLIES WITH PART 15 OF THE FCC RULES. OPERATION IS SUBJECT TO THE FOLLOWING TWO CONDITION: (1) THIS DEVICE MAY NOT CAUSE HARMFUL INTERFERENCE, AND (2) THIS DEVICE MUST ACCEPT ANY INTERFERENCE RECEIVED, INCLUDING INTERFERENCE THAT MAY CAUSE UNDERSIRED OPERATION. This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communication. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures : - Reorient or relocate the receiving antenna. - Increase the separation between the equipment and receiver. - Connect the equipment into an outlet on a circuit difference from that to which the receiver is connected. - Consult the dealer of an experienced radio/TV technician for help. NOTE : The manufacturer is not responsible for any radio or TV interference caused by unauthorized modifications to this equipment. Such modifications could void the user’s authority to operate the equipment. Introduction Thank you for purchasing an Win Drive USB Mass Storage Disk. This guide explains how to use the Win Drive and the Application Software bundled with your device. Safe Precautions Please read the safe precautions carefully before you using the Win Drive and the application software (the product). Ensure that you use the product correctly according to the procedures described in this guide. The following safety precautions are intended to remind you to operate the product safely and correctly. Please read and ensure that you understand them before you proceed to the other sections of this guide. Warnings This mark indicated topics that could lead serious injury of your body or damage of the product if ignored or handled incorrectly. _____________________________________________________________________ Warnings _____________________________________________________________________ l Do not attempt to disassemble or alter any part of the product that is not described in this guide. l Do not allow the product to come into contact with water or other liquids. In the event that water or other liquids enter the interior, immediately unplug the product from the computer. Continued use of the product may result in fire or electrical shock. Please consult your product distributor or the closest support center. l Do not handle the product to do the plug and unplug operation if your hands are wet. Otherwise it will cause electrical shock. l Do not place the product near a heat source or expose them to direct flame or heat. l Never place the product in close to equipment generating strong electromagnetic fields. Exposure to strong magnetic fields may cause malfunctions or corrupt data. System Requirements The following system requirements must be met to install and operate the Win Drive and the application software. l Computer Model IBM PC/AT Compatible, Power Macintosh, PowerBook, iMAC or iBook l OS Windows 98 Second Edition, Windows Millennium Edition (Windows ME), Windows 2000, Windows XP, Linux 2.4 or higher, Mac OS 9.0 or higher l Interface USB l Free Hard Disk Space 3 MB and more ÿ Windows 98 SE does not support default Win Drive Mass Storage Driver. You have to install the driver bundled with the product. ÿ The product can use the default driver in most of the OS. However, once you want to run the application software bundled with the product. The “Setup.exe” program will install vendor driver automatically. Then, the application software will work properly. ÿ The application software only can run with Microsoft Windows OS. The version for Macintosh is under development right now. We will release it when available. ÿ However, the Win Drive basic function could be supported in all OS listed above. Guide to Components USB Interface: The interface connects to the USB port of the computer. Write-Protect Switch: If you put the switch in “ON” position, the device will be in write protection mode. You can not write in any data, you still can read the files or data in the device. LED Display: This LED Display will show the status of the device. Once the device is in operation, the LED will be flush quickly. Basic Functions 1. Plug and Play When you plug the device into the USB port of your computer, you will see a “Removable Disk” icon in the file manager window. Write-Protect Switch Power LED Working LED USB Interface In Macintosh, once you plug the Win Drive into the USB port. You can see the disk icon in the “Desktop”. In Linux OS, you can follow the following instruction to “mount” the device, Execute cd /etc/sysconfig/ ( cat /etc/sysconfig/hwconf | more ) Check the device information in hwconfwrite down the mount point. Make a directory in /mnt (ex: mkdir /mnt/usbHD ) Then, execute mount /dev/sda1 /mnt/usbHD (if mount point was .dev/sda) 2. Read and Write You can do the read, write, copy, and delete operations with the files and data as the same way with the files and data in the hard disk. 3. Write-Protect Switch When you put the write-protect switch to “ON” position, you can not write any file or data into the device. You still can view and read the files and data in the device. You can switch the “Write-Protect” switch even you did not disconnect the device. Due to Linux OS limitation, the write protect switch will not work on-line. 4. Unplug You can remove the device after you finished the action with the devi…

Text truncated - open the document above for the full version.

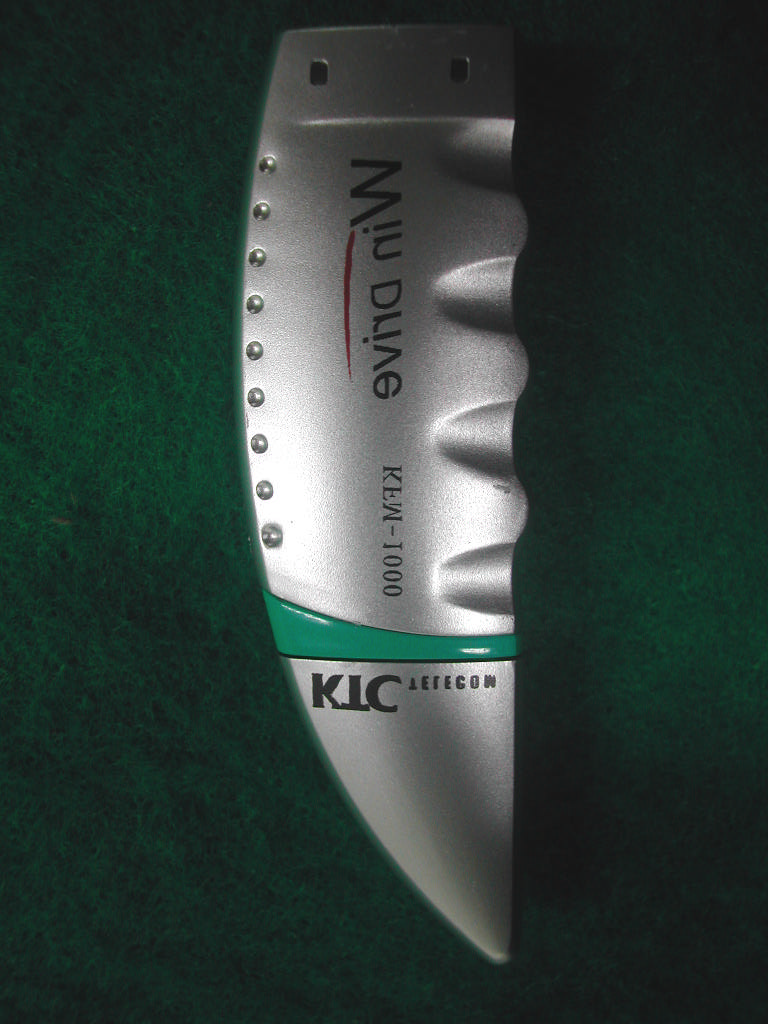

SK TECH CO., LTD. Page 1 of 2 SKT SKTFCE-021213-122 FCC ID : PXBKFM-1256 External Photographs of EUT SK TECH CO., LTD. Page 2 of 2 SKT SKTFCE-021213-122 FCC ID : PXBKFM-1256

SK TECH CO., LTD. Page 1 of 1 SKT SKTFCE-021213-122 FCC ID : PXBKFM-1256 FCC ID Label Sample

SK TECH CO., LTD. Page 1 of 1 SKT SKTFCE-021213-122 FCC ID : PXBKFM-1256 FCC ID Sample Label & Location Information LABELLING REQUIREMENTS PER 2.928 The Label shown shall be permanently affixed at a conspicuous location on the device and be readily visible to the user at the time of purchase. FCC ID : PXBKFM-1256 .

SK TECH CO., LTD. Page 1 of 3 SKT SKTFCE-021213-122 FCC ID : PXBKFM-1256 Internal Photographs of EUT SK TECH CO., LTD. Page 2 of 3 SKT SKTFCE-021213-122 FCC ID : PXBKFM-1256 SK TECH CO., LTD. Page 3 of 3 SKT SKTFCE-021213-122 FCC ID : PXBKFM-1256

SK TECH CO., LTD. Page 1 of 15 SKT SKTFCE-021213-122 FCC ID : PXBKFM-1256 Certificate of Compliance Test Report No.: SKTFCE-021213-122 NVLAP CODE : 200220-0 Applicant: KTC Telecom Co., Ltd. Applicant Address: 1381-1, Juan-Dong, Nam-Ku, Incheon, Korea Product: Win Drive FCC ID: PXBKFM-1256 Model No.: KFM-1*** Receipt No.: SKTEU02-0079 Date of receipt: Dec. 11, 2002 Date of Issue: Dec. 13, 2002 Testing location: SK TECH CO., LTD. 820-2, Wolmoon-Ri, Wabu-Up, Namyangju-Si, Kyunggi-Do, Korea Test Standards: ANSI C63.4 / 2001 Rule Parts: FCC part 15 Subpart B Equipment Class : Class B Digital Device Peripheral Test Result: The above mentioned product has been tested and passed. Prepared by:Y.H.Kang Tested by:H.P.Kim/Engineer Approved by: K.S.Kim/Manager & Chief Engineer Signature Date Signature Date Signature Date Other Aspects : Abbreviations : · OK, Pass = passed · Fail = failed · N/A = not applicable •This test report is not permitted to copy partly without our permission. •This test result is dependent on only equipment to be used. •This test result is based on a single evaluation of one sample of the above mentioned. •This test report must not be used by the client to claim product endorsement by NVLAP or any agency of the U.S Government. • We certify that this test report has been based on the measurement standards that is traceable to the national or International standards. NVLAP Lab. Code: 200220-0 SK TECH CO., LTD. Page 2 of 15 SKT SKTFCE-021213-122 FCC ID : PXBKFM-1256 Contents Contents 2 List of Tables 2 List of Figures 2 1. General 3 2. Test Site 3 2.1 Location 3 2.2 List of Test and Measurement Instruments 4 2.3 Test Date 4 2.4 Test Environment 4 3. Description of the tested samples 5 3.1 Rating and Physical Characteristics 5 3.2 Submitted Documents 5 4. Measurement Conditions 6 4.1 Modes of Operation 6 4.2 List of Peripherals 6 4.3 Type of Used cables 6 4.4 Test Setup 6 4.5 Uncertainty 7 5. EMISSION Test 10 5.1 Conducted Emissions 10 5.2 Radiated Emissions 14 List of Tables Table 1 List of test and measurement Equipment 4 Table 2 Test Data, Conducted Emissions 13 Table 3 Test Data, Radiated Emissions 15 List of Figures Figure 1 Spectral Diagram, LINE-PE 11 Figure 2 Spectral Diagram, Neutral-PE 12 SK TECH CO., LTD. Page 3 of 15 SKT SKTFCE-021213-122 FCC ID : PXBKFM-1256 1. General This equipment has been shown to be capable of compliance with the applicable technical standards and was tested in accordance with the measurement procedures as indicated in this report. We attest to the accuracy of data. All measurements reported herein were performed by SK Tech Co., Ltd. and were made under Chief Engineer’s supervision. We assume full responsibility for the completeness of these measurements and vouch for the qualifications of all persons taking them. 2. Test Site SK TECH Co., Ltd. 2.1 Location 820-2, Wolmoon Ri, Wabu-Up, Namyangju-Si, Kyunggi-Do, Korea The test site is in compliance with ISO/IEC 17025 for general requirements for the competence of testing and calibration laboratories. This laboratory is accredited by NVLAP for NVLAP Lab. Code : 200220-0 and DATech for DAR-Registration No.:TTI-P-G155/97-10 SK TECH CO., LTD. Page 4 of 15 SKT SKTFCE-021213-122 FCC ID : PXBKFM-1256 2.2 List of Test and Measurement Instruments Table 1 : List of Test and Measurement Equipment l Conducted Disturbance Kind of Equipment Type S/N Calibrated until EMI Receiver ESHS10 862970/019 10.2003 Artificial Mains Network ESH2-Z5 834549/011 10.2003 EMI Receiver ESHS10 835871/002 10.2003 Artificial Mains Network ESH3-Z5 836679/018 10.2003 Conducted Cable N/A N/A N/A l Radiated Disturbance Kind of Equipment Type S/N Calibrated until EMI Receiver ESVS 10 825120/013 02.2003 EMI Receiver ESVS 10 834468/008 11.2003 Spectrum Analyzer R3361A 11730187 07.2003 Amplifier 8447F 3113A05153 06.2003 Log Periodic Antenna UHALP9107 1819 02.2003 Biconical Antenna BBA9106 91031626 02.2003 Antenna Mast 5907 N/A N/A Antenna & Turntable controller 5906 N/A N/A Amp & Receiver connection cables N/A N/A N/A 50 Switcher MP59B 6100214538 N/A 2.3 Test Date Date of Application : Dec. 11, 2002 Date of Test : Dec. 11, 2002 ~ Dec. 13, 2002 2.4 Test Environment See each test item’s description. SK TECH CO., LTD. Page 5 of 15 SKT SKTFCE-021213-122 FCC ID : PXBKFM-1256 3. Description of the tested samples The EUT is the Win Drive. 3.1 Rating and Physical Characteristics l System Requirement -Computer Model : IBM PC/AT Compatible, Power Macintosh, PowerBook IMAC or iBook -OS : Windows 98 Second Edition, Windows Millennium Edition (Windows ME), Windows 2000, Windows XP, Linux 2.4 or higher, Mac OS 9.0 or higher -Interface : USB -Free Hard Disk Space : 3MB and more l Data transmitter speed : Read (1MB/Sec), Write (900KB/Sec.) l Storage capacity : 256MB l Weight : 10g l Dimensions : L x R x H (67.9mm x 26.6mm x 9.6mm) 3.2 Submitted Documents N/A SK TECH CO., LTD. Page 6 of 15 SKT SKTFCE-021213-122 FCC ID : PXBKFM-1256 4. Measurement Conditions Operating voltage of the EUT is supplied by the PC. ( The PC Input Voltage is AC 230, 50Hz) 4.1 Modes of Operation The EUT was in the following operation mode during all testing; EUT is tested under the connecting with Notebook PC by USB connector. The test was made on the mode of uploading, downloading and playing Window Media. 4.2 List of Peripherals Description Manufacturer Model Name Serial No. FCC ID Notebook PC COMPAQ CM2080 5Y0AFHRBPD34 Doc Adapter (for EUT) Lite-on Electronics PA-1600-2 3141BS0035A N/A 4.3 Type of Used Cables Description Length Type of shield Manufacturer Remark AC/DC Power cable 1.5m Non-shield N/A For EUT 4.4 Test Setup The test setup photographs showed the external supply connections and interfaces. SK TECH CO., LTD. Page 7 of 15 SKT SKTFCE-021213-122 FCC ID : PXBKFM-1256 4.5 Uncertainty 1) Radiated disturbance Horizontally polarized radiated disturbances from 30MHz to 1000MHz at a distance of 10m Uncertainty of Xi Input quantity dB Probability distribution function U(Xi) dB C…
