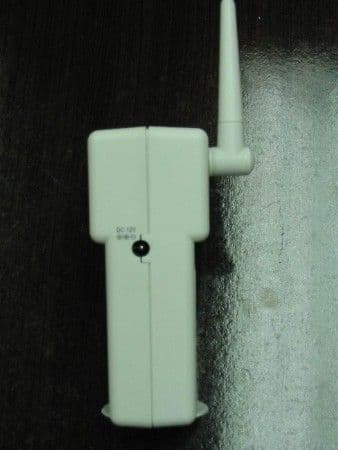

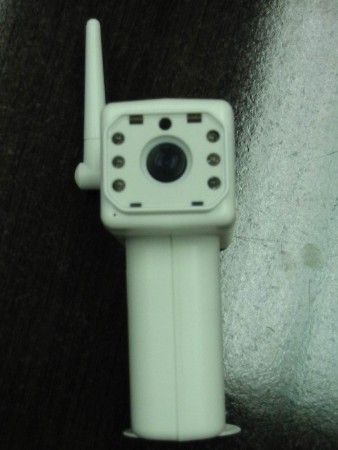

PXVWL2002CAMWireless Camera

WL2002MON 5.5” B/W Monitor w/ built in wireless Receiver Important Safety Precautions THIS DEVICE COMPLIES WITH PART 15 OF THE FCC RULES. OPERATION IS SUBJECT TO THE FOLLOWING TWO CONDITIONS, (1) THIS DEVICE MAY NOT CAUSE HARMFUL INTERFERENCE AND (2) THIS DEVICE MUST ACCEPT ANY INTERFERENCE RECEIVED, INCLUDING INTERFERENCE THAT MAY CAUSE UNDESIRED OPERATION, NOTE : THE MANUFACTURER IS NOT RESPONSIBLE FOR ANY RADIO OR TV INTERFERENCE CAUSED BY UNAUTHORIZED MODIFICATIONS TO THIS EQUIPMENT. SUCH MODIFICATIONS COULD VOID THE USER’S AUTHORITY TO OPERATE THE EQUIPMENT. 1. HEED WARNINGS - All warnings on the appliance and in the operating instructions should be adhered to. 2. FOLLOW INSTRUCTIONS - All operating instructions should be followed. 3. WATER AND MOISTURE - Do not use this video product near water - for example, a bath tub, wash bowl, kitchen sink, laundry tub or swimming pool, or in a wet basement. 4. POWER SOURCES - This product should be operated only from the type of power source indicated on the marking label. 6. OVERLOADING - Do not overload outlets and extension cords, which can result in a risk of fire or electric shock. 7. SERVICING - Do not attempt to service this product yourself. Opening or removing covers may expose you to dangerous voltage or other hazards. Refer all servicing or repairs to qualified service personnel. Index 1. Description of Box Contents 2. Connection and Setup 3. Installation 4. Operation 5. Specification 2. Description of Box Contents - SV-01-MON 5.5” B/W monitor with Receiver X 1 pc - AC adapter X 1 pc 120VAC to 13.5V DC 1000mA - Audio/Video Cable X 1 pc - Warning decals X 2 pcs 3. Connection and Setup 1 2 3 4 5 6 7 3 21 11 10 5 14 13 6 7 8 9 4 MONITOR BACK VIEW MONITOR FRONT VIEW Location of Receiver Monitor controls 2.4GHz Antenna High gain dipole patch antenna receives audio and video signal from the camera. CRT - 5.5” Diagonal Brightness Control Contrast Control Volume Control Channel Selector Switch for channel 1-4-AUTO selection. DC Input Jack Connect the supplied 13.5V DC 1.0A AC adapter. Video Output Jack EAR jack for Video output connection. Audio Output Jack EAR jack for Audio output connection. ON/OFF Switch Speaker Battery Compartment (not shown) – Requires 10 C Batteries (not included). Battery life Approximately 2-3 hours Auto/Manual Slide Switch Audio Mute Button 8 9 10 11 12 13 14 4. Installation Ensure the power switch on the monitor and camera are set to the OFF position before proceed following steps. Try to position both the Camera and Monitor as high off the ground as possible for better picture reception. N Camera (1) Connect the power adapter to the camera power input and ensure the camera is turned ‘ON’ Ensure the camera is set to channel 1 Monitor (1) Connect the supplied power adapter to the power input of the monitor OR connect the DC plug from the battery box to the DC input jack at the back of the monitor (2) Use the channel selection switch button and ensure the monitor is set to the same channel as the camera to view the picture. Note: If you experience transmission reception problems (eg. poor picture), you may need to select another channel on the camera and monitor and/or adjust the antennas on the monitor and camera to ensure they are pointing at each other. (3) Adjust the volume to the desired level. You may also mute the audio option by pressing the mute button which is located at the front of the monitor. (4) Adjust the brightness and contrast levels as required MONITOR CAMERA DC INPUT Jack 13.5V 1.2 A AC Adapter 5. Operation Basic operation : 1. Make sure the ON/OFF switch is in the OFF position before connection 2. Connect the supplied AC adapter output to the DC input jack at the rear of the receiver monitor. 3. Select a channel 1 – 4 on your transmitter 4. Switch on the Monitor and transmitter camera 5. Search the channel 1 – 4 on the monitor using the channel selector switch. , you should see the Picture on the receiver. 6. Select another channel on transmitter and receiver if necessary for better picture quality. 7. Volume control – adjust the knob for desired volume level. If you don’t want to have the audio, press down Mute button to disable the sound output. 8. Bright and Contrast control – If the picture is too bright or too dark, adjust the bright and contrast controls to get the best picture quality. 9. Using Audio Mute button to disable the speaker . 10. Adjust the antenna as necessary Select no. of activate channel The Monitor is setup as 4 active channel when first power up. That is, you can select either ch 1, 2, 3 or 4. In Auto mode the channel will scan through Ch 1 to 4. However, if you have only three transmitters ( 3 channel ) in the system, you don’t need to see channel 4. Then you can adjust the no. of active channel to 3. Press and hold the AUTO/MANUAL button to select the no. of channel that is activate. When you press and hold the Auto/Manual button for 2 sec , all 4 LED will lit and if you release at that moment, all 4 channel will be activate. If you continue to hold the button, Channel 4 LED will be off and the remain 3 LEDs on. If you release the button at that moment,only Ch 1- 3 will be activate in the scanning system. If you continue to hold the button, Ch3 LED will off and only CH 1 and Ch2 LED will be on. If you release at that moment, only Ch1 and 2 will be activate. If you continue to hold the button, then all four LED will be on again and repeat the procedure. Select Automatic scanning or Manual scanning When first power on the Monitor, the system will placed the unit in Manual scanning mode, with a dwell time of 2 seconds. The Auto LED will lit to indicate that the unit is in Auto scanning mode. The 4 channel in the receiver can be scanning one by one in sequential order automatically. In Auto mode, press the Auto/Manual key or Ch select key will stop the Auto scan function and place the receiver in manaul mode. In Manual mode, press the CH. Select key to select the correspo…

Text truncated - open the document above for the full version.

WL2002MON 5.5” B/W Monitor w/ built in wireless Receiver Important Safety Precautions THIS DEVICE COMPLIES WITH PART 15 OF THE FCC RULES. OPERATION IS SUBJECT TO THE FOLLOWING TWO CONDITIONS, (1) THIS DEVICE MAY NOT CAUSE HARMFUL INTERFERENCE AND (2) THIS DEVICE MUST ACCEPT ANY INTERFERENCE RECEIVED, INCLUDING INTERFERENCE THAT MAY CAUSE UNDESIRED OPERATION, NOTE : THE MANUFACTURER IS NOT RESPONSIBLE FOR ANY RADIO OR TV INTERFERENCE CAUSED BY UNAUTHORIZED MODIFICATIONS TO THIS EQUIPMENT. SUCH MODIFICATIONS COULD VOID THE USER’S AUTHORITY TO OPERATE THE EQUIPMENT. 1. HEED WARNINGS - All warnings on the appliance and in the operating instructions should be adhered to. 2. FOLLOW INSTRUCTIONS - All operating instructions should be followed. 3. WATER AND MOISTURE - Do not use this video product near water - for example, a bath tub, wash bowl, kitchen sink, laundry tub or swimming pool, or in a wet basement. 4. POWER SOURCES - This product should be operated only from the type of power source indicated on the marking label. 6. OVERLOADING - Do not overload outlets and extension cords, which can result in a risk of fire or electric shock. 7. SERVICING - Do not attempt to service this product yourself. Opening or removing covers may expose you to dangerous voltage or other hazards. Refer all servicing or repairs to qualified service personnel. Index 1. Description of Box Contents 2. Connection and Setup 3. Installation 4. Operation 5. Specification 2. Description of Box Contents - SV-01-MON 5.5” B/W monitor with Receiver X 1 pc - AC adapter X 1 pc 120VAC to 13.5V DC 1000mA - Audio/Video Cable X 1 pc - Warning decals X 2 pcs 3. Connection and Setup 1 2 3 4 5 6 7 3 21 11 10 5 14 13 6 7 8 9 4 MONITOR BACK VIEW MONITOR FRONT VIEW Location of Receiver Monitor controls 2.4GHz Antenna High gain dipole patch antenna receives audio and video signal from the camera. CRT - 5.5” Diagonal Brightness Control Contrast Control Volume Control Channel Selector Switch for channel 1-4-AUTO selection. DC Input Jack Connect the supplied 13.5V DC 1.0A AC adapter. Video Output Jack EAR jack for Video output connection. Audio Output Jack EAR jack for Audio output connection. ON/OFF Switch Speaker Battery Compartment (not shown) – Requires 10 C Batteries (not included). Battery life Approximately 2-3 hours Auto/Manual Slide Switch Audio Mute Button 8 9 10 11 12 13 14 4. Installation Ensure the power switch on the monitor and camera are set to the OFF position before proceed following steps. Try to position both the Camera and Monitor as high off the ground as possible for better picture reception. N Camera (1) Connect the power adapter to the camera power input and ensure the camera is turned ‘ON’ Ensure the camera is set to channel 1 Monitor (1) Connect the supplied power adapter to the power input of the monitor OR connect the DC plug from the battery box to the DC input jack at the back of the monitor (2) Use the channel selection switch button and ensure the monitor is set to the same channel as the camera to view the picture. Note: If you experience transmission reception problems (eg. poor picture), you may need to select another channel on the camera and monitor and/or adjust the antennas on the monitor and camera to ensure they are pointing at each other. (3) Adjust the volume to the desired level. You may also mute the audio option by pressing the mute button which is located at the front of the monitor. (4) Adjust the brightness and contrast levels as required MONITOR CAMERA DC INPUT Jack 13.5V 1.2 A AC Adapter 5. Operation Basic operation : 1. Make sure the ON/OFF switch is in the OFF position before connection 2. Connect the supplied AC adapter output to the DC input jack at the rear of the receiver monitor. 3. Select a channel 1 – 4 on your transmitter 4. Switch on the Monitor and transmitter camera 5. Search the channel 1 – 4 on the monitor using the channel selector switch. , you should see the Picture on the receiver. 6. Select another channel on transmitter and receiver if necessary for better picture quality. 7. Volume control – adjust the knob for desired volume level. If you don’t want to have the audio, press down Mute button to disable the sound output. 8. Bright and Contrast control – If the picture is too bright or too dark, adjust the bright and contrast controls to get the best picture quality. 9. Using Audio Mute button to disable the speaker . 10. Adjust the antenna as necessary Select no. of activate channel The Monitor is setup as 4 active channel when first power up. That is, you can select either ch 1, 2, 3 or 4. In Auto mode the channel will scan through Ch 1 to 4. However, if you have only three transmitters ( 3 channel ) in the system, you don’t need to see channel 4. Then you can adjust the no. of active channel to 3. Press and hold the AUTO/MANUAL button to select the no. of channel that is activate. When you press and hold the Auto/Manual button for 2 sec , all 4 LED will lit and if you release at that moment, all 4 channel will be activate. If you continue to hold the button, Channel 4 LED will be off and the remain 3 LEDs on. If you release the button at that moment,only Ch 1- 3 will be activate in the scanning system. If you continue to hold the button, Ch3 LED will off and only CH 1 and Ch2 LED will be on. If you release at that moment, only Ch1 and 2 will be activate. If you continue to hold the button, then all four LED will be on again and repeat the procedure. Select Automatic scanning or Manual scanning When first power on the Monitor, the system will placed the unit in Manual scanning mode, with a dwell time of 2 seconds. The Auto LED will lit to indicate that the unit is in Auto scanning mode. The 4 channel in the receiver can be scanning one by one in sequential order automatically. In Auto mode, press the Auto/Manual key or Ch select key will stop the Auto scan function and place the receiver in manaul mode. In Manual mode, press the CH. Select key to select the correspo…

Text truncated - open the document above for the full version.

FCC ID Label for WL2002CAM FCC ID : PXVWL2002CAM MADE IN CHINA THIS DEVICE COMPLIES WITH PART 15 OF THE FCC RULES. OPERATION IS SUBJECT TO THE FOLLOWING TWO CONDITIONS: (1) THIS DEVICE MAY NOT CAUSE HARMFUL INTERFERENCE, AND (2) THIS DEVICE MUST ACCEPT ANY INTERFERENCE RECEIVED, INCLUDING INTERFERENCE THAT MAY CAUSE UNDESIRED OPERATION. FCC ID Label Location for WL2002CAM

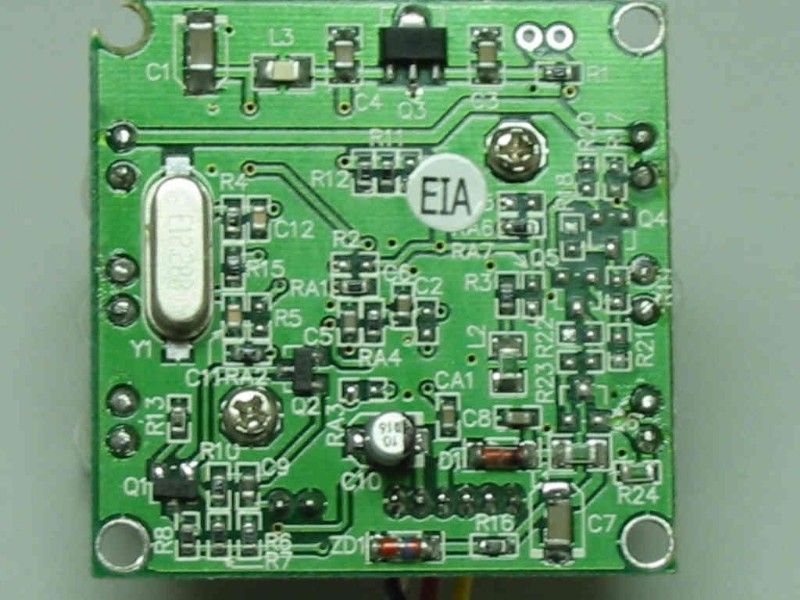

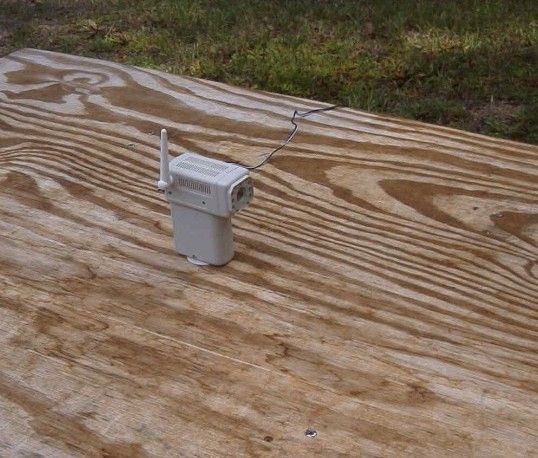

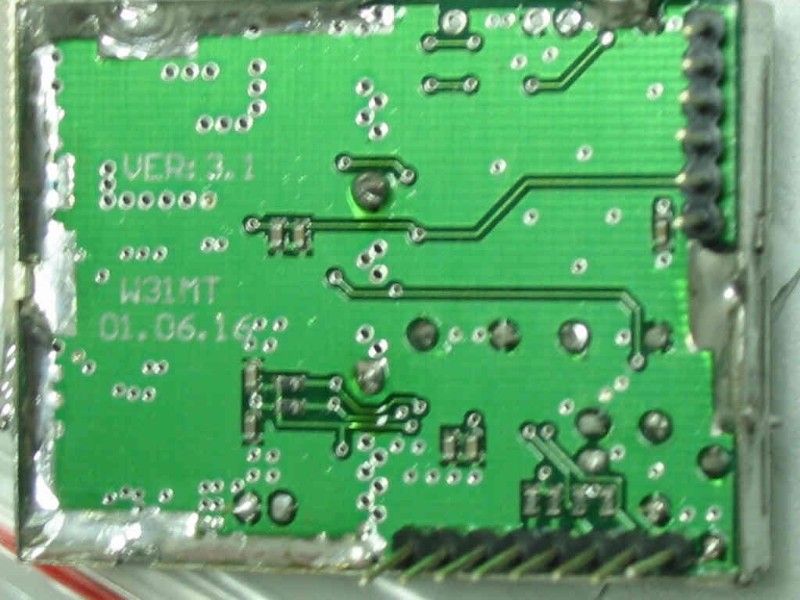

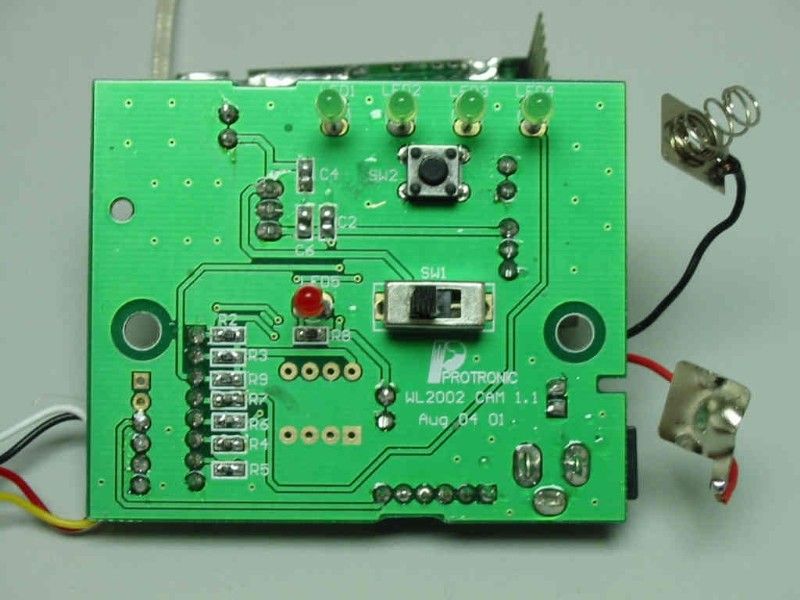

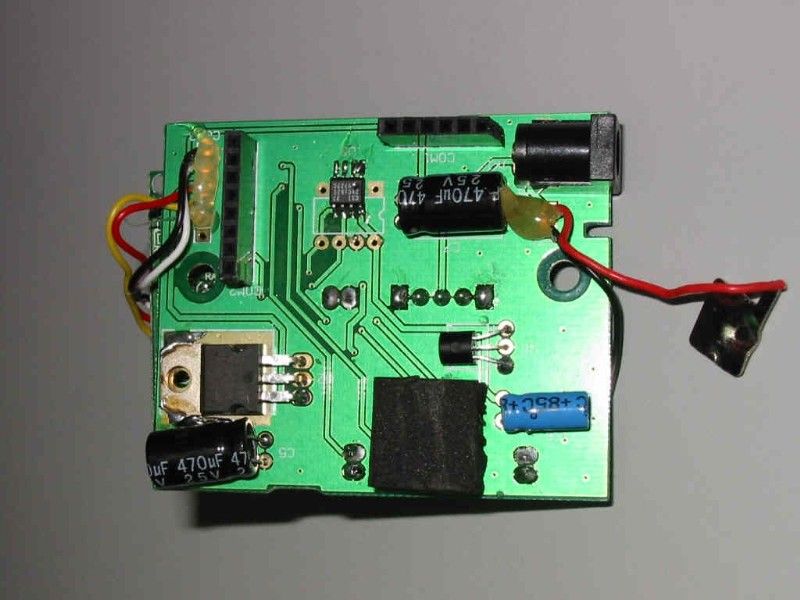

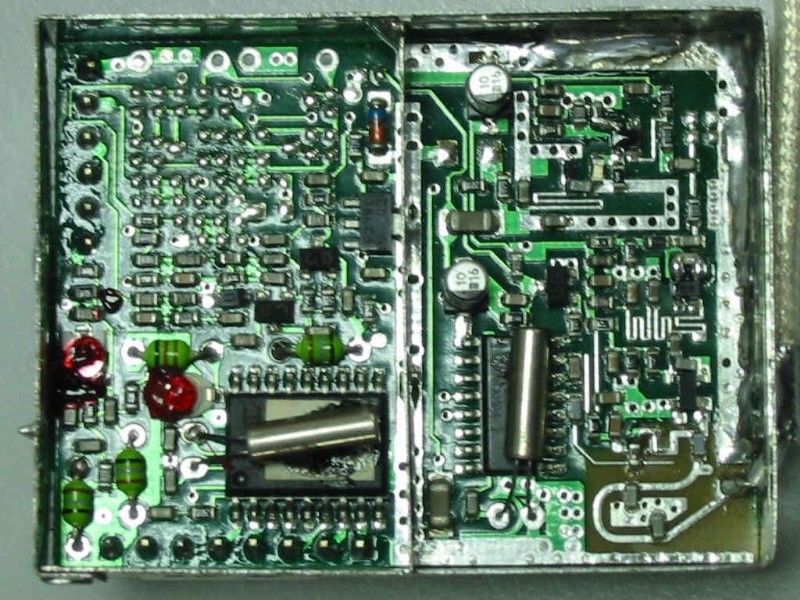

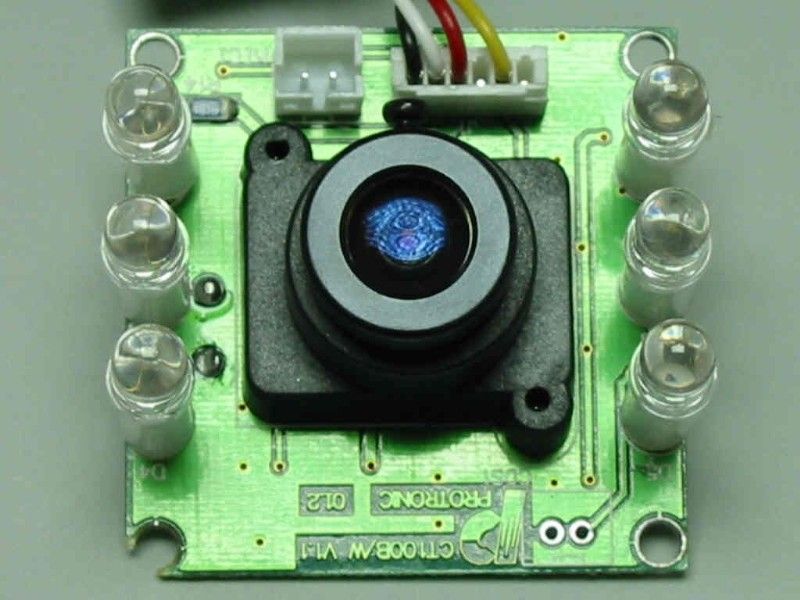

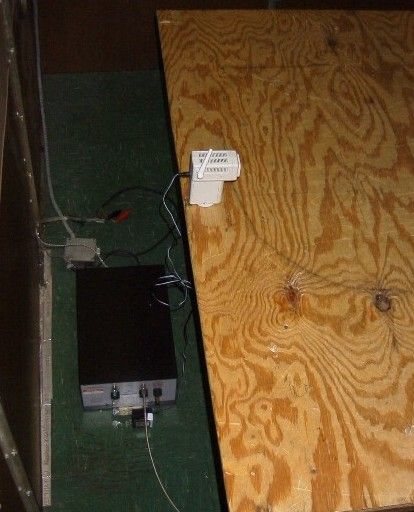

APPLICANT: Protronic (Far East) Ltd. FCC ID: PXVWL2002CAM REPORT #: P\PROTRON\944H1\944H1RPT.doc PAGE: TABLE OF CONTENTS LIST TABLE OF CONTENTS APPLICANT: PROTRONIC (FAR EAST) LTD. FCC ID: PXVWL2002CAM TEST REPORT CONTAINING: PAGE 1.............TEST EQUIPMENT LIST & TEST PROCEDURE PAGE 2.............TEST PROCEDURE CONTD. PAGE 3-4...........RADIATION INTERFERENCE TEST DATA PAGE 5.............OCCUPIED BANDWIDTH PAGE 6.............OCCUPEID BANDWIDTH PLOT PAGE 7.............POWERLINE CONDUCTED PAGE 8.............POWERLINE CONDUCTED PLOTS – LINE 1 PAGE 9.............POWERLINE CONDUCTED PLOTS – LINE 2 PAGE 10.............BANDEDGE PLOT EXHIBIT ATTACHMENTS: EXHIBIT 1...........FCC ID LABEL SAMPLE & LOCATION EXHIBIT 2...........BLOCK DIAGRAM EXHIBIT 3A-3C.......SCHEMATICS EXHIBIT 4...........INSTRUCTION MANUAL EXHIBIT 5...........FRONT VIEW EXTERNAL PHOTO EXHIBIT 6...........REAR VIEW EXTERNAL PHOTO EXHIBIT 7A-7C.......COMPONENT SIDE INTERNAL PHOTOS EXHIBIT 8A-8C.......COPPER SIDE INTERNAL PHOTOS EXHIBIT 9...........CIRCUIT DESCRIPTION EXHIBIT 10..........TEST SETUP PHOTOGRAPH – RADIATED EXHIBIT 11..........TEST SETUP PHOTOGRAPH - POWERLINE APPLICANT: Protronic (Far East) Ltd. FCC ID: PXVWL2002CAM REPORT #: P\PROTRON\944H1\944H1RPT.doc PAGE: 1 OF 10 TEST EQUIPMENT LIST 1. Spectrum Analyzer: HP 8566B-Opt 462, S/N 3138A07786, w/ preselector HP 85685A, S/N 3221A01400, Quasi-Peak Adapter HP 8565OA, S/N 3303A01690 & Preamplifier HP 8449B-OPT H02, S/N 3008A00372 2. Biconnical Antenna: Eaton Model 94455-1, S/N 1057, 3. Biconnical Antenna: Electro-Metrics Model BIA-25, S/N 1171 4. Log-Periodic Antenna: Electro-Metrics Model EM-6950, S/N 632 5. Log-Periodic Antenna: Electro-Metrics Model LPA-30, S/N 409 6. Double-Ridged Horn Antenna: Electro-Metrics Model RGA-180, 1-18 GHz, S/N 2319 7. 18-26.3GHz Systron Donner Standard Gain Horn #DBE-520-20 8. Horn 40-60GHz: ATM Part #19-443-6R 9. Line Impedance Stabilization Network: Electro-Metrics Model EM-7820, w/NEMA Adapter S/N 2682 10. Temperature Chamber: Tenney Engineering Model TTRC, S/N 11717-7 11. Frequency Counter: HP Model 5385A, S/N 3242A07460 12. Peak Power Meter: HP Model 8900C, S/N 2131A00545 13. Open Area Test Site #1-3meters 14. Signal Generator: HP 8640B, S/N 2308A21464 15. Signal Generator: HP 8614A, S/N 2015A07428 16. Passive Loop Antenna: EMCO Model 6512, 9KHz to 30MHz, S/N 9706-1211 17. Dipole Antenna Kit: Electro-Metrics Model TDA-30/1-4, S/N 153 18. AC Voltmeter: HP Model 400FL, S/N 2213A14499 19. Digital Multimeter: Fluke Model 8012A, S/N 4810047 20. Digital Multimeter: Fluke Model 77, S/N 43850817 21. Oscilloscope: Tektronix Model 2230, S/N 300572 TEST PROCEDURE GENERAL: This report shall NOT be reproduced except in full without the written approval of TIMCO ENGINEERING, INC. The UUT was transmit- ting a test signal during the testing. RADIATION INTERFERENCE: The test procedure used was ANSI STANDARD C63.4-1992 using a HEWLETT PACKARD spectrum analyzer with a prese- lector. The analyzer was calibrated in dB above a microvolt at the output of the antenna. The resolution bandwidth was 100KHz and the video bandwidth was 300KHz up to 1.0GHz and 1.0MHz with a video BW of 3.0MHz above 1.0GHz. The ambient temperature of the UUT was 83°F with a humidity of 77%. APPLICANT: Protronic (Far East) Ltd. FCC ID: PXVWL2002CAM REPORT #: P\PROTRON\944H1\944H1RPT.doc PAGE: 2 OF 10 APPLICANT: PROTRONIC (FAR EAST) LTD. FCC ID: PXVWL2002CAM TEST PROCEDURES CONTINUED FORMULA OF CONVERSION FACTORS: The Field Strength at 3m was estab- lished by adding the meter reading of the spectrum analyzer (which is set to read in units of dBuV) to the antenna correction factor sup- plied by the antenna manufacturer. The antenna correction factors are stated in terms of dB. The gain of the Preselector was accounted for in the Spectrum Analyzer Meter Reading. Example: Freq (MHz) METER READING + ACF = FS 33 20 dBuV + 10.36 dB = 30.36 dBuV/m @ 3m POWER LINE CONDUCTED INTERFERENCE: The procedure used was ANSI STAN- DARD C63.4-1992 using a 50uH LISN. Both lines were observed. The bandwidth of the spectrum analyzer was 10kHz with an appro- priate sweep speed. The ambient temperature of the UUT was 83°F with a humidity of 77%. ANSI STANDARD C63.4-1992 10.1.7 MEASUREMENT PROCEDURES: The UUT was placed on a table 80 cm high and with dimensions of 1m by 1.5m. The UUT was placed in the center of the table (1.5m side). The table used for radiated measurements is capable of continuous rotation. When an emission was found, the table was rotated to produce the maximum signal strength. At this point, the antenna was raised and lowered from 1m to 4m. The antenna was placed in both the horizontal and vertical planes. The situation was similar for the conducted measurement except that the table did not rotate. The EUT was setup as described in ANSIC63.4-1992 with the EUT 40 cm from the vertical ground wall. APPLICANT: Protronic (Far East) Ltd. FCC ID: PXVWL2002CAM REPORT #: P\PROTRON\944H1\944H1RPT.doc PAGE: 3 OF 10 APPLICANT: PROTRONIC (FAR EAST) LTD. FCC ID: PXVWL2002CAM NAME OF TEST: RADIATION INTERFERENCE RULES PART NUMBER: 15.249, 15.209 REQUIREMENTS: FIELD STRENGTH FIELD STRENGTH S15.209 of Fundamental: of Harmonics 30 - 88 MHz 40 dBuV/m @3M 902-928 MHZ 88 -216 MHz 43.5 2.4-2.4835 GHz 216 -960 MHz 46 94 dBuV/m @3m 54 dBuV/m @3m ABOVE 960 MHz 54dBuV/m EMISSIONS RADIATED OUTSIDE OF THE SPECIFIED FREQUENCY BANDS, EXCEPT FOR HARMONICS, SHALL BE ATTENUATED BY AT LEAST 50 dB BELOW THE LEVEL OF THE FUNDAMENTAL OR TO THE GENERAL RADIATED EMISSION LIMITS IN 15.209, WHICHEVER IS THE LESSER ATTENUATION. TEST RESULTS: This unit DOES meet the FCC requirements. TEST DATA: Tuned Frequency MHz Emission Frequency MHz Meter Reading dBuv Ant. Polarity Coax Loss dB Correction Factor dB Field Strength dBuv/m Margin dB 2410.30 2,410.30 51.6 V 3.33 28.90 83.83 10.17 2410.30 4,820.60 12.1 V 5.95 33.81 51.86 2.14 2410.30 7,231.00 8.3 V 7.04 36.04 51.38 2.62 2410.30 9,641.30 7.3 V 8.73 37.75 53.78 0.22 2433.20 2,433.2…
