PXWC3224PDA

EX 104 Entertainment & multimedia PDA With embedded Linux User’s Reference DRAFT VERSION 1.1 WOO Young Co., Ltd. ii Safety information Do not drop or impact this product as it may damage the product or cause injuries to the user. Use this product in an area with good ventilation. The product may overheat and cause a fire. Use the correct plug and do not use a damaged cable for this product. Do not touch the plug or cable with wet hands to avoid the electric shock. Use the proper AC power to avoid fire and electric shock. Keep away from fire and heat. Excessive heat may alter the shape of the product. DANGER Electric current from power, telephone, and communication cables is hazardous. To avoid shock hazard, do not disassemble this product or attached devices. If a 3-pin power cord is provided with this product, it must be used with a properly grounded outlet. Reduce the risk of fire and electric shock by always following basic safety precautions, including the following: - Do not use your product in or near water. - During electrical storms: WARNING If the rechargeable battery pack is incorrectly replaced, there is danger of an explosion. The battery pack contains a small amount of harmful substances. To avoid possible injury: - Replace only with a battery of the type recommended by HTN - Keep the battery pack away from fire and heat. - Do not expose it to water or rain. - Do not attempt to disassemble it. - Do not short-circuit it. - Keep it away from children. CAUTION: Do not put the battery pack in trash that is disposed of in landfills. When disposing of the battery, comply with local ordinances or regulations and your company's safety procedures. The fluorescent lamp in the liquid crystal display (LCD) contains mercury. Do not put it in trash that is disposed of in landfills. Dispose it as required by local ordinances or regulations. The LCD is made of glass. Rough handling or dropping the computer can cause the LCD to break. If the LCD breaks and the internal fluid gets into your eyes or on your hands, immediately wash the affected areas with water for at least 15 minutes; if any adverse symptoms after washing, get medical care. To reduce the risk of fire, use only the adaptor included in the package Store packing materials safely out of the reach of children to prevent the risk of suffocation from plastic bags. The information in this document is subject to change without notice. HNT COMPANY SHALL NOT BE LIABLE FOR TECHNICAL OR EDITORIAL ERRORS OR OMISSIONS CONTAINED HEREIN; NOR FOR INCIDENTAL OR CONSEQUENTIAL DAMAGES RESULTING FROM THE FURNISHING, PERFORMANCE, OR USE OF THIS MATERIAL. Microsoft, MS, Windows, WindowsNT, and the Windows logo are trademarks of Microsoft iii Corporation. Intel is a trademark of Intel Corporation. All other product names mentioned herein may be trademarks of their respective companies. The company shall not be liable for technical or editorial errors or omissions contained herein. The information in this document is provided “as is” without warranty of any kind and is subject to change without notice. Nothing herein should be construed as constituting an additional warranty. FCC STATEMENT This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures. - Reorient or relocate the receiving antenna. - Increase the separation between the equipment and receiver. - Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. - Consult the dealer or an experienced radio, TV technical for help. - Only shielded interface cable should be used. Finally, any changes or modifications to the equipment by the user not expressly approved by the grantee or manufacturer could void the users authority to operate such equipment. Routine Care To keep your Device in good condition and working properly, follow these guidelines: • Your Device is equipped with a highly sensitive LCD touch-screen display; and should be used at a normal room temperature. If your Device was exposed to cold temperature for an extended period of time, place the device at room temperature for at least ten minutes before use. • Keep your Device away from excessive moisture and extreme temperatures. Do not expose your Device to liquids or precipitation. • Do not carry your Device in your pants pocket or at the bottom of your bag where excessive pressure may damage the touch-screen. • Do not place anything on top of your Device to prevent damage to the screen. • Store your Device in a protective case when not in use. • Clean your Device by wiping the screen and the exterior with a soft dry cloth. Do not use abrasive or volatile cleaning product, or a wet cloth for cleaning your Device. • Avoid exposing your Device to direct sunlight or strong ultraviolet light for extended periods of time. Also avoid scratching the surface of the screen and banging it against hard objects. • Only use the Device stylus pen to prevent scratching the screen. • The lithium battery in your Exilien may discharge if the device is not used for an extended period of time. The battery discharge may cause the loss of your data; therefore, we recommend that you use X-Sync to create the backup for the data in your desktop computer. • Do not insert foreign objects in any of the o…

Text truncated - open the document above for the full version.

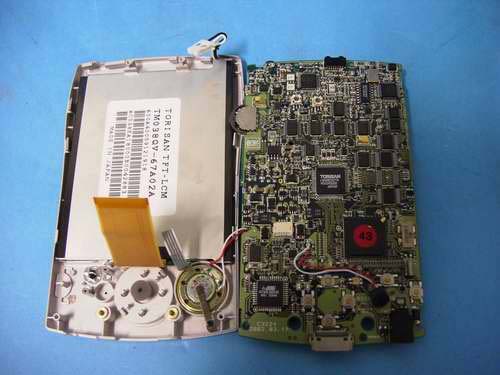

BLOCK DIAGRAM FOR C3224 1. THE WHOLE BLOCK DIAGRAM 2. AUDIO PATH BLOCK DIAGRAM 3. MAIN POWER BLOCK DIAGRAM 4. PCMCIA PATH BLOCK DIAGRAM THE WHOLE BLOCK DIAGRAM C3224 BLOCK DIAGRAM CPU SA-1110 MEMORY BOARD [ FLASH/SDRAM ] E-GPIO BUFFER & ADDRESS DECODE CF_CARD BUFFER POWER GENERATOR MP3 DECODER MK4002 24BIT DAC CS4340 RADIO RECEIVER AVR MICOM SPEAKER & EARPHONE USER KEY TOUCH FRONT LIGHT MICRO- PHONE CHARGER BATTERY MAIN 3.3V GENERATOR CORE VOLTAGE GENERATOR VOLTAG E SWITCH CRADLE orADAPTER LCD CONTROLLER & VOLTAGE DIVIDER LCD BIAS GENERATOR FRONT LIGHT CONTROL LCD 320 X 240 IRDA & RS232 CONVERTER PC / NOTEBOOK CF Card System Bus CF BUS ANALOG SWITCH ANALOG SWITCH HEAD- PHONE & SPEAKER AMP 3 STATE BUFFER ANALOG SWITCH AUDIO PATH BLOCK DIAGRAM C3224 AUDIO BLOCK RADIO RECEVIER TEA5757HL [ PHILIPS ] EARPHONE MP3 DECODER MK4002 [ MTEK SEMI ] AVR MICOM AT90LS8585 [ ATMEL ] CPU 24 bit DAC CS4340 [ CIRRUS ] ANALOG SWITCH XC74WL4066SR [ TOREX ] AUDIO AMP TDA8552TS [ PHILIPS ] ANALOG SWITCH XC74WL4066SR [ TOREX ] ANALOG SWITCH XC74WL4066SR [ TOREX ] RADIO_OUT_EN MP3_OUT_EN AMP POWER SPEAKER_EAR_SE L AMP_MODE AMP_MODE : H [ STANDBY ] L [ MUTE ] SPEAKER_EAR_SEL : H [ EARPHONE ] L [ SPEAKER ] AMP_PW_ON AMP_VCC EAR_LEFT EAR_RIGHT C-MIC MAIN POWER BLOCK DIAGRAM Power from Adapter or IO Port Charger System Main Power S/W CF Card Power S/W Poly -Switch 5V StepUp DC/DC 3.3V LDO Power Distributor CF Card 3.3V StepDown DC/DC CPU MP3 DECODER AVR MICOM SDRAM RADIO RECEIVER 1.8V StepDown DC/DC LDO Regulator Filter AUDIO_VCC +3.3VA DAC Analog S/W LDO Regulator Audio Amp Analog S/W Speaker Earphone VBAT VDC_DC SYS_VDC LCD FET S/W FLASH +B3P3V BIAS Generator -10V +15V Charge- Pump Filter InverterFilter FrontLight Lamp +5V LCD Controller 4053AD8531 V0~V9 VCOM IO BUFFER FET S/W IRDA nRESET_OUT RS232_ON ICP_SHDN RS-232 +3.3V +1.8V CF Buffer +M3P3V FET S/W +3.3V nCF_INSERTED ANALOG_PW_ON INVERTER_PW_ON DIODE Battery VOLTAGE DETECTOR CRADLE_CHK C3224 POWER DISTRIBUTION MICOM CF PATH BLOCK DIAGRAM BUF BUF BUF SA-1110 CF SOCKET ADD 0~11 DATA 0~15 CONTROL, STATUS SIGNAL DATA 0~15 ADD 0~11 CONTROL, STATUS SIGNAL

ID Label Sample & Location Information

File No. 02-IST-125/FB IST EMC LAB. Page 1 of 19 IST EMC Lab. San 21-8 Goan-Ri, Baekam-Myun, Yongin-Si, Kyunggi-Do, KOREA International - Tel : 82-31 - 333 - 4093. Fax : 82-31 - 333 - 4094. Domestic - Tel : 031 - 333 - 4093. Fax : 031 - 333 - 4094. IST EMC LAB. EMISSION TEST REPORT Test report file No. : 02-IST-125/FB Date of issue : July. 01, 2002 Model / Type No. Kind of product Brand name Applicant Manufacturer License holder Address : C3224 : PDA ( Portable Digital Assistant ) : WOO YOUNG : WOO YOUNG Telecom CO., Ltd. : WOO YOUNG Telecom CO., Ltd. : WOO YOUNG Telecom CO., Ltd. : 222-1, Suwolam-ri, Seotan-myeon, Pyeongtaek, Gyeonggi-do, Korea Test result according to the regulation(s) ■ Positive □ Negative at page 3. This test report without appendix consists of 19 pages. It is not allowed to copy this report even partly without the allowance of the Test Laboratory. This equipment is complied with the applicable technical standards as indicated in the measurement report and was tested in accordance with the measurement procedures specified in ANSI C63.4-1992. File No. 02-IST-125/FB IST EMC LAB. Page 2 of 19 IST EMC Lab. San 21-8 Goan-Ri, Baekam-Myun, Yongin-Si, Kyunggi-Do, KOREA International - Tel : 82-31 - 333 - 4093. Fax : 82-31 - 333 - 4094. Domestic - Tel : 031 - 333 - 4093. Fax : 031 - 333 - 4094. DIRECTORY A) Documentation. Page Directory Test regulations Information of Test Regulation Equipment under Test Test Conditions Test Result Test-setup Summary 2 3 3 4 ~ 5 6 ~ 7 8 9 ~ 10 19 B) Test Data. Conducted emissions (Mains) Radiated emissions : 450 kHz - 30 MHz : 30 MHz – 1 GHz 11 ~ 16 17 ~ 18 C) Appendix File No. 02-IST-125/FB IST EMC LAB. Page 3 of 19 IST EMC Lab. San 21-8 Goan-Ri, Baekam-Myun, Yongin-Si, Kyunggi-Do, KOREA International - Tel : 82-31 - 333 - 4093. Fax : 82-31 - 333 - 4094. Domestic - Tel : 031 - 333 - 4093. Fax : 031 - 333 - 4094. TEST REGULATIONS The tests were performed according to the following regulations ; ■ - FCC Part 15, Subpart B (Unintentional Radiators, Class B) Information of Test Laboratory IST EMC Lab. San 21-8 Goan-Ri, Baekam-Myun, Yongin-Si, Kyunggi-Do, Korea International - Tel : 82-31 - 333 - 4093. Fax : 82-31 - 333 - 4094. Domestic - Tel : 031 - 333 - 4093. Fax : 031 - 333 - 4094. File No. 02-IST-125/FB IST EMC LAB. Page 4 of 19 IST EMC Lab. San 21-8 Goan-Ri, Baekam-Myun, Yongin-Si, Kyunggi-Do, KOREA International - Tel : 82-31 - 333 - 4093. Fax : 82-31 - 333 - 4094. Domestic - Tel : 031 - 333 - 4093. Fax : 031 - 333 - 4094. EQUIPMENT UNDER TEST Equipment Description : PROCESSOR : INTEL strongARM(SA1110)206MHz 32BIT RISC PROCESSOR DISPLAY : 3.8 INCH TFT LCD reflective type CCFL frontlit 240 * 320 resolution, 65,536 color, touch panel OS : EMBEDDED LINUX MEMORY : 32MB flash ROM 32MB SDRAM INTERFACE USB(SLAVE MODE) IRDA EXPANSION SLOT : COMPACT FLASH TYPE I/II CONTORLS : 4-WAY DIRECTIONAL KEYS 1 POWER 1 JOG SHUTTLE(PUSH LEVER) 1 MENU 1 SYSTEM RESET 1 VOICE MEMO INDICATOR : POWER STATUS OPERATION ACCESSORIES : STEREO EAR PHONE AC/DC ATAPTOR STYLUS PEN HARDWARE SUPPORT MP3 PLAYER DIGITALIZED FM STEREO RADIO OTHERS : INTERNAL SPEAKER INTERNAL MICROPHONE ADAPTOR JACK/STEREO JACK HARDWARE SUPPORT MP3 PLAYER BATTERY : 1050mAh RECHAGABLE LI-ION BATTERY DIMENSION : 82*132*16.4 (mm) WEIGHT : APPROX. 168g File No. 02-IST-125/FB IST EMC LAB. Page 5 of 19 IST EMC Lab. San 21-8 Goan-Ri, Baekam-Myun, Yongin-Si, Kyunggi-Do, KOREA International - Tel : 82-31 - 333 - 4093. Fax : 82-31 - 333 - 4094. Domestic - Tel : 031 - 333 - 4093. Fax : 031 - 333 - 4094. EUT Type : Table-Top. Floor-Standing. Table-Top and Floor-Standing(Combination). Operation – mode of the E.U.T. : The equipment under test was operated during the measurement under following conditions : Standby. Operational Condition : Download files from PC to EUT MP3 Play mode Configuration of the equipment under test : Following peripheral devices and interface cables were connected during the measurement : Equipment Type Brand Serial No. FCC Compliance Information Laptop PC CM2080 COMPAQ 5Y07FHR6FA54 Doc Monitor 523X Daewoo GC96712365 C5F7NFCMC523X Printer A0302384 Northern 26633S60168 DSI6XU2225C-L Connecting Interface Cables : - Unshielded power cable : 1.8m - Unshielded USB cable : 1.3m - Shielded monitor’s signal cable : 1.5 m - Shielded printer’s signal cable : 1.8 m - Earphone cable : 1.2m File No. 02-IST-125/FB IST EMC LAB. Page 6 of 19 IST EMC Lab. San 21-8 Goan-Ri, Baekam-Myun, Yongin-Si, Kyunggi-Do, KOREA International - Tel : 82-31 - 333 - 4093. Fax : 82-31 - 333 - 4094. Domestic - Tel : 031 - 333 - 4093. Fax : 031 - 333 - 4094. TEST CONDITIONS The measurement of the conducted emissions (Interference voltage) was performed in a shielded room. Test location : Shielded room. No.1 Compact chamber 2 Used testing instruments : Name Type Manufacturer Calibration. Date Serial Number ESH 3 Test Receiver Rohde & Schwarz Jun. 16, 2001 861742/015 3725/2 LISN EMCO Jul. 13, 2001 9102-1788 3825/2 LISN EMCO Jul. 13, 2001 9103-1788 ESH 3-Z2 Pulse Limiter Rohde & Schwarz Jul. 13, 2001 357.8810.52 Test - accessories : Type Manufacturer Aneroid Barometer Sato Hygrometer Sato Measurement Procedures : Conducted emissions measurments were made in accordance with ANSI C-63.4-1992,“Method of Measurement of Radio-Noise Emissions from Low-Voltage Electrical and Electronic Equipment in the Range of 9 kHz to 40 GHz”. The measurement were performed over the frequency range of 0.45 MHz to 30MHz using a 50 Ω / 50uH LISN as the input transducer to an EMI/Field Intensity Meter. The measurements were made with the detector set for “Peak” amplitude within an IF bandwidth of 10 kHz or for “quasi-peak” within a bandwidth of 9 kHz. All used test-instruments as well as the test-accessories are calibrated regularly. Test engineer : File No. 02-IST-125/FB IST EMC LAB. Page 7 of 19 IST EMC Lab. San 21-8 Goan-Ri, Baekam-Myun, Yongin-Si, Kyunggi-Do, KOREA International - Tel : 82-31 - 333 - 4093. Fax : 82-31 - 333 - 4094. Domestic - Te…

Text truncated - open the document above for the full version.
