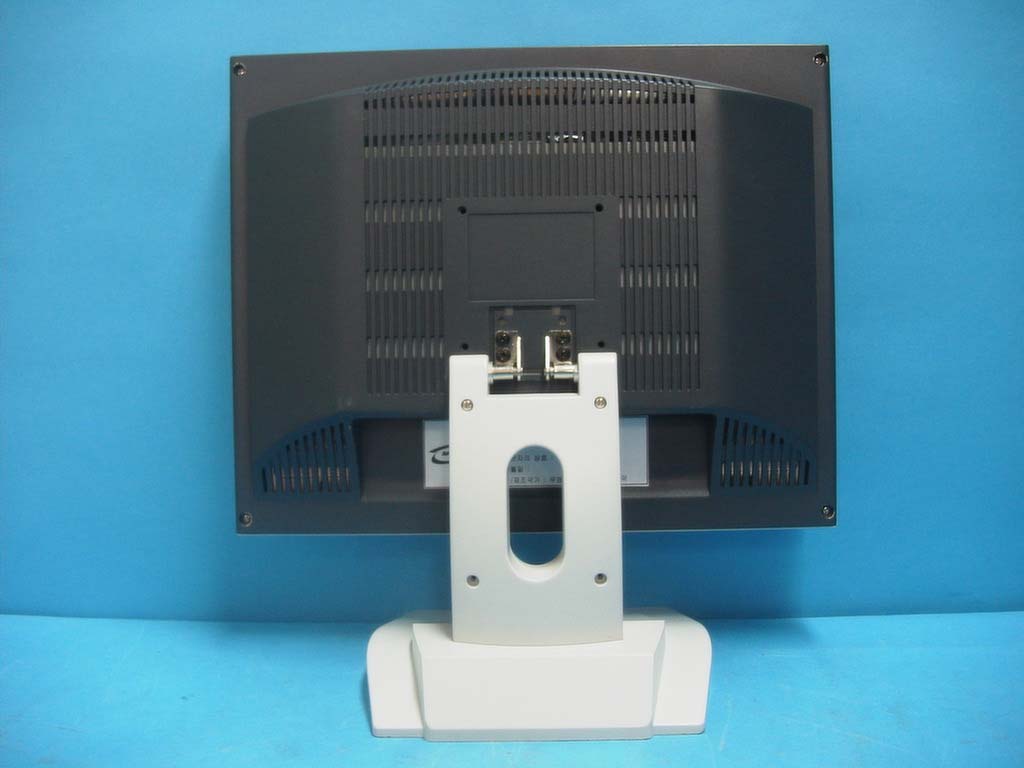

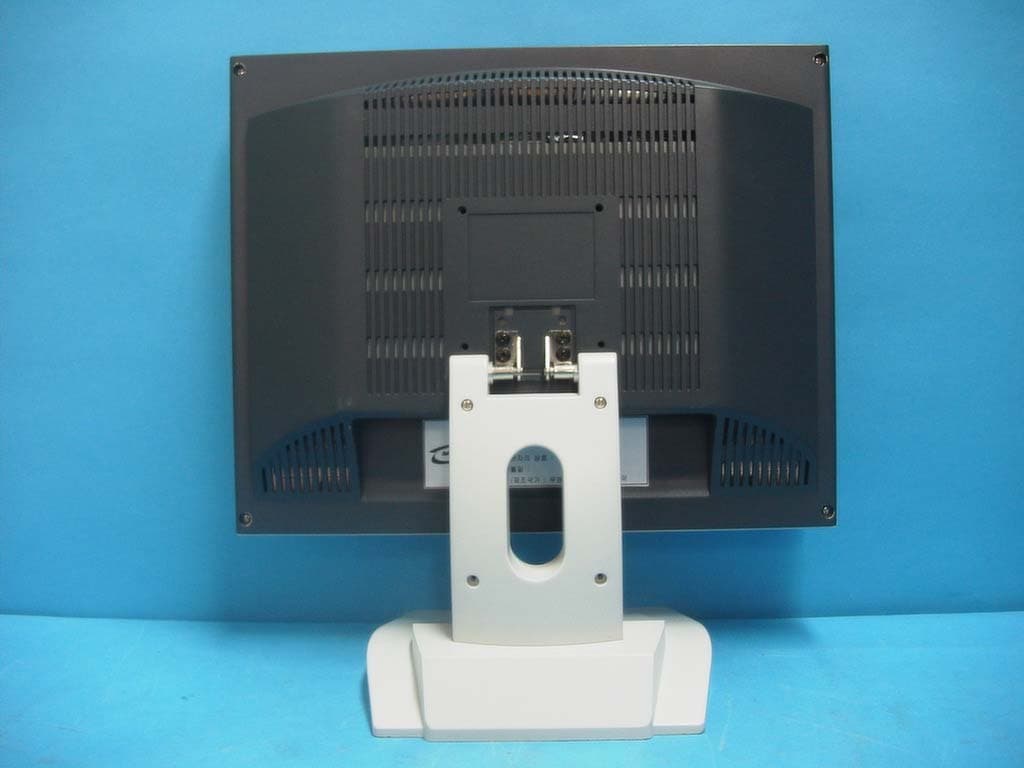

PXWHL510SLCD Monitor

Users Manual WOO YOUNG Telecom CO.,LTD. FCC STATEMENT This equipment has been tested and found to comply with the limits for a Class B digital device pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or tele- vision reception, with can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one more of the following measures: - Reorient or relocate the receiving antenna. - Increase the separation between the equipment and receiver. - Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. - Consult the dealer or an experienced radio/TV technician for help. - Only shielded interface cable should be used. Finally, any changes or modifications to the equipment by the user not expressly approved by the grantee or manufacturer could void the users authority to operate such equipment. 1 Contents 1. Before Setting up 3 Brief Specification of LCD Monitor 3 Precautions 4 Instruetion for Cleaning the Monitor 7 2. Items 8 3. Setting up the LCD monitor 10 Where is a good place to position the monitor? 10 How to connect the power cord and the several cables to the LCD monitor. 11 Plug & Play 12 Warm-up Time 12 4. Adjusting The Monitor 13 The Function Control Buttons 13 How to use the Hot Key. 13 Main OSD Menu 14 BRIGHTNESS/CONTRAST 14 COLOR 15 POSITION &CLOCK/PHASE 15 OSD FUNCTION ADJUSTMENT 17 SETUP MENU17 2 5. Appendix 18 Display Modes 18 15-pin D-Sub Connector 19 DPMS Power Saving Mode 20 6. Troubleshooting 21 3 Before setting up 1 Resolution : 15.0 inch XGA (1024 X 768@75Hz) Color display : 16,777,216 colors DPMS (Display Power Management Signaling) OSD (On Screen Display) Auto Configuration : Hot key DDC 1/2B : Plug & Play This is 15.0 inch TFT-LCD monitor. Before setting up the LCD Monitor, please read this manual to help your understanding of the LCD Monitor. Brief Specification of LCD Monitor According to PC system, DDC 1/2B may not be supported. If you meet Error message,check your video card which compatibility with DDC. If you eant to know more information, please contact our service center. Notice 4 Precautions If you hear a noise or smell smoke from the computer or adaptor, unplug the power cord immediately, and call the service center. There is the risk of electric shock or fire. Do not overload an electrical outlet with too many devices. There is the risk of fire. Do not unplug from the outlet by pulling the power cord or when your hands are wet. There is the risk of electric shock and fire. Do not use a damaged power cord or plug. Make sure the plug fits snugly into the outlet. There is the risk of electric shock or fire. AC outlet Power cord Do not bend the power cord excessively or place heavy objects on it. Keep children and pets away from the power cord as they may damage the power cord. There is the risk of electric shock and fire. Warning The following information will help you avoid the risk of electric shock, serious injury, and death. Plug the power cord into a properly grounded outlet. There is the risk of electric shock. 5 Do not expose the monitor to the direct sun light. Do not block the fan louvers. There is the risk of fire or damage to the monitor. Keep the monitor away from high tem- perature, humidity, and dust. Operating environmentdegrees Celsius Operating environment Do not allow any object or liquid to enter inside the monitor. There is the risk of electric shock, fire, or damage to the monitor. 6 Do not clean the LCD with abrasive chemicals. There is the risk of damage to the LCD. Use a proper voltage/current level indi- cated Do not scratch and damage the LCD with sharp objects. Keep the monitor away from objects and electrical appliances that may gen- erate electromagnetic fields. Place the monitor on a flat, stable sur- face. The monitor may fall and there is the risk of damage or injury Unplug the power cord when the moni- tor is not in use for a prolonged period of time. Caution The following information will help you avoid the risk of minor or moderate injury, or damage to the monitor. 7 Instruction for Cleaning the Monitor Make sure the power cord is unplugged. Do not spill or pour liquid on the monitor. Cleaning the LCD panel 1 .Use a clean, soft cloth to wipe off dust from the LCD. 2 .If still not clean, wipe the LCD with a clean soft cloth with a small amount of glass cleaner? without alcohol or ammonia. Cleaning other parts of the monitor 1 .Use a clean, soft cloth to wipe off dust from the monitor. 2 .If still not clean, wipe the LCD with a clean soft cloth with a small amount of glass cleaner? without alcohol or ammonia. Caution Do not use alcohol or ammonia based cleaning products. Abrasive chemicals, such as alcohol or ammonia, may damage the monitor. The company is not responsible for the damages to the monitor caused by the use of alcohol or ammonia based cleaning prod- ucts. 8 Items 2 LCD MonitorUser Manual 15-pin D-Sub Signal CablePower cord 9 Push the hook until hanging Stand Please make sure the following items are included with your monitor. If any items are missing, contact your dealer. Notice 1 0 Setting up the LCD monitor 3 Place the LCD monitor on a solid and flat surface. If dropped, the screen can be dam- aged easily. Where is a good place to position the monitor? 1 1 How to connect the power cord and the several cables to the LCD monitor. 1 2 PowerPower Cord 15-pin D-Sub Signal CablePC No. Cable connectionsName 1 2 All LCD monitors need time to become thermally stable whenever you tur…

Text truncated - open the document above for the full version.

5 5 4 4 3 3 2 2 1 1 DD CC BB AA Title Document NumberRev Sheetof DESIGNCHECKAPPROVAL WooYoungTelecom Co., Ltd. Model 97E0D0251Y 0 BLOCK DIAGRAM 11 HL510S ADBOARD P O W E R & I N V C O N N E C T O R SCALER MST9015 15 PIND-SUB CONNECTOR MICRO CONTROLLER WT61P4-L44 H S D 1 5 0 S X 8 4 H A N N S T A R P A N E L L.I.P.S F U C T I O N C O N N E C T O R F U N C T I O N B O A R D X-TAL 12MHz EEPR0M 24LCO8B G G _ G N D B _ G N D R _ G N D R BH s y n c V s y n c D D C _ C L K D D C _ D A T A X-TAL 14.31818MHz SCL,SDA +5V,GND INV_ON/OFF, DIMMING Regulator RT9164-33CL (*2EA) +5V +3.3V +5V Regulator RT9164-25CG +2.5V PANEL CONNECTOR FFC(40*2EA) ODD, EVEN OUTPUT KEY1, KEY2 LED_GRN, LED_AMB Vsync Hsync DDC_DATA DDC_CLK o n B A C K L I T E A d j B A C K L I T E HWRESET HFS HCLK HDATA HL510S BLOCK DIAGRAM PC_Graphic Card SignalCable AC INLET 100-220V PDF created with FinePrint pdfFactory trial version http://www.fineprint.com

ID Label Sample & Location Information

File No. 03-IST-089/FB IST EMC LAB. 1 17 IST EMC Lab. San 21-8 Goan-Ri, Baekam-Myun, Yongin-Si, Kyunggi-Do, KOREA International - Tel : 82-31 - 333 - 4093. Fax : 82-31 - 333 - 4094. Domestic - Tel : 031 - 333 - 4093. Fax : 031 - 333 - 4094. IST EMC LAB. EMISSION TEST REPORT Test report file No. : 03-IST-089/FB Date of issue : Apr. 07, 2003 Model / Type No. : HL510S Basic Alternate Kind of product Brand name Applicant Manufacturer License holder Address : 15” LCD Monitor : WOOYOUNG : WOOYOUNG Telecom Co., Ltd. : WOOYOUNG Telecom Co., Ltd. : WOOYOUNG Telecom Co., Ltd. : 222-1, Suwolam-Ri, Seotan-Myum, Pyungtaek-City, Kyunggi-Do, 451-852, Korea Test result according to the regulation(s) Positive Negative at page 3. This test report with appendix consists of 17 pages. The test result only responds to the tested sample. It is not allowed to copy this report even partly without the allowance of the Test Laboratory. This equipment is complied with the applicable technical standards as indicated in the measurement report and was tested in accordance with the measurement procedures specified in ANSI C63.4-1992. File No. 03-IST-089/FB IST EMC LAB. 2 17 IST EMC Lab. San 21-8 Goan-Ri, Baekam-Myun, Yongin-Si, Kyunggi-Do, KOREA International - Tel : 82-31 - 333 - 4093. Fax : 82-31 - 333 - 4094. Domestic - Tel : 031 - 333 - 4093. Fax : 031 - 333 - 4094. DIRECTORY A) Documentation. Page Directory Test regulations Information of Test Regulation Equipment under Test Test Conditions Test Result Measurement Uncertainty Test-setup Summary 2 3 3 4 5 ~ 6 7 8 9 ~ 11 17 B) Test Data. Conducted emissions (Mains) Radiated emissions : 150 kHz - 30 MHz : 30 MHz – 1 GHz 12 ~ 14 15 ~ 16 C) Appendix File No. 03-IST-089/FB IST EMC LAB. 3 17 IST EMC Lab. San 21-8 Goan-Ri, Baekam-Myun, Yongin-Si, Kyunggi-Do, KOREA International - Tel : 82-31 - 333 - 4093. Fax : 82-31 - 333 - 4094. Domestic - Tel : 031 - 333 - 4093. Fax : 031 - 333 - 4094. TEST REGULATIONS The tests were performed according to the following regulations ; - FCC Part 15, Subpart B (Unintentional Radiators, Class B) Information of Test Laboratory IST EMC Lab. San 21-8 Goan-Ri, Baekam-Myun, Yongin-Si, Kyunggi-Do, Korea International - Tel : 82-31 - 333 - 4093. Fax : 82-31 - 333 - 4094. Domestic - Tel : 031 - 333 - 4093. Fax : 031 - 333 - 4094. File No. 03-IST-089/FB IST EMC LAB. 4 17 IST EMC Lab. San 21-8 Goan-Ri, Baekam-Myun, Yongin-Si, Kyunggi-Do, KOREA International - Tel : 82-31 - 333 - 4093. Fax : 82-31 - 333 - 4094. Domestic - Tel : 031 - 333 - 4093. Fax : 031 - 333 - 4094. EQUIPMENT UNDER TEST Equipment Description : LCD Pannel : - Type : HSD150SX84 (HANNSTAR) - Size : 15inch (304.1mm x 228.1mm) Resolution : - 1024 x 768, 75 Hz Dimensions : - 356(W) x 185(H) x 353(D) mm Power : - Internal Type : 90 ~ 265 Vac - Consumption : under 25 W - Standby mode : 5 W less - Power Management : VESA DPMS EUT Type : Table-Top. Floor-Standing. Table-Top and Floor-Standing(Combination). Operation – mode of the E.U.T. : The equipment under test was operated during the measurement under following conditions : Standby. Operational Condition : Scrolling “H” characters under MS Windows, at test mode of 1024 X 768, 75 Hz Configuration of the equipment under test : Following peripheral devices and interface cables were connected during the measurement : Equipment Type Brand Serial No. PC Vectra VL420MT HP SG23101784 Keyboard SK-2502C HP M020321066 PS/2 Mouse M-S48a HP LZC20602926 Serial Mouse M-S428 Logitech LCA53305547 Printer A0302384 Northern Telecom 26633S60168 Connecting Interface Cables : - Unshielded AC power cable : 1.8 m - Shielded monitor’s signal cable (with two ferrite core) : 1.5 m - Shielded printer’s signal cable (with two ferrite core) : 1.8 m File No. 03-IST-089/FB IST EMC LAB. 5 17 IST EMC Lab. San 21-8 Goan-Ri, Baekam-Myun, Yongin-Si, Kyunggi-Do, KOREA International - Tel : 82-31 - 333 - 4093. Fax : 82-31 - 333 - 4094. Domestic - Tel : 031 - 333 - 4093. Fax : 031 - 333 - 4094. TEST CONDITIONS The measurement of the conducted emissions (Interference voltage) was performed in a shielded room. Test location : Shielded room. No.1 Compact chamber 2 Used testing instruments : Name Type Manufacturer Calibration. Date Serial Number ESH 3 Test Receiver Rohde & Schwarz Jul. 25, 2002 892108/018 3725/2 LISN EMCO Aug. 22, 2002 9101-2068 KNW-407 LISN Hyup-Rip Aug. 21, 2002 8-883-10 ESH 3-Z2 Pulse Limiter Rohde & Schwarz Jul. 25, 2002 357.8810.52 Test - accessories : Type Manufacturer Aneroid Barometer Sato Hygrometer Sato Measurement Procedures : Conducted emissions measurments were made in accordance with ANSI C-63.4-1992, “Method of Measurement of Radio-Noise Emissions from Low-Voltage Electrical and Electronic Equipment in the Range of 9 kHz to 40 GHz”. The measurement were performed over the frequency range of 0.15MHz to 30MHz using a 50 ? /50uH LISN as the input transducer to an EMI/Field Intensity Meter. The measurements were made with the detector set for “Peak” amplitude within an IF bandwidth of 10kHz or for “quasi-peak” within a bandwidth of 9kHz. All used test-instruments as well as the test-accessories are calibrated regularly. File No. 03-IST-089/FB IST EMC LAB. 6 17 IST EMC Lab. San 21-8 Goan-Ri, Baekam-Myun, Yongin-Si, Kyunggi-Do, KOREA International - Tel : 82-31 - 333 - 4093. Fax : 82-31 - 333 - 4094. Domestic - Tel : 031 - 333 - 4093. Fax : 031 - 333 - 4094. The measurement of the radiated emissions (Electric field) in the frequency range from 30 MHz to 1GHz was performed in horizontal and vertical antenna polarization at a open-site which meet the site attenuation requirement of ANSI C63.4-1992 and a test distance of : Location : Open Site No. 1 Open Site No. 2 Open Site No. 3 Distance : 3 meters 10 meters Used testing instruments : Name Type Manufacturer Calibration. Date Serial Number ESVP Test Receiver Rohde & Schwarz Aug. 16, 2002 861744/004 VULB 9160 Antenna Schwarzbeck Jul. 10, 2002 3048 Test - accessories : Type Manufacturer Aneroid Barometer Sat…

Text truncated - open the document above for the full version.
