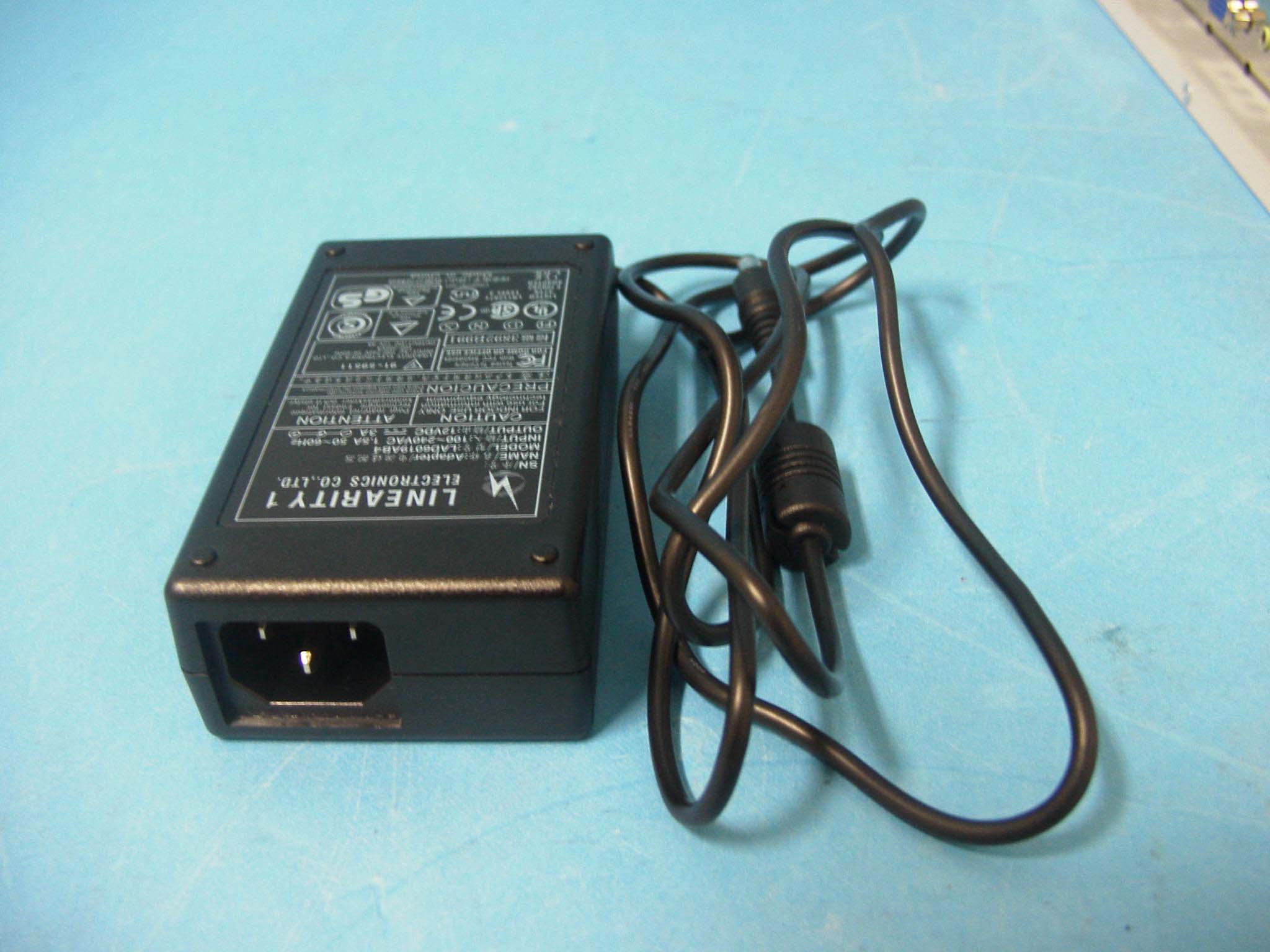

PXWHL700ALCD Monitor

HL700A USER’S MANUAL WOO YOUNG Telecom CO.,LTD. h t t p : / / w w w . w y t . c o . k r FCC STATEMENT Thi s equipment has been tested and found to comply with the limits for a Class B digital device pursuant to part 15 of the FCC Rules. These limits are desi gned to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio fr equency ener gy and, i f not installed and used i n accordance w ith the i nstr uctions, may cause har mful i nter fer ence to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or tele- vision reception, with can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one more of the following measures: - Reorient or relocate the receiving antenna. - Increase the separation between the equipment and receiver. - Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. - Consult the dealer or an experienced radio/TV technician for help. - Only shielded interface cable should be used. Fi nall y, any changes or modi fications to the equipment by the user not expressly appr oved by the grantee or manufacturer could void the user s authority to operate such equipment. 1 Contents 1. Before Setting up 3 Brief Specification of LCD Monitor 3 Precautions 4 2. Items 6 3. Setting up the LCD monitor 8 Where is a good place to position the monitor? 8 Check before connecting the power cord and the signal cable !! 8 How to connect the power cord and the several cables to the LCD monitor. 9 Connecting Your LCD Monitor 10 Plug & Play 10 Warm-up Time 10 4. Adjusting The Monitor 11 The Function Control Buttons 11 How to use the Hot Key. 11 Main OSD Menu 12 BRIGHTNESS/CONTRAST 12 POSITION &CLOCK/PHASE 13 COLOR 14 OSD MENU ADJUSTMENT & INPUT SOURCE 14 SETUP MENU15 2 5. Appendix 16 Appendix A. Specifications 16 Appendix B. 15-pin D-Sub Connector 17 Appendix C. DPMS Power Saving Mode 18 6. Troubleshooting 19 3 Before setting up 1 Resolution : 17.0 inch SXGA (1280 X 1024@75Hz) Color display : 16,777,216 colors DPMS (Display Power Management Signaling) OSD (On Screen Display) Auto Configuration : Hot key Speaker [L + R : 3W + 3W = 6W (max)] DDC 1/2B : Plug & Play This is 17.0 inch TFT-LCD monitor. Before setting up the LCD Monitor, please read this manual to help your understanding of the LCD Monitor. Brief Specification of LCD Monitor According to PC system, DDC 1/2B may not be supported. If you meet Error message,check your video card which compatibility with DDC. If you eant to know more information, please contact our service center. Notise 4 Do no t u se Ke to ne typ e mat erial (e x. A ce tone ), Et hyl A lcoh ol, Toluene , Ethyl Acid or Methyl chloride, to clear the panel. It might permanently damage the panel. Ch eck th e vo ltag e co rre sp on ds t o th e local electrical supply before connecting the AC power cord. Never use the damaged AC power cord.K ee p s it awa y f rom st ove s, he a te rs, f irep lac es an d o th e r sou rces of h ea t and magnets. Dont’ put your LCD monitor in a location with high humidity and dust. Temperature : 0~40C Humidity : 90% less P la ce th e LCD mo nitor on a solid su r- f a ce . I f dro p pe d , t h e s cre en ca n b e damaged easily. Precautions 5 Don’t touch the screen with a acute nail and pin The LCD monitor can be damaged easi- ly by shock. The L CD monitor co nsist s of e lectrica l devices. If the LCD monitor is damaged, contact immediately our service center. Do n ’t u se y ou r LCD mo ni to r un d e r direct sunlight. If you don ’t use t he L CD mo nitor for a long time, unplug the LCD monitor. 6 Items LCD Monitor DC Adapter User Manual 2 7 15-pin D-Sub Signal Cable Please make sure the following items are included with your monitor. If any items are missing, contact your dealer. Notise 8 Setting up the LCD monitor 3 Place the LCD monitor on a solid and flat surface. If dropped, the screen can be dam- aged easily. Turn off the PC power before connecting the power cord and signal cable to the LCD monitor. Where is a good place to position the monitor? Check before connecting the power cord and the signal cable !! 9 How to connect the power cord and the several cables to the LCD monitor. 1 3 4 2 PC15-pin D-Sub Signal Cable DC Adaptor Speaker Cable External Speaker DC12V SPK IN SPK OUT No.Cable connectionsName 1 0 The adopti on of the new VESA Plug and Pl ay solution eli minates complicated and time consuming setup. It allows you to install your monitor in a Plug and Play compati- ble system without the usual hassles and confusion. Your PC system can easily identi- fy and configure itself for use with your display. This monitor automatically tells the PC system its Extended Display Identification Data (EDID) using Display Data Channel (DDC) protocols so the PC system can automaticall y confi gure itsel f to use the fl at panel display. All LCD monitors need time to become thermal ly stabl e whenever you turn on the monitor after letting the monitor be tur ned off for a couple of hours. Therefore, to achieve mor e accurate adjustments for parameters, al low the LC D monitor to be warmed up for at least 20 minutes before making any screen adjustments. Plug & Play Warm-up Time Connecting your PC system 1. Connect the 15-pin D-Sub Signal Cable from PC to No.1. 2. If you use a speaker, connect the Audio Cable from PC to No.3. 3. If you use a headphone and earphone, connect the Headphone Cable from PC to No.4. Connecting Your LCD Monitor 1 1 Adjusting The Monitor 4 The Function Control Buttons How to use the Hot Key. Sound Mute On/Off Button. You can adjust brightness or contrast as not key. Wh en display adjust menu, you can adjust with Left/Right button arrow button. W hen you push the Left/Right button, you can adjust the volume. When yo…

Text truncated - open the document above for the full version.

HL700A Block Diagram

ID Label Sample & Location Information

File No. 02-IST-202/FB IST EMC LAB. Page 1 of 16 IST EMC Lab. San 21-8 Goan-Ri, Baekam-Myun, Yongin-Si, Kyunggi-Do, KOREA International - Tel : 82-31 - 333 - 4093. Fax : 82-31 - 333 - 4094. Domestic - Tel : 031 - 333 - 4093. Fax : 031 - 333 - 4094. IST EMC LAB. EMISSION TEST REPORT Test report file No. : 02-IST-202/FB Date of issue : Oct. 07, 2002 Model / Type No. : HL700A ■ Basic □ Alternate Kind of product Brand name Applicant Manufacturer License holder Address : 17” LCD Monitor : WOOYOUNG : WOO YOUNG Telecom CO.,LTD. : WOO YOUNG Telecom CO.,LTD. : WOO YOUNG Telecom CO.,LTD. : 222-1, Suwolam-Ri, Seotan-Myum, Pyungtaek-City, Kyunggi-Do, 451-852, Korea Test result according to the regulation(s) „ Positive † Negative at page 3. This test report with appendix consists of 16 pages. The test result only responds to the tested sample. It is not allowed to copy this report even partly without the allowance of the Test Laboratory. This equipment is complied with the applicable technical standards as indicated in the measurement report and was tested in accordance with the measurement procedures specified in ANSI C63.4-1992. File No. 02-IST-202/FB IST EMC LAB. Page 2 of 16 IST EMC Lab. San 21-8 Goan-Ri, Baekam-Myun, Yongin-Si, Kyunggi-Do, KOREA International - Tel : 82-31 - 333 - 4093. Fax : 82-31 - 333 - 4094. Domestic - Tel : 031 - 333 - 4093. Fax : 031 - 333 - 4094. DIRECTORY A) Documentation. Page Directory Test regulations Information of Test Laboratory Equipment under Test Test Conditions Test Result Test-setup (Drawings) Test-setup (Photos) Summary 2 3 3 3 5 ~ 6 7 8 9 ~ 10 16 B) Test Data. Conducted emissions (Mains) Radiated emissions : 450 kHz - 30 MHz : 30 MHz – 1 GHz 11 ~ 13 14 ~ 15 C) Appendix File No. 02-IST-202/FB IST EMC LAB. Page 3 of 16 IST EMC Lab. San 21-8 Goan-Ri, Baekam-Myun, Yongin-Si, Kyunggi-Do, KOREA International - Tel : 82-31 - 333 - 4093. Fax : 82-31 - 333 - 4094. Domestic - Tel : 031 - 333 - 4093. Fax : 031 - 333 - 4094. TEST REGULATIONS The tests were performed according to the following regulations ; ■ - FCC Part 15, Subpart B (Unintentional Radiators, Class B) Information of Test Laboratory IST EMC Lab. San 21-8 Goan-Ri, Baekam-Myun, Yongin-Si, Kyunggi-Do, Korea International - Tel : 82-31 - 333 - 4093. Fax : 82-31 - 333 - 4094. Domestic - Tel : 031 - 333 - 4093. Fax : 031 - 333 - 4094. EQUIPMENT UNDER TEST Equipment Description : Resolution : 17inch SXGA (1280 X 1024 @75Hz) Color display : 16,777,216 colors Plug & Play : DDC1/DDC2B Power Saving : DPMS Power Supply Adapter : Linearity1 Electronics Co.,Ltd. LAD6019AB4 Input 100~240VAC 1.5A 50~60Hz Output 12VDC 3A Speaker : Max 6W [3W + 3W] File No. 02-IST-202/FB IST EMC LAB. Page 4 of 16 IST EMC Lab. San 21-8 Goan-Ri, Baekam-Myun, Yongin-Si, Kyunggi-Do, KOREA International - Tel : 82-31 - 333 - 4093. Fax : 82-31 - 333 - 4094. Domestic - Tel : 031 - 333 - 4093. Fax : 031 - 333 - 4094. EUT Type : Table-Top. Floor-Standing. Table-Top and Floor-Standing(Combination). Operation – mode of the E.U.T. : The equipment under test was operated during the measurement under following conditions : Standby. Operational Condition : Scrolling “H” characters under MS Windows 98, Test mode : 1280 X 1024, 75 Hz Configuration of the equipment under test : Following peripheral devices and interface cables were connected during the measurement : Equipment Type Brand Serial No. PC Brio BA600/550 HP SG01603779 Keyboard SK-2502C HP M000456820 PS/2 Mouse M-S48a HP LZA01051466 Serial Mouse M-S428 Logitech LCA53305547 Printer A0302384 Northern Telecom 26633S60168 Connecting Interface Cables : - Unshielded AC power cable : 1.8 m - Unshielded DC power cable : 1.5 m - Shielded monitor’s signal cable : 1.5 m - Shielded printer’s signal cable : 1.5 m - Unshielded speaker’s signal cable of monitor : 1.4 m File No. 02-IST-202/FB IST EMC LAB. Page 5 of 16 IST EMC Lab. San 21-8 Goan-Ri, Baekam-Myun, Yongin-Si, Kyunggi-Do, KOREA International - Tel : 82-31 - 333 - 4093. Fax : 82-31 - 333 - 4094. Domestic - Tel : 031 - 333 - 4093. Fax : 031 - 333 - 4094. TEST CONDITIONS The measurement of the conducted emissions (Interference voltage) was performed in a shielded room. Test location : Shielded room. No.1 Compact chamber 2 Used testing instruments : Name Type Manufacturer Calibration. Date Serial Number ESH 3 Test Receiver Rohde & Schwarz Jul. 25, 2002 892108/018 3725/2 LISN EMCO Aug. 22, 2002 9101-2068 KNW-407 LISN Hyup-Rip Aug. 21, 2002 8-883-10 ESH 3-Z2 Pulse Limiter Rohde & Schwarz Jul. 25, 2002 357.8810.52 Test - accessories : Type Manufacturer Aneroid Barometer Sato Hygrometer Sato Measurement Procedures : Conducted emissions measurments were made in accordance with ANSI C-63.4-1992, “Method of Measurement of Radio-Noise Emissions from Low-Voltage Electrical and Electronic Equipment in the Range of 9 kHz to 40 GHz”. The measurement were performed over the frequency range of 0.45MHz to 30MHz using a 50 Ω /50uH LISN as the input transducer to an EMI/Field Intensity Meter. The measurements were made with the detector set for “Peak” amplitude within an IF bandwidth of 10kHz or for “quasi-peak” within a bandwidth of 9kHz. All used test-instruments as well as the test-accessories are calibrated regularly. File No. 02-IST-202/FB IST EMC LAB. Page 6 of 16 IST EMC Lab. San 21-8 Goan-Ri, Baekam-Myun, Yongin-Si, Kyunggi-Do, KOREA International - Tel : 82-31 - 333 - 4093. Fax : 82-31 - 333 - 4094. Domestic - Tel : 031 - 333 - 4093. Fax : 031 - 333 - 4094. The measurement of the radiated emissions (Electric field) in the frequency range from 30 MHz to 1GHz was performed in horizontal and vertical antenna polarization at a open-site which meet the site attenuation requirement of ANSI C63.4-1992 and a test distance of : Location : Open Site No. 1 Open Site No. 2 Open Site No. 3 Distance : 3 meters 10 meters Used testing instruments : Name Type Manufacturer Calibration. Date Serial Number ESVP Test Receiver Rohde & Schwarz Aug. 16, 2002 861744/004 VULB 9160 Antenna…
