PXWHL900SLCD MONITOR

H F Q H U H I H 5  V · U H V 8 os k os z { m { s G s j k t G t – •  › – ™        (      1  3 1 Contents 1. Precautions 2 2. Items 4 3. Setting up the LCD monitor 5 How to connect the power cord and the several cables to the LCD monitor. 5 Plug & Play 5 Warm-up Time 5 4. Adjusting The Monitor 6 The Function Control Buttons 6 How to use the Function Key. 6 Main OSD Menu 6 BRIGHTNESS/CONTRAST 7 COLOR 7 POSITION &CLOCK/PHASE 7 OSD FUNCTION ADJUSTMENT 7 SETUP MENU 7 5. Appendix 8 Display Modes 8 15-pin D-Sub Connector 9 24-pin DVI Connector 9 DPMS Power Saving Mode 10 6. Troubleshooting 11 3 2 Precautions 1 AC outlet Power cord Warning ;! The following information will help you avoid the risk of electric shock, serious injury, and death. Plug the power cord into aproperly grounded outlet.There is the risk of electricshock.Do not unplug from the outletby pulling the power cord orwhen your hands are wet.There is the risk of electricshock and fire. Do not allow any object or liq-uid to enter inside the monitor.There is the risk of electricshock, fire, or damage to themonitor. Do not bend the power cordexcessively or place heavy objectson it. Keep children and pets awayfrom the power cord as they maydamage the power cord. There isthe risk of electric shock and fire. Do not use a damaged powercord or plug. Make sure theplug fits snugly into the outlet.There is the risk of electricshock or fire. Do not expose the monitor tothe direct sun light. Keep the monitor away from hightemperature, humidity, and dust. Operating environment =0~25degrees Celsius Operating environment =30~80relative humidity. Do not block the fan louvers.There is the risk of fire or dam-age to the monitor. 331W Use a proper voltage/currentlevel indicated Do not clean the LCD withabrasive chemicals.There is the risk of damage tothe LCD. Do not scratch and damagethe LCD with sharp objects. Keep the monitor away fromobjects and electrical appli-ances that may generate elec-tromagnetic fields. Place the monitor on a flat, sta-ble surface. The monitor mayfall and there is the risk ofdamage or injury Unplug the power cord whenthe monitor is not in use for aprolonged period of time. If you hear a noise or smellsmoke from the computer oradaptor, unplug the power cordimmediately, and call the servicecenter. There is the risk of elec-tric shock or fire. Do not overload an electricaloutlet with too many devices.There is the risk of fire. Do not attempt to disassemble,fix, or modify the monitor.There is the risk of electricshock or fire. Caution ;! The following information will help you avoid the risk of minor or moderate injury, or damage to the monitor.   V P H W ,   U R W L Q R P  U X R \  K W L Z  G H G X O F Q L  H U D  V P H W L  J Q L Z R O O R I  H K W  H U X V  H N D P  H V D H O 3  U H O D H G  U X R \  W F D W Q R F   J Q L V V L P  H U D  V P H W L  \ Q D  I , H F L W R 1 O D X Q D 0  U H V 8 O D Q J L 6  E X 6  '  Q L S    H O E D & H O E D &  , 9 '  Q L S    G Q D W 6 O L W Q X  N R R K  H K W  K V X 3 J Q L J Q D K G U R F  U H Z R 3 U R W L Q R 0  ' & / U R W L Q R P  ' & /  H K W  S X  J Q L W W H 6   U R W L Q R P  ' & /  H K W  R W  V H O E D F  O D U H Y H V  H K W  G Q D  G U R F  U H Z R S  H K W  W F H Q Q R F  R W  Z R +  U H Z R 3 & 3 , 9 ' G U R &  U H Z R 3 H O E D &  O D Q J L 6  E X 6  '  Q L S    H O E D &  , 9 '  Q L S    V Q R L W F H Q Q R F  H O E D &  R 1 H P D 1 H K W  Q R  Q U X W  X R \  U H Y H Q H K Z  H O E D W V  \ O O D P U H K W  H P R F H E  R W  H P L W  G H H Q  V U R W L Q R P  ' & /  O O $ R W   H U R I H U H K 7   V U X R K  I R  H O S X R F  D  U R I  I I R  G H Q U X W  H E  U R W L Q R P  H K W  J Q L W W H O  U H W I D  U R W L Q R P H E  R W  U R W L Q R P  ' & /  H K W  Z R O O D   V U H W H P D U D S  U R I  V W Q H P W V X M G D  H W D U X F F D  H U R P  H Y H L K F D  V W Q H P W V X M G D  Q H H U F V  \ Q D  J Q L N D P  H U R I H E  V H W X Q L P     W V D H O  W D  U R I  S X  G H P U D Z H P L 7  S X  P U D : G Q D  G H W D F L O S P R F  V H W D Q L P L O H  Q R L W X O R V  \ D O 3  G Q D  J X O 3  $ 6 ( 9  Z H Q  H K W  I R  Q R L W S R G D  H K 7  L W D S P R F  \ D O 3  G Q D  J X O 3  D  Q L  U R W L Q R P  U X R \  O O D W V Q L  R W  X R \  V Z R O O D  W ,   S X W H V  J Q L P X V Q R F  H P L W  L W Q H G L  \ O L V D H  Q D F  P H W V \ V  & 3  U X R <   Q R L V X I Q R F  G Q D  V H O V V D K  O D X V X  H K W  W X R K W L Z  P H W V \ V  H O E & 3  H K W  V O O H W  \ O O D F L W D P R W X D  U R W L Q R P  V L K 7   \ D O S V L G  U X R \  K W L Z  H V X  U R I  I O H V W L  H U X J L I Q R F  G Q D  \ I O H Q Q D K &  D W D '  \ D O S V L '  J Q L V X  ' , ' (  D W D '  Q R L W D F L I L W Q H G ,  \ D O S V L '  G H G Q H W [ (  V W L  P H W V \ V W D O I  H K W  H V X  R W  I O H V W L  H U X J L I Q R F  \ O O D F L W D P R W X D  Q D F  P H W V \ V  & 3  H K W  R V  V O R F R W R U S  & ' '  \ D O S V L G  O H Q D S \ D O 3   J X O 3 QXGaGm–™Gos`WWkGv•“ QX QXGaGm–™Gos`WWkGv•“ QX   U R W L Q R 0  H K 7  J Q L W V X M G $                                   V Q R W W X %  O R U W Q R &  Q R L W F Q X )  H K 7            \ H .  Q R L W F Q X )  H K W  H V X  R W  Z R +  V U D H S S D  X Q H P  Q L D P  ' 6 2  H K 7    N F L O F  W V U L )     V U D H S S D V L G  X Q H P  ' 6 2  H K 7    N F L O F  G Q R F H 6     \ O O D F L W D P R W X D  \ W L O D X T  H J D P L  H ] L P L W S R  O O L Z  V L K W   Q R W W X E  R W X $  K V X S  X R \  Q H K :  & 3   H G R P  \ D O S V L G  H K W  H J Q D K F  Q D F  X R < O D W L J L '  Q R W W X E  H O J J R W  I I 2  Q 2  U H Z R 3  Q R L W F Q X I  G Q D P P R F  D  W F H O H 6  O H …

Text truncated - open the document above for the full version.

B HCLK ACINLET100-220V ST_DET H sy n c HDATA PC_Graphic Card DDC_CLK V sy n c Signal Cable on BACK L I T E AD BOARD +3.3V F UC T I O N C O NN E C T O R HL900S BLOCK DIAGRAM Vsync PANEL CONNECTOR12507WR-30 SCL,SDA P O W E R& I N V C O NN E C T O R EEPR0M AT24C16 +5V A d j BACK L I T E SCL,SDA KEY1, KEY2 DDC _ C L K Hsync SCALERTSU16AJ Regulator AP1117E-18A M 190 E N 04 V . 2 AU O P AN E L G LED_GRN, LED_AMB +5V,GND 15 PIN D-SUBCONNECTOR INV_ON/OFF F UNC T I O N B O ARD G _ G ND +5V DDC _ DA T A B _ G ND HWRESET R _ G ND MICRO CONTROLLERWT61P4-L44 X-TAL14.31818MHz ODD,EVENOUTPUT EEPR0M AT24C02 Regulator RT9164-33CL +1.8V X-TAL24MHz R HFS LIPS(LCDINVERTERPOWERSYSTEM) DDC_DATA 18 25 CN22 GND 4 4 Vpnl 6 15 6 25 3 LV RXO3+RXO1+ RXECLK- 1 J1POWER &INVERTERCONNECTOR 9 CN23 7 HV Vpnl GND 2 7 HV RXE0+ RXECLK+ J5FUNCTIONCONNECTOR 26 GND 1 26 CN24 9 14 Vpnl Cold ONBKT ONBKT HV RXE0- 5 RXOCLK- GND RXE3+ 10 15 28 RXOCLK- L.I.P.S(LCD INVERTERPOWER SYSTEM) Hi-V 20 LED_R Hi-V Cold 2 Vpnl 5 +5V RXE1- RXE3- 2 27 29 RXOCLK+ 6 19 KEY2 4 FUNCTIONBOARD 1821 1 3 +5V RXE1+ 3 NC LV GND 16 30 RXO3+ CN4 9 19 16 22 1 GND 28 RXE2- NC 2 RXOCLK+ 1 7 KEY1 RXO3- KEY1 2 Hi-V Hi-V 6 AD J 10 2 7 1 AD J 2 RXE2+ 3 RXO1- NC GND 1 RXE0- 13 RXO0- 23 RXO0- 17 29 6 +12V 2 RXECLK- VD D RXE0+ CN3 Cold 8 1 4 8 3 13 VCC5V RXO1+ GND HV RXECLK+ 1 VD D CN1 11 24 CN5 +12V RXO0+ GND 30 GND CN11FI-XB30S-HF RXO2+ J312507WR-30 AD BOARD RXE3- VD D 5 KEY2 3 RXE1+ +12V 21 2 Cold 17 LED_R 5 RXO2- RXE3+ GND 2 1 1 12 GND GND RXE1- 2 7 VCC5V GND 5 LV CN21 GND +12V 22 LED_G RXO2- GND RXO1- 2027 2 1 LED_G 1 +5V RXO0+ 4 12 NC 23 HL900S CONNECTION DIAGRAM RXO2+ 8 RXE2+ 7 +5V 4 14 1 LV 2 6 9 11 CON1FUNCTION CONN NC CN2 8 24 RXO3- RXE2- GND 5 2 GND

SK TECH CO., LTD. Page 1 of 2 SKT SKTFCE-050421-032 FCC ID : PXWHL900S External Photographs of EUT SK TECH CO., LTD. Page 2 of 2 SKT SKTFCE-050421-032 FCC ID : PXWHL900S

SK TECH CO., LTD. Page 1 of 1 SKT SKTFCE-050421-032 FCC ID : PXWHL900S FCC ID Label Sample Woo Young Telecom Co., Ltd. LCD MONITOR FCC ID:PXWHL900S This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1)This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

SK TECH CO., LTD. Page 1 of 1 SKT SKTFCE-050421-032 FCC ID : PXWHL900S FCC ID Sample Label & Location Information LABELLING REQUIREMENTS PER ∫∫∫∫2.928 The Label shown shall be permanently affixed at a conspicuous location on the device and be readily visible to the user at the time of purchase. Woo Young Telecom Co., Ltd. LCD MONITOR FCC ID:PXWHL900S This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1)This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

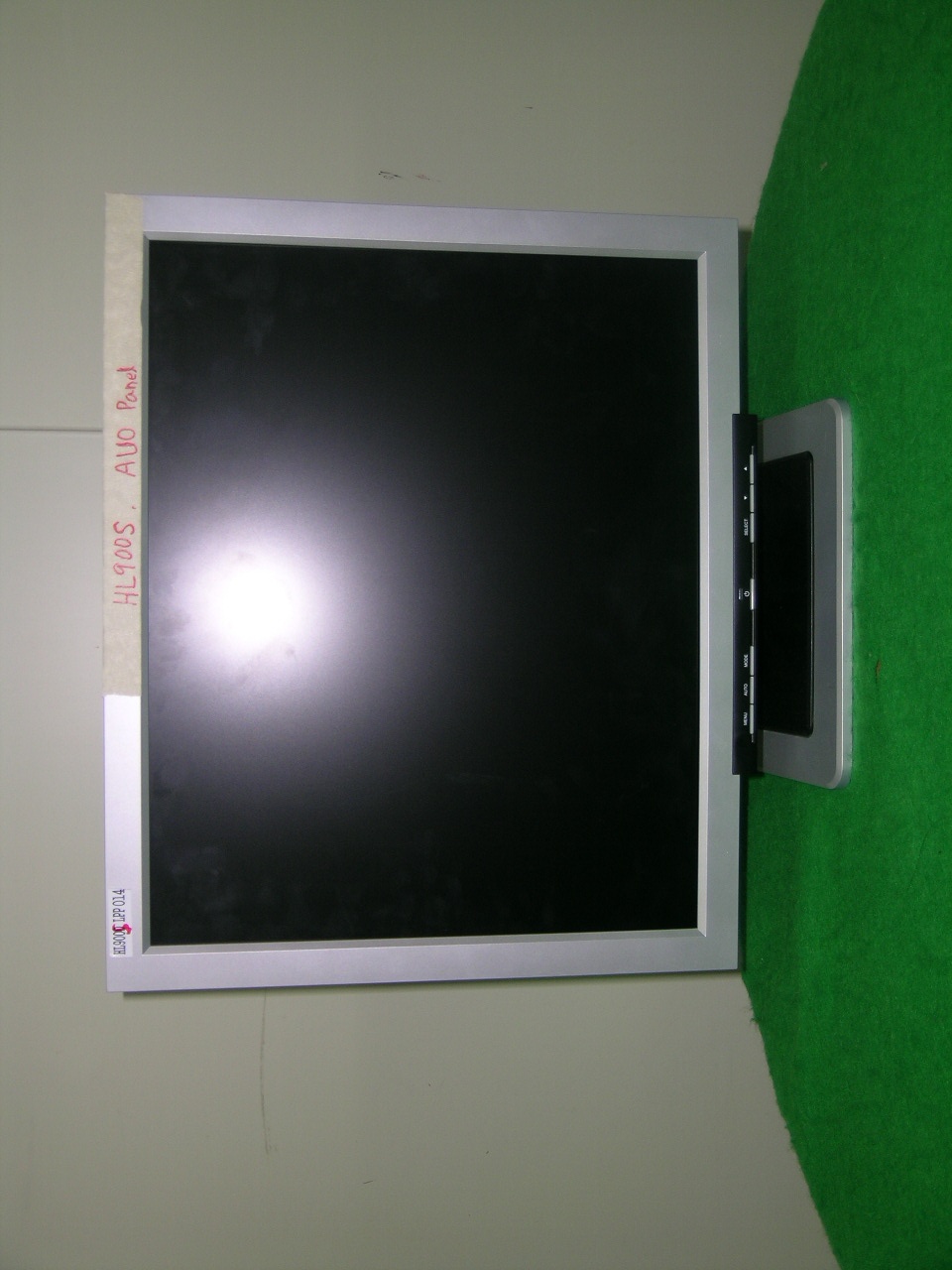

SK TECH CO., LTD. Page 1 of 14 SKT SKTFCE-050421-032 FCC ID : PXWHL900S Internal Photographs of EUT 1. HL900S(within AUO Panel) SK TECH CO., LTD. Page 2 of 14 SKT SKTFCE-050421-032 FCC ID : PXWHL900S SK TECH CO., LTD. Page 3 of 14 SKT SKTFCE-050421-032 FCC ID : PXWHL900S SK TECH CO., LTD. Page 4 of 14 SKT SKTFCE-050421-032 FCC ID : PXWHL900S SK TECH CO., LTD. Page 5 of 14 SKT SKTFCE-050421-032 FCC ID : PXWHL900S SK TECH CO., LTD. Page 6 of 14 SKT SKTFCE-050421-032 FCC ID : PXWHL900S SK TECH CO., LTD. Page 7 of 14 SKT SKTFCE-050421-032 FCC ID : PXWHL900S

SK TECH CO., LTD. Page 8 of 14 SKT SKTFCE-050421-032 FCC ID : PXWHL900S SK TECH CO., LTD. Page 9 of 14 SKT SKTFCE-050421-032 FCC ID : PXWHL900S SK TECH CO., LTD. Page 10 of 14 SKT SKTFCE-050421-032 FCC ID : PXWHL900S SK TECH CO., LTD. Page 11 of 14 SKT SKTFCE-050421-032 FCC ID : PXWHL900S 2. HL900S(within LG Panel) SK TECH CO., LTD. Page 12 of 14 SKT SKTFCE-050421-032 FCC ID : PXWHL900S SK TECH CO., LTD. Page 13 of 14 SKT SKTFCE-050421-032 FCC ID : PXWHL900S SK TECH CO., LTD. Page 14 of 14 SKT SKTFCE-050421-032 FCC ID : PXWHL900S

SK TECH CO., LTD. Page 1 of 21 SKT SKTFCE-050421-032 FCC ID : PXWHL900S Certificate of Compliance Test Report No.: SKTFCE-050421-032 NVLAP CODE : 200220-0 Applicant: Woo Young Telecom Co., Ltd. Applicant Address: 222-6, Suwolam-ri, Seotan-myeon, Pyeongtaek-si, Gyeonggi-do, 451-852, Rep. of Korea. Manufacturer : Woo Young Telecom Co., Ltd. Manufacturer Address: 222-6, Suwolam-ri, Seotan-myeon, Pyeongtaek-si, Gyeonggi-do, 451-852, Rep. of Korea. Product: LCD MONITOR FCC ID: PXWHL900S Model No.: HL900S Receipt No.: SKTEU05-0194 Date of receipt: Apr. 04, 2005 Date of Issue: Apr. 21, 2005 Testing location: SK TECH CO., LTD. 820-2, Wolmoon-Ri, Wabu-Up, Namyangju-Si, Kyunggi-Do, Korea Test Standards: ANSI C63.4 / 2003 Rule Parts: FCC part 15 Subpart B Equipment Class : Class B Digital Device Peripheral Test Result: The above mentioned product has been tested and passed. Prepared by: S.Y.Ye Tested by: S.B.Ko/Engineer Approved by: C.H.Jeong /Manager& Chief Engineer Signature Date Signature Date Signature Date Other Aspects : Abbreviations : · OK, Pass = passed · Fail = failed · N/A = not applicable ☞ •This test report is not permitted to copy partly without our permission. •This test result is dependent on only equipment to be used. •This test result is based on a single evaluation of one sample of the above mentioned. •This test report must not be used by the client to claim product endorsement by NVLAP or any agency of the U.S Government. • We certify that this test report has been based on the measurement standards that is traceable to the national or International standards. NVLAP Lab. Code: 200220-0 SK TECH CO., LTD. Page 2 of 21 SKT SKTFCE-050421-032 FCC ID : PXWHL900S 》》 Contents 《《 Contents 2 List of Tables 2 List of Figures 2 1. General 3 2. Test Site 3 2.1 Location 3 2.2 List of Test and Measurement Instruments 4 2.3 Test Date 4 2.4 Test Environment 4 3. Description of the tested samples 5 3.1 Rating and Physical Characteristics 5 3.2 Submitted Documents 5 4. Measurement Conditions 6 4.1 Modes of Operation 6 4.2 List of Peripherals 6 4.3 Type of Used cables 7 4.4 Test Setup 7 4.5 Uncertainty 8 5. EMISSION Test 11 5.1 Conducted Emissions 11 5.2 Radiated Emissions 20 》List of Tables Table 1 List of test and measurement Equipment 4 Table 2 Test Data, Radiated Emissions 21 》List of Figures Figure 1 Spectral Diagram, LINE-PE(AUO Panel) 12 Figure 2 Test Data, LINE-PE(AUO Panel) 13 Figure 3 Spectral Neutral –PE(AUO Panel) 14 Figure 4 Test Data, Neutral-PE(AUO Panel) 15 Figure 5 Spectral Diagram, LINE-PE (LG Panel) 16 Figure 6 Test Data LINE-PE(LG Panel) 17 Figure 7 Spectral Diagram, Neutral-PE(LG Panel) 18 Figure 8 Test Data Neutral-PE(LG Panel) 19 SK TECH CO., LTD. Page 3 of 21 SKT SKTFCE-050421-032 FCC ID : PXWHL900S 1. General This equipment has been shown to be capable of compliance with the applicable technical standards and was tested in accordance with the measurement procedures as indicated in this report. We attest to the accuracy of data. All measurements reported herein were performed by SK Tech Co., Ltd. and were made under Chief Engineer’s supervision. We assume full responsibility for the completeness of these measurements and vouch for the qualifications of all persons taking them. 2. Test Site SK TECH Co., Ltd. 2.1 Location 820-2, Wolmoon Ri, Wabu-Up, Namyangju-Si, Kyunggi-Do, Korea The test site is in compliance with ISO/IEC 17025 for general requirements for the competence of testing and calibration laboratories. This laboratory is accredited by NVLAP for NVLAP Lab. Code : 200220-0 and DATech for DAR-Registration No.:DAT-P-076/97-01 SK TECH CO., LTD. Page 4 of 21 SKT SKTFCE-050421-032 FCC ID : PXWHL900S 2.2 List of Test and Measurement Instruments Table 1 : List of Test and Measurement Equipment z Conducted Disturbance Kind of Equipment Type S/N Calibrated until EMI Receiver ESHS10 862970/019 10.2005 Artificial Mains Network ESH2-Z5 834549/011 08.2005 EMI Receiver ESHS10 835871/002 11.2005 Artificial Mains Network ESH3-Z5 836679/018 08.2005 z Radiated Disturbance Kind of Equipment Type S/N Calibrated until EMI Receiver ESVS 10 825120/013 10.2005 EMI Receiver ESVS 10 834468/008 11.2005 Spectrum Analyzer R3361A 11730187 10.2005 Amplifier 8447F 3113A05153 08.2005 Log Periodic Antenna UHALP9107 1819 04.2005 Biconical Antenna BBA9106 91031626 04.2005 Open Site Cable N/A N/A N/A Antenna Turntable Driver 5907 N/A N/A Antenna Turntable controller 5906 N/A N/A Amp & Receiver connection cable N/A N/A N/A Amp & Spectrum connection cable N/A N/A N/A 50Ω Switcher MP59B 6100214538 N/A 2.3 Test Date Date of Application : Mar. 23, 2005 Date of Test : Mar. 25, 2005 ~ Apr. 19, 2005 2.4 Test Environment See each test item’s description. SK TECH CO., LTD. Page 5 of 21 SKT SKTFCE-050421-032 FCC ID : PXWHL900S 3. Description of the tested samples The EUT is the LCD MONITOR. 3.1 Rating and Physical Characteristics Item Description MODE Analog Type TFT active matrix 19 inch Size 376.32 x 301.056(mm) Pixel Pitch 0,294 x 0.294(mm) Panel Display Color 8-bit(16,777,216 colors) Basic 1280 x 1024@60Hz Display Resolution Maximum 1280 x 1024@75Hz Horizontal 31.5~80KHz Frequency Vertical 56~75Hz Connectors 15-pin D-sub Connector Tilting Degree(U/D) -5º-30º Degree Plug&Play VESA DDC 1/2B Input Internal type:100-240VAC, 50/60Hz, 0.5A Consumption Under 40W Power Standby mode 2W less Power Management VESA DPMS Temperature 0-25°C(32°F-77°F) Environmental Consideration Humidity 90%less Dimensions Outside 426mm(W)x193mm(H)x406mm(D) Monitor 5.0Kg Weight Carton 1.5Kg 3.2 Submitted Documents N/A SK TECH CO., LTD. Page 6 of 21 SKT SKTFCE-050421-032 FCC ID : PXWHL900S 4. Measurement Conditions Operating voltage of the EUT is 120V, 60Hz 4.1 Modes of Operation After connect PC to EUT by VGA cable and run ”H” pattern test program stored to PC. The signal was displayed in the EUT, during the all tests. 4.2 List of Peripherals Description Manufacturer Model Name Serial No. FCC ID Keyboard(PS2) Jing Mold Enterprise Co. Ltd. L…

Text truncated - open the document above for the full version.

SK TECH CO., LTD. Page 1 of 2 SKT SKTFCE-050421-032 FCC ID :PXWHL900S Test set up photos Photograph 1: Setup for Conducted Emissions SK TECH CO., LTD. Page 2 of 2 SKT SKTFCE-050421-032 FCC ID :PXWHL900S Photograph 2: Setup for Radiated Emissions
