PZ8PANSAT330ADigital Satellite Receiver

FCC ID:PZ8PANSAT330A Report No: E01.1105.FCC.451N Test Date: February 18~21, 2002 Appendix F. User’s Manual ETL Inc. 371-51 Gasan-Dong, Geumcheon-Gu, Seoul, 153-023, Korea 1 of 1 Hyundai Digital Technology Co., Ltd. Digital Satellite Receiver Model :PANSAT 330A 1 1. Introduction 2 1.1. Overview 1.2. Main Features 2. Safety/Precautions 3 2.1. Safety 2.2. Precautions 3. Check Point before Use5 3.1. Accessories 3.2. The Satellite dish 4. Controls/Functions6 4.1. Front Panel 4.2. Rear Panel 4.3. Remote Controller 5. Using Remote Controller12 5.1. Batteries 5.2. Range Of Operation 6. How to Connect14 7. Operation16 7.1. Getting Started 7.2. Channel Editing 7.3. System Parameters 7.4. Transponder 7.5. Factory Set 7.6. Other Function on Remote Control 8. Trouble Shooting65 9. Specifications66 DiSEqC is a trademark of EUTELSAT. 2 This satellite receiver is designed for using digital free-to-air channel reception. Enjoy the rich choice of more than 4,000 different channels, broadcasting a large range of culture, sports, cinema, news, events, etc. This receiver is a technical masterpiece, assembled with the highest qualified electronic parts. Fully compliant with MPEG-2 and DVB standards User friendly operating Menu and On-Screen Graphic Menu Easy to use EPG(Electronic Program Guide) on screen Age protection lock function Tele-text encoding Manual PID control Software downloading via RS-232C connector DiSEqC 1.2 compatible 3 Be sure to read the user's manual before starting the operation of the unit. Never open the cover. It is very dangerous to touch the inside of the unit due to possible electric shock. When you do not use this unit for a long time, make sure that power cord is pulled out from the outlet. Also do not use a damaged power cord as it may cause fire or electric shock. Do not touch the power cord with wet hands as it may cause electric shock. A professional installation is required. If reception is interrupted, contact your local service centre. Place the unit in a well ventilated and no-heat environment. 4 When installing the unit Install the unit horizontally. An uneven installation may cause the unit to be damaged. Do not put heavy items such as a TV on the unit. That may cause the unit to be damaged. Moving the unit to a hot area from a cold one will cause condensation. Do not operate the unit for one or two hours or until it has dried completely. Where it is subject to vibrations Where it is exposed to direct sunlight Where there is humidity Where the temperature is too high or too low. Where there is no ventilation Do not install the unit: 5 User's manual : 1 User's manual Remote control : 1 Batteries (AAA type) : 2 If any accessories listed above are missing, contact the sales representative where you purchased this unit. This unit is working with DiSEqC 1.2 on a compatible antenna positioner. Ask your dealer for information. Accessories of the Unit QZ- 123 456 78 0 9 ABCDEF GHIJKLMNO PRSTUVWXY INFOAUDIO GUIDECH.LIST MENU EXIT RECALL TV/RADIO AUX INTV/SAT SLEEP VOL CH VOL CH Your dish should be properly installed and azimuth and elevation must be precisely set up. 6 Power To switch the receiver in “standby” mode or in power on mode. Standby/Power on Indication light Turn on red while in the “standby” mode and turn off the red light while in the power on mode. Remote Sensor Receives the infrared signal from remote control. Channel Display(4 Digit) - When you connect the power line of the receiver, the current time is displayed. - After programming, the program number is displayed. Menu To launch or terminate the menu application. Select To activate a highlighted item or go to next level on hypertext menu or confirm the user s action. 7 - Vol. / To adjust the volume level or change the value of an item with preprogrammed values. The Key can be used as a backspace to cancel the numerical input. - CH./ To change channel or cursor position on the application screen. 8 No.NameConnectorFunction 1.TV ANT INIEC 169-2 femaleInput from terrestrial antenna. 2. RF OUT UHF 3-4 IEC 169-2 maleOutput to TV. 3.AUDIO LRCA cinchLeft audio output. 4.AUDIO R RCA cinchRight audio output. 5.VIDEO RCA cinchComposite video output. 6. Digital AudioRCA cinchDigital Audio Output 7.S-VHSOutput to VCR or TV. 8.RS-232CDB-9Low speed serial port. 9.LNB INPUT IEC 169-24 femaleIF input from LNB to digital tuner. 10.LOOP OUT IEC 169-24 femaleIF loop-through output from digital tuner. 9 POWER : To switch into ‘standby’ or ‘power on’ mode. MUTE : To turn the sound on/off. Numeric Keys(0-9) : To select channels and input of channel numbers or characters. INFO. : To display the information of the current channel. AUDIO : To change the audio track, stereo- mono mode. GUIDE : (EPG : Electronic Program Guide) To watch program information. Press once more to return to normal mode. CH LIST : To watch the channel list. Press to confirm or press EXIT to return to previous chosen channel. -Up & Down : To change the value of a selected item with preprogrammed values in menu. QZ- 123 456 78 0 9 ABCDEF GHIJKLMNO PRSTUVWXY INFOAUDIO GUIDECH.LIST MENU EXIT RECALL TV/RADIO AUX INTV/SAT SLEEP VOL CH VOL CH 10 -Left & Right : To move the cursor up and down in menu. can be used as a backspace to cancel the numerical input. ENTER : To select an item or to confirm a menu. Pause function. MENU : To enter/exit the main menu. EXIT : To return to previous status or menu. RECALL : To return to the previous chosen channel. SLEEP : To switch off the receiver automatically after between 30 and 150 minutes. TV/RADIO : To switch between the TV and radio channels. AUX IN : To select the output mode of scart connector. If your receiver has no SCART in the rear panel, this key may not work. TV/SAT : To toggle the TV output source between the satellite input and UHF/VHF antenna input. If your receiver has no 'TV ANT IN' terminal in the rear panel, this key may not work. QZ- 123 456 78 0 9 ABCDEF GHIJKLMNO PRSTUVWXY INFOAUDIO GUIDECH.LIST MENU EXIT R…

Text truncated - open the document above for the full version.

FCC ID:PZ8PANSAT330A Report No: E02.0226.FCC.144N Test Date: February 18~21, 2002 Appendix E. Block Diagram ETL Inc. 371-51 Gasan-Dong, Geumcheon-Gu, Seoul, 153-023, Korea 1 of 1 Hyundai Digital Technology Co., Ltd. Digital Satellite Receiver Model :PANSAT 330A

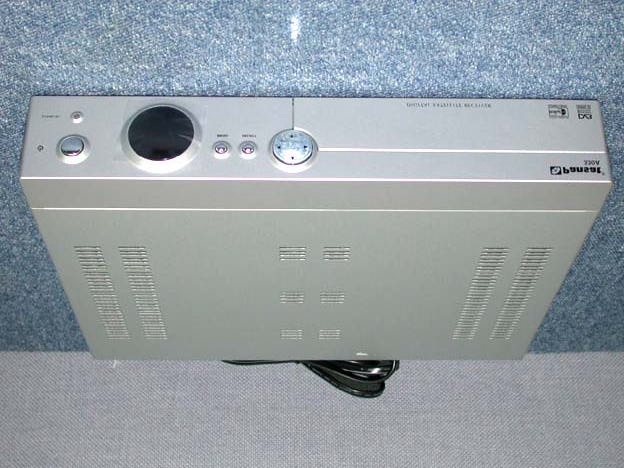

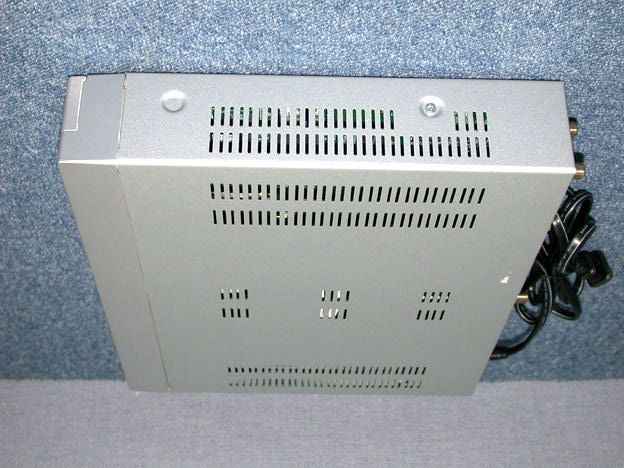

Appendix C. External Photographs ETL Inc. 371-51 Gasan-Dong, Geumcheon-Gu, Seoul, 153-023, Korea 1 of 4 FCC ID : PZ8PANSAT330A Report No : E02.0226.FCC.144N Date of Test : February 18~21, 2002 Hyundai Digital Technology Co., Ltd. Digital Satellite Receiver Model : PANSAT 330A Front View of EUT Right View of EUT Appendix C. External Photographs ETL Inc. 371-51 Gasan-Dong, Geumcheon-Gu, Seoul, 153-023, Korea 2 of 4 FCC ID : PZ8PANSAT330A Report No : E02.0226.FCC.144N Date of Test : February 18~21, 2002 Hyundai Digital Technology Co., Ltd. Digital Satellite Receiver Model : PANSAT 330A Left side View of EUT Rear side View of EUT Appendix C. External Photographs ETL Inc. 371-51 Gasan-Dong, Geumcheon-Gu, Seoul, 153-023, Korea 3 of 4 FCC ID : PZ8PANSAT330A Report No : E02.0226.FCC.144N Date of Test : February 18~21, 2002 Hyundai Digital Technology Co., Ltd. Digital Satellite Receiver Model : PANSAT 330A View of Bottom Cover View of Top Cover Appendix C. External Photographs ETL Inc. 371-51 Gasan-Dong, Geumcheon-Gu, Seoul, 153-023, Korea 4 of 4 FCC ID : PZ8PANSAT330A Report No : E02.0226.FCC.144N Date of Test : February 18~21, 2002 Hyundai Digital Technology Co., Ltd. Digital Satellite Receiver Model : PANSAT 330A View of Front Cover

FCC ID: PZ8PANSAT330A Report No: E02.0226.FCC.144N Test Date: February 18~21, 2002 Appendix A. FCC ID Label and Location ETL Inc. 371-51 Gasan-Dong, Geumcheon-Gu, Seoul, 153-023, Korea 1 of 2 Hyundai Digital Technology Co., Ltd. Digital Satellite Receiver Model : PANSAT 330A Product Label Sample with FCC ID Label information Following is a copy of the label that will be placed on the rear side of the cabinet. Figure 3.1 PRODUCT LABEL Both the FCC ID and compliance statement are included in the product label Hyundai Digital Technology Co., Ltd. Digital Satellite Receiver Model NO : PANSAT 330A POWER : AC 120V, 60Hz, Max. 30W FCC ID : PZ8PANSAT330A Serial No : This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation. Manufactured : Hyundai Digital Technology Co., Ltd. Made in Korea FCC ID: PZ8PANSAT330A Report No: E02.0226.FCC.144N Test Date: February 18~21, 2002 Appendix A. FCC ID Label and Location ETL Inc. 371-51 Gasan-Dong, Geumcheon-Gu, Seoul, 153-023, Korea 2 of 2 Hyundai Digital Technology Co., Ltd. Digital Satellite Receiver Model : PANSAT 330A 1.2 Label Location Photos The label shown shall be permanently affixed at a conspicuous location on the device and be readily visible to the user at the time purchase.(Labeling requirements per 2.925) Label here

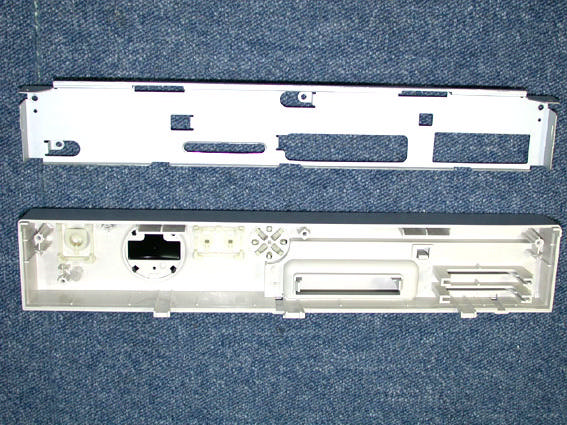

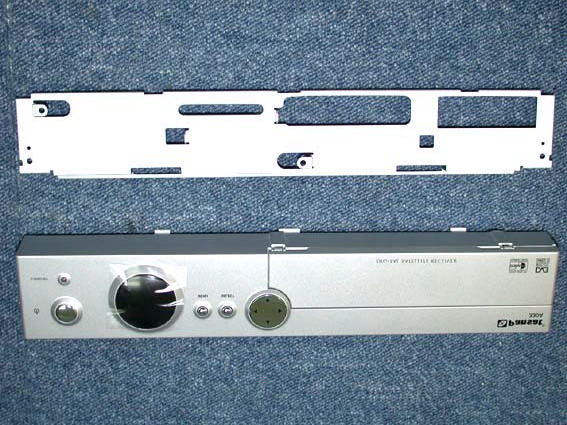

Appendix D. Internal Photographs ETL Inc. 371-51 Gasan-Dong, Geumcheon-Gu, Seoul, 153-023, Korea 1 of 7 Hyundai Digital Technology Co., Ltd. Digital Satellite Receiver Model : PANSAT 330A FCC ID : PZ8PANSAT300A Report No : E02.0226.FCC.144N Date of Test : February 18~21, 2002 Inside View of EUT Appendix D. Internal Photographs ETL Inc. 371-51 Gasan-Dong, Geumcheon-Gu, Seoul, 153-023, Korea 2 of 7 Hyundai Digital Technology Co., Ltd. Digital Satellite Receiver Model : PANSAT 330A FCC ID : PZ8PANSAT300A Report No : E02.0226.FCC.144N Date of Test : February 18~21, 2002 Component View of Main Board Appendix D. Internal Photographs ETL Inc. 371-51 Gasan-Dong, Geumcheon-Gu, Seoul, 153-023, Korea 3 of 7 Hyundai Digital Technology Co., Ltd. Digital Satellite Receiver Model : PANSAT 330A FCC ID : PZ8PANSAT300A Report No : E02.0226.FCC.144N Date of Test : February 18~21, 2002 Solder View of Main Board Appendix D. Internal Photographs ETL Inc. 371-51 Gasan-Dong, Geumcheon-Gu, Seoul, 153-023, Korea 4 of 7 Hyundai Digital Technology Co., Ltd. Digital Satellite Receiver Model : PANSAT 330A FCC ID : PZ8PANSAT300A Report No : E02.0226.FCC.144N Date of Test : February 18~21, 2002 Component View of Power Board Appendix D. Internal Photographs ETL Inc. 371-51 Gasan-Dong, Geumcheon-Gu, Seoul, 153-023, Korea 5 of 7 Hyundai Digital Technology Co., Ltd. Digital Satellite Receiver Model : PANSAT 330A FCC ID : PZ8PANSAT300A Report No : E02.0226.FCC.144N Date of Test : February 18~21, 2002 Solder View of Power Board Appendix D. Internal Photographs ETL Inc. 371-51 Gasan-Dong, Geumcheon-Gu, Seoul, 153-023, Korea 6 of 7 Hyundai Digital Technology Co., Ltd. Digital Satellite Receiver Model : PANSAT 330A FCC ID : PZ8PANSAT300A Report No : E02.0226.FCC.144N Date of Test : February 18~21, 2002 Component View of Front Board Appendix D. Internal Photographs ETL Inc. 371-51 Gasan-Dong, Geumcheon-Gu, Seoul, 153-023, Korea 7 of 7 Hyundai Digital Technology Co., Ltd. Digital Satellite Receiver Model : PANSAT 330A FCC ID : PZ8PANSAT300A Report No : E02.0226.FCC.144N Date of Test : February 18~21, 2002 Solder View of Front Board

www.etl.re.kr E-RAE Testing Laboratory This report only responds to the tested sample and may not be reproduced, except in full, without written approval of the ETL,Inc. Electromagnetic Emission FCC MEASUREMENT REPORT VERIFICATION OF COMPLIANCE FCC Part 15 Certification Measurement This Digital Satellite Receiver Model PANSAT 330A has been tested in accordance with the measurement procedures specified in ANSI C63.4-1992 at the ETL/EMC Test Laboratory and has been shown to be complied with the electromagnetic radiated emission limits specified in FCC Rule Part15 Subpart B : Unintentional Radiators TV Interface Devices. Including cable system terminal devices I attest to the accuracy of data. All measurement herein were performed by me or were made under my supervision and are correct to the best of my knowledge and belief. I assume full responsibility for the completeness of these measurements and vouch for the qualifications of all persons taking them. The results of testing in this report apply to the product/system which was tested only. Other similar equipment will not necessarily produce the same results due to production tolerance and measurement uncertainties Yo Han, Park / Chief Engineer E-RAE Testing Laboratory Inc. 371-51, Gasan-Dong, Geumcheon-Gu, Seoul, 153-023, Korea PRODUCT : Digital Satellite Receiver MODEL/TYPE NO : PANSAT 330A FCC ID : PZ8PANSAT330A APPLICANT : Hyundai Digital Technology Co., Ltd 223-22, Sangdaewon-1dong, Jungwon-gu, Seongnam-si, Kyoungki-do, Korea 462-807 Hyung-In, Kim / Deputy General Manager, R&D Center FCC CLASSIFICATION : Part 15 Class B Unintentional Radiators TV Interface Devices, Including cable system terminal devices FCC RULE PART(S) : FCC Part 15 Subpart B FCC PROCEDURE : Certification TRADE NAME : HDT TEST REPORT No. : E02.0226.FCC.144N DATES OF TEST : Februaryr 18 ~21, 2002 DATES OF ISSUE : February 06, 2002 TEST LABORATORY : ETL Inc ( FCC Registration Number : 95422) 371-51, Gasan-Dong, Geumcheon-Gu, Seoul, Korea Tel : (031) 885-0072 Fax : (031) 885-0074 FCC ID:PZ8PANSAT330A Report No: E02.0226.FCC.144N Test Date: February 18~21, 2002 ETL Inc. 371-51 Gasan-Dong, eumcheon-Gu, Seoul, 153-023,Korea 2 of 22 Hyundai Digital Technology Co., Ltd. Digital Satellite Receiver Model :PANSAT 330A Table of Contents ATTACHMENT A: COVER LETTER(S) FCC Measurement Report 1. Introduction 2. Product Information 3. Description of Tests 4. Test Condition 5. Test Results 5.1 Summary of Test Results 5.2 Conducted Emission Test 5.3 Radiated Emission Test 5.4 Output Signal Level Measurement 5.5 Output Terminal Conducted Spurious Emission Measurement 5.6 Transfer Switch Measurement 6. Sample Calculations 7. List of test Equipment used for Measurement Appendix A. FCC ID Label and Location Appendix B. Test Setup Photographs Appendix C. External Photographs Appendix D. Internal Photographs Appendix E. Block Diagram Appendix F. User’s Manual Appendix G. Circuit Diagram FCC ID:PZ8PANSAT330A Report No: E02.0226.FCC144N Test Date: February 18~21, 2002 ETL Inc. 371-51 Gasan-Dong, Geumcheon-Gu, Seoul, 153-023,Korea 3 of 22 Hyundai Digital Technology Co., Ltd. Digital Satellite Receiver Model :PANSAT 330A FCC MEASUREMENT REPORT Scope – Measurement and determination of electromagnetic emission(EME) of radio frequency devices including intentional radiators and/or unintentional radiators for compliance with the technical rules and regulations of the U.S Federal Communications Commission(FCC) General Information l EUT Type : Digital Satellite Receiver l Model Number : PANSAT 330A l FCC Identifier : PZ8PANSAT330A l S/N : N/A l Freq. Range : 60 MHz – 72 MHz l FCC Rule Part(s) : Part 15 Subpart B Section 15.115 l Test Procedure : ANSI C63.4-1992 l FCC Classification : TV Interface Device(HID) l RF Channels : Ch. 3 / Ch. 4 l Dates of Tests : February 18~21, 2002 l Place of Tests : ETL Inc 584, Sangwhal-Ri, Kanam-Myun, Yoju-Kun, Kyounggi-Do, Korea Tel : (031) 885-0072 Fax : (031) 885-0074 l Test Report No. : E02.0226.FCC.144N Applicant Name : Hyundai Digital Technology Co.,Ltd. Address : 223-22, Sangdaewon-1dong, Jungwon-gu, Seongnam-si, Kyoungki-do, Korea 462-807 Attention : Hyung-In, Kim / Deputy General Manager, R&D Center FCC ID:PZ8PANSAT330A Report No: E02.0226.FCC144N Test Date: February 18~21, 2002 ETL Inc. 371-51 Gasan-Dong, Geumcheon-Gu, Seoul, 153-023,Korea 4 of 22 Hyundai Digital Technology Co., Ltd. Digital Satellite Receiver Model :PANSAT 330A The measurement test for radiated and conducted emission test were conducted at the open area test site of E- RAE Testing Laboratiry Inc. facility located at 584, Sangwhal-ri, Ganam-myun, Youju-kun, Kyoungki-do, Korea. The site is constructed in conformance with the requirements of the ANSI C63.4-1992 and CISPR Publication 16. The ETL has site descriptions on file with the FCC for 3 and 10 meter site configurations. Detailed description of test facility was found to be in compliance with the requirements of Section 2.948 FCC Rules according to the ANSI C63.4-1992 and registered to the Federal Communications Commission(Registration Number : 95422 ). The measurement procedure described in American National Standard for Method of Measurement of Radio-Noise Emission from Low-Voltage Electrical and Electronic Equipment in the Range of 9kHz to 40GHz (ANSI C.63.4- 1992) was used in determining radiated and conducted emissions from the Hyundai Digital Technology Co.,Ltd. Digital Satellite Receiver Model : PANSAT 330A. FCC ID:PZ8PANSAT330A Report No: E02.0226.FCC144N Test Date: February 18~21, 2002 ETL Inc. 371-51 Gasan-Dong, Geumcheon-Gu, Seoul, 153-023,Korea 5 of 22 Hyundai Digital Technology Co., Ltd. Digital Satellite Receiver Model :PANSAT 330A 2.1 Equipment Description The Equipment Under Test(EUT) is the Hyundai Digital Technology Co., Ltd. Digital Satellite Receiver Model : PANSAT 330A. 2.2 General Specification - Chassis Type : Metal - List of Each OSC. Or X-Tal. Freq.(>=1MHz) : OSC-27MHz -. RF Modurator Frequendy : 470~860MHz -. RF…

Text truncated - open the document above for the full version.

Appendix B. Test Setup Photographs ETL Inc. 371-51 Gasan-Dong, Geumcheon-Gu, Seoul, FCC ID : PZ8PANSAT330A Report No : E02.0226.FCC.144N Date of Test : February 18~21, 2002 Hyundai Digital Technology Co., Ltd. Digital Satellite Receiver Model : PANSAT 330A Radiated Emission Test Setup Appendix B. Test Setup Photographs ETL Inc. 371-51 Gasan-Dong, Geumcheon-Gu, Seoul, FCC ID : PZ8PANSAT330A Report No : E02.0226.FCC.144N Date of Test : February 18~21, 2002 Hyundai Digital Technology Co., Ltd. Digital Satellite Receiver Model : PANSAT 330A Conducted Emission Test Setup Appendix B. Test Setup Photographs ETL Inc. 371-51 Gasan-Dong, Geumcheon-Gu, Seoul, FCC ID : PZ8PANSAT330A Report No : E02.0226.FCC.144N Date of Test : February 18~21, 2002 Hyundai Digital Technology Co., Ltd. Digital Satellite Receiver Model : PANSAT 330A Output Signal Level Measurement Setup Output Terminal Conducted Spurious Measurement Setup Appendix B. Test Setup Photographs ETL Inc. 371-51 Gasan-Dong, Geumcheon-Gu, Seoul, FCC ID : PZ8PANSAT330A Report No : E02.0226.FCC.144N Date of Test : February 18~21, 2002 Hyundai Digital Technology Co., Ltd. Digital Satellite Receiver Model : PANSAT 330A Transfer Switch Measurement Setup Antenna Power Conduction Measurement Setup
