Text extracted from the exhibit documents filed with the FCC. Open a document above to read the original.
940nS IR Emitter B/W CCD Lenz -58dB Mic Video AMP. Audio AMP. Power Indicator 900MHz Modulator 3 Channel Selector 5V LDV Regulator 5V LDV Regulator Power Filter Power On/Off SW RF Power AMP ANT. DC9V Input A02080 TX BLOCK DIAGRAM

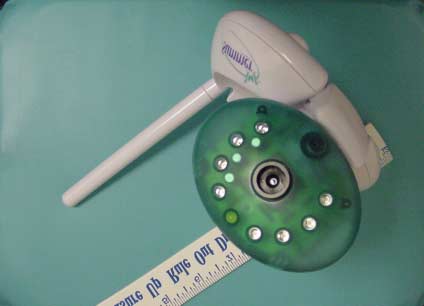

PZK-02080T Exterior Photos Page 1 of 4 Top View PZK-02080T Exterior Photos Page 2 of 4 Front View, shows antenna, camera, microphone and IR LEDs for night illumination. PZK-02080T Exterior Photos Page 3 of 4 Bottom View, showing power input jack, mounting hole for wall mount and FCC/Safety labeling. PZK-02080T Exterior Photos Page 4of 4 Left Side View, showing power/channel selector switch, final labeling will indicate 3 channels.
PZK-02080T FCC Label Sample Page 1 of 1 Photo is of Bottom of EUT. Sample is a final prototype, PZK-02080T will be engraved where the typed text is located. The remainder of the label is as it will be in final production. PZK -02080T
PZK-02080T FCC Label Location Page 1 of 1 Photo is of Bottom of EUT. Black lined box shows the location of the label on the bottom of the EUT. Refer to the label sample photo for a close up.
PZK-02080T Interior Photos Page 1 of 8 Main board, with RF board showing antenna length. PZK-02080T Interior Photos Page 2 of 8 Component Side view of RF board, showing also the soldered connection to the antenna. Antenna PZK-02080T Interior Photos Page 3 of 8 Solder Side view of main board. Antenna and power connector are visible. PZK-02080T Interior Photos Page 4of 8 Component Side View of main board with RF board attached. Connector to Video Board PZK-02080T Interior Photos Page 5of 8 Circuit Side of RF board, antenna connection is top center. PZK-02080T Interior Photos Page 6of 8 Component Side of Main Board with RF board removed. PZK-02080T Interior Photos Page 7of 8 Component Side of Video Board, microphone at top center. PZK-02080T Interior Photos Page 8of 8 Circuit Side of Video Board.
Compliance Worldwide, Inc. ā 357 Main Street ā Sandown, NH 03873 (603) 887 3903 Fax 887 6445 http://www.cw-inc.com TEST NUMBER - 332-02 TEST REPORT TO INDUSTRY CANADA RSS 210 SECTION 6.2.2 FEDERAL COMMUNICATIONS COMMISSION CFR47 PART15.249 Low Power License-Exempt Radiocommunication Devices Intentional Radiators for Summer Infant Products 6 Blackstone Valley Place Lincoln, RI 02865 (401) 334 9966 of 3 channel video baby monitor 02080 FCC ID#: PZK-02080T on 12/12/02 Tested by Clifton P. Brick Reviewed by Larry K. Stillings This report may not be duplicated, except in full without written permission from Compliance Worldwide, Inc. Page 2 of 21 Compliance Worldwide, Inc. ā 357 Main Street ā Sandown, NH 03873 (603) 887 3903 Fax 887 6445 http://www.cw-inc.com TEST NUMBER - 332-02 TABLE OF CONTENTS ⢠Test Description ⢠Test Results and Conclusions ⢠Test Procedures ⢠RSS 210 /Part 15 Subpart C Test Limits ⢠Test Facility Description ⢠Test Setup and Connection Information ⢠Test Measurements and Results Radiated Measurements Radiated Output Power & Occupied Bandwidth Conducted Measurements ⢠Notes and Comments Page 3 of 21 Compliance Worldwide, Inc. ā 357 Main Street ā Sandown, NH 03873 (603) 887 3903 Fax 887 6445 http://www.cw-inc.com TEST NUMBER - 332-02 TEST DESCRIPTION 1. TEST OBJECTIVE To test the 3 channel video baby monitor 02080 to RSS 210 / Part 15 Subpart C Rules and write a report. 2. E.U.T. DESCRIPTION GENERAL The 02080 is a 3 channel video baby monitor that operates in the 902-928 MHz Frequency Band. Its 3 channels are centered on 906, 915 and 924 MHz, with Audio carrier 3 MHz spacing from the center video channel. The Audio is frequency modulated and the video is amplitude modulated. SERIAL NUMBERS: production prototype Page 4 of 21 Compliance Worldwide, Inc. ā 357 Main Street ā Sandown, NH 03873 (603) 887 3903 Fax 887 6445 http://www.cw-inc.com TEST NUMBER - 332-02 TEST RESULTS AND CONCLUSIONS PRODUCT TESTED - 3 channel video baby monitor MODEL NUMBER - 02080 RADIATED TEST RESULTS The test results show that the emissions radiated from this equipment are in compliance with IC Rules RSS 210 / FCC Rules Part 15 Subpart C. OCCUPIED BANDWIDTH & OUTPUT POWER The test results show that the occupied bandwidth and output power of this equipment are in compliance with IC Rules RSS 210 / FCC Rules Part 15 Subpart C . CONDUCTED TEST RESULTS The test results show that the emissions conducted through the power line from this equipment are in compliance with IC Rules RSS 210 / FCC Rules Part 15 Subpart C. ANALYSIS AND CONCLUSIONS Based upon the radiated and conducted measurements we find that this equipment is within the limits of the IC Rules RSS 210 / FCC Rules Part 15 Subpart C. All results are based on a test of one sample, and represent other production units, only in as much as a sample represents other production units. If any significant changes are made to the unit, the changes shall be evaluated and a retest may be required. NOTES (Special conditions unique to this test) None Page 5 of 21 Compliance Worldwide, Inc. ā 357 Main Street ā Sandown, NH 03873 (603) 887 3903 Fax 887 6445 http://www.cw-inc.com TEST NUMBER - 332-02 TEST PROCEDURES 1. TEST EQUIPMENT A. HP 8546A (9 kHz - 6.5 GHz) EMI Receiver w/ RF Filter Section, S/N 3704A00323 / 3650A00360. Calibration Date 10-25-2002, calibrated annually. B. HP 8593E (9 kHz - 26.5 GHz) Spectrum Analyzer, S/N 3829A03887. Calibration Date 9-12-2002, calibrated annually. C. Com-Power Biconilog Antenna, Model AC220, S/N 25509. Calibration Date 12-14-2001, calibrated annually. D. Electro-Metrics Double Ridged Guide Antenna, Model EM-6961, S/N 6337. Calibration Date: 7-17-2002, calibrated annually. E. HP 1 - 26.5 GHz Preamplifier, Model 08449B, S/N 3008A01323. Calibration Date: 9-12-2002, calibrated annually. F. EMCO LISN, Model EM 3825/2, S/N 9109-1860. Calibration Date: 3-11-2002, calibrated annually. 2. FREQUENCY RANGE TO BE SCANNED. A. Radiated Test from 30 MHz to 40 GHz (or the 10 th harmonic of the highest frequency whichever is lower). B. Conducted Test from 450 kHz to 30 MHz. Page 6 of 21 Compliance Worldwide, Inc. ā 357 Main Street ā Sandown, NH 03873 (603) 887 3903 Fax 887 6445 http://www.cw-inc.com TEST NUMBER - 332-02 3. TEST PROCEDURES. Radiated test procedure: The EUT, associated cables and peripheral devices are placed on the supporting table and any support equipment is placed off the site. The EUT is turned on and any necessary operating or test software installed and allowed to warm up. The EUT is pre-scanned in our ferrite tile lined chamber where it is rotated 360 degrees and examined in both horizontal and vertical polarization, the equipment was examined in three orthogonal planes, examined at 85 and 115 percent of input voltage or if battery operated new batteries were used. all emission frequencies are identified and recorded. The EUT is then moved to the OATS and the frequency band from 30 MHz to 40 GHz is scanned, all frequencies identified in the chamber are investigated, as well as harmonic frequencies of the EUT. When an emission is found the emission is maximized by varying the bundle position of the connecting cables, the antenna height, the antenna polarization (vertical and horizontal) and the table orientation (360 degrees). The maximum reading is recorded and the next signal is searched for. Conducted test procedure: The power line of the EUT is connected to the LISN (Line Impedance Stabilization Network). A measurement of the emissions are made from the power line for both phase and neutral on the analyzer in the frequency range from 450 kHz to 30 MHz. The maximum readings are recorded for each phase. All measurements are made according to the procedures defined in: "ANSI C63.4-1992 Standard Methods of Measurement of Radio Noise Emissions from Low-Voltage Electrical and Electronics Equipment in the Range of 9 kHz to 40 GHz, American National Standard for (ISBN 1- 55937-215-5). Page 7 of 21 Compliance Worldwide, Iā¦
Text truncated - open the document above for the full version.
PZK-02080T Setup Photos Page 1 of 4 Conducted Front PZK-02080T Setup Photos Page 2 of 4 Conducted Rear PZK-02080T Setup Photos Page 3 of 4 Radiated Rear PZK-02080T Setup Photos Page 4of 4 Radiated Front
| # | Rule Parts | Frequency Range | Power Output |
|---|---|---|---|
| 1 | 15C | 902 MHz - 928 MHz | - |

Baby Monitor
Equipment Class
DSS - Part 15 Spread Spectrum Transmitter
Baby monitor
Equipment Class
DSS - Part 15 Spread Spectrum Transmitter
Baby Monitor
Equipment Class
DSS - Part 15 Spread Spectrum Transmitter
Baby Monitor
Equipment Class
DSS - Part 15 Spread Spectrum Transmitter
Baby Monitor
Equipment Class
DSS - Part 15 Spread Spectrum Transmitter
