FLASHING BLUE Low Battery Power (On/Off) Rechargeable Battery Pack (Parent’s Unit) Beeping • Out of Range Indicator: Parent’s Unit will sound 3 consecutive beeps until unit is back in range. • Low Battery Indicator: Once battery has between 10 - 30 minutes remaining (depending on volume setting), Parent Unit’s Power LED will flash blue. Baby unit greater than the distance from the body's use of 20 cm Battery Use and Care: Belt Clip: For added convenience and portability, you can clip the Parent’s Unit to your belt or waistband using the Belt Clip on the back. Step 2: Press and hold the power button on front of Baby’s Unit for 1 second to turn on. Baby’s Unit will glow blue once power is on. Step 2: Press and hold the power button on front of Parent’s Unit for 1 second to turn on. Button will glow blue once power is on. •Out of Range Indicator: Parent’s Unit will sound 3 consecutive beeps until unit is back in range. • Low Battery Indicator: Once battery has between 10 - 30 minutes remaining (depending on volume setting), Parent Unit’s Power LED will flash blue. Synching Baby and Parent Unit: Note: This digital monitor set is pre-synched with security codes for privacy reasons. However, there are instances that the Baby and Parent unit will lose its code and may require you to re-synch it. Step 1: Connect the Baby unit to its power supply and make sure unit is powered OFF. Step 2: Turn ON the Parent unit. Step 3: Press and keep holding the “-“ button and at the same time press the “+” button for about 3 seconds. A continuous audible BEEP and blue flashing lights will occur. The Parent unit is now ready to be synched. Step 4: Within 20 seconds, turn on the Baby unit. A single BEEP will emit from the Parent unit to signify successful synching. Testing the Product You should be able to clearly hear all levels of sound coming from the Baby’s Unit through the Speaker on the Parent’s Unit. Digital technology will automatically scan and select a free and secure channel so you only hear your baby. If no sound comes from the Speaker of the Parent’s Unit, check to make sure all cords are fully plugged in and connected and battery is charged. Also, make sure both units are turned on.

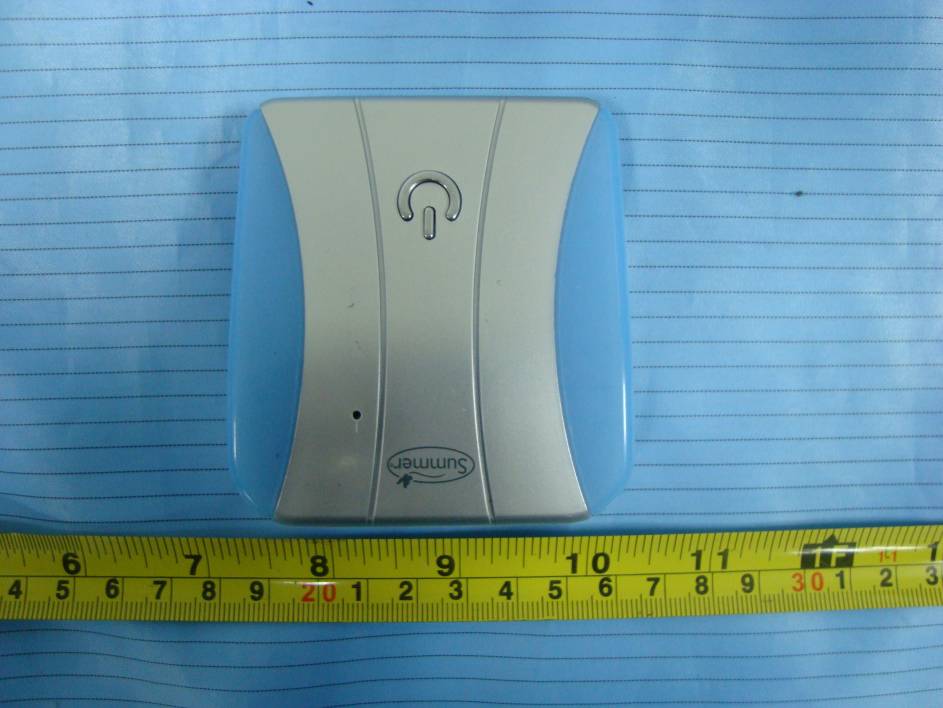

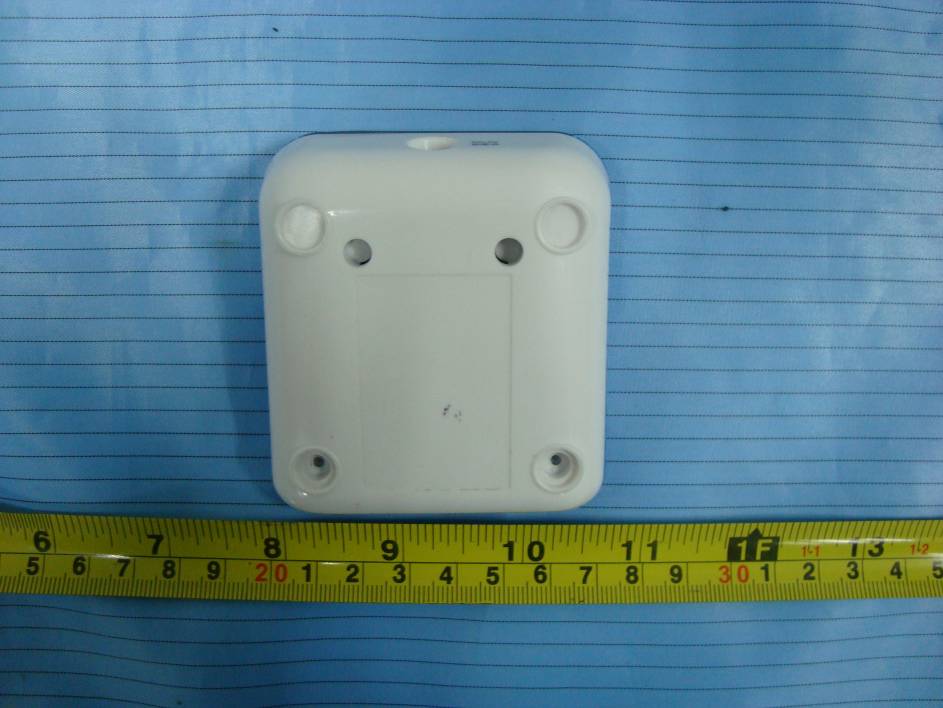

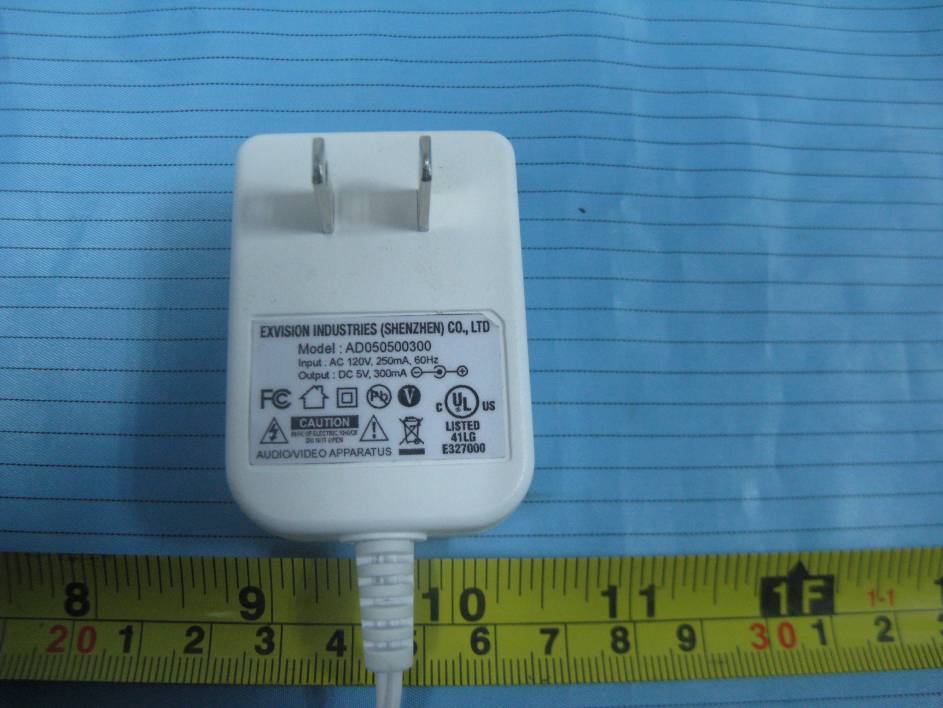

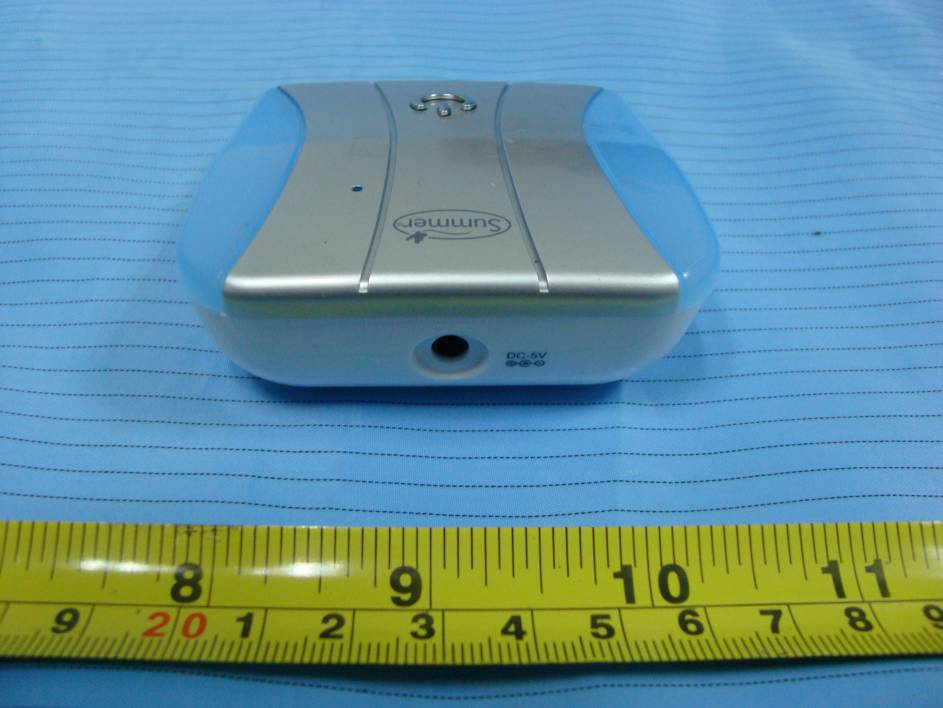

EXHIBIT B - EUT EXTERNAL PHOTOGRAPHS EUT with AC/DC Adaptor View EUT – Top View EUT – Bottom View EUT – Side View EUT – Adapter View

EXHIBIT A - FCC ID LABELING AND LOCATION FCC ID Label FCC ID Label Location Label here The label shown shall be permanently affixed at a conspicuous location on the device and be readily visible to the user at the time purchase (Labeling requirements per 2.925)

EXHIBIT C - EUT INTERNAL PHOTOGRAPHS EUT – Cover off View EUT – Main Board Top View Antenna EUT – Main Board Bottom View

Summer Infant, Inc. FCC ID: PZK-248T Report No.: RSZ10111802 Page 9 of 37 FCC Part15.247 Test Report FCC §15.247 (i), §1.1307(b)(1) & §2.1091 - MAXIMUM PERMISSIBLE EXPOSURE (MPE) Applicable Standard According to §1.1307(b)(1), systems operating under the provisions of this section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy level in excess of the Commission’s guidelines. According to §1.1310 and §2.1091 RF exposure is calculated. Limits for General Population/Uncontrolled Exposure Limits for General Population/Uncontrolled Exposure Frequency Range (MHz) Electric Field Strength (V/m) Magnetic Field Strength (A/m) Power Density (mW/cm 2 ) Averaging Time (minutes) 0.3-1.34 614 1.63 *(100) 30 1.34-30 824/f 2.19/f *(180/f 2 ) 30 30-300 27.5 0.073 0.2 30 300-1500 / / f/1500 30 1500-100,000 / / 1.0 30 f = frequency in MHz * = Plane-wave equivalent power density Test Data Predication of MPE limit at a given distance Where: S = power density (in appropriate units, e.g. mW/cm2) P = power input to the antenna (in appropriate units, e.g., mW). G = power gain of the antenna in the direction of interest relative to an isotropic radiator, the power gain factor, is normally numeric gain. R = distance to the center of radiation of the antenna (appropriate units, e.g., cm) Maximum peak output power at antenna input terminal: 8.86 (dBm ) Maximum peak output power at antenna input terminal: 7.69 (mW) Prediction distance: >20 (cm) Predication frequency: 2473 (MHz) Antenna Gain (typical): 0(dBi) Antenna Gain (typical): 1 (numeric) The worst case is power density at predication frequency at 20 cm: 0.0015 (mW/cm 2 ) MPE limit for general population exposure at prediction frequency: 1 (mW/cm 2 ) Result: Pass

Note: This test report is prepared for the customer shown above and for the device described herein. It may not be duplicated or used in part without prior written consent from Bay Area Compliance Laboratories Corp. This report must not be used by the customer to claim product certification, approval, or endorsement by NVLAP*, NIST, or any agency of the Federal Government. * This report contains data that are not covered by the NVLAP accreditation and are marked with an asterisk “★” (Rev.2) FCC PART 15.247 MEASUREMENT AND TEST REPORT For Summer Infant, Inc. 582 Great Road, North Smithfield, Rhode Island 02896, United States FCC ID: PZK-248T Report Type: Original Report Product Type: 2.4 GHz Transmitter (Audio Monitor) Test Engineer: Kvass Yang Report Number: RSZ10111802 Report Date: 2010-12-17 Reviewed By: Merry Zhao EMC Engineer Prepared By: Bay Area Compliance Laboratories Corp. (Shenzhen) 6/F, the 3rd Phase of WanLi Industrial Building, ShiHua Road, FuTian Free Trade Zone Shenzhen, Guangdong, China Tel: +86-755-33320018 Fax: +86-755-33320008 Summer Infant, Inc. FCC ID: PZK-248T Report No.: RSZ10111802 Page 2 of 37 FCC Part15.247 Test Report TABLE OF CONTENTS GENERAL INFORMATION.......................................................................................................................................4 PRODUCT DESCRIPTION FOR EQUIPMENT UNDER TEST (EUT) .....................................................................................4 OBJECTIVE...................................................................................................................................................................4 RELATED SUBMITTAL(S)/GRANT(S).............................................................................................................................4 TEST METHODOLOGY..................................................................................................................................................4 TEST FACILITY.............................................................................................................................................................5 SYSTEM TEST CONFIGURATION ..........................................................................................................................6 DESCRIPTION OF TEST CONFIGURATION......................................................................................................................6 EQUIPMENT MODIFICATIONS.......................................................................................................................................6 EUT EXERCISE SOFTWARE..........................................................................................................................................6 LOCAL SUPPORT EQUIPMENT LIST AND DETAILS........................................................................................................6 EXTERNAL I/O CABLE..................................................................................................................................................6 CONFIGURATION OF TEST SETUP.................................................................................................................................6 BLOCK DIAGRAM OF TEST SETUP................................................................................................................................7 SUMMARY OF TEST RESULTS ...............................................................................................................................8 FCC §15.247 (i), §1.1307(b)(1) & §2.1091 - MAXIMUM PERMISSIBLE EXPOSURE (MPE)..................................9 APPLICABLE STANDARD..............................................................................................................................................9 TEST DATA..................................................................................................................................................................9 FCC §15.203 - ANTENNA REQUIREMENT...........................................................................................................10 APPLICABLE STANDARD............................................................................................................................................10 ANTENNA CONNECTOR CONSTRUCTION....................................................................................................................10 FCC §15.207 (a) – AC LINE CONDUCTED EMISSIONS .....................................................................................11 APPLICABLE STANDARD............................................................................................................................................11 MEASUREMENT UNCERTAINTY..................................................................................................................................11 EUT SETUP................................................................................................................................................................11 EMI TEST RECEIVER SETUP.......................................................................................................................................12 TEST EQUIPMENT LIST AND DETAILS.........................................................................................................................12 TEST PROCEDURE......................................................................................................................................................12 TEST RESULTS SUMMARY..........................................................................................................................................12 TEST DATA................................................................................................................................................................12 FCC §15.205, §15.209 & §15.247(d) - RADIATED EMISSIONS ..........................................................…

Text truncated - open the document above for the full version.

EXHIBIT D - TEST SETUP PHOTOGRAPHS AC Line Conducted Emissions - Front View AC Line Conducted Emissions - Side View Below 1 GHz: Spurious Radiated Emissions - Front View Below 1 GHz: Spurious Radiated Emissions - Rear View Above 1 GHz: Spurious Radiated Emissions - Front View Above 1 GHz: Spurious Radiated Emissions - Rear View
