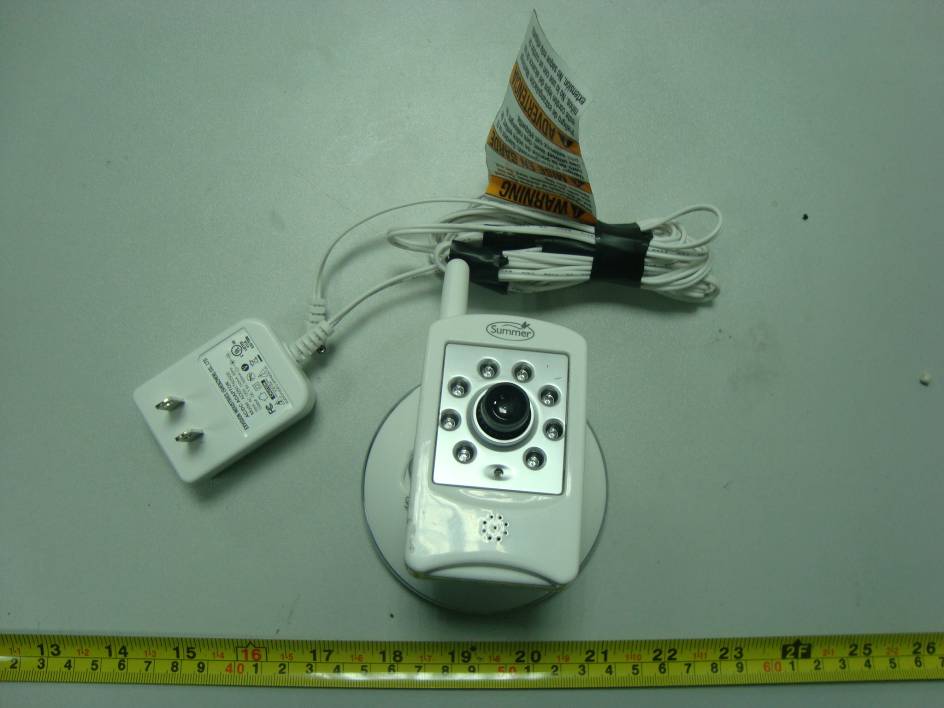

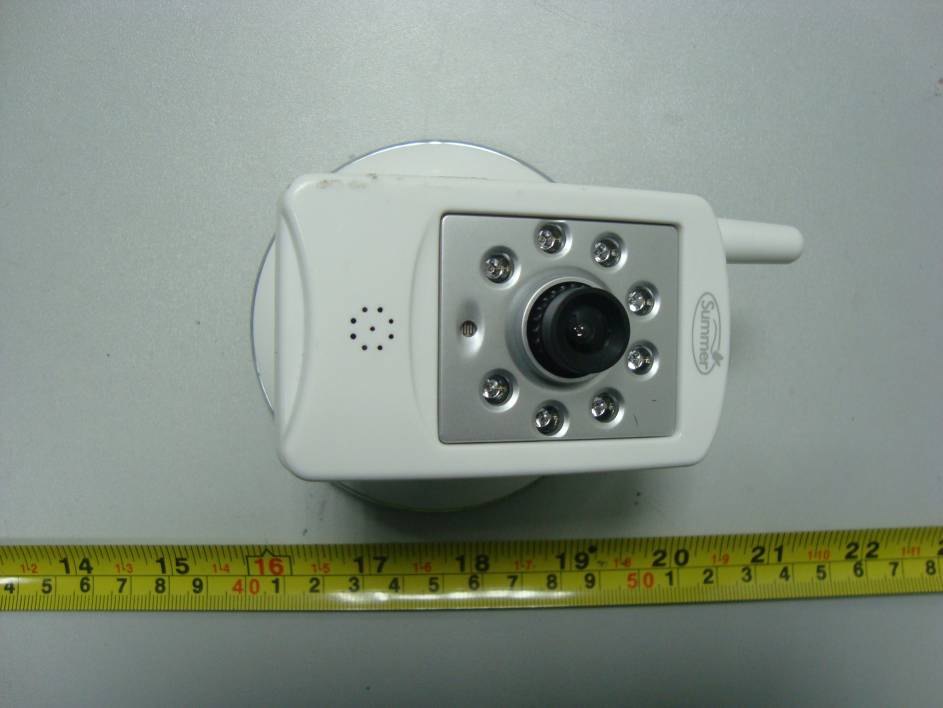

EXHIBIT B - EUT EXTERNAL PHOTOGRAPHS EUT with Adaptor View EUT – Top View EUT – Bottom View EUT – Adapter View

THIS DEVICE COMPLIES WITH PART 15 OF THE FCC RULES. OPERATION IS SUBJECT TO THE FOLLOWING TWO CONDITIONS: (1) THIS DEVICE MAY NOT CAUSE HARMFUL INTERFERENCE, AND (2) THIS DEVICE MUST ACCEPT ANY INTERFERENCE RECEIVED, INCLUDING INTERFERENCE THAT MAY CAUSE UN DESIRED OPERATION. FCC ID : PZK-2827T Summer Infant, Inc. ©2011 All Rights Reserved. Made in CHINA POURLE CANADA: IC: 4400A-2827T Summer Infant, Inc. ©2011 Tous droits réservés. Fabriqué en CHINE CET APPAREIL EST CONFORME À LA PARTIE 15 DU RÉGLEMENT DE LA FCC. LE FONCTIONNEMENT EST SUJET AUX DEUX CONDITIONS SUIVANTES: (1) CET APPAREIL NE PEUT CAUSER D’INTERFÉRENCES NUISI-BLES ET (2) CET APPAREIL REÇOIT TOUTE INTERFÉRENCE MÊME LES INTERFÉREXNCES QUI PEUVENT OCCASIONER UN MAUVAIS FONCTIONNEMENT. 28270 TX ENGRAVING DATE : 03 MARCH 2011

EXHIBIT C - EUT INTERNAL PHOTOGRAPHS EUT – Cover off View EUT – Main Board Top View EUT – Main Board Bottom View Antenna EUT – Main Board Shielding off View EUT – Power Board Top View EUT – Power Board Bottom View EUT – Camera Board Top View EUT – Camera Board Bottom View EUT – Camera Board Camera off View

Summer Infant, Inc. FCC ID: PZK-2827T Report No.: RSZ11012704 Page 8 of 36 FCC Part15.247 Test Report FCC §15.247 (i) & §2.1091- MAXIMUM PERMISSIBLE EXPOSURE (MPE) Applicable Standard According to FCC subpart 15.247 (i) and subpart 1.1307 (b)(1), 2.1091 systems operating under the provisions of this section shall be operated in a manner that ensures the public is not exposed to RF energy level in excess of the communication guidelines. Limits for General Population/Uncontrolled Exposure Limits for General Population/Uncontrolled Exposure Frequency Range (MHz) Electric Field Strength (V/m) Magnetic Field Strength (A/m) Power Density (mw/cm 2 ) Averaging Time (Minutes) 0.3-1.34 614 1.63 *(100) 30 1.34-30 824/f 2.19/f *(180/f 2 ) 30 30-300 27.5 0.073 0.2 30 300-1500 / / f/1500 30 1500-100,000 / / 1.0 30 f = frequency in MHz * = Plane-wave equivalent power density Test Data Predication of MPE limit at a given distance S = PG/4πR² Where: S = power density (in appropriate units, e.g. mW/cm 2 ) P = power input to the antenna (in appropriate units, e.g., mW). G = power gain of the antenna in the direction of interest relative to an isotropic radiator, the power gain factor, is normally numeric gain. R = distance to the center of radiation of the antenna (appropriate units, e.g., cm) Maximum peak output power at antenna input terminal: 8.79 (dBm) Maximum peak output power at antenna input terminal: 7.568(mW) Prediction distance: >20 (cm) Predication frequency: 2408.825 (MHz) Antenna Gain (typical): 0 (dBi) Maximum Antenna Gain: 1 (numeric) The worst case is power density at predication frequency at 20 cm: 0.0015 (mW/cm 2 ) MPE limit for general population exposure at prediction frequency: 1.0 (mW/cm 2 ) Result: The device meets the MPE at 20 cm distance.

Note: This test report is prepared for the customer shown above and for the device described herein. It may not be duplicated or used in part without prior written consent from Bay Area Compliance Laboratories Corp. This report must not be used by the customer to claim product certification, approval, or endorsement by NVLAP*, NIST, or any agency of the Federal Government. * This report contains data that are not covered by the NVLAP accreditation and are marked with an asterisk “★” (Rev.2) FCC PART 15.247 MEASUREMENT AND TEST REPORT For Summer Infant, Inc. 582 Great Road, North Smithfield, Rhode Island 02896, USA FCC ID: PZK-2827T Report Type: Original Report Product Type: Baby Monitor Test Engineer: Kvass Yang Report Number: RSZ11012704 Report Date: 2011-03-08 Reviewed By: Merry Zhao EMC Engineer Prepared By: Bay Area Compliance Laboratories Corp. (Shenzhen) 6/F, the 3rd Phase of WanLi Industrial Building, ShiHua Road, FuTian Free Trade Zone Shenzhen, Guangdong, China Tel: +86-755-33320018 Fax: +86-755-33320008 Summer Infant, Inc. FCC ID: PZK-2827T Report No.: RSZ11012704 Page 2 of 36 FCC Part15.247 Test Report TABLE OF CONTENTS GENERAL INFORMATION.......................................................................................................................................4 PRODUCT DESCRIPTION FOR EQUIPMENT UNDER TEST (EUT) .....................................................................................4 OBJECTIVE...................................................................................................................................................................4 RELATED SUBMITTAL(S)/GRANT(S).............................................................................................................................4 TEST METHODOLOGY..................................................................................................................................................4 TEST FACILITY.............................................................................................................................................................4 SYSTEM TEST CONFIGURATION ..........................................................................................................................6 DESCRIPTION OF TEST CONFIGURATION......................................................................................................................6 EQUIPMENT MODIFICATIONS.......................................................................................................................................6 EUT EXERCISE SOFTWARE..........................................................................................................................................6 EXTERNAL I/O CABLE..................................................................................................................................................6 BLOCK DIAGRAM OF TEST SETUP................................................................................................................................6 SUMMARY OF TEST RESULTS ...............................................................................................................................7 FCC §15.247 (i) & §2.1091- MAXIMUM PERMISSIBLE EXPOSURE (MPE)..........................................................8 APPLICABLE STANDARD..............................................................................................................................................8 TEST DATA..................................................................................................................................................................8 FCC §15.203 – ANTENNA REQUIREMENT ............................................................................................................9 APPLICABLE STANDARD..............................................................................................................................................9 ANTENNA CONNECTOR CONSTRUCTION......................................................................................................................9 FCC §15.207(a) – AC LINE CONDUCTED EMISSIONS ......................................................................................10 APPLICABLE STANDARD............................................................................................................................................10 MEASUREMENT UNCERTAINTY..................................................................................................................................10 EUT SETUP................................................................................................................................................................10 EMI TEST RECEIVER SETUP.......................................................................................................................................11 TEST EQUIPMENT LIST AND DETAILS.........................................................................................................................11 TEST PROCEDURE......................................................................................................................................................11 TEST RESULTS SUMMARY..........................................................................................................................................11 TEST DATA................................................................................................................................................................11 FCC §15.205, §15.209 & §15.247(d) – RADIATED EMISSIONS...........................................................................14 APPLICABLE STANDARD............................................................................................................................................14 MEASUREMENT UNCERTAINTY........................................................................................................................…
