PZK02010TBaby Monitor

4 page No picture or sound on TV• Make sure the TV is turned on • Make sure the AC Adapters are plugged in • Make sure the outlets are working • Make sure the Camera and TV are set to the same channel (try using the other channel if necessary) • Make sure the antenna on the TV is fully extended Sound but no picture on TV• Press the Quick View Button ("Video ON/OFF") once to turn on video mode • Try adjusting the Brightness, Contrast and Vertical Hold dials on the TV • Test reception by moving the TV and/or Camera to different locations • Make sure the Camera and TV are set to the same channel (try using the other channel if necessary) • Make sure the antenna on the TV is fully extended Picture but no sound• Turn up the volume on the TV using the Volume Dial • Make sure the Camera and TV are set on the same channel (try using the other channel if necessary) • Make sure the antenna on the TV is fully extended Picture not clear• Make sure the Camera and TV are set on the same channel (try using the other channel if necessary) • Position the TV closer to the camera if necessary • Move TV away from other monitors, cordless phones, walk-talkies, etc. • Try adjusting the Brightness, Contrast and Vertical Hold dials on the TV • Test reception by moving the TV and/or Camera to different locations • Make sure the antenna on the TV is fully extended Squealing sound• Move the Camera and the TV further away from each other PROBLEM SOLVING: ProblemSolution 02010 Please read the following instructions carefully. Keep this instruction manual for future reference. Phillips head screwdriver (not included). Keep small parts away from children. INSTRUCTION MANUAL BABY SOUNDS VIDEO MONITOR Thank you for buying the 900 MHz Baby Sounds Video Monitor from Summer Infant. Now you can hear and see your baby! Ideal for older children too – monitor playroom activities! QUICK SET UP: Read the instruction manual for more detailed instructions and explanations. • Place Camera in nursery and position facing crib (do not place in crib or within child’s reach). Tilt the Multi-Position Camera/ Microphone so it is facing baby as much as possible. • Plug small AC Adapter into Camera’s AC Adapter Jack and other end of cord into a standard electrical outlet. • Turn Camera on and select channel by setting the Channel Selector (A/Off/B) to channel A. • Position TV in the room from which you will monitor baby. Plug large AC Adapter into TV’s AC Adapter Jack and plug the other end into a standard electrical outlet. Fully extend the TV’s antenna. • Turn TV on using Power On/Volume Dial. Set Channel Selector to channel A. You should now be able to see a view of the nursery and hear any sounds in the nursery. If you don’t get a picture, press the Quick View Button. • If the picture is not clear, try switching both the Camera and the TV to channel B. Sometimes a slight adjustment to the Camera, TV and antenna can make a significant difference in reception. • Adjust the volume on the TV as needed. SATISFACTION GUARANTEED: IF YOU ARE NOT COMPLETELY SATISFIED WITH THIS PRODUCT PLEASE RETURN IT TO US WITH PROOF OF PURCHASE. IF YOU HAVE ANY QUESTIONS OR COMMENTS, PLEASE CONTACT OUR CONSUMER RELATIONS DEPARTMENT. © 2001 Summer Infant, Inc. 6 Blackstone Valley Place Suite 206A Lincoln, RI 02865 USA 1-800-268-6237 www.summerinfant.com MADE IN CHINA. Colors and styles may vary. If you experience a problem that is not noted in this manual, please do not return the product to the store. Our Customer Relations Department may have a simple solution to your problem. Please contact us 1-800-268-6237. FCC Information This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. CAUTION: Changes or modifications not expressly approved by Summer Infant may void the users authority to operate this equipment. NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: • Reorient or relocate the receiving antenna • Increase the separation between the equipment and the receiver • Consult the dealer or an experienced radio/TV technician for help 2 1 3 2 page 3 page Position TV in the room from which you will monitor your baby. Pull up the antenna until it is fully extended. Plug the larger AC Adapter into the TV’s AC Adapter Jack. Plug the other end into a standard electrical outlet. Turn the TV on using the On/Volume Dial. The Power On light will illuminate green. Set the Channel Selector to channel A. Press the Quick View Button (labeled "Video ON/OFF") once for a view of the nursery. When video mode is on, the Video On Light will illuminate green. Adjust the volume as needed using the Volume Dial. Adjust picture using the Contrast, Brightness, and Vertical Hold Dials on the back of the TV. For audio and no video, press the Quick View Button again to shut off the video mode. To turn the TV off completely, use the ON/Volume Dial. FEATURES & COMPONENTS:SET UP & USE: WARNING: THIS PRODUCT CANNOT REPLACE RESPONSIBLE ADULT SUPERVISION. • Prevent cord entanglement — do not place Camera in crib or within arm s reach of baby. Use encl…

Text truncated - open the document above for the full version.

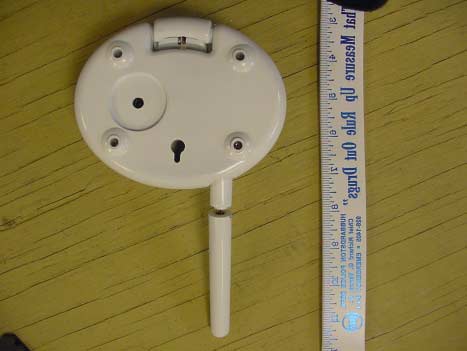

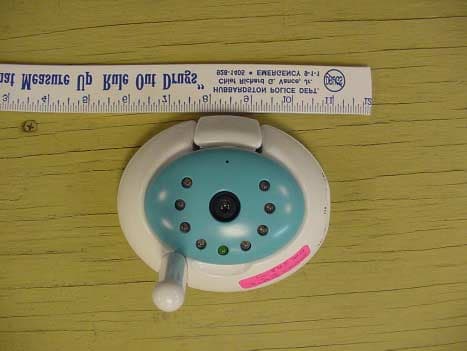

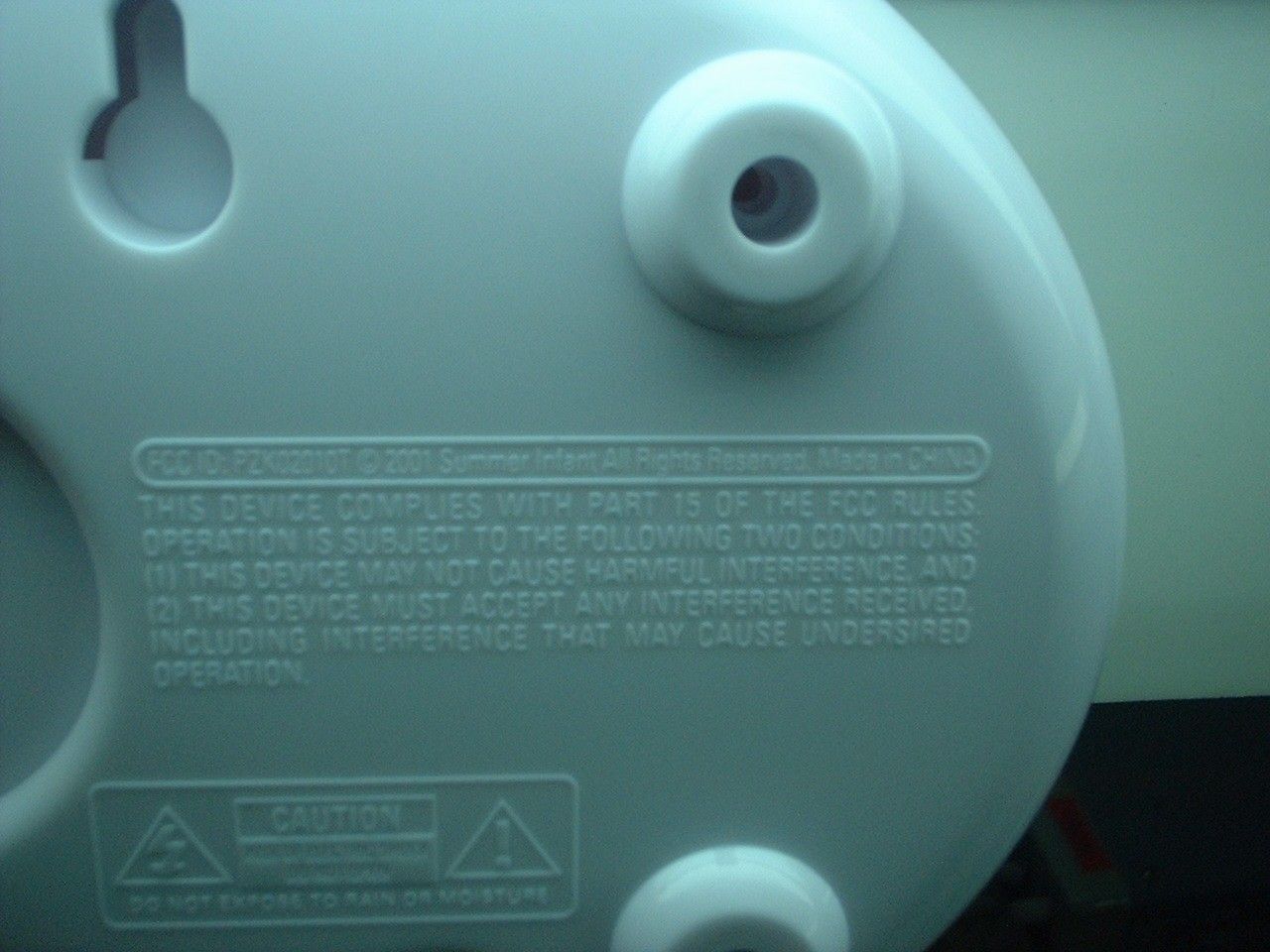

Compliance Worldwide, Inc. – 357 Main Street – Sandown, NH 03873 (603) 887 3903 Fax 887 6445 http://www.cw-inc.com TEST NUMBER - 284-01 PHOTOGRAPHS Exterior Product Photographs (Top) Page 2 of 2 Compliance Worldwide, Inc. – 357 Main Street – Sandown, NH 03873 (603) 887 3903 Fax 887 6445 http://www.cw-inc.com TEST NUMBER - 284-01 PHOTOGRAPHS Exterior Product Photographs (Bottom) (FCC ID Label will go here per drawing)

Compliance Worldwide, Inc. – 357 Main Street – Sandown, NH 03873 (603) 887 3903 Fax 887 6445 http://www.cw-inc.com TEST NUMBER - 284-01 PHOTOGRAPHS Interior Circuit Board Photographs (Top) Page 2 of 7 Compliance Worldwide, Inc. – 357 Main Street – Sandown, NH 03873 (603) 887 3903 Fax 887 6445 http://www.cw-inc.com TEST NUMBER - 284-01 PHOTOGRAPHS Interior Circuit Board Photographs (Bottom) Page 3 of 7 Compliance Worldwide, Inc. – 357 Main Street – Sandown, NH 03873 (603) 887 3903 Fax 887 6445 http://www.cw-inc.com TEST NUMBER - 284-01 PHOTOGRAPHS Interior Product Photographs (antenna length. Antenna is soldered to the PC Board) Page 4 of 7 Compliance Worldwide, Inc. – 357 Main Street – Sandown, NH 03873 (603) 887 3903 Fax 887 6445 http://www.cw-inc.com TEST NUMBER - 284-01 PHOTOGRAPHS Interior Product Photographs (LED/Camera Board Front) Page 5 of 7 Compliance Worldwide, Inc. – 357 Main Street – Sandown, NH 03873 (603) 887 3903 Fax 887 6445 http://www.cw-inc.com TEST NUMBER - 284-01 PHOTOGRAPHS Interior Product Photographs (RF Board rear when removed form main board) Page 6 of 7 Compliance Worldwide, Inc. – 357 Main Street – Sandown, NH 03873 (603) 887 3903 Fax 887 6445 http://www.cw-inc.com TEST NUMBER - 284-01 PHOTOGRAPHS Interior Product Photographs (Main board with RF board removed) Page 7 of 7 Compliance Worldwide, Inc. – 357 Main Street – Sandown, NH 03873 (603) 887 3903 Fax 887 6445 http://www.cw-inc.com TEST NUMBER - 284-01 PHOTOGRAPHS Interior Product Photographs (Close photo of component side RF Board)

Compliance Worldwide, Inc. – 357 Main Street – Sandown, NH 03873 (603) 887 3903 Fax 887 6445 http://www.cw-inc.com TEST NUMBER - 284-01 TESTING TO INDUSTRY CANADA RSS 210 SECTION 6.2.2 FEDERAL COMMUNICATIONS COMMISSION CFR47 PART 15.249 Low Power License-Exempt Radiocummunication Devices Intentional Radiators for Summer Infant, Inc. 6 Blackstone Valley Place Lincoln, RI 02865 (401) 334 9966 x11 of 900 MHz Video Baby Monitor Model 02010 FCC ID#: PZK02010T on 10/25/2001 Tested by Andrew Mertinooke Reviewed by Clifton P. Brick This report may not be duplicated, except in full without written permission from Compliance Worldwide, Inc. Page 2 of 2 Compliance Worldwide, Inc. – 357 Main Street – Sandown, NH 03873 (603) 887 3903 Fax 887 6445 http://www.cw-inc.com TEST NUMBER - 284-01 TABLE OF CONTENTS • Test Description • Test Results and Conclusions • Test Procedures • RSS 210 /Part 15 Subpart C Test Limits • Test Facility Description • Test Setup and Connection Information • Test Measurements and Results Radiated Measurements Radiated Output Power & Occupied Bandwidth Conducted Measurements • Notes and Comments Page 3 of 3 Compliance Worldwide, Inc. – 357 Main Street – Sandown, NH 03873 (603) 887 3903 Fax 887 6445 http://www.cw-inc.com TEST NUMBER - 284-01 TEST DESCRIPTION 1. TEST OBJECTIVE To test the 900 MHz Video Baby Monitor model 02010 to RSS 210 / Part 15 Subpart C Rules and write a report. 2. E.U.T. DESCRIPTION GENERAL The 900 MHz Video Baby Monitor model 02010 is a baby monitor that transmits audio and video in the 902-928 MHz frequency band. The transmitter has a moveable video camera with IR LEDs for night vision. SERIAL NUMBERS: Pre Production Prototype Page 4 of 4 Compliance Worldwide, Inc. – 357 Main Street – Sandown, NH 03873 (603) 887 3903 Fax 887 6445 http://www.cw-inc.com TEST NUMBER - 284-01 TEST RESULTS AND CONCLUSIONS PRODUCT TESTED - 900 MHz Video Baby Monitor MODEL NUMBER - 02010 RADIATED TEST RESULTS The test results show that the emissions radiated from this equipment are in compliance with IC Rules RSS 210 / FCC Rules Part 15 Subpart C. OCCUPIED BANDWIDTH & OUTPUT POWER The test results show that the occupied bandwidth and output power of this equipment are in compliance with IC Rules RSS 210 / FCC Rules Part 15 Subpart C . CONDUCTED TEST RESULTS The test results show that the emissions conducted through the power line from this equipment are in compliance with IC Rules RSS 210 / FCC Rules Part 15 Subpart C. ANALYSIS AND CONCLUSIONS Based upon the radiated and conducted measurements we find that this equipment is within the limits of the IC Rules RSS 210 / FCC Rules Part 15 Subpart C. All results are based on a test of one sample, and represent other production units, only in as much as a sample represents other production units. If any significant changes are made to the unit, the changes shall be evaluated and a retest may be required. NOTES (Special conditions unique to this test) None Page 5 of 5 Compliance Worldwide, Inc. – 357 Main Street – Sandown, NH 03873 (603) 887 3903 Fax 887 6445 http://www.cw-inc.com TEST NUMBER - 284-01 TEST PROCEDURES 1. TEST EQUIPMENT A. HP 8546A (9 kHz - 6.5 GHz) EMI Receiver w/ RF Filter Section, S/N 3704A00323 / 3650A00360. Calibration Date 10-17-2001, calibrated annually. B. HP 8593E (9 kHz - 26.5 GHz) Spectrum Analyzer, S/N 3829A03887. Calibration Date 7-25-2001, calibrated annually. C. Electro-Metrics BiConical Antenna, Model EM6912A, S/N 149. Calibration Date 1-2-2001, calibrated annually. D. Electro-Metrics Log Periodic Antenna, Model EM-6950, S/N 1017. Calibration Date: 1-2-2001, calibrated annually. E. Electro-Metrics Double Ridged Guide Antenna, Model EM-6961, S/N 6337. Calibration Date: 7-27-2001, calibrated annually. F. HP 1 - 26.5 GHz Preamplifier, Model 08449B, S/N 3008A01323. Calibration Date: 7-25-2001, calibrated annually. G. EMCO LISN, Model EM 3825/2, S/N 9109-1860. Calibration Date: 2-22-2001, calibrated annually. 2. FREQUENCY RANGE TO BE SCANNED. A. Radiated Test from 30 MHz to 40 GHz (or the 10 th harmonic of the highest frequency whichever is lower). B. Conducted Test from 450 kHz to 30 MHz. Page 6 of 6 Compliance Worldwide, Inc. – 357 Main Street – Sandown, NH 03873 (603) 887 3903 Fax 887 6445 http://www.cw-inc.com TEST NUMBER - 284-01 3. TEST PROCEDURES. Radiated test procedure: The EUT, associated cables and peripheral devices are placed on the supporting table and any support equipment is placed off the site. The EUT is turned on and any necessary operating or test software installed and allowed to warm up. The EUT is pre-scanned in our ferrite tile lined chamber where it is rotated 360 degrees and examined in both horizontal and vertical polarization, the equipment was examined in three orthogonal planes, all emission frequencies are identified and recorded. The EUT is then moved to the OATS and the frequency band from 30 MHz to 40 GHz is scanned, all frequencies identified in the chamber are investigated, as well as harmonic frequencies of the EUT. When an emission is found the emission is maximized by varying the bundle position of the connecting cables, the antenna height, the antenna polarization (vertical and horizontal) and the table orientation (360 degrees). The maximum reading is recorded and the next signal is searched for. Conducted test procedure: The power line of the EUT is connected to the LISN (Line Impedance Stabilization Network). A measurement of the emissions are made from the power line for both phase and neutral on the analyzer in the frequency range from 450 kHz to 30 MHz. The maximum readings are recorded for each phase. All measurements are made according to the procedures defined in: "ANSI C63.4-1992 Standard Methods of Measurement of Radio Noise Emissions from Low-Voltage Electrical and Electronics Equipment in the Range of 9 kHz to 40 GHz, American National Standard for (ISBN 1- 55937-215-5). Page 7 of 7 Compliance Worldwide, Inc. – 357 Main Street – Sandown, NH 03873 (603) 887 39…

Text truncated - open the document above for the full version.

Compliance Worldwide, Inc. – 357 Main Street – Sandown, NH 03873 (603) 887 3903 Fax 887 6445 http://www.cw-inc.com TEST NUMBER - 284-01 PHOTOGRAPHS Radiated Test Setup (Front) Page 2 of 2 Compliance Worldwide, Inc. – 357 Main Street – Sandown, NH 03873 (603) 887 3903 Fax 887 6445 http://www.cw-inc.com TEST NUMBER - 284-01 PHOTOGRAPHS Radiated Test Setup (Rear) Page 3 of 3 Compliance Worldwide, Inc. – 357 Main Street – Sandown, NH 03873 (603) 887 3903 Fax 887 6445 http://www.cw-inc.com TEST NUMBER - 284-01 PHOTOGRAPHS Conducted Test Setup (Front) Page 4 of 4 Compliance Worldwide, Inc. – 357 Main Street – Sandown, NH 03873 (603) 887 3903 Fax 887 6445 http://www.cw-inc.com TEST NUMBER - 284-01 PHOTOGRAPHS Conducted Test Setup (Rear)
