PZK02160TDual Video Monitor with Scan

Block Diagram VCO1-6.5M (Q5 C28 C29 C30 LB1 VA R 2 ) VCO2-2.4G ( Q3 C15 ) Amp： (Q1 + Q2) BPF-2.4G ( C1 C2 ) Audio Video +5v GND Loop Filter (R16 C47 R32 C48 R17 C46 R15 ) IC1：CPU IC2：PLL CHa：2410MHz CHb：2441MHz CHc：2468MHz SW1 DATA C L K LOAD REF CRYSTAL (17.7344MHz)

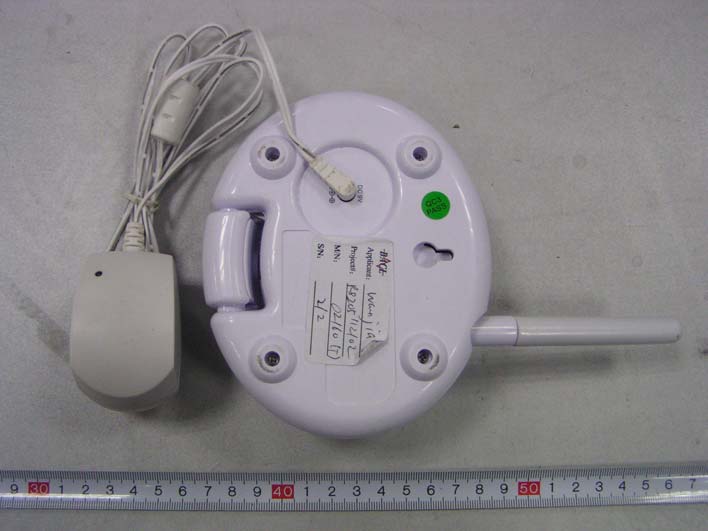

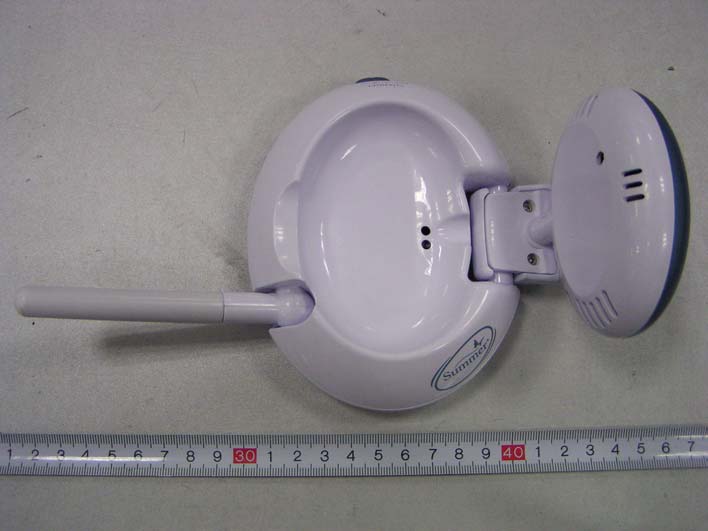

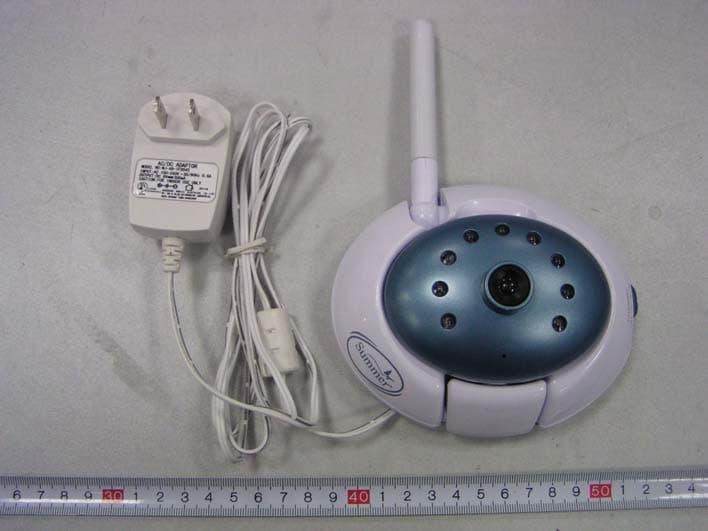

External Photos EUT-Front View EUT-Back View 1 EUT-Back View 2

ID Label Label FCC ID: PZK02160T

ID Label/Location Label Location Information Specifications: Text is Black or white in color and is left justified. Labels are printed in indelible ink on permanent adhesive backing or silk-screened onto the EUT or shall be affixed at a conspicuous location on the EUT. Label Location FCC ID: PZK02160T

Internal Photos EUT-Inside View (1) EUT-Inside View (2) EUT- Camera Front View EUT- Camera Rear View EUT-Camera PCB Front View EUT-Camera PCB Rear View EUT- RF PCB Front view EUT- RF PCB Back view EUT- PCB Front View EUT- PCB Back View

Circuit Description The transmitter is made up of two parts：Audio & Video unit and RF unit。The audio signal from MIC1 is amplified，then modulates the audio carry frequency oscillator（6.5MHz），the modulated carry frequency is added in the VT of voltage controlled oscillator VCO2（2.4GHz，VD1、 Q3）。The video signal from CMOS camera passes through the sharp network（VR1、C32），also is added in the VT of VCO2，another signal is added in the VT of VCO2 is the error voltage output of loop filter（R16 C47 R32 C48 R17 C46 R15） of PLL（IC2） which is programmed by CPU （IC1），the channel data is decided by the encode switch(SW1) of CPU's peripheries。The feed back signal（R14、C16） form voltage controlled oscillator VCO2 is compared with reference crystal oscillator，the error frequency of oscillator VCO2 can be corrected。The carry frequency to be modulated by audio & video has been power amplified by Q1+Q2，filtered through the band pass filter（C1、C2，microstrip）which the higher harmonica of signal reduced to lower level。The purer signal is emitted by antenna（RFOUT）。

02160 2.4G WIRELESS BABY GUARD 5.5`B/W WIRESS MONITOR MONITOR 1 ADAPTOR INPUT VOLTAGE AC 110—240V 2 ADAPTOR OUTPUT VOLTAGE 12V/1200mA 3 CURRENT 1000mA 4 Power consumption 12W 5 CHANNELA FREQUENCY: Cha--------2.410GHz 6 CHANNELB FREQUENCY: CHb-------2.441GHz 7 CHANNELC FREQUENCY: CHc-------2.468GHz 8 ANT TYPE(gain 3dB) PIPE COPPER 9 RECEIVER RANGE 100m TRANSMITTER ADAPTOR INPUT VOLTAGE AC 110—240V ADAPTOR OUTPUT VOLTAGE 9V/500mA Power consumption 2W CHANNELA FREQUENCY: Cha--------2.410GHz CHANNELB FREQUENCY: CHb-------2.441GHz CHANNELC FREQUENCY: CHc-------2.468GHz ANT TYPE(gain 3dB) PIPE COPPER TRANSMIT RANGE 100m Modulation FM Output power 0dBm Edit: Check: Approved:

1 2 3 4 56 ABCD 6 5 4 3 2 1 D CBA Title Number Revision Size B Date: 19-Nov-2005 Sheet of File: D:\02160\DATA\SWJ-02160SCH.DDB Drawn By: R233R/3W D6 D7 D8 D2 D3 D4 D9 D1 AVDD 1 SVDD 2 VRCHG 3 N50 4 ABOFF 5 VCBRT 6 SGND 7 NTSC 8 BKLT 9 XTAL2 10 XTAL1 11 FSI 12 OENB 13 G4X 14 FAST 15 BPED 16 GAMMA 17 MIRR 18 PCLK 19 DVDD 20 DGND 21 CVO 22 OVDD 23 ATBKLT 24 DEGND 25 DEVDD 26 VREQ 27 AGND 28 OV5116 U1 12345 CON5 VCC R610R 470UF/25V Vin 3 GND 2 +5V 1 U17201 C6104 C3104 R121M C1010P C910PJX1 NTST\12.288MHZ R910K R810K R710K R510K R333R VIDEO 47UF/16V MK MICROPHONE C2 10UF/25V Q13904 R210K 104 Q23904 R45K6R3470K AUDIO C8104 C4104 R1 10K C5153 SWJ-02160TAW GND 12345 CON5 R110R DC JACK D11N4148 R1010R 470UF/25V Vin 3 GND 2 +5V 1 IC17805 C110UF/25V R65K6 D5 sw1 C9104 R71K R81K R91K MODULE VIDEO GND AUDIO L AUDIO R +5V VCC KEY CHA CHB CHC C147UF/25V C110.1uF C40.1uF C80.1uF ANT

Note: The test report is specially limited to the above company and this particular sample only. It may not be duplicated without prior written consent of Bay Area Compliance Lab Corp. (ShenZhen). This report must not be used by the client to claim product certification, approval, or endorsement by NVLAP, NIST or any agency of the US Government. FCC PART 15.249 EMI MEASUREMENT AND TEST REPORT For Summer Infant Inc. 582 Great Road North Smithfield, Rhode Island 02896 USA FCC ID: PZK02160T December 8, 2005 This Report Concerns: Original Report Equipment Type: Transmitter, DUAL VIDEO MONITOR WITH SCAN Test Engineer: Lisa Zhu William Chan Report No.: RSZ05112102 Test Date: November 24-29, 2005 Reviewed By: Chris Zeng Prepared By: Bay Area Compliance Lab Corp. (ShenZhen) 6/F, the 3rd Phase of WanLi Industrial Building, ShiHua Road, FuTian Free Trade Zone, ShenZhen, Guangdong 518038, P.R.China Tel: +86-755-33320018 Fax: +86-755-33320008 Summer Infant Inc. FCC ID: PZK02160T Report # RSZ05112102 Page 2 of 23 FCC PART 15.249 Report TABLE OF CONTENTS GENERAL INFORMATION.......................................................................................................................................3 PRODUCT DESCRIPTION FOR EQUIPMENT UNDER TEST (EUT) ....................................................................................3 OBJECTIVE...................................................................................................................................................................3 RELATED SUBMITTAL(S)/GRANT(S).............................................................................................................................3 TEST METHODOLOGY..................................................................................................................................................3 TEST FACILITY.............................................................................................................................................................3 SYSTEM TEST CONFIGURATION ..........................................................................................................................5 JUSTIFICATION.............................................................................................................................................................5 EQUIPMENT MODIFICATIONS.......................................................................................................................................5 CONFIGURATION OF TEST SETUP.................................................................................................................................6 BLOCK DIAGRAM OF TEST SETUP................................................................................................................................6 SUMMARY OF TEST RESULTS...............................................................................................................................7 §15.203 - ANTENNA APPLICATION ........................................................................................................................8 STANDARD APPLICABLE..............................................................................................................................................8 §15.207 - CONDUCTED EMISSION ..........................................................................................................................9 MEASUREMENT UNCERTAINTY....................................................................................................................................9 EUT SETUP..................................................................................................................................................................9 EMI TEST RECEIVER SETUP......................................................................................................................................10 TEST EQUIPMENT LIST AND DETAILS.........................................................................................................................10 TEST PROCEDURE......................................................................................................................................................10 TEST RESULTS SUMMARY..........................................................................................................................................10 TEST DATA................................................................................................................................................................11 PLOT(S) OF TEST DATA..............................................................................................................................................11 §15.205 §15.209(A) §15.249(A) - RADIATED EMISSION ......................................................................................14 M EASUREMENT U NCERTAINTY ..................................................................................................................................14 EUT S ETUP ................................................................................................................................................................14 EMI T EST R ECEIVER S ETUP ......................................................................................................................................15 TEST EQUIPMENT LIST AND DETAILS.........................................................................................................................15 TEST PROCEDURE......................................................................................................................................................15 CORRECTED AMPLITUDE & MARGIN CALCULATION.................................................................................................15 TEST RESULTS SUMMARY..........................................................................................................................................1…

Text truncated - open the document above for the full version.

Test Setup Photos Conducted Emission-Front View Conducted Emission-Side View Radiated Emissions-Front View (above 1GHz) Radiated Emissions-Rear View (above 1GHz) Radiated Emissions-Front View (below 1GHz) Radiated Emissions-Rear View (below 1GHz)
