PZK201ATVIDEO BABY MONITOR

Block DiagramDate: Apr 15, 2004 Model 201A Ant. Power Indicator - D9 Power On/Off Switch SW 1 DC 9V Input 940nS IR Emitter LEDs D1 - D8 5V Regulator - U2 5V Regulator - U1 Omivision Cmos Camera Module Video Amp - TR 5 900Mhz Oscillator & Modulator TR 13 & D1 RF Power Amp TR 10 -- TR 11 Two Channel Selector CHA -- 910Mhz CHB -- 921Mhz Audio Amp TR 1 -- TR 5 Condensor Microphone

Compliance Worldwide, Inc. - 357 Main Street - Sandown, NH 03873 (603) 887 3903 Fax (603) 887 6445 www.complianceworldwide.com Date: 5-November-2004 The following is a response to questions regarding the Summer Infant PZK201AT video transmitter, our test number 207-04. Page 2 addresses question 2, and pages 3 and 4 address question 3. Thank you, Clifton P. Brick Compliance Worldwide, Inc. - 357 Main Street - Sandown, NH 03873 (603) 887 3903 Fax (603) 887 6445 www.complianceworldwide.com Response to item 2 of an email from Katie Hawkins to Sid Sanders: The following is a revised table set from page 12 of the test report that includes the Peak measurement data, showing that the device complies with the corresponding peak limit of 20dB above the average limit. Radiated Channel A Tabular Data Pol. (H/V) Frequency (MHz) Peak Amplitude (dBuV/m) QP/Avg Amplitude (dBuV/m) QP/Avg Limit (dBuV/m) QP/Avg Margin (dBuV/m) H 1.820 GHz 54.6 46.9* 54 -7.1 H 2.730 GHz 53.8 41.9* 54 -12.1 4 th Through the 10 th harmonic, all are greater than 15 dB below limit. * Denotes an average detector value. Radiated channel B Tabular Data Pol. (H/V) Frequency (MHz) Peak Amplitude (dBuV/m) QP/Avg Amplitude (dBuV/m) QP/Avg Limit (dBuV/m) QP/Avg Margin (dBuV/m) H 1.842 GHz 52.7 45.2* 54 -8.8 H 2.763 GHz 53.8 44.1* 54 -9.9 4 th Through the 10 th harmonic, all are greater than 15 dB below limit. * Denotes an average detector value. Compliance Worldwide, Inc. - 357 Main Street - Sandown, NH 03873 (603) 887 3903 Fax (603) 887 6445 www.complianceworldwide.com Response to item 3 of an email from Katie Hawkins to Sid Sanders: The following is a plot taken during the testing showing the upper audio signal with the band edge shown as the limit line on the right side of the plot. Compliance Worldwide, Inc. - 357 Main Street - Sandown, NH 03873 (603) 887 3903 Fax (603) 887 6445 www.complianceworldwide.com Response to item 3 of an email from Katie Hawkins to Sid Sanders: The following is a plot taken during the testing showing the lower audio signal with the band edge shown as the limit line on the left side of the plot.

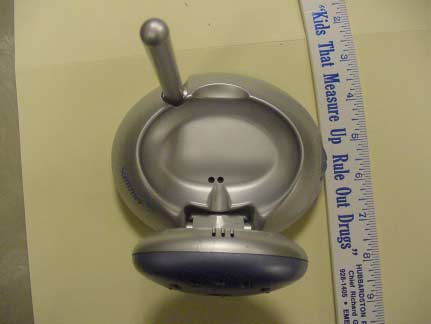

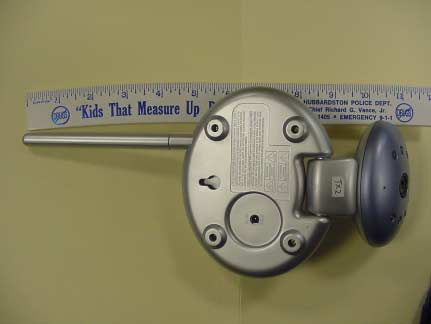

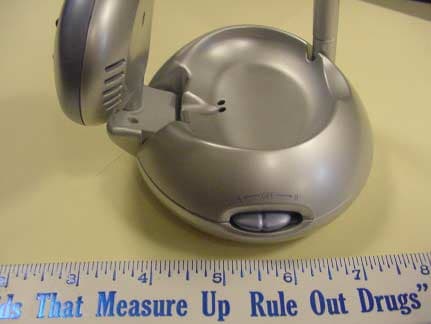

PZK201AT Exterior Photos Page 1 of 4 Rear/bottom of EUT PZK201AT Exterior Photos Page 2 of 4 Top/Front of EUT PZK201AT Exterior Photos Page 3 of 4 Front/Side of EUT PZK201AT Exterior Photos Page 4 of 4 Side of EUT

PZK201AT label Photos Page 1 of 1 Photo shows label engraving location only, please see label sample exhibit for actual text.

PZK201AT Interior Photos Page 1 of 8 Photo of antenna PZK201AT Interior Photos Page 2 of 8 Main Boart top view PZK201AT Interior Photos Page 3 of 8 RF board top view PZK201AT Interior Photos Page 4 of 8 Rear/solder side of main PCB PZK201AT Interior Photos Page 5 of 8 RF board Solder Side, removed from main board. PZK201AT Interior Photos Page 6 of 8 Main board with RF board removed PZK201AT Interior Photos Page 7 of 8 Component side of video board and microphone. PZK201AT Interior Photos Page 8 of 8 Rear of video board, LED dimmer control and microphone.

Compliance Worldwide, Inc. – 357 Main Street – Sandown, NH 03873 (603) 887 3903 Fax 887 6445 http://www.cw-inc.com TEST NUMBER - 207-04 TEST REPORT TO INDUSTRY CANADA RSS 210 SECTION 6.2.2 FEDERAL COMMUNICATIONS COMMISSION CFR47 PART15.249 Low Power License-Exempt Radio Communication Devices Intentional Radiators for Summer Infant Products 6 Blackstone Valley Place Lincoln, RI 02865 (401) 334 9966 of 2 channel video baby monitor 02010A FCC ID: PZK201AT on 4/14/2004 Tested by Andrew Mertinooke Reviewed by Clifton P. Brick This report may not be duplicated, except in full without written permission from Compliance Worldwide, Inc. Page 2 of 21 Compliance Worldwide, Inc. – 357 Main Street – Sandown, NH 03873 (603) 887 3903 Fax 887 6445 http://www.cw-inc.com TEST NUMBER - 207-04 TABLE OF CONTENTS • Test Description • Test Results and Conclusions • Test Procedures • RSS 210 /Part 15 Subpart C Test Limits • Test Facility Description • Test Setup and Connection Information • Test Measurements and Results Radiated Measurements Radiated Output Power & Occupied Bandwidth Conducted Measurements • Notes and Comments Page 3 of 21 Compliance Worldwide, Inc. – 357 Main Street – Sandown, NH 03873 (603) 887 3903 Fax 887 6445 http://www.cw-inc.com TEST NUMBER - 207-04 TEST DESCRIPTION 1. TEST OBJECTIVE To test the 2 channel video baby monitor 02010A to RSS 210 / Part 15 Subpart C Rules and write a report. 2. E.U.T. DESCRIPTION GENERAL The 02010A is a 2 channel video baby monitor that operates in the 902-928 MHz Frequency Band. Its 2 channels are centered on 910 and 921 MHz, with Audio carrier 4.5 MHz spacing from the center video channel. The Audio and Video is frequency modulated. SERIAL NUMBERS: production prototype Page 4 of 21 Compliance Worldwide, Inc. – 357 Main Street – Sandown, NH 03873 (603) 887 3903 Fax 887 6445 http://www.cw-inc.com TEST NUMBER - 207-04 TEST RESULTS AND CONCLUSIONS PRODUCT TESTED - 2 channel video baby monitor MODEL NUMBER - 02010A RADIATED TEST RESULTS The test results show that the emissions radiated from this equipment are in compliance with IC Rules RSS 210 / FCC Rules Part 15 Subpart C. OCCUPIED BANDWIDTH & OUTPUT POWER The test results show that the occupied bandwidth and output power of this equipment are in compliance with IC Rules RSS 210 / FCC Rules Part 15 Subpart C . CONDUCTED TEST RESULTS The test results show that the emissions conducted through the power line from this equipment are in compliance with IC Rules RSS 210 / FCC Rules Part 15 Subpart C. ANALYSIS AND CONCLUSIONS Based upon the radiated and conducted measurements we find that this equipment is within the limits of the IC Rules RSS 210 / FCC Rules Part 15 Subpart C. All results are based on a test of one sample, and represent other production units, only in as much as a sample represents other production units. If any significant changes are made to the unit, the changes shall be evaluated and a retest may be required. NOTES (Special conditions unique to this test) None Page 5 of 21 Compliance Worldwide, Inc. – 357 Main Street – Sandown, NH 03873 (603) 887 3903 Fax 887 6445 http://www.cw-inc.com TEST NUMBER - 207-04 TEST PROCEDURES 1. TEST EQUIPMENT A. HP 8546A (9 kHz - 6.5 GHz) EMI Receiver w/ RF Filter Section, S/N 3704A00323 / 3650A00360. Calibration Date 1-16-2004, calibrated annually. B. HP 8593E (9 kHz - 26.5 GHz) Spectrum Analyzer, S/N 3829A03887. Calibration Date 11-21-2003, calibrated annually. C. Com-Power Biconilog Antenna, Model AC220, S/N 25509. Calibration Date 7-17-2003, calibrated annually. D. Electro-Metrics Double Ridged Guide Antenna, Model EM-6961, S/N 6337. Calibration Date: 6-24-2003, calibrated annually. E. HP 1 - 26.5 GHz Preamplifier, Model 08449B, S/N 3008A01323. Calibration Date: 1-7-2004, calibrated annually. F. EMCO LISN, Model EM 3825/2, S/N 9109-1860. Calibration Date: 3-10-2004, calibrated annually. 2. FREQUENCY RANGE TO BE SCANNED. A. Radiated Test from 30 MHz to 40 GHz (or the 10 th harmonic of the highest frequency whichever is lower). B. Conducted Test from 150 kHz to 30 MHz. Page 6 of 21 Compliance Worldwide, Inc. – 357 Main Street – Sandown, NH 03873 (603) 887 3903 Fax 887 6445 http://www.cw-inc.com TEST NUMBER - 207-04 3. TEST PROCEDURES. Radiated test procedure: The EUT, associated cables and peripheral devices are placed on the supporting table and any support equipment is placed off the site. The EUT is turned on and any necessary operating or test software installed and allowed to warm up. The EUT is pre-scanned in our ferrite tile lined chamber where it is rotated 360 degrees and examined in both horizontal and vertical polarization, the equipment was examined in three orthogonal planes, examined at 85 and 115 percent of input voltage or if battery operated new batteries were used. all emission frequencies are identified and recorded. The EUT is then moved to the OATS and the frequency band from 30 MHz to 40 GHz is scanned, all frequencies identified in the chamber are investigated, as well as harmonic frequencies of the EUT. When an emission is found the emission is maximized by varying the bundle position of the connecting cables, the antenna height, the antenna polarization (vertical and horizontal) and the table orientation (360 degrees). The maximum reading is recorded and the next signal is searched for. Conducted test procedure: The power line of the EUT is connected to the LISN (Line Impedance Stabilization Network). A measurement of the emissions are made from the power line for both phase and neutral on the analyzer in the frequency range from 150 kHz to 30 MHz. The maximum readings are recorded for each phase. All measurements are made according to the procedures defined in: "ANSI C63.4-1992 Standard Methods of Measurement of Radio Noise Emissions from Low-Voltage Electrical and Electronics Equipment in the Range of 9 kHz to 40 GHz, American National Standard for (ISBN 1- 55937-215-5). Page 7 of 21 Compliance Worldwide, Inc. – 357 Main Street – Sandow…

Text truncated - open the document above for the full version.

PZK201AT Setup Photos Page 1 of 4 Worst Case Radiated Setup Rear PZK201AT Setup Photos Page 2 of 4 Worst Case Radiated Setup Front PZK201AT Setup Photos Page 3 of 4 Conducted setup front PZK201AT Setup Photos Page 4 of 4 Conducted Setup Rear
