PZK222T900 MHz DAY AND NIGHT VIDEO MONITOR

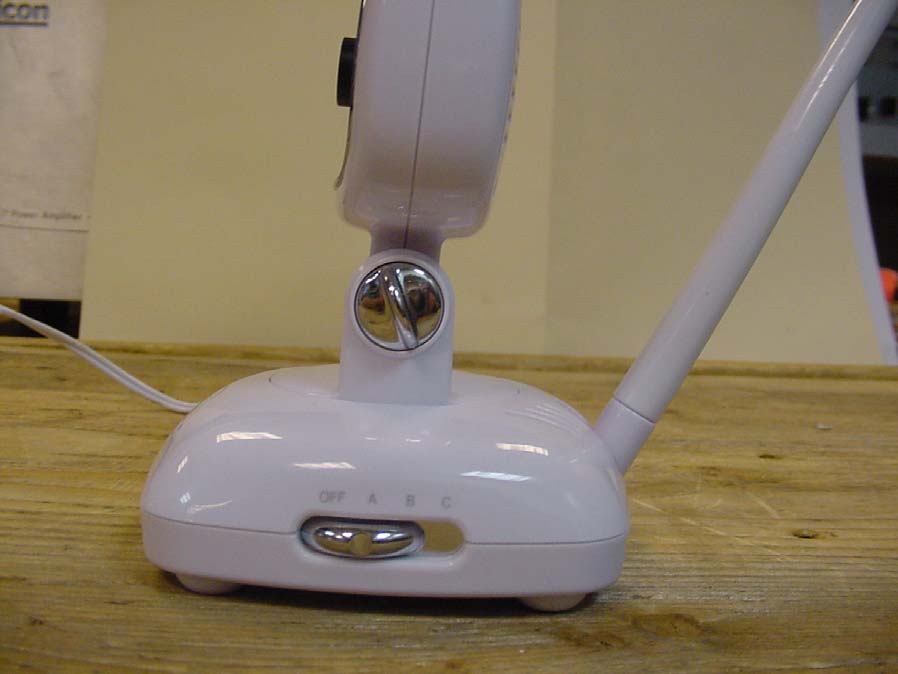

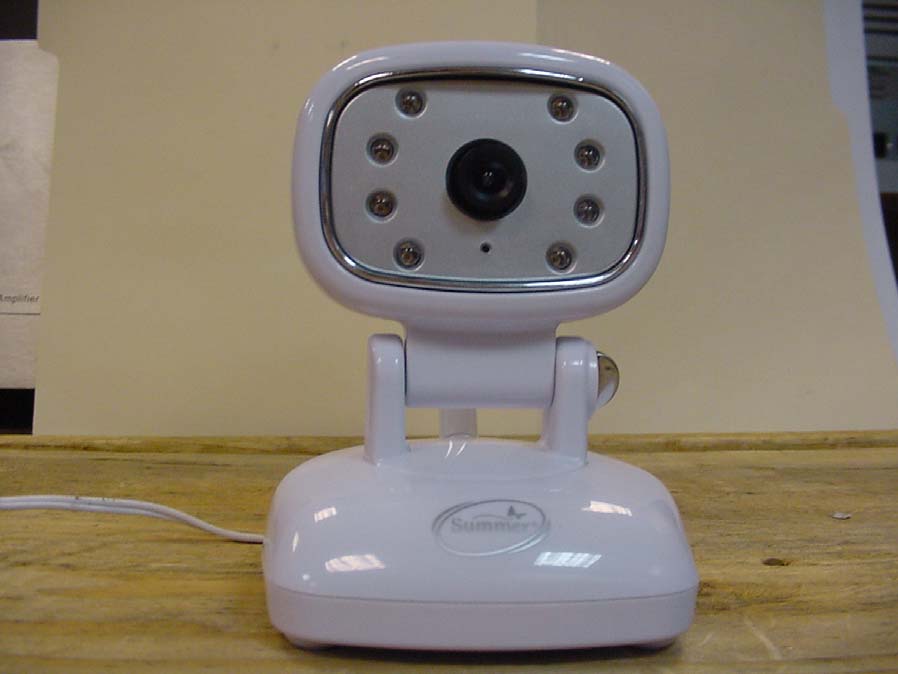

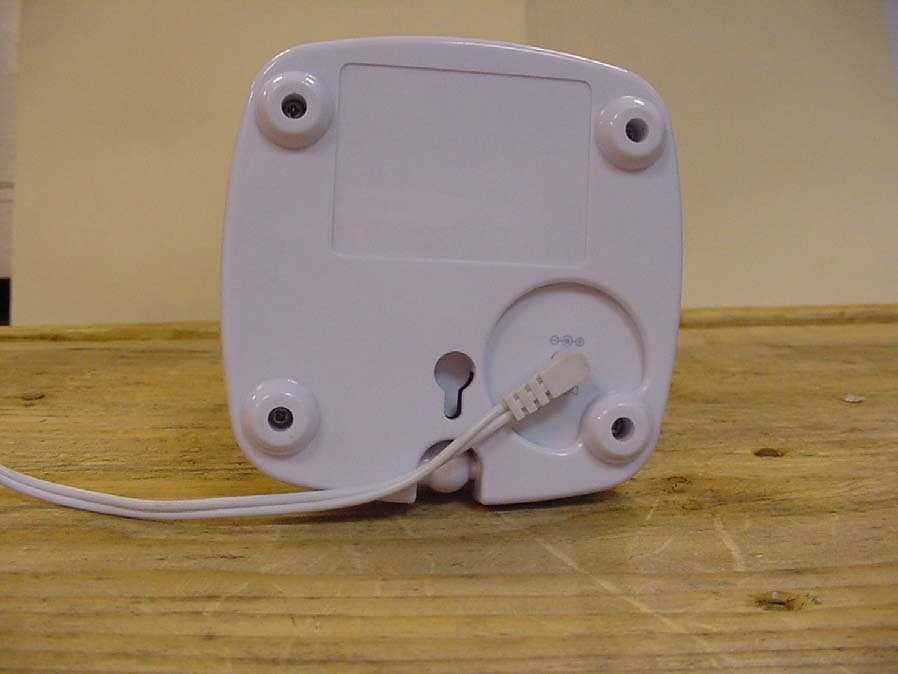

External Photos: Summer Infant Model 02220 Day and Night Video Monitor (transmitter application) Front Face: Rear: Side:

Internal Photos; Summer Infant Model 02220 Digital Day and Night Video Monitor Front Face: Back Face: Rear Board, Bottom: Rear Board, Top: Rear Board, Top, with PCB board removed Small PCB board, Top Small PCB board, bottom Small PCB board with shield removed:

Compliance Worldwide, Inc. - 357 Main Street - Sandown, NH 03873 (603) 887 3903 Fax 887 6445 http://www.complianceworldwide.com COMPLIANCE WORLDWIDE INC. TEST REPORT 275-06 In Accordance with the Requirements of Industry Canada RSS 210, Issue 6, Annex II Federal Communications Commission CFR Title 47 Part 15.249, Subpart C Low Power License-Exempt Radio Communication Devices Intentional Radiators Issued to Summer Infant, Inc. 582 Great Road P.O. Box 829 Slatersville, RI 02876 for Day and Night Video Monitor FCC ID: PZK222T IC: 4400A-222T Report Issued on October 13, 2006 This test report shall not be reproduced, except in full, without written permission from Compliance Worldwide, Inc. Test Number: 275-06 Issue Date: 10/13/2006 Page 2 of 18 Compliance Worldwide, Inc. - 357 Main Street - Sandown, NH 03873 (603) 887 3903 Fax 887 6445 http://www.cw-inc.com Table of Contents 1 Scope ................................................................................................................................... 3 2. Product Details.................................................................................................................... 3 2.1. Manufacturer ............................................................................................................................. 3 2.2. Model Number........................................................................................................................... 3 2.3. Serial Number ........................................................................................................................... 3 2.4. Description ................................................................................................................................ 3 2.5. Power Source............................................................................................................................ 3 2.6. EMC Modifications .................................................................................................................... 3 3. Product Configuration ......................................................................................................... 3 3.1. Operational Characteristics....................................................................................................... 3 3.2. Support Equipment ................................................................................................................... 3 3.3. EUT Cables............................................................................................................................... 3 3.4. Block Diagram........................................................................................................................... 4 4 Measurements Parameters.................................................................................................. 4 4.1 Measurement Equipment Used to Perform Test ....................................................................... 4 4.2 Measurement & Equipment Setup ............................................................................................. 5 4.3 Test Procedure........................................................................................................................... 5 5 Measurement Summary....................................................................................................... 6 6 Measurement Data............................................................................................................... 7 6.1 Radiated Field Strength of Fundamental (15.249, Section (a)) ................................................. 7 6.2 Radiated Field Strength of Harmonics (15.249, Section (a)) ..................................................... 7 6.3 Occupied Bandwidth .................................................................................................................. 9 6.4 Band Edge Measurements ......................................................................................................10 6.5 Spurious Radiated Emissions, 30 MHz to 1 GHz (15.249, Section (d)) .................................. 12 6.6 Spurious Radiated Emissions (1 – 9.2 GHz) Test Results ...................................................... 14 6.7 Power Line Conducted Emissions (15.207)............................................................................. 15 7. Test Site Description ......................................................................................................... 18 Test Number: 275-06 Issue Date: 10/13/2006 Page 3 of 18 Compliance Worldwide, Inc. - 357 Main Street - Sandown, NH 03873 (603) 887 3903 Fax 887 6445 http://www.cw-inc.com 1 Scope This test report certifies that the Summer Infant Day and Night Video Monitor, as tested, meets the RSS 210 Annex 1 Rules and FCC Part 15.249, Subpart C requirements. The scope of this test report is limited to the test sample provided by the client, only in as much as that sample represents other production units. If any significant changes are made to the unit, the changes shall be evaluated and a retest may be required. 2. Product Details 2.1. Manufacturer: Summer Infant, Inc. 2.2. Model Number: Model 02220 900 MHz Digital Day and Night Video Monitor Transmitter 2.3. Serial Number: Prototype 2.4. Description: The Model 02220 900 MHz Digital Day & Night Video Monito r Transmitter utilizes three channel selection and 900 MHz technology for superior clarity and range. 2.5. Power Source: DC 9 volts, 300 mA utilizing an AC Adapter 2.6. EMC Modifications: Unmodified Rev. B Sample 3. Product Configuration 3.1. Operational Characteristics The Model 02220 900 MHz Digital Day & Night Video Monitor Transmitter is operated by plugging in the AC adapter and setting the device switch to one of the three transmit channels; A, B or C. 3.2. Support Equipment 3.2.1. Foreen Industries Model 35-D09-300 AC-DC Adapter (Included) Direct Plug-In Class 2 Transformer, Input: 120 volts AC, Output 9 volts DC, 300 mA, 3 m…

Text truncated - open the document above for the full version.

Test Set Up photos: Summer Infant Report # 275-06 Digital Day and Night Video Monitor, Model 02220 Radiated Front View: Radiated Rear View: Conducted Front view: Conducted Rear View: Band Edge Front view: Band Edge Rear View;
