PZMBW-103Bluetooth Speaker

BW-103 Waterproof & BT 4.0 Wireless Speaker 2 1. Features  BT CSR 4.0 Wireless  Waterproof Grade: IPx 6  Battery Capacity: 700mAh  Multiple Use-hang up,stand etc.  Spotlight  Built-in Microphone:enjoy hand-free phone calls anywhere. 2. Specification 3. Function Indication 4. Operation Description ·Power On / Pairing Long press , LED Indicator will keep flashing in red & blue. It means “ready for pairing”. Turn on the BT on your device. Search and select “BW-103” (enter “1234” if password is requested). The LED Indicator will keep flashing in blue when the speaker is successfully paired to your device. Ø 90*42 Product Size(mm) 1A Adaptor：5 Hours Charging Time >6 Hours Music Running Time Acoustic Parameters 3W Output Power(RMS) 100Hz-20KHz Frequency Response ＞70dB S/N ① Micro USB Input ② Built-in Microphone ③ LED Indicator ④ Reset Pairing / Power Button ⑤ Spotlight Button ⑥ Backward ⑦ Forward ⑧ Play / Pause Answer / Reject / Redial phone call ⑨ Volume Down ⑩ Volume Up 3 ·Volume / Song Selection Short press / to adjust the volume, there will be prompt tone when in max or min volume. Short press / for Backward / Forward. Short pressfor pause, short press again for play. ·Answer / Reject / Redial the Phone Call Short pressto answer the phone call, and short press again to end up. Long press to reject the calling. Short presstwice to redial the last number on your phone. ·Spotlight Function Short press to turn on the spotlight, short press again to close it. ·Power Off Long press for 3 seconds, the power will be off. For saving power, the speaker will be turned off automatically when it is not pairing up to 10 minutes. ·Reset Pairing If the BT on your smartphone keep open, when BW-103 power off, short press to turn on the speaker, LED will flash in blue，BW-103 paired with your phone automatically already. ·Charge In Open the watertight seal on the back of speaker gently. Connect the USB interface to adaptor. Connect the Micro USB interface toon the back of speaker. The charging indicator will be in orange when charging in, and it will be off after fully charged. To achieve the best performance,please charge it before use. 5. Standard Package BW-103 Waterproof & BT 4.0 Wireless Speaker 1 USB to Micro USB Charging Cable 1 User Manual 1 6. Attention Do not put under water. Do not open the watertight seal with dripping hand. Please charge the speaker when the low battery indicator flashes in red. Keep away from sharp objects. Do not place near heat or microwave ovens. 4 WARNING! IMPORTANT INSTRUCTIONS FOR THIS PRODUCT  For safety, please read this manual seriously before using this product.  This product can not be dropped into water.  Do not disassemble, repair or modify this product by yourself.  If the battery is replaced by an incorrect type, there is a risk of explosion.  This product should not be placed direct under the sun for a long time.  This product is not a toy, children should use it under the guidance of adults.  This product contains the recyclable lithium battery, dispose it to the Recycle Bin for recycling please.  Caution: The user is cautioned that changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment.  This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.  NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: -- Reorient or relocate the receiving antenna. -- Increase the separation between the equipment and receiver. -- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. -- Consult the dealer or an experienced radio/TV technician for help.  FCC Radiation Exposure Statement: This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with a minimum distance of 20cm between the radiator and your body. This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter.

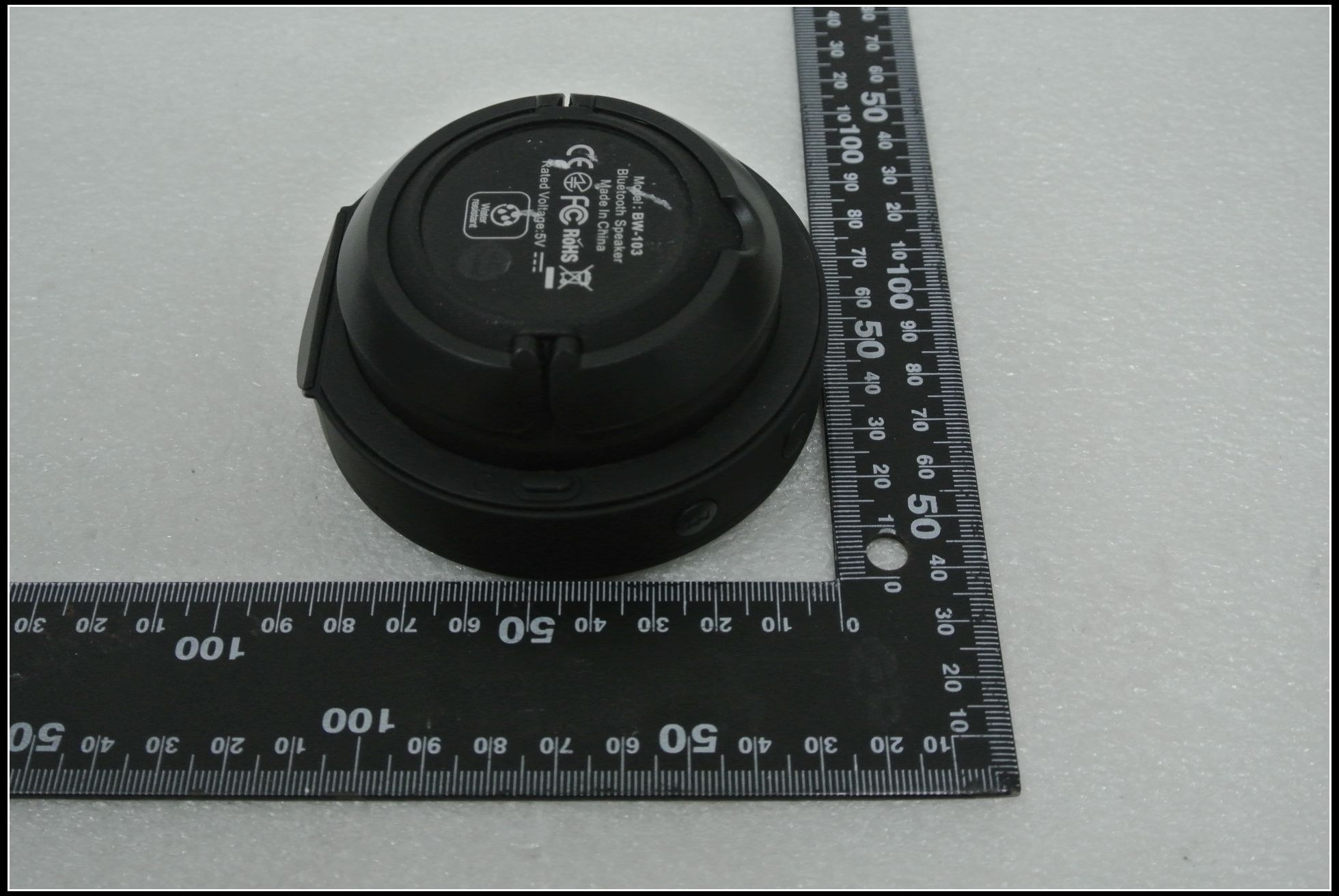

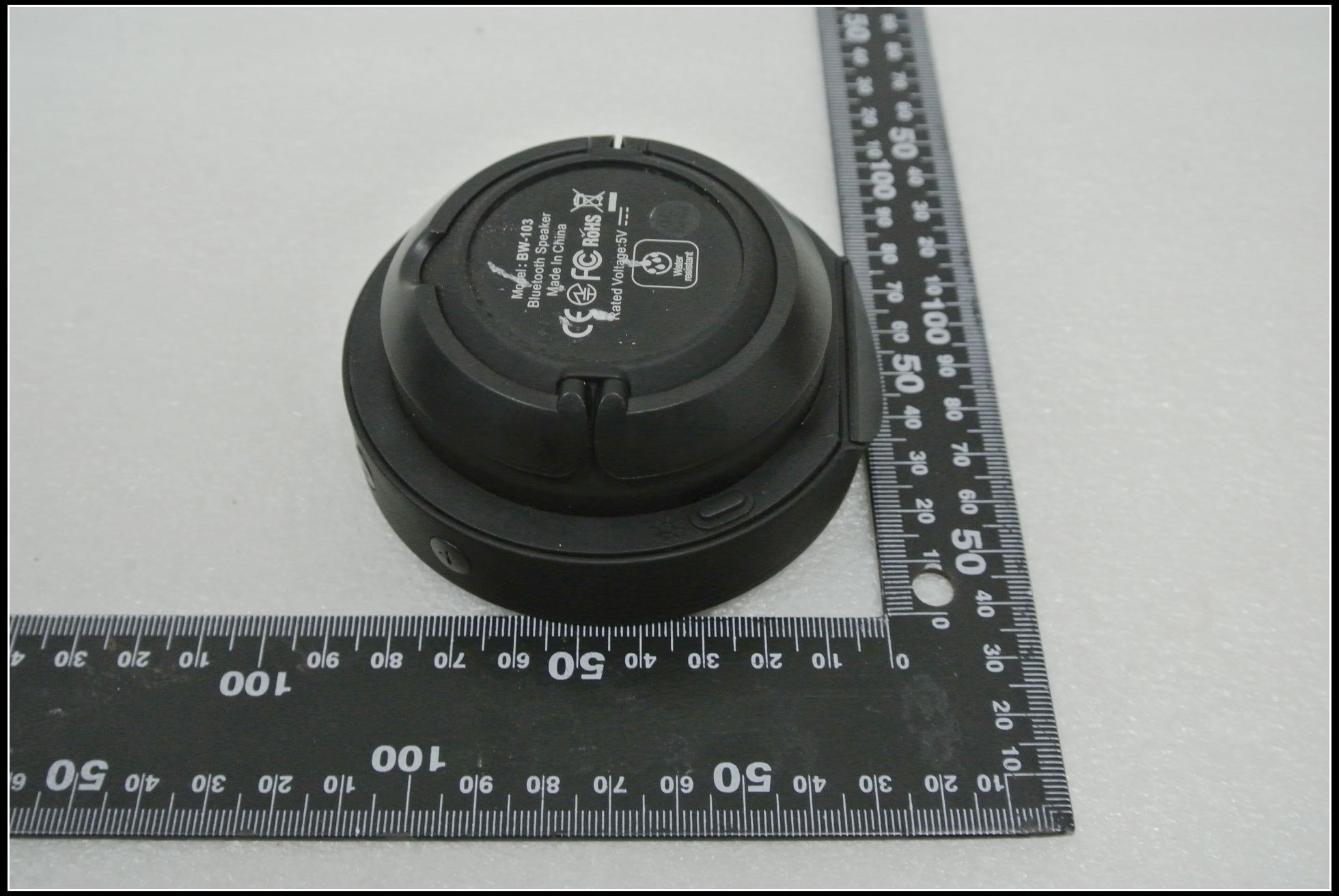

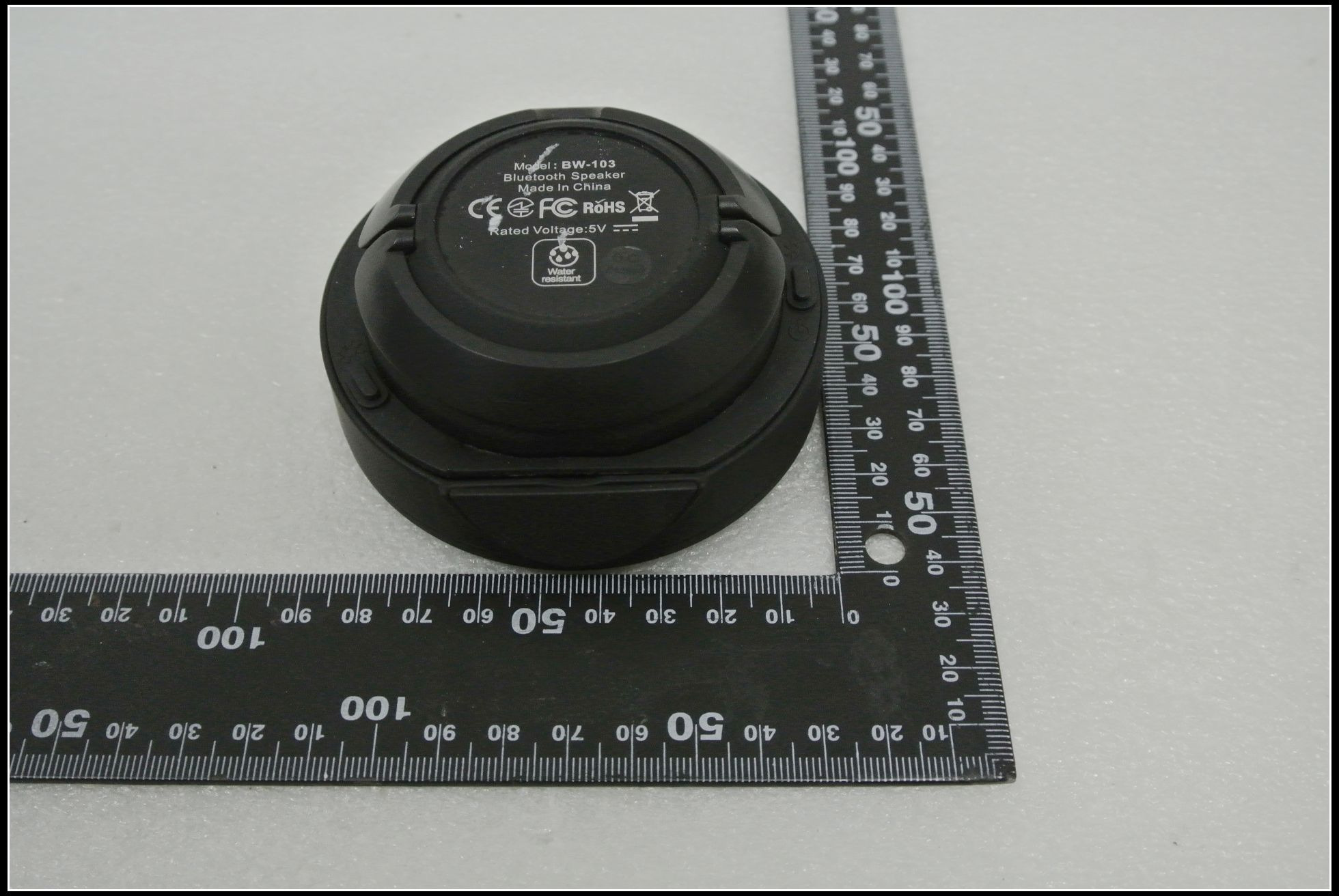

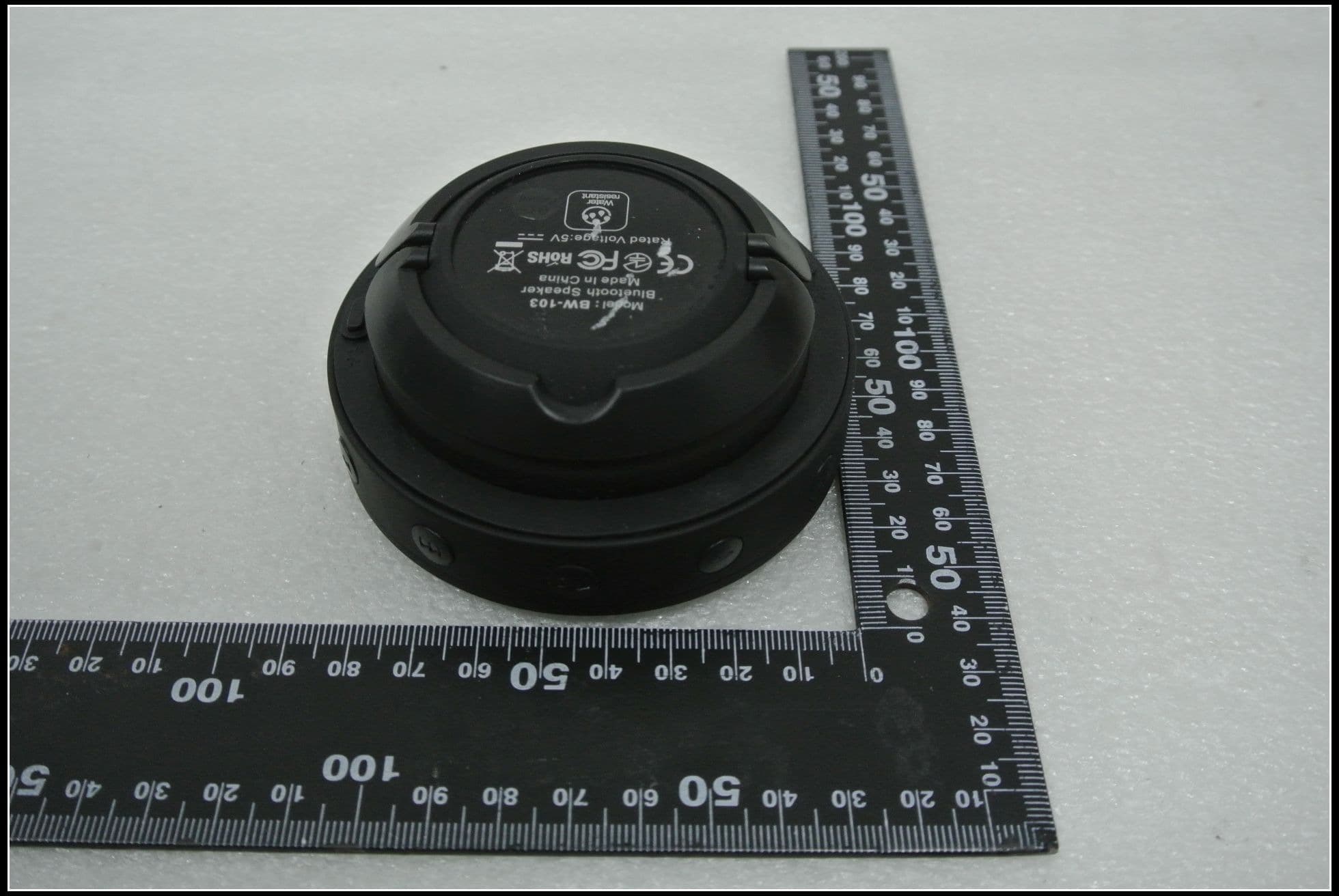

External Photos

型号: 材质: 比例: B W-103 1:1 制图: 核准: 审核: 日期: 日期: 日期: 哑银纸(银色彩)+OPP料 Water resistant Rating:5V 500mA Water resistant Rating:5V 500mA FCC ID:PZMBW-103 FCC ID:PZMBW-103

Internal Photos

SGS-CSTC Standards Technical Services Co., Ltd. Application No..: GZEM1408004586RF Page: 1 of 1 FCC ID: PZMBW-103 This document is issued by the Company subject to its General Conditions of Service printed overleaf, available on request or accessible at www.sgs.com/terms_and_conditions.htm and, for electronic format documents, subject to Terms and Conditions for Electronic Documents at www.sgs.com/terms_e-document.htm. Attention is drawn to the limitation of liability, indemnification and jurisdiction issues defined therein. Any holder of this document is advised that information contained hereon reflects the Company’s findings at the time of its intervention only and within the limits of Client’s instructions, if any. The Company’s sole responsibility is to its Client and this document does not exonerate parties to a transaction from exercising all their rights and obligations under the transaction documents. This document cannot be reproduced except in full, without prior written approval of the Company. Any unauthorized alteration, forgery or falsification of the content or appearance of this document is unlawful and offenders may be prosecuted to the fullest extent of the law. Unless otherwise stated the results shown in this test report refer only to the sample(s) tested and such sample(s) are retained for 90 days only. RF Exposure Compliance Requirement The product belongs to standalone portable device base the FCC rule part 2.1091&2.1093. The transmission frequencies of the device are between 100 MHz and 6 GHz. The worst case test separation distance is 5mm. The Max Conducted Output Power and SAR Test Exclusion Threshold (mW) are listed below: Transmit frequency (GHz) Max Conducted Output Power (mW) SAR Test Exclusion Threshold (mW) 2402 2.04 9.7 2442 2.35 9.6 2480 2.47 9.5 The SAR Test Exclusion Threshold for 100 MHz to 6 GHz is calculated from: 1) The 1-g and 10-g SAR test exclusion thresholds for 100 MHz to 6 GHz at test separation distances ≤ 50 mm are determined by: [(max. power of channel, including tune-up tolerance, mW)/(min. test separation distance, mm)] · [√f(GHz)] ≤ 3.0 for 1-g SAR and ≤ 7.5 for 10-g extremity SAR, where  f(GHz) is the RF channel transmit frequency in GHz  Power and distance are rounded to the nearest mW and mm before calculation The result is rounded to one decimal place for comparison The test exclusions are applicable only when the minimum test separation distance is ≤ 50 mm and for transmission frequencies between 100 MHz and 6 GHz. When the minimum test separation distance is < 5 mm, a distance of 5 mm is applied to determine SAR test exclusion. According to SAR Exclusion Threshold in KDB 447498 (D01) General RF Exposure Guidance v05r02, the SAR report is not required.

SGS-CSTC Standards Technical Services Co., Ltd. 198 Kezhu Road, Scientech Park, Guangzhou Economic & Technological Development District, Guangzhou, China 510663 Telephone: +86 (0) 20 82155555 Fax: +86 (0) 20 82075059 Email: [email protected] Report No.: GZEM140800458601 Page: 1 of 58 FCC ID: PZMBW-103 Authorized Signature: Richard Li Manager The manufacturer should ensure that all products in series production are in conformity with the product sample detailed in this report. If the product in this report is used in any configuration other than that detailed in the report, the manufacturer must ensure the new system complies with all relevant standards. The report must not be used by the client to claim product certification, approval, or endorsement by NVLAP, NIST, or any agency of the federal government. All test results in this report can be traceable to National or International Standards. This document is issued by the Company subject to its General Conditions of Service printed overleaf, available on request or accessible at www.sgs.com/terms_and_conditions.htm and, for electronic format documents, subject to Terms and Conditions for Electronic Documents at www.sgs.com/terms_e-document.htm. Attention is drawn to the limitation of liability, indemnification and jurisdiction issues defined therein. Any holder of this document is advised that information contained hereon reflects the Company’s findings at the time of its intervention only and within the limits of Client’s instructions, if any. The Company’s sole responsibility is to its Client and this document does not exonerate parties to a transaction from exercising all their rights and obligations under the transaction documents. This document cannot be reproduced except in full, without prior written approval of the Company. Any unauthorized alteration, forgery or falsification of the content or appearance of this document is unlawful and offenders may be prosecuted to the fullest extent of the law. Unless otherwise stated the results shown in this test report refer only to the sample(s) tested and such sample(s) are retained for 90 days only 1 Cover Page TEST REPORT Application No.: GZEM1408004586RF Applicant: Elite Century Technology Ltd. FCC ID: PZMBW-103 Product Name: Bluetooth Speaker Product Description: Speaker with BT4.0 function to transmit and receive audio signal Model No.: BW-103 Standards: CFR 47 FCC PART 15 Subpart C: 2013 section 15.247 Date of Receipt: 2014-08-30 Date of Test: 2014-09-17 to 2014-09-25 Date of Issue: 2014-10-11 Test Result : Pass* * In the configuration tested, the EUT detailed in this report complied with the standards specified above. Please refer to section 3 of this report for further detail. SGS-CSTC Standards Technical Services Co., Ltd. Report No.: GZEM140800458601 Page: 2 of 58 This document is issued by the Company subject to its General Conditions of Service printed overleaf, available on request or accessible at www.sgs.com/terms_and_conditions.htm and, for electronic format documents, subject to Terms and Conditions for Electronic Documents at www.sgs.com/terms_e-document.htm. Attention is drawn to the limitation of liability, indemnification and jurisdiction issues defined therein. Any holder of this document is advised that information contained hereon reflects the Company’s findings at the time of its intervention only and within the limits of Client’s instructions, if any. The Company’s sole responsibility is to its Client and this document does not exonerate parties to a transaction from exercising all their rights and obligations under the transaction documents. This document cannot be reproduced except in full, without prior written approval of the Company. Any unauthorized alteration, forgery or falsification of the content or appearance of this document is unlawful and offenders may be prosecuted to the fullest extent of the law. Unless otherwise stated the results shown in this test report refer only to the sample(s) tested and such sample(s) are retained for 90 days only. 2 Version Revision Record Version Chapter Date Modifier Remark 00 2014-10-11 Original Authorized for issue by: Tested By 2014-09-17 to 2014-09-25 (Jack Liang) / Project Engineer Date Prepared By 2014-09-30 (Liky Chen) / Clerk Date Checked By 2014-10-11 (Fred Zhu) / Reviewer Date SGS-CSTC Standards Technical Services Co., Ltd. Report No.: GZEM140800458601 Page: 3 of 58 This document is issued by the Company subject to its General Conditions of Service printed overleaf, available on request or accessible at www.sgs.com/terms_and_conditions.htm and, for electronic format documents, subject to Terms and Conditions for Electronic Documents at www.sgs.com/terms_e-document.htm. Attention is drawn to the limitation of liability, indemnification and jurisdiction issues defined therein. Any holder of this document is advised that information contained hereon reflects the Company’s findings at the time of its intervention only and within the limits of Client’s instructions, if any. The Company’s sole responsibility is to its Client and this document does not exonerate parties to a transaction from exercising all their rights and obligations under the transaction documents. This document cannot be reproduced except in full, without prior written approval of the Company. Any unauthorized alteration, forgery or falsification of the content or appearance of this document is unlawful and offenders may be prosecuted to the fullest extent of the law. Unless otherwise stated the results shown in this test report refer only to the sample(s) tested and such sample(s) are retained for 90 days only. 3 Test Summary Test Test Requirement Test method Result Antenna Requirement FCC PART 15 C section 15.247 (c) and Section 15.203 FCC PART 15 C section 15.247 (c) and Section 15.203 PASS 6 dB Bandwidth FCC PART 15 C section 15.247 (a)(2) ANSI C63.10: Clause 6.9.1 PASS Maximum Peak Output Power FCC PART 15 C section 15.247(b)(3) FCC/K…
