Q2KMSWTXmySwing

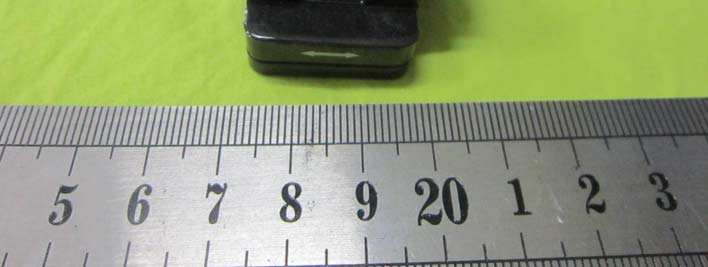

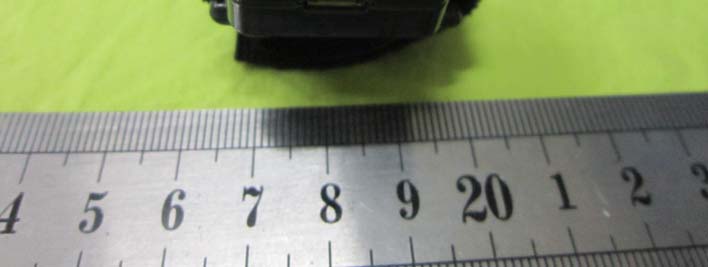

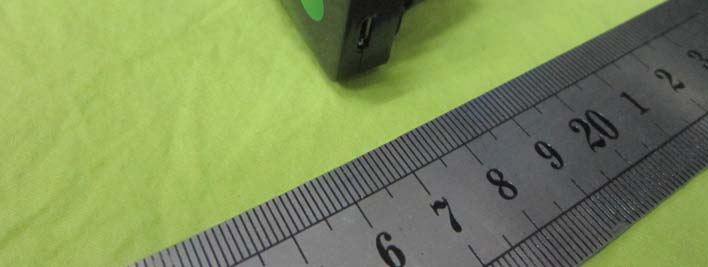

EXTERNAL PHOTOGRAPHS OF PRODUCT View of Product-1 View of Product-2 View of Product-3 View of Product-4

FCC ID : Q2KMSWTX NOTE: The device is so small, so the statement is placed in the maual. Label Location Label Contents Label Size: L20mm*W3mm

INTERNAL PHOTOGRAPHS OF PRODUCT Internal View of EUT Front View of PCB Rear View of PCB

Report No. : EESZE09070005-2 Page 2 of 24 TABLE OF CONTENTS Description Page 1. GENERAL INFORMATION ......................................................................................................................... 4 2. TEST SUMMARY ........................................................................................................................................ 4 3. MEASUREMENT UNCERTAINTY .............................................................................................................. 4 4. PRODUCT INFORMATION ......................................................................................................................... 5 5. SYSTEM TEST CONFIGURATION............................................................................................................. 5 6. TEST EQUIPMENT LIST............................................................................................................................. 6 7. SUPPORT EQUIPMENT LIST .................................................................................................................... 6 8. CONDUCTED EMISSION TEST ................................................................................................................. 7 8.1. LIMITS ................................................................................................................................................. 7 8.2. BLOCK DIAGRAM OF TEST SETUP.................................................................................................. 7 8.3. PROCEDURE OF CONDUCTED EMISSION TEST ........................................................................... 7 8.4. GRAPHS AND DATA .......................................................................................................................... 8 9. 20DB BANDWIDTH MEASUREMENT .....................................................................................................10 9.1. LIMITS ............................................................................................................................................... 10 9.2. BLOCK DIAGRAM OF TEST SETUP................................................................................................ 10 9.3. TEST PROCEDURE ......................................................................................................................... 10 9.4. TEST RESULT .................................................................................................................................. 10 10. OUT OF BAND EMISSION ................................................................................................................... 13 10.1. LIMITS ............................................................................................................................................... 13 10.2. BLOCK DIAGRAM OF TEST SETUP................................................................................................ 13 10.3. TEST PROCEDURE ......................................................................................................................... 13 10.4. TEST RESULT .................................................................................................................................. 13 11. RADIATED EMISSIONS MEASUREMENT .............................................................................................. 15 11.1. LIMITS ............................................................................................................................................... 15 11.2. BLOCK DIAGRAM OF TEST SETUP................................................................................................ 15 11.3. TEST PROCEDURE ......................................................................................................................... 16 11.4. TEST RESULT .................................................................................................................................. 17 Report No. : EESZE09070005-2 Page 3 of 24 APPENDIX 1 PHOTOGRAPHS OF TEST SETUP............................................................................................19 APPENDIX 2 EXTERNAL PHOTOGRAPHS OF PRODUCT............................................................................ 21 APPENDIX 3 INTERNAL PHOTOGRAPHS OF PRODUCT ............................................................................. 23 N/A means not applicable. Report No. : EESZE09070005-2 Page 4 of 24 1. GENERAL INFORMATION Applicant: Noitom Limited Rm. 700, B&H Plaza, 1077 Nanhai Road, Shenzhen, China Manufacturer: Noitom Limited Rm. 700, B&H Plaza, 1077 Nanhai Road, Shenzhen, China Equipment authorization: FCC Part 15 Certification FCC ID: Q2KMSWTX Product: mySwing Trade mark: N/A Model/Type reference: mySwing TM Basic Sensor Serial number: N/A Report number: EESZE09070005-2 Sample Received Date: Sep. 07, 2012 Sample tested Date: Sep. 07, 2012 to Sep. 19, 2012 The above equipment was tested by Centre Testing International for compliance with the requirements set forth in the FCC Rules and Regulations Part 15, Subpart C and the measurement procedure according to ANSI C63.4:2003. 2. TEST SUMMARY No. Test Item Rule Test Result 1 Conducted Emission 15.207 PASS 2 Radiated Emission 15.209 15.249(a) (d) PASS 3 20dB Bandwidth 15.215(c) PASS 4 Out of Band Emission 15.249(d) PASS 3. MEASUREMENT UNCERTAINTY This uncertainty represents an expanded uncertainty expressed at approximately the 95% confidence level using a coverage factor of k=2. Measurement items Uncertainty Conducted Emission Test 3.2 dB Radiated Emissions / Bandedge Emission 4.5 dB Report No. : EESZE09070005-2 Page 5 of 24 4. PRODUCT INFORMATION Items Description Rating DC 3.7V Intentional Transceiver Intentional Transceiver Frequency Channel 2406MHz, 2408MHz, 2410MHz, 2412MHz, 2414MHz, 2416MHz, 2418MHz, 2420MHz, 2422MHz, 2424MHz, 2426MHz, 2428MHz, 2430MHz, 2432MHz, 2434MHz, 2436MHz, 2438MHz, 2440MHz, 2442MHz, 2444MHz, 2446MHz, 2448MHz, 2450MHz, 2…

Text truncated - open the document above for the full version.

PHOTOGRAPHS OF TEST SETUP CONDUCTED EMISSION TEST SETUP (FOR CHARGING MODE) TEST SETUP OF RADIATED EMISSION (30MHz-1GHz) TEST SETUP OF RADIATED EMISSION (above 1GHz)
