Q2Q-EBS30Opticon EBS30

Electronic shelf label EBS30 The EBS30 is a base station meant to serve Opticon’s electronic shelf labels via two built-in 802.15.4 based radios. Specifications Manual Opticon EBS30 Specifications Manual 2 All information subject to change without notice. Document History Model Number: EBS30 Specification Number: Edition: 1 Original Spec Number: Date: 2012 Copyright 2012 Opticon. All rights reserved. This manual may not, in whole or in part, be copied, photocopied, reproduced, translated or converted to any electronic or machine readable form without prior written consent of Opticon. Limited Warranty and Disclaimers PLEASE READ THIS MANUAL CAREFULLY BEFORE INSTALLING OR USING THE PRODUCT. Serial Number A serial number appears on all Opticon products. This official registration number is directly related to the device purchased. Do not remove the serial number from your Opticon device. Removing the serial number voids the warranty. Warranty Unless otherwise agreed in a written contract, all Opticon products are warranted against defects in materials and workmanship for two years after purchase. Opticon will repair or, at its option, replace products that are defective in materials or workmanship with proper use during the warranty period. Opticon is not liable for damages caused by modifications made by a customer. In such cases, standard repair charges will apply. If a product is returned under warranty and no defect is found, standard repair charges will apply. Opticon assumes no liability for any direct, indirect, consequential or incidental damages arising out of use or inability to use both the hardware and software, even if Opticon has been informed about the possibility of such damages. Packaging The packing materials are recyclable. We recommend that you save all packing material to use should you need to transport your scanner or send it for service. Damage caused by improper packaging during shipment is not covered by the warranty. Trademarks Trademarks used are the property of their respective owners. Opticon Inc. and Opticon Sensors Europe B.V. are wholly owned subsidiaries of OPTOELECTRONICS Co., Ltd., 12- 17, Tsukagoshi 4-chome, Warabi-shi, Saitama, Japan 335-0002. TEL +81-(0) 48-446-1183; FAX +81-(0) 48-446-1184 SUPPORT USA Europe Phone: 800-636-0090 Email: [email protected] Email: [email protected] Web: www.opticonusa.com Web: www.opticon.com Opticon EBS30 Specifications Manual 3 Contents 1. Abstract ..................................................................................................................................... 5 2. Overview ................................................................................................................................... 5 3. Physical Features ..................................................................................................................... 6 3.1. Dimensions ....................................................................................................................... 6 3.2. Weight ............................................................................................................................... 6 4. Environmental Specifications .................................................................................................. 7 4.1. Operating Temperature and Humidity ................................................................................ 7 4.2. Storage Temperature and Humidity ................................................................................... 7 4.3. Static Electricity ................................................................................................................. 7 4.4. Drop resistance. ................................................................................................................ 7 4.5. Dust and Drip Proof ........................................................................................................... 7 5. Controls ..................................................................................................................................... 8 6. Electrical Specifications ........................................................................................................... 8 6.1. Electrical Characteristics ................................................................................................... 8 7. Radio Specifications ................................................................................................................ 9 7.1. Protocol ............................................................................................................................. 9 7.2. Security ............................................................................................................................. 9 8. Labeling ................................................................................................................................... 10 8.1. Product label ................................................................................................................... 10 8.2. White box label ................................................................................................................ 11 9. Packaging Specifications ....................................................................................................... 12 9.1. Individual Packaging Specification ................................................................................... 12 9.2. Collective Packaging Specification .................................................................................. 13 10. Accessories ............................................................................................................................ 14 11. Regulatory Compliance .......................................................................................................... 15 11.1. Product Safety ....................................................................................…

Text truncated - open the document above for the full version.

Wireless External Antenna for 2.4 GHz Applications Pulse Part Number: W1030 © 2007 All Rights Reserved. W1030 Datasheet Version 1.1. September 2007 Features - Shortest antennas in product line - For WLAN devices using WiFi (802.11b/g), Bluetooth® and ZigBee TM - Omni-directional radiation pattern provides broad 360° coverage - One-quarter wavelength dipole configuration - Connection options easily integrate with OEM designs Connector Options - Reverse SMA (Male)* - SMA (Male) * Default Configuration – Please contact Pulse Applications Engineering for assistance in ordering connectors Weight........................................................6.3 grams Carton...........................................20/bag; 500/carton Dimensions: Inches mm Unless otherwise specified, all tolerances are ± .010 0.25 Frequency [GHz] VSWR Length Impedance [Nom] ≤ 2.01/4, dipole50 Ω Electrical Specifications @ 25 ºC No te: This part number is lead-free and RoHS compliant. No additional suffix or identifier is required. Gain [dBi] 2.0 Radiation Omni Polarization Vertical Antenna Part No. W1030 Pulse Antennas Takatie 6 90440 Kempele Finland Tel: +358 207 935 500 www.pulseeng.com/antennas External Antennas Sales Contacts USA858 674 8100 UK44 1483 401 700 France33 3 84 35 04 04 Singapore65 6287 8998 Shanghai86 21 32181071 China86 769 5538070 Taiwan886 2 26980228 Electrical Wireless External Antenna for 2.4 GHz Applications Pulse Part Number: W1030 © 2007 All Rights Reserved. W1030 Datasheet Version 1.1. September 2007 Vertical Position Horizontal Position Gain Performance W1030 Omni-directional antennas provide a uniform, donut- shaped, 360° radiation pattern. The omni-directional pattern is suitable for point-to-multipoint broadcasting in all directions. This antenna is primarily used for WLAN applications. However, it can also be used for a variety of other applications within the specified frequency range. When used as an access point, the antenna is ideally located at the center of the coverage area. Application Notes Pulse Antennas Takatie 6 90440 Kempele Finland Tel: +358 207 935 500 www.pulseeng.com/antennas External Antennas Sales Contacts USA858 674 8100 UK44 1483 401 700 France33 3 84 35 04 04 Singapore65 6287 8998 Shanghai86 21 32181071 China86 769 5538070 Taiwan886 2 26980228

Opticon Sensors Europe B.V. Declaration of Authorization We Name: Opticon Sensors Europe B.V. Address: Opaallaan 35, 2132 XV Hoofddorp, The Netherlands City: Hoofddorp Country: Netherlands Declare that: Name Representative of agent: Willis Chen (1) Agent Company name: SGS Taiwan Ltd. Address: 134, Wu Kung Rd., Wuku Industrial Zone City: Taipei County Country Taiwan is authorized to apply for Certification of the following product(s): Product description: Opticon EBS30 Type designation: EBS30 Trademark: n/a on our behalf. Date: Feb. 18, 2014 City: Hoofddorp Name: Alexander Azhari (2) Function: Certification Specialist Signature: Notes: (1): Required for FCC application (2): For FCC it must be the Grantee Code “owner” or the authorized agent.

Company letter head Feb. 18, 2014 Federal Communications Commission Authorization and Evaluation Division Dear Regulatory Authority, We, the undersigned, hereby declare that Declaration of Conformity procedures will be applied to the digital device portion of the following product: Type: Opticon EBS30 Model: EBS30 Test report: E1/2013/80034 SGS Taiwan Ltd.: TW1076 ------------------------------------------------------------------------------------------------- ( Product Identification ) It is herewith confirmed and found to comply with the requirements set up by ANSI C63.4 & FCC PART 15 regulations for the evaluation of electromagnetic compatibility. This Device complies with Part 15 of the FCC rules, operation is subject to the following two conditions. This device may not cause harmful interference and, This device must accept any interference received, including interference that may cause undesired operation. TEST LABORATORY SGS Taiwan Ltd. Electronics & Communication Laboratory No. 134, Wu Kung Rd., Wuku Industrial Zone, New Taipei City, Taiwan. FCC Registration Number: 94644. TAF Accreditation No.: L0513-090505, BSMI MRA Test Lab. Sincerely, Alexander Azhari / Certification Specialist / Opticon Sensors Europe B.V.

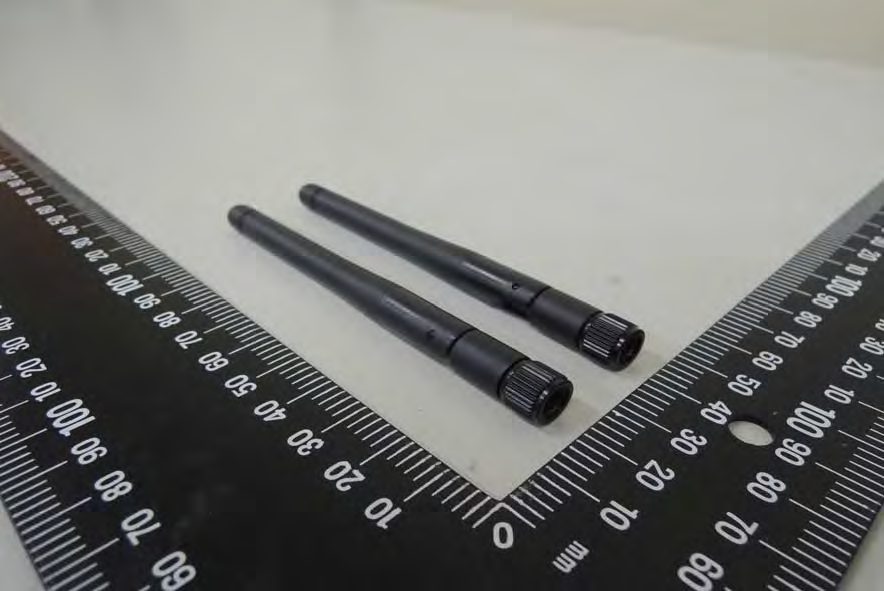

All View of EUT Front View of EUT Back View of EUT Side View of EUT – 1 Side View of EUT – 2 Side View of EUT – 3 Side View of EUT – 4 Antenna Adapter

Label Drawing: Label Location:

*123456789AB* Made in China FCC ID: Q2Q-EBS30 MAC: SN: *123456* This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. PN: 13097 EBS-30

Open View of EUT-1 Open View of EUT-2 Internal View of EUT-1 Internal View of EUT-2 Internal View of EUT-3

1 MAXIMUM PERMISSIBLE EXPOSURE (MPE) 1.1 STANDARD APPLICABLE According to §1.1307(b)(1), systems operating under the provisions of this section shall be operated in a manner that ensure that the public is not exposed to radio frequency energy level in excess of the Commission’s guideline. This is a Mobile device, the MPE is required. According to §1.1310 and §2.1093 RF exposure is calculated. Limits for Maximum Permissive Exposure (MPE) Frequency Range (MHz) Electric Field Strength (V/m) Magnetic Field Strength (A/m) Power Density (mW/cm 2 ) Averaging Time (minute) Limits for General Population/Uncontrolled Exposure 0.3-1.34 614 1.63 *(100) 30 1.34-30 824/f 2.19/f *(180/f 2 ) 30 30-300 27.5 0.073 0.2 30 300-1500 / / F/1500 30 1500-15000 / / 1.0 30 F = frequency in MHz * = Plane-wave equipment power density 1.2 MAXIMUM PERMISSIBLE EXPOSURE (MPE) EVALUATION Zigbee Frequency (MHz) Reading Power (dBm) Output Power (W) Limit (W) 2404.75-1.610.000691 Watt = 30dBm 2444.75-1.330.000741 Watt = 30dBm 2479.75-1.180.000761 Watt = 30dBm *Note: Measured by power meter, cable loss as 12dB that offsets on the power meter. MPE Prediction (802.11b) Prediction of MPE limit at a given distance Equation from page 18 of OET Bulletin 65, Edition 97-01 S=PG/4πR 2 Where: S = Power density P = Power input to antenna G = Power gain of the antenna in the direction of interest relative to an isotropic radiator R = Distance to the center of radiation of the antenna Maximum peak output power at antenna input terminal: -1.18 (dBm) Maximum peak output power at antenna input terminal: 0.76207901 (mW) Duty cycle: 100 (%) Maximum Pav : 0.76207901 (mW) Antenna gain (typical): 2 (dBi) Maximum antenna gain: 1.584893192 (numeric) Prediction distance: 20 (cm) Prediction frequency: 2479.75 (MHz) MPE limit for uncontrolled exposure at prediction 1 (mW/cm2) Power density at predication frequency at 20 (cm) 0.000240 (mW/cm^2) Measurement Result The predicted power density level at 20 cm is 0.000240mW/cm 2 . This is below the uncontrolled exposure limit of 1mW/cm 2 at 2479.75MHz.

Report No.: E2/2013/80015 FCC ID: Q2Q-EBS30 Issue Date: Apr. 17, 2014 Page: 1 of 58 Unless otherwise stated the results shown in this test report refer only to the sample(s) tested and such sample(s) are retained for 90 days only. 除非另有說明，此報告結果僅對測試之樣品負責，同時此樣品僅保留90天。本報告未經本公司書面許可，不可部份複製。 This document is issued by the Company subject to its General Conditions of Service printed overleaf, available on request or accessible at www.sgs.com/terms_and_conditions.htm and, for elec- tronic format documents, subject to Terms and Conditions for Electronic Documents at www.sgs.com/terms_e-document.htm . Attention is drawn to the limitation of liability, indemnification and jurisdiction issues defined therein. Any holder of this document is advised that information contained hereon reflects the Company findings at the time of its intervention only and within the limits of Client instructions, if any. The Company sole responsibility is to its Client and this document does not exonerate parties to a transaction from exercising all their rights and obligations under the transaction documents. This document cannot be reproduced except in full, without prior written approval of the Company. Any unauthorized alteration, forgery or falsification of the content or ap- pearance of this document is unlawful and offenders may be prosecuted to the fullest extent of the law. SGS Taiwan Ltd. No.134,WuKungRoad,NewTaipeiIndustrialPark,WukuDistrict,NewTaipeiCity,Taiwan24803/新北市五股區新北產業園區五工路134號 台灣檢驗科技股份有限公司 t (886-2) 2299-3279 f (886-2) 2298-0488 www.tw.sgs.com Member of SGS Group ELECTROMAGNETIC EMISSIONS COMPLIANCE REPORT INTENTIONAL RADIATOR CERTIFICATION TO FCC PART 15 SUBPART C REQUIREMENT OF Product Name: Opticon EBS30 Brand Name: Opticon Model No.: EBS30 Model Difference: N/A FCC ID: Q2Q-EBS30 Report No.: E2/2013/80015 Issue Date: Apr. 17, 2014 FCC Rule Part: §1 5.247, Cat: DTS Prepared for: Opticon Sensors Europe B.V. Opaallaan 35, 2132 XV Hoofddorp, The Netherlands Prepared by: SGS Taiwan Ltd. Electronics & Communication Laboratory No.2, Keji 1st Rd., Guishan Township, Taoyuan County, Taiwan 333 Note: This report shall not be reproduced except in full, without the written approval of SGS Taiwan Ltd. This doc- ument may be altered or revised by SGS Taiwan Ltd. per- sonnel only, and shall be noted in the revision section of the document. Report No.: E2/2013/80015 FCC ID: Q2Q-EBS30 Issue Date: Apr. 17, 2014 Page: 2 of 58 Unless otherwise stated the results shown in this test report refer only to the sample(s) tested and such sample(s) are retained for 90 days only. 除非另有說明，此報告結果僅對測試之樣品負責，同時此樣品僅保留90天。本報告未經本公司書面許可，不可部份複製。 This document is issued by the Company subject to its General Conditions of Service printed overleaf, available on request or accessible at www.sgs.com/terms_and_conditions.htm and, for elec- tronic format documents, subject to Terms and Conditions for Electronic Documents at www.sgs.com/terms_e-document.htm . Attention is drawn to the limitation of liability, indemnification and jurisdiction issues defined therein. Any holder of this document is advised that information contained hereon reflects the Company findings at the time of its intervention only and within the limits of Client instructions, if any. The Company sole responsibility is to its Client and this document does not exonerate parties to a transaction from exercising all their rights and obligations under the transaction documents. This document cannot be reproduced except in full, without prior written approval of the Company. Any unauthorized alteration, forgery or falsification of the content or ap- pearance of this document is unlawful and offenders may be prosecuted to the fullest extent of the law. SGS Taiwan Ltd. No.134,WuKungRoad,NewTaipeiIndustrialPark,WukuDistrict,NewTaipeiCity,Taiwan24803/新北市五股區新北產業園區五工路134號 台灣檢驗科技股份有限公司 t (886-2) 2299-3279 f (886-2) 2298-0488 www.tw.sgs.com Member of SGS Group VERIFICATION OF COMPLIANCE Applicant: Opticon Sensors Europe B.V. Opaallaan 35, 2132 XV Hoofddorp, The Netherlands Product Name: Opticon EBS30 Brand Name: Opticon Model No.: EBS30 Model Difference: N/A FCC ID: Q2Q-EBS30 File Number: E2/2013/80015 Date of test: Jan. 07, 2014 ~ Apr. 17, 2014 Date of EUT Received: Jan. 07, 2014 We hereby certify that: The above equipment was tested by SGS Taiwan Ltd. Electronics & Communication Laboratory The test data, data evaluation, test procedures, and equipment configurations shown in this report were made in accordance with the procedures given in ANSI C63.4:2009 the energy emitted by the sample EUT tested as described in this report is in compliance with conducted and radiated emission limits of FCC Rules Part 15.247. The test results of this report relate only to the tested sample identified in this report. Test By: Date Apr. 17, 2014 Jazz Huang / Sr. Engineer Prepared By: Date Apr. 17, 2014 Julia Chang / Clerk Approved By: Date Apr. 17, 2014 Jim Chang / Supervisor Report No.: E2/2013/80015 FCC ID: Q2Q-EBS30 Issue Date: Apr. 17, 2014 Page: 3 of 58 Unless otherwise stated the results shown in this test report refer only to the sample(s) tested and such sample(s) are retained for 90 days only. 除非另有說明，此報告結果僅對測試之樣品負責，同時此樣品僅保留90天。本報告未經本公司書面許可，不可部份複製。 This document is issued by the Company subject to its General Conditions of Service printed overleaf, available on request or accessible at www.sgs.com/terms_and_conditions.htm and, for elec- tronic format documents, subject to Terms and Conditions for Electronic Documents at www.sgs.com/terms_e-document.htm . Attention is drawn to the limitation of liability, indemnification and jurisdiction issues defined therein. Any holder of this document is advised that information contained hereon reflects the Company findings at the time of its intervention only and within the limits of Client instructions, if any. The Company sole responsibility is to its Client and this document does not exonerate parties to a transaction from exercising all their rights and o…
