Q2Q-OPL9815Data Collector with GPS and Bluetooth

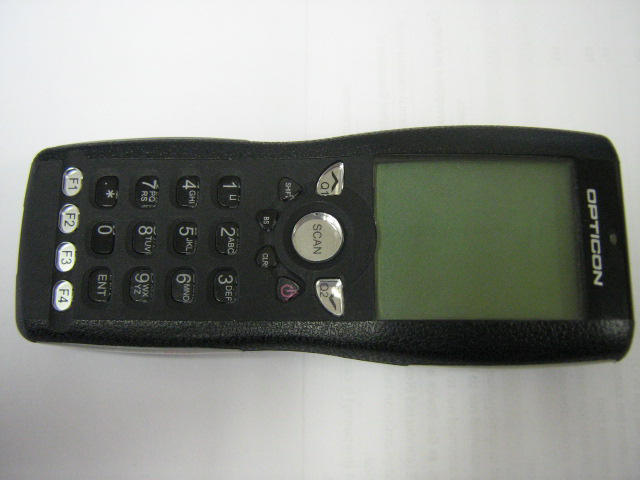

Data Collector with GPS & Bluetooth OPL 9815 The OPL 9815 is a laser data collector featuring GPS (Global Positioning System) feature, Bluetooth 2.1 communication and time stamp functionality. Specifications Manual Opticon OPL 9815 Specifications Manual 2 All information subject to change without notice. Document History Model Number: OPL 9815 Specification Number: Edition: 1 Original Spec Number: Date: 2012-02-18 Copyright 2012 Opticon. All rights reserved. This manual may not, in whole or in part, be copied, photocopied, reproduced, translated or converted to any electronic or machine readable form without prior written consent of Opticon. Limited Warranty and Disclaimers PLEASE READ THIS MANUAL CAREFULLY BEFORE INSTALLING OR USING THE PRODUCT. Serial Number A serial number appears on all Opticon products. This official registration number is directly related to the device purchased. Do not remove the serial number from your Opticon device. Removing the serial number voids the warranty. Warranty Unless otherwise agreed in a written contract, all Opticon products are warranted against defects in materials and workmanship for two years after purchase. Opticon will repair or, at its option, replace products that are defective in materials or workmanship with proper use during the warranty period. Opticon is not liable for damages caused by modifications made by a customer. In such cases, standard repair charges will apply. If a product is returned under warranty and no defect is found, standard repair charges will apply. Opticon assumes no liability for any direct, indirect, consequential or incidental damages arising out of use or inability to use both the hardware and software, even if Opticon has been informed about the possibility of such damages. Packaging The packing materials are recyclable. We recommend that you save all packing material to use should you need to transport your data collector or send it for service. Damage caused by improper packaging during shipment is not covered by the warranty. Trademarks Trademarks used are the property of their respective owners. Opticon Inc. and Opticon Sensors Europe B.V. are wholly owned subsidiaries of OPTOELECTRONICS Co., Ltd., 12- 17, Tsukagoshi 4-chome, Warabi-shi, Saitama, Japan 335-0002. TEL +81-(0) 48-446-1183; FAX +81-(0) 48-446-1184 SUPPORT USA Europe Phone: 800-636-0090 Email: [email protected] Email: [email protected] Web: www.opticonusa.com Web: www.opticon.com Opticon OPL 9815 Specifications Manual 3 Contents 1. Abstract ..................................................................................................................................... 5 2. Overview ................................................................................................................................... 5 3. Physical Features ..................................................................................................................... 5 3.1. Dimensions ....................................................................................................................... 5 3.2. Weight ............................................................................................................................... 5 3.3. Color ................................................................................................................................. 5 4. Environmental Specifications .................................................................................................. 6 4.1. Operating Temperature and Humidity ................................................................................ 6 4.2. Storage Temperature and Humidity ................................................................................... 6 4.3. IP (dust/water) rating ......................................................................................................... 6 4.4. Drop .................................................................................................................................. 6 4.5. Ambient Light Immunity ..................................................................................................... 6 4.6. Supported symbologies: .................................................................................................... 7 5. Controls ..................................................................................................................................... 8 6. Electrical Specifications ........................................................................................................... 8 6.1. Main Battery ...................................................................................................................... 8 6.2. Battery Operating Time and Charging Time (TBD) ............................................................ 8 7. Optical Specifications .............................................................................................................. 9 7.1. Laser Scan Specifications ................................................................................................. 9 8. Technical Specifications .......................................................................................................... 9 8.1. Print Contrast Signal (PCS) ............................................................................................... 9 8.2. Minimum Resolution .......................................................................................................... 9 8.3. Scan Area and Resolution ............................................................................................... 10 8.4. Pitch, Skew, and Tilt ........................................................................................................ 11 8.5. Curvature ........................................................................................................................ 14 9. Interface Specifications ......................................................…

Text truncated - open the document above for the full version.

FCC Confidenti ality Request For Certification Service in USA Company Name: Opticon Sensors Europe B.V. Address: Opaallaan 35, 2132 XV City: Hoofddorp Country: The Netherlands Date 10/18/2012 To: Telecommunica tion Certification Body RFI Global Services Ltd Pavilion A Ashwood Park Ashwood W ay Basingst oke Hampshire RG23 8BG England Subject: Certification Application FCC ID: Q2Q-OPL9815 Model Name: OPL9815 TO WHOM IT MAY CONCERN It is requested that the following information is to be held confidential on behalf of Opticon Sensors Europe B.V. pursuant to FCC Rule Parts 0.457 and 0.459: Exhibit Category File Name Number of pages Parts List/ BOM BOM_ B1110310E.pdf 2 Parts List/ BOM BOM_A1110310A.pdf 2 Block diagram OPL9815 Block Diagram v3 .pdf 4 Sch ematics S1110310A.pdf 7 Operational Description Operational description OPL-9815.pdf 4 The above exhibits contains our trade secrets and proprietary information that could be a benefit to our customers If you have any questions, please feel free to contact me at the address shown below. Yours si ncerely Alexander Azhari Certifica tion

AGENCY LETTER Company Name: Opticon Sensors Europe B.V. Address: Opaallaan 35, 2132 XV City: Hoofddorp Country: The Netherlands Date: 10/18/2012 To: Telecommunication Certification Body RFI Global Services Ltd Pavilion A Ashwood Park Ashwood Way Basingstoke Hampshire RG23 8BG England TO WHOM IT MAY CONCERN This is to certify that Opticon Sensors Europe B.V. authorises RFI Global Services Ltd to act on our behalf for the FCC application of our OPL9815 device. We certify that we are not subject to a denial of Federal benefits, that include FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. § 862 because of a conviction for possession or distribution of a controlled substance. See 47 CFR 1.2002(b) for the definition of a "party" for these purposes. Yours sincerely Alexander Azhari Certification

- 1 - AW-BT105A Bluetooth Module IC For Mobile Phones, DSCs, PMPs and Gaming Devices Datasheet Version 0.1 Document release Date Modification Initials Approved Version 0.1 2009/1/13 Initial Version N.C. Chen CE Huang - 2 - 1. General Description 1-1. Product Overview and Functional Description AzureWave Technologies, Inc. introduces the Bluetooth module IC---AW-BT105A. The module IC is targeted to mobile devices including Mobile Phones, Digital Still Cameras (DSCs), Portable Media Players (PMPs), Personal Digital Assistants (PDAs), and Gaming Devices which need small footprint package, low power consumption, multiple interfaces and OS support. By using AW-BT105A, the customers can easily enable the BT embedded applications with the benefits of high design flexibility, short development cycle, and quick time-to-market. Compliance with the Bluetooth standard, the AW-BT105A is a Bluetooth 2.1+Enhanced Data Rate (EDR) product. Bluetooth 2.1+Enhanced Data Rate (EDR) can make it easier to connect devices, lower power consumption and improved security. The AW-BT105A supports High speed UART interface is available to connect the BT core the host processor. AW-BT105A is suitable for multiple mobile processors for different applications. With the support cellular phone co-existence, the AW-BT105A is also the best solution for mobile phones and PDA phones applications. AW-BT105A module adopts CSR’s Bluetooth SoC---BC6. All the other components are implemented by all means to reach the mechanical specification required. AW-BT105A uses IC module integration package technology that provides customers mounting mechanism to secure the AW-BT105A module against vibration and shock on the host system. AW-BT105A uses module IC integration package technology can provide more reliable and strong electrical and mechanical performance. - 3 - 1-2. Key Features Small footprint: 9.6mm(L) x 9.6mm(W) x 1.2 mm(H) Fully Qualified Bluetooth v2.1 + EDR system Enhanced Data Rate (EDR) compliant with Bluetooth v2.1 + EDR specification for both 2Mbps and 3Mbps modulation modes Full Speed Bluetooth Operation with Full Piconet Support Scatternet Support High speed UART interface for Bluetooth Audio PCM interface 802.11 co-existence support Lead-free design 1-3. Block Diagram A simplified block diagram of the AW-BT105A module is depicted in the figure below. AzureWave AW-BT105A Xtal CSR BC6 2.4 GHz BPF UART Audio PCM - 4 - 1-4. Specifications Table Model Name AW-BT105A Product Description Bluetooth Module IC Bluetooth Standard Bluetooth 2.1+Enhanced Data Rate (EDR) Host Interface UART for Bluetooth Major Chipset CSR BC6 Dimension 9.6mm x 9.6mm x 1.2mm Weight Less than 10 grams Package LGA Operating Conditions Temperature Operating: -20 ~ 75 o C ; Storage: -40 ~ 85 o C Voltage Module Main Power: 3.3V/ Host I/O Voltage Supply: 1.8V/3.3V Humidity Non-Operating 50 ~92% RH non-condensing (at temperatures of 25 o C to 80 o C) Electrical Specifications Freq Range 2.4GHz ISM Band Number of Channels 2.402GHz~2.480GHz, 1MHz/Channel Modulation GFSK,DQPSK (2Mbps) and 8DPSK (3Mbps) Output Power Typical power: Bluetooth Class 1.5 Receive Sensitivity GFSK:TBD π ππ π/4 DQPSK:TBD 8DPSK:TBD Medium Access Protocol CSMA/CA with ACK Data Rates 2.1+EDR data rates of 1,2, and 3Mbps Power Consumption Peak Tx Current : 47mA Peak Rx Current : 47mA Standby host connection (Deep-Sleep) : 59uA Operating Range Minimum 10 m indoor for Bluetooth The transmission speed may vary according to the environment) Operating System Compatibility Win CE 4.2/.NET, Win CE 5.0, Linux, Pocket PC 2004/2005 Co-Existence WLAN co-existence - 5 - 2. Electrical Characteristics 2-1. Absolute Maximum Ratings Symbol Parameter Condition Min Typ Max Units 3.3V 3.3V power supply -0.4 3.3 3.7 V VIO_X1 I/O power supply -0.4 ------- 3.7 V 2-2. Recommended Operating Conditions Symbol Parameter Condition Min Typ Max Units 3.3V 3.3V power supply 2.7 3.3 3.7 V VIO_X1 1.8Vor 3.3V I/O power supply 1.7 ----- 3.7 V 2-3. Power Consumption Test Conditions Module input power 3.3V I/O Voltage level 3.3V Host Interface UART UART Baud Rate 115200 bps Clock Source 26MHz Crystal Device Activity/State Peak Tx Current 47 mA Peak Rx Current 47 mA Standby host connection (Deep-Sleep) 59 uA RF output power 2.2 dBm - 6 - 2-4. Audio CODEC Interface The AW-BT105A Audio Interface Unit(AIU) consists of an audio interface module. 2-4-1. Audio interface Signals Pin No Definition Basic Description Type 28 BT_PCM_DOUT PCM Mode:BT_PCM_DOUT BT_PCM_DOUT output O 54 BT_PCM_CLK PCM Mode:BT_PCM_CLK BT_PCM_CLK input/output I/O 56 BT_PCM_SYNC PCM Mode:BT_PCM_SYNC BT_PCM_SYNC input/output(output if PCM initiator, input if PCM target) O 58 BT_PCM_DIN PCM Mode: BT_PCM_DIN BT_PCM data input signal I 2-4-2. PCM Interface The AW-BT105A can operate as the PCM interface master generating an output clock of 128, 256, 512,1536 or 2400kHz. When configured as a PCM interface slave, it can operate with an input clock up to 2400kHz. AW-BT105A is compatible with a variety of clock formats, including Long Frame Sync, Short Frame Sync and GCI timing environments. 2-4-2.1. Protocol Description When configured as the master of the PCM interface, BlueCore6 generates PCM_CLK and PCM_SYNC - 7 - When configured as the Slave of the PCM interface, BlueCore6 accepts PCM_CLK rates up to 2400kHz 2-4-3. Long Frame Sync Long Frame Sync is the name given to a clocking format that controls the transfer of PCM data words or samples. In Long Frame Sync, the rising edge of PCM_SYNC indicates the start of the PCM word. When BlueCore6 is configured as PCM master, generating PCM_SYNC and PCM_CLK, then PCM_SYNC is 8-bits long. When BlueCore6 is configured as PCM Slave, PCM_SYNC may be from two consecutive falling edges of PCM_CLK to half the PCM_SYNC rate, i.e., 62.5μs long. Long Frame Sync (Shown with 8-bit Companded Sample) BlueCore6 samples PCM_IN on the falling edge of PCM_CLK and transmits PCM_OUT on the rising edge. PCM_OUT may be configured to be high im…

Text truncated - open the document above for the full version.

Date:10/23/12 RF Exposure Declaration FCC ID: Q2Q-OPL9815 Company Name: Opticon Sensors Europe B.V. Address: Opaallaan 35, 2132 XV City: Hoofddorp Country: The Netherlands According to FCC document 447498 entitled "Mobile and Portable Device RF Exposure Procedures and Equipment Authorization Policies",_for portable transmitters, where the source-based time-averaged output power is s; 60/f(GHz) mW, a device may be used in portable exposure conditions with no restrictions and routine RF Exposure evaluation is not required. The Q2Q-OPL9815 is a Bluetooth device and is defined as a portable device for General Public Use and the maximum peak output power is (4.57mW) which falls below the specified 24.2 mW level. We hereby declare that the Q2Q-OPL9815 is not subject to the routine RF Exposure evaluation as per section 2.1093 of the FCC rules due to its low level of output power. Name: Alexander Azhari Title: Certification

TEST REPORT FROM RFI GLOBAL SERVICES LTD Test of: OPL 9815 FCC ID: Q2Q-OPL9815 To: FCC Part 15.247: 2011 Subpart C Test Report Serial No.: RFI-RPT-RP89540JD01A V2.0 Version 2.0 Supersedes All Previous Versions This Test Report Is Issued Under The Authority Of John Newell, Group Quality Manager: Checked By: Sarah Williams Signature: Date of Issue: 23 October 2012 The Bluetooth ® word mark and logos are owned by the Bluetooth SIG, Inc. and any use of such marks by RFI Global Services Ltd. is under licence. Other trademarks and trade names are those of their respective owners. This report is issued in Adobe Acrobat portable document format (PDF). It is only a valid copy of the report if it is being viewed in PDF format with the following security options not allowed: Changing the document, Selecting text and graphics, Adding or changing notes and form fields. This report may not be reproduced other than in full, except with the prior written approval of RFI Global Services Ltd. The results in this report apply only to the sample(s) tested. TEST REPORT SERIAL NO: RFI-RPT-RP89540JD01A V2.0 VERSION NO. 2.0 ISSUE DATE: 23 OCTOBER 2012 Page 2 of 36 RFI Global Services Ltd This page has been left intentionally blank. TEST REPORT SERIAL NO: RFI-RPT-RP89540JD01A V2.0 VERSION NO. 2.0 ISSUE DATE: 23 OCTOBER 2012 RFI Global Services Ltd Page 3 of 36 Table of Contents 1. Customer Information .................................................................................................................4 2. Summary of Testing ....................................................................................................................5 2.1. General Information 5 2.2. Summary of Test Results 6 2.3. Methods and Procedures 6 2.4. Deviations from the Test Specification 6 3. Equipment Under Test (EUT) .....................................................................................................7 3.1. Identification of Equipment Under Test (EUT) 7 3.2. Description of EUT 7 3.3. Modifications Incorporated in the EUT 7 3.4. Additional Information Related to Testing 8 3.5. Support Equipment 9 4. Operation and Monitoring of the EUT during Testing ............................................................10 4.1. Operating Modes 10 4.2. Configuration and Peripherals 10 5. Measurements, Examinations and Derived Results ...............................................................11 5.1. General Comments 11 5.2. Test Results 12 5.2.1. Receiver/Idle Mode AC Conducted Spurious Emissions 12 5.2.2. Receiver/Idle Mode Radiated Spurious Emissions 15 5.2.3. Transmitter 20 dB Bandwidth 19 5.2.4. Transmitter Carrier Frequency Separation 21 5.2.5. Transmitter Number of Hopping Frequencies and Average Time of Occupancy 22 5.2.6. Transmitter Maximum Peak Output Power 24 5.2.7. Transmitter Radiated Emissions 26 5.2.8. Transmitter Band Edge Radiated Emissions 32 6. Measurement Uncertainty ........................................................................................................35 Appendix 1. Test Equipment Used ..............................................................................................36 TEST REPORT SERIAL NO: RFI-RPT-RP89540JD01A V2.0 VERSION NO. 2.0 ISSUE DATE: 23 OCTOBER 2012 Page 4 of 36 RFI Global Services Ltd 1. Customer Information Company Name: Opticon Sensors Europe Address: Opaallaan 35 2132 XV Hoofddorp Netherlands TEST REPORT SERIAL NO: RFI-RPT-RP89540JD01A V2.0 VERSION NO. 2.0 ISSUE DATE: 23 OCTOBER 2012 RFI Global Services Ltd Page 5 of 36 2. Summary of Testing 2.1. General Information Specification Reference: 47CFR15.247 Specification Title: Code of Federal Regulations Volume 47 (Telecommunications) 2011: Part 15 Subpart C (Intentional Radiators) - Section 15.247 Specification Reference: 47CFR15.107 and 47CFR15.109 Specification Title: Code of Federal Regulations Volume 47 (Telecommunications) 2011: Part 15 Subpart B (Unintentional Radiators) - Sections 15.107 and 15.109 Specification Reference: 47CFR15.207 and 47CFR15.209 Specification Title: Code of Federal Regulations Volume 47 (Telecommunications) 2011: Part 15 Subpart C (Intentional Radiators) - Sections 15.207 and 15.209 Site Registration: FCC: 209735 Location of Testing: RFI Global Services Ltd, Wade Road, Basingstoke, Hampshire, RG24 8AH. Test Dates: 14 September 2012 to 17 September 2012 TEST REPORT SERIAL NO: RFI-RPT-RP89540JD01A V2.0 VERSION NO. 2.0 ISSUE DATE: 23 OCTOBER 2012 Page 6 of 36 RFI Global Services Ltd 2.2. Summary of Test Results FCC Reference (47CFR) Measurement Result Part 15.107(a) Receiver/Idle Mode AC Conducted Emissions Part 15.109 Receiver/Idle Mode Radiated Spurious Emissions Part 15.247(a)(1) Transmitter 20 dB Bandwidth Part 15.247(a)(1) Transmitter Carrier Frequency Separation Part 15.247(a)(1)(iii) Transmitter Number of Hopping Frequencies and Average Time of Occupancy Part 15.247(b)(1) Transmitter Maximum Peak Output Power Part 15.247(d)/15.209(a) Transmitter Radiated Emissions Part 15.247(d)/15.209(a) Transmitter Band Edge Radiated Emissions Key to Results = Complied = Did not comply 2.3. Methods and Procedures Reference: ANSI C63.4 (2009) Title: American National Standard for Methods of Measurement of Radio-Noise Emissions from Low-Voltage Electrical and Electronic Equipment in the Range of 9 kHz to 40 GHz Reference: ANSI C63.10 (2009) Title: American National Standard for Testing Unlicensed Wireless Devices 2.4. Deviations from the Test Specification For the measurements contained within this test report, there were no deviations from, additions to, or exclusions from the test specification identified above. TEST REPORT SERIAL NO: RFI-RPT-RP89540JD01A V2.0 VERSION NO. 2.0 ISSUE DATE: 23 OCTOBER 2012 RFI Global Services Ltd Page 7 of 36 3. Equipment Under Test (EUT) 3.1. Identification of Equipment Under Test (EUT) Brand Name: Opticon Model Name or Number: OPL 9815 Serial Number: 000007 (Radiated sample) Hardware Version Number: OP1115_d Software Version Number: XBNV0105 FCC ID: …
