Q4601DRINK MEASURING TRANSMITTER

BarVision™ 1.0 for Palm OS® A Division of Nuvo Technologies, Inc. User’s Guide Draft for Reseller Review Only Not for Distribution Draft for Reseller Review Only Not for Distribution to End Users BarVision™ 1.0 for Palm OS® User’s Guide A Division of Nuvo Technologies, Inc. Draft for Reseller Review Only Not for Distribution to End Users © 2005 by Nuvo Technologies, Inc. All rights reserved. BarVision for Palm OS® User’s Guide. No part of this publication may be reproduced, stored in or introduced into a retrieval system, used to create deriv- ative works, or transmitted, in whole or in part, in any form or by any means (electronic, mechanical, photo- copying, recording, or otherwise), or for any purpose, without the prior written permission of Nuvo Technologies, Inc. The material contained in this publication is furnished for informational use only, is subject to change without notice, and should not be construed as a commitment by Nuvo Technologies, Inc. Nuvo Technologies, Inc. assumes no responsibility or liability for any errors or inaccuracies that may appear in this publication and disclaims all liability in connection with the use of this publication. Nuvo Technologies, Inc. is not engaged in rendering legal, accounting, or other professional advice. If legal advice or other expert assistance is required, the services of a competent professional should be sought. NUVO TECHNOLOGIES, INC. MAKES NO WARRANTIES, EXPRESS OR IMPLIED, AS TO THE INFORMATION IN THIS PUBLICATION. Nuvo, Nuvo Technologies, the Nuvo Technologies logo, BarVision, the BarVision logo, and all Nuvo product names, product numbers, and slogans are trademarks of Nuvo Technologies, Inc. All rights reserved. All other trademarks mentioned in this publication are the property of their respective owners and are used for identification purposes only. BarVision is protected by multiple pending patents. Nuvo Technologies, Inc. may have patents, patent applica- tions, trademarks, copyrights, or other intellectual property rights covering subject matter in this document. Except as expressly provided in any written license agreement from Nuvo Technologies, Inc., the furnishing of this publi- cation does not provide any license to these patents, patent applications, trademarks, copyrights, or other intel- lectual property. Nuvo Technologies, Inc. Nuvo Corporate Center 6060 East Thomas Road Scottsdale, Arizona 85251, USA phone: +1 480.222.6000 fax: +1 480.222.6001 www.nuvoinc.com www.barvision.com Part Number: 469 Rev. 1.0-1 iii Draft for Reseller Review Only Not for Distribution to End Users Contents Preface Registration .............................................................................................................xi Using this guide ....................................................................................................xi What is in this guide? ..................................................................................xi Conventions used in this guide ............................................................. xii Default starting point for software procedures ...................... xii About security codes ........................................................................ xii Finding additional resources .......................................................................... xii Chapter 1 Understanding the BarVision System Understanding how the system works ..........................................................1 Understanding the system components ......................................................1 Pour spout ........................................................................................................2 Active antenna ...............................................................................................3 Data receiver ...................................................................................................4 Palm® handheld computer ........................................................................6 BarVision for Palm OS® software ..............................................................6 Understanding unit-free operation ................................................................7 Understanding pour rates ..................................................................................7 Overview of using the BarVision system .......................................................8 Chapter 2 Installing the BarVision Software Installing the software ...................................................................................... 11 Installing the BarVision for Palm OS® software ................................ 11 Installing the BarVision Conduit for Palm HotSync ........................ 13 System requirements ........................................................................ 14 Configuring the BarVision for Palm OS® software .................................. 14 Configuring peripheral systems and devices ........................................... 16 Configuring printers .................................................................................. 16 Configuring an infrared printer ..................................................... 16 Configuring a wireless network printer ..................................... 18 Editing the Terminal ID ............................................................................ 20 CONTENTS iv Draft for Reseller Review Only Not for Distribution to End Users Chapter 3 Understanding the BarVision for Palm OS® Software Using a Palm® handheld ...................................................................................21 Using the handheld’s serial cable .........................................................21 Using the stylus to navigate, scroll, and select ................................21 Entering text and numbers .....................................................................22 Starting BarVision for Palm OS® ........................................................…

Text truncated - open the document above for the full version.

Patents Pending Loop Filter <>135° Tilt Sensors 10/24/2005 1 This is an rfPIC509 Microprocessor/Radio Tr ansmitter. It is a hybrid part composed of a Melexis TH7107 transmitter and a PIC1 2C509 microprocessor, however the microprocessor portion is unus ed for this Equipment Under Test (EUT). 2 Software adjustable 3 The antenna tuning capacitor is a 0.220in. average-diameter pl ate capacitor formed onto ~0.031in. FR4 that is tuned by drillin g an appropriate (0.025-0.125in.) diameter hole through the center during production. Patent Pending. 4 Useful operation from 3.2V to 2.2V. 5 Power ad j ust resistor. 51 Ω 433.28 MHz Loop Antenna Tuning Capacitor 3 433.28 MHz Transmitter BarVision TM Electronic Pour Spout RevB PCB Block Diagram rfPIC12C509AF Transmitter 1 PIC16F684 Micro p rocesso r 13.54MHz Crystal Oscillato r (/4) 3.385MHz Reference Clock Output to Microprocessor 32KHz – 4MHz R/C Oscillator 2 51 Ω User Interface Reset Button x32 PLL/ VCO 47 K Ω 5 Bottle Attach Detect <>90° Tilt Sensors 3V Lithium Battery 4

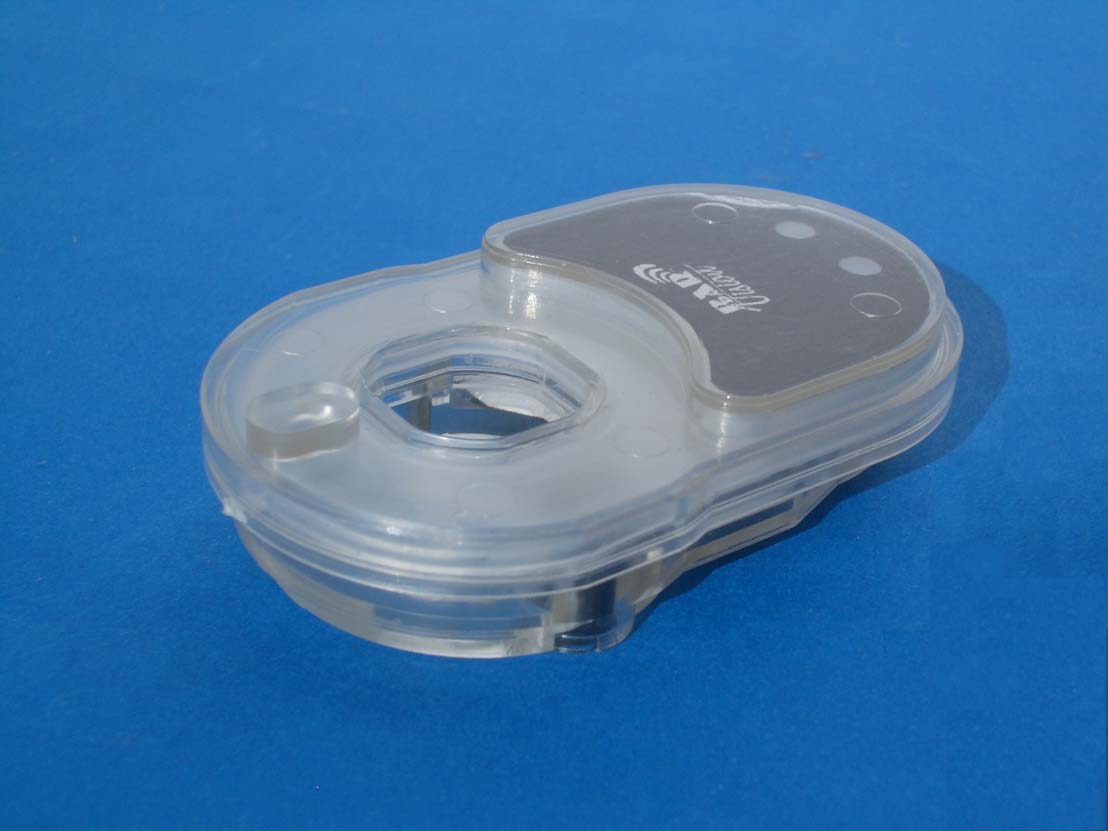

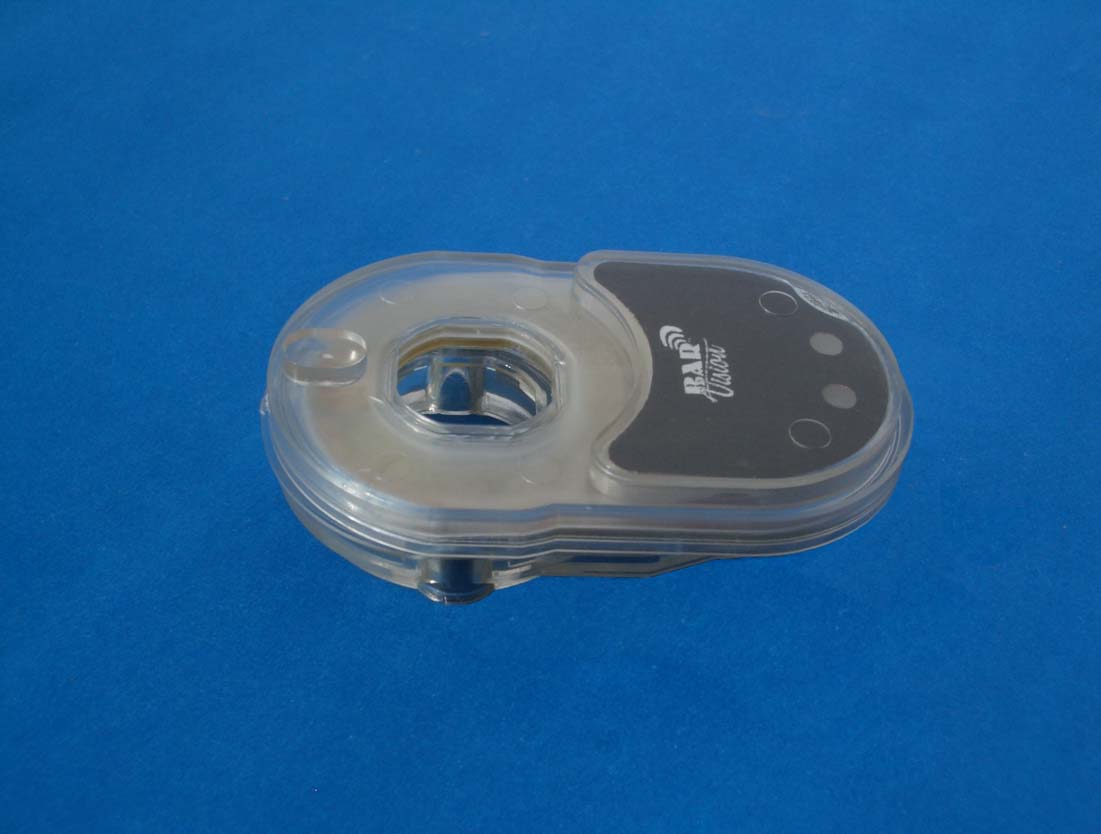

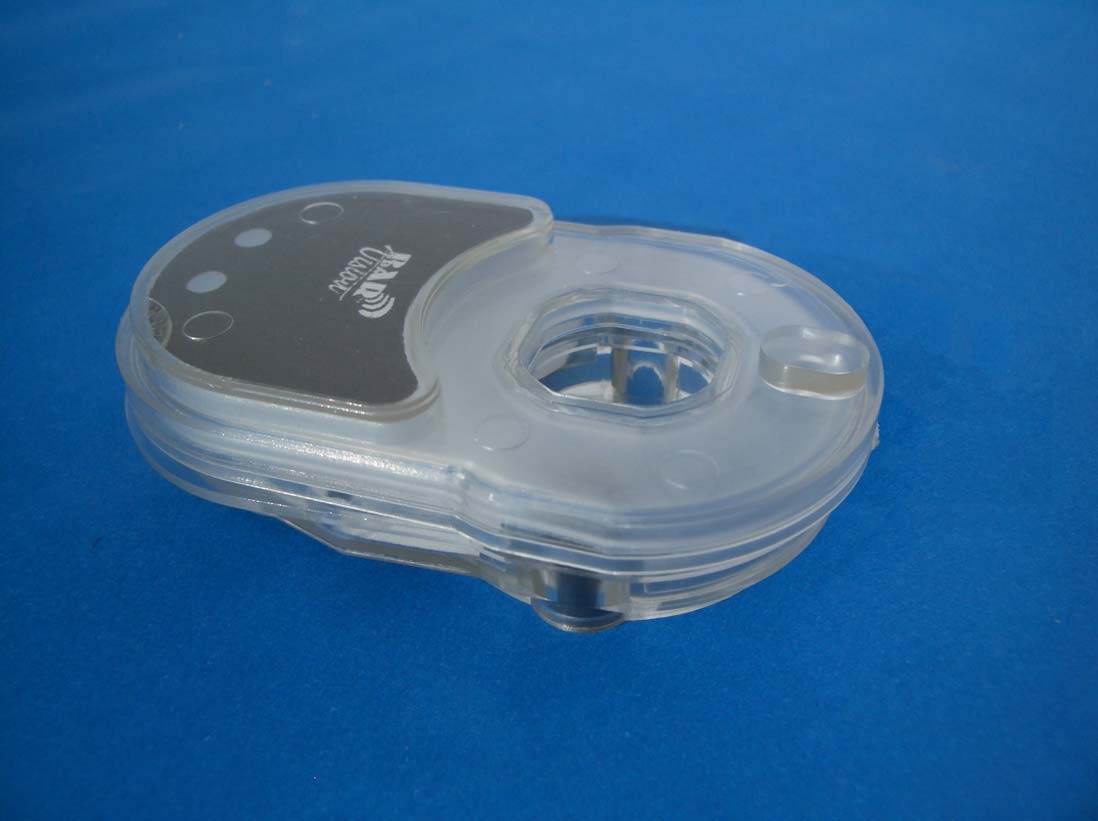

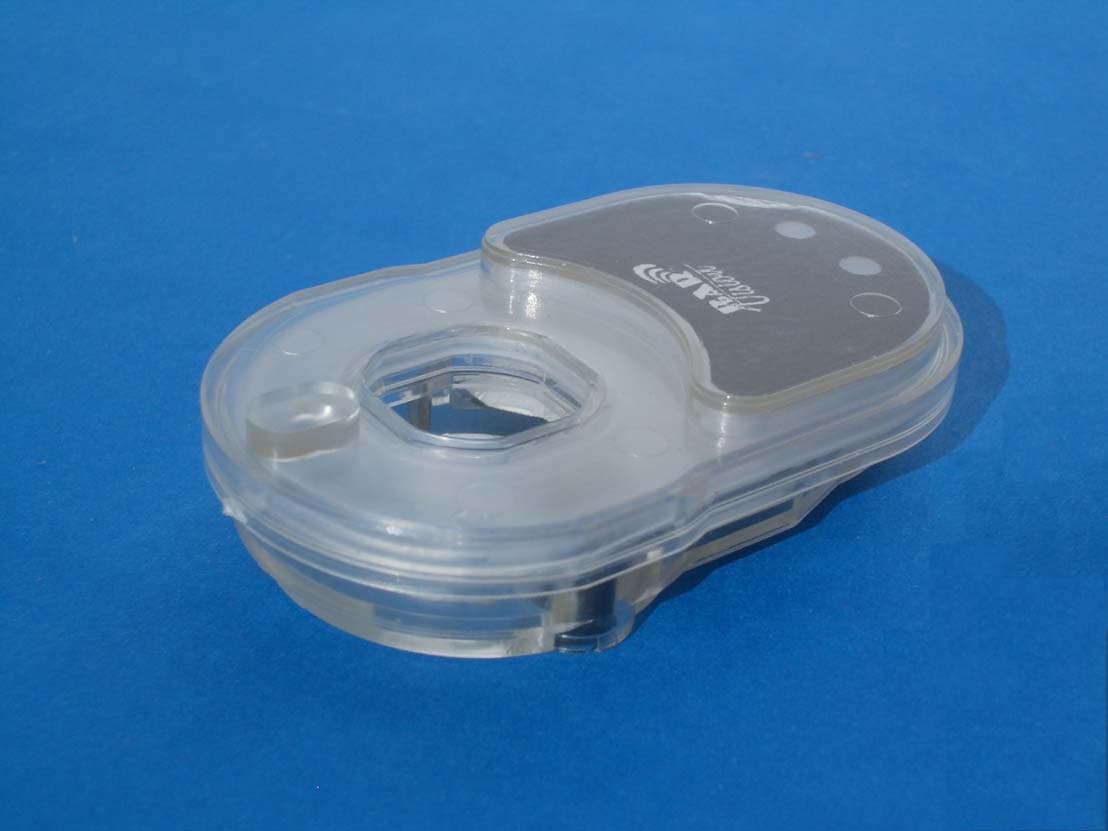

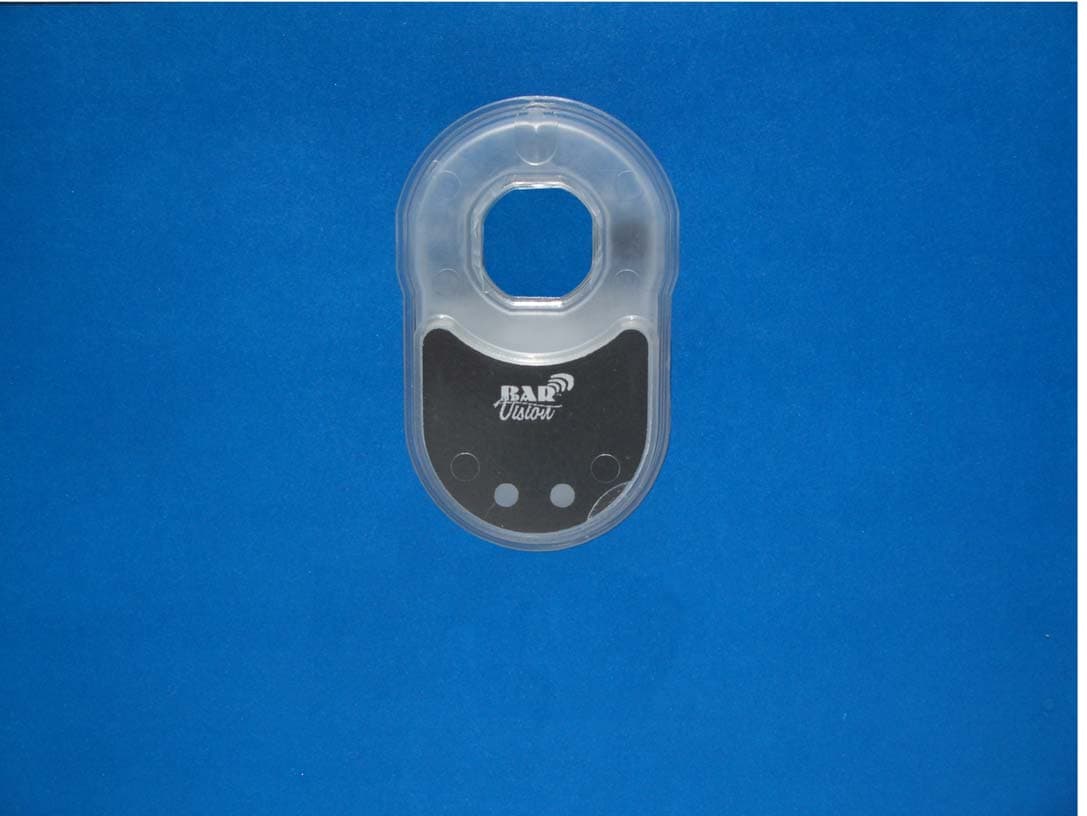

Page 1 of 5 External Photographs of the Equipment Under Test EXTERNAL FRONT ANGLE 1 BV01B-Q4601-EFA1 Page 2 of 5 EXTERNAL FRONT ANGLE 2 BV01B-Q4601-ESA2 Page 3 of 5 EXTERNAL SIDE ANGLE BV01B-Q4601-ESA3 Page 4 of 5 EXTERNAL TOP BV01B-Q4601-ET4 Page 5 of 5 EXTERNAL BOTTOM BV01B-Q4601-EB5

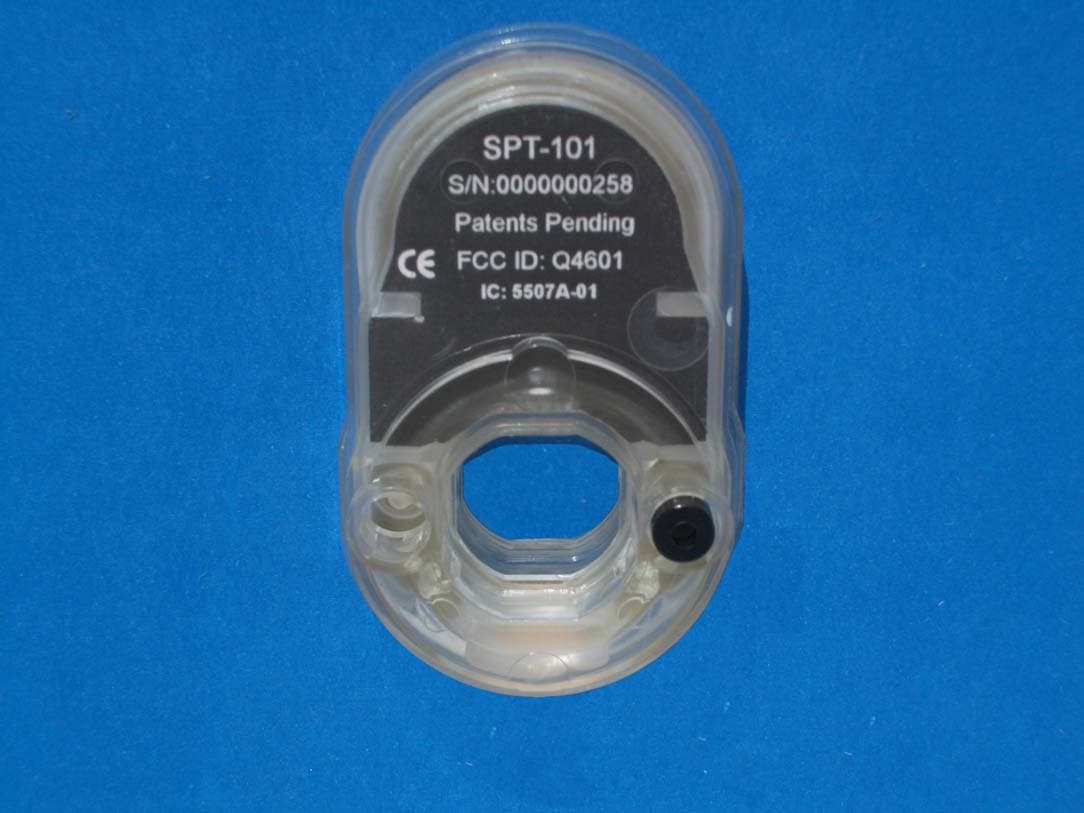

Page 1 of 1 FCC ID Label Location BV01B-Q4601-FCCL1

Page 1 of 3 Internal Photographs of the Equipment Under Test INTERNAL TOP SIDE OF PCB BV01B-Q4601-IT1 Page 2 of 3 INTERNAL BOTTOM SIDE OF PCB BV01B-Q4601-IB2 Page 3 of 3 INTERNAL HOUSING BV01B-Q4601-IDI3

Page 1 of 2 BarVision TM Spout Operational Description FCC ID: Q4601 General: A BarVision Spout is design to attach to a liquor bottle and provide inventory information about the liquor bottle. This information is transmitted to a BarVision radio receiver and combined with information from other BarVision Spouts in order to generate inventory related reports. Sensors: A BarVision Spout has a >90 degree tilt sensor, a >135 degree tilt sensor, and a bottle attach detect button. The tilt sensors are used to determine when a drink is poured and to estimate how much was dispensed. Radio Transmissions: The BarVision Spout operates in compliance with FCC Sections 15.231(a) and 15.231(e) of Title 47 of the Code of Federal Regulations. The transmission frequency is 433.28 MHz, the raw data rate is 4407 bits per second (with the exception of a preamble, the number of data bits is half of this for Manchester encoding), and it is OOK (On-Off Keying) encoded. Transmission Types: The BarVision Spout has two modes of transmission: immediate and periodic. Immediate transmissions occur after a drink is poured, when the spout is removed from a bottle, and when the spout is attached to a bottle. Periodic transmissions occur every ten seconds when one of these events has occurred within the last few minutes and otherwise every 60 seconds or less. Both types of transmissions include a synchronization header, a Manchester Encoded body, and 16-bit CRC. Page 2 of 2 Immediate transmissions: These transmissions are in response to a user pouring a drink, removing the spout, and/or replacing the spout and include an up to 32-bit control code uniquely identifying the Spout and control codes specifying what event occurred along with related data. These transmissions are always less than five seconds. Periodic Transmissions: Generally these transmissions occur every 60 seconds or less often. However, when the sensors have detected that a drink has been poured within the last five minutes, the spout has been detached from a bottle, and/or attached to a bottle, then a Periodic Transmission occurs as often as every 10 seconds. Periodic Transmissions include an up to 32-bit control code uniquely identifying the Spout and can also contain control codes specifying the details of one or more recent events. Periodic Transmissions can also include configuration data such as the software version number. For Periodic Transmissions occurring within 10 seconds of a previous Periodic Transmission they are always shorter than 1/3 of a second in duration. In rare cases there are Periodic Transmissions up to one second but these are always followed by a period with no Periodic Transmissions at least 30 times longer.

Flom Test Labs 3356 N. San Marcos Place, Suite 107 Chandler, Arizona 85225-7176 (866) 311-3268 phone, (480) 926-3598 fax MFA p0520007, d0520048 Date: December 12, 2005 Federal Communications Commission Via Electronic Filing Attention: Authorization & Evaluation Division Applicant: Nuvo Technologies Inc Equipment: Drink Measuring TX FCC ID: Q4601 FCC Rules: 15.231 Gentlemen: On behalf of the Applicant, enclosed please find Application Form 731, Engineering Test Report and all pertinent documentation, the whole for approval of the referenced equipment as shown. Filing fees are attached. We trust the same is in order. Should you need any further information, kindly contact the writer who is authorized to act as agent. Sincerely yours, David E. Lee, Quality Assurance Manager enclosure(s) cc: Applicant DEL/del Flom Test Labs 3356 N. San Marcos Place, Suite 107 Chandler, Arizona 85225-7176 (866) 311-3268 phone, (480) 926-3598 fax MFA p0520007, d0520048 Transmitter Certification of FCC ID: Q4601 Model: Drink Measuring TX to Federal Communications Commission Rule Part 15.231 Date of report: December 12, 2005 On the Behalf of the Applicant: Nuvo Technologies, Inc. At the Request of: P.O. Deposit Check #11205 Nuvo Technologies, Inc. 6060 E. Thomas Road Scottsdale, AZ 85251 Attention of: Adam Studnicki, CEO 480-222-6000 E-mail: [email protected] Chris Morrison E-mail: [email protected] John Marinick Supervised By: David E. Lee, Quality Assurance Manager Flom Test Labs 3356 N. San Marcos Place, Suite 107 Chandler, Arizona 85225-7176 (866) 311-3268 phone, (480) 926-3598 fax MFA p0520007, d0520048 List Of Exhibits (FCC Certification (Transmitters) - Revised 9/28/98) Applicant: Nuvo Technologies Inc FCC ID: Q4601 By Applicant: 1. Letter Of Authorization 2. Identification Drawings Label Location of Label Compliance Statement Location of Compliance Statement 3. Documentation: 2.1033(B) (3) User Manual (4) Operational Description (5) Block Diagram (5) Schematic Diagram (7) Photographs Parts List By M.F.A. Inc. A. Testimonial & Statement of Certification Flom Test Labs 3356 N. San Marcos Place, Suite 107 Chandler, Arizona 85225-7176 (866) 311-3268 phone, (480) 926-3598 fax MFA p0520007, d0520048 The Applicant has been cautioned as to the following: 15.21 Information to User. The users manual or instruction manual for an intentional radiator shall caution the user that changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. 15.27(a) Special Accessories. Equipment marketed to a consumer must be capable of complying with the necessary regulations in the configuration in which the equipment is marketed. Where special accessories, such as shielded cables and/or special connectors are required to enable an unintentional or intentional radiator to comply with the emission limits in this part, the equipment must be marketed with, i.e. shipped and sold with, those special accessories. However, in lieu of shipping or packaging the special accessories with the unintentional or intentional radiator, the responsible party may employ other methods of ensuring that the special accessories are provided to the consumer, without additional charge. Information detailing any alternative method used to supply the special accessories for a grant of equipment authorization or retained in the verification records, as appropriate. The party responsible for the equipment, as detailed in § 2.909 of this chapter, shall ensure that these special accessories are provided with the equipment. The instruction manual for such devices shall include appropriate instructions on the first page of text concerned with the installation of the device that these special accessories must be used with the device. It is the responsibility of the user to use the needed special accessories supplied with the equipment. Flom Test Labs 3356 N. San Marcos Place, Suite 107 Chandler, Arizona 85225-7176 (866) 311-3268 phone, (480) 926-3598 fax MFA p0520007, d0520048 Table Of Contents Rule Description Page . Test Report 1 2.1033(c) General Information Required 2 . Standard Test Conditions and Engineering Practices 5 2.1053(a) Field Strength of Spurious Radiation 7 2.1051 Unwanted Emissions (Transmitter Conducted) 9 2.202(g) Necessary Bandwidth and Emission Bandwidth 18 Flom Test Labs 3356 N. San Marcos Place, Suite 107 Chandler, Arizona 85225-7176 Page 1 of 19 (866) 311-3268 phone, (480) 926-3598 fax MFA p0520007, d0520048 Required information per ISO/IEC Guide 25-1990, paragraph 13.2: a) Test Report b) Laboratory: (FCC: 31040/SIT) (Canada: IC 2044) M. Flom Associates, Inc. 3356 N. San Marcos Place, Suite 107 Chandler, AZ 85225 c) Report Number: d0520048 d) Client: Nuvo Technologies Inc e) Identification: Drink Measuring TX FCC ID: Q4601 Description: Drink Measuring System f) EUT Condition: Not required unless specified in individual tests. g) Report Date: December 12, 2005 EUT Received: February 21, 2005 h, j, k): As indicated in individual tests. i) Sampling method: No sampling procedure used. l) Uncertainty: In accordance with MFA internal quality manual. m) Supervised by: David E. Lee, Quality Assurance Manager n) Results: The results presented in this report relate only to the item tested. o) Reproduction: This report must not be reproduced, except in full, without written permission from this laboratory. Flom Test Labs 3356 N. San Marcos Place, Suite 107 Chandler, Arizona 85225-7176 Page 2 of 19 (866) 311-3268 phone, (480) 926-3598 fax MFA p0520007, d0520048 List Of General Information Required For Certification In Accordance With FCC Rules And Regulations, Volume II, Part 2, 15.231 and Confidentiality Sub-part 2.1033 (c)(1): Name and Address of Applicant: Nuvo Technologies Inc Manufacturer: Applicant (c)(2): FCC ID: Q4601 Model Number: Drink Measuring TX (c)(3): Instruction Manual(s): Please See Attached Exhibits (c)(4): Type of Emission: Digital (c)(5)…

Text truncated - open the document above for the full version.

Flom Test Labs 3356 N. San Marcos Place, Suite 107 Chandler, Arizona 85225-7176 Page 9 of 19 (866) 311-3268 phone, (480) 926-3598 fax MFA p0520007, d0520048 Test Setup: Radiated Emissions State: State:
