Q4AMBR801ACDMA Repeater (Outdoor)

FCC Part 22 Certification Report No: BWS-03-RF-012 Jung Ang System RF Repeater FCC ID: Q4AMBR801A (Model:MBR801A) Appendix 10. User Manual Technical Manual RF Broad Band Repeater (MBR801A) Manual of RF Broad Band Repeater (DTTW-MBR801A) 2 IN-CONFIDENCE Contents 1. General description 1.1. System Overview 1.2. Special Features and advantages 1.3. System Structure 1.4. Configuration of repeater 1.5. Functional description of System 1.6. Cable connection diagram 1.7. Technical Specification 2. Installation 2.1. Installation Procedure 2.2. Operational Test 3. Maintenance and Repair 3.1. Simple adjustment Tool 3.2. Emergency measure tool 4. Operational Description of Control Board 4.1 General Function 4.2. VFD(Vacuum Fluorescent Display) 4,3, Functional description of keypad 4.4. Operational description of VFD and keypad Manual of RF Broad Band Repeater (DTTW-MBR801A) 3 IN-CONFIDENCE Manual of RF Broad Band Repeater (DTTW-MBR801A) 4 IN-CONFIDENCE 1. General Description of RF Broad Band Repeater(Outdoor) 1.1. System Overview RF Broad Band Repeater(Outdoor) is designed for increasing both coverage and capacity in cellular systems. It receive CDMA signal from BTS and emits RF signal where the coverage is required. RF Broad Band Repeater(Outdoor) receives CDMA signal from BTS via directional antenna and filters out the signal through BPF(Band Pass Filter) then amplifies CDMA signal to proper level through LNA(Low Noise Amplifier). The signal passes through middle amplifier and is amplified to proper level through HPA(High Power Amplifier). Then the repeater emits RF signal to blank area via antenna. Also RF Broad Band Repeater(Outdoor) receives the RF signal from mobile station. After filtering out the signal through BPF(Band Pass Filter), the repeater amplifies the signal using LNA(Low Noise Amplifier). The signal passes though middle amplifier and is amplified to proper level through HPA(High Power Amplifier) then emits CDMA signal to BTS via antenna. The repeater is projected to make BTS coverage wide cost-effectively. Optional features of the products include modified frequency ranges and bandwidths, non- standard connectors and design flexibilities to satisfy the most stringent requirements. Figure 1. Operational Concept of RF Broad Band Repeater BTS RF Broad Band Repeater Manual of RF Broad Band Repeater (DTTW-MBR801A) 5 IN-CONFIDENCE 1.2. Special Features l The number of FA can be increased up to 7 l Maximum transmit output power can be up to +40dBm/FA l Straight RF amplification: minimize degradation of CDMA signal quality and stabilize the signal l Remote control and monitoring through SMS(Short Message System) l Supervision of automatic gain and output levels l Low power consumption l Status monitoring - Power supply - Power Amplifier failure - HPA enable/disable - ALC l Automatic output level adjustment; ALC(auto level control), Weatherproof enclosures: the equipment can be deployed outdoors. It is self-contained in outdoors rated weather-resistant aluminum enclosures.The surface of the enclosure is applied with anti-corrosion material and painting. 1.3. System Structure Manual of RF Broad Band Repeater (DTTW-MBR801A) 6 IN-CONFIDENCE NO Item Spec. Quantity Remarks 1 HPA 5W (RX) 1 Set Reverse Path Output Power Amp. 2 HPA 16W (TX) 1 Set Forward Path Output Power Amp. 3 Controller SMS 1 Set Control & Monitor the repeater 4 TX Drive AMP G: 13dB 1 Set TX path middle amplification 5 RX Drive AMP G: 7dB 1 Set RX path middle amplification 6 TX LNA G: 40dB 1 Set TX path front LNA 7 RX LNA G: 40dB 1 Set Rx path front LNA 8 Duplexer 10MHz BW 2 Set Transmitting/receiving 9 TX BPF 10MHz BW 1 Set TX path reject filter 10 RX BPF 10MHz BW 1 Set RX path reject filter 11 Power Detector SMA to SMA 1 Set Output Power Monotor 12 Arrester N to N 2 Set Lightning protection 13 Power Supply In: AC220V Out: DC 27V/15A DC 12V/6A 1 Set Repeater power supply 1.4. Configuration of repeater Manual of RF Broad Band Repeater (DTTW-MBR801A) 7 IN-CONFIDENCE 1.4.1. Front view of repeater 1.4.2. Bottom view of repeater 1.5. Functional Description of System DTTW-MBR801A DOWN LINK BATTAC 220 UP LINK Uplink Downlink Manual of RF Broad Band Repeater (DTTW-MBR801A) 8 IN-CONFIDENCE [Figure 2. Structure diagram inside the repeater-1] Power Supply: ÿ Receive AC 220V from BTS and convert it into required voltage(DC+27V, DC+12V) ÿ Battery back-up ÿ Data port for monitoring the repeater status - Description of each part DTTW-MBR801A ON POWER OFFOFF MBR-PS AFPLDFBF BATT ON Manual of RF Broad Band Repeater (DTTW-MBR801A) 9 IN-CONFIDENCE ̧ PL: Light indicating AC voltage - Green: activating ̧ AF: Light indicating AC voltage - Red: error ̧ DF: Light showing the status of voltage - Red: error ̧ BF: Light showing the status of battery - Red: error ̧ BATT Switch: switch for selecting battery back up on/off ̧ Power Switch: N.F.B(No Fuse Breaker) for turning on/off AC and DC power Controller: ÿ Gain adjustment ÿ Monitoring and controlling the condition of power supply, voltage power, inside temperature, output power ÿ Collect all alarms and display the status on VFD ÿ Monitoring and controlling the status with VFD and Keypad built-in repeater ÿ Data downloadable through RS-232 port for connect to notebook PC - Description of each part ̧ VFD: monitor for controlling and monitoring repeater ̧ Key pad - On/Off: key to turn on & off the system for control & monitor - UP: key to change menu / raise the factors - DOWN: key to change menu / lower the factors - ENTER: key to select the items in need / move to lower table - ECS: key to stop the operation of table / move to higher table ̧ LED: showing the status - TXD: light when data is transmitted - RXD: light when data is received - ERROR: light when there’s some problem with data communication - RESET: key to use reset the controller ̧ RS-232: - Port for setting and controlling TX/RX gain, voltage power, output power of repeater connecting to computer. Duplexer: ÿ 10MHz BW Duplexer ÿ Build in Notc…

Text truncated - open the document above for the full version.

FCC Part 22 Certification Report No: BWS-03-RF-012 Jung Ang System RF Repeater FCC ID: Q4AMBR801A (Model:MBR 801A) Appendix 5. Block Diagram

Jung Ang System Co.,Ltd. 504-29, JAS B/D, Younnam-Dong, Mapo-Gu, Seoul, Korea Phone : +82 2 330 5863 Fax : +82 2 330 5879 April 20, 2003 Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 Re: Request for Confidentiality In reference to the application under FCC ID: Q4AMBR801A, and pursuant to Sections 0.457(d)(1)(ii) and 0.459 of the Commission's Rules, we, Jung Ang System Co., Ltd hereby requests confidential treatment of the accompanying information as outlined below: Document titled "Operational Description”. Document titled "Parts List", Document titled "Schematics" Document titled "Tune-up Procedure" The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the Applicant and provide unjustified benefits to its competitors. Jung Ang System Co., Ltd understands that pursuant to Rule 0.457(d)(1)(ii), disclosure of this Application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely, Meizi Chung Manager of Global Business Team Jung Ang System Co., Ltd Phone : +82 2 330 5863 Fax : +82 2 330 5879 E-mail : [email protected]

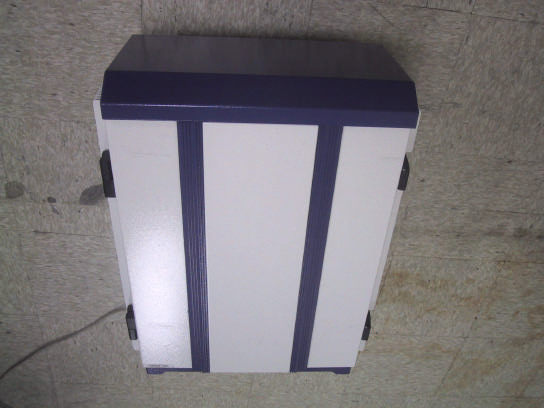

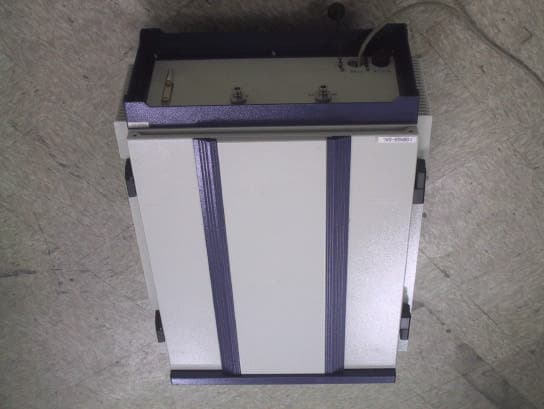

FCC Part 22 Certification Report No: BWS-03-RF-012 Jung Ang System RF Repeater FCC ID: Q4AMBR801A (Model:MBR 801A) Appendix 3. External Photos of EUT

FCC Part 22 Certification Report No: BWS-03-RF-012 Jung Ang System RF Repeater FCC ID: Q4AMBR801A (Model:MBR 801A) Appendix 2. FCC ID Label & Location Product Label Sample with FCC ID Label information Following is a sample copy of the label that will be placed on the rear cabinet of the product. The FCC identifier is marked in the product label. The following FCC Warning statement will be described in the user manual. FCC Warning CAUTION : Any changes or modifications in construction of this device which are not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment Label Location The label shown above shall be permanently affixed at a conspicuous location(cabinet out side) on the device and be readily visible to the user at the time purchase.(Labeling requirements per 2.925) Jung Ang System RF Repeater Model : MBR801A FCC ID : Q4AMBR801A This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received,

FCC Part 22 Certification Report No: BWS-03-RF-012 Jung Ang System RF Repeater FCC ID: Q4AMBR801A (Model:MBR 801A) Appendix 4. Internal Photos of EUT FCC Part 22 Certification Report No: BWS-03-RF-012 Jung Ang System RF Repeater FCC ID: Q4AMBR801A (Model:MBR 801A) FCC Part 22 Certification Report No: BWS-03-RF-012 Jung Ang System RF Repeater FCC ID: Q4AMBR801A (Model:MBR 801A) FCC Part 22 Certification Report No: BWS-03-RF-012 Jung Ang System RF Repeater FCC ID: Q4AMBR801A (Model:MBR 801A) FCC Part 22 Certification Report No: BWS-03-RF-012 Jung Ang System RF Repeater FCC ID: Q4AMBR801A (Model:MBR 801A) FCC Part 22 Certification Report No: BWS-03-RF-012 Jung Ang System RF Repeater FCC ID: Q4AMBR801A (Model:MBR 801A) FCC Part 22 Certification Report No: BWS-03-RF-012 Jung Ang System RF Repeater FCC ID: Q4AMBR801A (Model:MBR 801A) FCC Part 22 Certification Report No: BWS-03-RF-012 Jung Ang System RF Repeater FCC ID: Q4AMBR801A (Model:MBR 801A)

FCC Part 22 Certification Report No: BWS-03-RF-012 Jung Ang System RF Repeater FCC ID: Q4AMBR801A (Model:MBR801A) Appendix 9. RF Exposure Information RF Exposure requirement per FCC Rules and Regulation CFR 47 Part 1.1307 Per the FCC Rules and Regulations as described in the OET Bulletin 65, this equipment is categorically excluded from routine evaluation because this equipment is used at fixed installations with antennas mounted on outdoor, permanent structurers. This transmitter is intended for use at fixed station sites only, and is not to be marketed for mobile use. Under the Section 1.1307 of the FCC Rules, this transmitter is not subject to the Commission’s environmental rules pertaining to the Routine Evaluation for RF exposure prior to equipment authorization.

This report only responds to the tested sample and may not be reproduced, except in full, without written approval of the BWS TECH,Inc. Licensed Non-Broadcasting Transceiver RF MEASUREMENT REPORT VERIFICATION OF COMPLIANCE PRODUCT : Mobile Subscription Radio Telecommunication Repeater MODEL/TYPE NO : MBR801A FCC ID : Q4AMBR801A TRADE NAME : Jung Ang System DWTT-MBR801A APPLICANT : Jung Ang System Co.,Ltd. 504-29, JAS B/D, Younnam-Dong, Mapo-Gu, Seoul, Korea FCC RULE PART(S) : FCC Part 2 & Part 22 Cellular Radiotelephone Service FCC PROCEDURE : Certification FCC CLASSIFICATION : Amplifier (AMP) EMISSION DESIGNATOR : F9W (CDMA) FREQUENCY RANGE : Downlink 870 MHz ~ 880 MHz (CDMA) Uplink 825 MHz~ 835 MHz (CDMA) RF OUTPUT POWER : Downlink 10 Watts (40dBm) Uplink 2.5 Watts (34dBm) DATES OF TEST : April 08, 2003 DATES OF ISSUE : April 11, 2003 TEST REPORT No. : BWS-03-RF-012 TEST LAB. BWS Tech., Inc. (Registration No. : 553281) This RF Reapter Model MBR801A has been tested in accordance with the measurement procedures specified in CFR 47 Part 2.947 and ANSI C63.4-2000 at the BWS TECH/RF Test Laboratory and has been shown to be complied with the FCC Technical Specification described above. I attest to the accuracy of data. All measurement herein were performed by me or were made under my supervision and are correct to the best of my knowledge and belief. I assume full responsibility for the completeness of these measurements and vouch for the qualifications of all persons taking them. The results of testing in this report apply to the product/system which was tested only. Other similar equipment will not necessarily produce the same results due to production tolerance and measurement uncertainties. Kayoung Kim Chief of Laboratory Division BWS TECH Inc. BWS TECH Inc. www.bws.co.kr 294-9, Jungdae-Dong, Kwangju-Si, Kyunggi-Do, 464-080, Korea TEL: +82 31 762 0124 FAX: +82 31 762 0126 BWS TECH Inc . 2 of 37 294-9 Jungdae-Dong, Kwanggu-Si,Kyunggi-Do, 464-800, Korea FCC Part 22 Certification Report No: BWS-03-RF-012 Date of Test : April 11, 2003 Jung Ang System RF Repeater FCC ID: Q4AMBR801A (Model:MBR 801A) TABLE OF CONTENTS Pages 1. General Information 3 2. Description of Attachments 4 3. Introduction 5 4. Product Information 6 5. Description of Tests 7~12 6. Test Results 13 7. Test Data 14~31 8. Test Equipment List 32 Appendix 1. FCC ID Label and Location Appendix 2. Test Setup Photos Appendix 3. External Photos Appendix 4. Internal Photos Appendix 5. Block Diagram Appendix 6. Schematics Appendix 7. Operational Instruction Appendix 8. Part List Appendix 9. Tune up Procedure Appendix 10. RF Exposure statement Appendix 11. User Manual BWS TECH Inc . 3 of 37 294-9 Jungdae-Dong, Kwanggu-Si,Kyunggi-Do, 464-800, Korea FCC Part 22 Certification Report No: BWS-03-RF-012 Date of Test : April 11, 2003 Jung Ang System RF Repeater FCC ID: Q4AMBR801A (Model:MBR 801A) RF TEST REPORT Scope – Measurement and determination of radio frequency devices including intentional radiators and/or unintentional radiators for compliance with the technical rules and regulations of relevant international standard 1. GENERAL INFORMATION Applicant Other Information l EUT Type : RF Broad Band Repeater l Model Name : MBR801A l FCC Identifier : Q4AMBR801A l Brand Name : Jung Ang System l S/N : Prototype l Freq. Range : Downlink : 870 MHz ~ 880 MHz (CDMA) Uplink : 825 MHz~ 835 MHz (CDMA) l Max. Power Output : Downlink (CDMA) : 10 Watts (40dBm) Uplink (CDMA) : 2.5 Watts (34dBm) l Emission Designator : F9W l FCC Classification Amplifier (AMP) l Rule Part(s) : FCC Part 22 & Part 2 l Test Procedure : Certification l Dates of Tests : March 10, 2003 l Place of Tests : BWS TECH Inc. 294-9, Jungdae-Dong, Kwangju-Si, Kyunggi-Do 464-080, Korea EMC Testing Laboratory (FCC Registration Number : 553281) TEL: +82 31 762 0124 FAX: +82 31 762 0126 l Test Report No. : BWS-03-RF-012 Applicant Name : Jung Ang System Co., Ltd Applicant Address : 504-29, JAS B/D, Younnam-Dong, Mapo-Gu, Seoul, Korea Phone/Fax : Phone : +82 2 330 5863 Fax : +82 2 330 5879 BWS TECH Inc . 4 of 37 294-9 Jungdae-Dong, Kwanggu-Si,Kyunggi-Do, 464-800, Korea FCC Part 22 Certification Report No: BWS-03-RF-012 Date of Test : April 11, 2003 Jung Ang System RF Repeater FCC ID: Q4AMBR801A (Model:MBR 801A) 2. DESCRIPTION OF ATTACHMENTS Appendix 1. FCC ID Label and Location -. Sample FCC ID Label and location information is shown Appendix 2. Test Setup Photos -. Radiated Emission Test setup photos are shown Appendix 3. External Photos -. External photos are shown Appendix 4. Internal Photos -. Internal photos are shown Appendix 5. Block Diagram -. The block diagram is shown Appendix 6. Schematics -. The circuit diagrams are shown Appendix 7. Operational Instruction -. Explanation of operational instruction for circuit is shown. Appendix 8. Part List -. The part lists are shown. Appendix 9. Tune up Procedure -. The alignment procedure are shown. Appendix 10. RF Exposure statement -. The user operating manual is shown. Appendix 11. User Manual BWS TECH Inc . 5 of 37 294-9 Jungdae-Dong, Kwanggu-Si,Kyunggi-Do, 464-800, Korea FCC Part 22 Certification Report No: BWS-03-RF-012 Date of Test : April 11, 2003 Jung Ang System RF Repeater FCC ID: Q4AMBR801A (Model:MBR 801A) 3. INTRODUCTION The measurement tests were conducted at the open area test site of BWS TECH Inc. facility located at 294-9, Jungdae-Dong, Kwangju-Si, Kyunggi-Do, Korea. The measurement facilities were constructed in conformance with the requirements of the ANSI C63.4-2000 and CISPR Publication 16. The ETL has site descriptions on file with the FCC for 3 and 10 meter site configurations. Detailed description of test facility was found to be in compliance with the requirements of Section 2.948 FCC Rules according to the ANSI C63.4-2000 and registered to the Federal Communications Commission(Registration Number : 553281). All measurements contained in this application were conducted in accordance with FCC Rules and regulations CFR …

Text truncated - open the document above for the full version.

BWS TECH Inc . 33 of 33 294-9 Jungdae-Dong, Kwanggu-Si,Kyunggi-Do, 464-800, Korea FCC Part 22 Certification Report No: BWS-03-RF-012 Date of Test : April 11, 2003 Jung Ang System RF Repeater FCC ID: Q4AMBR801A (Model:MBR 801A) Appendix 1. Test Setup Photos Radiated Emission Test Setup
