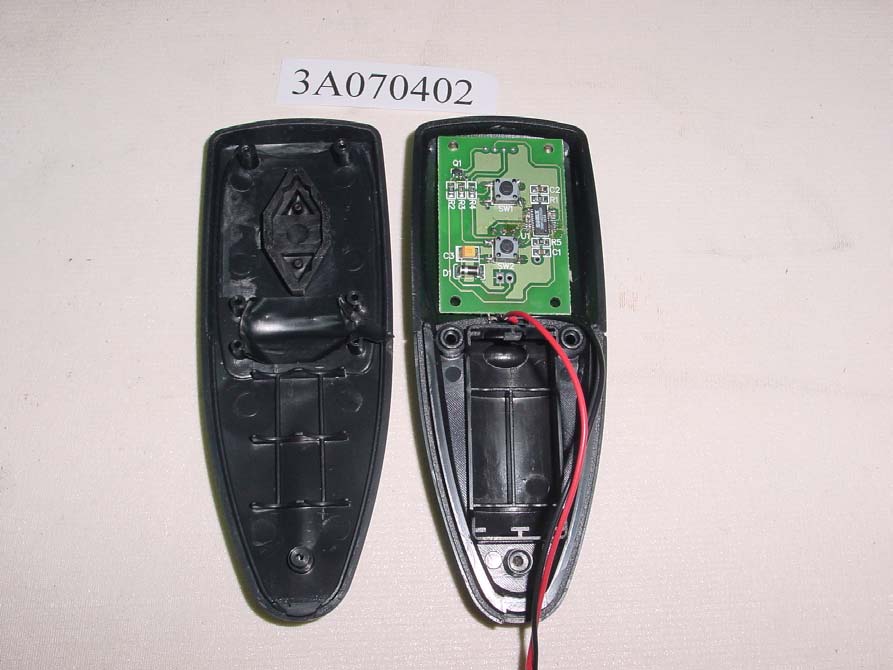

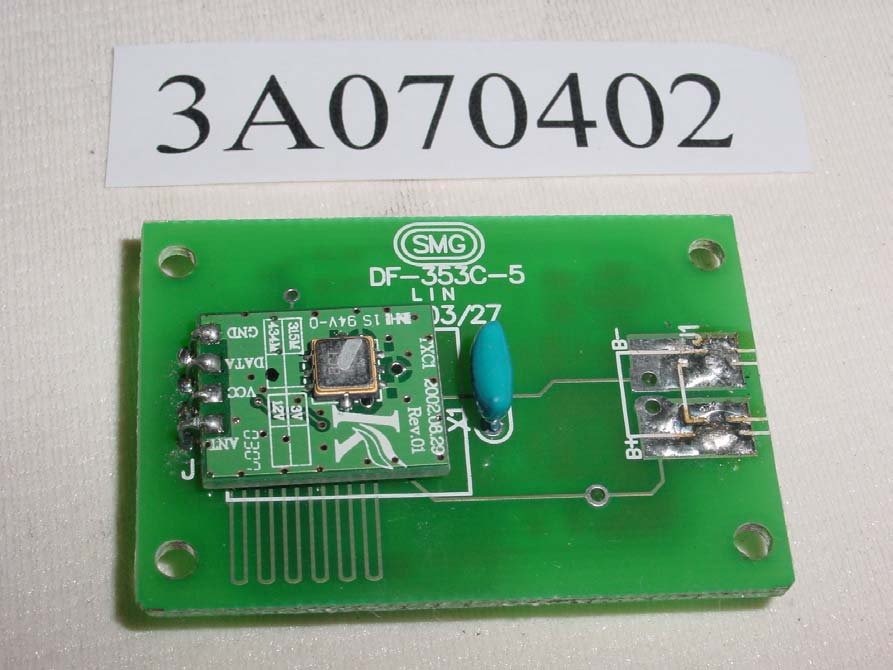

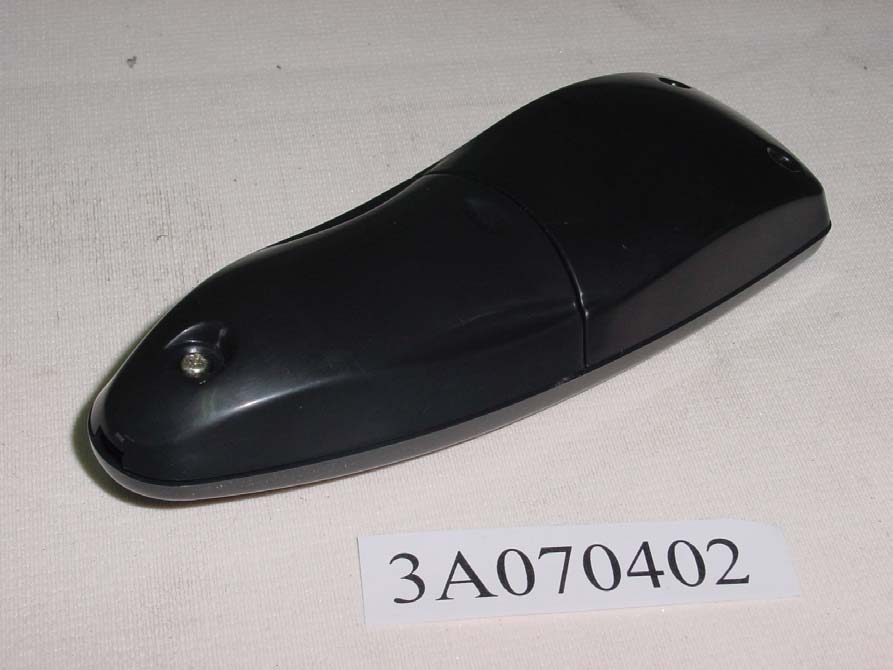

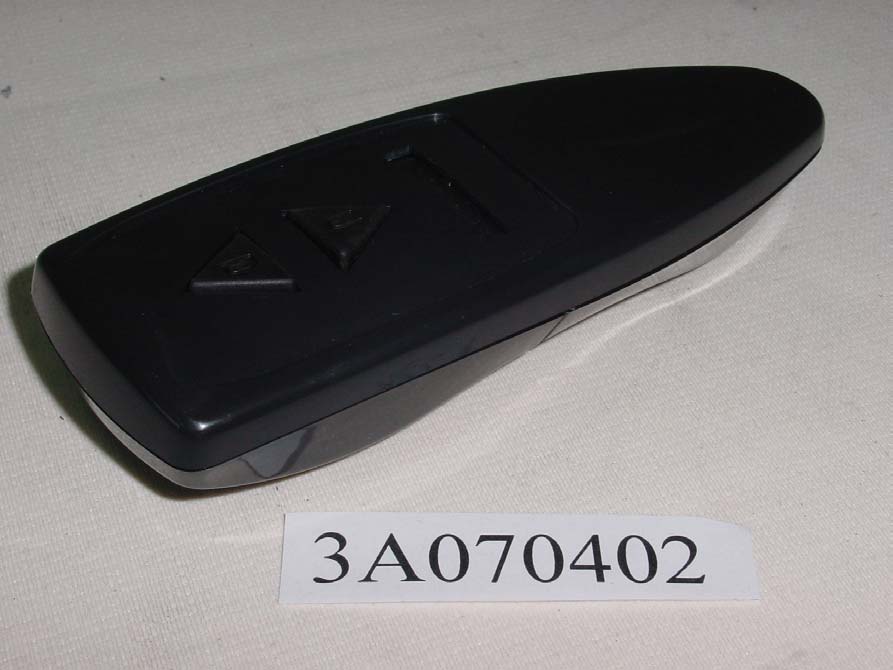

FCC ID: Q4CMTG12650-1R Report No.: 3A070402RF-1 Page 20 of 25 Interocean EMC Technology Corp. FCC ID Test Report 7 Photographs of EUT Front View of Appearance Rear View of Appearance FCC ID: Q4CMTG12650-1R Report No.: 3A070402RF-1 Page 21 of 25 Interocean EMC Technology Corp. FCC ID Test Report Inside View of EUT Component Side View of Main board FCC ID: Q4CMTG12650-1R Report No.: 3A070402RF-1 Page 22 of 25 Interocean EMC Technology Corp. FCC ID Test Report Solder Side View of Main board

FCC ID: Q4CMTG12650-1R Report No.: 3A070402RF-1 Page 20 of 25 Interocean EMC Technology Corp. FCC ID Test Report 7 Photographs of EUT Front View of Appearance Rear View of Appearance FCC ID: Q4CMTG12650-1R Report No.: 3A070402RF-1 Page 21 of 25 Interocean EMC Technology Corp. FCC ID Test Report Inside View of EUT Component Side View of Main board FCC ID: Q4CMTG12650-1R Report No.: 3A070402RF-1 Page 22 of 25 Interocean EMC Technology Corp. FCC ID Test Report Solder Side View of Main board

FCC ID: Q4CMTG12650-1R Description of Product: This is a remote controller for Motorized Total Gym Exerciser up and down. Circuit Function: This is a remote controller for Motorized Total Gym Exerciser. It uses a RF signal of 433.852 MHz to control the Total Gym Exerciser up and down. A manually operated Transmitter of Remote Control shall employ a switch that will automatically deactivate the Transmitter of Remote Control within not more than 5 seconds of being released. .

FCC ID: Q4CMTG12650-1R Report No.: 3A070402RF-1 Page 1 of 25 Interocean EMC Technology Corp. FCC ID Test Report FCC Part 15 Subpart C EMI Test Report of E.U.T.: Motorized Total GYM Exerciser FCC ID: Q4CMTG12650-1R Trade Name: Fitness Quest, Motorized Total Gym Model Number: 12650-1R Prepared for Fitness Quest Inc 1400 Raff Road SW Canton,Ohio 44750-0001 U.S.A TEL: 330 478 0755 FAX: 330 478 3862 Prepared by Interocean EMC Technology Corp. No.5-2, Lin 1, Tin-Fu Tsun, Lin-Kou Hsiang, Taipei County, Taiwan, R.O.C. TEL.: +886 2 2600 6861 FAX.: +886 2 2600 6859 NVLAP LAB. Code: 200458-0 Remark: 1. The test report consists of 26 pages in total. It shall not be reproduced except in full, without the written approval of IETC. This document may be altered or revised by IETC only, and shall be noted in the revision section of the document. The test results in the report only to the tested sample. 2. The client shall not use it to claim product endorsement by NVLAP or and any U.S. government agencies. FCC ID: Q4CMTG12650-1R Report No.: 3A070402RF-1 Page 2 of 25 Interocean EMC Technology Corp. FCC ID Test Report Table of Contents 1 General Information 4 1.1 Description of Equipment Under Test 4 1.2 Tested Supporting System Detail 5 1.3 Test Facility 5 2 Provisions Applicable 6 2.1 Definition 6 3 Power Line Conducted Emission Measurement 7 4 Radiated Emission Measurement 8 4.1 Radiated Emission Measurement 8 4.2 Instrument 8 4.3 Block Diagram of Test Configuration 8 4.4 Radiated Limit 9 4.5 Measuring Instrument Setup 9 4.6 Restricted Bands of Operation 10 4.7 Configuration of Measurement 10 4.8 Configuration of EUT 11 4.9 Test Result 11 Appendix 1 – Duty factor Test Waveform 14 5 Bandwidth of Emission Measurement 17 5.1 Instrument 17 5.2 Standard Applicable 17 5.3 Plot Graphic of Bandwidth 17 5.4 Test Result 17 Appendix 2 –Bandwidth of Emission Test Waveform 18 6 Photographs of Measurement 19 6.1 Radiated Emission Measurement 19 7 Photographs of EUT 20 FCC ID: Q4CMTG12650-1R Report No.: 3A070402RF-1 Page 4 of 25 Interocean EMC Technology Corp. FCC ID Test Report 1 General Information 1.1 Description of Equipment Under Test Equipment Under Test : Motorized Total GYM Exerciser 12650-1R Model Number : 12650-1R Serial Number : N/A Type of Sample Tested : Proto-type Pre-Production Mass Production Applicant : Fitness Quest Inc 1400 Raff Road SW Canton, Ohio 44750-0001 U.S.A Manufacturer : Tung Keng Enterprise Co., Ltd. No. 1. Lane 160. Sec. 2, Tanfu Road, Tan Tzu Hsiang, Taichung, Taiwan Power Supply : 3.0 Vdc Date of Receipt of Sample : Jul. 10, 2003 Date of Test : Jul. 10 ~ 18, 2003 Fundamental Frequency : 433.852 MHz Description of E.U.T. : This is a remote controller for Motorized Total Gym Exerciser. it uses a RF signal of 433.852 MHz to control the Total Gym Exerciser up and down. Note: The receiver portion of the EUT has been tested in Interocean EMC Technology Corp. The test result has been verified to comply with FCC Part 15, Subpart B, Class B – Computing Devices (FCC DoC). The engineering test report can be provided upon FCC request. FCC ID: Q4CMTG12650-1R Report No.: 3A070402RF-1 Page 5 of 25 Interocean EMC Technology Corp. FCC ID Test Report 1.2 Tested Supporting System Detail Nothing tested supporting system detail. 1.3 Test Facility Site Description : OATS 1 OATS 2 OATS 3 OATS 4 Name of Firm : Interocean EMC Technology Corp. Site 1, 2 Location : No.5-2, Lin 1, Tin-Fu Tsun, Lin-Kou Hsiang, Taipei County, Taiwan, R.O.C. Site 3, 4 Location : No. 12, Ruei-Shu Valley, Ruei-Ping Tsuen, Lin-Kou Shiang, Taipei County, Taiwan, R.O.C. Site Filing : z Federal Communication Commissions – USA Registration No.: 96399 (Site 1& 2) Registration No.: 518958 (Site 3 & 4) z Voluntary Control Council for Interference by Information Technology Equipment (VCCI) – Japan Registration No. (Conducted Room): C-1094 Registration No. (OATS 1): R-1040 Registration No. (OATS 2): R-1041 z Industry Canada Submission: 44631 Site Accreditation : z Bureau of Standards and Metrology and Inspection (BSMI) – Taiwan, R.O.C. Accreditation No.: SL2-IN-E-0026 for CNS13438 / CISPR22 SL2-R1-E-0026 for CNS13439 / CISPR13 SL2-R2-E-0026 for CNS13439 / CISPR13 SL2-A1-E-0026 for CNS13783-1 / CISPR14 SL2-L1-E-0026 for CNS14115 / CISPR15 z National Voluntary Laboratory Accreditation Program (NVLAP) - USA Lab Code: 200458-0 z Nemko AS Authorization No.: ELA 181-a Authorization No.: ELA 181-b 1.3.1 Test Methodology Both conducted and Radiated Emission Measurement was performed according to the procedures in ANSI C63.4-1992 and Part 15 subpart C. Radiated Emission Measurement was performed at 3 meters distance from antenna to EUT. 1.3.2 Measurement Uncertainty The uncertainty is calculated in accordance with NAMAS document NIS 81. Conducted Uncertainty Uc = ±2.96dB. Radiated Uncertainty Uc = ±3.67dB FCC ID: Q4CMTG12650-1R Report No.: 3A070402RF-1 Page 6 of 25 Interocean EMC Technology Corp. FCC ID Test Report 2 Provisions Applicable 2.1 Definition Unintentional radiator: A device that intentionally generates and radio frequency energy for use within the device, or that sends radio frequency signals by conduction to associated equipment via connecting wiring, but which is not intended to emit RF energy by radiation or induction. Class A Digital Device: A digital device which is marketed for use in commercial or business environment; exclusive of a device which is market for use by the general public, or which is intended to be used in the home. Class B Digital Device: A digital device which is marketed for use in a residential environment notwithstanding use in a commercial, business of industrial environment. Example of such devices that are marketed for the general public. Note : A manufacturer may also qualify a device intended to be marketed in a commercial, business, or industrial environment as a Class B digital device, and in fact is encouraged to do so, provided the device complies with the technical specifications for a Class B Digital Dev…
