Q5P-2610Wireless PS4 Controller

Wireless PS4 Controller 1.Instructions: User Manual Make sure you read this guide before using the wireless racing controller. Please note! Fully charge the racing controller before the first use. 3.Specification: External Dimensions:160*105*62mm Charging Voltage: DC5V/500mA Net Weight:197g 4.Pack Contents: 1 X Wireless Controller 1 X User Manual 1 X Data Charging Cable 5.CAUTION 6FCC Statement The product is not water proof. Please keep it away from water, high humidity and high temperature environment. DO NOT attempt to modify or disassemble this product. DO NOT slam or hit this product hard, there may be some unnecessary damage for it. Due to violation of above operations,warranty is invalid. Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: -- Reorient or relocate the receiving antenna. -- Increase the separation between the equipment and receiver. -- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. -- Consult the dealer or an experienced radio/TV technician for help This device complies with part 15 of the FCC rules. Operation is subject to the following two conditions (1)this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. 1.Power ON/OFF: Power ON: Short press the PS key and the indicator will be fast flash accordingly, if it is unconnected for 20 seconds, it will be off automatically. Power OFF: When it’s working, press and hold the PS key for 5 seconds, and the indicator turns to out. 2. Pairing operation guide: Wired pairing mode: Plug the TYPE-C cable to the PS4 console to complete pairing, the indicator is green and always on. Then press the PS button to start wireless connection. After connection, the indicator will flash regularly indicates it is charging. Wireless pairing mode: When first use, please press and hold SHARE key, then press the PS key for 3 seconds, the indicator will fast flash to enter pairing mode, If the pairing is successful, the light will be always on. It has paired memories, just press the PS key to reconnect the device after first successful connection. Ps Options Mute Share Program D-pad R1/R2L1/L2 M2 M1 Steering wheel 3.5 mm Headset Jack Reset 2.Operation Guide of Remappable Keys: First Step: Press and hold PROGRAM key, then press the M key you want to program, color of the indicator will turn red to enter setting mode. Second Step: In the setting mode, press a key you want to remap. Last Step: Press the M1 again and the indicator will turn green to exit the setting mode. 1 1 32 2 Clear the content mapped in the M key 1.Press and hold PROGRAM key, then press the M key, the color of the indicator will turn red. 2.Then press the M again and the indicator will turn green to exit the setting mode 3.If you re-map the M key, will record the new content automatically. NOTED! The other M key will be set up the same as above steps. And they are independent and do not interface with each other. 3. Charging indicator: Disconnection charging: Connect a charger to Type-C port, the indicator is green and flashes very slowly, and it will go out when fully charged. Connection charging: When it’s working, connect a charger to the Type-C port, the indicator is green and flashes regularly, it will be always on when fully charged. 4. Operation guide of Mute key: When it’s working, press the Mute key to close the microphone and the indicator turns red accordingly. If you press the Mute key again to exit and the indicator returns green. 12 All the below buttons can be mapped: R1 L1 L2R2

VISION ELECTRONICS CO.,LTD. Model Difference 2022/11/23 EUT NAME: Wireless PS4 Controller Trademark: N/A MODEL : 2610，2610A, 2610B, 2610C,2610D, 2610E FCC ID: Q5P-2610 All the model are the same circuit and RF module, except model names. Sincerely Client’s signature Client’s signature: Client’s name / title : Li Fun Lin / Manager Contact information / address: 11F-6, No.400 Huanbei Rd. Jhongli Dist.Taoyuan City,Taiwan

VISION ELECTRONICS CO.,LTD. 2022.11.23 Eurofins Electrical and Electronic Testing NA, Inc. 914 W. Patapsco Avenue Baltimore, MD 21230 USA RE: CONFIDENTIALITY REQUEST FOR EUT NAME: Wireless PS4 Controller Trademark: Vxion MODEL : 2610，2610A, 2610B, 2610C,2610D, 2610E FCC ID: Q5P-2610 To Whom It May Concern: This letter serves as an official request for confidentiality under sections 0.457 and 0.459 of CFR 47. We have requested that the - Block Diagram - Schematics - Operational Description required to be submitted with this application be permanently withheld from public review. The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these materials may be harmful to the applicant and provide unjustified benefits to its competitors. Please contact me if there is any information you may need. Sincerely, Client’s signature: Client’s name / title : Li Fun Lin / Manager Contact information / address: 11F-6, No.400 Huanbei Rd. Jhongli Dist.Taoyuan City,Taiwan

VISION ELECTRONICS CO.,LTD. 2022.11.23 Eurofins Electrical and Electronic Testing NA, Inc. 914 W. Patapsco Avenue Baltimore, MD 21230 USA RE: LETTER OF AGENT AUTHORIZATION EUT NAME: Wireless PS4 Controller Trademark: Vxion MODEL : 2610，2610A, 2610B, 2610C,2610D, 2610E FCC ID: Q5P-2610 To Whom It May Concern: We, the undersigned, hereby authorize Shenzhen BCTC Testing Co., Ltd to act on our behalf in all matters relating to application for equipment authorization, including the signing of all documents relating to these matters. We also hereby certify that no party to the application authorized hereunder is subject to the denial of benefits, including FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C.853(a). This agreement expires one year from the current date. Sincerely, Client’s signature: Client’s name / title : Li Fun Lin / Manager Contact information / address: 11F-6, No.400 Huanbei Rd. Jhongli Dist.Taoyuan City,Taiwan

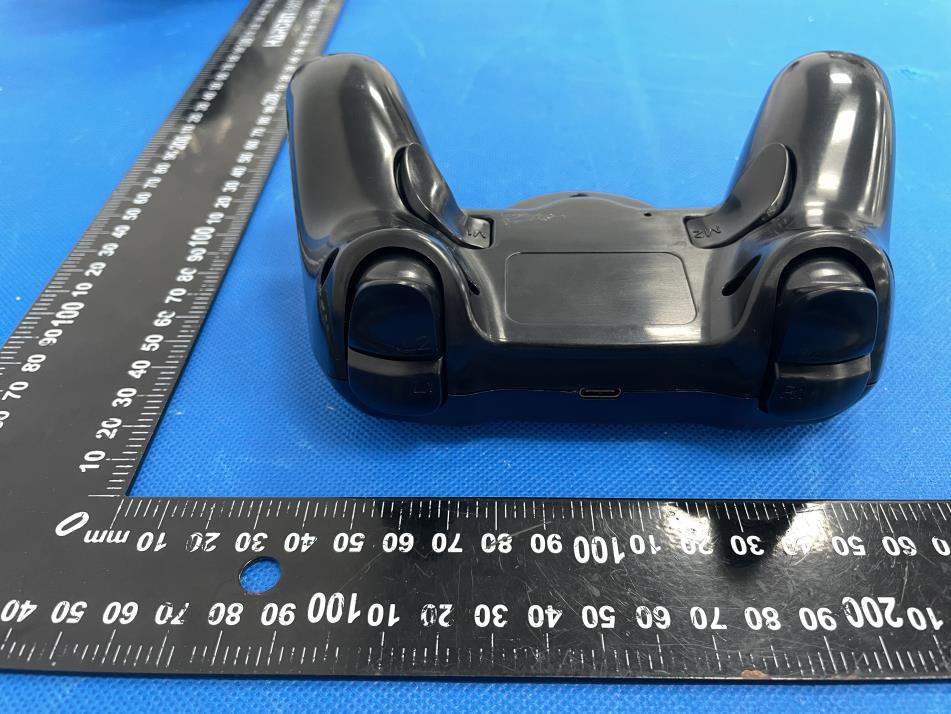

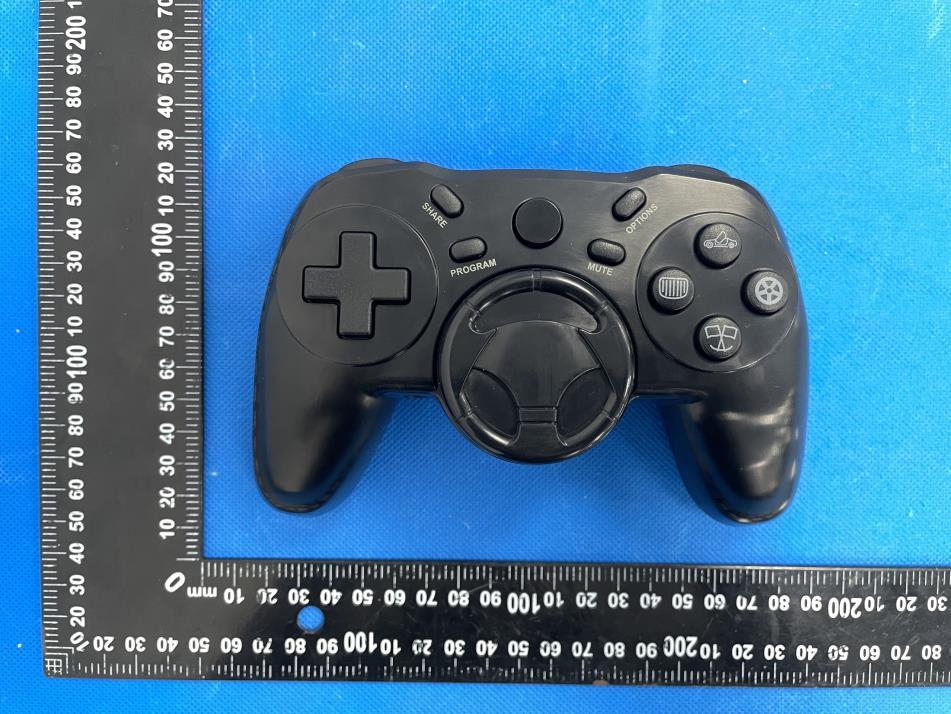

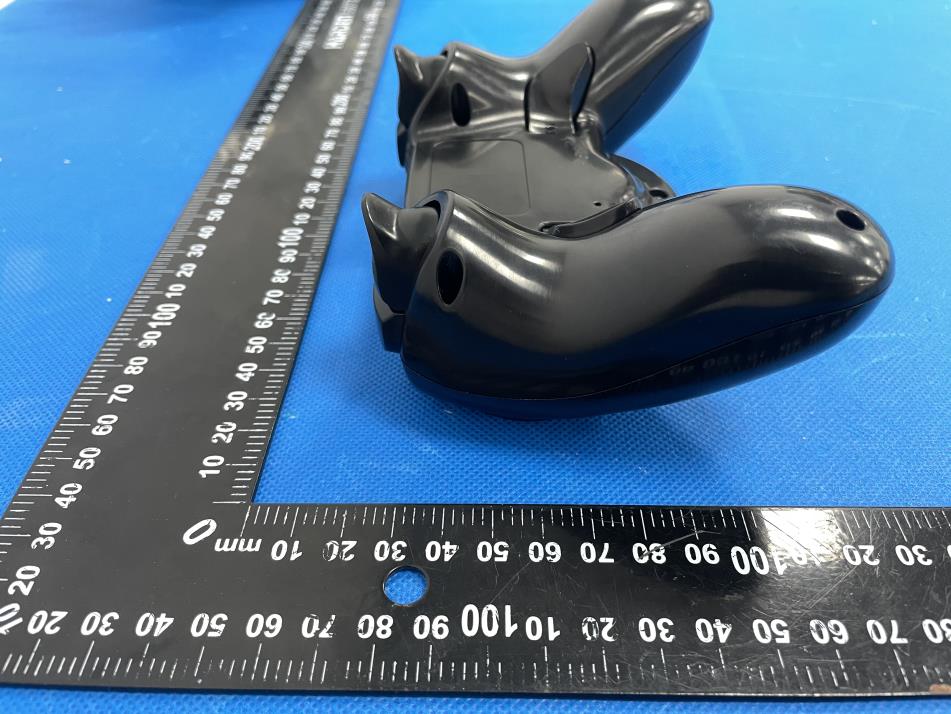

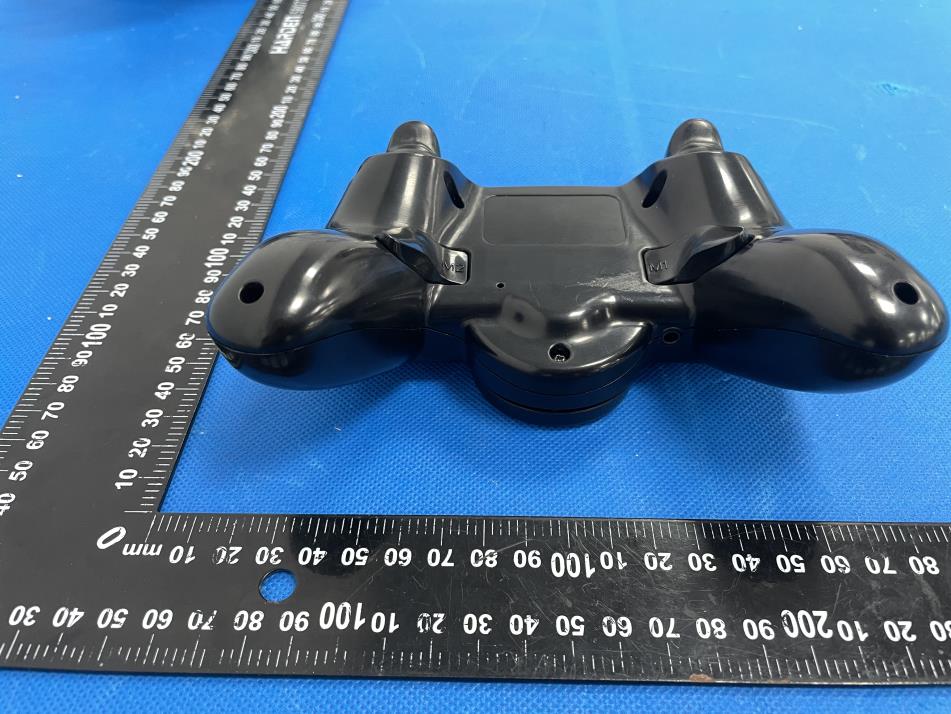

External Photos

Label location

Internal Photos Antenna

FCC ID: Q5P-2610 RF exposure evaluation §2.1093 Radiofrequency radiation exposure evaluation: Portable Devices. According to§15.247(i) and§1.1307b(1), systems operating under the provisions of this section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy level in excess of the commission’s guidance. The 1-g SAR test exclusion thresholds for 100 MHz to 6 GHz at test separation distances ≤ 50 mm are determined by: [(max. power of channel, including tune-up tolerance, mW) / (min. test separation distance, mm)] · [√f(GHz)] ≤ 3.0 for 1-g SAR, where  f(GHz) is the RF channel transmit frequency in GHz  Power and distance are rounded to the nearest mW and mm before calculation  When the minimum test separation distance is < 5 mm, a distance of 5 mm according is applied to determine SAR test exclusion.  The result is rounded to one decimal place for comparison BT  Modulation Frequency (GHz) Max. Power (dBm) Tune up Power (dBm) Max. Tune up Power (dBm) Max. Tune up Power (mW) Test distance (mm) Result exclusion thresholds for 1-g SAR 8DPSK 2.402 3.18 3±1 4 2.51 5 0.78 3.0 BLE Modulation Frequency (GHz) Max. Power (dBm) Tune up Power (dBm) Max. Tune up Power (dBm) Max. Tune up Power (mW) Test distance (mm) Result exclusion thresholds for 1-g SAR GFSK(1M) 2.402 2.56 2±1 3 2.0 5 0.62 3.0 Conclusion: For the max result : 0.78 ≤ FCC Limit 3.0 for 1g SAR. The Product unsupported at the same time to Transmitting.

Unless otherwise stated the results shown in this test report refer only to the sample(s) tested and such sample(s) are retained for 90 days only. This document is issued by the Company subject to its General Conditions of Service printed overleaf, available on request or accessible athttp://www.sgs.com.tw/Terms-and-Conditionsand for electronic format documents, subject to Terms and Conditions for Electronic Documents athttp://www.sgs.com.tw/Terms-and-Conditions. Attention is drawn to the limitation of liability, indemnification and jurisdiction issues defined therein. Any holder of this document is advised that information contained hereon reflects the Company’s findings at the time of its intervention only and within the limits of Client’s instructions, if any. The Company’s sole responsibility is to its Client and this document does not exonerate parties to a transaction from exercising all their rights and obligations under the transaction documents. This document cannot be reproduced except in full, without prior written approval of the Company. Any unauthorized alteration, forgery or falsification of the content or appearance of this document is unlawful and offenders may be prosecuted to the fullest extent of the law. SGS Taiwan Ltd.No.134,Wu Kung Road, New Taipei Industrial Park, Wuku District, New Taipei City, Taiwan t (886-2) 2299-3279f (886-2) 2298-0488www.sgs.com.tw Member of SGS Group Report No.: TEOT2211000597E4 Page No.: 1 of 8 Antenna Test Report Report No.: TEOT2211000597E4 Test Plan: Non-compliance with ISO17025 Applicant Name: ZEROPLUS Manufacturer Name: ZEROPLUS Product Name: C21062 Model Number: P4 BT Wireless Controller 27th Edition Measurements performed at SGS Taiwan Ltd. Hwaya District, Taiwan Issued Date: December 05, 2022 Name Date & Signature Distribution Prepared by: Nandi Chen Sr. Engineer December 05, 2022 Approved by: Shawn Yen Supervisor December 05, 2022 Unless otherwise stated the results shown in this test report refer only to the sample(s) tested and such sample(s) are retained for 90 days only. This document is issued by the Company subject to its General Conditions of Service printed overleaf, available on request or accessible athttp://www.sgs.com.tw/Terms-and-Conditionsand for electronic format documents, subject to Terms and Conditions for Electronic Documents athttp://www.sgs.com.tw/Terms-and-Conditions. Attention is drawn to the limitation of liability, indemnification and jurisdiction issues defined therein. Any holder of this document is advised that information contained hereon reflects the Company’s findings at the time of its intervention only and within the limits of Client’s instructions, if any. The Company’s sole responsibility is to its Client and this document does not exonerate parties to a transaction from exercising all their rights and obligations under the transaction documents. This document cannot be reproduced except in full, without prior written approval of the Company. Any unauthorized alteration, forgery or falsification of the content or appearance of this document is unlawful and offenders may be prosecuted to the fullest extent of the law. SGS Taiwan Ltd.No.134,Wu Kung Road, New Taipei Industrial Park, Wuku District, New Taipei City, Taiwan t (886-2) 2299-3279f (886-2) 2298-0488www.sgs.com.tw Member of SGS Group Report No.: TEOT2211000597E4 Page No.: 2 of 8 Measurement System Information General Information Testing Condition: ⚫ Temperature: 22±3 ̊C ⚫ Humidity: <80% Measurement Facility: ⚫ Measurement Chamber: MVG 3D fully anechoic chamber and its measuring system (Stargate-24-L) ⚫ Base Station Simulator: Anritsu MT8820C (or R&S CMU200) ⚫ Network Analyzer: Agilent E5071C Unless otherwise stated the results shown in this test report refer only to the sample(s) tested and such sample(s) are retained for 90 days only. This document is issued by the Company subject to its General Conditions of Service printed overleaf, available on request or accessible athttp://www.sgs.com.tw/Terms-and-Conditionsand for electronic format documents, subject to Terms and Conditions for Electronic Documents athttp://www.sgs.com.tw/Terms-and-Conditions. Attention is drawn to the limitation of liability, indemnification and jurisdiction issues defined therein. Any holder of this document is advised that information contained hereon reflects the Company’s findings at the time of its intervention only and within the limits of Client’s instructions, if any. The Company’s sole responsibility is to its Client and this document does not exonerate parties to a transaction from exercising all their rights and obligations under the transaction documents. This document cannot be reproduced except in full, without prior written approval of the Company. Any unauthorized alteration, forgery or falsification of the content or appearance of this document is unlawful and offenders may be prosecuted to the fullest extent of the law. SGS Taiwan Ltd.No.134,Wu Kung Road, New Taipei Industrial Park, Wuku District, New Taipei City, Taiwan t (886-2) 2299-3279f (886-2) 2298-0488www.sgs.com.tw Member of SGS Group Report No.: TEOT2211000597E4 Page No.: 3 of 8 Measurements are performed in a MVG Stargate-24-L with the StarAct interface for a base station simulator. The Stargate-24-L has 23 probe antennas mounted with equal spacing on a circular arch. Electronic switching of the probe antennas provides outstanding measurement speed. The geometry of the setup, with only a Styrofoam column within 1.6 meters of the EUT, ensures minimum interference and low ripple on the measured radiation patterns. The DUT is placed on top of the pedestal, in the center of the system. Typical Setup for MVG Stargate-24-L: Instruments View Inside View Unless otherwise stated the results shown in this test report refer only to the sample(s) tested and such sample(s) are retained for 90 days only. This document is issued by the Company subject to its General Conditions of Service printed overlea…

Text truncated - open the document above for the full version.

No.：BCTC/RF-EMC-005 Page: 1 of 53 Edition：A.5 TEST REPORT Shenzhen BCTC Testing Co., Ltd. Report No.: BCTC2211780768-2E Applicant: VISION ELECTRONICS CO.,LTD. Product Name: Wireless PS4 Controller Model/Type Ref.: 2610 Tested Date: 2022-11-16 to 2022-11-21 Issued Date: 2022-11-21 Report No.: BCTC2211780768-2E No.：BCTC/RF-EMC-005 Page: 2 of 53 Edition：A.5 FCC ID: Q5P-2610 The test report is effective only with both signature and specialized stamp. This result(s) shown in this report refer only to the sample(s) tested. Without written approval of Shenzhen BCTC Testing Co., Ltd, this report can’t be reproduced except in full. The tested sample(s) and the sample information are provided by the client. Product Name: Wireless PS4 Controller Trademark: Vxion Model/Type Ref.: 2610 2610A, 2610B, 2610C,2610D, 2610E Prepared For: VISION ELECTRONICS CO.,LTD. Address: 11F-6, No.400 Huanbei Rd. Jhongli Dist.Taoyuan City,Taiwan Manufacturer: VISION ELECTRONICS CO.,LTD. Address: NO.1 XiNan Rd, ShiGu, TangXia Town, DongGuan City, GuangDong P.R.C. Prepared By: Shenzhen BCTC Testing Co., Ltd. Address: 1-2/F., Building B, Pengzhou Industrial Park, No.158, Fuyuan 1st Road, Zhancheng, Fuhai Subdistrict, Bao'an District, Shenzhen, Guangdong, China Sample Received Date: 2022-11-16 Sample tested Date: 2022-11-16 to 2022-11-21 Issue Date: 2022-11-21 Report No.: BCTC2211780768-2E Test Standards: FCC Part15.247 ANSI C63.10-2013 Test Results: PASS Remark: This is Bluetooth BLE radio test report. Tested by: Approved by: Brave Zeng/ Project Handler Zero Zhou/Reviewer Report No.: BCTC2211780768-2E No.：BCTC/RF-EMC-005 Page: 3 of 53 Edition：A.5 Table Of Content Test Report Declaration Page 1. Version .................................................................................................................. 5 2. Test Summary ....................................................................................................... 6 3. Measurement Uncertainty ..................................................................................... 7 4. Product Information And Test Setup ..................................................................... 8 4.1 Product Information ............................................................................................... 8 4.2 Test Setup Configuration ...................................................................................... 8 4.4 Channel List .......................................................................................................... 9 4.5 Test Mode ............................................................................................................. 9 4.6 Table Of Parameters Of Text Software Setting ................................................... 10 5. Test Facility And Test Instrument Used ............................................................... 11 5.1 Test Facility ......................................................................................................... 11 5.2 Test Instrument Used .......................................................................................... 11 6. Conducted Emissions .......................................................................................... 13 6.1 Block Diagram Of Test Setup .............................................................................. 13 6.2 Limit .................................................................................................................... 13 6.3 Test Procedure ................................................................................................... 13 6.4 EUT Operating Conditions .................................................................................. 13 6.5 Test Result .......................................................................................................... 14 7. Radiated Emissions ............................................................................................. 16 7.1 Block Diagram Of Test Setup .............................................................................. 16 7.2 Limit .................................................................................................................... 17 7.3 Test Procedure ................................................................................................... 18 7.4 EUT Operating Conditions .................................................................................. 19 7.5 Test Result .......................................................................................................... 19 8. Radiated Band Emission Measurement And Restricted Bands Of Operation ..... 23 8.1 Block Diagram Of Test Setup .............................................................................. 23 8.2 Limit .................................................................................................................... 23 8.3 Test Procedure ................................................................................................... 24 8.4 EUT operating Conditions ................................................................................... 24 8.5 Test Result .......................................................................................................... 25 9. Power Spectral Density Test ............................................................................... 26 9.1 Block Diagram Of Test Setup .............................................................................. 26 9.2 Limit .................................................................................................................... 26 9.3 Test Procedure ................................................................................................... 26 9.4 EUT Operating Conditions .................................................................................. 26 9.5 Test Result .......................................................................................................... 27 10. Bandwidth Test ..........…

Text truncated - open the document above for the full version.

Report No.: BCTC2211780768-1E No.：BCTC/RF-EMC-007 Page: 78 of 80 Edition：A.5 17. EUT Test Setup Photographs Conducted Measurement Photo Radiated Measurement Photos Report No.: BCTC2211780768-1E No.：BCTC/RF-EMC-007 Page: 79 of 80 Edition：A.5
