Q6ORCL-T900NBOOMERANG WAITER CALL TX

RCL-T900N Manual WELINK CO., LTD. KOREA HEADQUARTER (Jeongbalsan-Dong 1F), 32-2, Daesan-ro 11beon-gil, Ilsandong-gu Goyang-si, Gyeonggi-do, korea E-MAIL : [email protected] NOTICE This manual, software and electronic circuitry are copyrighted. All rights reserved. Under the copyright laws, this manual, software and electronic circuitry may not be copied, in whole or in part without written prior consent of Lee Technology. All information provided in this document is carefully prepared and offered in good faith as a guide in the installation, use and servicing of our products. Installers must ensure that the final installation operates satisfactorily within the relevant regulatory requirements. Lee Technology accepts no responsibility for incorrect installation. Lee Technology reserves the right to change products, specifications and installation data at any time without notice. Lee Technology makes certain limited warranties with respect to defective diskettes, documentation and electronic circuitry. Please see the associated information contained on this page. LIMITED WARRANTY With respect to the physical documentation and physical electronic circuitry enclosed herein, Lee Technology warrants the same to be free of defects in materials and workmanship for a period of one year from the date of purchase. In the event of notification within the warranty period of defects in material or workmanship, Lee Technology will replace the defective diskettes, documentation and electronic circuitry. The remedy for breach of this warranty shall be limited to replacement and shall not encompass any other damages including but not limited to loss of profit and special incidental, consequential, or other similar claims. Lee Technology Korea specifically disclaims all other warranties, expressed or implied, including but not limited to implied warranties of merchantability and fitness for a particular purpose with respect to defects in the documentation and electronic circuitry and the program license granted herein, in particular, and without limiting operation of the program license with respect to any particular application, use or purpose. IMPORTANT SAFETY INFORMATION NOTE : The manufacturer is not responsible for any radio or TV interference caused by unauthorized modifications to this equipment. Such modifications could void the user's authority to operate the equipment. Caution : Any changes or modifications (including the antenna) made to this device that are not expressly approved by the manufacturer may void the user’s authority to operate the equipment. IMPORTANT NOTE: FCC RF Radiation Exposure Statement: This equipment complies with FCC RF radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with a minimum distance of 30 centimeters between the radiator and your body. This transmitter must not be co- located or operating in conjunction with any other antenna or transmitter. A. EASY INSTALLATION INSTRUCTION Step
Lock the antenna to the right corner of the Boomerang waitercall Transmitter. (Fit over plug and twist left to lock antenna in place) Step Plug the Boomerang MBWC100Transmitter A/C adaptor into the Boomerang waitercall Transmitter and then into a standard outlet. A surge protector is recommended. B. OPERATION Write the server name next to his pager number with a dry erase marker. Warning!! Regular ink will make permanent marks, making name changes difficult-clean with a non- abrasive cleaner ONLY!! The name panels can easily be removed and replaced to simplify pager assignment. Press the number that corresponds to the servers name on the sending unit and that pager will silently vibrate. Range of this system should easily cover even the largest of restaurants. You can send a single, double or triple vibration to servers, sending them to different parts of the kitchen. For example, 1 vibe means going to the hot line, 2 vibes mean going to the salad station, etc. 1) To page a pager with a single vibe Press the corresponding pager number. If you set A-T(Alert type) function to vibe, then it will vibrate once. 2) To page a pager with a dual vibe (Button : 2X ) Press 2X MENU button once and then press the corresponding pager number within 5 seconds. You can label what 2X means on the space. The pager will vibrate 2 times. 3) To page a pager with a triple vibe (Button : 3X) Press 3X SELECT button once and then press the corresponding server pager number within 5 seconds. You can label what the 3X means on the space. The pager will vibrate 3 times. 4) To Sleep all pager (Button : 3X) Press 3X button more than 3 seconds and the green light comes on. All of pagers go to sleep. 5) To page all pagers Press ALL PAGE button more than 3 seconds and the green light comes on. All of pagers will receive the call. C. SYSTEM SETTING To enter programming mode, press the “X2 and X3" for 3 seconds. The display will show “Hour” Use the “X2” key to scroll through the several menu options, “All Page” key to select Manu and press “X3” key to cancel and exit the system setting menu. * X2: Menu All page: Enter X3: Cancel 1. hour With this feature, you can setup current time into the Boomerang waitercall transmitter.
At the “hour” menu, press “All Page(Enter)” key .
To set the hour, press “All Page(Enter)” key and Then enter the minutes and press “All Page(Enter)” key. 2. bASE(Base ID) With this feature, you can set one of base ID (0~200)
At the “bASE” menu, press “All Page(Enter)” key
If the “bASE” is displayed, press 3 Digits to setup its base ID For example) b001 3. A-Id(All page ID) With this feature, you can set group ID’s (0000~9999).
At the “A-Id” menu, press “All Page(Enter)” key
Then, press 4digits(0000~9999) to setup Manager’s Group ID : Default Group ID: 9992 (ALL PAGE ID) 4. bPS(Baud Rate) With this feature, you can select BPS (512/1200)
At the “bPS” menu, press “All page” key,
If you change the bps, press the “X2“ key, …

Text truncated - open the document above for the full version.

October 11, 2012 Federal Communications Commission 7435 Oakland Mills Road Columbia MD 21046 To whom it may concern: I, the undersigned, hereby authorize KT Kang of KES Co., Ltd. and hereafter referred to as KES Co., Ltd., to act on our behalf in all manners relating to application for equipment authorization, including signing of all documents relating to these matters. Any and all acts carried out by KT Kang of KES Co., Ltd. on our behalf shall have the same effect as acts of our own. I, the undersigned, hereby certify that we are not subject to a denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 853(a). In authorizing KES Co., Ltd. as our agent, we still recognize that we are responsible to: a) comply with the relevant provisions of the certification program; b) make all necessary arrangements for the conduct of the evaluation, including provision for examining documentation and access to all areas, records (including internal audit reports) and personnel for the purposes of evaluation (e.g. testing, inspection, assessment, surveillance, reassessment) and resolution of complaints; c) make claims regarding certification only in respect of the scope for which certification has been granted; d) do not use our product certification in such a manner as to bring the Certification Division into disrepute and not make any statement regarding our product certification which the Certification Division may consider misleading or unauthorized; e) upon suspension or cancellation of certification, discontinue use of all advertising matter that contains any reference thereto and return any certification documents as required by the Certification Division; f) use certification only to indicate the products are certified as being in conformity with specified standards; g) endeavor to ensure that no certificate or report nor any part thereof is used in a misleading manner; h) ensure that any reference to our product certification in communication media such as documents, brochures or advertising, complies with the requirements of the Certification Division; i) keep a record of all complaints made known to the us relating to the product’s compliance with requirements of the relevant standard and to make these records available to the Certification Division when requested; j) take appropriate action with respect to such complaints and any deficiencies found in products or services that affect compliance with the requirements for certification; k) document the actions taken. This authorization is valid until further written notice from the applicant. Sincerely Yours, Hyosoun Jeoung/ President WELINK REMARK: 1. This authorization letter will be sent along with your application when filing with the Certification Division. 2. Please follow the format and type it on company letterhead and send original to us. 3. Authorized signature must be in agreement with grantee code contact in FCC database.

October 27, 2012 Federal Communications Commission Authorization and Evaluation Division Confidentiality Request regarding application for certification of FCC ID: Q6ORCL-T900N Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, we hereby request confidential treatment of information accompanying this application as outlined below: Exhibit Type File Name Part List CONF APPENDIX_ RCL-T900N_Part List.PDF Schematics Diagram(s) CONF APPENDIX_ RCL-T900N _Schemetics.PDF Block diagram CONF APPENDIX_ RCL-T900N _Block diagram.PDF Operation description CONF APPENDIX_ RCL-T900N _Operation description.PDF The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these materials may be harmful to the applicant and provide unjustified benefits to its competitors. The applicant understands that pursuant to Section 0.457 of the Rules, disclosure of this application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely, Hyosoun Jeoung/ President WELINK

October 27, 2012 Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 SUBJECT: FCC ID: Q6ORCL-T900N Justification Letter for contiguous frequency range 450 ~ 470MHz To Whom It May Concern: Being the Applicant for the captioned project, WELINK is requesting to list the frequencies 450 ~ 470MHz under FCC Rules Part 90 on the FCC Grant. We attest that the device will be programmed by the manufacturer only for the frequencies authorized by Part 90, as listed in the table below, and the operator cannot program the transmit frequencies using the normally accessible external controls. Frequency Range(MHz) Rule Part Grant Notes 450 ~ 454 90 EF 454 ~ 456 22,80,74 EF 456 ~ 462.5375 90 EF 462.5375 ~ 462.7375 95 EF 462.7375 ~ 467.5375 90 EF 467.5375 ~ 467.7335 95 EF 467.7375 ~ 470 90 EF Hyosoun Jeoung/ President WELINK

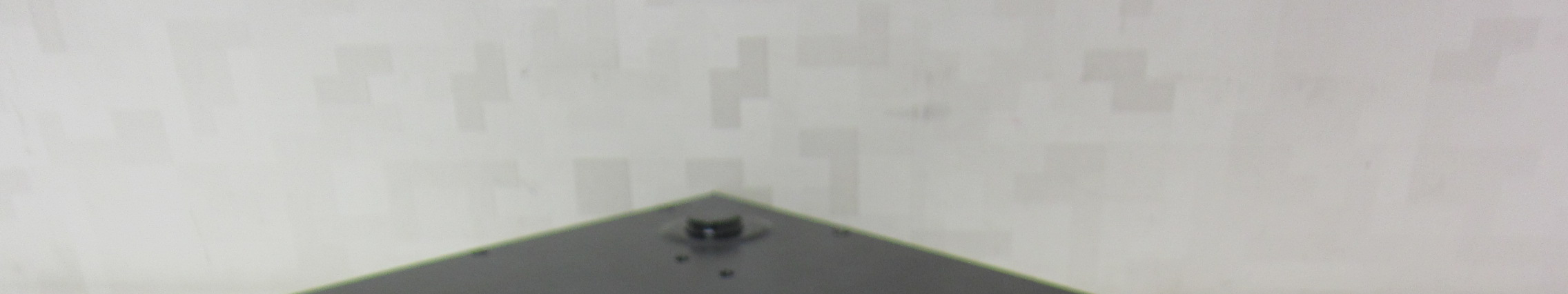

www.kes.co.kr Model No.: RCL-T900N Page 1 of 2 EUT External photographs www.kes.co.kr Model No.: RCL-T900N Page 2 of 2

www.kes.co.kr Model No.: RCL-T900N Page 1 of 1 Label and Location Model Name : RCL-T900N Trade Name : Boomerang waiter call TX FCC ID :Q6ORCL-T900N Manufacturer : Lee Technology Korea. Co., Ltd. This device complies with Part 90 of the FCC Rules Tested To Comply With FCC Standards FOR HOME OR OFFICE USE MADE IN KOREA

www.kes.co.kr Model No.: RCL-T900N Page 1 of 3 EUT Internal photographs EUT Internal photographs www.kes.co.kr Model No.: RCL-T900N Page 2 of 3 Closed up for RF part www.kes.co.kr Model No.: RCL-T900N Page 3 of 3 EUT Internal photographs

(주) LEETEK 貴中 承 認 原 ( APPROVAL SHEET) NO MODEL FREQUENCY 확인 1 HW-450H-RB 450 MHz ■ 한울 테크놀로지 경기도 부천시 오정구 원종2동 138-30 TEL. : 032) 678-8614 FAX : 032) 678-8615 제품 사양서 (ANTENNA SPECIFICATION) 1. 품명: HW- 450H - RB 2. 적용: 본 사양서는 450MHz용 HELICAL ANTENNA에 대해 규정한다. 3. ANTENNA 사용 조건 □휴대 ■고정 □이동 □실외 ■실내 ■기타 ( ) 4. ANTENNA 형상 첨부 도면과 같음. 5. 전기적 특성 및 성능 실사용 조건 또는 그에 상응하는 적합한 상태에서 다음을 만족 할 것. No. ELECTRICAL DATA SPECIFICATIONS REMARK 5. 1 FREQUENCY RANGE 450 MHz 5. 2 RESONANCE FREQUENCY 450 MHz 5. 3 IMPEDANCE 50 Ω NOMINAL 5. 4 V . S . W . R LESS THAN 1:2.0 5. 5 GAIN UNITY 5. 6 ELECTRICAL LENGTH 1/4λ 5. 7 RADIATION PATTERN OMNI - DIRECTIONAL 5. 8 POLARIZATION VERTICAL 6. 기구적 사양 및 특성 No. MECHANICAL SPECIFICATIONS REMARK 6. 1 ELEMENT Φ 1.0 PWG Cu-PLATING 6. 2 SLEEVE URETHANE BLACK-COLOR 6. 3 CONNECTOR BNC(Male) Ni-PLATING 6. 4 ANTENNA TOTAL LENGTH 140 ± 5.0 mm 7. 기타 성능 및 특성 7.1 내진성(耐振性) ANTENNA를 SET에 결합한 상태로, 전진폭 1mm, 진동수 5-55Hz를 1분간 나누어 변화시키는 진동을 상하, 좌우, 전후 방향으로 2시간씩 가한후 측정하여, 각 부위에 이탈등의 이상이 없고, 5항의 특성 및 성능을 만족할 것. 7.2 내온성(耐溫性) ANTENNA를 -30°C 및 70°C에 각각 96시간 방치한 후 측정하여 각부의 이탈,변형등의 이상이 없고, 5항의 특성 및 성능을 만족할 것. 7.3 내습성(耐濕性) ANTENNA를 주위온도 40°C, 상태습도 90~95%에 96시간 방치한 후, 상온상습 상태에서 측정하여 외관, 각부의 구조에 이상이 없고, 5항의 특성 및 성능을 만족할 것. 8. 측정 및 검사 본 사양서에 정해진 사항 및 승인원상의 요구사항에 따르고, 당사 품질관리규정에 적합 할것. 단 7항의 사항은 발주자의 협의에의해 생략할 수 있슴. 9. 포 장 제품의 포장은 개별 포장후 , 적당한 BOX에 유동이 없도록 집합 포장한다. 10. 보 증 본 제품은 납입 후 1년 이내에, 설계 또는 제작상의 불량이라고 판단되는 결함이 발생하였을 경우, 즉시 무상 수리 또는 교환해 줄 의무가 있다. 문서번호 HW-0610112 변경번호 담당자 이 완 철 납 입 선 (주) LEETEK 작성일자 2006.10.11. 승 인 남 창 기 CH1MEMLOG10 dB/REF 0 dB CENTER 450 . 000000MHz SPAN100 . 000 000MHz HW-450H-RB Cor PRm MARKER 1 450 MHz 11 Oct 2006 15:33:21 1 1:-19. 693dB450 . 000 000MHz STIMULUS CH1 MEM MHz 450.000 000 -19.693 dB CH1MEMSWR1 /REF 1 CENTER 450 . 000000MHz SPAN100 . 000 000MHz HW-450H-RB Cor PRm MARKER 1 450 MHz 11 Oct 2006 15:34:52 1 1 : 1 . 2311450 . 000 000MHz STIMULUS CH1 MEM MHz 450.000 000 1.2311 RCL-T900N

The procedure in this chapter allows the verification of the electrical performance of transmitter. These tests do not require access to the interior of the instrument. PERFORMANCE TEST PERFORMANCE TEST PERFORMANCE TEST PERFORMANCE TEST RCL-T900N_TRANSMITTER TUNE UP PROCEDURE RCL-T900N_TRANSMITTER TUNE UP PROCEDURERCL-T900N_TRANSMITTER TUNE UP PROCEDURE RCL-T900N_TRANSMITTER TUNE UP PROCEDURE 1. Selected reason of the frequency : => Use were selected at random from the desired frequency band. 2. How to adjust the maximum output : => use capacitor, coil, trimmer (max output : 2W below) 3. Max output and Output Tolerance : => Max output : 33dBm Output Tolerance : -1dB ~ -2dB Recommended test equipment HP-436A/8481DPower meter Spectrum analyzer + / - 0.2dB, - 60 to -20dBm. 100 KHz to 1GHz 100KHz to 12GHz, up to -120 dBm DescriptionMinimum specificationModel HP-8591E 10W, 20dB Att, DC to 1GHz DC to 100MHz, 5mV to 1V/div, Rise Time capavility Spectrum analyzer100KHz to 12GHz, up to -120 dBm HP-8902A0.2 to 1300MHz, 0 to -125dBm, Freq Counter TEK TDS360 Measuring receiver Oscilloscope Frequency Counter + / - 0.1ppm, 10Hz ~ 1GHz, 9digitHP-53181A HP-8591E AttenuatorTescom 99910 1. Frequency Accuracy Frequency : 457.5750MHz Stavility : Same as reference oscillator accuracy. Internal 1ppm 0 to 50degC 1.Test Setup (Connect RCL-T900N RF Line without case) HP-8902A HP-8902AHP-8902A HP-8902A DC block 2. HP-8902A : auto tuning, frequency display 3. RCL-T900N TRANSMITTER 1) Push button Carrier frequency accuracy test Carrier frequency accuracy testCarrier frequency accuracy test Carrier frequency accuracy test 1) Push button 2) check frequency accuracy 2. RF Output Level Accuracy Accuracy : -1dB ~ 2 dB 1.Test Setup RF level : 33dBm below 1.Test Setup HP-8902A HP-8902AHP-8902A HP-8902A (Connect RCL-T900N RF Line without case) 2. HP-8902A : Auto-tuning, RF Power 3. RCL-T900N TRANSMITTER 3. RCL-T900N TRANSMITTER 1) Connect DC block 2) Push button and check RF Level 3. Harmonic Spurious 3. Harmonic Spurious3. Harmonic Spurious 3. Harmonic Spurious Harmonic Level at 2xFOUT : <-40dBc 1. Test Setup. RF OUT RF OUTRF OUT RF OUT HP-8591E HP-8591EHP-8591E HP-8591E input 50 DC block HP-8591E HP-8591EHP-8591E HP-8591E (Connect RCL-T900N RF Line without case) 2. HP 8591E : Span = 500KHz, RBW = 10KHz, VBW = 30KHz. 3. RCL-T900N TRANSMITTER: 1) Connect DC block 3) Push button and check harmonic Harmonice test Harmonice testHarmonice test Harmonice test 3) Push button and check harmonic Level(dBm)Fout-2*Fout Limit 40dbc 4. Modulation 4.1. FM(RECT) (Internal GFSK Test Patterns) 457.5750MHz Spurious(MHz) 915.15Mhz Remark RCL-T900N TRANSMITTER Harmonic Spurious Fout(MHz) 1.Test Setup 1.Test Setup1.Test Setup 1.Test Setup OSCILLOSCOPE OSCILLOSCOPEOSCILLOSCOPE OSCILLOSCOPE Audio input Audio inputAudio input Audio input DC block GFSK Deviation and Noise Test GFSK Deviation and Noise TestGFSK Deviation and Noise Test GFSK Deviation and Noise Test (Connect RCL-T900N RF Line without case) 2.Equipment HP-8902A : FM TDS360 : 250us/div, 500mV/div Average : 16 3. RCL-T900N TRANSMITTER: 1) Connect DC block 2) Push button and check modulation

RF exposure According to FCC part 1.1310 : The criteria listed in the following table shall be used to evaluate the environment impact of human exposure to radio frequency (RF) radiation as specified in § 1.1307(b) Limits for Maximum Permissible Exposure (MPE) f= frequency in ㎒ Friis transmission formula: Pd = (Pout×G)/(4×pi×R 2 ) Where, Pd = power density in ㎽/㎠ Pout = output power to antenna in ㎽ G = gain of antenna in linear scale Pi = 3.1416 R = distance between observation point and center of the radiator in cm Pd the limit of MPE, f/1500 ㎽/㎠. If we know the maximum gain of the antenna and the total power input to the antenna, through the calculation, we will know the distance where the MPE limit is reached. Results Channel Frequency (㎒) Peak output power (㏈m) Antenna gain (㏈i) Power density at 30 ㎝(㎽/㎠) Limit (㎽/㎠) Low 450.025 32.38 -2.61 0.08386 0.30 Middle 457.575 32.80 -2.61 0.09237 0.31 High 469.975 31.85 -2.61 0.07422 0.31 Frequency range (㎒) Electric field strength(V/m) Magnetic field strength (A/m) Power density (㎽/㎠) Average time (A) Limits for Occupational / Control Exposures 300 – 1 500 -- -- f/300 6 1 500 - 100000 -- -- 5 6 (B) Limits for General Population / Uncontrol Exposures 300 – 1 500 -- -- f/1500 6 1 500 – 100 000 -- -- 1 30

KES Co., Ltd. C-3701 Dongil Techno Town, 889-1, Gwanyang 2-dong, Dongan-gu, Anyang-si, Gyeonggi-do, 431-716, Korea Tel: +82-31-425-6200 / Fax: +82-31-424-0450 www.kes.co.kr Test report No.: KES-RF-120081 Page: (1) of (31) This report shall not be reproduced except in full, without the written approval of KES Co., Ltd. The test results in the report only apply to the tested sample. KES-P-5101-09 Rev.1 KES A4 TEST REPORT Part 90 Equipment under test Boomerang waiter call TX Model name RCL-T900N FCC ID Q6ORCL-T900N Applicant WELINK Manufacturer Lee Technology Korea Co., Ltd. Date of test(s) 2012.11.19 ~ 2012.11.26 Date of issue 2012.11.27 Issued to WELINK (Jeongbalsan-Dong, jeongbalsan-Dong 1F), 32-2, Daesan-ro11beon-gil, Ilsandong-gu Goyang-si, Gyeonggi-do, Korea Issued by KES Co., Ltd. C3701 Dongil Techno Town, 889-1, Gwanyang 2-dong, Dongan-gu, Anyang-si, Gyeonggi-do, 431-716, Korea 477-6, Hageo-ri, Yeoju-eup, Yeoju-gun, Gyeonggi-do, 469-803, Korea Tel: +82-31-425-6200 / Fax: +82-31-424-0450 Test and report completed by : Report approval by : Kwang-yeol Choo Test engineer Gyu-cheol Shin Technical manager KES Co., Ltd. C-3701 Dongil Techno Town, 889-1, Gwanyang 2-dong, Dongan-gu, Anyang-si, Gyeonggi-do, 431-716, Korea Tel: +82-31-425-6200 / Fax: +82-31-424-0450 www.kes.co.kr Test report No.: KES-RF-120081 Page: (2) of (31) This report shall not be reproduced except in full, without the written approval of KES Co., Ltd. The test results in the report only apply to the tested sample. KES-P-5101-09 Rev.1 KES A4 Revision history Revision Date of issue Test report No. Description - 2012.11.27 KES-RF-120081 Initial KES Co., Ltd. C-3701 Dongil Techno Town, 889-1, Gwanyang 2-dong, Dongan-gu, Anyang-si, Gyeonggi-do, 431-716, Korea Tel: +82-31-425-6200 / Fax: +82-31-424-0450 www.kes.co.kr Test report No.: KES-RF-120081 Page: (3) of (31) This report shall not be reproduced except in full, without the written approval of KES Co., Ltd. The test results in the report only apply to the tested sample. KES-P-5101-09 Rev.1 KES A4 TABLE OF CONTENTS 1.0 General product description ............................................................................................................................... 4 1.1 Test frequency .................................................................................................................................................... 4 1.2 Information about variant model ....................................................................................................................... 4 1.3 Device modifications ......................................................................................................................................... 4 1.4 DC input into the final stage .............................................................................................................................. 4 1.5 Type of Emission ............................................................................................................................................... 4 1.6 Test facility ........................................................................................................................................................ 5 1.7 Laboratory accreditations and listings ............................................................................................................... 5 2.0 Summary of tests ............................................................................................................................................... 6 2.1 Test data ............................................................................................................................................................. 7 2.1.1 RF output power ........................................................................................................................................ 7 2.1.2 Bandwidth limitation ............................................................................................................................... 10 2.1.3 Emission mask ......................................................................................................................................... 12 2.1.4 Conducted spurious emissions ................................................................................................................ 15 2.1.5 Frequency stability .................................................................................................................................. 18 2.1.6 Transient frequency behavior of the transmitter ...................................................................................... 22 2.1.7 Radiation spurious emissions .................................................................................................................. 25 Appendix A. Test equipment used for test ........................................................................................................................ 30 Appendix B. Test setup photo ........................................................................................................................................... 31 KES Co., Ltd. C-3701 Dongil Techno Town, 889-1, Gwanyang 2-dong, Dongan-gu, Anyang-si, Gyeonggi-do, 431-716, Korea Tel: +82-31-425-6200 / Fax: +82-31-424-0450 www.kes.co.kr Test report No.: KES-RF-120081 Page: (4) of (31) This report shall not be reproduced except in full, without the written approval of KES Co., Ltd. The test results in the report only apply to the tested sample. KES-P-5101-09 Rev.1 KES A4 1.0 General product description Equipment under test Boomerang waiter call TX Model name RCL-T900N Serial number N/A Frequency Range 450.025 0 ㎒ ~ 469.975 0 ㎒ Type of emission 10K2F1D Channel separation 12.5 ㎑ Maximum output power 1.91 W Power Source AC Adaptor 120 V(Output : DC 12V) Antenna type Connector type(BNC) // Dipole antenna Antenna gain -2.61 ㏈i 1.1 Test frequency Low channel Middle channel High channel Frequency (㎒ ㎒㎒ ㎒) 450.025…

Text truncated - open the document above for the full version.

KES Co., Ltd. C-3701 Dongil Techno Town, 889-1, Gwanyang 2-dong, Dongan-gu, Anyang-si, Gyeonggi-do, 431-716, Korea Tel: +82-31-425-6200 / Fax: +82-31-424-0450 www.kes.co.kr Test report No.: KES-RF-120081 Page: (31) of (31) This report shall not be reproduced except in full, without the written approval of KES Co., Ltd. The test results in the report only apply to the tested sample. KES-P-5101-09 Rev.1 KES A4 Appendix B. Test setup photo Radiated field emissions N/A
