Q7G-PC1103RF01Python Perfect Cutter

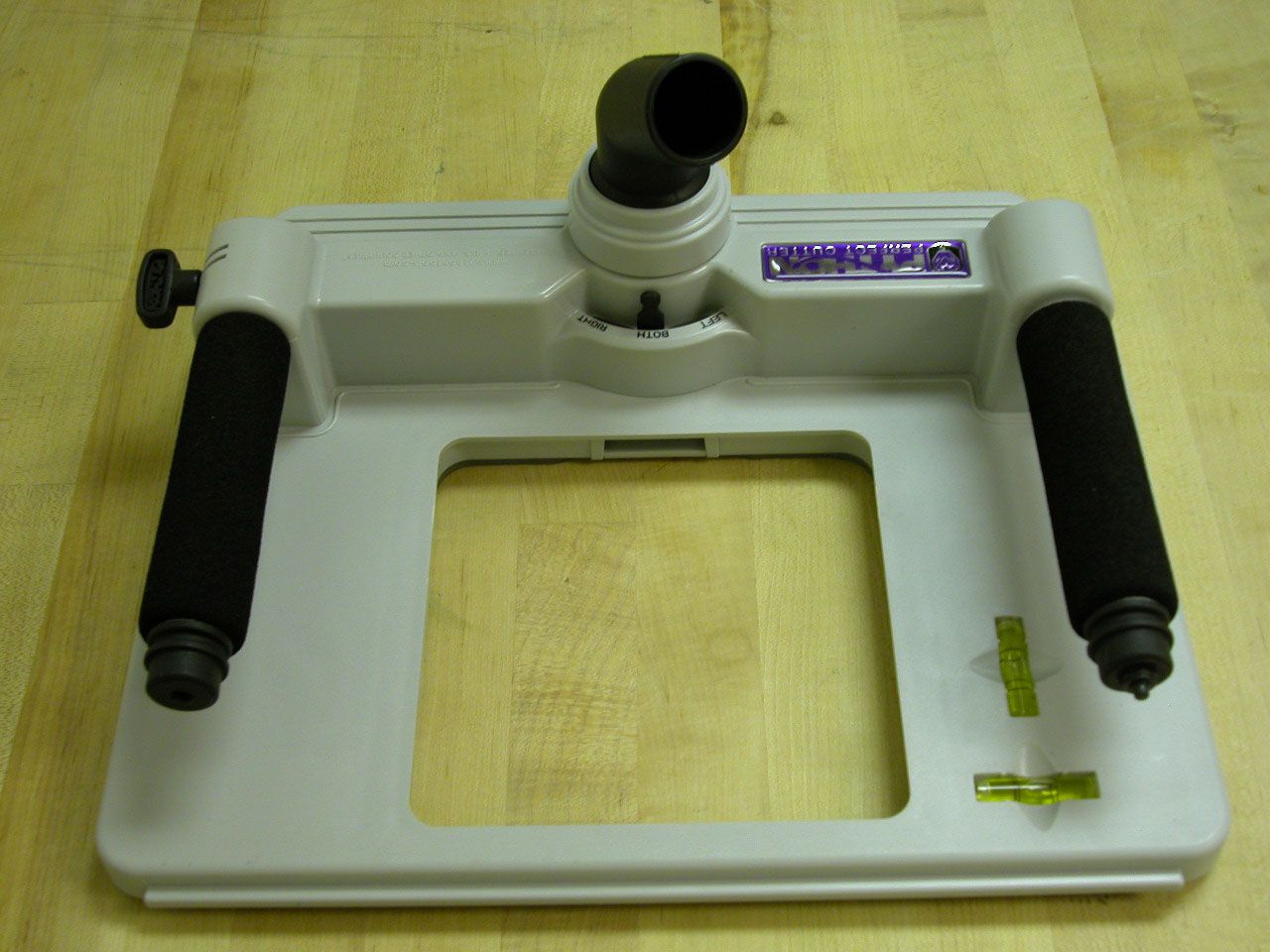

PYTHON PERFECT CUTTER INSTRUCTION MANUAL Table of contents IntroductionPage 2 Important safeguardsPage 3 ComponentsPage 4 Preparation Page 5 How to OperatePage 6 Getting the Router Ready: •Selecting & Installing the Correct Bit, Collet, and Router BasePage 6 •Adjusting Height & DepthPage 7 Selecting & Installing the Correct TemplatePage 8 Getting the Router Pouch ReadyPage 8 Getting the VP6 vacuum ReadyPage 9 Preparing to Cut a HolePage 9 Cutting Holes for Different BoxesPage 10 Cutting Holes on Various Surfaces Page 12 Troubleshooting & Maintenance Page 14 Specifications Page 14 Using the Height RodPage 12 Using the Silent HelperPage 12 INTRODUCTION Welcome to the Python Perfect Cutter, a unique system that lets you make precise holes with no errors and almost no clean up—saving you both time and money. This manual contains complete instructions on how to use the Python Perfect Cutter, including operating and maintenance instructions for the Python VP6P vacuum and the Python Router. This operators manual explains clearly and thoroughly how you can cut perfect holes in a wide variety of surfaces including Sheetrock, ceramic tile, Formica, drywall, lathe and plaster, panel board, marble, and more. It also explains how to easily cut holes for a variety of different boxes. Please read the entire manual prior to operation. It is important that you carefully read and understand all of the safety and operating instructions before using the Python Perfect Cutter. After you have a complete understanding of all of the Python components and familiar with the operating instructions, you are ready to use the Cutter. We recommend that you store this manual in a safe place and refer to it if you have any questions on the operations of the Python Perfect Cutter. If you have any additional questions after reading through this manual, just call our customer service phone number at 1-800-860-8609. Thanks again for buying the Python Perfect Cutter. Now, let’s get started... (GRAPHIC/PICTURE OF PYTHON PERFECT CUTTER NEEDED.) 2 IMPORTANT SAFEGUARDS Read Before Operating •Read instructions: Read all safety and operating instructions before using the Python Perfect Cutter. Keep this manual handy to refer back to with any questions. •Pay attention to all warnings: Know and follow ALL warnings when using the Python Perfect Cutter. •Follow instructions: Always follow all instructions. •Cleaning: Keeping your Python Perfect Cutter clean will ensure that it runs properly and lasts longer. •Attachments: Do NOT use any attachments or accessories other than those included in the Python Perfect Cutter System. Using other attachments can cause physical injury to you and/or damage to your Python Perfect Cutter System. •Water and moisture: Do not use the Python Perfect Cutter near water such as in a wet basement or in standing water.. The VP6 is NOT a wet/dry vacuum, do not use to vacuum wet or moist materials. •Power sources: Use only the power source indicated on the label of the Python Perfect Cutter. If you are unsure of the power source, determine before plugging it in. •Protect the power cords: Make sure the power cords are not tangled and are not close to water. Keep the cords away from places where they could be walked on or where something heavy could be dropped on them. In addition, inspect them regularly to ensure that the cords have not been damaged or interior wires exposed. •Servicing: Do not try to service any of the Python Perfect Cutter components yourself. Opening or removing covers may expose you to dangerous voltage or other dangers. Refer all service problems to qualified persons, listed at the end of the manual. •Replacement parts: Be sure the repair technician uses replacement parts specified ONLY by the manufacturer. Unauthorized parts may cause fire, electric shock, or other injuries. •Safety check: If the Python Perfect Cutter has been serviced, have the repair technician make sure it is fully functional before using again. WARNING: TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE THE PYTHON PERFECT CUTTER TO RAIN OR MOISTURE. 3 COMPONENTS • Carrying case: Metal case to store the Perfect Cutter, templates, router and its components, router bits, tool belt and other accessories. (Excluding the VP6-P) • Python Perfect Cutter: The heart of the system, holds the templates securely in place, acts as guide for the router and controls airflow as the adjustment of the height gauge. The Perfect Cutter also attaches to the wall. • Templates: Four different guides for the router to follow: one Single Gang, one two- Gang, one 4-0 Box (for overhead lights, circle, etc.), and one Non-Box (for low voltage). • Router Assembly Kit: The Python 30,000 RPM router is used to cut the holes. There are also two router bases, one for using with 1/8-inch bits, and one for using with 1/4-inch bits. In addition, you’ll find one nut wrench, one shaft wrench, and two collets: one for a 1/8-inch bit and one for a 1/4-inch bit. • Router Bit Kit: Contains nine separate router cutout bits used to cut various materials. INSERT A TABLE OF BITS AND CUTTING MATERIALS •These include: three 1/8-inch steel bits to cut into drywall, two 1/8-inch steel multipurpose bits, three 1/8-inch carbide bits to cut into hard materials such as ceramic tile and Formica and one 1/4-inch carbide bit to cut into lathe and plaster. • Height Rod Kit: Used to match the height of existing holes or to cut multiple holes and ensure that they are at the same height. There are five 12-inch rods that screw together, along with two rubber end caps. • Silent Helper: Used in conjunction with the Perfect Cutter as a shelf to support items such as panel boards, while the user attaches them in place. Includes one aluminum shelf unit, two- support legs that fit into the shelf unit, and rubber end caps for the legs. • VP6-P Vacuum: Backpack vacuum used to provide suction so the Python Perfect Cutter will grip the surface. VP6-P is an industrial strength vacuu…

Text truncated - open the document above for the full version.

13.560 MHZ RFPIC12C509AG-I/SO 433.92 MHZ TX-002 Block Diagram

Model: RF1103-01 FCC ID: Q7G- PC1103RF01 “This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause interference, and (2) this device must accept any interference, including interference that may cause undesired operation of the device.” Model: RF1103-01 FCC ID: Q7G- PC1103RF01 “This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause interference, and (2) this device must accept any interference, including interference that may cause undesired operation of the device.”

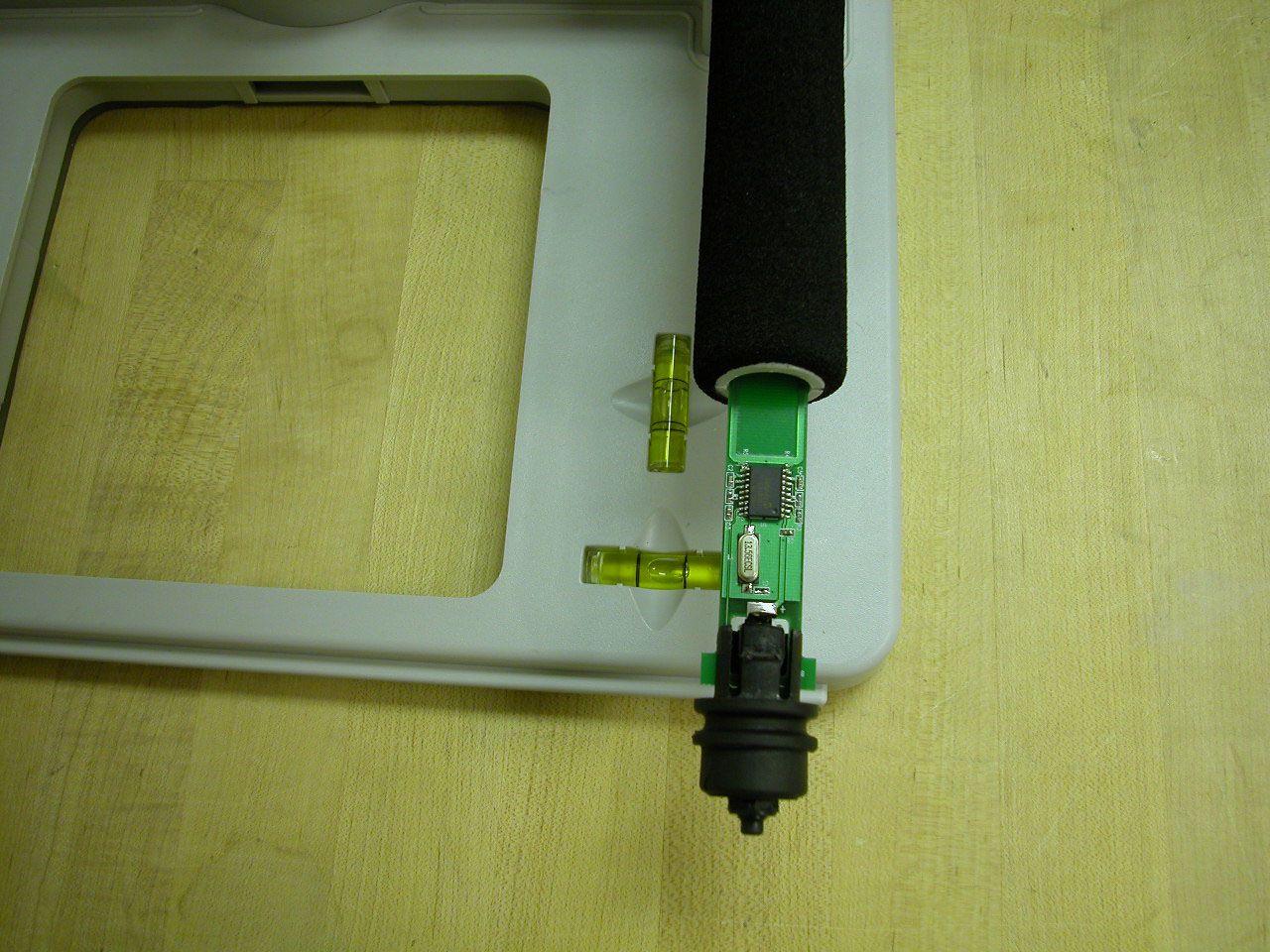

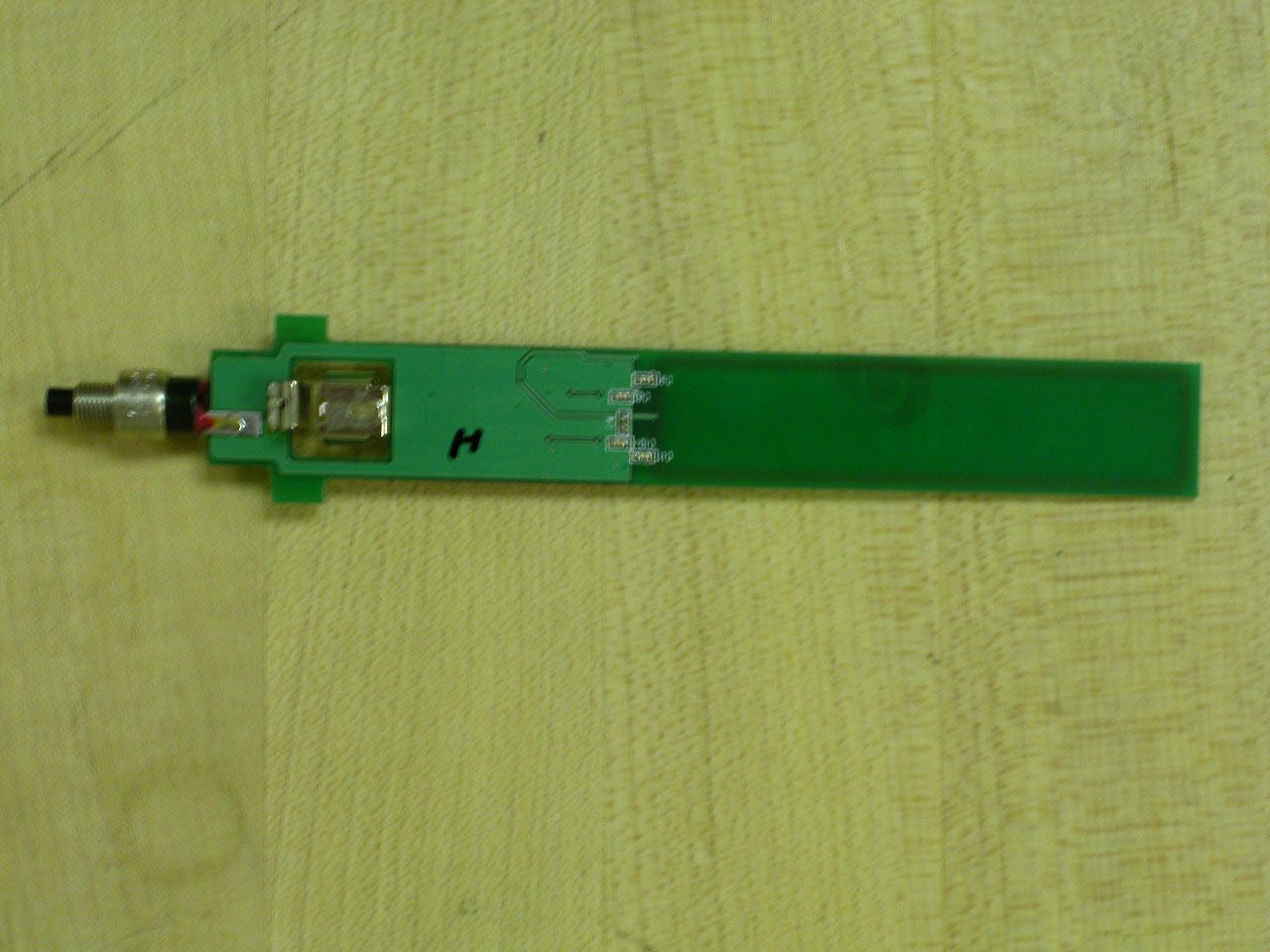

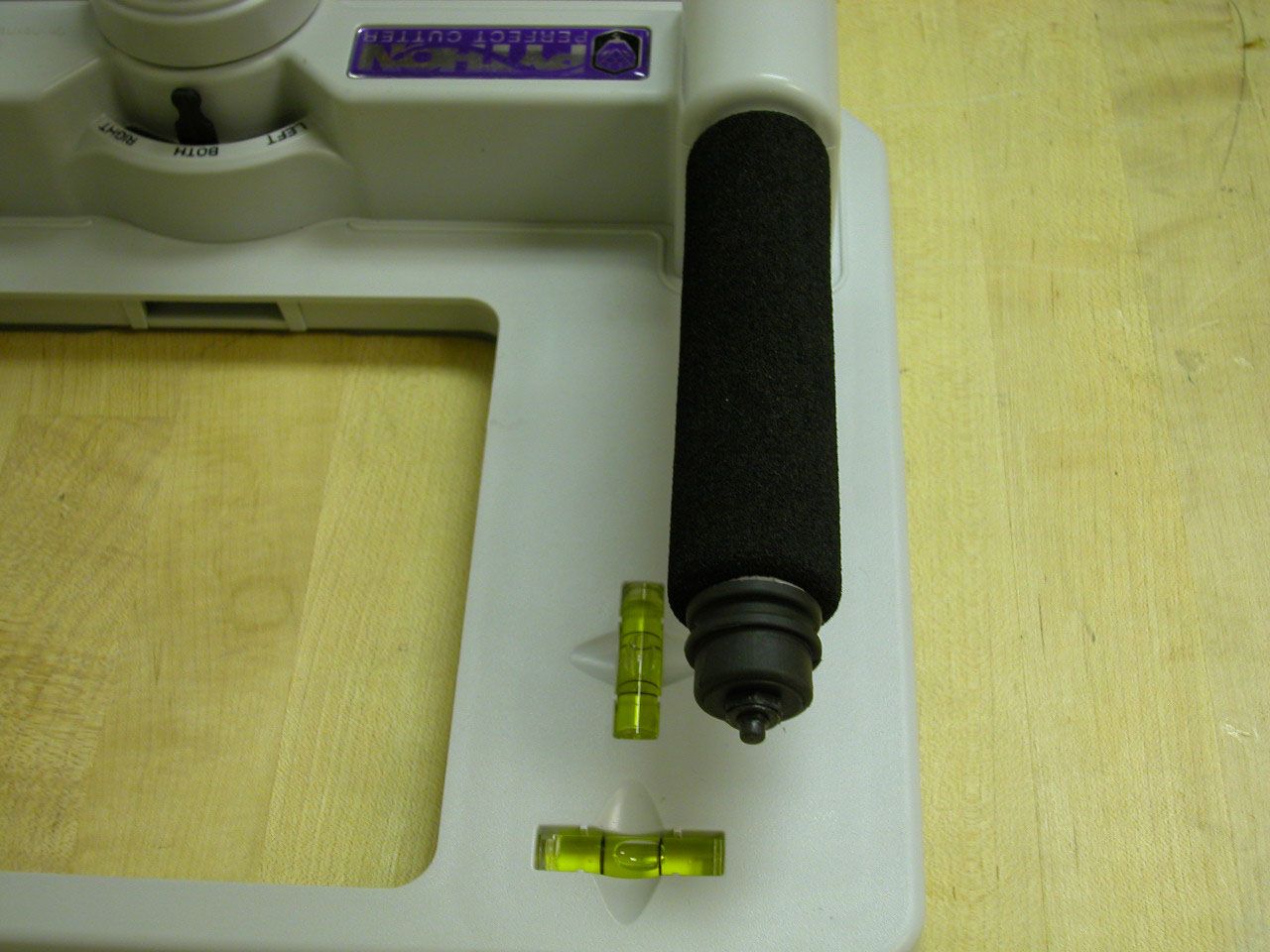

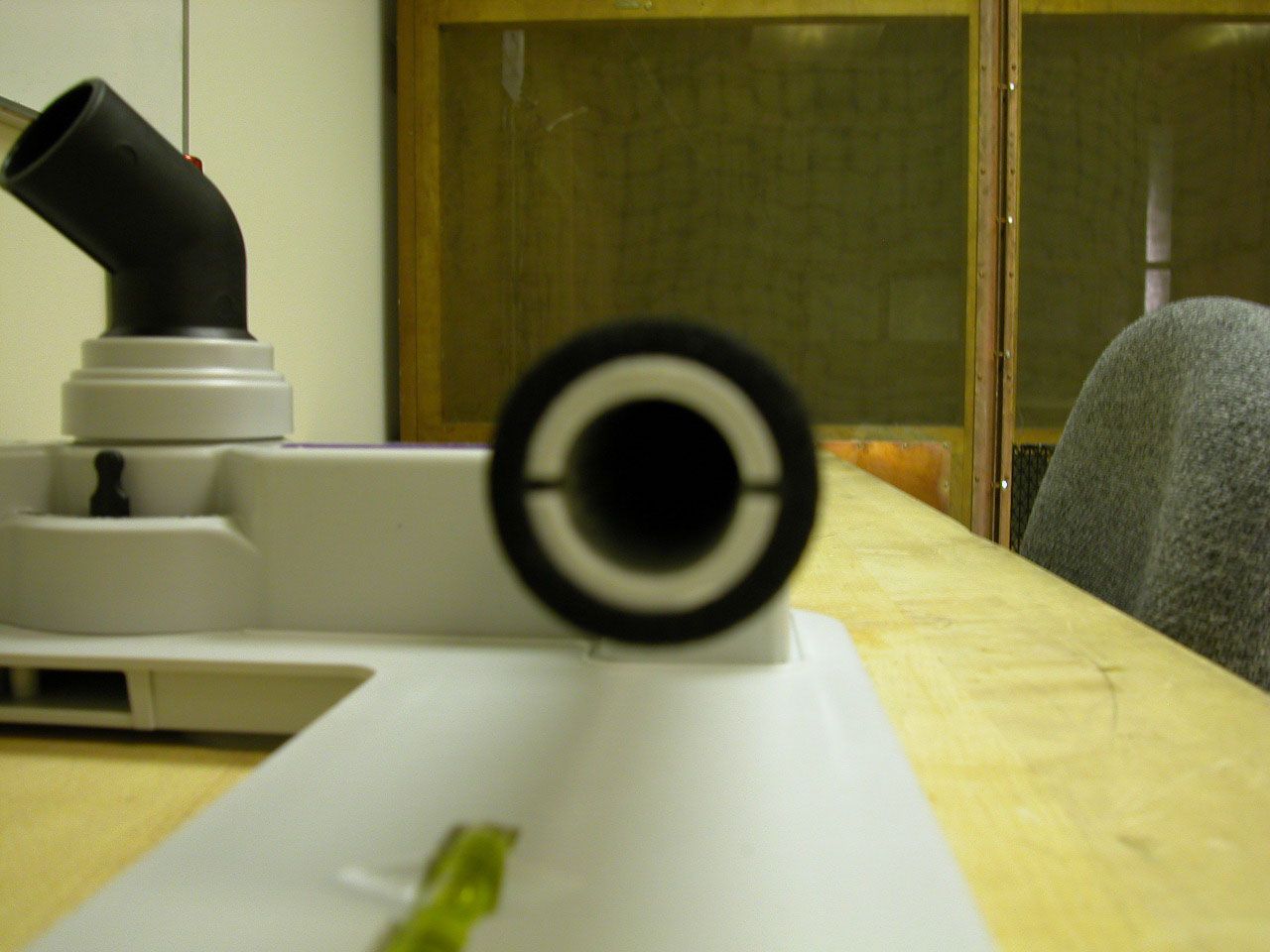

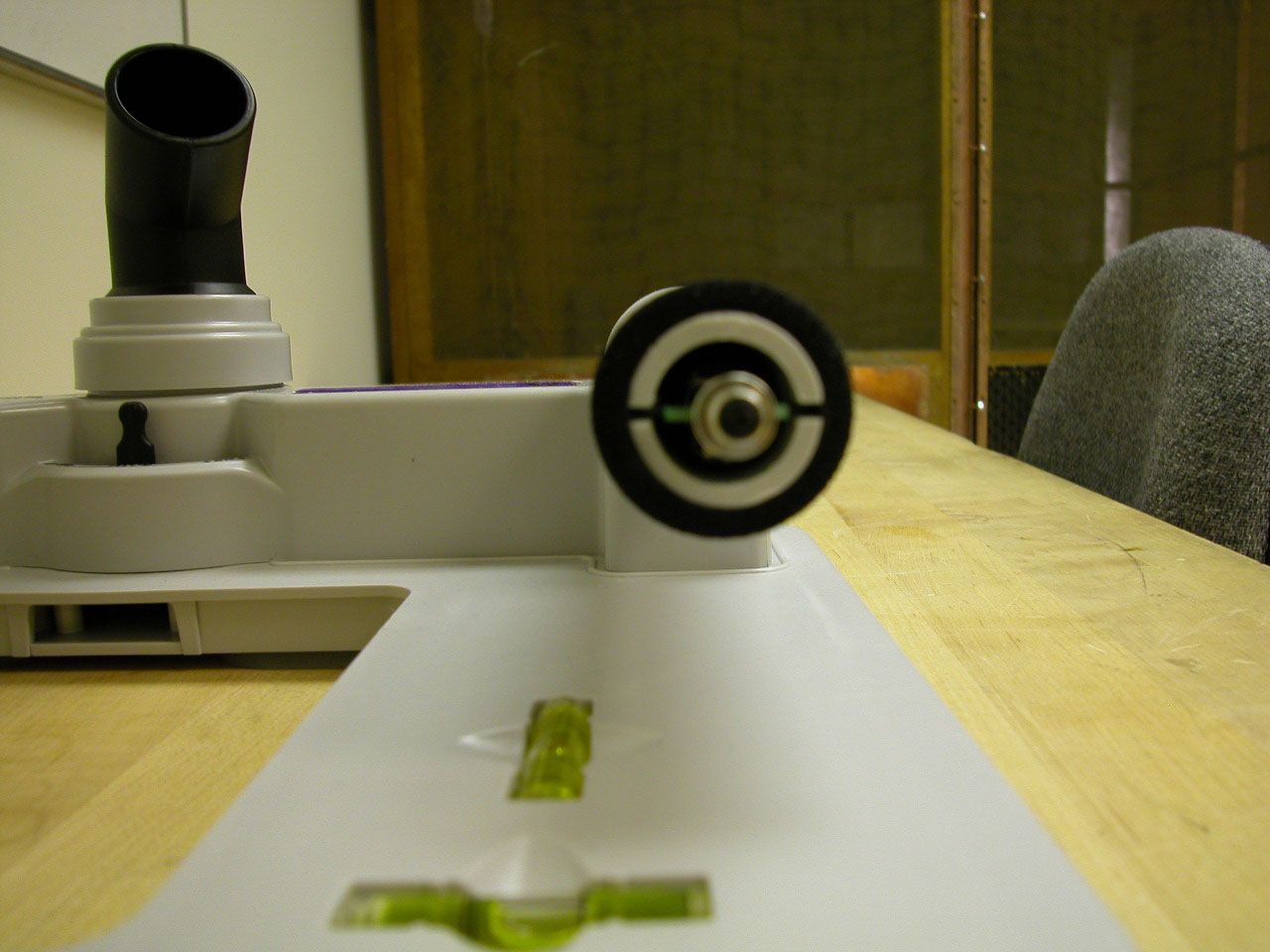

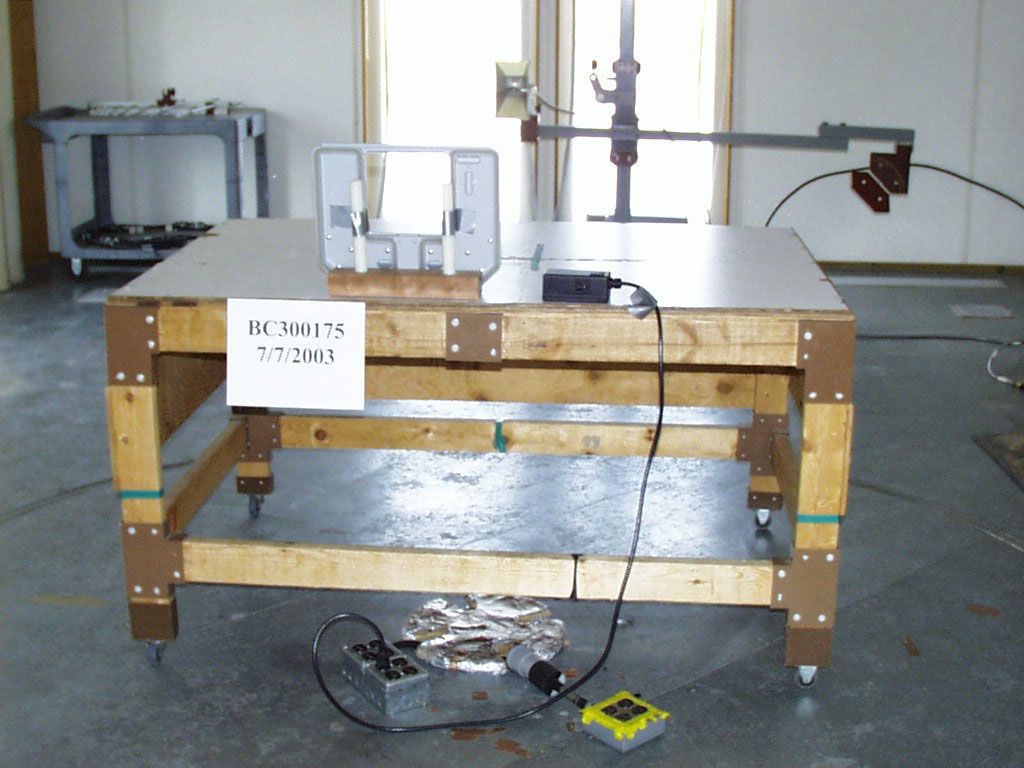

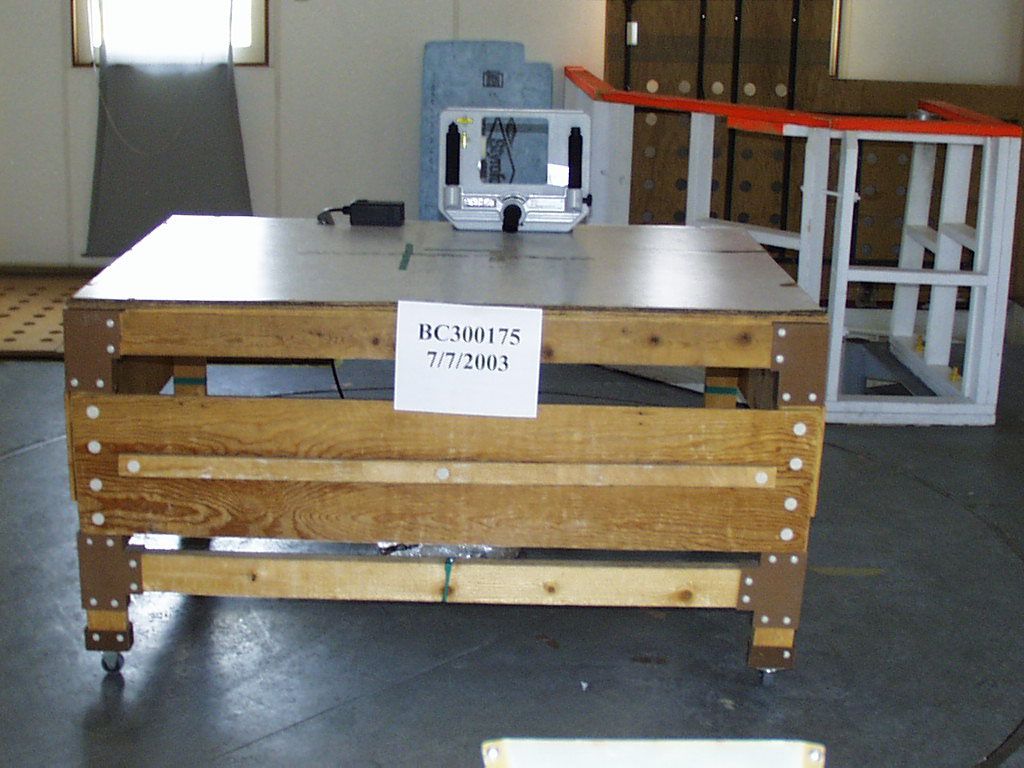

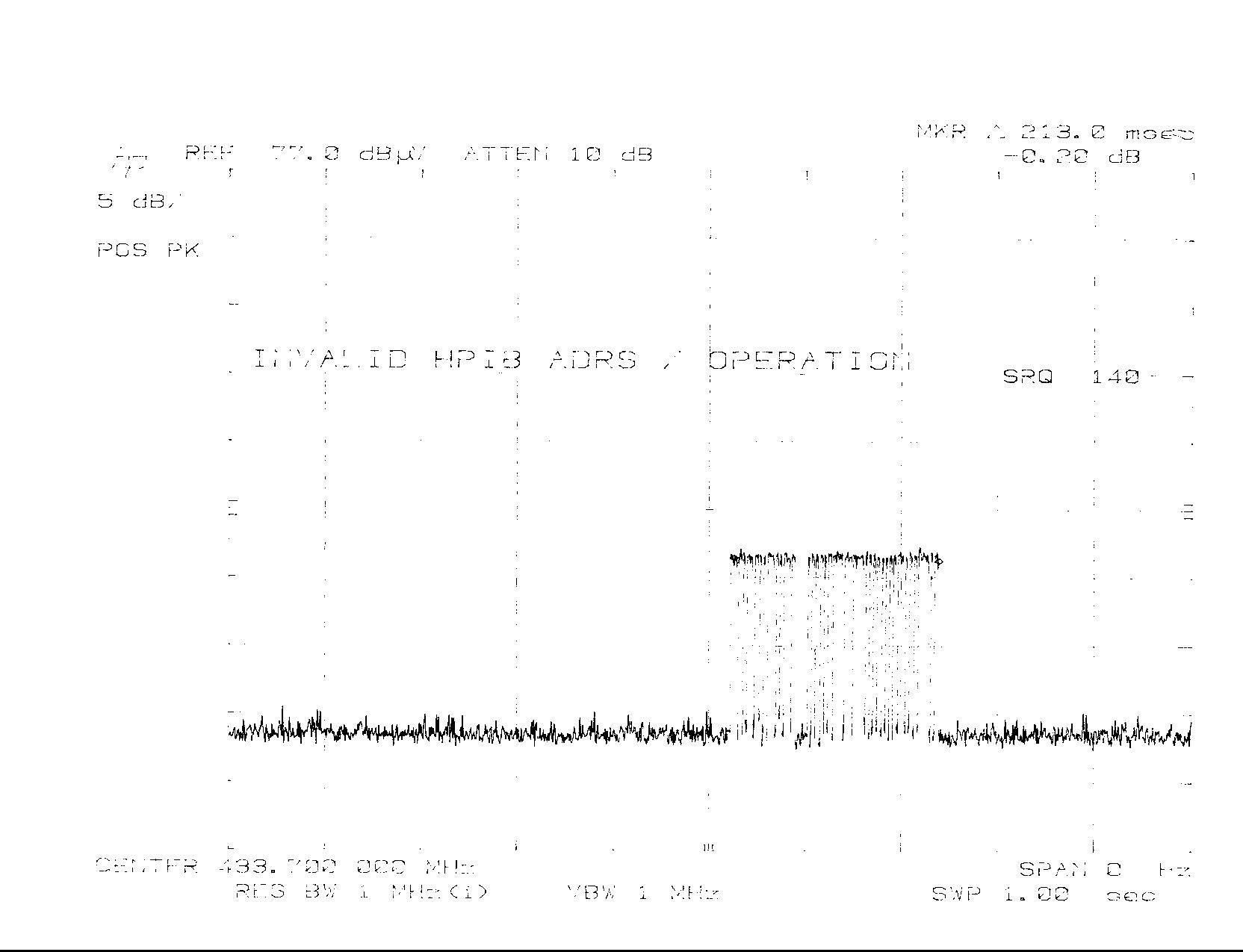

EMC EMISSIONS - TEST REPORT (Full) Test Report No. BC300175 -1 Issue Date: Wed 24/Sep/2003 Model / Serial No. TX-002 / SN: EMC1 Product Type Button Push Transmitter & AC Switch Reciever Client Silverton Manufacturer Python Perfect Cutter Inc. License Holder Python Perfect Cutter Inc. 224 E. Douglas Address Wichita, KS 67202 Test Criteria Applied FCC CFR47 Part 15 Class B Test Result PASS Test Project Number References BC300175-1 Total Pages Including Appendices: 20 Title 47 CFR 15: RADIO FREQUENCY DEVICES Reviewed By : Todd Seeley Approved By : Robert Cresswell INTERNATIONAL APPROVALS LABORATORIES (IAL) reports apply only to the specific samples tested under stated test conditions. It is the manufacturer's responsibility to assure that additional production units of this model are manufactured with identical electrical and mechanical components. IAL have no liability for any deductions, inferences or generalizations drawn by the client or others from IAL issued reports. This report is the confidential property of the client. As a mutual protection to our clients, the public and ourselves, extracts from the test report shall not be reproduced except in full without our written approval of IAL. This report shall not be used by the client to claim product endorsement by NVLAP (No. 200624- 0) or any agency of the US government. International Approval Laboratories and its professional staff hold government and professional organization certifications and are members of IEEE, NVLAP, and VCCI. Project File: BC300175-1 Page 2 of 21 International Approvals Laboratories, LLC 5541 Central Avenue, Suite 110 Boulder, Colorado 80301 Voice: 303 786 7999 Fax: 303 449 6160 Rev.No 1 D I R E C T O R Y Documentation Page(s) Test report 1 - 20 Directory 2 Test Regulations 3 General Remarks 3 Test-setup Photographs 4 - 6 Appendix A Test Data Sheets and Test Equipment Used 7 - 15 Appendix B Test Plan/Constructional Data Form 16 - 16 Appendix C Measurement Protocol/Test Procedures 17 - 21 STATEMENT OF MEASUREMENT UNCERTAINTY The data and results referenced in this document are true and accurate. The measurement uncertainty for Conducted Emissions in the frequency range of 150kHz – 30MHz is calculated to be ±2.30dB and for Radiated Emissions is calculated to be ±3.60dB in the frequency range of 30MHz – 200MHz and ±3.38dB in the frequency range of 200MHz – 1000MHz. EUT Received Date: 6-Aug-2003 Testing Start Date: 6-Aug-2003 Testing End Date: 24-Sep -2003 Project File: BC300175-1 Page 3 of 21 International Approvals Laboratories, LLC 5541 Central Avenue, Suite 110 Boulder, Colorado 80301 Voice: 303 786 7999 Fax: 303 449 6160 Rev.No 1 The tests were performed according to following regulations : 1. FCC CFR47 Part 15.205 2. FCC CFR47 Part 15.207 3. FCC CFR47 Part 15.209 4. FCC CFR47 Part 15.231 5. ICES-003 Emission Test Results: Conducted Emissions, Powerline - Test Result Minimum limit margin 28.4 dB at 30.000 MHz Maximum limit exceeding dB at MHz Remarks: Radiated Emissions (15.209) - Test Result Minimum limit margin 15.9 dB at 75.3900 MHz Maximum limit exceeding dB at MHz Remarks: Radiated Emissions (15.205) - Test Result Minimum limit margin 2.92 dB at 1735.75 MHz Maximum limit exceeding dB at MHz Remarks: Radiated Emissions (15.231) - Test Result Minimum limit margin 3.66 dB at 867.900 MHz Maximum limit exceeding dB at MHz Remarks: GENERAL REMARKS: Modifications required to pass: Test Specification Deviations: Additions to or Exclusions from Project File: BC300175-1 Page 4 of 21 International Approvals Laboratories, LLC 5541 Central Avenue, Suite 110 Boulder, Colorado 80301 Voice: 303 786 7999 Fax: 303 449 6160 Rev.No 1 Test-setup photo(s): Conducted Emissions Project File: BC300175-1 Page 5 of 21 International Approvals Laboratories, LLC 5541 Central Avenue, Suite 110 Boulder, Colorado 80301 Voice: 303 786 7999 Fax: 303 449 6160 Rev.No 1 Test-setup photo(s): Radiated Emissions Project File: BC300175-1 Page 6 of 21 International Approvals Laboratories, LLC 5541 Central Avenue, Suite 110 Boulder, Colorado 80301 Voice: 303 786 7999 Fax: 303 449 6160 Rev.No 1 Test-setup photo(s): Radiated Emissions Project File: BC300175-1 Page 7 of 21 International Approvals Laboratories, LLC 5541 Central Avenue, Suite 110 Boulder, Colorado 80301 Voice: 303 786 7999 Fax: 303 449 6160 Rev.No 1 Appendix A Test Data Sheets and Test Equipment Used Conducted Electromagnetic Emissions Test Report #: BC300175 Run 01 Test Area: Pinewood Site 1 Cond Temperature: 23.1 °C Test Method: FCC CFR47 Part 15.207 Test Date: 07-Jul-2003 Relative Humidity: 34 % EUT Model #: TX-002 EUT Power: 120 VAC / 60 Hz Air Pressure: 80 kPa EUT Serial #: EMC1 Page: 1 of 2 Manufacturer: Python Tools Level Key EUT Description: AC Switch Reciever Pk – Peak Nb – Narrow Band Notes: Conducted emissions was not tested on the transmitter for the fact that it does not Qp – QuasiPeak Bb – Broad Band Have an AC mains port. Av - Average FREQ LEVEL CABLE / LISN / ATTEN FINAL TEST POINT DELTA1 (dB) DELTA2 (dB) (MHz) (dBuV) (dB) (dBuV) FCC B N/A No emissions found: .45 to 30 MHz, Line Noise floor. 0.450 0.5 Qp 0.1 / 0.0 / -10.0 10.6 Neutral -37.4 N/A 1.00 0.4 Qp 0.2 / 0.0 / -10.0 10.6 Neutral -37.4 N/A 5.00 0.6 Qp 0.4 / 0.2 / -10.0 11.2 Neutral -36.8 N/A 10.00 0.9 Qp 0.7 / 0.5 / -10.0 12.1 Neutral -35.9 N/A 20.00 1.6 Qp 1.0 / 1.4 / -10.0 13.9 Neutral -34.1 N/A 30.00 6.2 Qp 1.2 / 2.2 / -10.0 19.6 Neutral -28.4 N/A No emissions found: .45 to 30 MHz, Neutral. Noise floor. 0.450 0.4 Qp 0.1 / 0.0 / -10.0 10.5 Neutral -37.5 N/A 1.00 0.4 Qp 0.2 / 0.0 / -10.0 10.6 Neutral -37.4 N/A 5.00 0.6 Qp 0.4 / 0.2 / -10.0 11.2 Neutral -36.8 N/A 10.00 0.9 Qp 0.7 / 0.5 / -10.0 12.1 Neutral -35.9 N/A 20.00 1.6 Qp 1.0 / 1.4 / -10.0 13.9 Neutral -34.1 N/A 30.00 6.1 Qp 1.2 / 2.2 / -10.0 19.5 Neutral -28.5 N/A Project File: BC300175-1 Page 8 of 21 International Approvals Laboratories, LLC 5541 Central Avenue, Suite 110 Boulder, Colorado 80301 Voice: 303 786 7999 Fax: 303 449 6160 Rev.No 1 Conducted El…

Text truncated - open the document above for the full version.
