Q7KREVOLUTION-V3Notebook ( with WLAN)

FEDERAL COMMUNICATIONS COMMISSION Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 U.S.A. To whom it may concern: I, hereby, declare that the following EMI suppression components on the EUT, FCC ID: Q7KREVOLUTION-V3, will be added or layout on the mass production products. 1. The chassis of hard disk drive sticks iron sheet. 2. The connected board of CD-ROM adds gasket. 3. Adds a gasket on the USB connector. 4. DC input circuit adds 3T bead core on the Vcc and ground. 5. Adds a wire on the USB connector and I/O connector. 6. Adds a wire on the ground of Line in / Line out, microphone board. 7. Short board’s ground and connector on the near side of Line in / Line out, microphone board. 8. Add capacitor on the rear side of Line in / Line out, microphone board. 9. Add gasket on the rear side of Line in / Line out, microphone board. 10. The serial board’s rear side adds capacitor. 11. The housing of I/O stick adds electric conduction paint. 12. The board of PRINTER / COM / VGA add a wire to ground. 13. Add wire on the PRINTER, COM and VGA port connecter’ ground. 14. The board of USB, Line in, Line out, microphone add wire to ground. 15. The board’s ground of USB, Line in, Line out and microphone add gasket. 16. Adds a gasket on the PS2 connector. 17. The connected board of I/O stick adds wire to ground. 18. The LCD panel rear side add gasket. 19. The LCD panel rear side add copper foil sticker. 20. The LCD panel rear side add aluminous foil sticker. 21. This signal cable is shielded by gasket. 22. The adapter’s power cord adds a ferrite core.

FCC ID: Q7KREVOLUTION-V3 Label Location

FCC ID:Q7KREVOLUTION-V3This device complies with Part 15 of the FCC Rules. Operation is subject to thefollowing two conditions: (1) This device may not cause harmful interference.(2) This device must accept any interference received including interference that may cause INPUT RATING: 10-24 VDC undesired operation. 4 3 12 ++ - - WWW.KONTRONMOBILE.COMMODEL: REVOLUTION SERIES 3000 LISTED I.T.E. 87EG CURRENT: 5.5 A MAX E232441 IC ID:XXXXXX-YYYYYYYY,Complies with Canada RSS-210 This Class B digital apparatus complies with Canadian ICES-003. Cet appareil numerique de la classe B est conforme a la norme NMB-003 du canada. ` ` XXXX

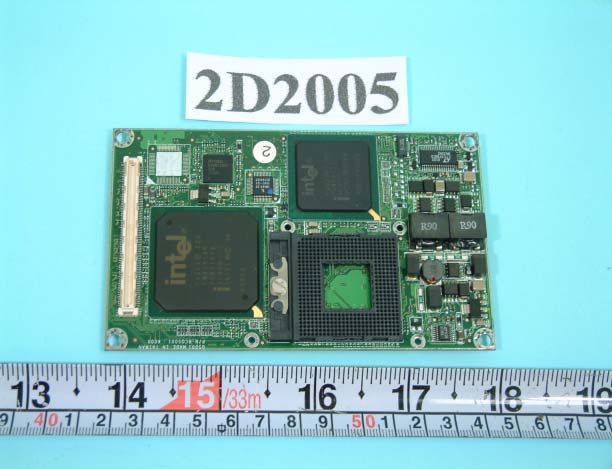

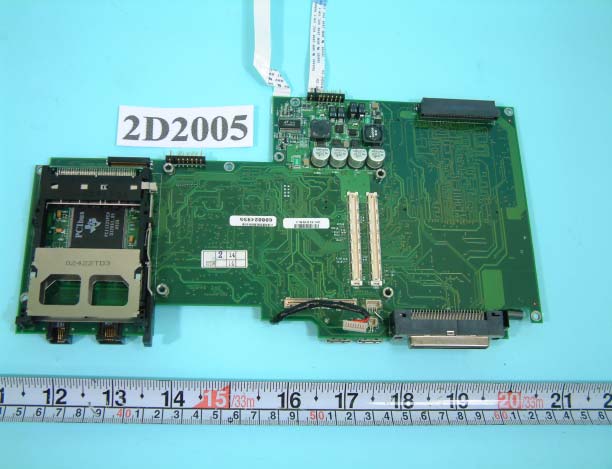

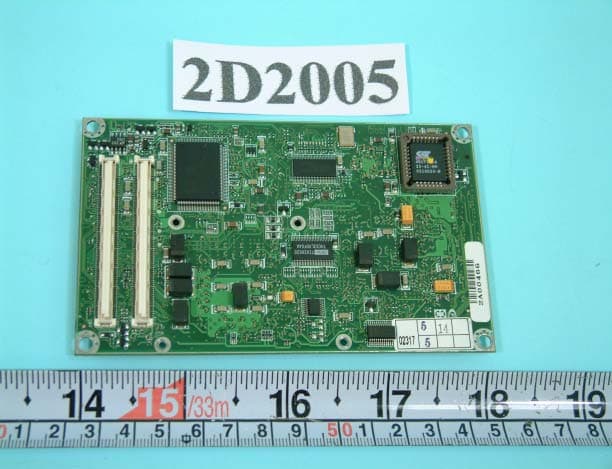

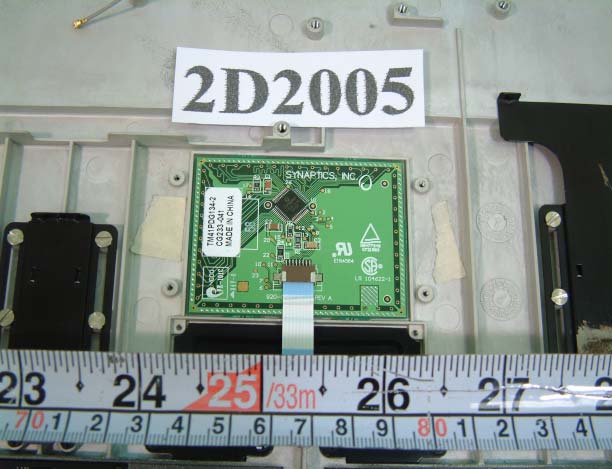

FCC ID : Q7KREVOLUTION-V3 Number 1 Mechanical Construction FCC ID : Q7KREVOLUTION-V3 Number 2 Mechanical Construction 1 1 FCC ID : Q7KREVOLUTION-V3 Number 3 Mechanical Construction FCC ID : Q7KREVOLUTION-V3 Number 4 Front side of CD-ROM FCC ID : Q7KREVOLUTION-V3 Number 5 Rear side side of CD-ROM FCC ID : Q7KREVOLUTION-V3 Number 6 Front side of CD-ROM connected board FCC ID : Q7KREVOLUTION-V3 Number 7 Rear side of CD-ROM connected board 2 FCC ID : Q7KREVOLUTION-V3 Number 8 Front side of hard disk drive FCC ID : Q7KREVOLUTION-V3 Number 9 Rear side of hard disk drive FCC ID : Q7KREVOLUTION-V3 Number 10 Rear side of main board FCC ID : Q7KREVOLUTION-V3 Number 11 Front side of main board 3 4 5 FCC ID : Q7KREVOLUTION-V3 Number 12 Front side of cpu board FCC ID : Q7KREVOLUTION-V3 Number 13 Rear side of cpu board FCC ID : Q7KREVOLUTION-V3 Number 14 Front side of IEEE802.11b WLAN module FCC ID : Q7KREVOLUTION-V3 Number 15 Rear side of IEEE802.11b WLAN module FCC ID : Q7KREVOLUTION-V3 Number 16 Front side of audio board 6 FCC ID : Q7KREVOLUTION-V3 Number 17 Rear side of audio board FCC ID : Q7KREVOLUTION-V3 Number 18 Rear side of audio board 7 8 9 9 7 7 8 8 8 8 8 8 8 8 FCC ID : Q7KREVOLUTION-V3 Number 19 Front side of MODEM module FCC ID : Q7KREVOLUTION-V3 Number 20 Rear side of MODEM module FCC ID : Q7KREVOLUTION-V3 Number 21 Front side of BLUETOOTH module FCC ID : Q7KREVOLUTION-V3 Number 22 Rear side of BLUETOOTH module FCC ID : Q7KREVOLUTION-V3 Number 23 Front side of memory module FCC ID : Q7KREVOLUTION-V3 Number 24 Rear side of memory module FCC ID : Q7KREVOLUTION-V3 Number 25 Mechanical Construction & touch pad’s board FCC ID : Q7KREVOLUTION-V3 Number 26 Front side of touch pad’s controlled board FCC ID : Q7KREVOLUTION-V3 Number 27 Rear side of touch pad’s controlled board FCC ID : Q7KREVOLUTION-V3 Number 28 Rear side of COM port 10 10 10 10 FCC ID : Q7KREVOLUTION-V3 Number 29 Front side of COM port FCC ID : Q7KREVOLUTION-V3 Number 30 Front side of external memory module FCC ID : Q7KREVOLUTION-V3 Number 31 Rear side of external memory module FCC ID : Q7KREVOLUTION-V3 Number 32 Front side of CPU FCC ID : Q7KREVOLUTION-V3 Number 33 Mechanical Construction FCC ID : Q7KREVOLUTION-V3 Number 34 Mechanical Construction 11 FCC ID : Q7KREVOLUTION-V3 Number 35 Front side of I/O stick’s VGA, COM, PRINTER board 12 FCC ID : Q7KREVOLUTION-V3 Number 36 Rear side of I/O stick’s VGA, COM, PRINTER board 13 FCC ID : Q7KREVOLUTION-V3 Number 37 Front side of I/O stick’s audio & USB board 14 FCC ID : Q7KREVOLUTION-V3 Number 38 Rear side of I/O stick’s audio & USB board 15 15 15 FCC ID : Q7KREVOLUTION-V3 Number 39 Front side of I/O stick’s PS2 & connect port board 16 FCC ID : Q7KREVOLUTION-V3 Number 40 Rear side of I/O stick’s PS2 & connect port board 17 FCC ID : Q7KREVOLUTION-V3 Number 41 Mechanical Construction FCC ID : Q7KREVOLUTION-V3 Number 42 Mechanical Construction 18 18 18 18 19 19 19 21 20 FCC ID : Q7KREVOLUTION-V3 Number 43 Mechanical Construction FCC ID : Q7KREVOLUTION-V3 Number 44 Front side of panel’s control board FCC ID : Q7KREVOLUTION-V3 Number 45 Rear side of panel’s control board FCC ID : Q7KREVOLUTION-V3 Number 46 Front side of inverter FCC ID : Q7KREVOLUTION-V3 Number 47 Rear side of inverter FCC ID : Q7KREVOLUTION-V3 Number 48 Front side of panel FCC ID : Q7KREVOLUTION-V3 Number 49 Front side of panel

FCC ID: Q7KREVOLUTION-V3 Report No.: SA920806R03 1 Issued: Aug. 12, 2003 SAR TEST REPORT REPORT NO.: SA920806R03 MODEL NO.: REVOLUTION SERIES 3000 RECEIVED: August 06 2003 TESTED: August 11 2003 APPLICANT: TAIWAN MYCOMP CO., LTD. ADDRESS: 1FL, NO. 16, LANE 50, NANKANG RD., SEC. 3, NANKANG DISTRICT,TAIPEI, TAIWAN R.O.C. ISSUED BY: Advance Data Technology Corporation LAB LOCATION: 47 14th Lin, Chiapau Tsun, Linko, Taipei, Ta i w a n , R . O . C . This test report consists of 31 pages in total except Appendix. It may be duplicated completely for legal use with the approval of the applicant. It should not be reproduced except in full, without the written approval of our laboratory. The client should not use it to claim product endorsement by CNLA, NVLAP or any government agencies. The test results in the report only apply to the tested sample. FCC ID: Q7KREVOLUTION-V3 Report No.: SA920806R03 2 Issued: Aug. 12, 2003 Table of Contents 1. CERTIFICATION ..................................................................................................................... 3 2. GENERAL INFORMATION ..................................................................................................... 4 2.1 GENERAL DESCRIPTION OF EUT........................................................................................ 4 2.2 GENERAL DESCRIPTION OF APPLIED STANDARDS ......................................................... 5 2.3 GENERAL INOFRMATION OF THE SAR SYSTEM................................................................ 5 2.4 GENERAL DESCRIPTION OF THE SPATIAL PEAK SAR EVALUATION AND PROBE SCAN 9 3. DESCRIPTION OF TEST MODES AND CONFIGURATIONS............................................... 13 4. DESCRIPTION OF SUPPORT UNITS .................................................................................. 14 5. TEST RESULTS.................................................................................................................... 15 5.1 TEST PROCEDURES........................................................................................................... 15 5.2 MEASURED SAR RESULT................................................................................................... 16 5.3 SAR LIMITS .......................................................................................................................... 18 5.4 RECIPES FOR TISSUE SIMULATING LIQUIDS .................................................................. 18 5.5 TEST EQUIPMENT FOR TISSUE PROPERTY .................................................................... 20 6. SYSTEM VALIDATION.......................................................................................................... 21 6.1 TEST EQUIPMENT............................................................................................................... 21 6.2 TEST PROCEDURE .............................................................................................................21 6.3 VALIDATION RESULT...........................................................................................................23 6.4 SYSTEM VALIDATION UNCERTAINTIES ............................................................................ 24 7. MEASUREMENT SAR PROCEDURE UNCERTAINTIES ..................................................... 25 7.1 PROBE CALIBRATION UNCERTAINTY ............................................................................... 25 7.2 ISOTROPY UNCERTAINTY.................................................................................................. 25 7.3 BOUNDARY EFFECT UNCERTAINTY ................................................................................. 26 7.4 PROBE LINEARITY UNCERTAINTY .................................................................................... 26 7.5 READOUT ELECTRONICS UNCERTAINTY ........................................................................ 26 7.6 RESPONSE TIME UNCERTAINTY....................................................................................... 27 7.7 INTEGRATION TIME UNCERTAINTY................................................................................... 28 7.8 PROBE POSITIONER MECHANICAL TOLERANCE ............................................................ 28 7.9 PROBE POSITIONING ......................................................................................................... 29 7.10 PHANTOM UNCERTAINTY .................................................................................................. 29 7.11 DASY4 UNCERTAINTY BUDGET......................................................................................... 30 8. INFORMATION ON THE TESTING LABORATORIES .......................................................... 31 APPENDIX A: TEST CONFIGURATIONS AND TEST DATA APPENDIX B: ADT SAR MEASUREMENT SYSTEM APPENDIX C: PHOTOGRAPHS OF SYSTEM VALIDATION APPENDIX D: SYSTEM CERTIFICATE & CALIBRATION FCC ID: Q7KREVOLUTION-V3 Report No.: SA920806R03 3 Issued: Aug. 12, 2003 1. CERTIFICATION PRODUCT : Notebook MODEL NO. : REVOLUTION SERIES 3000 BRAND NAME : MYCOMP, KONTRON APPLICANT : TAIWAN MYCOMP CO., LTD. STANDARDS : 47 CFR Part 2 (Section 2.1093), FCC OET Bulletin 65, Supplement C (01-01), RSS-102 We, Advance Data Technology Corporation, hereby certify that one sample of the designation has been tested in our facility on 11 August 2003. The test record, data evaluation and Equipment Under Test (EUT) configurations represented herein are true and accurate, and it was tested according to the standards listed above. This device was found to be in compliance with the Specific Absorption Rate (SAR) requirement specified in FCC part 2.1093 under General Population / Uncontrolled Exposure condition. FCC ID: Q7KREVOLUTION-V3 Report No.: SA920806R03 4 Issued: Aug. 12, 2003 2. GENERAL INFORMATION 2.1 GENERAL DESCRIPTION OF EUT PRODUCT Notebook MODEL NO. REVOLUTION SERIES 3000 POWER SUPPLY AC Power Adapter CLASSIFICATION Portable device, production unit MODULATION…

Text truncated - open the document above for the full version.

Page 1 APPENDIX A: TEST CONFIGURATIONS AND TEST DATA A1: TEST CONFIGURATION Mode 1 Page 2 Mode 2 Page 3 Mode 3 Page 4 EUT Photo Page 5 Page 6 Liquid Level Photo 2450MHz D=151mm Date/Time: 08/11/03 20:46:02 Test Laboratory: Advance Data Technology REVOLUTION SERIES 3000 Mode 1 DUT: Notebook ; Type: REVOLUTION SERIES 3000 ; Test Channel Frequency: 2412 MHz Communication System: 802.11b ; Frequency: 2412 MHz; Duty Cycle: 1:1; Modulation type: CCK Medium: MSL2450 (σ = 1.88 mho/m, ε r = 52.95, ρ = 1000 kg/m 3 ) ; Liquid level : 151mm Phantom section: Flat Section ; Separation distance : 0mm(The tip of the EUT to the Phantom) Antenna type : Internal Antenna ; Air temp. : 22.0 degrees ; Liquid temp. : 21.0 degrees DASY4 Configuration: - Probe: ET3DV6 - SN1686; ConvF(4.5, 4.5, 4.5); Calibrated: 2003/6/18 - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE3 Sn510; - Phantom: SAM Twin Phantom V4.0; Type: QD 000 P40 CA; Serial: TP-1150 - Measurement SW: DASY4, V4.1 Build 47; Postprocessing SW: SEMCAD, V1.6 Build 115 Channel 1/Area Scan (61x101x1): Measurement grid: dx=15mm, dy=15mm Reference Value = 9.01 V/m Power Drift = -0.1 dB Maximum value of SAR = 0.562 mW/g Channel 1/Zoon Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Peak SAR (extrapolated) = 1.63 W/kg SAR(1 g) = 0.606 mW/g; SAR(10 g) = 0.223 mW/g Reference Value = 9.01 V/m Power Drift = -0.1 dB Maximum value of SAR = 0.682 mW/g Date/Time: 08/11/03 20:46:02 Test Laboratory: Advance Data Technology REVOLUTION SERIES 3000 Mode 1 DUT: Notebook ; Type: REVOLUTION SERIES 3000 ; Test Channel Frequency: 2437 MHz Communication System: 802.11b ; Frequency: 2437 MHz; Duty Cycle: 1:1; Modulation type: CCK Medium: MSL2450 (σ = 1.9 mho/m, ε r = 52.87, ρ = 1000 kg/m 3 ) ; Liquid level : 151mm Phantom section: Flat Section ; Separation distance : 0mm(The tip of the EUT to the Phantom) Antenna type : Internal Antenna ; Air temp. : 22.0 degrees ; Liquid temp. : 21.0 degrees DASY4 Configuration: - Probe: ET3DV6 - SN1686; ConvF(4.5, 4.5, 4.5); Calibrated: 2003/6/18 - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE3 Sn510; - Phantom: SAM Twin Phantom V4.0; Type: QD 000 P40 CA; Serial: TP-1150 - Measurement SW: DASY4, V4.1 Build 47; Postprocessing SW: SEMCAD, V1.6 Build 115 Channel 6/Area Scan (61x101x1): Measurement grid: dx=15mm, dy=15mm Reference Value = 9.42 V/m Power Drift = -0.1 dB Maximum value of SAR = 0.626 mW/g Channel 6/Zoon Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Peak SAR (extrapolated) = 1.8 W/kg SAR(1 g) = 0.668 mW/g; SAR(10 g) = 0.245 mW/g Reference Value = 9.42 V/m Power Drift = -0.1 dB Maximum value of SAR = 0.751 mW/g Date/Time: 08/11/03 20:46:02 Test Laboratory: Advance Data Technology REVOLUTION SERIES 3000 Mode 1 DUT: Notebook ; Type: REVOLUTION SERIES 3000 ; Test Channel Frequency: 2462 MHz Communication System: 802.11b ; Frequency: 2462 MHz; Duty Cycle: 1:1; Modulation type: CCK Medium: MSL2450 (σ = 1.94 mho/m, ε r = 52.76, ρ = 1000 kg/m 3 ) ; Liquid level : 151mm Phantom section: Flat Section ; Separation distance : 0mm(The tip of the EUT to the Phantom) Antenna type : Internal Antenna ; Air temp. : 22.0 degrees ; Liquid temp. : 21.0 degrees DASY4 Configuration: - Probe: ET3DV6 - SN1686; ConvF(4.5, 4.5, 4.5); Calibrated: 2003/6/18 - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE3 Sn510; - Phantom: SAM Twin Phantom V4.0; Type: QD 000 P40 CA; Serial: TP-1150 - Measurement SW: DASY4, V4.1 Build 47; Postprocessing SW: SEMCAD, V1.6 Build 115 Channel 11/Area Scan (61x101x1): Measurement grid: dx=15mm, dy=15mm Reference Value = 8.56 V/m Power Drift = -0.06 dB Maximum value of SAR = 0.523 mW/g Channel 11/Zoon Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Peak SAR (extrapolated) = 1.52 W/kg SAR(1 g) = 0.561 mW/g; SAR(10 g) = 0.202 mW/g Reference Value = 8.56 V/m Power Drift = -0.06 dB Maximum value of SAR = 0.635 mW/g Date/Time: 08/11/03 22:26:28 Test Laboratory: Advance Data Technology REVOLUTION SERIES 3000 Mode 2 DUT: Notebook ; Type: REVOLUTION SERIES 3000 ; Test Channel Frequency: 2412 MHz Communication System: 802.11b ; Frequency: 2412 MHz; Duty Cycle: 1:1; Modulation type: CCK Medium: MSL2450 (σ = 1.88 mho/m, ε r = 52.95, ρ = 1000 kg/m 3 ) ; Liquid level : 151mm Phantom section: Flat Section ; Separation distance : 0mm(The LCD panel of the EUT to the Phantom) Antenna type : Internal Antenna ; Air temp. : 22.0 degrees ; Liquid temp. : 21.0 degrees DASY4 Configuration: - Probe: ET3DV6 - SN1686; ConvF(4.5, 4.5, 4.5); Calibrated: 2003/6/18 - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE3 Sn510; - Phantom: SAM Twin Phantom V4.0; Type: QD 000 P40 CA; Serial: TP-1150 - Measurement SW: DASY4, V4.1 Build 47; Postprocessing SW: SEMCAD, V1.6 Build 115 Channel 1/Area Scan (61x101x1): Measurement grid: dx=15mm, dy=15mm Reference Value = 3.04 V/m Power Drift = -0.2 dB Maximum value of SAR = 0.653 mW/g Channel 1/Zoon Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Peak SAR (extrapolated) = 1.64 W/kg SAR(1 g) = 0.581 mW/g; SAR(10 g) = 0.213 mW/g Reference Value = 3.04 V/m Power Drift = -0.2 dB Maximum value of SAR = 0.617 mW/g Date/Time: 08/11/03 22:26:28 Test Laboratory: Advance Data Technology REVOLUTION SERIES 3000 Mode 2 DUT: Notebook ; Type: REVOLUTION SERIES 3000 ; Test Channel Frequency: 2437 MHz Communication System: 802.11b ; Frequency: 2437 MHz; Duty Cycle: 1:1; Modulation type: CCK Medium: MSL2450 (σ = 1.9 mho/m, ε r = 52.87, ρ = 1000 kg/m 3 ) ; Liquid level : 151mm Phantom section: Flat Section ; Separation distance : 0mm(The LCD panel of the EUT to the Phantom) Antenna type : Internal Antenna ; Air temp. : 22.0 degrees ; Liquid temp. : 21.0 degrees DASY4 Configuration: - Probe: ET3DV6 - SN1686; ConvF(4.5, 4.5, 4.5); Calibrated: 2003/6/18 - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE3 Sn510; - Phantom: SAM Twin Phantom V4.0; Type: QD 000 P40 CA; Serial: TP-1150 - Me…

Text truncated - open the document above for the full version.

APPENDIX B: ADT SAR MEASUREMENT SYSTEM APPENDIX C: PHOTOGRAPHS OF SYSTEM VALIDATION

APPENDIX D: SYSTEM CERTIFICATE & CALIBRATION D1: SAM PHANTOM D2: 2450MHZ SYSTEM VALIDATION DIPOLE D3: DOSIMETRIC E-FIELD PROBE

FCC TEST REPORT Report No. : F2D2005 SPORTON International Inc. TEL : 886-2-2696-2468 FAX : 886-2-2696-2255 FCC TEST REPORT for 47 CFR, Part 15, Subpart C Equipment : Notebook Model No. : REVOLUTION SERIES 3000 FCC ID : Q7KREVOLUTION-V3 Filing Type : Certification Applicant : TAIWAN MYCOMP CO., LTD. 1FL, NO. 16, LANE 50, NANKANG RD., SEC. 3, NANKANG DISTRICT,TAIPEI, TAIWAN ‚ The test result refers exclusively to the test presented test model / sample. ‚ Without written approval of SPORTON International Inc., the test report shall not be reproduced except in full. ‚ Certificate or Test Report must not be used by the applicant to claim the product in this test report endorsement by NVLAP or any agency of U.S. government. SPORTON International Inc. 6F, No.106, Sec. 1, Hsin Tai Wu Rd., Hsi Chih, Taipei Hsien, Taiwan, R.O.C. FCC TEST REPORT Report No. : F2D2005 SPORTON International Inc. FCC ID : Q7KREVOLUTION-V3 TEL : 886-2-2696-2468 Page No. : i FAX : 886-2-2696-2255 Issued Date : May 05, 2003 Table of Contents History of this test report..................................................................................................................ii CERTIFICATE OF COMPLIANCE........................................................................................................................1 1. General Description of Equipment under Test.............................................................................................2 1.1. Applicant..........................................................................................................................................................................................2 1.2. Manufacturer ...................................................................................................................................................................................2 1.3. Basic Description of Equipment under Test ....................................................................................................................................2 1.4. Feature of Equipment under Test ...................................................................................................................................................2 2. Test Configuration of Equipment under Test ...............................................................................................4 2.1. Test Manner ....................................................................................................................................................................................4 2.2. Description of Test System .............................................................................................................................................................4 2.3. Connection Diagram of Test System ..............................................................................................................................................7 3. Operation of Equipment under Test ..............................................................................................................8 4. General Information of Test............................................................................................................................9 4.1. Test Voltage ....................................................................................................................................................................................9 4.2. Standard for Methods of Measurement...........................................................................................................................................9 4.3. Test in Compliance with ..................................................................................................................................................................9 4.4. Frequency Range Investigated .......................................................................................................................................................9 4.5. Test Distance ..................................................................................................................................................................................9 5. Report of Measurements and Examinations ..............................................................................................10 5.1. List of Measurements and Examinations ......................................................................................................................................10 5.2. 6dB Bandwidth ..............................................................................................................................................................................11 5.3. Peak Output Power .......................................................................................................................................................................15 5.4. Power Spectral Density .................................................................................................................................................................16 5.5. Hopping Channel Separation ........................................................................................................................................................20 5.6. Number of Hopping Frequency .....................................................................................................................................................24 5.7. Hopping Channel Bandwidth.........................................................................................................................................................26 5.8. Dwell Time of Each Frequency within a 30 Seconds Period.........................................................................................................30 5.9. Output Power ......................................................................................................................................................…

Text truncated - open the document above for the full version.

FCC TEST REPORT Report No.: F2D2005 SPORTON International Inc. FCC ID : Q7KREVOLUTION-V3 TEL : 886-2-2696-2468 Page No. : 1 of 3 FAX : 886-2-2696-2255 Issued Date : May 05, 2003 1.1. Photographs of Conducted Emission Test Configuration „ The photographs show the configuration that generates the maximum emission. FRONT VIEW REAR VIEW FCC TEST REPORT Report No.: F2D2005 SPORTON International Inc. FCC ID : Q7KREVOLUTION-V3 TEL : 886-2-2696-2468 Page No. : 2 of 3 FAX : 886-2-2696-2255 Issued Date : May 05, 2003 SIDE VIEW FCC TEST REPORT Report No.: F2D2005 SPORTON International Inc. FCC ID : Q7KREVOLUTION-V3 TEL : 886-2-2696-2468 Page No. : 3 of 3 FAX : 886-2-2696-2255 Issued Date : May 05, 2003 1.2. Photographs of Radiated Emission Test Configuration „ The photographs show the configuration that generates the maximum emission. FRONT VIEW REAR VIEW
