1 User’s Manual For Model:JW-001 FCC Warning Statement This product may cause interference to radio equipment and should not be installed near maritime safety communications equipment or other critical navigation or communication equipment operating between 0.4530 MHz. This device compliance with Part 18 of the FCC rules.

Mike Kuo From: Mike Kuo Sent: October08 2003 Wednesday 5:39 PM To: '[email protected]'; Mike Kuo Cc: [email protected] Subject: RE: Jingle World Co., Ltd. FCC Id:Q8JJW70689178, AN03T3235 10/10/2003 Dear Mike, According to customer's description, this is a touch sensor switch. The 75kHz frequency is used to identify the touch correct or not. The product is used with luminaire and domestic purpose. Best regards, Jonson Hi Lucy : Please justify why this device complies with the definition as ISM device per section 18.107(c) and please explain the purpose of 75kHz is used . Best Regards Mike Kuo -----Original Message----- From: [email protected] [mailto:[email protected]] Sent: Monday, October 06, 2003 7:26 PM To: Mike Kuo Cc: [email protected] Subject: Jingle World Co., Ltd. FCC Id:Q8JJW70689178, AN03T3235 Hi Mike, Is there any other problem for Jingle World? Please have a check and issue the grant asap, thank you. Best Regards, Lucy ----- Hi Mike, Please refer to the below for our reply. 75kHz 10% Q2-3, since the measurement procedure of ANSI C63.4 is almost identical to MP5, so we have revised it to MP5 directly. Also, we removed the FCC DOC from the test report. Please find attached for the revised one. Best Regards, Lucy Question #1: Please provide the technical justification to classify this device as Consumer ISM device. What is the RF frequency used in this product ? Question #2: The measurement procedure for Part 18 device is per MP5. Part 18 device can not use ANSI C63.4 as measurement procedures. Question #3: Test report cover page listed the report type is FCC DoC report. Please do not mix FCC DoC with FCC certification requirements. Best Regards Mike Kuo Compliance Certification Services 561F Monterey Road Morgan Hill CA 95037 Tel: (408)463-0885 x: 105 Fax: (408)463-0888 http://www.ccsemc.com Mike Kuo <[email protected]> 2003/09/24 03:23 PM "Jonson Lee (E-mail)" <[email protected]> "Eric (E-mail)" <[email protected]>, "Lucy (E-mail)" <[email protected]>, "Ting (E-mail)" <[email protected]> Jingle World Co., Ltd. FCC Id:Q8JJW70689178, AN03T3235 10/10/2003

Applicant: Jingle World CO., Ltd. Model Name: JW-001 Product Name: touch sensor switch Label Sample: Model Name: JW-001 FCC ID : Q8JJW70689178 LABEL LOCATION FOR FCC ID

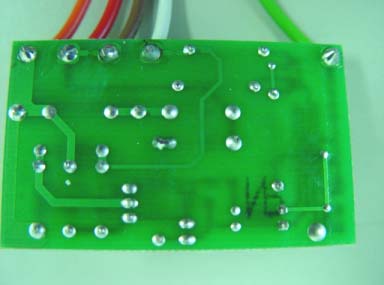

Report Number: 030153-D May 13, 2003 Page 24 Rev. 00 Front View of PCB Back View of PCB

Report Number: 030153-D May 13, 2003 Page 1 of 26 Rev. 00 FCC Part 18 COMPLIANCE REPORT for Electromagnetic Emissions of touch sensor switch Trade Name : JINGLE WORLD Model Number : JW-001 Serial Number : N/A Report Number : 030153-D FCC ID : Q8JJW70689178 Date : May 13, 2003 Prepared for JINGLE WORLD CO., LTD. 2F, No. 176, Sec. 2, Dung Men Rd., Tainan, Taiwan, R.O.C. Prepared by C&C LABORATORY, CO., LTD. No. 81-1, 210 Lane, Pa-de 2 nd Road, Lu-Chu Hsiang, Taoyuan, Taiwan, R.O.C. TEL: (03) 324-0332 FAX: (03) 324-5235 This report shall not be reproduced, except in full, without the written approval of C&C LABORATORY, CO., LTD. The client to claim product certification, approval or endorsement by NVLAP, NIST or any agency of the federal government must not use this report. Report Number: 030153-D May 13, 2003 Page 2 Rev. 00 TABLE OF CONTENTS 1 VERIFICATION OF COMPLIANCE ........................................................ 3 2 SYSTEM DESCRIPTION .......................................................................... 4 3 PRODUCT INFORMATION...................................................................... 5 4 SUPPORT EQUIPMENT ........................................................................... 6 5 MEASUREMENT PROCEDURE.............................................................. 7 5.1 PRELIMINARY LINE CONDUCTED EMISSION TEST ............................. 7 5.2 FINAL LINE CONDUCTED EMISSION TEST............................................. 8 5.3 PRELIMINARY RADIATED EMISSION TEST ........................................... 9 5.4 FINAL RADIATED EMISSION TEST ......................................................... 10 6 SUMMARY DATA ................................................................................ 11 7 TEST FACILITY....................................................................................... 14 8 TEST EQUIPMENT LIST ........................................................................ 15 9 BLOCK DIAGRAM OF TEST SETUP ................................................... 16 10 APPENDIX 1 PHOTOGRAPHS (TEST SETUP OF LINE CONDUCTED EMISSION TEST) ................. 17 11 APPENDIX 2 PHOTOGRAPHS (TEST SETUP OF RADIATED EMISSION TEST) ................................ 19 12 APPENDIX 3 PHOTOGRAPHS OF EUT ............................................ 21 13 APPENDIX 4 LABELING REQUIREMENTS .................................... 25 Report Number: 030153-D May 13, 2003 Page 3 Rev. 00 1 VERIFICATION OF COMPLIANCE Equipment Under Test: touch sensor switch Trade Name: JINGLE WORLD Model Number: JW-001 Serial Number: N/A Applicant: JINGLE WORLD CO., LTD. 2F, No. 176, Sec. 2, Dung Men Rd., Tainan, Taiwan, R.O.C. Manufacturer: JINGLE WORLD CO., LTD. 2F, No. 176, Sec. 2, Dung Men Rd., Tainan, Taiwan, R.O.C. Type of Test: FCC Part 18 Measurement Procedure: MP5 File Number: 030153-D FCC ID: Q8JJW70689178 Date of Test: May 8, 2003 Deviation: None Condition of Test Sample: Normal Final Result: Pass Worst Data: See below Test Item Freq. (MHz) Measured DataMargin (MμC) Remark Radiated Emission 39.03 28.1 (dB/m) -11.9 dB (± 2.1422 dB) Conducted Emission 0.153 34.0 (dB) -14.0 dB (± 2.8104 dB) z The negative sign in Margin cell means under the specific limit. z This test result traceable to national or international standards. The above equipment was tested by C&C Laboratory, Co., Ltd. for compliance with the requirements set forth in the FCC Rules and Regulations Part 18, and the measurement procedure according to MP5. This said equipment in the configuration described in this report shows the maximum emission levels emanating from equipment are within the compliance requirements. The test results of this report relate only to the tested sample identified in this report. Approved by: Reviewed by: Jonson Lee / EMC Director Susan Su / Section Manager Report Number: 030153-D May 13, 2003 Page 4 Rev. 00 2 SYSTEM DESCRIPTION EUT Test Program: The EUT was connected with tungsten lamp and power on to test. Report Number: 030153-D May 13, 2003 Page 5 Rev. 00 3 PRODUCT INFORMATION Housing Type: N/A EUT Power Rating: 120Vac / 60Hz AC Power during test 110Vac / 60Hz AC Power Cord Type: Unshielded, 1.8m (Detachable) Report Number: 030153-D May 13, 2003 Page 6 Rev. 00 4 SUPPORT EQUIPMENT Equipment Type Tungsten Lamp Unshielded, 0.2m Report Number: 030153-D May 13, 2003 Page 7 Rev. 00 5 MEASUREMENT PROCEDURE 5.1 PRELIMINARY LINE CONDUCTED EMISSION TEST 1) The equipment was set up as per the test configuration to simulate typical actual usage per the user’s manual. When the EUT is a tabletop system, a wooden table with a height of 0.8 meters is used and is placed on the ground plane as per PM5 (see Test Facility for the dimensions of the ground plane used). When the EUT is a floor-standing equipment, it is placed on the ground plane which has a 3-12 mm non-conductive covering to insulate the EUT from the ground plane. 2) Support equipment, if needed, was placed as per MP5. 3) All I/O cables were positioned to simulate typical actual usage as per MP5. 4) The EUT received AC power through a Line Impedance Stabilization Network (LISN) which supplied power source and was grounded to the ground plane. 5) All support equipment received power from a second LISN supplying power of 110VAC/60Hz, if any. 6) The EUT test program was started. Emissions were measured on each current carrying line of the EUT using a spectrum analyzer / Receiver connected to the LISN powering the EUT. The LISN has two monitoring points: Line 1 (Hot Side) and Line 2 (Neutral Side). Two scans were taken: one with Line 1 connected to Analyzer / Receiver and Line 2 connected to a 50 ohm load; the second scan had Line 1 connected to a 50 ohm load and Line 2 connected to the Analyzer / Receiver. 7) Analyzer / Receiver scanned from 450kHz to 30MHz for emissions in each of the test modes. 8) During the above scans, the emissions were maximized by cable manipulation. 9) The following test mode(s) were scanned during the preliminary tes…

Text truncated - open the document above for the full version.

Report Number: 030153-D May 13, 2003 Page 17 Rev. 00 10 APPENDIX 1 PHOTOGRAPHS (TEST SETUP OF LINE CONDUCTED EMISSION TEST) Report Number: 030153-D May 13, 2003 Page 18 Rev. 00 LINE CONDUCTED EMISSION TEST Front View Back View Report Number: 030153-D May 13, 2003 Page 19 Rev. 00 11 APPENDIX 2 PHOTOGRAPHS (TEST SETUP OF RADIATED EMISSION TEST) Report Number: 030153-D May 13, 2003 Page 20 Rev. 00 RADIATED EMISSION TEST Front View Back View
