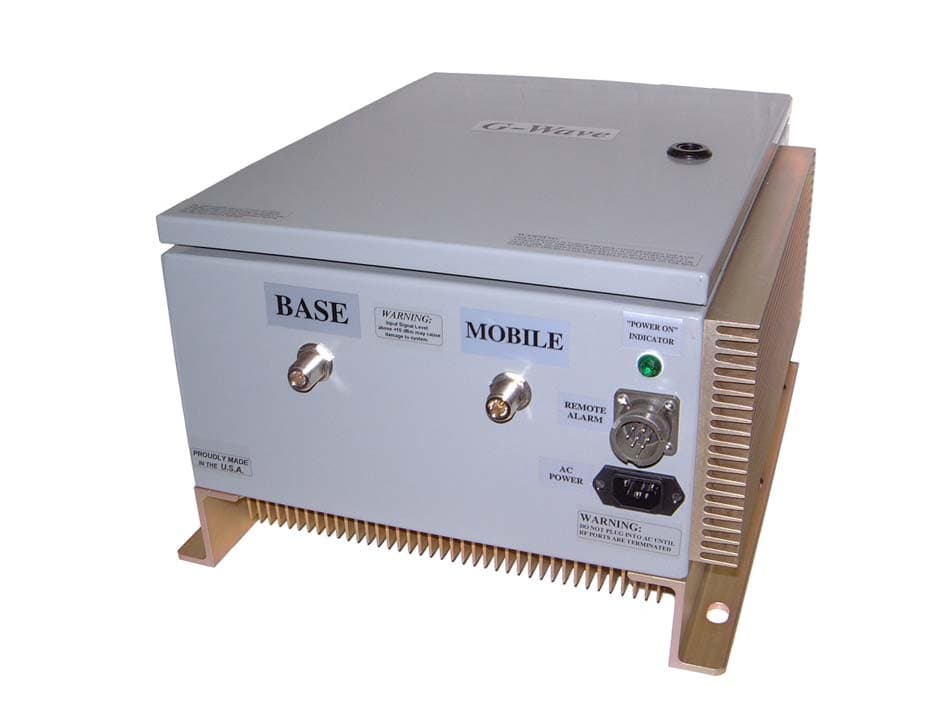

Q8KCELLAB25W90Bi-Directional Booster

INSTALLATION AND OPERATING MANUAL FOR BDA-CELLAB-2/25W-90-OA INDOOR REPEATER TABLE OF CONTENTS PARAGRAPH PAGE NO BDA OVERVIEW 3 BDA BLOCK DIAGRAM DESCRIPTION 3 OPTIONAL EQUIPMENT OVERVIEW 3 BDA BLOCK DIAGRAM DRAWING (Figure 1) 4 ELECTRICAL SPECIFICATIONS 5 MECHANICAL SPECIFICATIONS 6 ENVIRONMENTAL CONDITIONS 6 BDA CONNECTIONS 6 OPTIONAL EQUIPMENT OVERVIEW 7 MECHANICAL OUTLINE DRAWING (Figure 2 & 2a) 8 OPTIONAL BATTERY BACK-UP CONFIGUATION (Figure 3) 9 BDA INSTALLATION 10 RF EXPOSURE WARNING 10 BDA OPERATION 11 INTERNAL VIEW (Figure 4) 12 CONTROL PANEL ADJUSTMENT (Figure 5) 13 DIAGNOSTICS GUIDE 14 Page 2 BDA OVERVIEW: The BDA assembly extends the coverage area of radio communications in buildings and RF shielded environments. The unit features low noise figure and wide dynamic range. It is based on a duplexed path configuration with sharp out of band attenuation allowing improved isolation between the receiving and transmitting paths. The BDA supports modulation types CDMA and GSM. BDA CIRCUIT DESCRIPTION : Refer to figure 1 for the following discussion. The BDA Downlink path receives RF signals from the base station and amplifies and transmits them to the subscriber. The BDA Uplink path receives RF signals from the subscriber and amplifies and transmits them to the base station. The Uplink and Downlink occupy two distinct frequency bands. For example, the CELLAB frequency bands are as follows: 824-849 MHz for the Uplink and 869-894 MHz for the Downlink. Two diplexers isolate the paths and route each signal to the proper amplifying channel. A selectable Automatic Level Control (ALC) allows for output power limiting. A Manual Gain Control (MGC) provides continuous control of amplifier gain. The use of these controls is covered in the “OPERATION” section, later in this document. Page 3 Figure 1 1. 2. 3. 6. 7. 4. 5. BDA Block Diagram 1. Uplink Diplexer - has low bandpass insertion loss and high selectivity 2. Downlink Pre-amp - is a low noise amplifier that drives the Downlink PA and offers 46dB Gain 3. Downlink PA – is a power amplifier with an ALC circuit which offers 43dB Gain 4. Uplink MPA – is a medium power amplifier with an ALC circuit which offers 43dB Gain 5. Uplink Pre-amp - is a low noise amplifier that drives the Uplink MPA and offers 46dB Gain 6. Filters used on High-Gain Repeaters (90dB) to provide better isolation between Tx & Rx frequencies and to aid the diplexer rejection. 7. Downlink Tx filter is enhanced for High Power applications, preventing arching when the power amplifier approaches the 1dB compression point. Page 4 ELECTRICAL SPECIFICATIONS: Frequency Range Uplink : 824-849 MHz Downlink : 869-894 MHz Pass Band Gain @ min attenuation : 95 dB (Typ.) Variable Step Attenuator Range : 0-30 dB (2-dB steps) Pass band Ripple : ±1.5 dB (typ) 20 dB Bandwidth : 30 MHz (Max.) Noise Figure @+25 °C at max gain : 4.0 dB max. 3rd Order Intercept point Uplink : +47 dBm (typ) Downlink : +55 dBm (typ) Output Power @ 1dB Compression Uplink : +34 dBm (typ) Downlink : +44 dBm (typ) ALC Factory Set Point Uplink : +27 dBm composite* Downlink : +37 dBm composite* * Single carrier CDMA or GSM modulation types Isolation between Up/Down Link : 110 dB min. Input/ Output Impedance : 50 Ohms VSWR (Input/Output) : 1.5: 1 max. Power Supply : 110VAC/1.4 Amp : 240VAC/0.7 Amp : 50 to 60 Hz *The Manufacturer's rated output power of this equipment is for single carrier operation. For situations when multiple carrier signals are present, the rating would have to be reduced by 3.5 dB, especially where the output signal is re-radiated and can cause interference to adjacent band users. This power reduction is to be by means of input power or gain reduction and not by an attenuator at the output of the device. Page 5 MECHANICAL SPECIFICATIONS: Size : 16.0 x 12.0 x 8.75 inch (406 x 305 x 222 mm) Weight : 35 Lbs. (16.0kg.) approx. ENVIRONMENTAL CONDITIONS: The unit is designed for indoor applications: Operating temperature: -30°C to + 65°C Storage temperature: - 50°C to + 90°C BDA CONNECTIONS The BDA AC power is accepted through a 3-wire male plug with phase, neutral and ground leads. The AC power is wired to a high efficiency DC switching power supply which is CE and UL approved. The power supply runs the amplifiers and the Power On lamp. The metal enclosure of the BDA is connected to ground. A 7-pin circular connector provides failure alarm output contacts (see diagrams on page 9) as well as a 12 VDC (250mA) auxiliary output. For S1 Option: The BDA is equipped with both AC and DC voltage inputs for power operation. This gives the flexibility of powering the BDA with either an AC or DC source. If both sources are connected, the BDA will automatically select the stronger source for power. NOTE: (To insure that the DC source will be selected when both sources are connected, DC input voltage must be at least 27 VDC.) The RF connections are made via two type “N” female connectors. The RF connector labeled “BASE” must be connected to the antenna pointing towards the base station. The RF connection labeled “MOBILE” must be connected to the antenna facing the area to be covered by the BDA. The RF connections must be made through cables with characteristic impedance of 50 ohms. The isolation between the base station antenna and the mobile antenna should be at least 12 dB higher than the BDA gain. Isolation less than this value can cause gain ripple across the band. Isolation equal to or less than the BDA gain will give rise to oscillations which will saturate the amplifiers and possibly cause damage to the BDA. Page 6 OPTIONAL EQUIPMENT OVERVIEW : a.) Uninterruptible Power System (UPS) Option An optional UPS is offered for systems that need emergency back-up power. The system can easily be connected to a battery for uninterruptible operation. Not only does the power supply power the load, but it also charges the battery. If the AC power fails, the battery will uphold the load. Batteries can be supplied upon request or…

Text truncated - open the document above for the full version.

G-Wave Incorporated 15 Ron’s Edge Road Springfield, NJ 07081 Tel 201-343-3140 Fax 201-343-6390 E-mail [email protected] Website: www.gwaverf.com DATE 3/31/10 Nemko Canada Inc 303 River Road Ottawa, Ontario, Canada K1V 1H2 Attn: Director of Certification Authority to Act as Agent On our behalf, I appoint Nemko Canada Inc. 303 River Road Ottawa, Ontario, Canada K1V 1H2, to act as our agent in the preparation of this application for equipment certification. I certify that submitted documents properly describe the device or system for which equipment certification is sought. I also certify that each unit manufactured, imported or marketed, as defined in the Federal Communications Commission’s regulations will have affixed to it a label identical to that submitted for approval with this application. For instances where our authorized agent signs the application for certification on our behalf, I acknowledge that all responsibility for complying with the terms and conditions for certification, as specified by Nemko Canada Inc, still resides with G-Wave Inc. 15 Ron’s Edge Road, Springfield, New Jersey 07081 Dated this 31 st Day of March 2010 Agency agreement expiration date: Usually Give 8 - 12 Months By: Greg David Signature Printed Title: Sr. Technical Consultant On behalf of : G-Wave Inc. Telephone: 201-343-3140 15 Ron's Edge Road ƒ Springfield, NJ 07081 ƒ Tel: (201) 343-3140 ƒ Fax: (201) 343-6390 www.gwaverf.com

G-Wave Incorporated 15 Ron’s Edge Road Springfield, NJ 07081 Tel 201-343-3140 Fax 201-343-6390 E-mail [email protected] Website: www.gwaverf.com DATE: 3/31/1 0 Nemko Canada Inc 303 River Road Ottawa K1V 1H2 Canada Acknow ledgement of FCC Part 9 0.219 / 22.383 In signing this document I acknowledge that G-Wave Inc. was informed that FCC ID: Q8KCELLAB25W 90 Model BDA-CELLAB-2/25W-90-OA booster must meet all criteria stated in Sections 90.219 / 22.383 for related booster in-building operations . Dated this 31 st Day of March 2010 By: Greg David Signature Printed Title: Sr. Technical Consultant Telephone: 201-343-3140 Applicant: G-Wave, Inc. 15 Ron's Edge Road ƒ Springfield, NJ 07081 ƒ Tel: (201) 343-3140 ƒ Fax: (201) 343-6390 www.gwaverf.com

G-Wave Incorporated 15 Ron’s Edge Road Springfield, NJ 07081 Tel 201-343-3140 Fax 201-343-6390 E-mail [email protected] Website: www.gwaverf.com March 31, 20 10 Fede ral C ommunications Commission Office of Engineering and Technology 7435 Oakland Mills Rd. Columbia, MD 21046 Subject: Request for Confidentiality Dear Sir or Madam: G-Wave Incorporated respectfully requests that the schematic diagrams, block diagram, parts list, and circuit d escriptions submitted with the application for certification under FCC ID Q8K CELLAB25W90 be withheld from publ ic disclosure. This request is made under the provisions of Section 0.459 and 0.457 (d) of the Commission’s rules and Section 0.552 (b) (4) of the Freedom of Information Act. This product has been developed at considerable expense, and disclosure of this information would place G- Wave Incorporated at a competitive disadvantage. Thank you for your attention to this matter. Sincerely yours, G-Wave Incorporated Greg David Sr. Technical Consultant 15 Ron's Edge Road ƒ Springfield, NJ 07081 ƒ Tel: (201) 343-3140 ƒ Fax: (201) 343-6390 www.gwaverf.com

Internal Components

Uplink & Downlink LNA/Pre-Amp Front Uplink & Downlink LNA/Pre-Amp Back

FRONT BACK

BDA INSTALLATION PROCEDURE IMPORTANT: DO NOT APPLY A.C. OR DC POWER TO THE BDA UNTIL CABLES ARE CONNECTED TO BOTH PORTS OF THE BDA AND THE ANTENNAS. 1. Mount the BDA on the structure with the RF connectors pointing DOWN. Using appropriate screws and anchors, attach the BDA to the structure using the six mounting holes on the side flanges. 2. Ensure that the isolation between the donor antenna and the service antenna is at least 12 dB greater than the BDA gain. (Use the higher of the Uplink and Downlink gains reported on the BDA test data sheet). 3. Connect the cable from the donor antenna to the BDA connector labeled “BASE” and the cable from the service antennas to the BDA connector labeled “MOBILE”. 4. Open the access door on the BDA and verify that the Uplink and Downlink ALC switches are in their factory preset “ON” positions and attenuation is positioned to its maximum setting. 5. Connect the AC power cord to the BDA and then to the power source. Turn the power switch to its “ON” position. Verify that the “Power On” indicator is lit. Close the access door. Installation of the BDA is now complete. To adjust the gain controls to suit the specific signal environment, refer to “BDA Operation”. Note: For repeat installations of existing equipment, make sure the ALC switches are in the “ON” position and attenuation is positioned to its maximum setting (30 dB). After verification of ALC switches and attenuation, follow the above steps starting with step 1. Page 11 BDA OPERATION Variable Step Attenuator BDA gain can be reduced by up to 30 dB in 2 dB steps using the variable step attenuator (Figure 3). Gain adjustment is made with rotary switches accessible via the access door on the BDA enclosure. Arrows on the shafts of these switches point to the value of attenuation selected. BDA gain can be determined by subtracting the attenuation value from the gain reported on the BDA Test Data Sheet for that side of the unit. The attenuators are labeled for Uplink and Downlink. ALC (Automatic Level Control) To minimize intermodulation products, the Uplink amplifier in the BDA contains an ALC feedback loop (Figure 4). The ALC circuit senses the output power and limits it to the factory preset level of +27 dBm on the Uplink and +37 dBm on the Downlink. ALC function is located within each power amplifier. A red indicator lamp located on each amplifier illuminates when output power meets or exceeds the ALC set point. To establish proper operating gain on the Uplink and Downlink sides, start with the Downlink. Observe the red indicator lamp on the Control Panel. Units are shipping with maximum attenuation. Decrease attenuation one step at a time until the lamp is lit. Then, using the Uplink step attenuator, increase the attenuation until the lamp goes off. Repeat the process for the Uplink. The level indicator is accurate to +/- 0.4 dB of the ALC set point. Note: Long term operation of the BDA in an alarm condition will void the warranty, and output power should be immediately reduced using the variable step attenuator. Operation of BDA-CELLAB-2/25W-90-OA at maximum gain with greater than -55 dBm average power incident on the MOBILE port or greater than -45 dBm average power incident on the BASE port can cause damage to the BDA. Page 11 Figure 4 Internal View Down-Link HPA Protected for Temperature Protected for Overload ALC circuit inside Control Panel (See Figure 1) Up-Link MPA ALC circuit inside Figure 1 Control Panel Access Downlink Test Switch & LED Uplink Test itch & LED Sw 0 D O W NLI NK 0 UPLINK Downlink ALC LED Uplink ALC LED 38 Leuning Street South Hackensack, NJ 07606 Tel. 201-343-3140 Fax 201-343-6390 [email protected] www.gwaverf.com Page 3

Maximum Permissible Exposure (MPE) Compliance BDA-CELLAB-2/25W-90-OA FCC ID Q8KCELLAB25W90 At the maximum operating frequency of 894MHz (Downlink) and 849MHz (Uplink) the MPE limit for the General Population/Uncontrolled Exposure is as follows: Downlink = 0.58mW/cm2 (f/1500mW/cm2) and Uplink = 0.55mW/cm2 (f/1500mW/cm2). The analysis is provided below. Power Density (S) = EIRP/(4πR²), Therefore, R≥√EIRP/S x 4π From the above calculations, with: Downlink Maximum Antenna Gain = 2dBi Uplink Maximum Antenna Gain = 11dBi Downlink Maximum output power = 37dBm Uplink Maximum output power = 27dBm S = 0.596 mW/cm2 S = 0.566 mW/cm2 EIRP = 39dBm or 8.0 W (worst case) EIRP = 38dBm or 6.3 W (worst case) Therefore, R= 32.68cm (Downlink) R= 29.76cm (Uplink) These are the minimum safe distances for the general population for each antenna.

Prediction of MPE limit at a given distance M W-CBDA-SMR-10W80-PS8, Uplink Outdoor Donar Antenna Equation from page 18 of OET Bulletin 65, Edition 97-01where: S = power density P = power input to the antennaG = power gain of the antenna in the direction of interest relative to an isotropic radiatorR = distance to the center of radiation of the antenna Maximum peak output power at antenna input terminal: 37.00 (dBm) Maximum peak output power at antenna input terminal: 5011.872336 (mW) Antenna gain(typical): 2 (dBi) Maximum antenna gain: 1.584893192 (numeric) Prediction distance: 32.68 (cm) Prediction frequency: 894 (MHz) MPE limit for uncontrolled exposure at prediction frequency: 0.596 (mW/cm^2) Power density at prediction frequency: 0.591870 (mW/cm^2) Maximum allowable antenna gain: 2.030202195 (dBi) Margin of Compliance: 0.030202195 2 4 R PG S π =

Prediction of MPE limit at a given distance M W-CBDA-SMR-10W80-PS8, Uplink Outdoor Donar Antenna Equation from page 18 of OET Bulletin 65, Edition 97-01where: S = power density P = power input to the antennaG = power gain of the antenna in the direction of interest relative to an isotropic radiatorR = distance to the center of radiation of the antenna Maximum peak output power at antenna input terminal: 27.00 (dBm) Maximum peak output power at antenna input terminal: 501.1872336 (mW) Antenna gain(typical): 11 (dBi) Maximum antenna gain: 12.58925412 (numeric) Prediction distance: 32.68 (cm) Prediction frequency: 849 (MHz) MPE limit for uncontrolled exposure at prediction frequency: 0.566 (mW/cm^2) Power density at prediction frequency: 0.470139 (mW/cm^2) Maximum allowable antenna gain: 11.80590391 (dBi) Margin of Compliance: 0.805903909 2 4 R PG S π =

www.nemko.com Nemko Canada Inc., 303 River Road, R.R. 5, Ottawa, Ontario, Canada, K1V 1H2 Report number: 147578-1TRFWL Apparatus: Bi-directional Amplifier Model: BDA-CELLAB-2/25W-90-OA Applicant: G-Wave, Incorporated 15 Ron’s Edge Road Springfield, New Jersey 07081, USA FCC ID: 8QKCELLAB25W90 Test specification: Title 47 – Telecommunication Chapter I – Federal Communications Commission Subchapter A – General Part 22 – Public Mobile Services Subpart H – Cellular Radiotelephone Service Reviewed by: April 28, 2010 Signature Date Kevin Ma, Wireless/EMC Specialist Tested by: Andrey Adelberg, Senior Wireless/EMC Specialist Nemko Canada Inc. authorizes the applicant to reproduce this report provided it is reproduced in its entirety and for use by the company’s employees only. Any use which a third party makes of this report, or any reliance on or decisions to be made based on it, are the responsibility of such third parties. Nemko Canada Inc. accepts no responsibility for damages, if any suffered by any third party as a result of decisions made or actions based on this report. This report shall not be reproduced except in full without the written approval of the testing laboratory. Nemko Canada Inc., a testing laboratory, is accredited by the Standards Council of Canada. The tests included in this report are within the scope of this accreditation. Report number: 147578-1TRFWL Nemko Canada Inc., 303 River Road, R.R. 5, Ottawa, Ontario, Canada, K1V 1H2 Specification: FCC 22 Subpart H Page 2 of 39 Table of contents Section 1: Report summary.....................................................................................................................3 Section 2: Equipment under test.............................................................................................................4 2.1 Identification of equipment under test (EUT)...........................................................................4 2.2 EUT description.......................................................................................................................4 2.3 Technical specifications of the EUT........................................................................................4 2.4 EUT setup diagram..................................................................................................................5 2.5 Operation of the EUT during testing........................................................................................5 2.6 Modifications incorporated in the EUT.....................................................................................5 Section 3: Test conditions.......................................................................................................................6 3.1 Deviations from laboratory tests procedures...........................................................................6 3.2 Test conditions, power source and ambient temperatures......................................................6 3.3 Measurement uncertainty........................................................................................................7 3.4 Test equipment........................................................................................................................7 Section 4: Result summary......................................................................................................................8 4.1 Test results..............................................................................................................................8 Appendix A: Test results..........................................................................................................................9 Clause 2.1046(a)/22.913(a) RF output power.......................................................................................9 Gain.....................................................................................................................................................11 Clause 2-11-04/EAB/RF Occupied bandwidth....................................................................................13 Clause 2.1051/22.917(a) Spurious emissions at antenna terminal.....................................................20 Clause 2.1053/22.917(a) Field strength of emissions.........................................................................29 Clause 2-11-04/EAB/RF Out of Band Rejection..................................................................................36 Appendix B: Block diagrams of test set-ups........................................................................................39 Section 1: Report summary Report number: 147578-1TRFWL Nemko Canada Inc., 303 River Road, R.R. 5, Ottawa, Ontario, Canada, K1V 1H2 Specification: FCC 22 Subpart H Page 3 of 39 Section 1: Report summary This report contains an assessment of apparatus against specifications based upon tests carried out on samples submitted at Nemko Canada Inc. Test specification: FCC Part 22 Subpart H, Cellular Radiotelephone Service Compliance status: Complies Exclusions: None Non-compliances: None Report release history: Original release Test location: Nemko Canada Inc. 303 River Road, R.R. 5, Ottawa, Ontario, Canada, K1V 1H2 Registration number: 176392 (3 m Semi anechoic chamber) Note that the results contained in this report relate only to the items tested and were obtained in the period between the date of initial receipt of samples and the date of issue of the report. This test report has been completed in accordance with the requirements of ISO/IEC 17025. All results contain in this report are within Nemko Canada’s ISO/IEC 17025 accreditation. Nemko Canada Inc. authorizes the applicant to reproduce this report provided it is reproduced in its entirety and for use by the company’s employees only. Any use which a third party makes of this report, or any reliance on or decisions to be made based on it, are the responsibility of such third parties. Nemko Canada Inc. accepts…

Text truncated - open the document above for the full version.
