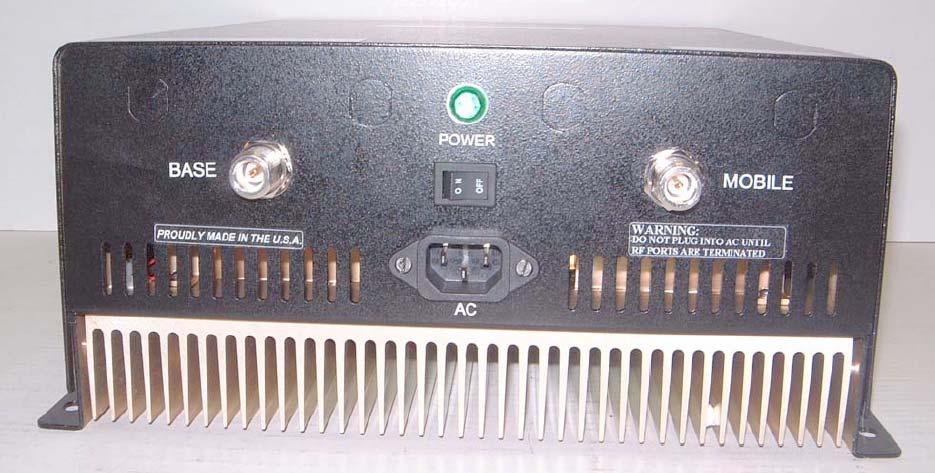

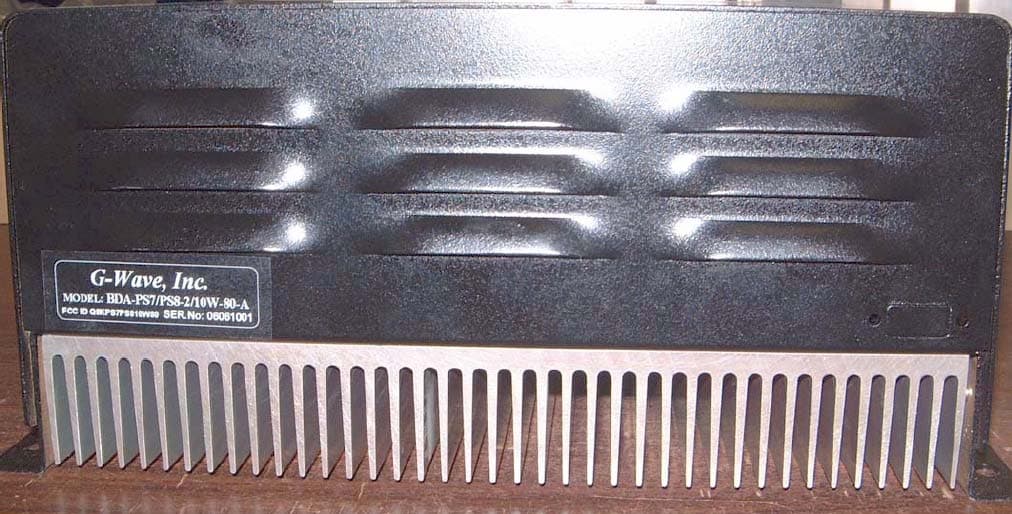

Q8KPS7PS810W80DUAL BAND RF BI-DIRECTIONAL AMPLIFIER

INSTALLATION AND OPERATING MANUAL BDA-PS7/PS8-2/10W-80-A DUAL BAND BI-DIRECTIONAL AMPLIFIER TABLE OF CONTENTS PARAGRAPH PAGE NO BDA OVERVIEW 3 BDA BLOCK DIAGRAM DESCRIPTION 3 BDA BLOCK DIAGRAM DRAWING (Figure 1) 4 ELECTRICAL SPECIFICATIONS 5 MECHANICAL SPECIFICATIONS 6 ENVIRONMENTAL CONDITIONS 6 BDA CONNECTIONS 6 MECHANICAL OUTLINE DRAWING (Figure 2 & 2a) 7 BDA INSTALLATION 8 BDA OPERATION 9 UPLINK MECHANICAL OUTLINE- ADJUSTMENT (Figure 3) 10 DOWNLINK MECHANICAL OUTLINE- ADJUSTMENT (Figure 4) 11 RF EXPOSURE WARNING 12 DIAGNOSTICS GUIDE 12 Page 2 BDA OVERVIEW: The BDA assembly extends the coverage area of radio communications in buildings and RF shielded environments. The BDA has dual RF paths to extend coverage in two distinct frequency bands. The unit features low noise figure and wide dynamic range. It is based on a duplexed path configuration with sharp out of band attenuation allowing improved isolation between the receiving and transmitting paths. BDA BLOCK DIAGRAM DESCRIPTION : Refer to figure 1 for the following discussion. The BDA Downlink path receives RF signals from the base station and amplifies and transmits them to the subscriber. The BDA Uplink path receives RF signals from the subscriber and amplifies and transmits them to the base station. The Uplink and Downlink occupy three distinct frequency bands. The frequency bands are as follows: 794-824 MHz for the Uplink and 764-776 MHz & 851-869 MHz for the Downlink. Two triplexers isolate the paths and route each signal to the proper amplifying channel. An Automatic Level Control (ALC) allows for output power limiting. A variable step attenuator gives 0 – 30 dB of attenuation in 2 dB steps. The use of these controls is covered in the “OPERATION” section, later in this document. Page 3 ELECTRICAL SPECIFICATIONS: Frequency Range Downlink : 764-776 and 851-869 MHz Uplink : 794-824 MHz Pass band Gain @ min attenuation : 80 dB minimum Variable Step Attenuator Range : 0-30 dB (2-dB steps) Pass band Ripple : ±1.5 dB (typ) Noise Figure @+25 °C at max gain : 5.5 dB max 3rd Order Intercept point Uplink : +46 dBm (typ) Downlink : +49 dBm (typ) *Output Power @ 1dB Compression Uplink : +33 dBm (typ) Downlink : +39 dBm (typ) *ALC Factory Set Point Uplink : +25 dBm Downlink : +32 dBm Isolation between Up/Down Link : 100 dB min Input/ Output Impedance : 50 Ohms VSWR (Input/Output) : 1.5: 1 max Pass band Gain @ min attenuation : 80 dB minimum Power Supply : 110VAC/1.42Amp : 240VAC/0.71 Amp : 50 to 60 Hz *The Manufacturer's rated output power of this equipment is for single carrier operation. For situations when multiple carrier signals are present, the rating would have to be reduced by 3.5 dB, especially where the output signal is re-radiated and can cause interference to adjacent band users. This power reduction is to be by means of input power or gain reduction and not by an attenuator at the output of the device. Page 5 MECHANICAL SPECIFICATIONS : Size : 13.5 x 12.5 x 5.6 inch : (343 x 317.5 x 142.3 mm) RF Connectors : N-type Female Weight : 20.9 Lbs. (9.5kg.) approx. ENVIRONMENTAL CONDITIONS: The unit is designed for indoor applications: Operating temperature: - 20°C to + 50°C Storage temperature: - 50°C to + 90°C BDA CONNECTIONS The BDA AC power is accepted through a standard 3-wire male plug (IEC-320) with phase, neutral and ground leads. The AC power is wired to a high efficiency DC switching power supply which is CE and UL approved. The power supply runs the amplifiers and the Power On lamp. The metal enclosure of the BDA is connected to ground. A 9-pin D-Sub connector provides failure alarm output contacts (see diagram next page) as well as an optional 12 VDC (250mA) auxiliary output. The RF connections are made via two type “N” female connectors. The RF connector labeled “BASE” must be connected to the antenna pointing towards the base station. The RF connection labeled “MOBILE” must be connected to the antenna facing the area to be covered by the BDA. The RF connections must be made through cables with characteristic impedance of 50 ohms. The isolation between the base station antenna and the mobile antenna should be at least 12 dB higher than the BDA gain. Isolation less than this value can cause gain ripple across the band. Isolation equal to or less than the BDA gain will give rise to oscillations which will saturate the amplifiers and possibly cause damage to the BDA. Page 6 N.O. COM. N.C. Figure 2 BDA Mechanical Outline Figure 2a (Relay Shown in Non -Alarm Condition) The alarm monitors current of both uplink and downlink amplifiers. An alarm condition will occur if either uplink or downlink amplifiers are over or under its current tolerance. Page 7 Conditions for Optional Alarm IN BUILDING REPEATER BDA INSTALLATION DO NOT APPLY A.C. POWER TO THE BDA UNTIL CABLES ARE CONNECTED TO BOTH PORTS OF THE BDA AND THE ANTENNAS. 1. Mount the BDA on the wall with the RF connectors pointing DOWN. Using appropriate screws and anchors, attach the BDA to the wall at the four mounting holes on the side flanges. 2. Ensure that the isolation between the donor antenna and the service antenna is at least 12 dB greater than the BDA gain. (Use the higher of the Uplink and Downlink gains reported on the BDA test data sheet). 3. Connect the cable from the donor antenna to the BDA connector labeled “BASE” and the cable from the service antennas to the BDA connector labeled “MOBILE”. 4. Open the adjustment access panels on the sides of the BDA and verify that both of the attenuator’s are positioned to its maximum setting (30 dB). Close the panels. 5. Connect the AC power cord to the BDA and then to the power source. Verify that the “Power ON” lamp is illuminated. Installation of the BDA is now complete. To adjust the gain controls to suit the specific signal environment, refer to the next section of the manual. Note : For repeat installations of existing equipment, make sure the attenuation is positioned to its maximum setting (30 dB). After verificatio…
