Q8KPS825W60RBi-Directional Amplifier

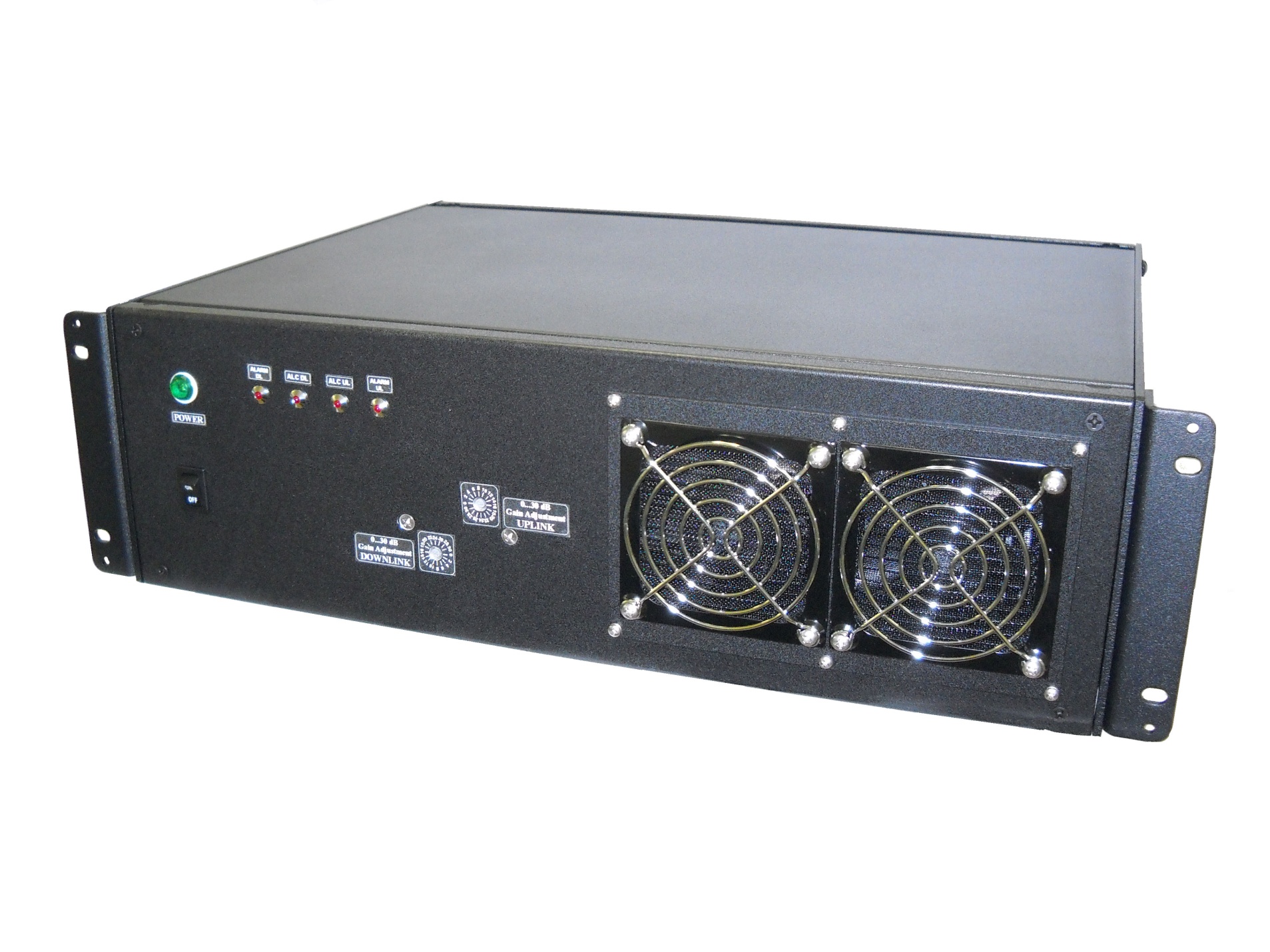

INSTALLATION AND OPERATING MANUAL FOR RHBDA-PS8-0.1/25W-55-A (R) RACK BI-DIRECTIONAL AMPLIFIER TABLE OF CONTENTS PARAGRAPH PAGE NO RHBDA OVERVIEW 3 RHBDA BLOCK DIAGRAM DESCRIPTION 3 OPTIONAL EXTERNAL FILTER (Figure 1) 3 RHBDA BLOCK DIAGRAM DRAWING (Figure 2) 4 ELECTRICAL SPECIFICATIONS 5 MECHANICAL CONNECTIONS 6 ENVIRONMENTAL CONDITIONS 6 RHBDA CONNECTIONS 6 MECHANICAL OUTLINE DRAWING (Figure 3) 7 OPTIONAL ALARM CONDITIONS (Figure 3a) 7 RHBDA INSTALLATION 8 RHBDA OPERATION 9 FRONT PANEL ADJUSTMENT (Figure 4) 10 BACK PANEL CONNECTORS (Figure 4a) 10 RF EXPOSURE WARNING 11 DIAGNOSTICS GUIDE 11 Page 2 RHBDA OVERVIEW: The RHBDA assembly enhances the coverage area of radio communications in buildings and RF shielded environments. The unit features low noise figure and wide dynamic range. It is based on a duplexed path configuration with sharp out of band attenuation allowing improved isolation between the receiving and transmitting paths. RHBDA BLOCK DIAGRAM DESCRIPTION : Refer to Figure 1 for the following discussion. The RHBDA Downlink path receives RF signals from a Source, amplifies the RF signal, and transmits the signal to the subscriber. The RHBDA Uplink path receives RF signals from the subscriber then amplifies the RF Signal, and sends it to the Base. The Uplink and Downlink occupy two distinct frequency bands. The frequency bands are as follows: 806-824 MHz for the Uplink and 851-869 MHz for the Downlink. Two Filters and one diplexer isolate the Uplink and Downlink paths. A selectable Automatic Level Control (ALC) allows for output power limiting. A variable step attenuator gives 0 – 30 dB of attenuation in 2 dB steps on the Rack Uplink and Rack Downlink paths. The use of these controls is covered in the “OPERATION” section, later in this document. Page 3 Figure 2 1. 2. 3. 4. 5. 6. RHBDA BLOCK DIAGRAM 1. Downlink Filter - has a narrow bandpass and high selectivity. 2. Downlink LNA & Attenuator – 0-30 dB in 2-dB steps of attenuation on the Downlink input signal with a pre-amplifier that has 20 dB gain. 3. Downlink HPA – is a High power amplifier with an ALC circuit which offers 40dB Gain. 4. Uplink Filter - has a narrow bandpass and high selectivity. 5. Uplink LPA – is a Low power amplifier consisting of two modules, with an ALC circuit which offers 60dB Gain. 6. Mobile Diplexer - has low bandpass insertion loss and high selectivity. Page 4 ELECTRICAL SPECIFICATIONS: Frequency Range Uplink : 806-824 MHz Downlink : 851-869 MHz System Pass band Gain @ min attenuation Downlink : 60 dB (Typ.) Uplink : 60 dB (Typ.) Variable Step Attenuator Range (2-dB steps) Uplink : 0-30 dB Downlink : 0-30 dB Pass band Ripple : ±1.5 dB (Typ.) Noise Figure @+25 °C at max gain Uplink : 5.0 dB (Max.) 3rd Order Intercept point Downlink : +55 dBm (Typ.) *Output Power @ 1dB Compression Downlink : +44 dBm (Typ.) *Output power per Carrier Uplink Single Carrier : +5.0 dBm Downlink Single Carrier : +36.0 dBm Input/ Output Impedance : 50 Ohms VSWR (Input/Output) : 1.5: 1 (Max.) Power Supply : 110VAC/1.5 Amp : 220VAC/0.75 Amp : 50 to 60 Hz *The Manufacturer's rated output power of this equipment is for single carrier operation. For situations when multiple carrier signals are present, the rating would have to be reduced by minimum of 3.5 dB, especially where the output signal is re-radiated and can cause interference to adjacent band users. This power reduction is to be by means of input power or gain reduction and not by an attenuator at the output of the device. (See above table for multiple carrier signal output power ratings) Page 5 MECHANICAL SPECIFICATIONS: Size : 19.0 x 13.0 x 5.25 inch : (482.2 x 330.2 x 133 mm) RF Connectors : N-Type Female Weight : 23.0 Lbs. (10.45 kg.) approx. ENVIRONMENTAL CONDITIONS: The unit is designed for indoor applications: Operating temperature: - 20°C to + 55°C Storage temperature: - 50°C to + 90°C RHBDA CONNECTIONS The RHBDA Rack AC power is accepted through a standard 3-wire male plug (IEC- 320) with phase, neutral and ground leads (See Figure 3). The AC power is wired to a high efficiency DC switching power supply which is CE and UL approved. The Rack power supply runs the amplifiers, the Power ON lamp, and Fiber Optic Transceiver. The metal enclosure of the RHBDA is connected to ground. An optional 9-pin D-Sub connector provides failure alarm output contacts (see diagram next page) as well as an optional 12 VDC (250mA) auxiliary output. The RF connections are made via three type “N” female connector on the back panel (See Figure 3). The RF connection on the Rack Unit labeled “MOBILE” must be connected to the antenna facing the area to be covered by the RHBDA. The RF connector labeled “UL OUT” must be connected to the RF Source Signal going to the Base. The RF connection labeled “MOBILE DL” must be connected to the RF Source Signal from the Base. The RF connections must be made through cables with characteristic impedance of 50 ohms. The isolation between the base station antenna and the mobile antenna should be at least 12 dB higher than the RHBDA gain. Isolation less than this value can cause gain ripple across the band. Isolation equal to or less than the RHBDA gain will give rise to oscillations which will saturate the amplifiers and possibly cause damage to the RHBDA. Page 6 Figure 3 RHBDA Mechanical Outline UPLINK Gain Adjustment 0...30 dB Gain Adjustment DOWNLINK 0...30 dB GND BAND D RACK BDA POWER BASE-IN MOBILE BASE-OUT Figure 3a Conditions for Optional Alarm The alarm monitors current of both uplink and downlink amplifiers. An alarm condition will occur if either uplink or downlink amplifiers are over or under its current tolerance or if there is no DC power present. (Relay Shown in Non-Alarm Condition) Page 7 RHBDA INSTALLATION DO NOT APPLY A.C. POWER TO THE RHBDA UNTIL CABLES ARE CONNECTED TO BOTH PORTS OF THE RHBDA AND THE ANTENNAS. 1. Side the RHBDA into the 19” accessible rack. Mount the RHBDA to the rack. Using appropriate screws, attach the RHBDA to the rack at…

Text truncated - open the document above for the full version.

G-Way Microwave / G-Wave 38 Leuning Street South Hackensack, NJ 07606 Tel 201-343-6388 Fax 201-343-6390 E-mail [email protected] Website: www.gwaverf.com August 2, 2012 Federal Communications Commission Office of Engineering and Technology 7435 Oakland Mills Rd. Columbia, MD 21046 Subject: Request for Confidentiality Dear Sir or Madam: G-Way Microwave / G-Wave respectfully requests that the schematic diagrams, block diagram s, circuit d escriptions , and part lists submitted with the application for certification under FCC ID Q8KPS825W60R be withheld from public disclosure. This request is made under the provisions of Section 0.457 and 0.459. Thi s product has been developed at considerable expense, and disclosure of this information would place G- Way Microwave / G-Wave at a competitive disadvantage. Thank you for your attention to this matter. Sincerely yours, G-Way Microwave / G-Wave Greg David President 38 Leuning Street ƒ South Hackensack, NJ 07606 ƒ Tel: (201) 343-6388 ƒ Fax: (201) 343-6390 www.gwaverf.com

LNA/Pre-Amp LNA/Pre-Amp

BDA INSTALLATION PROCEDURE DO NOT APPLY A.C. POWER TO THE RHBDA UNTIL CABLES ARE CONNECTED TO BOTH PORTS OF THE RHBDA AND THE ANTENNAS. 1. Side the RHBDA into the 19” accessible rack. Mount the RHBDA to the rack. Using appropriate screws, attach the RHBDA to the rack at the four mounting holes on the Front panel. 2. Ensure that the isolation between the donor antenna and the service antenna is at least 12 dB greater than the RHBDA gain. (Use the higher of the Uplink and Downlink gains reported on the RHBDA test data sheet). 3. Connect the cable from the service antennas to the RHBDA connector labeled “MOBILE” and connect the cable going to the Base RF Signal Source to the RHBDA connector labeled “UL OUT”, and the cable coming from the Base RF Signal Source to the RHBDA connector labeled “DL IN”. 4. Verify that all attenuation settings are positioned at 30 dB. 5. Connect the AC power cord to the Rack Unit. Turn the power switch to the “ON” position. Verify that each Green “Power ON” lamp, Laser alarms LED’s are illuminated. Installation of the Rack RHBDA’s is now complete. To adjust the gain controls to suit the specific signal environment, refer to the next section of the manual. Note: For repeat installations of existing equipment, make sure the attenuation is positioned to its maximum setting (30 dB). After verification of the attenuation, follow the above steps starting with step 1. Page 1 RHBDA OPERATION Refer to figure 1 for adjustment access location and label. Variable Step Attenuator The RHBDA’s gain can be reduced on the Rack Unit by up to 30 dB on the Uplink and Downlink, in 2 dB steps using the variable step attenuators. Gain adjustment is made with rotary switches accessible via the Front panel on the RHBDA enclosure. Arrows on the shafts of these switches point to the value of attenuation selected. RHBDA gain can be determined by subtracting the attenuation value from the gain reported on the RHBDA Test Data Sheet for that side of the unit. The attenuators are labeled for Uplink and Downlink. ALC (Automatic Level Control) To minimize intermodulation products, each amplifier in the RHBDA contains an ALC feedback loop. The ALC circuit senses the output power and limits it to the factory preset level of +5 dBm for the Uplink and +36 dBm for the Downlink. Two red indicator lamps are located on the Front panel which illuminate when the output power exceeds the ALC set point. Two red indicator lamps are located on the Front panel which illuminate when the output power exceeds the ALC set point. To establish proper operating gain on the Rack Unit, start with the Downlink. Observe the red indicator lamp on the front panel. Units are shipping with maximum attenuation. Decrease attenuation one step at a time until the lamp is lit. Then, using the Downlink step attenuator, increase the attenuation until the lamp goes off. The Uplink ALC function is to avoid overloading the fiber optic transceiver. Setting the attenuation of the Uplink will depend on minimum and maximum distance from the mobile to sever antennas. The level indicator is accurate to +/- 0.4 dB of the ALC set point. Operation of the RHBDA-PS8-0.1/25W-55-A at maximum gain (Minimum Attenuation) with greater than -10 dBm average power incident on the MOBILE port may cause damage to the RHBDA. Page 2 Figure 1 Rack Front Panel Adjustment Page 3 Downlink ALC & Alarm LED’s Uplink ALC & Alarm LED’s Power Switch Downlink Attenuator Uplink Attenuator 0 3 0 4 2 1 6 6 1 2 1 0 1 4 1 8 2 0 2 2 2 6 8 2 8 0 3 0 16 6 4 2 1 2 1 0 1 4 1 8 2 0 2 2 2 4 2 6 2 8

Maximum Permissible Exposure (MPE) Compliance BDA-PS8-0.1/25W-55-A FCC ID Q8KPS825W60R At the maximum operating frequency of 869MHz (Downlink) and 824MHz (Uplink) the MPE limit for the General Population/Uncontrolled Exposure is as follows: Downlink = 0.58mW/cm2 (f/1500mW/cm2) and Uplink = 0.55mW/cm2 (f/1500mW/cm2). The analysis is provided below. Power Density (S) = EIRP/(4πR²), Therefore, R≥√EIRP/S x 4π From the above calculations, with: Downlink Maximum Antenna Gain = 1dBi Uplink Maximum Antenna Gain = 15dBi Downlink Maximum output power = 36dBm Uplink Maximum output power = 5dBm S = 0.58 mW/cm2 S = 0.55 mW/cm2 EIRP = 37dBm or 5.0 W (worst case) EIRP = 20dBm or 0.1 W (worst case) Therefore, R= 26.19cm (Downlink) R= 3.8cm (Uplink) These are the minimum safe distances for the general population for each antenna.

FCC XXX.doc - Date: June, 2011 www.nemko.com Compliance test report ID 217190-1TRFWL Date of issue August 15, 2012 FCC 47 CFR Part 90, Boosters Private Land Mobile Radio Service Applicant G-Way Microwave Product Remote Unit-Dual RF Bi-Directional Amplifier Model RHBDA-PS8-0.1/25W-55-A FCC ID Q8KPS825W60R Nemko Canada Inc., a testing laboratory, is accredited by the Standards Council of Canada. The tests included in this report are within the scope of this accreditation SCC Accredited LAB LAB Accrédité CCN TM Report reference ID: 217190-1TRFWL Page 2 of 32 Test location Nemko Canada Inc. 303 River Road Ottawa, ON, K1V 1H2 Canada Test site FCC ID: 176392 (3 m semi anechoic chamber) Telephone +1 613 737 9680 Facsimile +1 613 737 9691 Toll free +1 800 563 6336 Website www.nemko.com Tested by Kevin Rose, Wireless/EMC Specialist Reviewed by August 15, 2012 Andrey Adelberg, Senior Wireless/EMC Specialist Date Limits of responsibility Note that the results contained in this report relate only to the items tested and were obtained in the period between the date of initial receipt of samples and the date of issue of the report. This test report has been completed in accordance with the requirements of ISO/IEC 17025. All results contain in this report are within Nemko Canada’s ISO/IEC 17025 accreditation. Copyright notification Nemko Canada Inc. authorizes the applicant to reproduce this report provided it is reproduced in its entirety and for use by the company’s employees only. Any use which a third party makes of this report, or any reliance on or decisions to be made based on it, are the responsibility of such third parties. Nemko Canada Inc. accepts no responsibility for damages, if any, suffered by any third party as a result of decisions made or actions based on this report. © Nemko Canada Inc. Report reference ID: 217190-1TRFWL Page 3 of 32 Table of contents Section 1: Report summary ......................................................................................................................................................... 4 Section 2: Summary of test results ............................................................................................................................................. 5 Section 3: Equipment under test (EUT) details .......................................................................................................................... 6 Section 4: Engineering considerations ....................................................................................................................................... 7 Section 5: Test conditions ........................................................................................................................................................... 8 Section 6: Measurement uncertainty .......................................................................................................................................... 9 Section 7: Test equipment ......................................................................................................................................................... 10 Section 8: Testing data ............................................................................................................................................................... 11 8.1 Clause 2-11-04/EAB/RF Occupied bandwidth ........................................................................................................... 11 8.2 Clause 90.205 Output power ..................................................................................................................................... 15 8.3 Clause 2-11-04/EAB/RF Out of band rejection .......................................................................................................... 16 8.4 Clause 90.210 Conducted and radiated spurious emissions ..................................................................................... 17 8.5 Intermodulation .......................................................................................................................................................... 26 Section 9: Block diagrams of test set-ups ................................................................................................................................ 28 Section 10: EUT photos .............................................................................................................................................................. 29 Section 1 Report summary Report reference ID: 217190-1TRFWL Page 4 of 32 Section 1: Report summary 1.1 Applicant and manufacturer G-Way Microwave 38 Leuning Street South Hackensack NJ 07606 United States 1.2 Test specifications FCC 47 CFR 90, Boosters Private Land Mobile Radio Services 1.3 Statement of compliance In the configuration tested the EUT was found compliant. Testing was completed against all relevant requirements of the test standard. Results obtained indicate that the product under test complies in full with the requirements tested. The test results relate only to the items tested. See “Summary of test results” for full details. 1.4 Exclusions None 1.5 Test report revision history Revision # Details of changes made to test report TRF Original report issued Section 2: Summary of test results Report reference ID: 217190-1TRFWL Page 5 of 32 Section 2: Summary of test results 2.1 FCC Part 90 test results Part Test description Verdict 90.219 Output power Pass 90.210 Conducted and radiated spurious emissions Pass 90.213 Frequency stability Not applicable 90.219 Use of boosters Pass 2-11-04/EAB/RF Occupied bandwidth Pass 2-11-04/EAB/RF Out of band rejection Pass Notes: The EUT doesn’t change the frequency. Section 3 Equipment under test (EUT) details Report reference ID: 217190-1TRFWL Page 6 of 32 Section 3: Equipment under test (EUT) details 3.1 Sample information Receipt date August 3, 2012 Nemko sample ID number 1 3.2 EUT information Product name G-Wave PBS Booster Model R…

Text truncated - open the document above for the full version.
