Q9420041101Neon CD Clock Radio

FCC ID: Q9420041101 Ophoto1 Ophoto2 FCC ID: Q9420041101 Ophoto3 Ophoto4 FCC ID: Q9420041101 Ophoto5 Ophoto6

The location of Label

FCC ID: Q9420041101 Iphoto1 Iphoto2 FCC ID: Q9420041101 Iphoto3 Iphoto4 FCC ID: Q9420041101 Iphoto5 Iphoto6 FCC ID: Q9420041101 Iphoto7 Iphoto8 FCC ID: Q9420041101 Iphoto9 Iphoto10 FCC ID: Q9420041101 Iphoto11 Iphoto12

• The test results reported in this report shall refer only to the sample actually tested and shall not refer or be deemed to refer to bulk from which such a sample may be said to have been obtained. • This report shall not be reproduced except in full without prior authorization from Intertek Testing Services Hong Kong Limited. • The evaluation data of the report will be kept for 3 years from the date of issuance. FCC ID: Q9420041101 Intertek Testing Services Hong Kong Ltd. 2/F., Garment Centre, 576 Castle Peak Road, Kowloon, Hong Kong. Tel: (852) 2173 8888 Fax: (852) 2785 5487 Website: www.hk.intertek-etlsemko.com Songwave Electronics Co. Application For Certification (FCC ID: Q9420041101) RF Lighting Device Sample Description : Neon CD Clock Radio Model : TBCDACR We hereby certify that the sample of the above item is considered to comply with the requirements of FCC Part 18, Subpart C for RF lighting devices, mention 47 CFR [10-1-2002] 0419833 BC/ec 11 November, 2004 INTERTEK TESTING SERVICES FCC ID: Q9420041101 i LIST OF EXHIBITS INTRODUCTION EXHIBIT 1: General Description EXHIBIT 2: System Test Configuration EXHIBIT 3: Emission Results EXHIBIT 4: Equipment Photographs EXHIBIT 5: Product Labelling EXHIBIT 6: Technical Specifications EXHIBIT 7: Instruction Manual INTERTEK TESTING SERVICES FCC ID: Q9420041101 ii MEASUREMENT/TECHNICAL REPORT Songwave Electronics Co. - MODEL: TBCDACR FCC ID: Q9420041101 11 November, 2004 This report concerns (check one:) Original Grant X Class II Change Equipment Type: RF Lighting Deferred grant requested per 47 CFR 0.457(d)(1)(ii)? Yes No X If yes, defer until: date Company Name agrees to notify the Commission by: date of the intended date of announcement of the product so that the grant can be issued on that date. Transition Rules Request per 18.123? Yes No X If no, assumed Part 18 for RF lighting device - the new 47 CFR Part 18 [10-1-2002 Edition] provision. Report prepared by: Billy Chow Intertek Testing Services 2/F., Garment Center, 576, Castle Peak Road, HONG KONG Phone: 852-2173-8491 Fax: 852-2742-6487 INTERTEK TESTING SERVICES FCC ID: Q9420041101 iii Table of Contents 1.0 General Description.............................................................................................................2 1.1 Product Description..........................................................................................................2 1.2 Related Submittal(s) Grants............................................................................................2 1.3 Test Methodology.............................................................................................................3 1.4 Test Facility.......................................................................................................................3 1.5 Equipment List..................................................................................................................4 2.0 System Test Configuration................................................................................................6 2.1 Justification........................................................................................................................6 2.2 EUT Exercising Software.................................................................................................6 2.3 Special Accessories.........................................................................................................6 2.4 Equipment Modification....................................................................................................7 2.5 Support Equipment List and Description........................................................................7 3.0 Emission Results..................................................................................................................9 3.1 Line Conducted Configuration Photograph (cont’d)...................................................10 3.2 Line Conducted Emission Data.....................................................................................11 4.0 Equipment Photographs...................................................................................................13 5.0 Product Labelling...............................................................................................................15 6.0 Technical Specifications...................................................................................................17 7.0 Instruction Manual.............................................................................................................19 INTERTEK TESTING SERVICES FCC ID: Q9420041101 iv List of attached file Exhibit type File Description filename Test Report Test Report report.pdf Operation Description Technical Description descri.pdf Test Setup Photo Conducted Emission conducted photos.pdf Test Report Conducted Emission Test Result conducted.pdf External Photo External Photo external photos.pdf Internal Photo Internal Photo internal photos.pdf Block Diagram Block Diagram block.pdf Schematics Circuit Diagram circuit.pdf ID Label/Location Label Artwork and Location label.pdf User Manual User Manual manual.pdf INTERTEK TESTING SERVICES FCC ID: Q9420041101 1 EXHIBIT 1 GENERAL DESCRIPTION INTERTEK TESTING SERVICES FCC ID: Q9420041101 2 1.0 General Description 1.1 Product Description The equipment under test is an Neon CD Clock Radio. The unit contain CD player, AM/FM radio, clock and neon light. There are 16 buttons, 4 indicators and 1 AC line cord on the unit. The operation frequency of neon light part is 25kHz. CD player and Radio: For the key ‘OFF/CD/Radio’, slide to off position for power off the unit. Slide to CD position for CD function or slide to radio position for radio listening. Press the open key to open the CD door. Another function keys are (play/ pause, fast rewind, fast forward, stop, shuffle, repeat and volume control). Tune the radio station by using the tuning control button. There are 4 indicators pla…

Text truncated - open the document above for the full version.

Report No.:0419833 Ctrl No.:N/A PAGE 1 Tested By:Hong, Report No.:0419833 Scan Settings (1 Range) |--------- Frequencies -----------||----------- Receiver Settings ------------| Start Stop Step IF BW Detector M-Time Atten Preamp OpRge 450k 30M 5k 10k PK 20ms AUTO LN OFF 60dB Final Measurement: x QP Meas Time: 1 s Subranges: 16 Acc Margin: 20dB Transducer No. Start Stop Name 21 9k 30M EW0698 0 10 20 30 40 50 60 70 80 90 dBuV 100 0.4530 MHz 110 FCC18C Report No.:0419833 Ctrl No.:N/A Tested By:Hong, Report No.:0419833 Scan Settings (1 Range) |--------- Frequencies -----------||----------- Receiver Settings ------------| Start Stop Step IF BW Detector M-Time Atten Preamp OpRge 450k 30M 5k 10k PK 20ms AUTO LN OFF 60dB Final Measurement Results: Frequency QP Level QP Limit MHz dBuV dBuV 0.49000 36.2 48.0 0.61000 33.1 48.0 0.83000 29.0 48.0 1.02000 27.7 48.0 * limit exceeded

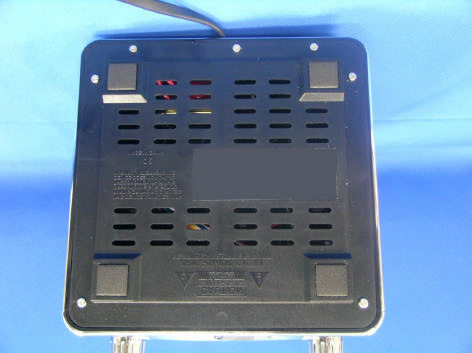

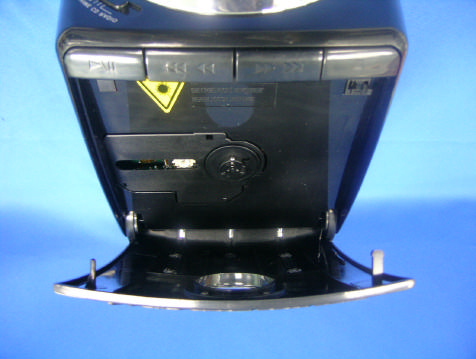

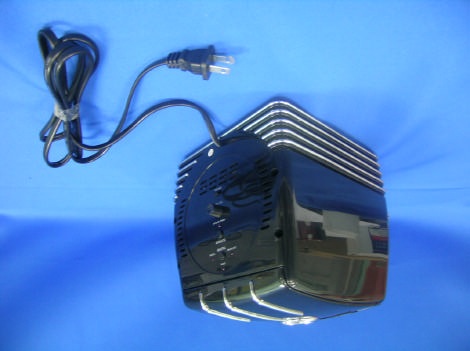

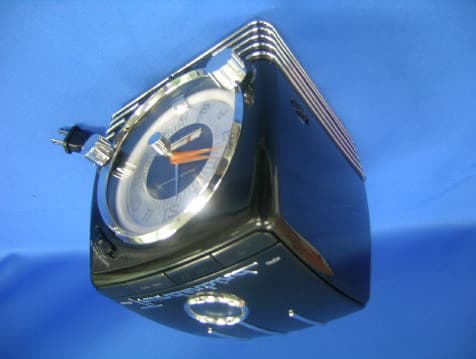

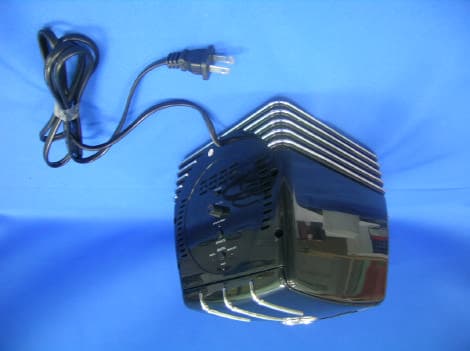

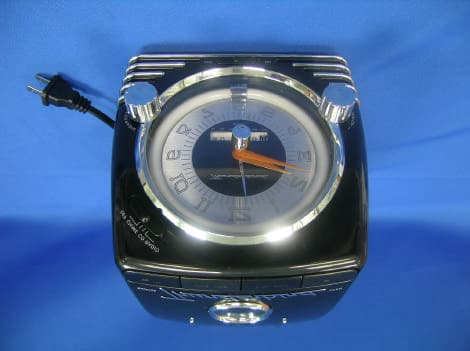

INTERTEK TESTING SERVICES Front View Back View INTERTEK TESTING SERVICES Side View
