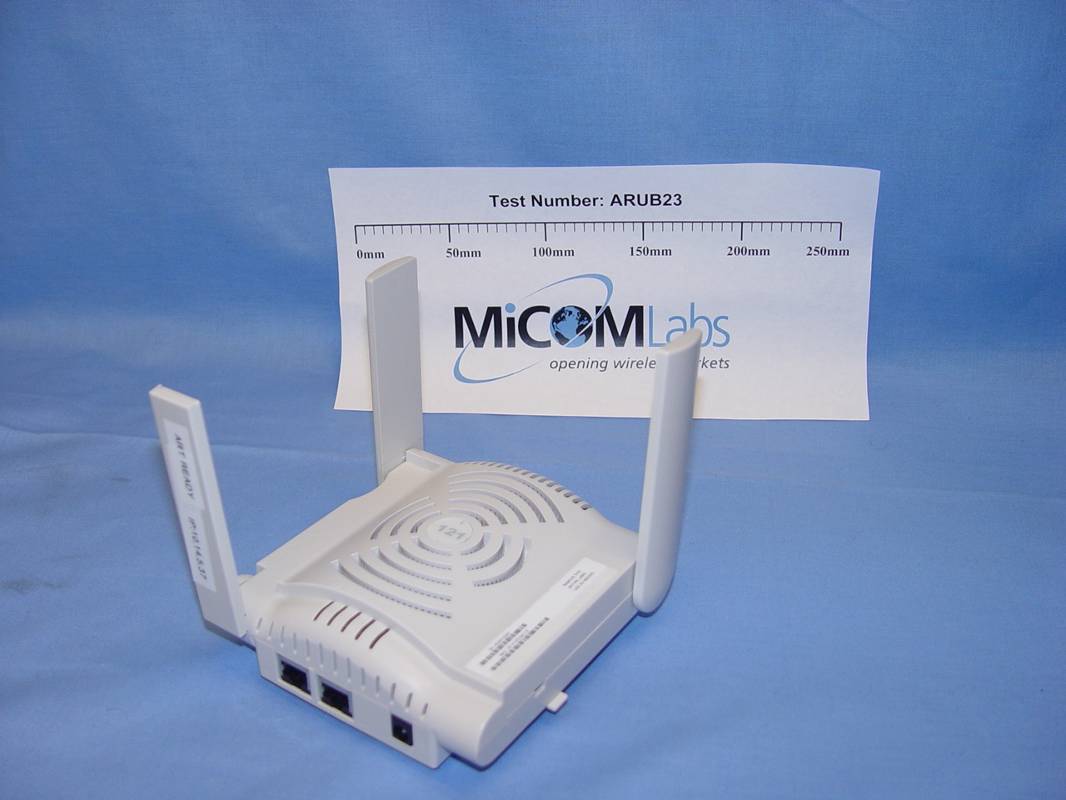

MiCOM Labs, 440 Boulder Court, Suite 200, Pleasanton, CA 94566 Tel: +1 (925) 462-0304, Fax: +1 (925) 462-0306, Web: www.micomlabs.com the wireless lab Mai 28, 2008 ARUB23 –802.11a/b/g/n Wireless Access Point AP120 and AP121 Aruba Networks External Photographs AP120 EUT Front Page 2 of 4 the wireless lab AP120 EUT Back Page 3 of 4 the wireless lab AP121 EUT Front Page 4 of 4 the wireless lab AP121 EUT Back

ARUBA NETWORKS, INC. NOTES: UNLESS OTHERWISE SPECIFIED 1. MATERIAL: WHITE MYLAR, GLOSSY. ADHESIVE BACKED 2. PRINT: GRAPHICS & TEXT: 100% BLACK 3 LABEL PERIPHERY, NO PRINTED BORDER ARUBA NETWORKS, INC. MODEL: AP120 5 Vdc, 4A FCC ID: Q9DAP120121SDR IC: 4675A-AP120121 2.06” 1.06" TITLE: LBL,AGENCY, AP120 DWG NO: 4010504 0681 Rev 01 N19592 UL2043 E234335 I.T.E.

ARUBA NETWORKS, INC. NOTES: UNLESS OTHERWISE SPECIFIED 1. MATERIAL: WHITE MYLAR, GLOSSY. ADHESIVE BACKED 2. PRINT: GRAPHICS & TEXT: 100% BLACK 3 LABEL PERIPHERY, NO PRINTED BORDER ARUBA NETWORKS, INC. MODEL: AP121 5 Vdc, 4A FCC ID: Q9DAP120121SDR IC: 4675A-AP120121 2.06” 1.06" TITLE: LBL,AGENCY, AP121 DWG NO: 4010505 0681 Rev 01 N19592 UL2043 E234335 I.T.E.

MiCOM Labs, 440 Boulder Court, Suite 200, Pleasanton, CA 94566 Tel: +1 (925) 462-0304, Fax: +1 (925) 462-0306, Web: www.micomlabs.com the wireless lab May 28, 2008 ARUB23 –802.11a/b/g/n Wireless Access Point AP120 and AP121 Aruba Networks AP120 Label Location Page 2 of 2 the wireless lab AP121 Label Location

MiCOM Labs, 440 Boulder Court, Suite 200, Pleasanton, CA 94566 Tel: +1 (925) 462-0304, Fax: +1 (925) 462-0306, Web: www.micomlabs.com the wireless lab May 28, 2008 ARUB23 – 802.11a/b/g/n Wireless Access Point AP120 and AP121 Aruba Networks Internal Photographs AP120 Motherboard Bottom Page 2 of 8 the wireless lab AP120 Motherboard Top Page 3 of 8 the wireless lab AP120 RF Assembly Bottom Page 4 of 8 the wireless lab AP120 RF Assembly Top Page 5 of 8 the wireless lab AP121 Motherboard Bottom Page 6 of 8 the wireless lab AP121 Motherboard Top Page 7 of 8 the wireless lab AP121 RF Assembly Bottom Page 8 of 8 the wireless lab AP121 RF Assembly Top

440 Boulder Court, Suite 200, Pleasanton, California 94566, USA Tel.: +1 925 462 0304, Fax: +1 925 462 0306 www.micomlabs.com May 28, 2008 Maximum Permissible Exposure FCC, Part 15 Subpart C §15.407(f) Industry Canada RSS-Gen §5.5 Calculations for Maximum Permissible Exposure Levels Power Density = Pd (mW/cm 2 ) = EIRP/(4πd 2 ) EIRP = P * G * 3 P = Peak output power (mW) G = Antenna numeric gain (numeric) d = Separation distance (cm) Numeric Gain = 10 ^ (G (dBi)/10) The Aruba AP-120/121 has three transmitters. The peak power in the table below is calculated by assuming a worst case scenario where the three transmitters are operating simultaneously in the same band. The Peak Power in mW is calculated by taking the maximum conducted power measured in each band and multiplying by 3. Because the EUT belongs to the General Population/Uncontrolled Exposure the limit of power density is 1.0 mW/cm 2 Freq. Band (MHz) Antenna Gain (dBi) Numeric Gain (numeric) Peak Output Power (dBm) Peak Output Power (mW) Calculated Safe Distance @ 1mW/cm 2 Limit(cm) Minimum Separation Distance (cm) 5150 - 5250 14.0 25.12 +14.93 93.35 13.66 20 5250 - 5350 14.0 25.12 +14.52 84.95 13.03 20 5470 - 5725 14.0 25.12 +15.95 118.07 15.37 20 Note: for mobile or fixed location transmitters the minimum separation distance is 20cm, even if calculations indicate the MPE distance to be less. Specification Maximum Permissible Exposure Limits FCC §1.1310 Limit = 1mW / cm 2 from 1.310 Table 1 RSS-Gen §5.5 Before equipment certification is granted, the application requirements of RSS-102 shall be met.

COVER PAGE Test of Aruba AP120, AP121 802.11a/b/g/n AP To: FCC 47 CFR Part 15.407 & IC RSS-210 Test Report Serial No.: ARUB23-A4D Rev A This test report may be reproduced in full only. The document may only be updated by MiCOM Labs personnel. Any changes will be noted in the Document History section of the report. MiCOM Labs is an ISO 17025 Accredited Testing Laboratory CERTIFICATE #2381.01 TITLE PAGE TEST REPORT FROM Test of Aruba AP120, AP121 802.11a/b/g/n AP to To: FCC 47 CFR Part 15.407 & IC RSS-210 Test Report Serial No.: ARUB23-A4D Rev A Note: this report contains data with regard to the 5,150 to 5,350 MHz, and 5,470 to 5,725 MHz operational modes of the Aruba Wireless Access Point. 2.4 and 5.8 GHz test data are reported in MiCOM Labs test report ARUB23-A2. This report supersedes NONE Applicant: Aruba Networks 1322 Crossman Avenue Sunnyvale California 94089, USA Product Function: 802.11a/b/g/n Wireless Access Point Copy No: pdf Issue Date: 2nd June 2008 This Test Report is Issued Under the Authority of; MiCOM Labs, Inc. 440 Boulder Court, Suite 200 Pleasanton, CA 94566 USA Phone: +1 (925) 462-0304 Fax: +1 (925) 462-0306 www.micomlabs.com Title: To: Serial #: Issue Date: Page: Aruba AP120, AP121 802.11a/b/g/n AP FCC 47 CFR Part 15.407 & IC RSS-210 ARUB23-A4D Rev A 2nd June 2008 3 of 293 This page has been left intentionally blank Title: To: Serial #: Issue Date: Page: Aruba AP120, AP121 802.11a/b/g/n AP FCC 47 CFR Part 15.407 & IC RSS-210 ARUB23-A4D Rev A 2nd June 2008 4 of 293 This test report may be reproduced in full only. The document may only be updated by MiCOM Labs personnel. Any changes will be noted in the Document History section of the report. MiCOM Labs, 440 Boulder Court, Suite 200, Pleasanton, CA 94566 USA, Phone: 925.462.0304, Fax: 925.462.0306, www.micomlabs.com TABLE OF CONTENTS ACCREDITATION, LISTINGS & RECOGNITION ............................................................. 6 1. TEST RESULT CERTIFICATE..................................................................................... 9 2. REFERENCES AND MEASUREMENT UNCERTAINTY......................................... 10 2.1. Normative References ............................................................................................. 10 2.2. Test and Uncertainty Procedures ............................................................................ 11 3. PRODUCT DETAILS AND TEST CONFIGURATIONS ........................................... 12 3.1. Technical Details ..................................................................................................... 12 3.2. Scope of Test Program ............................................................................................ 13 3.3. Equipment Model(s) and Serial Number(s) ............................................................. 17 3.4. Antenna Details ....................................................................................................... 17 3.5. Cabling and I/O Ports .............................................................................................. 17 3.6. Test Configurations.................................................................................................. 18 3.7. Equipment Modifications.......................................................................................... 26 3.8. Deviations from the Test Standard .......................................................................... 26 3.9. Subcontracted Testing or Third Party Data ............................................................. 26 4. TEST SUMMARY ........................................................................................................ 27 5. TEST RESULTS .......................................................................................................... 30 5.1. Device Characteristics ............................................................................................. 30 5.1.1. 26 dB and 99 % Bandwidth ........................................................................ 30 5.1.2. Transmit Output Power............................................................................... 57 5.1.3. Peak Power Spectral Density ..................................................................... 64 5.1.4. Peak Excursion Ratio ................................................................................. 91 5.1.5. Frequency Stability ................................................................................... 118 5.1.6. Maximum Permissible Exposure .............................................................. 119 5.1.7. Radiated Emissions .................................................................................. 120 5.1.8. AC Wireline Conducted Emissions (150 kHz – 30 MHz) .......................... 244 Title: To: Serial #: Issue Date: Page: Aruba AP120, AP121 802.11a/b/g/n AP FCC 47 CFR Part 15.407 & IC RSS-210 ARUB23-A4D Rev A 2nd June 2008 5 of 293 This test report may be reproduced in full only. The document may only be updated by MiCOM Labs personnel. Any changes will be noted in the Document History section of the report. MiCOM Labs, 440 Boulder Court, Suite 200, Pleasanton, CA 94566 USA, Phone: 925.462.0304, Fax: 925.462.0306, www.micomlabs.com 6. Dynamic Frequency Selection (DFS).................................................................... 248 6.1. Test Procedure and Setup ..................................................................................... 248 6.1.1. Interference Threshold values, Master or Client incorporating In-Service Monitoring................................................................................................. 248 6.1.2. DFS Response requirement values.......................................................... 248 6.1.3. Radar Test Waveforms............................................................................. 249 6.1.4. Frequency Hopping Radar Test Waveform .............................................. 252 6.1.5. Radar Waveform Cali…

Text truncated - open the document above for the full version.

Title: To: Serial #: Issue Date: Page: Aruba AP120, AP121 802.11a/b/g/n AP FCC 47 CFR Part 15.407 & IC RSS-210 ARUB23-A4D Rev A 2nd June 2008 231 of 293 This test report may be reproduced in full only. The document may only be updated by MiCOM Labs personnel. Any changes will be noted in the Document History section of the report. MiCOM Labs, 440 Boulder Court, Suite 200, Pleasanton, CA 94566 USA, Phone: 925.462.0304, Fax: 925.462.0306, www.micomlabs.com Section 5.1.6.1 Transmitter Spurious above 1 GHz identifies that emissions peaking above 54 dBμV/m emanate from the EUT and not transmitted through the antenna port. These (1 – 3.5 GHz) emissions were formally measured and characterized and are not considered when examining Receiver Radiated Spurious above 1 GHz. For example: Given receiver input reading of 51.5 dBμV; Antenna Factor of 8.5 dB; Cable Loss of 1.3 dB; Falloff Factor of 0 dB, an Amplifier Gain of 26 dB and Notch Filter Loss of 1 dB. The Field Strength of the measured emission is: FS = 51.5 + 8.5 + 1.3 - 26.0 +1 = 36.3 dBμV/m Conversion between dBμV/m (or dBμV) and μV/m (or μV) are done as: Level (dBμV/m) = 20 * Log (level (μV/m)) 40 dBμV/m = 100 μV/m 48 dBμV/m = 250 μV/m Title: To: Serial #: Issue Date: Page: Aruba AP120, AP121 802.11a/b/g/n AP FCC 47 CFR Part 15.407 & IC RSS-210 ARUB23-A4D Rev A 2nd June 2008 232 of 293 This test report may be reproduced in full only. The document may only be updated by MiCOM Labs personnel. Any changes will be noted in the Document History section of the report. MiCOM Labs, 440 Boulder Court, Suite 200, Pleasanton, CA 94566 USA, Phone: 925.462.0304, Fax: 925.462.0306, www.micomlabs.com Receiver Radiated Spurious Emissions above 1 GHz Test Setup – Integral Antenna, Channel 52, 5260 MHz, all modes Legacy, HT-20, HT-40. TABLE OF RESULTS – Freq. (MHz) Pol. (H/V) Raw Reading (dBμV/m) Correction Factor (dB) Corrected Field Strength (dBμV/m) Limit (dBμV/m) Margin (dB) Channel 5260 MHz Receiver Radiated Emissions See Section 5.1.7.1 for characterization of emissions (1 – 3.5 GHz) breaking the 54 dBμV/m limit line. No receiver emissions were observed. Title: To: Serial #: Issue Date: Page: Aruba AP120, AP121 802.11a/b/g/n AP FCC 47 CFR Part 15.407 & IC RSS-210 ARUB23-A4D Rev A 2nd June 2008 233 of 293 This test report may be reproduced in full only. The document may only be updated by MiCOM Labs personnel. Any changes will be noted in the Document History section of the report. MiCOM Labs, 440 Boulder Court, Suite 200, Pleasanton, CA 94566 USA, Phone: 925.462.0304, Fax: 925.462.0306, www.micomlabs.com Receiver Radiated Spurious Emissions above 1 GHz Test Setup – Antenna ANT-10, Channel 52, 5260 MHz, all modes Legacy, HT-20, HT-40. TABLE OF RESULTS – Freq. (MHz) Pol. (H/V) Raw Reading (dBμV/m) Correction Factor (dB) Corrected Field Strength (dBμV/m) Limit (dBμV/m) Margin (dB) Channel 5260 MHz Receiver Radiated Emissions See Section 5.1.7.1 for characterization of emissions (1 – 3.5 GHz) breaking the 54 dBμV/m limit line. No receiver emissions were observed. Title: To: Serial #: Issue Date: Page: Aruba AP120, AP121 802.11a/b/g/n AP FCC 47 CFR Part 15.407 & IC RSS-210 ARUB23-A4D Rev A 2nd June 2008 234 of 293 This test report may be reproduced in full only. The document may only be updated by MiCOM Labs personnel. Any changes will be noted in the Document History section of the report. MiCOM Labs, 440 Boulder Court, Suite 200, Pleasanton, CA 94566 USA, Phone: 925.462.0304, Fax: 925.462.0306, www.micomlabs.com Receiver Radiated Spurious Emissions above 1 GHz Test Setup – Antenna ANT-12, Channel 52, 5260 MHz, all modes Legacy, HT-20, HT-40. TABLE OF RESULTS – Freq. (MHz) Pol. (H/V) Raw Reading (dBμV/m) Correction Factor (dB) Corrected Field Strength (dBμV/m) Limit (dBμV/m) Margin (dB) Channel 5260 MHz Receiver Radiated Emissions See Section 5.1.7.1 for characterization of emissions (1 – 3.5 GHz) breaking the 54 dBμV/m limit line. No receiver emissions were observed. Title: To: Serial #: Issue Date: Page: Aruba AP120, AP121 802.11a/b/g/n AP FCC 47 CFR Part 15.407 & IC RSS-210 ARUB23-A4D Rev A 2nd June 2008 235 of 293 This test report may be reproduced in full only. The document may only be updated by MiCOM Labs personnel. Any changes will be noted in the Document History section of the report. MiCOM Labs, 440 Boulder Court, Suite 200, Pleasanton, CA 94566 USA, Phone: 925.462.0304, Fax: 925.462.0306, www.micomlabs.com Receiver Radiated Spurious Emissions above 1 GHz Test Setup – Integral Antenna, Channel 120, 5600 MHz, all modes Legacy, HT-20, HT-40. TABLE OF RESULTS – Freq. (MHz) Pol. (H/V) Raw Reading (dBμV/m) Correction Factor (dB) Corrected Field Strength (dBμV/m) Limit (dBμV/m) Margin (dB) Channel 5600 MHz Receiver Radiated Emissions See Section 5.1.7.1 for characterization of emissions (1 – 3.5 GHz) breaking the 54 dBμV/m limit line. No receiver emissions were observed. Title: To: Serial #: Issue Date: Page: Aruba AP120, AP121 802.11a/b/g/n AP FCC 47 CFR Part 15.407 & IC RSS-210 ARUB23-A4D Rev A 2nd June 2008 236 of 293 This test report may be reproduced in full only. The document may only be updated by MiCOM Labs personnel. Any changes will be noted in the Document History section of the report. MiCOM Labs, 440 Boulder Court, Suite 200, Pleasanton, CA 94566 USA, Phone: 925.462.0304, Fax: 925.462.0306, www.micomlabs.com Receiver Radiated Spurious Emissions above 1 GHz Test Setup – Antenna ANT-10, Channel 120, 5600 MHz, all modes Legacy, HT-20, HT-40. TABLE OF RESULTS – Freq. (MHz) Pol. (H/V) Raw Reading (dBμV/m) Correction Factor (dB) Corrected Field Strength (dBμV/m) Limit (dBμV/m) Margin (dB) Channel 5600 MHz Receiver Radiated Emissions See Section 5.1.7.1 for characterization of emissions (1 – 3.5 GHz) breaking the 54 dBμV/m limit line. No receiver emissions were observed. Title: To: Serial #: Issue Date: Page: Aruba AP120, AP121 802.11a/b/g/n AP FCC 47 CFR Part 15.407 & IC RSS-210 ARUB23-A4D Rev A 2nd June 2008 237 of 293 This test report may be…

Text truncated - open the document above for the full version.

MiCOM Labs, 440 Boulder Court, Suite 200, Pleasanton, CA 94566 Tel: +1 (925) 462-0304, Fax: +1 (925) 462-0306, Web: www.micomlabs.com the wireless lab May 28, 2008 ARUB23 –802.11a/b/g/n Wireless Access Point AP120 and AP121 Aruba Networks TEST SET-UP PHOTOGRAPHS General Measurement Test Set-Up Page 2 of 7 the wireless lab Radiated Emissions > 1GHz Page 3 of 7 the wireless lab Radiated Emissions < 1GHz with ac Power Converter Page 4 of 7 the wireless lab Radiated Emissions < 1GHz with POE (Power Over EtherNet) Page 5 of 7 the wireless lab AC Wireline Conducted Emissions ac/dc Converter Page 6 of 7 the wireless lab AC Wireline Conducted Emissions POE Page 7 of 7 the wireless lab General Dynamic Frequency Stability Test Setup
