Q9DAP124125Aruba AP124 and AP125 Access Point

Aruba AP-120 Series Indoor Access Point Installation Guide 0510457-02| December 20071 About the Aruba AP-120 Series Access Points The Aruba AP-120 series of wireless access points support the imminent IEEE 802.11n (currently draft 2.0) standard for high-performance WLAN. These access points use MIMO (Multiple-in, Multiple-out) technology and other high-throughput mode techniques to deliver high-performance, pre-802.11n 2.4GHz and 5GHz functionality while simultaneously supporting existing 802.11a/b/g wireless services. The AP-120 series access points are available in versions with single or dual radios and with integrated antennas or RP-SMA interfaces that support detachable antennas. The AP-120 series access points work only in conjunction with an Aruba Mobility Controller. The Aruba AP-120 series access points provide the following capabilities: zWireless transceiver zProtocol-independent networking functionality zIEEE 802.11a/b/g or 802.11n operation as a wireless access point zIEEE 802.11a/b/g or 802.11n operation as a wireless air monitor zCompatibility with IEEE 802.3af PoE as well as high power over Ethernet pre-standards (PoE + / 802.3at) zCentral management configuration, and upgrades through an Aruba Mobility Controller Figure 1 AP-120 Series Access Points Package Contents zAP-120 series access point zInstallation guide (this document) ap12_001 AP-120/124 (3 x RP-SMA interfaces for detachable antennas) AP-121/125 (3 x integrated dual-band antennas) NOTE Inform your supplier if there are any incorrect, missing, or damaged parts. If possible, retain the carton, including the original packing materials. Use these materials to repack and return the unit to the supplier if needed. 2Aruba AP-120 Series Indoor Access Point| Installation Guide Before You Begin WLAN Planning Determine how many Aruba APs are needed for your wireless network deployment and where they will be installed. You can easily accomplish this planning using Aruba’s automated RF Plan site-survey software (available separately). This process is considered WLAN or RF planning and should have been completed during the master Aruba Mobility Controller installation and configuration. In typical Aruba installations, the mobility controllers are configured and installed before the APs. For WLAN planning assistance, refer to the Indoor Access Points: Site Survey and Planning Pre- Deployment Guide and the RF Plan Installation and User Guide. Pre-Installation Network Requirements After WLAN planning is complete and the appropriate products and their placement have been determined, the Aruba Mobility Controller(s) must be installed and initial setup performed before the Aruba Access Points are deployed. For initial setup of the Mobility Controller, refer to the ArubaOS Quick Start Guide for the software version installed on your controller. Pre-Installation Checklist Before installing your AP-120 series access point, be sure that you have the following: zFor the AP-120/AP-124: External antennas as specified in the network deployment plan zCAT5 UTP cable of required length zOne of the following power sources: „IEEE 802.3af-compliant Power over Ethernet (PoE) source „Supports full functionality for AP-120/AP-121; supports reduced functionality for AP-124/AP-125 „IEEE Power Over Ethernet + (PoE+) source output at 56Volts @ 350mA „The POE source can be any power source equipment (PSE) controller or midspan PSE device „Aruba AP AC-DC adapter kit (sold separately) zAruba Mobility Controller provisioned on the network: „Layer 2/3 network connectivity to your access point „One of the following network services: zAruba Discovery Protocol (ADP) zDNS server with an “A” record zDHCP Server with vendor-specific options Summary of the Setup Process NOTE Additional mounting kits for use with the AP-120 series access points are sold separately. Contact your Aruba sales representative for details. NOTE It is important that you verify the items listed under Pre-Installation Checklist before you attempt to set up and install an AP-120 series AP. Aruba AP-120 Series Indoor Access Point| Installation Guide3 Successful setup of an AP-120 series access point consists of four tasks, which must be performed in this order: 1. Verify pre-installation connectivity. 2. Identify the specific installation location for each AP. 3. Install each AP. 4. Verify post-installation connectivity. 5. Configure each AP. Verifying Pre-Installation Connectivity Before you install APs in a network environment, make sure that the APs will be able to locate and connect to the Mobility Controller when powered on. Specifically, you must verify the following conditions: zWhen connected to the network, each AP is assigned a valid IP address zAPs are able to locate the Mobility Controller (Mobility Controller Discovery) Refer to the ArubaOS Quick Start Guide for instructions on locating and connecting to the Mobility Controller. Identifying Specific Installation Locations You can mount the AP-120 series access point on a wall or on the ceiling. Use the AP placement map generated by Aruba’s RF Plan software application to determine the proper installation location(s). Each location should be as close as possible to the center of the intended coverage area and should be free from obstructions or obvious sources of interference. These RF absorbers/reflectors/interference sources will impact RF propagation and should have been accounted for during the planning phase and adjusted for in RF plan. NOTE Aruba Networks, in compliance with governmental requirements, has designed the AP-120 series access points so that only authorized network administrators can change the settings. For more information about AP configuration, refer to the ArubaOS Quick Start Guide and Aruba OS User Guide. ! CAUTION Access points are radio transmission devices and as such are subject to governmental regulation. Network administrators responsible for the configuration and operation of access points must com…

Text truncated - open the document above for the full version.

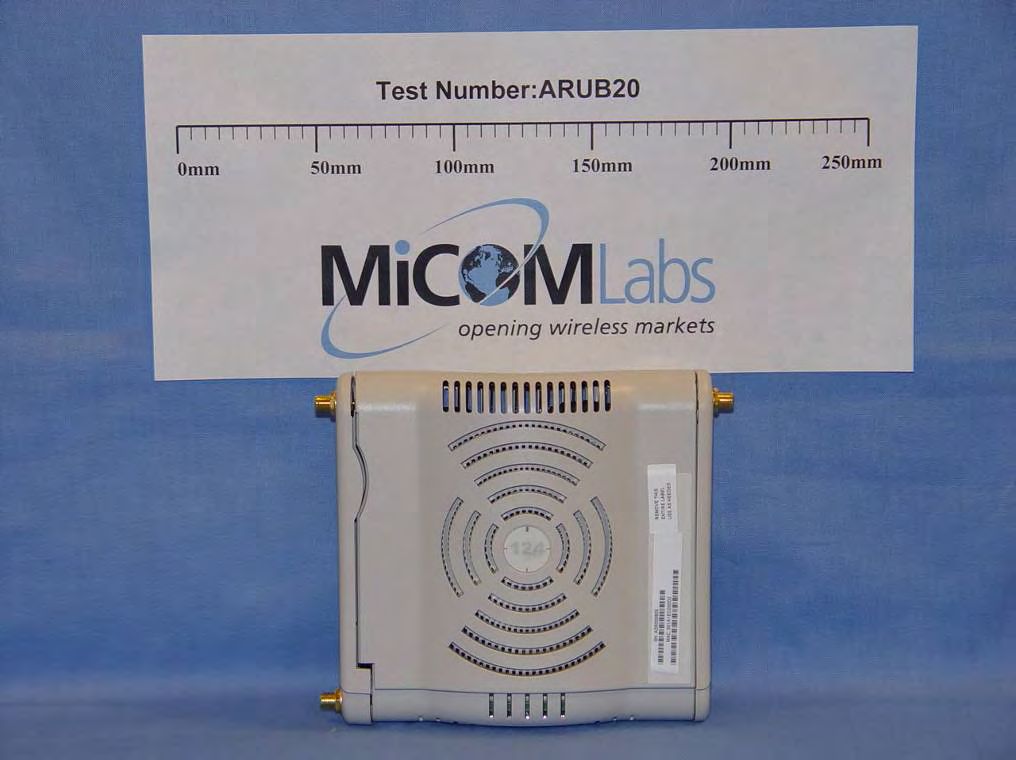

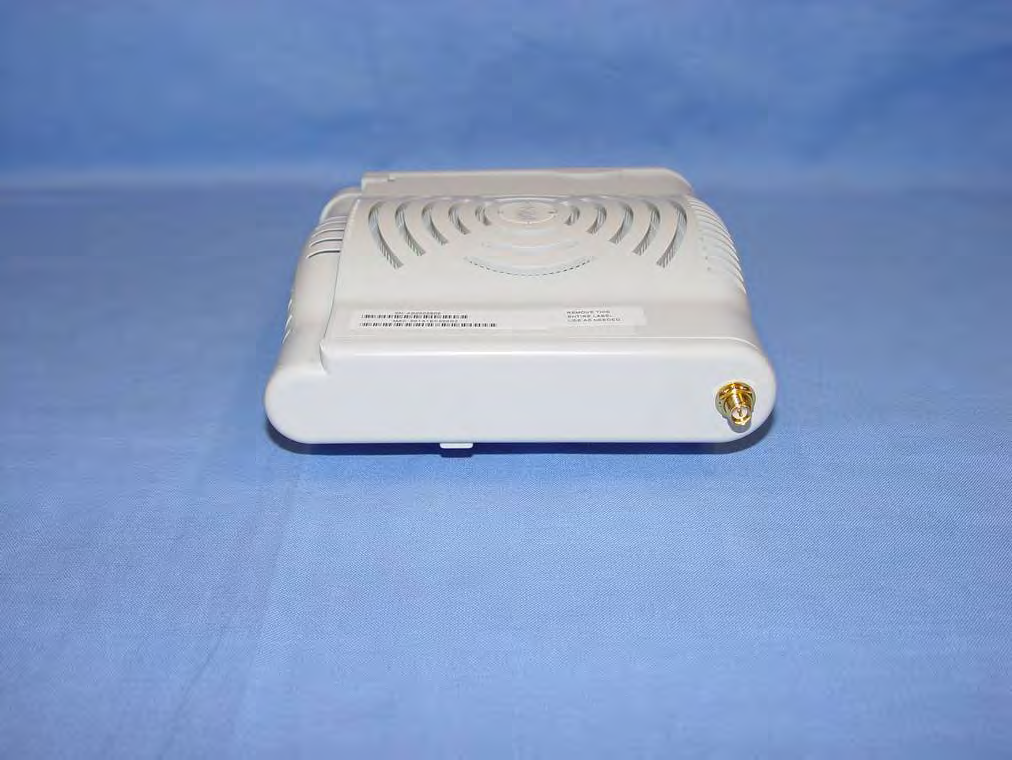

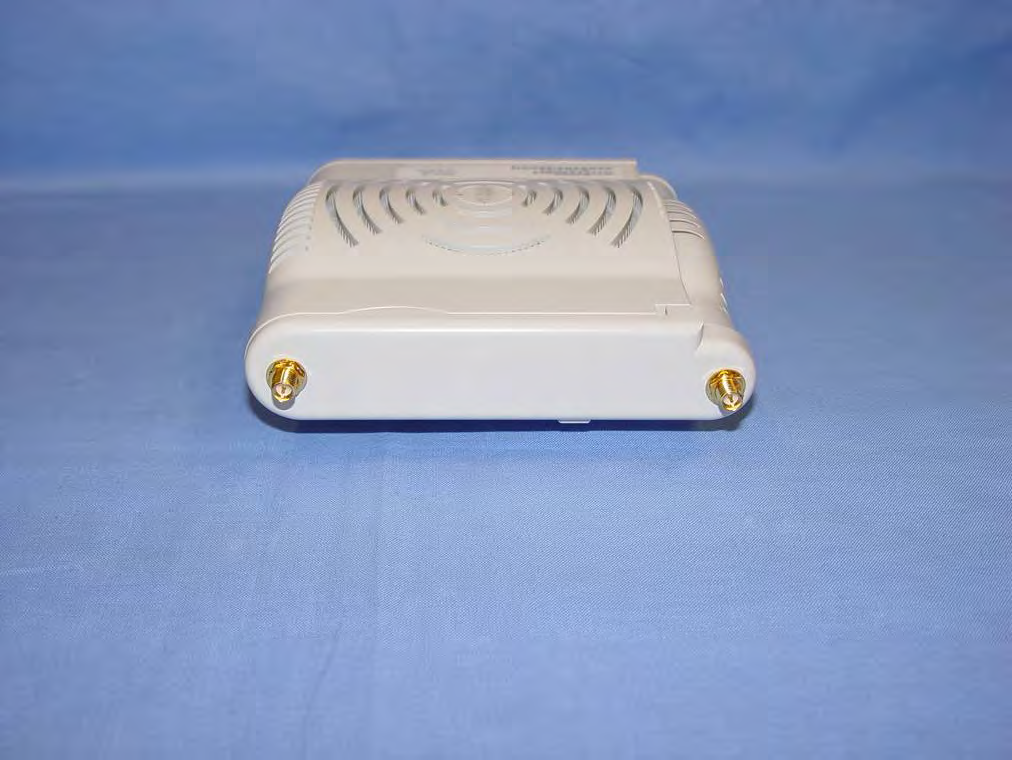

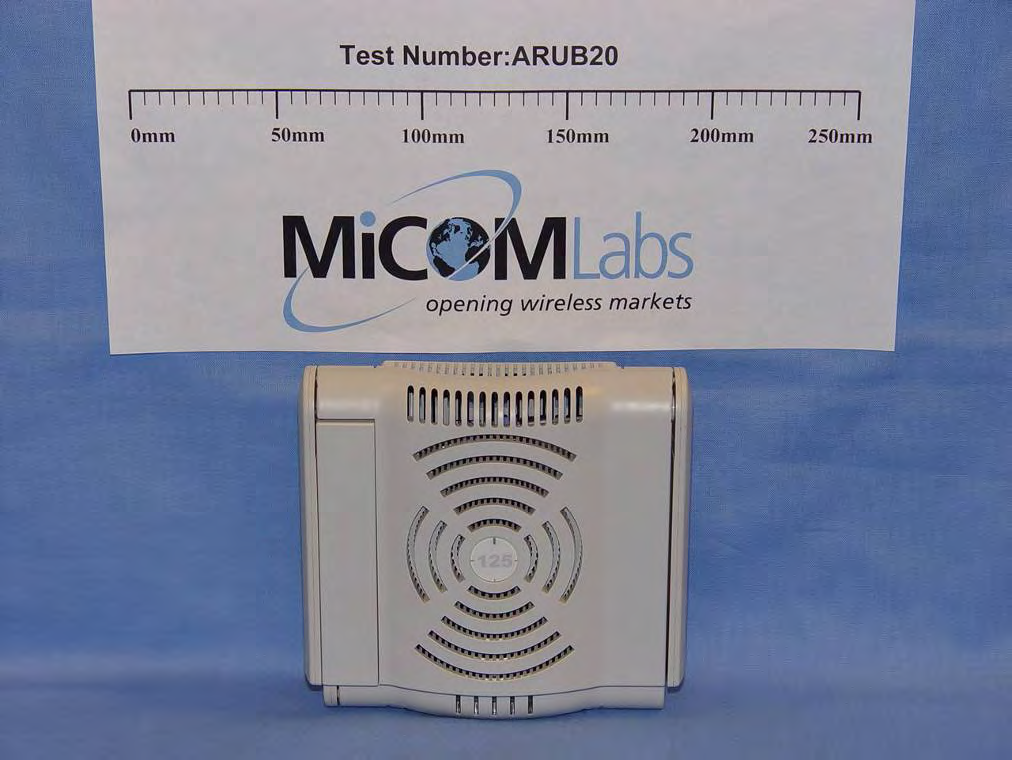

MiCOM Labs, 440 Boulder Court, Suite 200, Pleasanton, CA 94566 Tel: +1 (925) 462-0304, Fax: +1 (925) 462-0306, Web: www.micomlabs.com the wireless lab December 11, 2007 ARUB20 –802.11a/b/g/n Wireless Access Point AP124 and AP125 Aruba Networks External Photographs AP124 EUT Front Page 2 of 13 the wireless lab AP124 EUT Back Page 3 of 13 the wireless lab AP124 EUT Side Page 4 of 13 the wireless lab AP124 EUT Side Page 5 of 13 the wireless lab AP124 EUT Side Page 6 of 13 the wireless lab AP124 EUT Side Page 7 of 13 the wireless lab AP125 EUT Front Page 8 of 13 the wireless lab AP125 EUT Back Page 9 of 13 the wireless lab AP125 EUT Side Page 10 of 13 the wireless lab AP125 EUT Side Page 11 of 13 the wireless lab AP125 EUT Side Page 12 of 13 the wireless lab AP125 EUT Side Page 13 of 13 the wireless lab AP125 EUT Side

ARUBA NETWORKS, INC. NOTES: UNLESS OTHERWISE SPECIFIED 1. MATERIAL: WHITE MYLAR, GLOSSY. ADHESIVE BACKED 2. PRINT: GRAPHICS & TEXT: 100% BLACK 3 LABEL PERIPHERY, NO PRINTED BORDER ARUBA NETWORKS, INC. MODEL: AP124 AP125 48 Vdc, 3A FCC ID: Q9DAP124125 IC: 4675A-AP124125 2.06” 1.06" TITLE: LBL,AGENCY, AP124/125 DWG NO: 4010443 0681 Rev 04 N16132 UL2043 E234335 I.T.E.

MiCOM Labs, 440 Boulder Court, Suite 200, Pleasanton, CA 94566 Tel: +1 (925) 462-0304, Fax: +1 (925) 462-0306, Web: www.micomlabs.com the wireless lab December 11, 2007 ARUB20 –802.11a/b/g/n Wireless Access Point AP124 and AP125 Aruba Networks AP124 Label Location Page 2 of 2 the wireless lab AP125 Label Location

MiCOM Labs, 440 Boulder Court, Suite 200, Pleasanton, CA 94566 Tel: +1 (925) 462-0304, Fax: +1 (925) 462-0306, Web: www.micomlabs.com the wireless lab December 11, 2007 ARUB20 – 802.11a/b/g/n Wireless Access Point AP124 and AP125 Aruba Networks Internal Photographs AP124 Internal View Page 2 of 10 the wireless lab AP124 Motherboard Bottom Page 3 of 10 the wireless lab AP124 Motherboard Front Page 4 of 10 the wireless lab AP124 RF Assembly Bottom Page 5 of 10 the wireless lab AP124 RF Assembly Front Page 6 of 10 the wireless lab AP125 Internal View Page 7 of 10 the wireless lab AP125 Motherboard Bottom Page 8 of 10 the wireless lab AP125 Motherboard Front Page 9 of 10 the wireless lab AP125 RF Assembly Bottom Page 10 of 10 the wireless lab AP125 RF Assembly Front

440 Boulder Court, Suite 200, Pleasanton, California 94566, USA Tel.: +1 925 462 0304, Fax: +1 925 462 0306 www.micomlabs.com December 11, 2007 Maximum Permissible Exposure FCC, Part 15 Subpart C §15.407(f) Industry Canada RSS-Gen §5.5 Calculations for Maximum Permissible Exposure Levels Power Density = Pd (mW/cm 2 ) = EIRP/(4πd 2 ) EIRP = P * G * 3 P = Peak output power (mW) G = Antenna numeric gain (numeric) d = Separation distance (cm) Numeric Gain = 10 ^ (G (dBi)/10) The Aruba AP-124,125 has three transmitters. The peak power in the table below is calculated by assuming a worst case scenario where the three transmitters are operating simultaneously in the same band. The Peak Power in mW is calculated by taking the maximum conducted power measured in each band and multiplying by 3. Because the EUT belongs to the General Population/Uncontrolled Exposure the limit of power density is 1.0 mW/cm 2 Freq. Band (MHz) Antenna Gain (dBi) Numeric Gain (numeric) Peak Output Power (dBm) Peak Output Power (mW) Calculated Safe Distance @ 1mW/cm 2 Limit(cm) Minimum Separation Distance (cm) 5150 - 5250 14.0 25.12 +14.93 93.35 13.66 20 Note: for mobile or fixed location transmitters the minimum separation distance is 20cm, even if calculations indicate the MPE distance to be less. Specification Maximum Permissible Exposure Limits FCC §1.1310 Limit = 1mW / cm 2 from 1.310 Table 1 RSS-Gen §5.5 Before equipment certification is granted, the application requirements of RSS-102 shall be met.

COVER PAGE Test of Aruba AP-124,125 802.11a/b/g/n AP To: FCC 47 CFR Part 15.407 & IC RSS-210 Test Report Serial No.: ARUB20-A4 Rev A This test report may be reproduced in full only. The document may only be updated by MiCOM Labs personnel. Any changes will be noted in the Document History section of the report. MiCOM Labs is an ISO 17025 Accredited Testing Laboratory CERTIFICATE #2381.01 TITLE PAGE TEST REPORT FROM Test of Aruba AP-124,125 802.11a/b/g/n AP to To: FCC 47 CFR Part 15.407 & IC RSS-210 Test Report Serial No.: ARUB20-A4 Rev A Note: this report only contains data with regard to the 5,150 to 5,250 MHz operational modes of the Aruba Wireless Access Point. 2.4 and 5.8 GHz test data are reported in MiCOM Labs test report ARUB20-A2. This report supersedes None Manufacturer: Aruba Networks 1322 Crossman Avenue Sunnyvale CA 94089, USA Product Function: Wireless Access Point Copy No:pdf Issue Date: 11th December 2007 This Test Report is Issued Under the Authority of; MiCOM Labs, Inc. 440 Boulder Court, Suite 200 Pleasanton, CA 94566 USA Phone: +1 (925) 462-0304 Fax: +1 (925) 462-0306 www.micomlabs.com Title: To: Serial #: Issue Date: Page: Aruba AP-124,125 802.11a/b/g/n AP FCC 47 CFR Part 15.407 & IC RSS-210 ARUB20-A4 Rev A 11th December 2007 3 of 125 This page has been left intentionally blank Title: To: Serial #: Issue Date: Page: Aruba AP-124,125 802.11a/b/g/n AP FCC 47 CFR Part 15.407 & IC RSS-210 ARUB20-A4 Rev A 11th December 2007 4 of 125 This test report may be reproduced in full only. The document may only be updated by MiCOM Labs personnel. Any changes will be noted in the Document History section of the report. MiCOM Labs, 440 Boulder Court, Suite 200, Pleasanton, CA 94566 USA, Phone: 925.462.0304, Fax: 925.462.0306, www.micomlabs.com TABLE OF CONTENTS COVER PAGE ......................................................................................................................1 TITLE PAGE ......................................................................................................................... 2 ACCREDITATION, LISTINGS & RECOGNITION ............................................................. 5 1. TEST RESULT CERTIFICATE..................................................................................... 8 2. REFERENCES AND MEASUREMENT UNCERTAINTY........................................... 9 2.1. Normative References ............................................................................................... 9 2.2. Test and Uncertainty Procedures ............................................................................ 10 3. PRODUCT DETAILS AND TEST CONFIGURATIONS ........................................... 11 3.1. Technical Details ..................................................................................................... 11 3.2. Scope of Test Program ............................................................................................ 12 3.3. Equipment Model(s) and Serial Number(s) ............................................................. 15 3.4. Antenna Details ....................................................................................................... 15 3.5. Cabling and I/O Ports .............................................................................................. 15 3.6. Test Configurations.................................................................................................. 16 3.7. Equipment Modifications.......................................................................................... 23 3.8. Deviations from the Test Standard .......................................................................... 23 3.9. Subcontracted Testing or Third Party Data ............................................................. 23 4. TEST SUMMARY ........................................................................................................ 24 5. TEST RESULTS .......................................................................................................... 26 5.1. Device Characteristics ............................................................................................. 26 5.1.1. 26 dB and 99 % Bandwidth ........................................................................ 26 5.1.2. Transmit Output Power............................................................................... 36 5.1.3. Peak Power Spectral Density ..................................................................... 40 5.1.4. Peak Excursion Ratio ................................................................................. 50 5.1.5. Frequency Stability ..................................................................................... 60 5.1.6. Maximum Permissible Exposure ................................................................ 61 5.1.7. Radiated Emissions .................................................................................... 62 5.1.8. AC Wireline Conducted Emissions (150 kHz – 30 MHz) .......................... 114 6. PHOTOGRAPHS....................................................................................................... 118 6.1. Radiated Emissions > 1GHz.................................................................................. 118 6.2. Radiated Emissions < 1GHz with Power Convertor .............................................. 119 6.3. Radiated Emissions < 1GHz with POE (Power Over EtherNet) ............................ 120 6.4. AC Wireline Conducted Emissions ac/dc Convertor.............................................. 121 6.5. AC Wireline Conducted Emissions POE ............................................................... 122 6.6. General Measurement Test Set-Up ....................................................................... 123 7. TEST EQUIPMENT DETAILS .................................................................................. 124 Title: To: Serial #: Issue Date: Page: Aruba AP-124,125 802.11a/b/g/n AP FCC 47 CFR Part 15.407 & IC…

Text truncated - open the document above for the full version.

MiCOM Labs, 440 Boulder Court, Suite 200, Pleasanton, CA 94566 Tel: +1 (925) 462-0304, Fax: +1 (925) 462-0306, Web: www.micomlabs.com the wireless lab December 11, 2007 ARUB20 –802.11a/b/g/n Wireless Access Point AP124 and AP125 Aruba Networks TEST SET-UP PHOTOGRAPHS General Measurement Test Set-Up Page 2 of 6 the wireless lab Radiated Emissions > 1GHz Page 3 of 6 the wireless lab Radiated Emissions < 1GHz with ac Power Converter Page 4 of 6 the wireless lab Radiated Emissions < 1GHz with POE (Power Over EtherNet) Page 5 of 6 the wireless lab AC Wireline Conducted Emissions ac/dc Converter Page 6 of 6 the wireless lab AC Wireline Conducted Emissions POE
