Aruba 80 Outdoor Wireless Access Point Models AP-80MB or AP-80SB Professional Installation Guide Copyright Copyright © 2005 Aruba Wireless Networks, Inc. All rights reserved. Specifications in this manual are subject to change without notice. Originated in the USA. Trademarks ArubaOS, AirOS, Aruba 800, Aruba 2400, Aruba 5000, Aruba 60/61, Aruba 80, and Aruba 52 are trademarks of Aruba Wireless Networks, Inc. in the United States and certain other countries. Sygate On-Demand Agent and Sygate Enforcer are trademarks of Sygate Technologies. Any other trademarks appearing in this manual are the property of their respective companies. Legal Notice The use of Aruba Wireless Networks Inc. switching platforms and software, by all individuals or corporations, to terminate Cisco or Nortel VPN client devices constitutes complete acceptance of liability by that individual or corporation for this action and indemnifies, in full, Aruba Wireless Networks Inc. from any and all legal actions that might be taken against it with respect to infringement of copyright on behalf of Cisco Systems or Nortel Networks. Package Checklist . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1 Package Contents . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1 Optional Items . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1 Chapter 1 Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1 Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2 Front View. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3 Rear View . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5 The Aruba AP Setup Process . . . . . . . . . . . . . . . . . . . . . . . . . . . 6 System Configuration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6 Wall- and Pole-Mounting Bracket Kits . . . . . . . . . . . . . . . . 7 Aruba Discovery Protocol . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9 Chapter 2 Provisioning Access Points. . . . . . . . . . . . . . . . . . . . . . . 9 Setting Aruba 80 Outdoor Wireless Access Mounting the Aruba 80 Outdoor Wireless AP Provisioning. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11 Point Parameters . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14 Access Point . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19 Chapter 3 AP Deployment . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19 Mounting the AP . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20 Using the Pole-Mounting Bracket . . . . . . . . . . . . . . . . . . . 20 Mount and Connect External Antennas . . . . . . . . . . . . . . . . 22 Connect Electrical Ground Wire to the AP . . . . . . . . . . . . . . 22 Connect Ethernet Cable to the AP . . . . . . . . . . . . . . . . . . . . . 22 Connect the Power Injector. . . . . . . . . . . . . . . . . . . . . . . . . . . . 23 Orient the Antennas. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24 Accessing the AP Support Prompt . . . . . . . . . . . . . . . . . . . . . 25 Remote Telnet Connection . . . . . . . . . . . . . . . . . . . . . . . . . 25 Appendix A Troubleshooting. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25 AP Support . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26 Access Levels . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26 User Commands . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26 Privileged Commands . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26 Aruba 80 8-Pin DIN Ethernet Connector Pinout . . . . . . . . . 27 Aruba 80 8-Pin DIN to RJ-45 Cable Wiring. . . . . . . . . . . . . . 27 Appendix B Port Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27 Aruba 80 Power over Ethernet Injector Module 10/100BASE-TX Pin Assignments. . . . . . . . . . . . . . . . . . . . . . 28 Straight-Through Wiring . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29 Crossover Wiring. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29 Appendix C Product Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . 31 Compliance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31 Certifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33 Product Features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34 Ethernet Compatibility . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34 Radio Characteristics . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34 Power Over Ethernet . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35 Aruba 80 Detachable Antennas . . . . . . . . . . . . . . . . . . . . . . . . 42 Related Documents . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 43 Contacting Aruba Wireless Networks . . . . . . . . . . . . . . . . . . 44 Package Checklist Package Contents The Aruba 80 Outdoor Wireless Access Point package includes: a One Aruba 80 Outdoor Wireless Access Point (Models AP-80MB or AP-80SB) a Pole / Mast Mounting Hardware a Installation Guide (this manual) Inform your supplier if there are any incorrect, missing or damaged parts. If possible, retain the carton, including the original packing materials. Use them to repack the product in case there is a need to return it. Optional Items The following optional items can also be ordered for the Aruba 80 Outdoor Wireless Access Point: a Detachable antennas (see Table C-3, “Detachable Antennas,” on page 42) a Aruba 80 AC Power Adapter Kit (TX) – Indoor (AP-AC-80-1) a Indoor Use Only Auto-sensing…

Text truncated - open the document above for the full version.

Federal Communications Commission Authorization and Evaluation Division Confidentiality Request FCC ID: Q9DAP80 Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, the Applicant hereby requests confidential treatment of information accompanying this Application as outlined below: Schematics Block Diagram The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the Applicant and provide unjustified benefits to its competitors. The Applicant understands that pursuant to Rule 0.457, disclosure of this Application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely yours, ------------------------------------------------------------------------------ Hans T. Mellberg Compliance Manager Aruba Wireless Networks Tel: (408) 329-5120 Fax:(408) 227-4550 e-mail: [email protected]

Professional Installation Attestation Date: December 22, 2005 To Whom It May Concern: Please be advised that due to the unique market and function targeted by this product, this product. AP80XX, requires professional installation by trained personnel in configuring and installing the product. We hereby declare that these products will be distributed through controlled distribution channels which will use trained personnel to install these products and will not be sold directly to the general public nor sold through retail stores. Sincerely Yours, __________________________________________ Name / Title: Hans Mellberg, Compliance Manager Company: Aurba Wireless Networks, Inc. Tel.: (408)227-4500 Email: [email protected]

POWER OF ATTORNEY To whom it may concern: We, the undersigned, ARUBA WIRELESS NETWORKS INC. hereby authorize Advance Data Technology Corp. (ADT) of Taiwan to act on our behalf in all matters relating to all processes required in the FCC Part 15C. Any and all acts carried out by ADT on our behalf shall have the same effects as acts of our own. If you have any questions regarding the authorization, please don’t hesitate to contact us. Thank you! Sincerely yours, -------------------------------------------------- Hans T. Mellberg Compliance Manager Aruba Wireless Networks Tel: (408) 329-5120 Fax:(408)2274550 e-mail: [email protected]

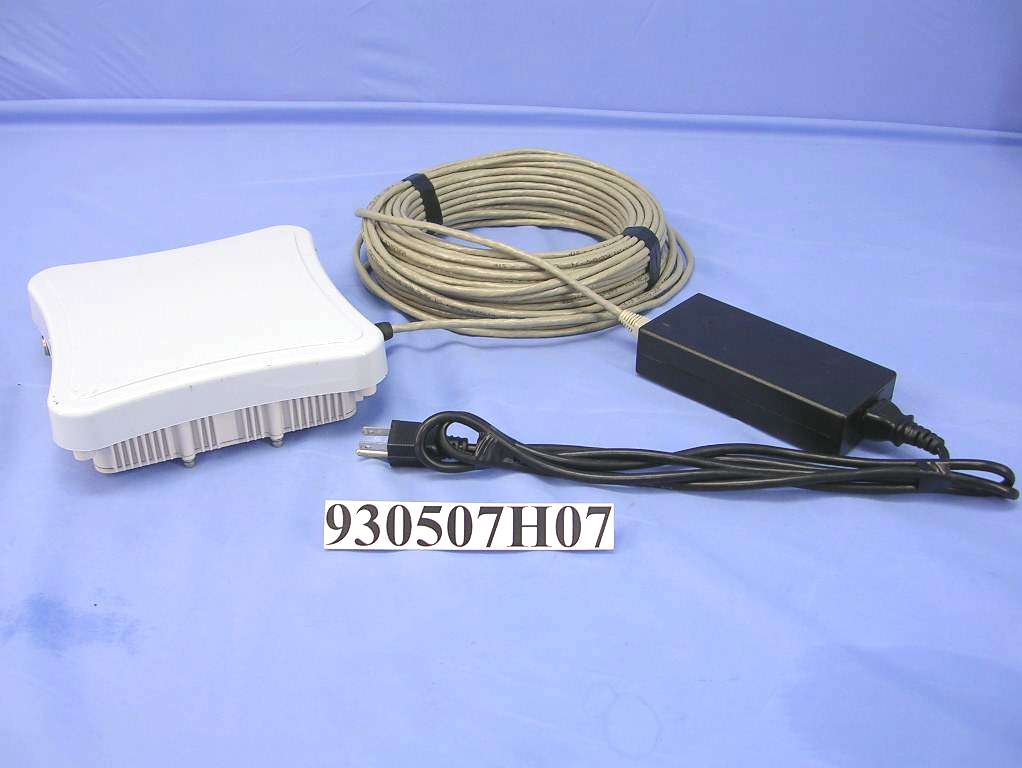

Page 1 CONSTRUCTION PHOTOS OF EUT EUT with Antenna Model No.: AP-ANT-80 Page 2 EUT with Antenna Model No.: AP-ANT-81 Page 3 EUT with Antenna Model No.: AP-ANT-82 Page 4 EUT with Antenna Model No.: AP-ANT-83 Page 5 EUT with Antenna Model No.: AP-ANT-84 Page 6 EUT with Antenna Model No.: AP-ANT-85 Page 7 EUT with Antenna Model No.: AP-ANT-86 Page 8 EUT with Antenna Model No.: AP-ANT-87 Page 9 EUT with Antenna Model No.: AP-ANT-88 Page 10 EUT with Antenna Model No.: AP-ANT-89 Page 11 EUT with Antenna Model No.: ANT05535 (Internal Antenna) 940906H06 940906H06 Page 12 Page 13

FCC LABEL LOCATION The label will be permanently affixed at a conspicuous location on the device. LABEL (Fig. 1) FCC ID: Q9DAP80

Page 14 940906H06 940906H06 Page 15 940906H06 940906H06 Page 16 940906H06 940906H06 Page 17 940906H06 940906H06 Page 18 940906H06 940906H06 Page 19 940906H06 940906H06 Page 20 940906H06 940906H06 Page 21 940906H06 940906H06 Page 22 Page 23 Antenna Model No.: AP-ANT-80 Page 24 Page 25 Antenna Model No.: AP-ANT-81 Page 26 Page 27 Antenna Model No.: AP-ANT-82 Page 28 Page 29 Antenna Model No.: AP-ANT-83 Page 30 Page 31 Antenna Model No.: AP-ANT-84 Page 32 Page 33 Antenna Model No.: AP-ANT-85 Page 34 Page 35 Antenna Model No.: AP-ANT-86 Page 36 Page 37 Antenna Model No.: AP-ANT-87 Page 38 Page 39 Antenna Model No.: AP-ANT-88 Page 40 Page 41 Antenna Model No.: AP-ANT-89 Page 42 Page 43 Antenna Model No.: ANT05535 940906H06 940906H06

Page 44 940906H06 940906H06 Page 45 940906H06 940906H06 Page 46 940906H06 940906H06 Page 47 940906H06 940906H06 Page 48 Page 49 Page 50 Page 51 Page 52 Page 53 940906H06 940906H06 Page 54 940906H06 940906H06 Page 55 940906H06 Page 56 Page 57 Page 58 Page 59

FCC ID: Q9DAP80 Report No. 940906H06 Technical Description 1. This device is a Aruba 80 a+b/g Outdoor Stand-alone Access Point / WDS Bridge Master Aruba 80 a+b/g Outdoor Stand-alone Access Point / WDS Bridge Slave operates in both the 5GHz and 2.4GHz bands with DSSS and OFDM technique. The transmitter rate could be 1/2/5.5/6/9/11/12/18/24/ 36/48/54Mbps. The transmitter of the EUT is powered by power adapter. The antenna are as following: For 2.4GHz No.Model No.Gain (dBi) Cable Loss (dB) Antenna Type Antenna Connector 1AP-ANT-808.0 dBiDipole 2AP-ANT-8212.0 dBiWide-Angle (H-Plane)90°Sectored 3AP-ANT-845.0 dBiWide-Angle 135° Directional 4AP-ANT-8515.0 dBiHigh Gain, Directional Panel 5AP-ANT-877.0 dBiWide-Angle (H-Plane)60°Patch 6AP-ANT-818.0 dBiWide-Angle (H-Plane)60°Sectored 7AP-ANT-837.0 dBi 0.79dB Wide-Angle 90° Directional Sectored N-type For 5GHz No.Model No.Gain (dBi) Cable Loss (dB) Antenna Type Antenna Connector 1AP-ANT-869.0dBiOmnidirectional (Dipole) 2AP-ANT-877.0dBiWide-Angle (H-Plane)60°Patch 3AP-ANT-8810.0dBi120° Sector, typical with 36＂ cable 4AP-ANT-8914.0dBi 1.36dB Wide-Angle, High Gain, Directional Panel, N-type 5ANT0553517.0dBiNADirectional, Patch Panel (Internal Antenna)Probe Pin Note: 1. All of the above antennas are outdoor Antenna except the antenna model No.: ANT05535. 2. Antenna Model No. AP-ANT-85 and AP-ANT-89 can be used in point-to-point applications. 3. For 2.4GHz antennas, the antenna 1~ 5 were selected as representative antennas for the test and its data were recorded in this report. Under normal use condition, the user has to keep at least 20 cm separation distance between radiator and the body of the user. FCC ID: Q9DAP80 Report No. 940906H06 For more detailed instruction, please refer to the user’s manual. FCC 15.407(c) states: The device shall automatically discontinue transmission in case of either absence of information to transmit or operational failure. These provisions are not intended to preclude the transmission of control or signaling information or the use of repetitive codes used by certain digital technologies to complete frame or burst intervals. Applicants shall include in their application for equipment authorization a description of hoe this requirement is met. Data transmission is always initiated by software, which is then pass down through the MAC, through the digital and analog baseband, and finally to the RF chip. Several special packets (ACKs, CTS, PSPoll, etc...) are initiated by the MAC. There are the only ways the digital baseband portion will turn on the RF transmitter, which it then turns off at the end of the packet. Therefore, the transmitter will be on only while one of the aforementioned packets are being transmitted.

FCC ID: Q9DAP80 Report No.: SA940906H061Issued: Oct. 22, 2005 RF EXPOSURE REPORT REPORT NO.: SA940906H06 MODEL NO.: AP-80MB, AP-80SB, AP-80M, AP-80S ACCORDING: FCC Guidelines for Human Exposure IEEE C95.1 APPLICANT: ARUBA WIRELESS NETWORKS INC. ADDRESS: 1322 Crossman Ave. Sunnyvale , CA94089- 1113, U.S.A. ISSUED BY: Advance Data Technology Corporation LAB LOCATION: No. 81-1, Lu Liao Keng, 9 Ling, Wu Lung Tsuen, Chiung Lin Hsiang, Hsin Chu Hsien, Taiwan, R.O.C. FCC ID: Q9DAP80 Report No.: SA940906H062Issued: Oct. 22, 2005 RF Exposure Measurement 1. Introduction In this document, we try to prove the safety of radiation harmfulness to the human body for our product. The limit for Maximum Permissible Exposure (MPE) specified in FCC 1.1310 is followed. The Gain of the antenna used in this product is measured in a Fully Anechoic Chamber (FAC) calibrated for antenna measurement in ADT, and also the maximum total power input to the antenna is measured. Through the Friis transmission formula and the maximum gain of the antenna, we can calculate the distance, away from the product, where the limit of MPE is reached. Although the Friis transmission formula is a far field assumption, the calculated result of that is an over-prediction for near field power density. We will take that as the worst case to specify the safety range. 2. RF Exposure Limit According to FCC 1.1310: The criteria listed in the following table shall be used to evaluate the environmental impact of human exposure to radio-frequency (RF) radiation as specified in 1.1307(b) LIMITS FOR MAXIMUM PERMISSIBLE EXPOSURE (MPE) Frequency Range (MHz) Electric Field Strength (V/m) Magnetic Field Strength (A/m) Power Density (mW/cm 2 ) Average Time (minutes) (A)Limits For Occupational / Control Exposures 300-1500......F/3006 1500-100,000......56 (B)Limits For General Population / Uncontrolled Exposure 300-1500......F/15006 1500-100,000......1.030 F = Frequency in MHz FCC ID: Q9DAP80 Report No.: SA940906H063Issued: Oct. 22, 2005 3. Friis Formula Friis transmission formula : Pd = (Pout*G) / (4*pi*r 2 ) where Pd = power density in mW/cm 2 Pout = output power to antenna in mW G = gain of antenna in linear scale Pi = 3.1416 R = distance between observation point and center of the radiator in cm Pd is the limit of MPE, 1 mW/cm 2 . If we know the maximum Gain of the antenna and the total power input to the antenna, through the calculation, we will know the MPE value at distance 20cm. Ref. : David K. Cheng, Field and Wave Electromagnetics, Second Edition, Page 640, Eq. (11-133). 4 EUT Operating condition The software provided by Manufacturer enabled the EUT to transmit and receive data at lowest, middle and highest channel individually. 5. Classification This is a stand alone radio device. So under normal use condition, it is easy to be re- located in the place where at least 20 cm far away from the body of the user. Warning statement to the user for keeping at least 20cm or more separation distance with the antenna should be included in users manual. So, this device is classified as Mobile Device. FCC ID: Q9DAP80 Report No.: SA940906H064Issued: Oct. 22, 2005 6 Test Results 6.1 Antenna Gain For 2.4GHz Antenna 1: The maximum Gain of the antenna is 8.0dBi. Antenna 2: The maximum Gain of the antenna is 12.0dBi. Antenna 3: The maximum Gain of the antenna is 5.0dBi. Antenna 4: The maximum Gain of the antenna is 15.0dBi. Antenna 5: The maximum Gain of the antenna is 7.0dBi. For 5GHz Antenna 1: The maximum Gain of the antenna is 9.0dBi. Antenna 2: The maximum Gain of the antenna is 7.0dBi. Antenna 3: The maximum Gain of the antenna is 10.0dBi. Antenna 4: The maximum Gain of the antenna is 14.0dBi. Antenna 5: The maximum Gain of the antenna is 17.0dBi. For 2.4GHz No.Model No.Gain (dBi) Cable Loss (dB) Antenna Type Antenna Connector 1AP-ANT-808.0 dBiDipole 2AP-ANT-8212.0 dBiWide-Angle (H-Plane)90°Sectored 3AP-ANT-845.0 dBiWide-Angle 135° Directional 4AP-ANT-8515.0 dBiHigh Gain, Directional Panel 5AP-ANT-877.0 dBiWide-Angle (H-Plane)60°Patch 6AP-ANT-818.0 dBiWide-Angle (H-Plane)60°Sectored 7AP-ANT-837.0 dBi 0.79dB Wide-Angle 90° Directional Sectored N-type For 5GHz No.Model No.Gain (dBi) Cable Loss (dB) Antenna Type Antenna Connector 1AP-ANT-869.0dBiOmnidirectional (Dipole) 2AP-ANT-877.0dBiWide-Angle (H-Plane)60°Patch 3AP-ANT-8810.0dBi120° Sector, typical with 36＂ cable 4AP-ANT-8914.0dBi 1.36dB Wide-Angle, High Gain, Directional Panel, N-type 5ANT0553517.0dBiNADirectional, Patch Panel (Internal Antenna)Probe Pin Note: 1. All of the above antennas are outdoor Antenna except the antenna model No.: ANT05535. 2. Antenna Model No. AP-ANT-85 and AP-ANT-89 can be used in point-to-point applications. 3. For 2.4GHz antennas, the antenna 1~ 5 were selected as representative antennas for the test and its data were recorded in this report. FCC ID: Q9DAP80 Report No.: SA940906H065Issued: Oct. 22, 2005 6.2 Output Power Into Antenna & RF Exposure value at distance 20cm: For 2.4GHz 802.11b: Antenna 1 Channel Channel Frequency (MHz) Output Power to Antenna (mW) Power Density (mW/cm 2 ) Limit of Power Density (mW/cm 2 ) 1241257.809604740.0604963441.0 62437237.68402870.2487305491.0 11246298.17479430.1027375321.0 Antenna 2 Channel Channel Frequency (MHz) Output Power to Antenna (mW) Power Density (mW/cm 2 ) Limit of Power Density (mW/cm 2 ) 124127.0794578440.0186092611.0 6243750.815944260.1335762141.0 11246235.809643710.0941302321.0 Antenna 3 Channel Channel Frequency (MHz) Output Power to Antenna (mW) Power Density (mW/cm 2 ) Limit of Power Density (mW/cm 2 ) 1241257.809604740.0303199951.0 62437237.68402870.1246605761.0 112462106.16955570.0556838341.0 Antenna 4 Channel Channel Frequency (MHz) Output Power to Antenna (mW) Power Density (mW/cm 2 ) Limit of Power Density (mW/cm 2 ) 124127.0794578440.0371303571.0 6243750.815944260.2665195851.0 11246235.809643710.1878145051.0 Antenna 5 Channel Channel Frequency (MHz) Output Power to Antenna (mW) Power Density (mW/cm 2 ) Limit of Power…

Text truncated - open the document above for the full version.

FCC ID: Q9DAP80 Report No.: RF940906H061Report Format Version 2.0.4 FCC TEST REPORT (15.407) REPORT NO.: RF940906H06 MODEL NO.: AP-80MB, AP-80SB, AP-80M, AP-80S RECEIVED: Sep. 06, 2005 TESTED: Sep. 23 to Oct. 06, 2005 ISSUED: Oct. 22, 2005 APPLICANT: ARUBA WIRELESS NETWORKS INC. ADDRESS: 1322 Crossman Ave. Sunnyvale , CA94089- 1113, U.S.A. ISSUED BY: Advance Data Technology Corporation TEST LOCATION: No. 81-1, Lu Liao Keng, 9 Ling, Wu Lung Tsuen, Chiung Lin Hsiang, Hsin Chu Hsien, Taiwan, R.O.C. This test report consists of 138 pages in total. It may be duplicated completely for legal use with the approval of the applicant. It should not be reproduced except in full, without the written approval of our laboratory. The client should not use it to claim product endorsement by CNLA, A2LA or any government agencies. The test results in the report only apply to the tested sample. The test results in this report are traceable to the national or international standards. 0536No. 2177-01 ILAC MRA FCC ID: Q9DAP80 Report No.: RF940906H062Report Format Version 2.0.4 Table of Contents 1.CERTIFICATION...........................................................................................5 2.SUMMARY OF TEST RESULTS...................................................................6 3.GENERAL INFORMATION............................................................................7 3.1GENERAL DESCRIPTION OF EUT.......................................................................7 3.2DESCRIPTION OF TEST MODES.......................................................................10 3.2.1TEST MODE APPLICABILITY AND TESTED CHANNEL DETAIL:.............11 3.3GENERAL DESCRIPTION OF APPLIED STANDARDS.......................................13 3.4DESCRIPTION OF SUPPORT UNITS..................................................................14 3.5CONFIGURATION OF SYSTEM UNDER TEST...................................................15 4.TEST TYPES AND RESULTS.....................................................................16 4.1CONDUCTED EMISSION MEASUREMENT........................................................16 4.1.1LIMITS OF CONDUCTED EMISSION MEASUREMENT............................16 4.1.2TEST INSTRUMENTS................................................................................16 4.1.3TEST PROCEDURES.................................................................................17 4.1.4DEVIATION FROM TEST STANDARD.......................................................17 4.1.5TEST SETUP..............................................................................................18 4.1.6EUT OPERATING CONDITIONS................................................................18 4.1.7TEST RESULTS..........................................................................................19 4.2RADIATED EMISSION MEASUREMENT.............................................................21 4.2.1LIMITS OF RADIATED EMISSION MEASUREMENT.................................21 4.2.2LIMITS OF UNWANTED EMISSION OUT OF THE RESTRICTED BANDS22 4.2.3TEST INSTRUMENTS................................................................................23 4.2.4TEST PROCEDURES.................................................................................24 4.2.5DEVIATION FROM TEST STANDARD.......................................................24 4.2.6TEST SETUP..............................................................................................25 4.2.7EUT OPERATING CONDITION..................................................................25 4.2.8TEST RESULTS (ANTENNA 1)...................................................................26 4.2.9TEST RESULTS (ANTENNA 2)...................................................................30 4.2.10TEST RESULTS (ANTENNA 3)...................................................................34 4.2.11TEST RESULTS (ANTENNA 4)...................................................................38 4.3PEAK TRANSMIT POWER MEASUREMENT......................................................42 4.3.1LIMITS OF PEAK TRANSMIT POWER MEASUREMENT..........................42 4.3.2TEST INSTRUMENTS................................................................................42 4.3.3TEST PROCEDURE...................................................................................43 4.3.4DEVIATION FROM TEST STANDARD.......................................................43 FCC ID: Q9DAP80 Report No.: RF940906H063Report Format Version 2.0.4 4.3.5TEST SETUP..............................................................................................43 4.3.6EUT OPERATING CONDITIONS................................................................43 4.3.7TEST RESULTS (ANTENNA 1)...................................................................44 4.3.8TEST RESULTS (ANTENNA 2)...................................................................49 4.3.9TEST RESULTS (ANTENNA 3)...................................................................54 4.3.10TEST RESULTS (ANTENNA 4)...................................................................59 4.4PEAK POWER EXCURSION MEASUREMENT...................................................64 4.4.1LIMITS OF PEAK POWER EXCURSION MEASUREMENT.......................64 4.4.2TEST INSTRUMENTS................................................................................64 4.4.3TEST PROCEDURE...................................................................................65 4.4.4DEVIATION FROM TEST STANDARD.......................................................65 4.4.5TEST SETUP..............................................................................................65 4.4.6EUT OPERATING CONDITIONS................................................................65 4.4.7TEST RESULTS (ANTENNA 1)...................................................................66 4.4.8TEST RESULTS (ANTENNA 2)...................................................................70 4.4.9TEST RESULTS (ANTENNA…

Text truncated - open the document above for the full version.

FCC ID: Q9DAP80 Report No.: RF940906H0666Report Format Version 2.0.4 4.4.7 TEST RESULTS (ANTENNA 1) 802.11a OFDM modulation EUTAruba 80 a+b/g Outdoor Stand-alone Access Point / WDS Bridge Master MODELAP-80MBTRANSFER RATE6Mbps MODULATION TYPEBPSK ENVIRONMENTAL CONDITIONS 25deg.C, 65%RH, 966hPa INPUT POWER (SYSTEM) 120Vac, 60 Hz TESTED BY Rex Huang CHANNEL CHANNEL FREQUENCY (MHz) PEAK POWER EXCURSION (dB) PEAK to AVERAGE EXCURSION LIMIT (dB) PASS/FAIL 152605.4513PASS 453204.9213PASS FCC ID: Q9DAP80 Report No.: RF940906H0667Report Format Version 2.0.4 CH1 CH4 FCC ID: Q9DAP80 Report No.: RF940906H0668Report Format Version 2.0.4 802.11a Turbo OFDM modulation EUTAruba 80 a+b/g Outdoor Stand-alone Access Point / WDS Bridge Master MODELAP-80MBTRANSFER RATE12Mbps MODULATION TYPEBPSK ENVIRONMENTAL CONDITIONS 25deg.C, 65%RH, 966hPa INPUT POWER (SYSTEM) 120Vac, 60 Hz TESTED BY Rex Huang CHANNEL CHANNEL FREQUENCY (MHz) PEAK POWER EXCURSION (dB) PEAK to AVERAGE EXCURSION LIMIT (dB) PASS/FAIL 152904.5213PASS FCC ID: Q9DAP80 Report No.: RF940906H0669Report Format Version 2.0.4 CH1 FCC ID: Q9DAP80 Report No.: RF940906H0670Report Format Version 2.0.4 4.4.8 TEST RESULTS (ANTENNA 2) 802.11a OFDM modulation EUTAruba 80 a+b/g Outdoor Stand-alone Access Point / WDS Bridge Master MODELAP-80MBTRANSFER RATE6Mbps MODULATION TYPEBPSK ENVIRONMENTAL CONDITIONS 25deg.C, 65%RH, 966hPa INPUT POWER (SYSTEM) 120Vac, 60 Hz TESTED BY Rex Huang CHANNEL CHANNEL FREQUENCY (MHz) PEAK POWER EXCURSION (dB) PEAK to AVERAGE EXCURSION LIMIT (dB) PASS/FAIL 152604.7813PASS 453205.0313PASS FCC ID: Q9DAP80 Report No.: RF940906H0671Report Format Version 2.0.4 CH1 CH4 FCC ID: Q9DAP80 Report No.: RF940906H0672Report Format Version 2.0.4 802.11a Turbo OFDM modulation EUTAruba 80 a+b/g Outdoor Stand-alone Access Point / WDS Bridge Master MODELAP-80MBTRANSFER RATE12Mbps MODULATION TYPEBPSK ENVIRONMENTAL CONDITIONS 25deg.C, 65%RH, 966hPa INPUT POWER (SYSTEM) 120Vac, 60 Hz TESTED BY Rex Huang CHANNEL CHANNEL FREQUENCY (MHz) PEAK POWER EXCURSION (dB) PEAK to AVERAGE EXCURSION LIMIT (dB) PASS/FAIL 152904.6013PASS FCC ID: Q9DAP80 Report No.: RF940906H0673Report Format Version 2.0.4 CH1 FCC ID: Q9DAP80 Report No.: RF940906H0674Report Format Version 2.0.4 4.4.9 TEST RESULTS (ANTENNA 3) 802.11a OFDM modulation EUTAruba 80 a+b/g Outdoor Stand-alone Access Point / WDS Bridge Master MODELAP-80MBTRANSFER RATE6Mbps MODULATION TYPEBPSK ENVIRONMENTAL CONDITIONS 25deg.C, 65%RH, 966hPa INPUT POWER (SYSTEM) 120Vac, 60 Hz TESTED BY Rex Huang CHANNEL CHANNEL FREQUENCY (MHz) PEAK POWER EXCURSION (dB) PEAK to AVERAGE EXCURSION LIMIT (dB) PASS/FAIL 152606.0513PASS 453204.9213PASS FCC ID: Q9DAP80 Report No.: RF940906H0675Report Format Version 2.0.4 CH1 CH4 FCC ID: Q9DAP80 Report No.: RF940906H0676Report Format Version 2.0.4 802.11a Turbo OFDM modulation EUTAruba 80 a+b/g Outdoor Stand-alone Access Point / WDS Bridge Master MODELAP-80MBTRANSFER RATE12Mbps MODULATION TYPEBPSK ENVIRONMENTAL CONDITIONS 25deg.C, 65%RH, 966hPa INPUT POWER (SYSTEM) 120Vac, 60 Hz TESTED BY Rex Huang CHANNEL CHANNEL FREQUENCY (MHz) PEAK POWER EXCURSION (dB) PEAK to AVERAGE EXCURSION LIMIT (dB) PASS/FAIL 152904.5213PASS FCC ID: Q9DAP80 Report No.: RF940906H0677Report Format Version 2.0.4 CH1 FCC ID: Q9DAP80 Report No.: RF940906H0678Report Format Version 2.0.4 4.4.10 TEST RESULTS (ANTENNA 4) 802.11a OFDM modulation EUTAruba 80 a+b/g Outdoor Stand-alone Access Point / WDS Bridge Master MODELAP-80MBTRANSFER RATE6Mbps MODULATION TYPEBPSK ENVIRONMENTAL CONDITIONS 25deg.C, 65%RH, 966hPa INPUT POWER (SYSTEM) 120Vac, 60 Hz TESTED BY Rex Huang CHANNEL CHANNEL FREQUENCY (MHz) PEAK POWER EXCURSION (dB) PEAK to AVERAGE EXCURSION LIMIT (dB) PASS/FAIL 152604.9913PASS 453205.5313PASS FCC ID: Q9DAP80 Report No.: RF940906H0679Report Format Version 2.0.4 CH1 CH4 FCC ID: Q9DAP80 Report No.: RF940906H0680Report Format Version 2.0.4 802.11a Turbo OFDM modulation EUTAruba 80 a+b/g Outdoor Stand-alone Access Point / WDS Bridge Master MODELAP-80MBTRANSFER RATE12Mbps MODULATION TYPEBPSK ENVIRONMENTAL CONDITIONS 25deg.C, 65%RH, 966hPa INPUT POWER (SYSTEM) 120Vac, 60 Hz TESTED BY Rex Huang CHANNEL CHANNEL FREQUENCY (MHz) PEAK POWER EXCURSION (dB) PEAK to AVERAGE EXCURSION LIMIT (dB) PASS/FAIL 152903.9113PASS FCC ID: Q9DAP80 Report No.: RF940906H0681Report Format Version 2.0.4 CH1 FCC ID: Q9DAP80 Report No.: RF940906H0682Report Format Version 2.0.4 4.5 PEAK POWER SPECTRAL DENSITY MEASUREMENT 4.5.1 LIMITS OF PEAK POWER SPECTRAL DENSITY MEASUREMENT Frequency BandLimit 5.15 ~ 5.25GHz4dBm 5.25 ~ 5.35GHz11dBm 5.725 ~ 5.825GHz17dBm 4.5.2 TEST INSTRUMENTS Description & ManufacturerModel No.Serial No.Calibrated Until R&S SPECTRUM ANALYZERFSP40100036Nov. 23, 2005 NOTE: 1.The measurement uncertainty is less than +/- 2.6dB, which is calculated as per the NAMAS document NIS81. This uncertainty represents an expanded uncertainty expressed at approximately the 95% confidence level using a coverage factor of k=2. 2.The calibration interval of the above test instruments is 12 months and the calibrations are traceable to NML/ROC and NIST/USA. FCC ID: Q9DAP80 Report No.: RF940906H0683Report Format Version 2.0.4 4.5.3 TEST PROCEDURES 1. The transmitter output was connec…
