AP-92 and AP-93 Wireless Access Point Installation Guide About the Aruba AP-92/AP-93 The Aruba AP-92 and AP-93 are single-radio, dual-band wireless access points that support the IEEE 802.11n standard for high-performance WLAN. These access points use MIMO (Multiple-in, Multiple-out) technology and other high- throughput mode techniques to deliver high-performance, 802.11n 2.4 GHz or 5 GHz functionality while simultaneously supporting existing 802.11a/b/g wireless services. The AP-92 and AP-93 access points work only in conjunction with an Aruba Controller. The Aruba AP-92/AP-93 access point provides the following capabilities: zWireless transceiver zProtocol-independent networking functionality zIEEE 802.11a/b/g/n operation as a wireless access point zIEEE 802.11a/b/g/n operation as a wireless air monitor zCompatibility with IEEE 802.3af PoE zCentral management configuration and upgrades through an Aruba Controller Package Contents zAP-92 or AP-93 access point zInstallation Guide Figure 1 AP-92/AP-93 (AP-92 Shown) AP-92/AP-93 Hardware Overview Figure 2 Front (AP-92 Shown) LEDs zPWR: Indicates whether or not the AP-92/AP-93 is powered-on zENET: Indicates the status of the AP-92/AP-93’s Ethernet port z11A/N: Indicates the status of the 802.11a/n radio z11B/G/N: Indicates the status of the 802.11b/g/n radio For information about the AP-92/AP-93’s LED behavior, see Table 1. Figure 3 Rear (AP-92 Shown) Console Port Use the console port to connect to a terminal for direct local management. Ethernet Port AP-92/AP-93 is equipped with a single 10/100/1000Base-T (RJ-45) auto-sensing, MDI/MDX wired-network connectivity port. This port supports IEEE 802.3af Power over Ethernet (PoE) compliance, accepting 48VDC as a standard defined Powered Device (PD) from a Power Sourcing Equipment (PSE) such as a PoE midspan injector, or network infrastructure that supports PoE. DC Power Socket If PoE is not available, an optional Aruba AP AC-DC adapter kit (sold separately) can be used to power the AP-92/AP-93. External Antenna Connectors The AP-92 is designed for use with external antennas. The AP-93 is equipped with internal antennas. Before You Begin Pre-Installation Network Requirements After WLAN planning is complete and the appropriate products and their placement have been determined, the Aruba controller(s) must be installed and initial setup performed before the Aruba APs are deployed. For initial setup of the controller, refer to the ArubaOS Quick Start Guide for the software version installed on your controller. AP Pre-Installation Checklist Before installing your AP-92/AP-93 access point, be sure that you have the following: zCAT5 UTP cable of required length zOne of the following power sources: „IEEE 802.3af-compliant Power over Ethernet (PoE) source „Aruba AP AC-DC adapter kit (sold separately) zAruba Controller provisioned on the network: „Layer 2/3 network connectivity to your access point One of the following network services: zAruba Discovery Protocol (ADP) zDNS server with an “A” record zDHCP Server with vendor-specific options Summary of the Setup Process Successful setup of an AP-92/AP-93 access point consists of five tasks, which must be performed in this order: 1. Verify pre-installation connectivity. 2. Identify the specific installation location for each AP. 3. Install each AP. 4. Verify post-installation connectivity. 5. Configure each AP. Verifying Pre-Installation Connectivity Before you install APs in a network environment, make sure that the APs are able to locate and connect to the controller after power on. Specifically, you must verify the following conditions: zWhen connected to the network, each AP is assigned a valid IP address zAPs are able to locate the controller Refer to the ArubaOS Quick Start Guide for instructions on locating and connecting to the controller. Identifying Specific Installation Locations You can mount the AP-92/AP-93 access point on a wall or on the ceiling. Use the AP placement map generated by Aruba’s RF Plan software application to determine the proper installation location(s). Each location should be as close as possible to the center of the intended coverage area and should be free from obstructions or obvious sources of interference. These RF absorbers/reflectors/ interference sources will impact RF propagation and should have been accounted for during the planning phase and adjusted for in RF plan. Identifying Known RF Absorbers/Reflectors/Interference Sources Identifying known RF absorbers, reflectors, and interference sources while in the field during the installation phase is critical. Make sure that these sources are taken into consideration when you attach an AP to its fixed location. RF absorbers include: zCement/concrete—Old concrete has high levels of water dissipation, which dries out the concrete, allowing for potential RF propagation. New concrete has high levels of water concentration within the concrete, blocking RF signals. zNatural Items—Fish tanks, water fountains, ponds, and trees zBrick RF reflectors include: zMetal Objects—Metal pans between floors, rebar, fire doors, air conditioning/ heating ducts, mesh windows, blinds, chain link fences (depending on aperture size), refrigerators, racks, shelves, and filing cabinets. zDo not place an AP between two air conditioning/heating ducts. Make sure that APs are placed below ducts to avoid RF disturbances. RF interference sources include: zMicrowave ovens and other 2.4 or 5 GHz objects (such as cordless phones) zCordless headset such as those used in call centers or lunch rooms Installing the AP Using the Integrated Wall-Mounting Slots The keyhole-shaped slots on the back of the AP can be used to attach the device upright to an indoor wall or shelf. When you choose the mounting location, allow additional space at the right of the unit for cables. 1. Since the ports are on the back of the device, make sure that you mount the AP is such a way that there is a clear path to the Ethernet por…

Text truncated - open the document above for the full version.

Federal Communications Commission Authorization and Evaluation Division Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MD 21046 5/6/2010 To whom it may concern: We, the undersigned, hereby authorize Eurofins ETS Product Service GmbH to act on our behalf in all matters relating to applications for equipment authorization FCC ID: Q9DAP9293 including the signing of all documents related to these matters. Any and all acts carried out by Eurofins ETS Product Service GmbH on our behalf shall have the same effect as acts of our own. We also hereby certify that no party to this application is subject to a denial of benefits, including FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 862. Sincerely, Signature Hogan Lew Director of Hardware Engineering Aruba Networks, Inc. 1344 Crossman Ave., Sunnyvale, CA 94089

Federal Communications Commission Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MD 21046 5/6/2010 Request for Confidentiality Company name: Aruba Networks, Inc. FCC ID: Q9DAP9293 Gentlemen, In accordance with 0.459 of CFR 47, Aruba Networks, Inc. hereby requests confidentiality of following documents for the subject application: • Schematics • Block Diagram • Theory of Operations • Antenna Specification • Bill of Materials These documents contain detailed system and equipment description and related information about the product which Aruba Networks considers to be proprietary, confidential and a custom design and otherwise would not release to the general public. Since the design is a basis from which future technological products will evolve, Aruba Networks considers that this information would be of benefit to its competitors and that the disclosure of the information in these documents would give competitors an unfair advantage in the market. Sincerely, Signature Hogan Lew Director of Hardware Engineering Aruba Networks, Inc. 1344 Crossman Ave., Sunnyvale, CA 94089

Date: 05/13/10 FCC ID: Q9DAP9293 Marlene H. Dortch Secretary Federal Communications Commission 445 12 th St. NW Washington, DC 20554 Pursuant to sections 0.407(d)(1)(ii) and 0.459 of the Commission’s rules, this letter requests confidential treatment of following material filed in support of the above- referenced application. Aruba Networks requests the following documents be held as confidential until such time as the product is released per FCC Public Notice 04-1705. - Set up photos - Product Internal Photos - Product external photos - User manual - Product literature or description The information contained in the document presents information about Aruba Networks> product that is being certified for commercial development. If competitors were to have access to this document both before and after release, they would have knowledge of Aruba Network’s proprietary technology and would be able to use this advance knowledge to their advantage. This could result in substantial competitive harm to Aruba Network’s ability to bring future product to market, should that decision be made. 1. Identification of any measures taken by the submitting party to prevent unauthorized disclosure. a. Information about Aruba Networks’ products currently under development is considered by the company to be commercially sensitive information that employees are not permitted to discuss outside the company. 2. Identification of whether the information is available to the public and the extent of any previous disclosure of information to third parties. a. Information about product development is not routinely provided to the public, and is not available on Aruba Networks’ web site. No information about this product has been disclosed. 3. Justification of the period during which the submitting party asserts that material should not be available for public disclosure. a. We further authorize the release of the above information after the official product launch scheduled for 06/01/10. Or a period not to exceed 60 days which ever comes first. This request is in addition to our request to with hold specific Aruba Networks, Inc. technology confidential for the life of the product per applicable regulations. Sincerely, Signature: Name: Hogan Lew Title: Director of Hardware Engineering

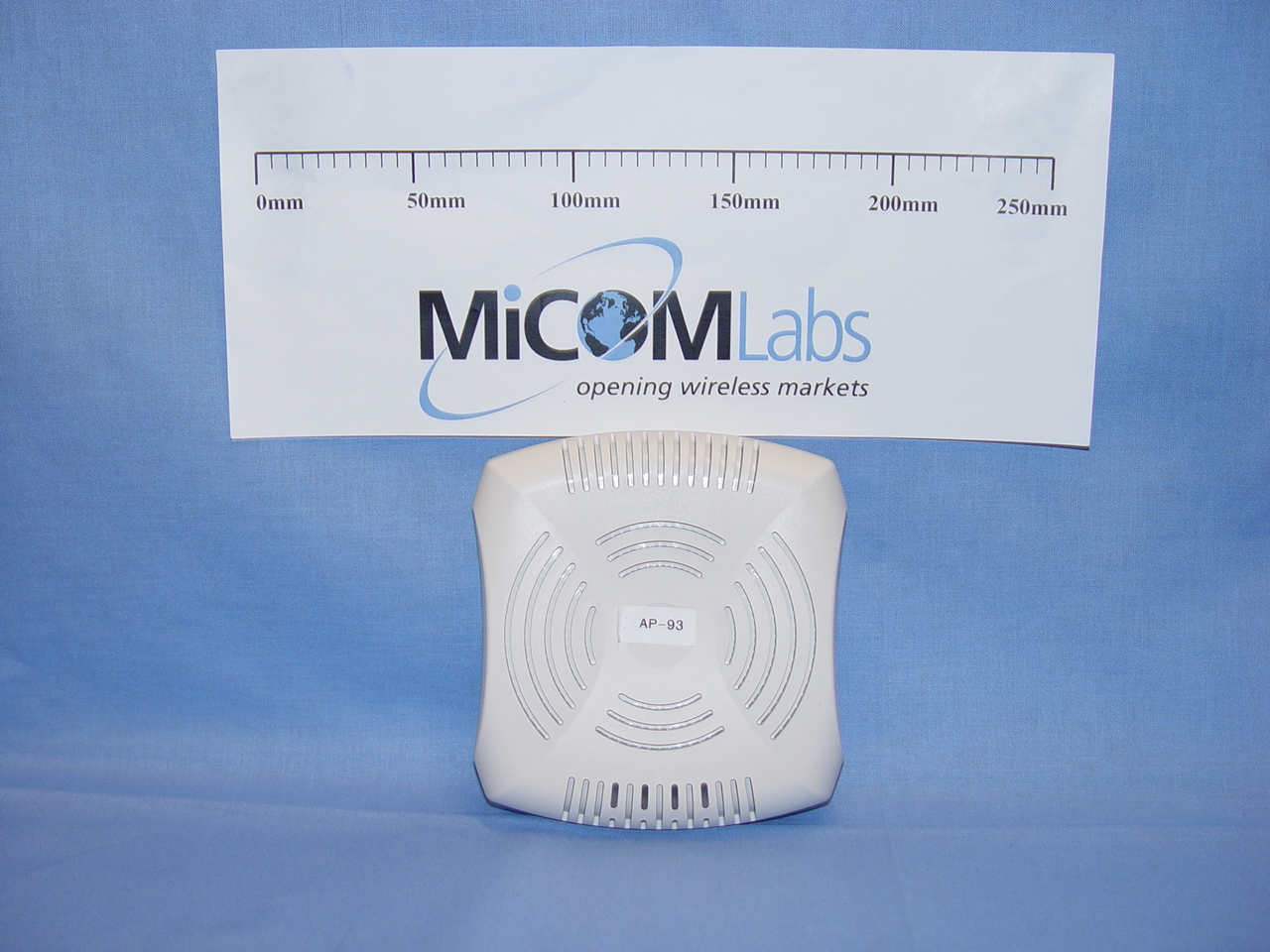

MiCOM Labs, 440 Boulder Court, Suite 200, Pleasanton, CA 94566 Tel: +1 (925) 462-0304, Fax: +1 (925) 462-0306, Web: www.micomlabs.com the wireless lab 13 May 2010 Aruba Networks AP-92, AP-93 External Photographs EUT Front Page 2 of 3 the wireless lab EUT Back Page 3 of 3 the wireless lab AP-92 Front

SCAPA-BOTTOM CASE_artwork_0.ai rev-0 3-18-10 ID-3D DESIGN PAD PRINT COLOR: PANTONE PMS 424C FCC ID: Q9DAP9293 IC: 4675A-AP9293 N19592 0681 ARU-AP9293 (B) 해당 중 방송통신위원회

MiCOM Labs, 440 Boulder Court, Suite 200, Pleasanton, CA 94566 Tel: +1 (925) 462-0304, Fax: +1 (925) 462-0306, Web: www.micomlabs.com the wireless lab 13 May 2010 Aruba Networks AP-92 & AP-93 Internal Photographs Main Assy Bottom Page 2 of 4 the wireless lab Main Assy Top Page 3 of 4 the wireless lab RF Assy Bottom Page 4 of 4 the wireless lab RF Assy Top

MiCOM Labs, 440 Boulder Court, Suite 200, Pleasanton, CA 94566 Tel: +1 (925) 462-0304, Fax: +1 (925) 462-0306, Web: www.micomlabs.com the wireless lab 19 May 2010 Maximum Permissible Exposure FCC, Part 15 Subpart C §15.407(f) Industry Canada RSS-Gen §5.5 Calculations for Maximum Permissible Exposure Levels Power Density = Pd (mW/cm 2 ) = EIRP/(4πd 2 ) EIRP = P * G * 2 P = Peak output power (mW) G = Antenna numeric gain (numeric) d = Separation distance (cm) Numeric Gain = 10 ^ (G (dBi)/10) The Aruba AP-92 / AP-93 has two transmitters. The peak power in the table below is calculated by assuming a worst case scenario where the two transmitters are operating simultaneously in the same band. The Peak Power in mW is calculated by taking the maximum conducted power measured in each band and multiplying by 2. Because the EUT belongs to the General Population/Uncontrolled Exposure the limit of power density is 1.0 mW/cm 2 Freq. Band (MHz) Antenna Gain (dBi) Numeric Gain (numeric) Peak Output Power (dBm) Peak Output Power x 2 (mW) Calculated Safe Distance @ 1mW/cm 2 Limit(cm) Minimum Separation Distance (cm) 2400 – 2500 12.0 15.84 +18.67 2328.1 13.61 20.00 5725 - 5850 14.0 25.1 +17.53 2837.9 15.03 20.00 Note: for mobile or fixed location transmitters the minimum separation distance is 20cm, even if calculations indicate the MPE distance to be less. Specification Maximum Permissible Exposure Limits FCC §1.1310 Limit = 1mW / cm 2 from 1.310 Table 1 RSS-Gen §5.5 Before equipment certification is granted, the application requirements of RSS-102 shall be met.

Test of Aruba AP-92/93 802.11a/b/g/n Wireless AP To: FCC 47 CFR Part 15.247 & IC RSS-210 Test Report Serial No.: ARUB51-U1 Rev A This test report may be reproduced in full only. The document may only be updated by MiCOM Labs personnel. Any changes will be noted in the Document History section of the report. TEST REPORT FROM Test of: Aruba Networks, Inc AP-92/93 802.11a/b/g/n Wireless AP To: FCC 47 CFR Part 15.247 & IC RSS 210 Test Report Serial No.: ARUB51-U1 Rev A Note: this report contains data with regard to the 2400 to 2483.5 MHz and 5725 to 5850 MHz bands for the Aruba Networks, Inc AP-92 & AP-93 Wireless Access Point. 5,150 to 5,250 MHz test data are reported in MiCOM Labs test report ARUB51-U2. This report supersedes: NONE Applicant: Aruba Networks, Inc 1322 Crossman Avenue Sunnyvale , CA 94089 USA Product Function: Wireless Access Point CERTIFICATE #2381.01 MiCOM Labs is an ISO 17025 Accredited Testing Laboratory Copy No: pdf Issue Date: 18th May 2010 This Test Report is Issued Under the Authority of; MiCOM Labs, Inc. 440 Boulder Court, Suite 200 Pleasanton, CA 94566 USA Phone: +1 (925) 462-0304 Fax: +1 (925) 462-0306 www.micomlabs.com Title: Aruba AP-92/93 802.11a/b/g/n Wireless AP To: FCC 47 CFR Part 15.247 & IC RSS-210 Serial #: ARUB51-U1 Rev A Issue Date: 18th May 2010 Page: Page 3 of 372 This test report may be reproduced in full only. The document may only be updated by MiCOM Labs personnel. Any changes will be noted in the Document History section of the report. MiCOM Labs, 440 Boulder Court, Suite 200, Pleasanton, CA 94566 USA, Phone: 925.462.0304, Fax: 925.462.0306, www.micomlabs.com TABLE OF CONTENTS 1 ACCREDITATION, LISTINGS & RECOGNITION.....................................................4 1.1 ACCREDITATION.....................................................................................................4 1.2 LISTINGS..................................................................................................................5 1.3 RECOGNITION.........................................................................................................5 2 DOCUMENT HISTORY...............................................................................................6 3 TEST RESULT CERTIFICATE...................................................................................7 4 REFERENCES AND MEASUREMENT UNCERTAINTY..........................................8 4.1 Normative References...............................................................................................8 4.2 Test and Uncertainty Procedures..............................................................................9 5 TEST SUMMARY......................................................................................................10 6 PRODUCT DETAILS AND TEST CONFIGURATIONS..........................................11 6.1 EUT Details..............................................................................................................11 6.2 Scope of Test Program............................................................................................12 6.3 Equipment Model(s) and Serial Number(s).............................................................13 6.4 Antenna Details.......................................................................................................13 6.5 Cabling and I/O Ports..............................................................................................14 6.6 Test Configurations..................................................................................................14 6.7 Equipment Modifications..........................................................................................17 6.8 Deviations from the Test Standard..........................................................................20 6.9 Subcontracted Testing or Third Party Data.............................................................20 7 TEST RESULTS........................................................................................................21 7.1 6 dB and 99% Bandwidth........................................................................................21 7.2 Peak Output Power..................................................................................................71 7.3 Peak Power Spectral Density..................................................................................80 7.4 Maximum Permissible Exposure...........................................................................151 7.5 Conducted Spurious Emissions.............................................................................152 7.6 Radiated Spurious Emissions................................................................................196 7.7 AC Wireline Conducted Emissions (150 kHz – 30 MHz).......................................366 8 TEST EQUIPMENT DETAILS.................................................................................371 Title: Aruba AP-92/93 802.11a/b/g/n Wireless AP To: FCC 47 CFR Part 15.247 & IC RSS-210 Serial #: ARUB51-U1 Rev A Issue Date: 18th May 2010 Page: Page 4 of 372 This test report may be reproduced in full only. The document may only be updated by MiCOM Labs personnel. Any changes will be noted in the Document History section of the report. MiCOM Labs, 440 Boulder Court, Suite 200, Pleasanton, CA 94566 USA, Phone: 925.462.0304, Fax: 925.462.0306, www.micomlabs.com 1 ACCREDITATION, LISTINGS & RECOGNITION 1.1 ACCREDITATION MiCOM Labs, Inc. an accredited laboratory complies with the international standard EN ISO/IEC 17025. The company is accredited by the American Association for Laboratory Accreditation (A2LA) www.a2la.org test laboratory number 2381.01. MiCOM Labs test schedule is available at the following URL; http://www.a2la.org/scopepdf/2381-01.pdf Title: Aruba AP-92/93 802.11a/b/g/n Wireless AP To: FCC 47 CFR Part 15.247 & IC RSS-210 Serial #: ARUB51-U1 Rev A Issue Date: 18th May 2010 Page: Page 5 of 372 This test report may be repro…

Text truncated - open the document above for the full version.

Title: Aruba AP-92/93 802.11a/b/g/n Wireless AP To: FCC 47 CFR Part 15.247 & IC RSS-210 Serial #: ARUB51-U1 Rev A Issue Date: 18th May 2010 Page: Page 196 of 372 This test report may be reproduced in full only. The document may only be updated by MiCOM Labs personnel. Any changes will be noted in the Document History section of the report. MiCOM Labs, 440 Boulder Court, Suite 200, Pleasanton, CA 94566 USA, Phone: 925.462.0304, Fax: 925.462.0306, www.micomlabs.com 7.6 Radiated Spurious Emissions Test Procedure Testing was performed in a 3-meter anechoic chamber. Preliminary radiated emissions were measured on every azimuth and with the receiving antenna in both horizontal and vertical polarizations. Preliminary emissions were recorded with in Spectrum Analyzer mode, using a maximum peak detector while in peak hold mode. Emissions nearest the limits were chosen for maximization and formal measurement using a CISPR Compliant receiver. Emissions above 1000 MHz are measured utilizing a CISPR compliant average detector with a tuned receiver, using a bandwidth of 1 MHz. Emissions from 30 MHz – 1000 MHz are measured utilizing a CISPR compliant quasi-peak detector with a tuned receiver, using a bandwidth of 120 kHz. Only the highest emissions relative to the limit are listed. Test Measurement Set Up Radiated Emission Measurement Setup – Above 1 GHz Title: Aruba AP-92/93 802.11a/b/g/n Wireless AP To: FCC 47 CFR Part 15.247 & IC RSS-210 Serial #: ARUB51-U1 Rev A Issue Date: 18th May 2010 Page: Page 197 of 372 This test report may be reproduced in full only. The document may only be updated by MiCOM Labs personnel. Any changes will be noted in the Document History section of the report. MiCOM Labs, 440 Boulder Court, Suite 200, Pleasanton, CA 94566 USA, Phone: 925.462.0304, Fax: 925.462.0306, www.micomlabs.com Radiated Emission Measurement Setup – Below 1 GHz Field Strength Calculation The field strength is calculated by adding the Antenna Factor and Cable Loss, and subtracting Amplifier Gain from the measured reading. All factors are included in the reported data. FS = R + AF + CORR – FO FS = Field Strength R = Measured Spectrum analyzer Input Amplitude AF = Antenna Factor Title: Aruba AP-92/93 802.11a/b/g/n Wireless AP To: FCC 47 CFR Part 15.247 & IC RSS-210 Serial #: ARUB51-U1 Rev A Issue Date: 18th May 2010 Page: Page 198 of 372 This test report may be reproduced in full only. The document may only be updated by MiCOM Labs personnel. Any changes will be noted in the Document History section of the report. MiCOM Labs, 440 Boulder Court, Suite 200, Pleasanton, CA 94566 USA, Phone: 925.462.0304, Fax: 925.462.0306, www.micomlabs.com CORR = Correction Factor = CL – AG + NFL CL = Cable Loss AG = Amplifier Gain FO = Distance Falloff Factor NFL = Notch Filter Loss or Waveguide Loss Field Strength Calculation Example: Given receiver input reading of 51.5 dB μV; Antenna Factor of 8.5 dB; Cable Loss of 1.3 dB; Falloff Factor of 0 dB, an Amplifier Gain of 26 dB and Notch Filter Loss of 1 dB. The Field Strength of the measured emission is: FS = 51.5 + 8.5 + 1.3 - 26.0 +1 = 36.3 dB μV/m Conversion between dB μV/m (or dBμV) and μV/m (or μV) are done as: Level (dB μV/m) = 20 * Log (level (μV/m)) 40 dB μV/m = 100 μV/m 48 dB μV/m = 250 μV/m Title: Aruba AP-92/93 802.11a/b/g/n Wireless AP To: FCC 47 CFR Part 15.247 & IC RSS-210 Serial #: ARUB51-U1 Rev A Issue Date: 18th May 2010 Page: Page 199 of 372 This test report may be reproduced in full only. The document may only be updated by MiCOM Labs personnel. Any changes will be noted in the Document History section of the report. MiCOM Labs, 440 Boulder Court, Suite 200, Pleasanton, CA 94566 USA, Phone: 925.462.0304, Fax: 925.462.0306, www.micomlabs.com Specification Radiated Spurious Emissions FCC §15.247(d) In any 100 kHz bandwidth outside the frequency band in which the spread spectrum or digitally modulated intentional radiator is operating, the radio frequency power that is produced by the intentional radiator shall be at least 20 dB below that in the 100 kHz bandwidth within the band that contains the highest level of the desired power, based on either an RF conducted or radiated measurement, provided the transmitter demonstrates compliance with the peak conducted power limits. If the transmitter complies with the conducted power limits based on the use of RMS averaging over a time interval, as permitted under paragraph (b)(3) of this section, the attenuation required under this paragraph shall be 30 dB instead of 20 dB. Attenuation below the general limits specified §15.209(a) is not required. In addition, radiated emissions which fall in the restricted bands, as defined in Section §15.205(a), must also comply with the radiated emission limits specified in Section 15.209(a) (see Section 15.205(a)). FCC §15.205 (a) Except as shown in paragraph (d) of 15.205 (a), only spurious emissions are permitted in any of the frequency bands listed. FCC §15.205 (a) Except as shown in paragraphs (d) and (e) of this section, the field strength of emissions appearing within these frequency bands shall not exceed the limits shown in Section §15.209. At frequencies equal to or less than 1000 MHz, compliance with the limits in Section 15.209 shall be demonstrated using measurement instrumentation employing a CISPR quasi-peak detector. Above 1000 MHz, compliance with the emission limits in Section 15.209 shall be demonstrated based on the average value of the measured emissions. The provisions in Section 15.35 apply to these measurements. FCC §15.209 (a) Except as provided elsewhere in this subpart, the emissions from an intentional radiator shall not exceed the field strength levels specified in the following table. Title: Aruba AP-92/93 802.11a/b/g/n Wireless AP To: FCC 47 CFR Part 15.247 & IC RSS-210 Serial #: ARUB51-U1 Rev A Issue Date: 18th May 2010 Page: Page 200 of 372 This test report may be reproduced in full only. The document may only be updated by MiCOM Labs personnel.…

Text truncated - open the document above for the full version.

Title: Aruba AP-92/93 802.11a/b/g/n Wireless AP To: FCC 47 CFR Part 15.247 & IC RSS-210 Serial #: ARUB51-U1 Rev A Issue Date: 18th May 2010 Page: Page 306 of 372 This test report may be reproduced in full only. The document may only be updated by MiCOM Labs personnel. Any changes will be noted in the Document History section of the report. MiCOM Labs, 440 Boulder Court, Suite 200, Pleasanton, CA 94566 USA, Phone: 925.462.0304, Fax: 925.462.0306, www.micomlabs.com 7.6.9 AP-ANT-7 - Transmitter Peak Emissions (RSS-210/RSS-GEN) 2400 – 2483.5 MHz: 802.11b IMG F requency MHz Raw dBuV Cable Loss AF dB Level dBuV/ m M easurement Type Pol Hgt cm Azt Deg Limit dBuV/ m M argin dB P ass /Fail Comments 2413.36075.07.130.4112.6Peak [Scan] VPK Legend: Formally measured emission peaks TX = Transmitter Emissions; DIG = Digital Emissions; FUND = Fundamental; WB = Wideband Emission Engineer CSB Test Freq. 2412 MHz Pow er Setting Test Notes 1 Test Notes 2 Press. (mBars) Antenna AP-ANT-7 10026.5 in ART test utility Rel. Hum .( %) Dut y C ycle ( %) 100 Variant Fr e q . Ran g e Tem p (ºC) 802.11b; 1 Mbs 2400 - 2483.5 MHz 21 38 Title: Aruba AP-92/93 802.11a/b/g/n Wireless AP To: FCC 47 CFR Part 15.247 & IC RSS-210 Serial #: ARUB51-U1 Rev A Issue Date: 18th May 2010 Page: Page 307 of 372 This test report may be reproduced in full only. The document may only be updated by MiCOM Labs personnel. Any changes will be noted in the Document History section of the report. MiCOM Labs, 440 Boulder Court, Suite 200, Pleasanton, CA 94566 USA, Phone: 925.462.0304, Fax: 925.462.0306, www.micomlabs.com IMG F requency MHz Raw dBuV Cable Loss AF dB Level dBuV/ m M easurement Type Pol Hgt cm Azt Deg Limit dBuV/ m M argin dB P ass /Fail Comments 2438.54976.47.130.5114.0Peak [Scan] VPK Legend: CSB Engineer Variant 802.11b; 1 Mbs Tem p (ºC) 2437 MHz 1002 Fr e q . Ran g e 2400 - 2483.5 MHz Rel. Hum .( %) 38 Pow er Setting 6 in ART test utility Press. (mBars) Test Notes 1 Test Notes 2 Formally measured emission peaks TX = Transmitter Emissions; DIG = Digital Emissions; FUND = Fundamental; WB = Wideband Emission 21 Test Freq. AP-ANT-7 Dut y C ycle ( %) 100 Antenna Title: Aruba AP-92/93 802.11a/b/g/n Wireless AP To: FCC 47 CFR Part 15.247 & IC RSS-210 Serial #: ARUB51-U1 Rev A Issue Date: 18th May 2010 Page: Page 308 of 372 This test report may be reproduced in full only. The document may only be updated by MiCOM Labs personnel. Any changes will be noted in the Document History section of the report. MiCOM Labs, 440 Boulder Court, Suite 200, Pleasanton, CA 94566 USA, Phone: 925.462.0304, Fax: 925.462.0306, www.micomlabs.com IMG F requency MHz Raw dBuV Cable Loss AF dB Level dBuV/ m M easurement Type Pol Hgt cm Azt Deg Limit dBuV/ m M argin dB P ass /Fail Comments 2463.87874.77.230.6112.5Peak [Scan] VPK Legend: Formally measured emission peaks TX = Transmitter Emissions; DIG = Digital Emissions; FUND = Fundamental; WB = Wideband Emission Test Notes 1 Test Notes 2 Antenna AP-ANT-7 Dut y C ycle ( %) 100 Pow er Setting 6 in ART test utility Press. (mBars) 1002 Fr e q . Ran g e 2400 - 2483.5 MHz Rel. Hum .( %) 38 Variant 802.11b; 1 Mbs Tem p (ºC) 21 Test Freq. 2462 MHz Engineer CSB Title: Aruba AP-92/93 802.11a/b/g/n Wireless AP To: FCC 47 CFR Part 15.247 & IC RSS-210 Serial #: ARUB51-U1 Rev A Issue Date: 18th May 2010 Page: Page 309 of 372 This test report may be reproduced in full only. The document may only be updated by MiCOM Labs personnel. Any changes will be noted in the Document History section of the report. MiCOM Labs, 440 Boulder Court, Suite 200, Pleasanton, CA 94566 USA, Phone: 925.462.0304, Fax: 925.462.0306, www.micomlabs.com 2400 – 2483.5 MHz: 802.11g IMG F requency MHz Raw dBuV Cable Loss AF dB Level dBuV/ m M easurement Type Pol Hgt cm Azt Deg Limit dBuV/ m M argin dB P ass /Fail Comments 2406.68085.27.130.4122.7Peak [Scan] VPK Legend: Fr e q . Ran g e Tem p (ºC) Variant AP-ANT-7 Dut y C ycle ( %) 21 38 1002 PK = Peak emission of fundamental TX = Transmitter Emissions; DIG = Digital Emissions; FUND = Fundamental; WB = Wideband Emission 100 Test Freq. 2412 MHz 802.11g; 6 Mbs 2400 - 2483.5 MHz 13 in A RT tes t utility Rel. Hum .( %) Engineer CSB Pow er Setting Test Notes 1 Test Notes 2 Press. (mBars) Antenna Formally measured emission peaks Title: Aruba AP-92/93 802.11a/b/g/n Wireless AP To: FCC 47 CFR Part 15.247 & IC RSS-210 Serial #: ARUB51-U1 Rev A Issue Date: 18th May 2010 Page: Page 310 of 372 This test report may be reproduced in full only. The document may only be updated by MiCOM Labs personnel. Any changes will be noted in the Document History section of the report. MiCOM Labs, 440 Boulder Court, Suite 200, Pleasanton, CA 94566 USA, Phone: 925.462.0304, Fax: 925.462.0306, www.micomlabs.com IMG F requency MHz Raw dBuV Cable Loss AF dB Level dBuV/ m M easurement Type Pol Hgt cm Azt Deg Limit dBuV/ m M argin dB P ass /Fail Comments 2444.11686.07.230.5123.7Peak [Scan] VPK Legend: TX = Transmitter Emissions; DIG = Digital Emissions; FUND = Fundamental; WB = Wideband Emission PK = Peak emission of fundamental Antenna 21 Test Notes 2 Formally measured emission peaks Test Notes 1 1002 Fr e q . Ran g e 2400 - 2483.5 MHz Rel. Hum .( %) 38 Pow er Setting 13 in A RT tes t utility Press. (mBars) 2437 MHz Engineer Test Freq. Variant 802.11g; 6 Mbs Tem p (ºC) AP-ANT-7 Dut y C ycle ( %…
