Q9DAP9293SDRAruba Wireless Access Point

IAP-92 and IAP-93 Wireless Access Point Installation Guide About the Aruba IAP-92/IAP-93 The Aruba IAP-92 and IAP-93 are single-radio, dual-band wireless access points that support the IEEE 802.11n standard for high-performance WLAN. These access points use MIMO (Multiple-in, Multiple-out) technology and other high- throughput mode techniques to deliver high-performance, 802.11n 2.4 GHz or 5 GHz functionality while simultaneously supporting existing 802.11a/b/g wireless services. The IAP-92 and IAP-93 access points work only in conjunction with an Aruba Controller. The Aruba IAP-92/IAP-93 access point provides the following capabilities: Wireless transceiver Protocol-independent networking functionality IEEE 802.11a/b/g/n operation as a wireless access point IEEE 802.11a/b/g/n operation as a wireless air monitor Compatibility with IEEE 802.3af PoE Central management configuration and upgrades through an Aruba Controller Package Contents IAP-92 or IAP-93 access point Installation Guide Figure 1 IAP-92/IAP-93 (IAP-92 Shown) IAP-92/IAP-93 Hardware Overview Figure 2 Front (IAP-92 Shown) LEDs PWR: Indicates whether or not the IAP-92/IAP-93 is powered-on ENET: Indicates the status of the IAP-92/IAP-93’s Ethernet port 11A/N: Indicates the status of the 802.11a/n radio 11B/G/N: Indicates the status of the 802.11b/g/n radio For information about the IAP-92/IAP-93’s LED behavior, see Table 1. Figure 3 Rear (IAP-92 Shown) Console Port Use the console port to connect to a terminal for direct local management. Ethernet Port IAP-92/IAP-93 is equipped with a single 10/100/1000Base-T (RJ-45) auto-sensing, MDI/MDX wired-network connectivity port. This port supports IEEE 802.3af Power over Ethernet (PoE) compliance, accepting 48VDC as a standard defined Powered Device (PD) from a Power Sourcing Equipment (PSE) such as a PoE midspan injector, or network infrastructure that supports PoE. DC Power Socket If PoE is not available, an optional Aruba AP AC-DC adapter kit (sold separately) can be used to power the IAP-92/IAP-93. Reset Button The reset button can be used to return the AP to factory default settings.. To reset the AP: 1. Power off the AP. 2. Press and hold the reset button using a small, narrow object, such as a paperclip. 3. Power-on the AP without releasing the reset button. The power LED will flash within 5 seconds. 4. Release the reset button. The power LED will flash again within 15 seconds indicating that the reset is completed. The AP will now continue to boot with the factory default settings. External Antenna Connectors The IAP-92 is designed for use with external antennas. The IAP-93 is equipped with internal antennas. Before You Begin Pre-Installation Network Requirements After WLAN planning is complete and the appropriate products and their placement have been determined, the Aruba controller(s) must be installed and initial setup performed before the Aruba APs are deployed. For initial setup of the controller, refer to the ArubaOS Quick Start Guide for the software version installed on your controller. AP Pre-Installation Checklist Before installing your IAP-92/IAP-93 access point, be sure that you have the following: CAT5 UTP cable of required length One of the following power sources: IEEE 802.3af-compliant Power over Ethernet (PoE) source Aruba AP AC-DC adapter kit (sold separately) Aruba Controller provisioned on the network: Layer 2/3 network connectivity to your access point One of the following network services: Aruba Discovery Protocol (ADP) DNS server with an “A” record DHCP Server with vendor-specific options Summary of the Setup Process Successful setup of an IAP-92/IAP-93 access point consists of five tasks, which must be performed in this order: 1. Verify pre-installation connectivity. 2. Identify the specific installation location for each AP. 3. Install each AP. 4. Verify post-installation connectivity. 5. Configure each AP. Verifying Pre-Installation Connectivity Before you install APs in a network environment, make sure that the APs are able to locate and connect to the controller after power on. Specifically, you must verify the following conditions: When connected to the network, each AP is assigned a valid IP address APs are able to locate the controller Refer to the ArubaOS Quick Start Guide for instructions on locating and connecting to the controller. Identifying Specific Installation Locations You can mount the IAP-92/IAP-93 access point on a wall or on the ceiling. Use the AP placement map generated by Aruba’s RF Plan software application to determine the proper installation location(s). Each location should be as close as possible to the center of the intended coverage area and should be free from obstructions or obvious sources of interference. These RF absorbers/reflectors/ interference sources will impact RF propagation and should have been accounted for during the planning phase and adjusted for in RF plan. Identifying Known RF Absorbers/Reflectors/Interference Sources Identifying known RF absorbers, reflectors, and interference sources while in the field during the installation phase is critical. Make sure that these sources are taken into consideration when you attach an AP to its fixed location. RF absorbers include: Cement/concrete—Old concrete has high levels of water dissipation, which dries out the concrete, allowing for potential RF propagation. New concrete has high levels of water concentration in the concrete, blocking RF signals. Natural Items—Fish tanks, water fountains, ponds, and trees Brick RF reflectors include: Metal Objects—Metal pans between floors, rebar, fire doors, air conditioning/ heating ducts, mesh windows, blinds, chain link fences (depending on aperture size), refrigerators, racks, shelves, and filing cabinets. Do not place an AP between two air conditioning/heating ducts. Make sure that APs are placed below ducts to avoid RF disturbances. RF interference sources include: Microwave ovens and other 2…

Text truncated - open the document above for the full version.

Letter of Authorization February 3, 2011 Company: Aruba Networks, Inc. Address: 1344 Crossman Ave, Sunnyvale, CA 94089 Model: AP-92; AP-93 and IAP variants We authorize MiCOM Labs, 440 Boulder Court, Suite 200, Pleasanton, CA 94566, USA, to act on our behalf on all matters concerning the above named equipment. This shall include the following: - Testing - Approval applications and procedures - Payment of approval fees We declare that MiCOM Labs, 440 Boulder Court, Suite 200, Pleasanton, CA 94566, USA, is allowed to forward all information related to the approval project to the applied notified body and to the notification entities and to discuss any issues concerning the approval application. Any and all acts carried out by MiCOM Labs on our behalf shall have the same effect as acts of our own. This authorization is valid for 90 (ninety) days. Sincerely, Signature Name:Ivaylo Tankov Title:Compliance Manager Aruba Networks, Inc. 1344 Crossman Ave., Sunnyvale, CA 94089 Tel: (408) 227 4500 Email: [email protected]

Federal Communications Commission Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MD 21046 February 3, 2011 Re: SDR Certification Company name: Aruba Networks, Inc. FCC ID: Q9DAP9293SDR Gentlemen, In accordance with 0.459 of CFR 47, Aruba Networks, Inc. hereby requests confidentiality of following documents for the subject application:  Schematics  Block Diagram  Theory of Operations  SDR Security Description Guide  Bill of Materials These documents contain detailed system and equipment description and related information about the product which Aruba Networks considers to be proprietary, confidential and a custom design and otherwise would not release to the general public. Since the design is a basis from which future technological products will evolve, Aruba Networks considers that this information would be of benefit to its competitors and that the disclosure of the information in these documents would give competitors an unfair advantage in the market. Sincerely, Signature Ivaylo Tankov Compliance Manager Aruba Networks, Inc. 1344 Crossman Ave., Sunnyvale, CA 94089 Tel: (408) 227 4500 Email: [email protected]

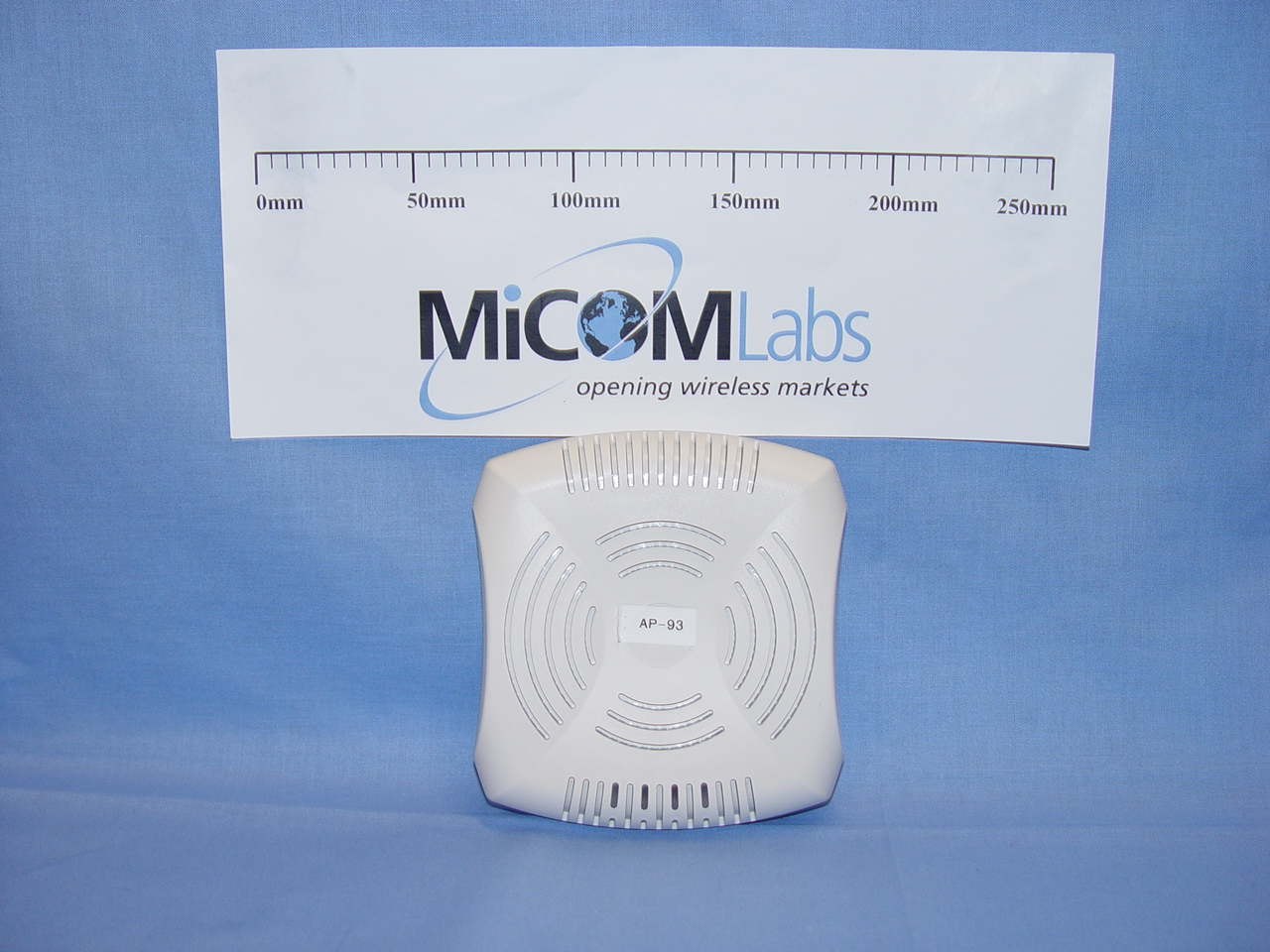

the wireless lab 25 February 2011 Aruba Networks AP-92, AP-93 External Photographs EUT Front MiCOM Labs, 440 Boulder Court, Suite 200, Pleasanton, CA 94566 Tel: +1 (925) 462-0304, Fax: +1 (925) 462-0306, Web: www.micomlabs.com the wireless lab EUT Back Page 2 of 3 the wireless lab AP-92 front Page 3 of 3

MiCOM Labs, 440 Boulder Court, Suite 200, Pleasanton, CA 94566 Tel: +1 (925) 462-0304, Fax: +1 (925) 462-0306, Web: www.micomlabs.com the wireless lab 2/4/2011 The device is electronically labeled and the FCC ID will be displayed via the controller WebUI under the About menu. 784748 D01 Labelling Part 15 &18 Guidelines v07 A software defined radio (Section 2.944) may provide permanently affixed labels according to standard Certification labelling requirements (see 2.2 Certification (labelling requirements) above) or electronic labelling. An electronic label may use a built-in display on the device or provide a standard electrical interface. The electrical interface must be an industry standard using commonly used protocols and methods to permit easy local access (http through a browser, Telnet or ASCII serial interface using standard terminal emulation, Hyper terminal, etc.) The user manual must provide a description of the method for using basic commands to access the FCC ID. Access to the FCC ID shall be obtained without any security (user name, password, etc.) unless all types of access require some security, then access to the FCC ID must be obtained through the lowest security level defined for the end user of the system.

the wireless lab 25 February 2011 Aruba Networks AP-92 & AP-93 Internal Photographs AP-92 Internal View with External Antenna MiCOM Labs, 440 Boulder Court, Suite 200, Pleasanton, CA 94566 Tel: +1 (925) 462-0304, Fax: +1 (925) 462-0306, Web: www.micomlabs.com the wireless lab AP-93 Internal View with Internal Antenna Page 2 of 6 the wireless lab Main Assy Bottom Page 3 of 6 the wireless lab Main Assy Top Page 4 of 6 the wireless lab RF Assy Bottom Page 5 of 6 the wireless lab RF Assy Top Page 6 of 6

MiCOM Labs, 440 Boulder Court, Suite 200, Pleasanton, CA 94566 Tel: +1 (925) 462-0304, Fax: +1 (925) 462-0306, Web: www.micomlabs.com the wireless lab 19 May 2010 Maximum Permissible Exposure FCC, Part 15 Subpart C §15.407(f) Industry Canada RSS-Gen §5.5 Calculations for Maximum Permissible Exposure Levels Power Density = Pd (mW/cm 2 ) = EIRP/(4πd 2 ) EIRP = P * G * 2 P = Peak output power (mW) G = Antenna numeric gain (numeric) d = Separation distance (cm) Numeric Gain = 10 ^ (G (dBi)/10) The Aruba AP-92 / AP-93 has two transmitters. The peak power in the table below is calculated by assuming a worst case scenario where the two transmitters are operating simultaneously in the same band. The Peak Power in mW is calculated by taking the maximum conducted power measured in each band and multiplying by 2. Because the EUT belongs to the General Population/Uncontrolled Exposure the limit of power density is 1.0 mW/cm 2 Freq. Band (MHz) Antenna Gain (dBi) Numeric Gain (numeric) Peak Output Power (dBm) Peak Output Power x 2 (mW) Calculated Safe Distance @ 1mW/cm 2 Limit(cm) Minimum Separation Distance (cm) 2400 – 2500 12.0 15.84 +18.67 2328.1 13.61 20.00 5725 - 5850 14.0 25.1 +17.53 2837.9 15.03 20.00 Note: for mobile or fixed location transmitters the minimum separation distance is 20cm, even if calculations indicate the MPE distance to be less. Specification Maximum Permissible Exposure Limits FCC §1.1310 Limit = 1mW / cm 2 from 1.310 Table 1 RSS-Gen §5.5 Before equipment certification is granted, the application requirements of RSS-102 shall be met.

Test of Aruba AP-92/93 802.11a/b/g/n Wireless AP To: FCC 47 CFR Part 15.247 & IC RSS-210 Test Report Serial No.: ARUB51-U1 Rev A This test report may be reproduced in full only. The document may only be updated by MiCOM Labs personnel. Any changes will be noted in the Document History section of the report. TEST REPORT FROM Test of: Aruba Networks, Inc AP-92/93 802.11a/b/g/n Wireless AP To: FCC 47 CFR Part 15.247 & IC RSS 210 Test Report Serial No.: ARUB51-U1 Rev A Note: this report contains data with regard to the 2400 to 2483.5 MHz and 5725 to 5850 MHz bands for the Aruba Networks, Inc AP-92 & AP-93 Wireless Access Point. 5,150 to 5,250 MHz test data are reported in MiCOM Labs test report ARUB51-U2. This report supersedes: NONE Applicant: Aruba Networks, Inc 1322 Crossman Avenue Sunnyvale , CA 94089 USA Product Function: Wireless Access Point CERTIFICATE #2381.01 MiCOM Labs is an ISO 17025 Accredited Testing Laboratory Copy No: pdf Issue Date: 18th May 2010 This Test Report is Issued Under the Authority of; MiCOM Labs, Inc. 440 Boulder Court, Suite 200 Pleasanton, CA 94566 USA Phone: +1 (925) 462-0304 Fax: +1 (925) 462-0306 www.micomlabs.com Title: Aruba AP-92/93 802.11a/b/g/n Wireless AP To: FCC 47 CFR Part 15.247 & IC RSS-210 Serial #: ARUB51-U1 Rev A Issue Date: 18th May 2010 Page: Page 3 of 372 This test report may be reproduced in full only. The document may only be updated by MiCOM Labs personnel. Any changes will be noted in the Document History section of the report. MiCOM Labs, 440 Boulder Court, Suite 200, Pleasanton, CA 94566 USA, Phone: 925.462.0304, Fax: 925.462.0306, www.micomlabs.com TABLE OF CONTENTS 1 ACCREDITATION, LISTINGS & RECOGNITION.....................................................4 1.1 ACCREDITATION.....................................................................................................4 1.2 LISTINGS..................................................................................................................5 1.3 RECOGNITION.........................................................................................................5 2 DOCUMENT HISTORY...............................................................................................6 3 TEST RESULT CERTIFICATE...................................................................................7 4 REFERENCES AND MEASUREMENT UNCERTAINTY..........................................8 4.1 Normative References...............................................................................................8 4.2 Test and Uncertainty Procedures..............................................................................9 5 TEST SUMMARY......................................................................................................10 6 PRODUCT DETAILS AND TEST CONFIGURATIONS..........................................11 6.1 EUT Details..............................................................................................................11 6.2 Scope of Test Program............................................................................................12 6.3 Equipment Model(s) and Serial Number(s).............................................................13 6.4 Antenna Details.......................................................................................................13 6.5 Cabling and I/O Ports..............................................................................................14 6.6 Test Configurations..................................................................................................14 6.7 Equipment Modifications..........................................................................................17 6.8 Deviations from the Test Standard..........................................................................20 6.9 Subcontracted Testing or Third Party Data.............................................................20 7 TEST RESULTS........................................................................................................21 7.1 6 dB and 99% Bandwidth........................................................................................21 7.2 Peak Output Power..................................................................................................71 7.3 Peak Power Spectral Density..................................................................................80 7.4 Maximum Permissible Exposure...........................................................................151 7.5 Conducted Spurious Emissions.............................................................................152 7.6 Radiated Spurious Emissions................................................................................196 7.7 AC Wireline Conducted Emissions (150 kHz – 30 MHz).......................................366 8 TEST EQUIPMENT DETAILS.................................................................................371 Title: Aruba AP-92/93 802.11a/b/g/n Wireless AP To: FCC 47 CFR Part 15.247 & IC RSS-210 Serial #: ARUB51-U1 Rev A Issue Date: 18th May 2010 Page: Page 4 of 372 This test report may be reproduced in full only. The document may only be updated by MiCOM Labs personnel. Any changes will be noted in the Document History section of the report. MiCOM Labs, 440 Boulder Court, Suite 200, Pleasanton, CA 94566 USA, Phone: 925.462.0304, Fax: 925.462.0306, www.micomlabs.com 1 ACCREDITATION, LISTINGS & RECOGNITION 1.1 ACCREDITATION MiCOM Labs, Inc. an accredited laboratory complies with the international standard EN ISO/IEC 17025. The company is accredited by the American Association for Laboratory Accreditation (A2LA) www.a2la.org test laboratory number 2381.01. MiCOM Labs test schedule is available at the following URL; http://www.a2la.org/scopepdf/2381-01.pdf Title: Aruba AP-92/93 802.11a/b/g/n Wireless AP To: FCC 47 CFR Part 15.247 & IC RSS-210 Serial #: ARUB51-U1 Rev A Issue Date: 18th May 2010 Page: Page 5 of 372 This test report may be repro…

Text truncated - open the document above for the full version.

Title: Aruba AP-92/93 802.11a/b/g/n Wireless AP To: FCC 47 CFR Part 15.247 & IC RSS-210 Serial #: ARUB51-U1 Rev A Issue Date: 18th May 2010 Page: Page 196 of 372 This test report may be reproduced in full only. The document may only be updated by MiCOM Labs personnel. Any changes will be noted in the Document History section of the report. MiCOM Labs, 440 Boulder Court, Suite 200, Pleasanton, CA 94566 USA, Phone: 925.462.0304, Fax: 925.462.0306, www.micomlabs.com 7.6 Radiated Spurious Emissions Test Procedure Testing was performed in a 3-meter anechoic chamber. Preliminary radiated emissions were measured on every azimuth and with the receiving antenna in both horizontal and vertical polarizations. Preliminary emissions were recorded with in Spectrum Analyzer mode, using a maximum peak detector while in peak hold mode. Emissions nearest the limits were chosen for maximization and formal measurement using a CISPR Compliant receiver. Emissions above 1000 MHz are measured utilizing a CISPR compliant average detector with a tuned receiver, using a bandwidth of 1 MHz. Emissions from 30 MHz – 1000 MHz are measured utilizing a CISPR compliant quasi-peak detector with a tuned receiver, using a bandwidth of 120 kHz. Only the highest emissions relative to the limit are listed. Test Measurement Set Up Radiated Emission Measurement Setup – Above 1 GHz Title: Aruba AP-92/93 802.11a/b/g/n Wireless AP To: FCC 47 CFR Part 15.247 & IC RSS-210 Serial #: ARUB51-U1 Rev A Issue Date: 18th May 2010 Page: Page 197 of 372 This test report may be reproduced in full only. The document may only be updated by MiCOM Labs personnel. Any changes will be noted in the Document History section of the report. MiCOM Labs, 440 Boulder Court, Suite 200, Pleasanton, CA 94566 USA, Phone: 925.462.0304, Fax: 925.462.0306, www.micomlabs.com Radiated Emission Measurement Setup – Below 1 GHz Field Strength Calculation The field strength is calculated by adding the Antenna Factor and Cable Loss, and subtracting Amplifier Gain from the measured reading. All factors are included in the reported data. FS = R + AF + CORR – FO FS = Field Strength R = Measured Spectrum analyzer Input Amplitude AF = Antenna Factor Title: Aruba AP-92/93 802.11a/b/g/n Wireless AP To: FCC 47 CFR Part 15.247 & IC RSS-210 Serial #: ARUB51-U1 Rev A Issue Date: 18th May 2010 Page: Page 198 of 372 This test report may be reproduced in full only. The document may only be updated by MiCOM Labs personnel. Any changes will be noted in the Document History section of the report. MiCOM Labs, 440 Boulder Court, Suite 200, Pleasanton, CA 94566 USA, Phone: 925.462.0304, Fax: 925.462.0306, www.micomlabs.com CORR = Correction Factor = CL – AG + NFL CL = Cable Loss AG = Amplifier Gain FO = Distance Falloff Factor NFL = Notch Filter Loss or Waveguide Loss Field Strength Calculation Example: Given receiver input reading of 51.5 dB μV; Antenna Factor of 8.5 dB; Cable Loss of 1.3 dB; Falloff Factor of 0 dB, an Amplifier Gain of 26 dB and Notch Filter Loss of 1 dB. The Field Strength of the measured emission is: FS = 51.5 + 8.5 + 1.3 - 26.0 +1 = 36.3 dB μV/m Conversion between dB μV/m (or dBμV) and μV/m (or μV) are done as: Level (dB μV/m) = 20 * Log (level (μV/m)) 40 dB μV/m = 100 μV/m 48 dB μV/m = 250 μV/m Title: Aruba AP-92/93 802.11a/b/g/n Wireless AP To: FCC 47 CFR Part 15.247 & IC RSS-210 Serial #: ARUB51-U1 Rev A Issue Date: 18th May 2010 Page: Page 199 of 372 This test report may be reproduced in full only. The document may only be updated by MiCOM Labs personnel. Any changes will be noted in the Document History section of the report. MiCOM Labs, 440 Boulder Court, Suite 200, Pleasanton, CA 94566 USA, Phone: 925.462.0304, Fax: 925.462.0306, www.micomlabs.com Specification Radiated Spurious Emissions FCC §15.247(d) In any 100 kHz bandwidth outside the frequency band in which the spread spectrum or digitally modulated intentional radiator is operating, the radio frequency power that is produced by the intentional radiator shall be at least 20 dB below that in the 100 kHz bandwidth within the band that contains the highest level of the desired power, based on either an RF conducted or radiated measurement, provided the transmitter demonstrates compliance with the peak conducted power limits. If the transmitter complies with the conducted power limits based on the use of RMS averaging over a time interval, as permitted under paragraph (b)(3) of this section, the attenuation required under this paragraph shall be 30 dB instead of 20 dB. Attenuation below the general limits specified §15.209(a) is not required. In addition, radiated emissions which fall in the restricted bands, as defined in Section §15.205(a), must also comply with the radiated emission limits specified in Section 15.209(a) (see Section 15.205(a)). FCC §15.205 (a) Except as shown in paragraph (d) of 15.205 (a), only spurious emissions are permitted in any of the frequency bands listed. FCC §15.205 (a) Except as shown in paragraphs (d) and (e) of this section, the field strength of emissions appearing within these frequency bands shall not exceed the limits shown in Section §15.209. At frequencies equal to or less than 1000 MHz, compliance with the limits in Section 15.209 shall be demonstrated using measurement instrumentation employing a CISPR quasi-peak detector. Above 1000 MHz, compliance with the emission limits in Section 15.209 shall be demonstrated based on the average value of the measured emissions. The provisions in Section 15.35 apply to these measurements. FCC §15.209 (a) Except as provided elsewhere in this subpart, the emissions from an intentional radiator shall not exceed the field strength levels specified in the following table. Title: Aruba AP-92/93 802.11a/b/g/n Wireless AP To: FCC 47 CFR Part 15.247 & IC RSS-210 Serial #: ARUB51-U1 Rev A Issue Date: 18th May 2010 Page: Page 200 of 372 This test report may be reproduced in full only. The document may only be updated by MiCOM Labs personnel.…

Text truncated - open the document above for the full version.

Title: Aruba AP-92/93 802.11a/b/g/n Wireless AP To: FCC 47 CFR Part 15.247 & IC RSS-210 Serial #: ARUB51-U1 Rev A Issue Date: 18th May 2010 Page: Page 306 of 372 This test report may be reproduced in full only. The document may only be updated by MiCOM Labs personnel. Any changes will be noted in the Document History section of the report. MiCOM Labs, 440 Boulder Court, Suite 200, Pleasanton, CA 94566 USA, Phone: 925.462.0304, Fax: 925.462.0306, www.micomlabs.com 7.6.9 AP-ANT-7 - Transmitter Peak Emissions (RSS-210/RSS-GEN) 2400 – 2483.5 MHz: 802.11b IMG F requency MHz Raw dBuV Cable Loss AF dB Level dBuV/ m M easurement Type Pol Hgt cm Azt Deg Limit dBuV/ m M argin dB P ass /Fail Comments 2413.36075.07.130.4112.6Peak [Scan] VPK Legend: Formally measured emission peaks TX = Transmitter Emissions; DIG = Digital Emissions; FUND = Fundamental; WB = Wideband Emission Engineer CSB Test Freq. 2412 MHz Pow er Setting Test Notes 1 Test Notes 2 Press. (mBars) Antenna AP-ANT-7 10026.5 in ART test utility Rel. Hum .( %) Dut y C ycle ( %) 100 Variant Fr e q . Ran g e Tem p (ºC) 802.11b; 1 Mbs 2400 - 2483.5 MHz 21 38 Title: Aruba AP-92/93 802.11a/b/g/n Wireless AP To: FCC 47 CFR Part 15.247 & IC RSS-210 Serial #: ARUB51-U1 Rev A Issue Date: 18th May 2010 Page: Page 307 of 372 This test report may be reproduced in full only. The document may only be updated by MiCOM Labs personnel. Any changes will be noted in the Document History section of the report. MiCOM Labs, 440 Boulder Court, Suite 200, Pleasanton, CA 94566 USA, Phone: 925.462.0304, Fax: 925.462.0306, www.micomlabs.com IMG F requency MHz Raw dBuV Cable Loss AF dB Level dBuV/ m M easurement Type Pol Hgt cm Azt Deg Limit dBuV/ m M argin dB P ass /Fail Comments 2438.54976.47.130.5114.0Peak [Scan] VPK Legend: CSB Engineer Variant 802.11b; 1 Mbs Tem p (ºC) 2437 MHz 1002 Fr e q . Ran g e 2400 - 2483.5 MHz Rel. Hum .( %) 38 Pow er Setting 6 in ART test utility Press. (mBars) Test Notes 1 Test Notes 2 Formally measured emission peaks TX = Transmitter Emissions; DIG = Digital Emissions; FUND = Fundamental; WB = Wideband Emission 21 Test Freq. AP-ANT-7 Dut y C ycle ( %) 100 Antenna Title: Aruba AP-92/93 802.11a/b/g/n Wireless AP To: FCC 47 CFR Part 15.247 & IC RSS-210 Serial #: ARUB51-U1 Rev A Issue Date: 18th May 2010 Page: Page 308 of 372 This test report may be reproduced in full only. The document may only be updated by MiCOM Labs personnel. Any changes will be noted in the Document History section of the report. MiCOM Labs, 440 Boulder Court, Suite 200, Pleasanton, CA 94566 USA, Phone: 925.462.0304, Fax: 925.462.0306, www.micomlabs.com IMG F requency MHz Raw dBuV Cable Loss AF dB Level dBuV/ m M easurement Type Pol Hgt cm Azt Deg Limit dBuV/ m M argin dB P ass /Fail Comments 2463.87874.77.230.6112.5Peak [Scan] VPK Legend: Formally measured emission peaks TX = Transmitter Emissions; DIG = Digital Emissions; FUND = Fundamental; WB = Wideband Emission Test Notes 1 Test Notes 2 Antenna AP-ANT-7 Dut y C ycle ( %) 100 Pow er Setting 6 in ART test utility Press. (mBars) 1002 Fr e q . Ran g e 2400 - 2483.5 MHz Rel. Hum .( %) 38 Variant 802.11b; 1 Mbs Tem p (ºC) 21 Test Freq. 2462 MHz Engineer CSB Title: Aruba AP-92/93 802.11a/b/g/n Wireless AP To: FCC 47 CFR Part 15.247 & IC RSS-210 Serial #: ARUB51-U1 Rev A Issue Date: 18th May 2010 Page: Page 309 of 372 This test report may be reproduced in full only. The document may only be updated by MiCOM Labs personnel. Any changes will be noted in the Document History section of the report. MiCOM Labs, 440 Boulder Court, Suite 200, Pleasanton, CA 94566 USA, Phone: 925.462.0304, Fax: 925.462.0306, www.micomlabs.com 2400 – 2483.5 MHz: 802.11g IMG F requency MHz Raw dBuV Cable Loss AF dB Level dBuV/ m M easurement Type Pol Hgt cm Azt Deg Limit dBuV/ m M argin dB P ass /Fail Comments 2406.68085.27.130.4122.7Peak [Scan] VPK Legend: Fr e q . Ran g e Tem p (ºC) Variant AP-ANT-7 Dut y C ycle ( %) 21 38 1002 PK = Peak emission of fundamental TX = Transmitter Emissions; DIG = Digital Emissions; FUND = Fundamental; WB = Wideband Emission 100 Test Freq. 2412 MHz 802.11g; 6 Mbs 2400 - 2483.5 MHz 13 in A RT tes t utility Rel. Hum .( %) Engineer CSB Pow er Setting Test Notes 1 Test Notes 2 Press. (mBars) Antenna Formally measured emission peaks Title: Aruba AP-92/93 802.11a/b/g/n Wireless AP To: FCC 47 CFR Part 15.247 & IC RSS-210 Serial #: ARUB51-U1 Rev A Issue Date: 18th May 2010 Page: Page 310 of 372 This test report may be reproduced in full only. The document may only be updated by MiCOM Labs personnel. Any changes will be noted in the Document History section of the report. MiCOM Labs, 440 Boulder Court, Suite 200, Pleasanton, CA 94566 USA, Phone: 925.462.0304, Fax: 925.462.0306, www.micomlabs.com IMG F requency MHz Raw dBuV Cable Loss AF dB Level dBuV/ m M easurement Type Pol Hgt cm Azt Deg Limit dBuV/ m M argin dB P ass /Fail Comments 2444.11686.07.230.5123.7Peak [Scan] VPK Legend: TX = Transmitter Emissions; DIG = Digital Emissions; FUND = Fundamental; WB = Wideband Emission PK = Peak emission of fundamental Antenna 21 Test Notes 2 Formally measured emission peaks Test Notes 1 1002 Fr e q . Ran g e 2400 - 2483.5 MHz Rel. Hum .( %) 38 Pow er Setting 13 in A RT tes t utility Press. (mBars) 2437 MHz Engineer Test Freq. Variant 802.11g; 6 Mbs Tem p (ºC) AP-ANT-7 Dut y C ycle ( %) 100 CSB Title: Aruba AP-92/93 802.11a/b/g/n Wireless AP To: FCC 47 CFR Part 15.247 & IC RSS-210 Serial #: ARUB51-U1 Rev A Issue Date: 18th May 2010 Page: Page 311 of 372 This test report may be reproduced in full only. The document may only be updated by MiCOM Labs personnel. Any changes will be noted in the Document History section of the report. MiCOM Labs, 440 Boulder Court, Suite 200, Pleasanton, CA 94566 USA, Phone: 925.462.0304, Fax: 925.462.0306, www.micomlabs.com IMG F requency MHz Raw dBuV Cable Loss AF dB Level dBuV/ m M easurement Type Pol Hgt cm Azt Deg Limit dBuV/ m M argin dB P ass /Fail Comments 2467.91384.47.230.6122.1Peak [Scan] VPK…

Text truncated - open the document above for the full version.

COVER PAGE Test of Aruba IAP-92, 93 802.11a/b/g/n Wireless AP To: FCC CFR 47 Part 15 & IC RSS-210 Test Report Serial No.: ARUB69-U1 Rev A TITLE PAGE TEST REPORT FROM Test of Aruba…

Text truncated - open the document above for the full version.
