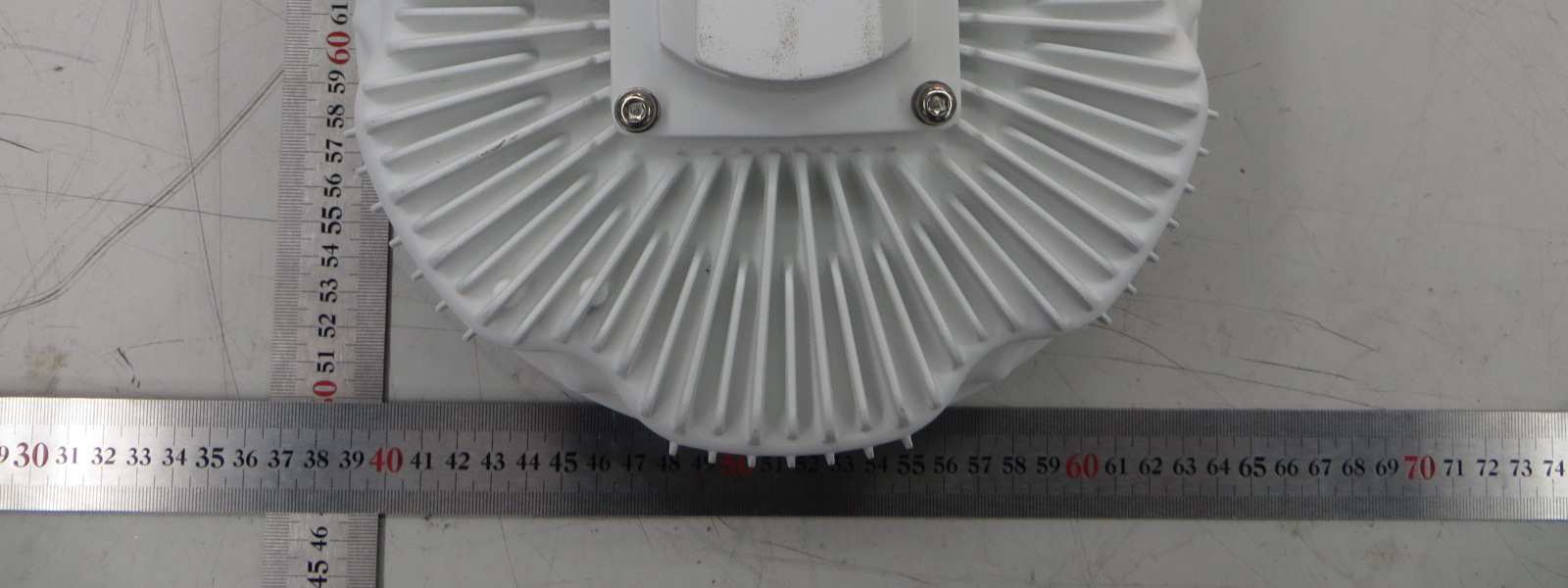

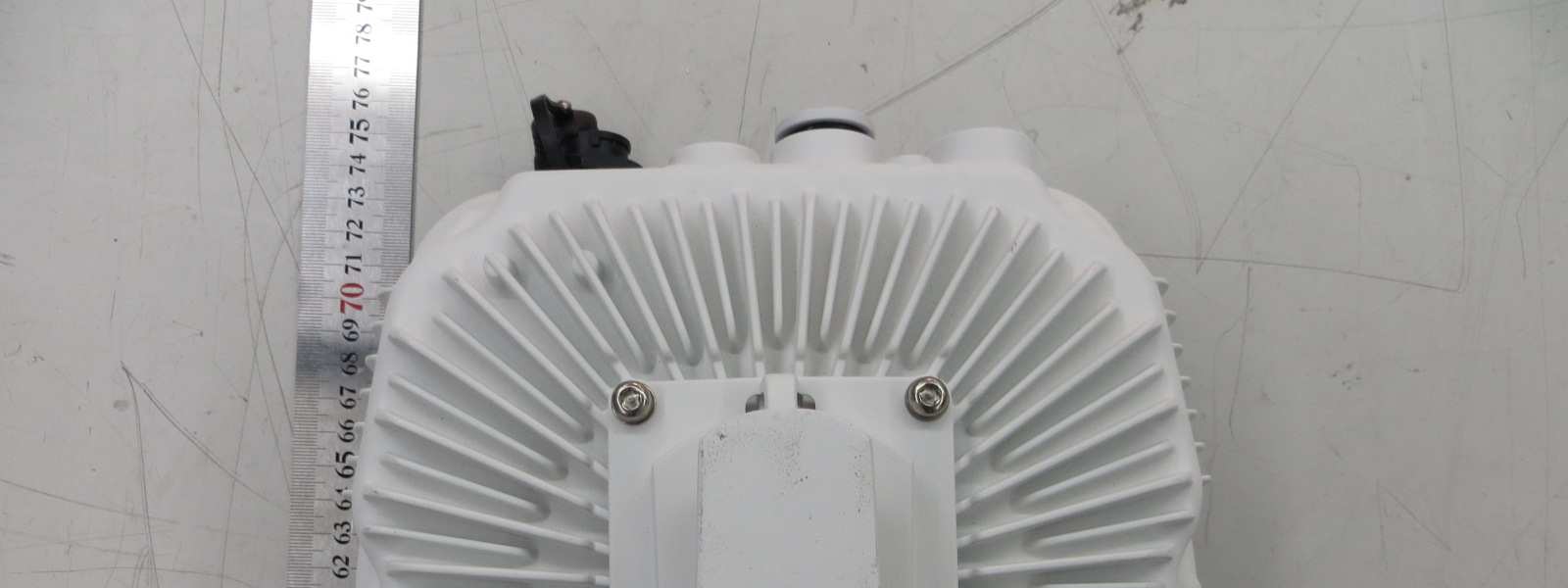

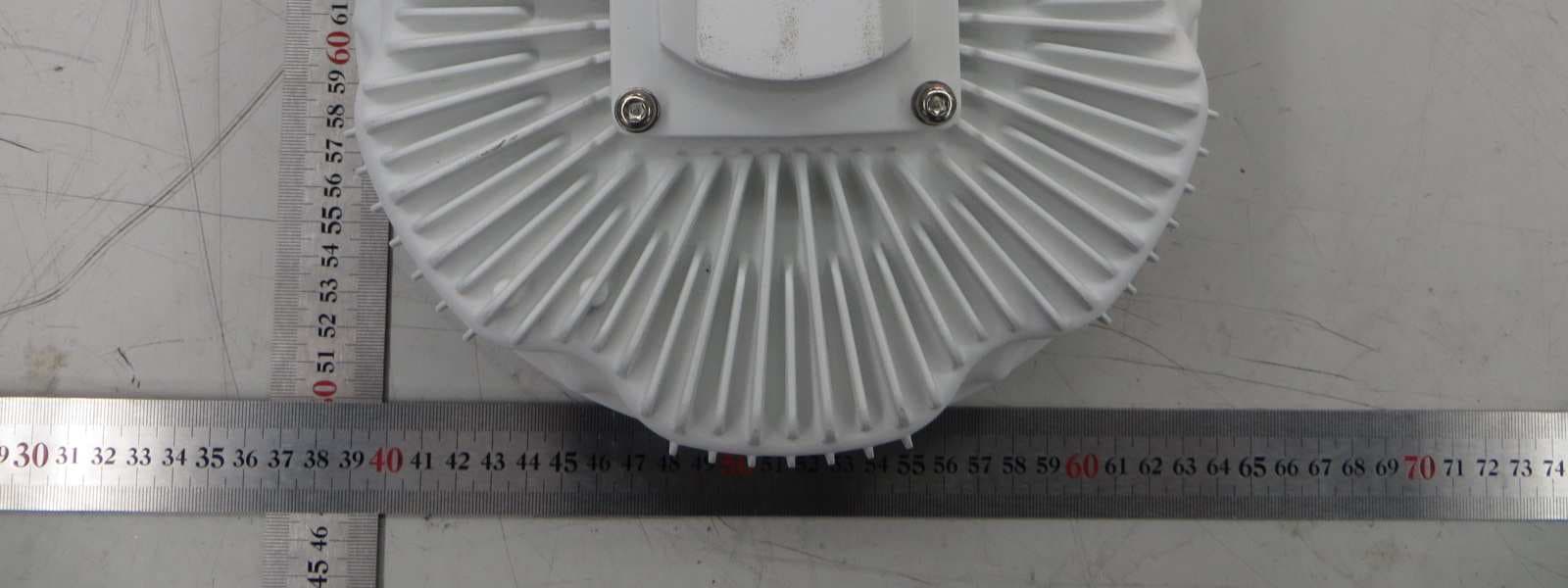

Q9DAPEX0102Access Point

AP-277 Outdoor Access Point Installation Guide 0511689-01 |September 20141 The Aruba AP-277 is an environmentally hardened, outdoor rated, dual-radio IEEE 802.11ac wireless access point. This access point use MIMO (Multiple-in, Multiple-out) technology and other high- throughput mode techniques to deliver high-performance, 802.11ac 2.4 GHz and 5 GHz functionality while simultaneously supporting existing 802.11a/b/g/n wireless services. The AP-277 access point works only in conjunction with an Aruba Controller. AP-277 Operations  Wireless transceiver  Wireless access point (IEEE 802.11 a/b/g/n/ac) Wireless air monitor (IEEE 802.11 a/b/g/n/ac)  Protocol-independent networking functionality  Compatibility with IEEE 802.3at PoE  Central management configuration and upgrades with an Aruba Controller. Guide Overview  “AP-277 Hardware Overview” on page 3 provides a detailed hardware overview of the AP-277.  “Before You Begin” on page 5 provides key questions to ask and items to consider when deploying an outdoor wireless network.  “Installing the AP” on page 7 describes the multi-step process for a successful installation and deployment of the AP-277.  “Safety and Regulatory Compliance” on page 16 provides an overview of safety and regulatory compliance information. Package Contents  AP-277 Access Point  Cable Glands x2  USB Console Cable  Copper Lug x1  M4 x 6 Screw x1  Installation Guide (this document) The weatherproof caps for Ethernet, Console, and power interfaces are connected to the AP, not loose in the package. Mounting kits for use with the AP-270 Series access points are sold separately. Contact your Aruba sales representative for details. 2AP-277 Outdoor Access Point| Installation Guide Inform your supplier if there are any incorrect, missing, or damaged parts. If possible, retain the carton, including the original packing materials. Use these materials to repack and return the unit to the supplier if needed. AP-277 Outdoor Access Point| Installation Guide3 AP-277 Hardware Overview Figure 1 AP-277 Front View Figure 2 AP-277 Rear View LED The AP-277 is equipped with one LED that indicates the system status of the AP. Table 1 AP-277 LED Meanings during Boot Up LEDColor/StateMeaning System LEDOffNo power to AP RedInitial power-up Green - FlashingAP booting Green - SteadyAP ready and 1000Mbps Ethernet link established. The LED turns off after 1200 seconds Green - Yellow, 6 seconds period AP ready and 10/100Mbps Ethernet link established. The LED turns off after 1200 seconds AC Power Interface LAN Port WAN Port Grounding Point USB Console Port, Reset button and LED 4AP-277 Outdoor Access Point| Installation Guide Table 2 AP-277 LED Meanings during Operation USB Console Port The USB Micro-B console port allows you to connect the AP to a terminal or a laptop for direct local management. Use the included USB console cable to connect the AP. You can download the necessary driver for USB-UART adapter from support.arubanetworks.com under the Tools & Resources tab. Use the following setting to access the terminal: Ethernet Ports AP-277 is equipped with two10/100/1000Base-T (RJ-45) Gigabit Ethernet ports (WAN and LAN port) for wired network connectivity. The WAN port supports 802.3at Power over Ethernet (PoE), accepting 48 VDC (nominal) as a standard defined Powered Device (PD) from a Power Sourcing Equipment (PSE) such as a PoE midspan injector. These ports have RJ-45 female connectors with the pin-outs shown in Figure 3. Figure 3 Gigabit Ethernet Port Pin-Out Reset Button The reset button can be used to return the AP to factory default settings. To reset the AP: 1. Power off the AP. 2. Press and hold the reset button using a small, narrow object, such as a paperclip. 3. Power-on the AP without releasing the reset button. The system LED will flash within 5 seconds. 4. Release the reset button. The system LED will flash again within 15 seconds indicating that the reset is completed. The AP will now continue to boot with the factory default settings. LEDColor/StateMeaning System LEDSolid RedGeneral fault One blink off every 3 seconds Radio 0 fault (5 GHz) Two quick blink off 0.5 seconds apart cycled every 3 seconds Radio 1 fault (2.4GHz) Table 3 Console Settings Baud RateData BitsParityStop BitsFlow Control 96008None1 None 1000Base-T Gigabit Ethernet Port RJ-45 Female Pin-Out Signal Name 1 2 3 4 5 6 7 8 BI_DC+ BI_DC- BI_DD+ BI_DD- BI_DA+ BI_DA- BI_DB+ BI_DB- Function Bi-directional pair +C, POE Positive Bi-directional pair -C, POE Positive Bi-directional pair +D, POE Negative Bi-directional pair -D, POE Negative Bi-directional pair +A, POE Negative Bi-directional pair -A, POE Negative Bi-directional pair +B, POE Positive Bi-directional pair -B, POE Positive AP-277 Outdoor Access Point| Installation Guide5 AC Power Interface The AP-277 is capable of AC power in the range of 100 - 240 VAC. The power cord or power connector kit is sold separately. Grounding Point Always remember to protect the AP by installing grounding lines. The ground connection must be complete before connecting power to the AP enclosure. Figure 4 AP-277 Top View Figure 5 AP-277 Bottom View Before You Begin Mounting Holder ! CAUTION FCC Statement: Improper termination of access points installed in the United States configured to non-US model controllers will be in violation of the FCC grant of equipment authorization. Any such willful or intentional violation may result in a requirement by the FCC for immediate termination of operation and may be subject to forfeiture (47 CFR 1.80). 6AP-277 Outdoor Access Point| Installation Guide Pre-Installation Network Requirements After WLAN planning is complete and the appropriate products and their placement have been determined, the Aruba controller(s) must be installed and initial setup performed before the Aruba APs are deployed. For initial setup of the controller, refer to the ArubaOS Quick Start Guide for the software version installed on your controller. Pre-Installa…

Text truncated - open the document above for the full version.
