Q9DAPEX0565567Wireless Access Point

Aruba 560 Series Outdoor Access Points Installation Guide Rev 01 | July 20201 The Aruba 560 Series outdoor wireless access points (AP-565 and AP-567) are high-performance, multi-radio wireless devices that can be deployed in either controller-based (ArubaOS) or controllerless (Aruba Instant) network environment. The Aruba 560 Series access points support IEEE 802.11ax standard, delivering high performance with the MIMO (Multiple-Input, Multiple-Output) technology, while also supporting 802.11a/b/g/n/ac wireless services. Package Contents 560 Series access point Cable gland x 1 USB Type-C console cable x 1 Grounding lug and M4x6 screw x 1 Tools Required Phillips screwdriver (#2 for M4x6 screw) Flat blade screwdriver (Ethernet cable gland cover) 8mm allen or hex key (USB console cover) The weatherproof caps for Ethernet and Console interfaces are connected to the access point, not loose in the package. Mounting kits for use with the 560 Series access points are sold separately. Contact your Aruba sales representative for details. Inform your supplier if there are any incorrect, missing, or damaged parts. If possible, retain the carton, including the original packing materials. Use these materials to repack and return the unit to the supplier if needed. 2Aruba 560 Series Outdoor Access Points| Installation Guide Hardware Overview Figure 1 560 Series Access Point LED The 560 Series access point is equipped with one LED that indicates the system status of the access point. Table 1 560 Series LED Meanings during Boot Up LEDColor/StateMeaning System LEDOffNo power to AP RedInitial power-up Green - FlashingAP booting, not ready Green - SteadyAP ready and Gigabit Ethernet connected. The LED turns off after 1200 seconds Green - Yellow, 6 seconds period AP ready and 10/100Mbps Ethernet link established. The LED turns off after 1200 seconds USB Console Port, Reset button and LED Grounding PointEthernet PortAir Vent Aruba 560 Series Outdoor Access Points| Installation Guide3 Table 2 560 Series LED Meanings during Operation Ethernet Port The 560 Series access point is equipped with one Ethernet port (E0). The Ethernet port is 100/1000Base-T auto- sensing MDI/MDX, which supports uplink connectivity when linked by an Ethernet cable. Power The Ethernet port supports PoE-in, allowing the AP to draw power from an 802.3af/802.3at PoE power source.The 560 Series access point supports the Intelligent Power Monitoring (IPM) feature that actively measures the power utilization of the AP and dynamically adapts to the power budget. Table 3 lists operational restrictions when the AP is powered by different power options. Table 3 Power Options and Operational Restriction Grounding Point Always remember to protect the access point by installing grounding lines. The ground connection must be complete before connecting power to the access point enclosure. USB Type-C Console Port Use the included USB Type-C console cable to connect the access point to a laptop or a serial terminal for direct management. Reset Button The reset button can be used to reset the access point to factory default settings or turn off/on the LED display. There are two ways to reset the access point to factory default settings: Reset the AP during normal operation Press and hold down the reset button using a small, narrow object such as a paper clip for more than 10 seconds during normal operation. LEDColor/StateMeaning System LEDSolid RedGeneral fault - Immediate attention required One blink off every 3 seconds Radio 0 fault (5 GHz) Two quick blink off 0.5 seconds apart cycled every 3 seconds Radio 1 fault (2.4GHz) Power SourceIPMRestrictions 802.3at PoE n/aNo restrictions, all capabilities available. 802.3af PoE enabledAP starts up in unrestricted mode, but may dynamically apply restrictions depending on the PoE budget and actual power. 802.3af PoEdisabled2.4GHz radio is restricted to 1 spatial stream. You need a proper 8mm allen or hex key to open the cover of the USB Console port. 4Aruba 560 Series Outdoor Access Points| Installation Guide Reset the AP while powering up 1. Press and hold down the reset button using a small, narrow object such as a paper clip while the access point is not powered on via PoE. 2. Connect the power supply (PoE) to the access point while the reset button is being held down. 3. Release the reset button on the access point after 15 seconds. To turn off/on the LED display, press and release the reset button using a small, narrow object, such as a paperclip for less than 10 seconds during normal operation of the access point. Before You Begin Refer to the sections below before beginning the installation process. Pre-Installation Checklist Before installing your access point, be sure that you have the following: Cat5E or better UTP cable with network access A compatible PoE injector with power cord One of the following network services: Aruba Discovery Protocol (ADP) DNS server with an “A” record DHCP Server with vendor specific options Outdoor Planning and Deployment Considerations Prior to deploying an outdoor wireless network, the environment must be evaluated to plan for a successful WLAN deployment. Successfully evaluating the environment enables the proper selection of routers and antennas and assists in the determination of their placement for optimal RF coverage. This process is considered WLAN or RF planning and Aruba’s system engineers can assist in the outdoor planning process. Identifying Specific Installation Locations Use the access point placement map generated by Aruba RF Plan software application to determine the proper installation location(s). Each location should be as close as possible to the center of the intended coverage area and should be free from obstructions or obvious sources of interference. These RF absorbers/reflectors/ interference sources will impact RF propagation and should be accounted for during the planning phase and ! FCC Statement: Improper termination of access poi…

Text truncated - open the document above for the full version.

Date: July 14, 2020 Federal Communications Commission Office of Engineering and Technology Laboratory Division 7435 Oakland Mills Rd Columbia MD 21046-1609 Confidentiality Request regarding application for certification of FCC ID: Q9DAPEX0565567 To Whom It May Concern, Pursuant to the provisions of Sections 0.457 and 0.459 of Commission’s rules (47CFR§§0.457, 0.459), we are requesting the Commission to withhold the following attachment(s) as confidential document from public disclosure indefinitely. l Schematics l Block Diagram l Parts List l Operational Description l Tune-up Procedure Above mentioned document contains detailed system and equipment description are considered as proprietary information in operation of the equipment. The public disclosure of above documents might be harmful to our company and would give competitor an unfair advantage in the market. In additional to above mentioned documents, pursuant to Public Notice DA 04-1705 of the Commission’ s policy, in order to comply with the marketing regulations in 47 CFT §2.803 and the importation rules in 47 CFR §2.1204, while ensuring that business sensitive information remains confidential until the actual marketing of newly authorized devices. We are requesting the commission to grant short-term confidentiality request on the following attachment(s) for 180 days after the grant as outlined in Public Notice DA 04-1705. u External Photos u Internal Photos u Test Setup Photos u User Manual It is our understanding that all measurement test reports, FCC ID label format and correspondent during certification review process cannot be granted as confidential documents and those information will be available for public review once the grant of equipment authorization is issued. Best Regards, ____________________________ Compliance Manager Contact Person: Phillip Carranco E-mail: [email protected]

Date: July 14, 2020 Federal Communications Commission Office of Engineering and Technology Laboratory Division 7435 Oakland Mills Rd Columbia MD 21046-1609 Authorization letter regarding application for certification of FCC ID: Q9DAPEX0565567 To whom it may concern, Please be notified that I, Phillip Carranco, have designated Jim Tsai in Sporton International Inc. as the person being responsible for this project and to sign the form 731 and other documentation. Any and all acts carried out by Jim Tsai in Sporton International Inc., on the matters of relating to all processes required in the FCC approval and any communication needed with the national authority, shall have the same legal authority as acts on our own behalf. We further certifies that neither the applicant nor any party to this application, as defined in 47 CFR Ch. 1.2002 (b), is subject to a denial to Federal benefits, that include FCC benefits, pursuant to section 5301 of the Anti-Drug Abuse Act of 1998, 21 U.S.C 862. This authorization is limited to the product of as following: FCC ID: Q9DAPEX0565567 If you have any acknowledgement and response, please send it to Sporton International Inc. directly. Should you have any questions or comments regarding this matter, please have my best attention. Sincerely yours, ____ Compliance Manager Contact Person: Phillip Carranco E-mail: [email protected]

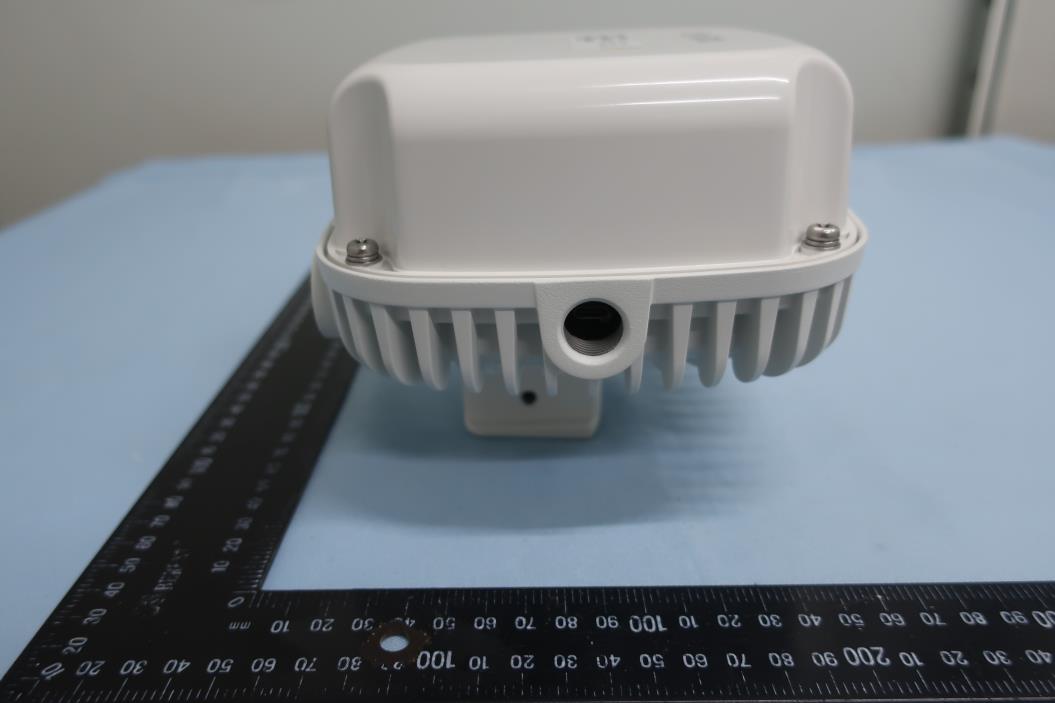

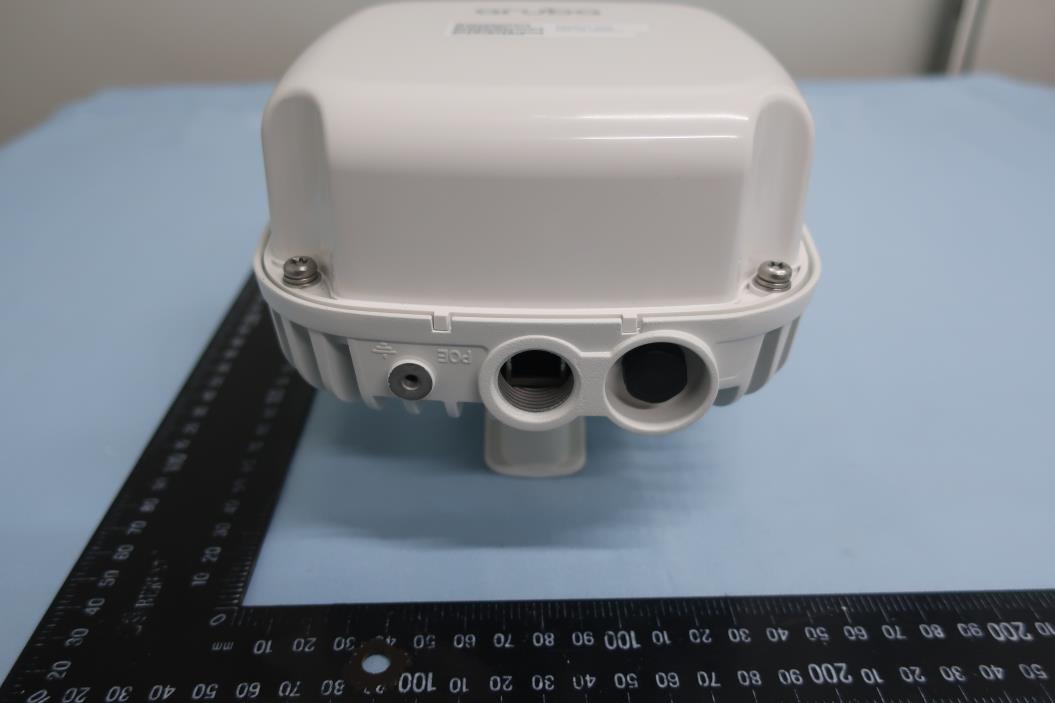

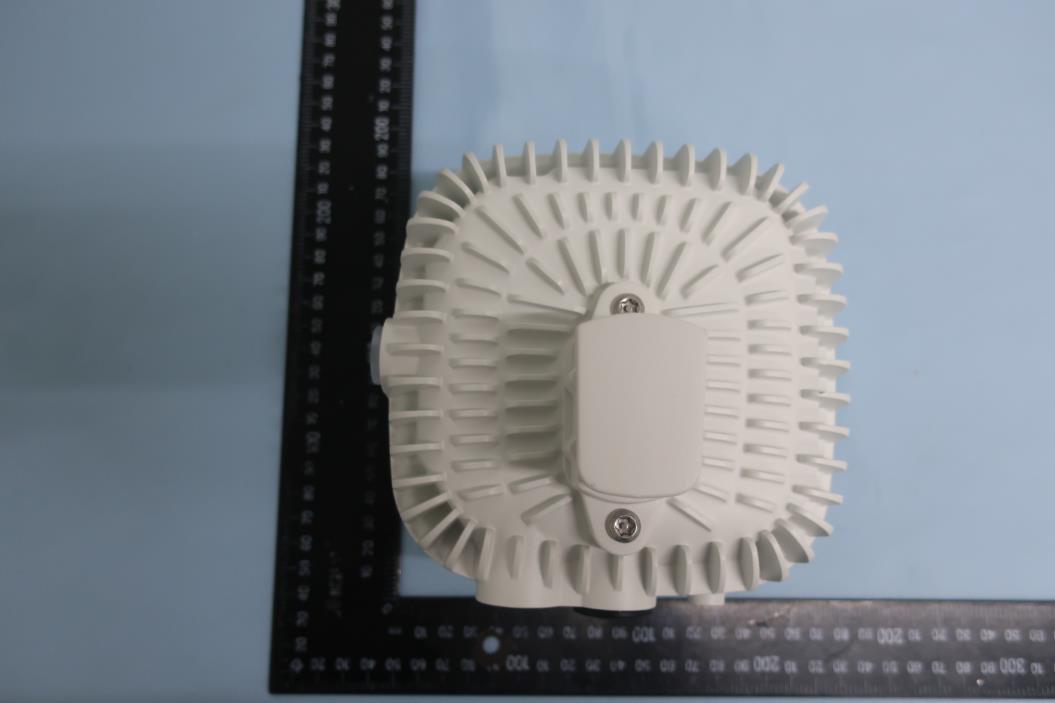

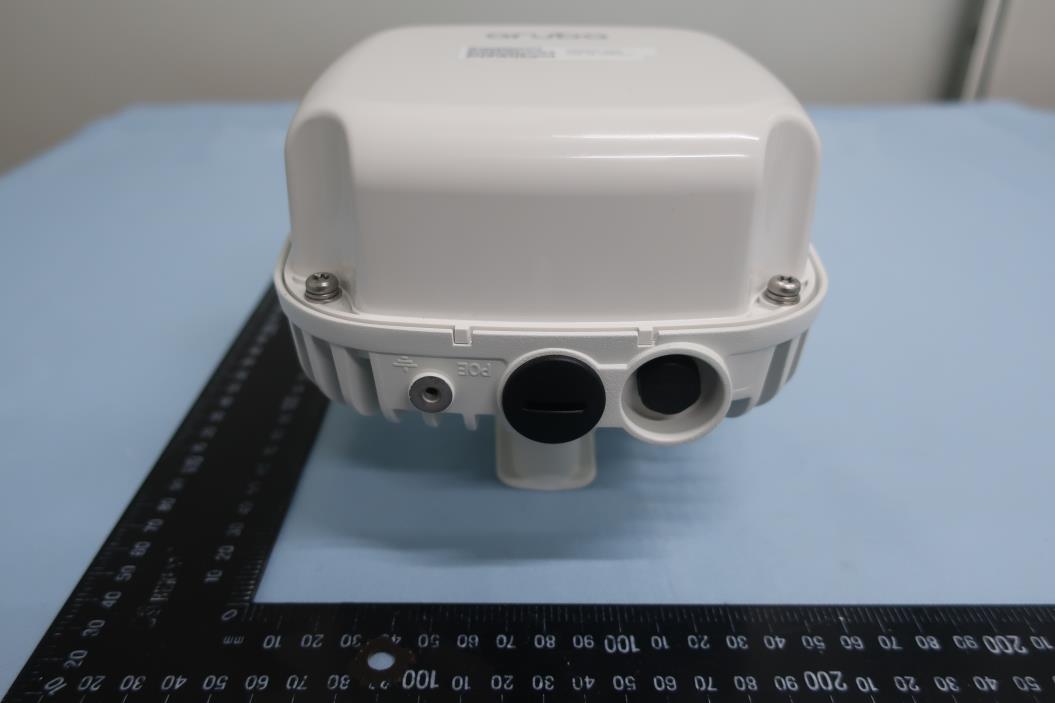

Photographs of EUT Report No. : EP042903 SPORTON International Inc. Page No. : 1 of 25 TEL : 886-3-327-3456 EP Report Version : Rev. 02 FAX : 886-3-327-0973 Issued Date : Aug. 07, 2020 APEX0565, APEX0567 Photographs of EUT Report No. : EP042903 SPORTON International Inc. Page No. : 2 of 25 TEL : 886-3-327-3456 EP Report Version : Rev. 02 FAX : 886-3-327-0973 Issued Date : Aug. 07, 2020 Photographs of EUT Report No. : EP042903 SPORTON International Inc. Page No. : 3 of 25 TEL : 886-3-327-3456 EP Report Version : Rev. 02 FAX : 886-3-327-0973 Issued Date : Aug. 07, 2020 Photographs of EUT Report No. : EP042903 SPORTON International Inc. Page No. : 4 of 25 TEL : 886-3-327-3456 EP Report Version : Rev. 02 FAX : 886-3-327-0973 Issued Date : Aug. 07, 2020

Radio Exposure Evaluation Report Report No. : FA042903 TEL : 886-3-327-3456 Page Number : 1 of 7 FAX : 886-3-327-0973 Issued Date : Aug. 21, 2020 Report Template No.: HE1-A1 Ver2.1 Report Version : 04 FCC ID: Q9DAPEX0565567 Radio Exposure Evaluation Report FCC ID : Q9DAPEX0565567 Equipment : Wireless Access Point Brand Name : aruba、Hewlett Packard Enterprise Model Name : APEX0565,APEX0567 Applicant : Hewlett Packard Enterprise Company 3333 Scott Blvd Santa Clara, CA. 95054 Manufacturer : Hewlett Packard Enterprise Company 3333 Scott Blvd Santa Clara, CA. 95054 Standard : 47 CFR Part 2.1091 The product was received on Apr. 30, 2020, and testing was started from May 15, 2020 and completed on Jun. 30, 2020. We, SPORTON INTERNATIONAL INC. EMC & Wireless Communications Laboratory, would like to declare that the tested sample has been evaluated in accordance with the procedures given in 47 CFR Part 2.1091 and shown compliance with the applicable technical standards. The test results in this report apply exclusively to the tested model / sample. Without written approval of SPORTON INTERNATIONAL INC. EMC & Wireless Communications Laboratory, the test report shall not be reproduced except in full. ___________________________________________ Approved by: Allen Lin __________________________________________ SDoC by: XXXXX SPORTON INTERNATIONAL INC. EMC & Wireless Communications Laboratory No. 52, Huaya 1st Rd., Guishan Dist., Taoyuan City, Taiwan (R.O.C.) Radio Exposure Evaluation Report Report No. : FA042903 TEL : 886-3-327-3456 Page Number : 2 of 7 FAX : 886-3-327-0973 Issued Date : Aug. 21, 2020 Report Template No.: HE1-A1 Ver2.1 Report Version : 04 FCC ID: Q9DAPEX0565567 Table of Contents HISTORY OF THIS TEST REPORT .................................................................................................................. 3 1 GENERAL DESCRIPTION .................................................................................................................... 5 1.1 EUT General Information ....................................................................................................................... 5 1.2 Table for Multiple Listing ........................................................................................................................ 5 1.3 Testing Location ..................................................................................................................................... 5 2 MAXIMUM PERMISSIBLE EXPOSURE ............................................................................................... 6 2.1 Limit of Maximum Permissible Exposure ............................................................................................... 6 2.2 MPE Calculation Method ........................................................................................................................ 6 2.3 Calculated Result and Limit .................................................................................................................... 7 Photographs of EUT V02 Radio Exposure Evaluation Report Report No. : FA042903 TEL : 886-3-327-3456 Page Number : 3 of 7 FAX : 886-3-327-0973 Issued Date : Aug. 21, 2020 Report Template No.: HE1-A1 Ver2.1 Report Version : 04 FCC ID: Q9DAPEX0565567 History of this test report Report No. Version Description Issued Date FA042903 01 Initial issue of report Jul. 31, 2020 FA042903 02 1. The Model Name was changed 2. Photographs of EUT was updated This report is the latest version replacing for the report issued on Jul. 31, 2020 Aug. 07, 2020 FA042903 03 The section 2.3 was updated This report is the latest version replacing for the report issued on Jul. 31, 2020 Aug. 10, 2020 FA042903 04 Change to outdoor use only This report is the latest version replacing for the report issued on Aug. 10, 2020 Aug. 21, 2020 Radio Exposure Evaluation Report Report No. : FA042903 TEL : 886-3-327-3456 Page Number : 4 of 7 FAX : 886-3-327-0973 Issued Date : Aug. 21, 2020 Report Template No.: HE1-A1 Ver2.1 Report Version : 04 FCC ID: Q9DAPEX0565567 Summary of Test Result Report Clause Ref Std. Clause Test Items Result (PASS/FAIL) Remark 2 - Exposure evaluation PASS - Declaration of Conformity: The test results with all measurement uncertainty excluded are presented in accordance with the regulation limits or requirements declared by manufacturers. Comments and Explanations: None. Reviewed by: Sam Tsai Report Producer: Jenny Yang Radio Exposure Evaluation Report Report No. : FA042903 TEL : 886-3-327-3456 Page Number : 5 of 7 FAX : 886-3-327-0973 Issued Date : Aug. 21, 2020 Report Template No.: HE1-A1 Ver2.1 Report Version : 04 FCC ID: Q9DAPEX0565567 1 General Description 1.1 EUT General Information RF General Information Evaluation Mode Frequency Range (MHz) Operating Frequency (MHz) Modulation Type 2.4GHz WLAN 2400-2483.5 2412-2462 802.11b: DSSS (DBPSK, DQPSK, CCK) 802.11g/n: OFDM (BPSK, QPSK, 16QAM, 64QAM) 802.11ac: OFDM (BPSK, QPSK, 16QAM, 64QAM, 256QAM) 802.11ax: OFDMA(BPSK, QPSK, 16QAM, 64QAM, 256QAM, 1024QAM) 5GHz WLAN 5150-5250 5725-5850 5180-5240 5745-5825 802.11a/n: OFDM (BPSK, QPSK, 16QAM, 64QAM) 802.11ac: OFDM (BPSK, QPSK, 16QAM, 64QAM, 256QAM) 802.11ax: OFDMA(BPSK, QPSK, 16QAM, 64QAM, 256QAM, 1024QAM) Bluetooth 2400-2483.5 2402-2480 LE: DSSS (GFSK) ZigBee 2400-2483.5 2405-2480 DSSS (O-QPSK) 1.2 Table for Multiple Listing Sample Number Model Name Description 1 APEX0565 There are two Samples for EUT. The only difference between Sample 1 and Sample 2 is the Antenna. 2 APEX0567 1.3 Testing Location Testing Location HWA YA ADD : No. 52, Huaya 1st Rd., Guishan Dist., Taoyuan City, Taiwan (R.O.C.) TEL : 886-3-327-3456 FAX : 886-3-327-0973 Test site Designation No. TW1190 with FCC. JHUBEI ADD : No.8, Ln. 724, Bo'ai St., Zhubei City, Hsinchu County, Taiwan (R.O.C.) TEL : 886-3-656-9065 FAX : 886-3-656-9085 Test site Designation No. TW0006 with FCC. Radio Exposure Evaluation Report Report No. : FA042903 TEL : 886-3-327-3456 Page Number : 6 of 7…

Text truncated - open the document above for the full version.

FCC Test Report Report No. : FR042903AN TEL : 886-3-3273456 Page Number : 1 of 41 FAX : 886-3-3270973 Issued Date : Aug. 24, 2020 Report Template No.: HE1-D1 Ver2.6 Report Version : 04 FCC ID: Q9DAPEX0565567 FCC Test Report FCC ID : Q9DAPEX0565567 Equipment : Wireless Access Point Brand Name : aruba、Hewlett Packard Enterprise Model Name : APEX0565,APEX0567 Applicant : Hewlett Packard Enterprise Company 3333 Scott Blvd Santa Clara, CA. 95054 Manufacturer : Hewlett Packard Enterprise Company 3333 Scott Blvd Santa Clara, CA. 95054 Standard : 47 CFR FCC Part 15.407 The product was received on Apr. 30, 2020, and testing was started from May 14, 2020 and completed on Jul. 21, 2020. We, SPORTON INTERNATIONAL INC. EMC & Wireless Communications Laboratory, would like to declare that the tested sample has been evaluated in accordance with the procedures given in ANSI C63.10-2013 and shown compliance with the applicable technical standards. The test results in this report apply exclusively to the tested model / sample. Without written approval of SPORTON INTERNATIONAL INC. EMC & Wireless Communications Laboratory, the test report shall not be reproduced except in full. ___________________________________________ Approved by: Allen Lin __________________________________________ SDoC by: XXXXX SPORTON INTERNATIONAL INC. EMC & Wireless Communications Laboratory No. 52, Huaya 1st Rd., Guishan Dist., Taoyuan City, Taiwan (R.O.C.) FCC Test Report Report No. : FR042903AN TEL : 886-3-3273456 Page Number : 2 of 41 FAX : 886-3-3270973 Issued Date : Aug. 24, 2020 Report Template No.: HE1-D1 Ver2.6 Report Version : 04 FCC ID: Q9DAPEX0565567 Table of Contents HISTORY OF THIS TEST REPORT .................................................................................................................. 3 SUMMARY OF TEST RESULT ......................................................................................................................... 4 1 GENERAL DESCRIPTION .................................................................................................................... 5 1.1 Information .............................................................................................................................................. 5 1.2 Testing Applied Standards ................................................................................................................... 18 1.3 Testing Location Information ................................................................................................................ 18 1.4 Measurement Uncertainty .................................................................................................................... 19 2 TEST CONFIGURATION OF EUT....................................................................................................... 20 2.1 Test Condition ...................................................................................................................................... 20 2.2 Test Channel Mode .............................................................................................................................. 20 2.3 The Worst Case Measurement Configuration ...................................................................................... 24 2.4 Support Equipment ............................................................................................................................... 25 2.5 Test Setup Diagram ............................................................................................................................. 26 3 TRANSMITTER TEST RESULT .......................................................................................................... 28 3.1 AC Power-line Conducted Emissions .................................................................................................. 28 3.2 Emission Bandwidth ............................................................................................................................. 30 3.3 Maximum Conducted Output Power .................................................................................................... 31 3.4 Peak Power Spectral Density ............................................................................................................... 34 3.5 Unwanted Emissions ............................................................................................................................ 36 4 TEST EQUIPMENT AND CALIBRATION DATA ................................................................................ 40 APPENDIX A. TEST RESULTS OF AC POWER-LINE CONDUCTED EMISSIONS APPENDIX B. TEST RESULTS OF EMISSION BANDWIDTH APPENDIX C TEST RESULTS OF MAXIMUM CONDUCTED OUTPUT POWER AND MAX. E.I.R.P. AT ANY ELEVATION ANGLE ABOVE 30 DEGREES APPENDIX D. TEST RESULTS OF PEAK POWER SPECTRAL DENSITY APPENDIX E. TEST RESULTS OF UNWANTED EMISSIONS APPENDIX F. TEST PHOTOS PHOTOGRAPHS OF EUT V02 FCC Test Report Report No. : FR042903AN TEL : 886-3-3273456 Page Number : 3 of 41 FAX : 886-3-3270973 Issued Date : Aug. 24, 2020 Report Template No.: HE1-D1 Ver2.6 Report Version : 04 FCC ID: Q9DAPEX0565567 History of this test report Report No. Version Description Issued Date FR042903AN 01 Initial issue of report Jul. 31, 2020 FR042903AN 02 1. The Model Name was changed 2. The Antenna Information was updated 3. Photographs of EUT was updated This report is the latest version replacing for the report issued on Jul. 31, 2020 Aug. 07, 2020 FR042903AN 03 Change to outdoor use only This report is the latest version replacing for the report issued on Aug. 07, 2020 Aug. 21, 2020 FR042903AN 04 Add indoor use Use worst case data-outdoor data This report is the latest version replacing for the report issued on Aug. 21, 2020 Aug. 24, 2020 FCC Test Report Report No. : FR042903AN TEL : 886-3-3273456 Page Number : 4 of 41 FAX : 886-3-3270973 Issued Date : Aug. 24, 2020 Report Template No.: HE1-D1 Ver2.6 Report Version : 04 FCC ID: Q9DAPEX0565567 S…

Text truncated - open the document above for the full version.

RSE TX above 1GHz_Sample 1 Appendix E.2 SPORTON INTERNATIONAL INC. EMC & Wireless Communications Laboratory. Page No. : E35 of E79 Remark : Level (dBuV/m) = Raw(Read Level) + AF(Antenna Factor) + CL(Cable Loss) - PA( Preamp Factor) 042903 RSE TX above 1GHz_Sample 1 Appendix E.2 SPORTON INTERNATIONAL INC. EMC & Wireless Communications Laboratory. Page No. : E36 of E79 Remark : Level (dBuV/m) = Raw(Read Level) + AF(Antenna Factor) + CL(Cable Loss) - PA( Preamp Factor) 042903 RSE TX above 1GHz_Sample 1 Appendix E.2 SPORTON INTERNATIONAL INC. EMC & Wireless Communications Laboratory. Page No. : E37 of E79 Remark : Level (dBuV/m) = Raw(Read Level) + AF(Antenna Factor) + CL(Cable Loss) - PA( Preamp Factor) 042903 RSE TX above 1GHz_Sample 1 Appendix E.2 SPORTON INTERNATIONAL INC. EMC & Wireless Communications Laboratory. Page No. : E38 of E79 Remark : Level (dBuV/m) = Raw(Read Level) + AF(Antenna Factor) + CL(Cable Loss) - PA( Preamp Factor) 042903 RSE TX above 1GHz_Sample 1 Appendix E.2 SPORTON INTERNATIONAL INC. EMC & Wireless Communications Laboratory. Page No. : E39 of E79 Remark : Level (dBuV/m) = Raw(Read Level) + AF(Antenna Factor) + CL(Cable Loss) - PA( Preamp Factor) 042903 RSE TX above 1GHz_Sample 1 Appendix E.2 SPORTON INTERNATIONAL INC. EMC & Wireless Communications Laboratory. Page No. : E40 of E79 Remark : Level (dBuV/m) = Raw(Read Level) + AF(Antenna Factor) + CL(Cable Loss) - PA( Preamp Factor) 042903 RSE TX above 1GHz_Sample 1 Appendix E.2 SPORTON INTERNATIONAL INC. EMC & Wireless Communications Laboratory. Page No. : E41 of E79 Remark : Level (dBuV/m) = Raw(Read Level) + AF(Antenna Factor) + CL(Cable Loss) - PA( Preamp Factor) 042903 RSE TX above 1GHz_Sample 1 Appendix E.2 SPORTON INTERNATIONAL INC. EMC & Wireless Communications Laboratory. Page No. : E42 of E79 Remark : Level (dBuV/m) = Raw(Read Level) + AF(Antenna Factor) + CL(Cable Loss) - PA( Preamp Factor) 042903 RSE TX above 1GHz_Sample 1 Appendix E.2 SPORTON INTERNATIONAL INC. EMC & Wireless Communications Laboratory. Page No. : E43 of E79 Remark : Level (dBuV/m) = Raw(Read Level) + AF(Antenna Factor) + CL(Cable Loss) - PA( Preamp Factor) 042903 RSE TX above 1GHz_Sample 1 Appendix E.2 SPORTON INTERNATIONAL INC. EMC & Wireless Communications Laboratory. Page No. : E44 of E79 Remark : Level (dBuV/m) = Raw(Read Level) + AF(Antenna Factor) + CL(Cable Loss) - PA( Preamp Factor) 042903 RSE TX above 1GHz_Sample 1 Appendix E.2 SPORTON INTERNATIONAL INC. EMC & Wireless Communications Laboratory. Page No. : E45 of E79 Remark : Level (dBuV/m) = Raw(Read Level) + AF(Antenna Factor) + CL(Cable Loss) - PA( Preamp Factor) 042903 RSE TX above 1GHz_Sample 1 Appendix E.2 SPORTON INTERNATIONAL INC. EMC & Wireless Communications Laboratory. Page No. : E46 of E79 Remark : Level (dBuV/m) = Raw(Read Level) + AF(Antenna Factor) + CL(Cable Loss) - PA( Preamp Factor) 042903 RSE TX above 1GHz_Sample 1 Appendix E.2 SPORTON INTERNATIONAL INC. EMC & Wireless Communications Laboratory. Page No. : E47 of E79 Remark : Level (dBuV/m) = Raw(Read Level) + AF(Antenna Factor) + CL(Cable Loss) - PA( Preamp Factor) 042903 RSE TX above 1GHz_Sample 1 Appendix E.2 SPORTON INTERNATIONAL INC. EMC & Wireless Communications Laboratory. Page No. : E48 of E79 Remark : Level (dBuV/m) = Raw(Read Level) + AF(Antenna Factor) + CL(Cable Loss) - PA( Preamp Factor) 042903 RSE TX above 1GHz_Sample 1 Appendix E.2 SPORTON INTERNATIONAL INC. EMC & Wireless Communications Laboratory. Page No. : E49 of E79 Remark : Level (dBuV/m) = Raw(Read Level) + AF(Antenna Factor) + CL(Cable Loss) - PA( Preamp Factor) 042903 RSE TX above 1GHz_Sample 1 Appendix E.2 SPORTON INTERNATIONAL INC. EMC & Wireless Communications Laboratory. Page No. : E50 of E79 Remark : Level (dBuV/m) = Raw(Read Level) + AF(Antenna Factor) + CL(Cable Loss) - PA( Preamp Factor) 042903 RSE TX above 1GHz_Sample 1 Appendix E.2 SPORTON INTERNATIONAL INC. EMC & Wireless Communications Laboratory. Page No. : E51 of E79 Remark : Level (dBuV/m) = Raw(Read Level) + AF(Antenna Factor) + CL(Cable Loss) - PA( Preamp Factor) 042903 RSE TX above 1GHz_Sample 1 Appendix E.2 SPORTON INTERNATIONAL INC. EMC & Wireless Communications Laboratory. Page No. : E52 of E79 Remark : Level (dBuV/m) = Raw(Read Level) + AF(Antenna Factor) + CL(Cable Loss) - PA( Preamp Factor) 042903 RSE TX above 1GHz_Sample 1 Appendix E.2 SPORTON INTERNATIONAL INC. EMC & Wireless Communications Laboratory. Page No. : E53 of E79 Remark : Level (dBuV/m) = Raw(Read Level) + AF(Antenna Factor) + CL(Cable Loss) - PA( Preamp Factor) 042903 RSE TX above 1GHz_Sample 1 Appendix E.2 SPORTON INTERNATIONAL INC. EMC & Wireless Communications Laboratory. Page No. : E54 of E79 Remark : Level (dBuV/m) = Raw(Read Level) + AF(Antenna Factor) + CL(Cable Loss) - PA( Preamp Factor) 042903 RSE TX above 1GHz_Sample 1 Appendix E.2 SPORTON INTERNATIONAL INC. EMC & Wireless Communications Laboratory. Page No. : E55 of E79 Remark : Level (dBuV/m) = Raw(Read Level) + AF(Antenna Factor) + CL(Cable Loss) - PA( Preamp Factor) 042903 RSE TX above 1GHz_Sample 1 Appendix E.2 SPORTON INTERNATIONAL INC. EMC & Wireless Communications Laboratory. Page No. : E56 of E79 Remark : Level (dBuV/m) = Raw(Read Level) + AF(Antenna Factor) + CL(Cable Loss) - PA( Preamp Factor) 042903 RSE TX above 1GHz_Sample 1 Appendix E.2 SPORTON INTERNATIONAL INC. EMC & Wireless Communications Laboratory. Page No. : E57 of E79 Remark : Level (dBuV/m) = Raw(Read Level) + AF(Antenna Factor) + CL(Cable Loss) - PA( Preamp Factor) 042903 RSE TX above 1GHz_Sample 1 Appendix E.2 SPORTON INTERNATIONAL INC. EMC & Wireless Communications Laboratory. Page No. : E58 of E79 Remark : Level (dBuV/m) = Raw(Read Level) + AF(Antenna Factor) + CL(Cable Loss) - PA( Preamp Factor) 042903 RSE TX above 1GHz_Sample 1 Appendix E.2 SPORTON INTERNATIONAL INC. EMC & Wireless Communications Laboratory. Page No. : E59 of E79 Remark : Level (dBuV/m) = Raw(Read Level) + AF(Antenna Factor) + CL(Cable Loss) - PA( Preamp Factor) 042903 RSE TX above 1GHz_Sample …

Text truncated - open the document above for the full version.

Test Photos Appendix F SPORTON INTERNATIONAL INC. EMC & Wireless Communications Laboratory. Page number : F1 of F6 042903 1. Photographs of Conducted Emissions Test Configuration Front view Side view Test Photos Appendix F SPORTON INTERNATIONAL INC. EMC & Wireless Communications Laboratory. Page number : F2 of F6 042903 Under table view Test Photos Appendix F SPORTON INTERNATIONAL INC. EMC & Wireless Communications Laboratory. Page number : F3 of F6 042903 2. Photographs of Radiated Emissions Test Configuration For radiated emissions 30MHz~1GHz Sample 1 Front view Rear view Test Photos Appendix F SPORTON INTERNATIONAL INC. EMC & Wireless Communications Laboratory. Page number : F4 of F6 042903 Sample 2 Front view Rear view Test Photos Appendix F SPORTON INTERNATIONAL INC. EMC & Wireless Communications Laboratory. Page number : F5 of F6 042903 For radiated emissions above 1GHz Sample 1 Front view Rear view Test Photos Appendix F SPORTON INTERNATIONAL INC. EMC & Wireless Communications Laboratory. Page number : F6 of F6 042903 Sample 2 Front view Rear view ─────THE END─────
