Q9DAPIN0214215Wireless Access Point

AP-210 Series Wireless Access Point Installation Guide The Aruba AP-214 and AP-215 wireless access points support the IEEE 802.11n standard for high-performance WLAN. These access points use MIMO (Multiple- in, Multiple-out) technology and other high-throughput mode techniques to deliver high-performance, 802.11n 2.4 GHz and 802.11ac 5 GHz functionality while simultaneously supporting existing 802.11a/b/g wireless services. The AP- 210 Series access points work only in conjunction with an Aruba Controller. The Aruba AP-210 Series access point provides the following capabilities: Wireless transceiver Protocol-independent networking functionality IEEE 802.11a/b/g/n/ac operation as a wireless access point IEEE 802.11a/b/g/n/ac operation as a wireless air monitor Compatibility with IEEE 802.3at PoE+ and 802.3af PoE Central management configuration and upgrades through a controller Package Contents AP-214 or AP-215 Access Point 9/16" and 15/16” Ceiling Rail Adapters Installation Guide (this document) AP-210 Series Hardware Overview Figure 1 AP-210 Series LEDs LEDs The AP-210 Series is equipped with four LEDs that indicate the status of the various components of the AP. PWR: Indicates whether or not the AP-210 Series is powered-on ENET: Indicates the status of the AP-210 Series’ Ethernet port 5 GHz: Indicates the status of the 802.11a/n radio 2.4 GHz: Indicates the status of the 802.11b/g/n radio Figure 2 AP-210 Series Side View (AP-214 shown) External Antenna Connectors The AP-214 is equipped with three external antenna connectors. The connectors are labeled ANT0, ANT1, and ANT2, and correspond to radio chains 0, 1, and 2. For optimal performance when using articulating direct-mount antennas, professional installers must orient the antennas with ANT0 and ANT2 at 45 degree angles and ANT1 oriented straight out (see Figure 3). Figure 3 AP-214 Antenna Orientation USB Interface The AP-210 Series is equipped with a USB interface for connectivity with cellular modems. Figure 4 AP-210 Series Rear Console Port The serial console port allows you to connect the AP to a serial terminal or a laptop for direct local management. This port is an RJ-45 female connector with the pinouts described in . Connect it directly to a terminal or terminal server using an Ethernet cable. Ethernet Port AP-210 Series is equipped with one 10/100/1000Base-T (RJ-45) auto-sensing, MDI/MDX wired-network connectivity port. This port supports IEEE 802.3af and 802.3at Power over Ethernet (PoE) compliance, accepting 48 VDC (nominal) as a standard defined Powered Device (PD) from a Power Sourcing Equipment (PSE) such as a PoE midspan injector, or network infrastructure that supports PoE. The 10/100/1000 Mbps Ethernet ports are on the bottom of the AP. These ports have RJ-45 female connectors with the pin-outs shown in Figure 6. Figure 6 Gigabit Ethernet Port Pin-Out DC Power Socket If PoE is not available, an optional Aruba AP AC-DC adapter kit (sold separately) can be used to power the AP-210 Series. Additionally, a locally-sourced AC-to-DC adapter (or any DC source) can be used to power this device, as long as it complies with all applicable local regulatory requirements and the DC interface meets the following specifications: 12 VDC (+/- 5%)/18W Center-positive 1.7/4.0 mm circular plug, 9.5 mm length Reset Button The reset button can be used to return the AP to factory default settings. To reset the AP: 1. Power off the AP. 2. Press and hold the reset button using a small, narrow object, such as a paperclip. 3. Power-on the AP without releasing the reset button. The power LED will flash within 5 seconds. 4. Release the reset button. The power LED will flash again within 15 seconds indicating that the reset is completed. The AP will now continue to boot with the factory default settings. Before You Begin Pre-Installation Network Requirements After WLAN planning is complete and the appropriate products and their placement have been determined, the Aruba controller(s) must be installed and initial setup performed before the Aruba APs are deployed. For initial setup of the controller, refer to the ArubaOS Quick Start Guide for the software version installed on your controller. AP Pre-Installation Checklist Before installing your AP-210 Series AP, ensure that you have the following: CAT5e or better UTP cable of required length One of the following power sources: IEEE 802.3at or 802.3af-compliant Power over Ethernet (PoE) source. The POE source can be any power source equipment (PSE) controller or midspan PSE device Aruba AP AC-DC adapter kit (sold separately) Aruba Controller provisioned on the network: Layer 2/3 network connectivity to your access point One of the following network services: Aruba Discovery Protocol (ADP) DNS server with an “A” record DHCP Server with vendor-specific options Summary of the Setup Process Successful setup of an AP-210 Series access point consists of five tasks, which must be performed in this order: 1. Verify pre-installation connectivity. 2. Identify the specific installation location for each AP. 3. Install each AP. 4. Verify post-installation connectivity. 5. Configure each AP. Verifying Pre-Installation Connectivity Before you install APs in a network environment, make sure that the APs are able to locate and connect to the controller after power on. Specifically, you must verify the following conditions: When connected to the network, each AP is assigned a valid IP address APs are able to locate the controller Refer to the ArubaOS Quick Start Guide for instructions on locating and connecting to the controller. Identifying Specific Installation Locations You can mount the AP-210 Series access point on a wall or on the ceiling. Use the AP placement map generated by Aruba’s Airwave VisualRF Plan software application to determine the proper installation location(s). Each location should be as close as possible to the center of the intended coverage area and should be free …

Text truncated - open the document above for the full version.

Request for Confidentiality Date: June 22, 2014 Federal Communications Commission Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MD 21046 Product / Model No: APIN0214; APIN0215 FCC ID: Q9DAPIN0214215 To whom it may concern: Pursuant to 47 CFR 0.457(d)(1)(ii) and 0.459 Aruba Networks Inc. hereby requests permanent confidentiality of the following documents for the subject application: 1. Block Diagrams 2. Electrical Schematics 3. Circuit Description 4. Operational Description and professional Installation Instructions 5. Parts List and Tune-up Procedure These documents contain detailed system and equipment description and related information about the product which Aruba Networks, Inc. considers to be proprietary, confidential and a custom design not otherwise available to the general public. Since the design is a basis form which future technological products will evolve, Aruba Networks, Inc. considers that this information would be of benefit to tis competitors and that the disclosure of the information in these documents would give competitors an unfair advantage in the market. Sincerely, Signature of applicant: Name: Rob Hastings Date: June 22, 2014 Title: Regulatory Compliance Manager

Letter of Authorization Company: Aruba Networks Inc. Address: 1344 Crossman Ave., Sunnyvale, CA 94089 Product Name: Aruba Access point FCC ID: Q9DAPIN0214215 We authorize MiCOM Labs, 440 Boulder Court, Suite 200, PLeaseanton, CA 94566, USA to act on our behalf on all matters concerning the above named equipment. Any individual within MiCOM Labs is authorized to act on our behalf and take action on the application. This shall include the following:  Testing  Approval applications and procedures  Payment of approval fees We declare that MiCOM Labs, 440 Boulder Court, Suite 200,, Pleasanton, CA 94566, USA, is allowed to forward all information related to the approval project to the applied notified body and to the notification entities and to discuss any issues concerning the approval application. Any and all acts carried out by MiCOM Labs on our behalf shall have the same effect as acts of our own. Signature of applicant: Name: Rob Hastings Date: June 22, 2014 Title: Regulatory Compliance Manager

Letter of Authorization Company: Aruba Networks Inc. Address: 1344 Crossman Ave., Sunnyvale, CA 94089 Product Name: Aruba Access point FCC ID: Q9DAPIN0214215 We authorize MiCOM Labs, 575 Boulder Court, Pleasanton, CA 94566, USA to act on our behalf on all matters concerning the above named equipment. Any individual within MiCOM Labs is authorized to act on our behalf and take action on the application. This shall include the following:  Testing  Approval applications and procedures  Payment of approval fees We declare that MiCOM Labs, 575 Boulder Court, Pleasanton, CA 94566, USA, is allowed to forward all information related to the approval project to the applied notified body and to the notification entities and to discuss any issues concerning the approval application. Any and all acts carried out by MiCOM Labs on our behalf shall have the same effect as acts of our own. Signature of applicant: Name: Rob Hastings Date: June 22, 2014 Title: Regulatory Compliance Manager

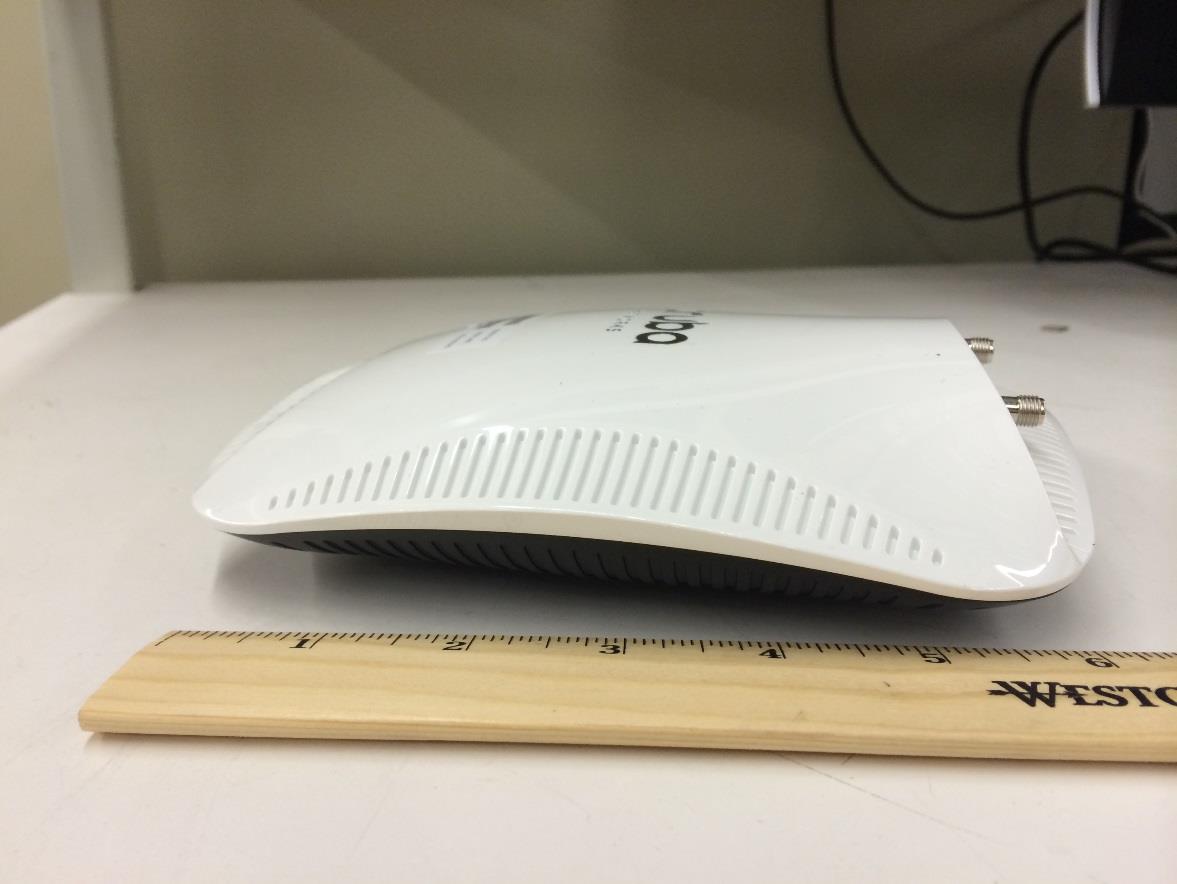

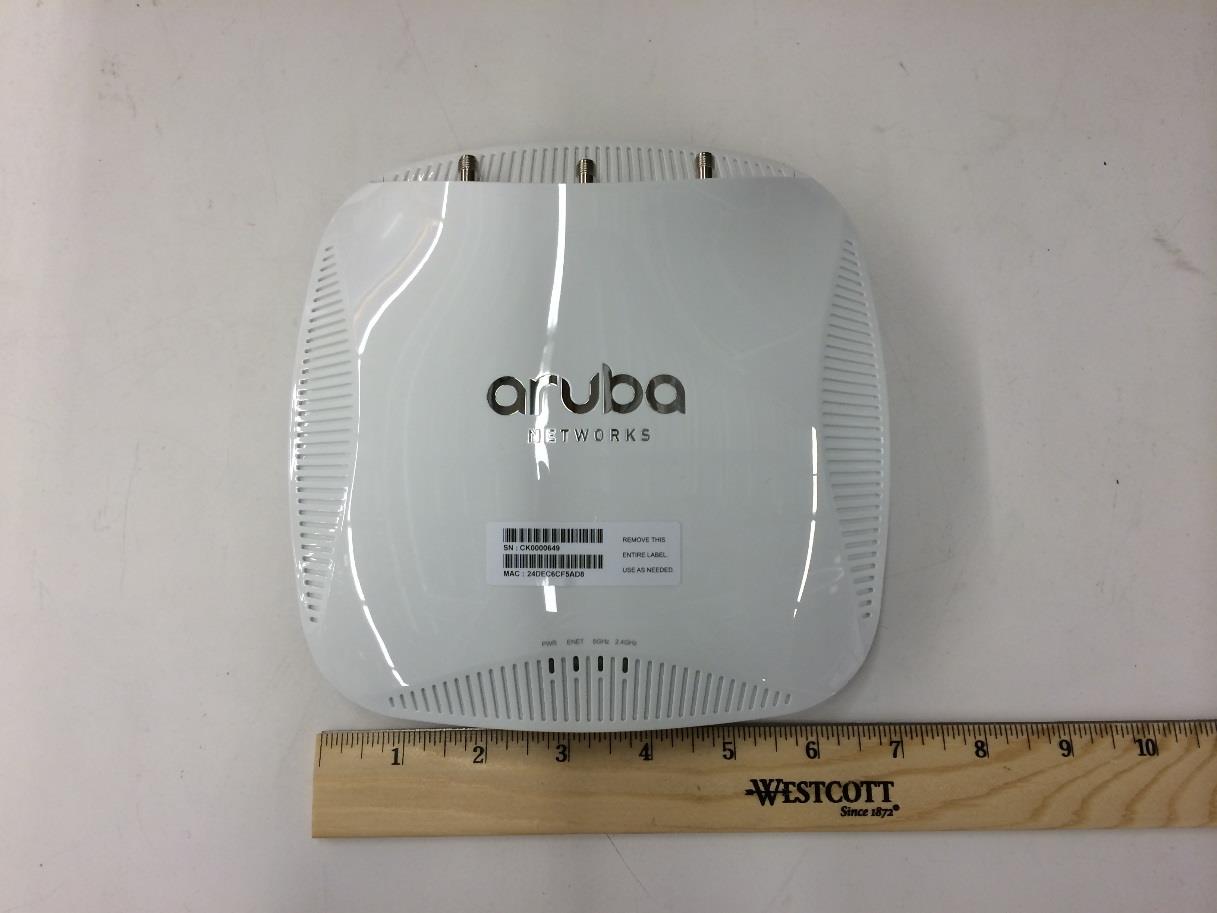

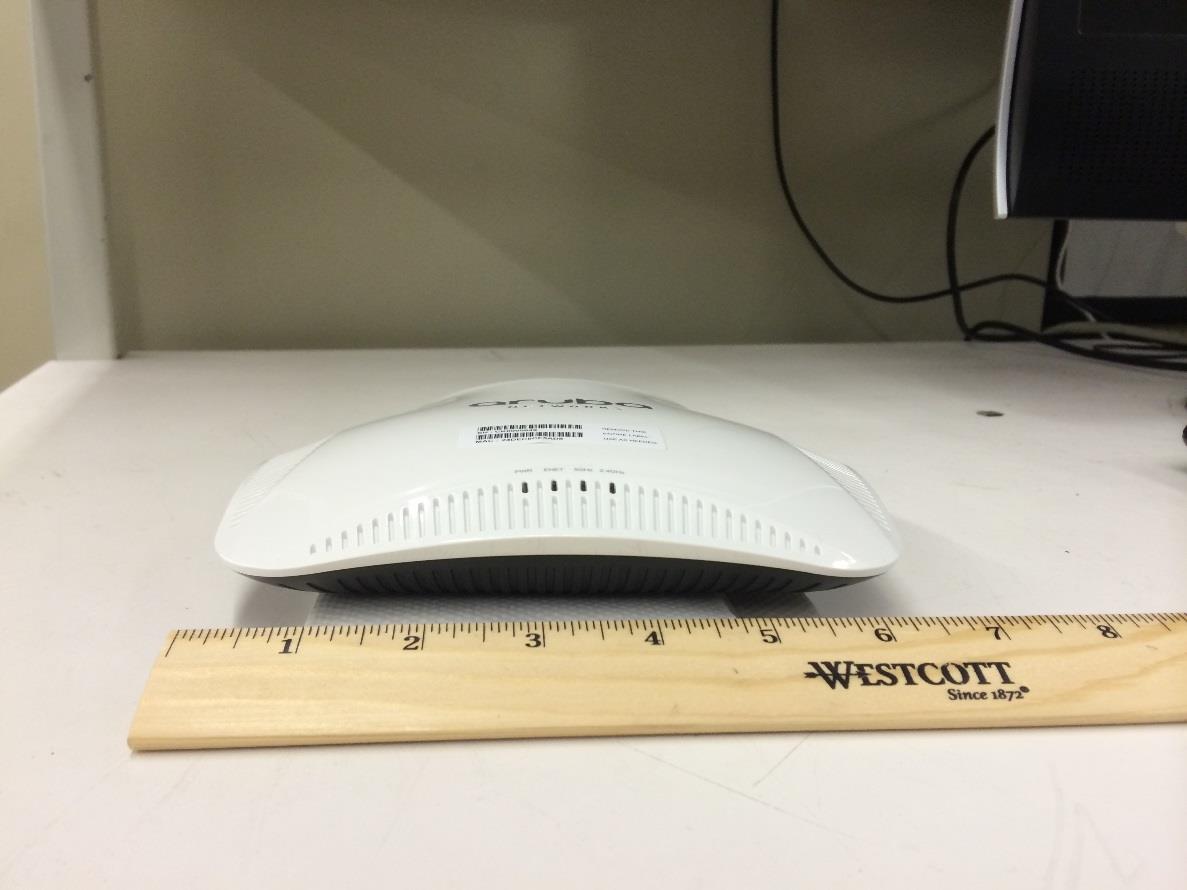

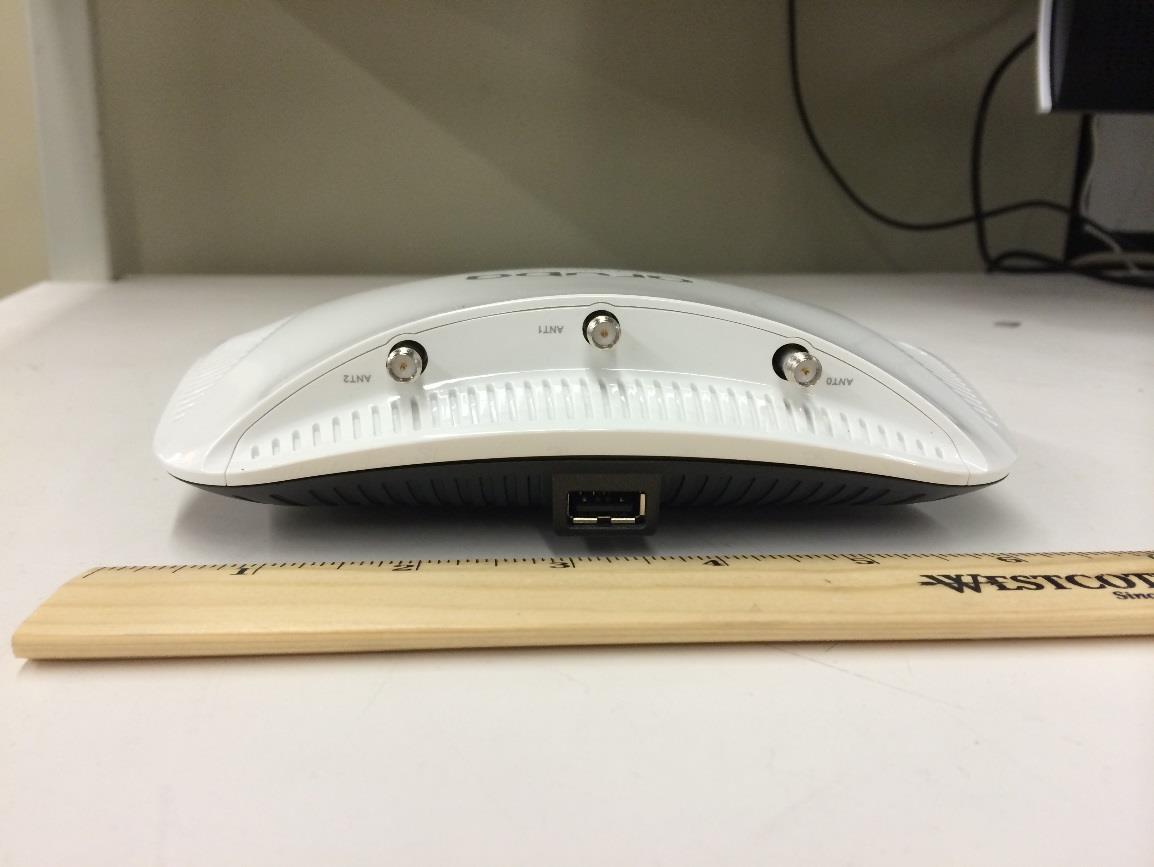

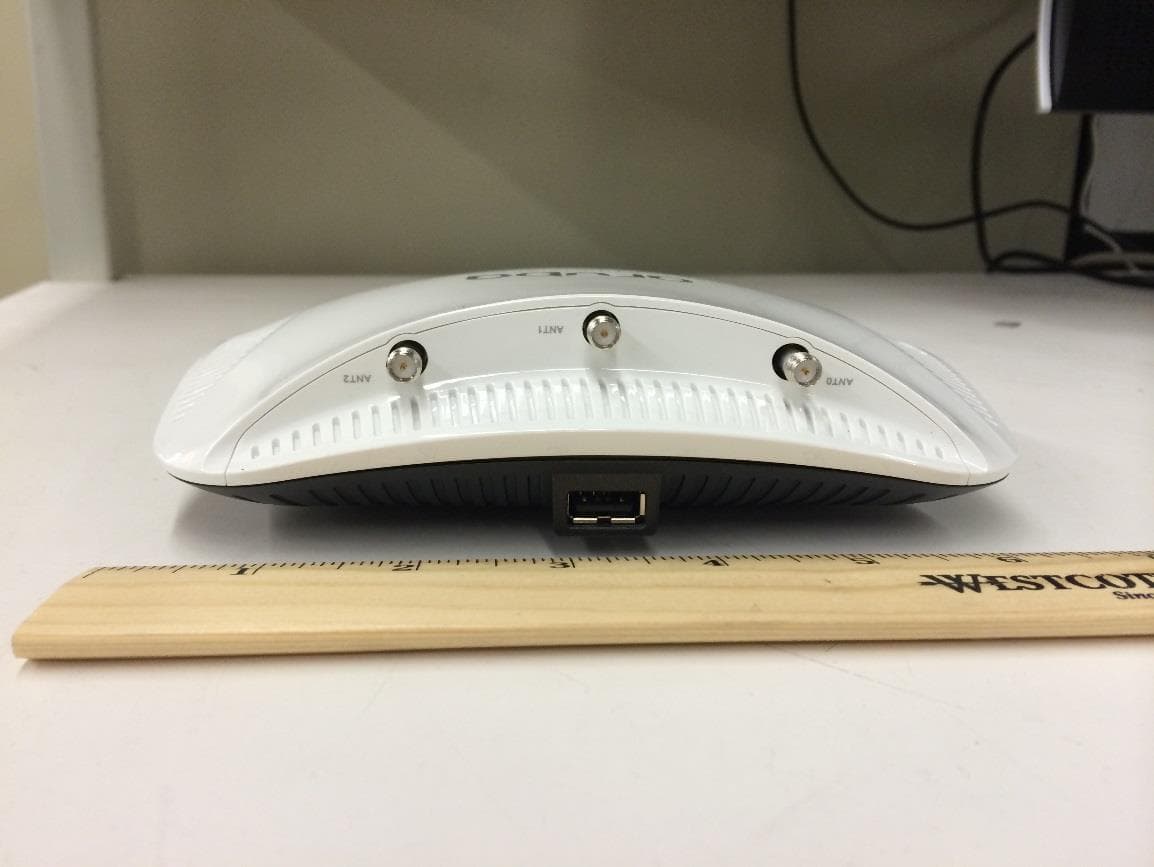

EXTERNAL PHOTOS OF APIN0214 TOP BOTTOM FRONT REAR LEFT RIGHT

EXTERNAL PHOTOS OF APIN0215 TOP BOTTOM FRONT REAR LEFT RIGHT

Electronic Labeling APIN0214 and APIN215 The Device is electronically labeled and the FCC ID: Q9DAPIN0214215 will be displayed via the controller WebUI under the about menu. Reference: 784748 D01 Labelling Part 15&18 Guidelines V07 A Software define radio (Section 2.944) may provide permanently affixed labels according to standard Certification labeling requirements (See 2.2 Certification (labelling requirements) above) or electronic labeling.

INTERNAL PHOTOS OF APIN0214 TOP SIDE OF PCB WITH SHIELDS TOP OF PCB WITH SHIELDS TOP OF PCB WITHOUT SHIELDS BACK SIDE OF PCB WITHOUT SHIELDS

INTERNAL PHOTOS OF APIN0215 TOP SIDE OF PCB WITH SHIELDS TOP OF PCB WITH SHIELDS TOP OF PCB WITHOUT SHIELDS BACK SIDE OF PCB WITHOUT SHIELDS INSIDE OF TOP COVER SHOWING INTERNAL ANTENNAS

Maximum Permissible Exposure ARUB179; Aruba APIN0214, APIN0215 FCC, Part 15 §1.1310 Industry Canada RSS-Gen §5.6 Calculations for Maximum Permissible Exposure Levels Power Density = Pd (mW/cm 2 ) = EIRP/(4πd 2 ) EIRP = P * G P = Peak output power (mW) G = Antenna numeric gain (numeric) d = Separation distance (cm) Numeric Gain = 10 ^ (G (dBi)/10) Because the EUT belongs to the General Population/Uncontrolled Exposure the limit of power density is 1.0 mW/cm 2 The calculations in the table below use highest gain antennas for the client EUT. Where the antenna gain exceeds 6dBi the transmitter power is reduced where necessary to meet the EIRP requirements. These calculations represent worst case in terms of the exposure levels. Freq. Band (MHz) Antenna Gain (dBi) Numeric Gain (numeric) Peak Output Power (dBm) Peak Output Power (mW) Calculated Safe Distance @ 1mW/cm 2 Limit(cm) Minimum Separation Distance (cm) 2400 – 2483.5 7.5 5.62 23.32 215 9.9 20 5725 - 5850 7.5 5.62 22.87 194 9.4 20 5150 - 5250 7.5 5.62 16.84 49 4.7 20 Note: for mobile or fixed location transmitters the minimum separation distance is 20cm, even if calculations indicate the MPE distance to be less. Specification Maximum Permissible Exposure Limits FCC §1.1310 Limit = 1mW / cm 2 from 1.310 Table 1 RSS-Gen §5.6 Category I and Category II equipment shall comply with the applicable requirements of RSS-102. Laboratory Measurement Uncertainty for Power Measurements Measurement uncertainty ±1.33 dB

COVER PAGE Test of Aruba Networks APIN0214, APIN0215 To: FCC 47 CFR Part 15.247 & IC RSS-210 Test Report Serial No.: ARUB179-U3 Rev A TITLE PAGE TEST REPORT FROM Test of Aruba Networks APIN0214, APIN0215 to To FCC 47 CFR Part 15.247 & IC RSS-210 Test Report Serial No.: ARUB179-U3 Rev A Note: this report contains data with regard to the 2400-2483.5 MHz and 5725-5850 MHz operational modes of the Aruba Networks APIN0214 and APIN0215 Wireless Access Point. Test data for the non-DFS Bands 5,150 - 5,250 is reported in MiCOM Labs ARUB179-U6 and 5,250 – 5,350 and 5,470–5,725 MHz (DFS) data reported in MiCOM Labs test report ARUB179-U8 This report supersedes: NONE Applicant: Aruba Networks 1344 Crossman Avenue Sunnyvale California 94089, USA Product Function: Wireless LAN Access Point Copy No: pdf Issue Date: 24th June 2014 This Test Report is Issued Under the Authority of; MiCOM Labs, Inc. 575 Boulder Cour t Pleasanton, CA 94566 USA Phone: +1 (925) 462-0304 Fax: +1 (925) 462-0306 www.micomlabs.com TESTING CERT #2381.01 MiCOM Labs is an ISO 17025 Accredited Testing Laboratory This test report may be reproduced in full only. The document may only be updated by MiCOM Labs personnel. Any changes will be noted in the Document History section of the report. Title: To: Aruba Networks APIN0214, APIN0215 FCC 47 CFR Part 15.247 & IC RSS-210 Serial #: Issue Date: Page: 3 of 405 This test report may be reproduced in full only. The document may only be updated by MiCOM Labs personnel. Any changes will be noted in the Document History section of the report. ARUB179-U3 Rev A 24th June 2 014 This page has been left intentionally blank Title: To: Serial #: Issue Date: Page: 4 of 405 This test report may be reproduced in full only. The document may only be updated by MiCOM Labs personnel. Any changes will be noted in the Document History section of the report. MiCOM Labs, 575 Boulder Court, Pleasanton, California 94566 USA, Phone: 925.462.0304, Fax: 925.462.0306, www.micomlabs.com Aruba Networks APIN0214, APIN0 215 FCC 47 CFR Part 15.247 & IC RSS-210 ARUB179-U3 Rev A 24th June 2014 TABLE OF CONTENTS ACCREDITATION, LISTINGS & RECOGNITION ............................................................ 5 TESTING ACCREDITATION ............................................................................................ 5 RECOGNITION ................................................................................................................. 6 PRODUCT CERTIFICATION ............................................................................................ 7 TEST RESULT CERTIFICATE .......................................................................................... 9 1. REFERENCES AND MEASUREMENT UNCERTAINTY ........................................ 10 1.1. Normative References ............................................................................................. 10 1.2. Test and Uncertainty Procedures ............................................................................ 11 2. PRODUCT DETAILS AND TEST CONFIGURATIONS .......................................... 12 2.1. Technical Details ..................................................................................................... 12 2.2. Scope of Test Program ............................................................................................ 13 2.3. Equipment Model(s) and Serial Number(s) ............................................................. 18 2.4. Antenna Details ....................................................................................................... 18 2.5. Cabling and I/O Ports .............................................................................................. 19 2.6. Test Configurations.................................................................................................. 20 2.7. Equipment Modifications.......................................................................................... 21 2.8. Deviations from the Test Standard .......................................................................... 21 3. TEST EQUIPMENT CONFIGURATION(S) .............................................................. 22 3.1. Conducted RF Emission Test Set-up ...................................................................... 22 3.2. Radiated Spurious Emission Test Set-up > 1 GHz.................................................. 24 3.3. Digital Emissions Test Set-up (0.03 – 1 GHz) ......................................................... 25 3.4. ac Wireline Emission Test Set-up ............................................................................ 26 4. TEST SUMMARY ...................................................................................................... 27 5. TEST RESULTS ........................................................................................................ 29 5.1. Device Characteristics ............................................................................................. 29 5.1.1. Conducted Testing ...................................................................................29 5.1.2. Radiated Emission Testing ......................................................................87 5.1.3. AC Wireline Conducted Emissions (150 kHz – 30 MHz)........................138 6. PHOTOGRAPHS..................................................................................................... 141 6.1. Conducted Test Setup ........................................................................................... 141 6.2. Test Setup - Digital Emissions > 1 GHz................................................................. 142 6.3. Radiated Emissions Test Setup <1 GHz ............................................................... 143 6.4. ac Wireline Test Setup >1 GHz ............................................................................. 144 7. TEST EQUIPMENT ..............................................................................................…

Text truncated - open the document above for the full version.

Title: To: Serial #: Issue Date: Page: 258 of 405 This test report may be reproduced in full only. The document may only be updated by MiCOM Labs personnel. Any changes will be noted in the Document History section of the report. MiCOM Labs, 575 Boulder Court, Pleasanton, California 94566 USA, Phone: 925.462.0304, Fax: 925.462.0306, www.micomlabs.com Aruba Networks APIN0214, APIN0 215 FCC 47 CFR Part 15.247 & IC RSS-210 ARUB179-U3 Rev A 24th June 2014 CONDUCTED SPURIOUS EMISSIONS - AVERAGE Variant: 802.11b, Channel: 2412.00 MHz, Chain a, Temp: Ambient, Voltage: 12 Vdc Analyser Setup Marker : Frequency : Amplitude Test Results Detector = AVERAGE Sweep Count = 0 RF Atten (dB) = 10 Trace Mode = VIEW M1 : 2371.984 MHz : -15.654 dBm M2 : 6951.864 MHz : -66.480 dBm Limit: -45.65 dBm Margin: -20.83 dB Back to the Matrix Title: To: Serial #: Issue Date: Page: 259 of 405 This test report may be reproduced in full only. The document may only be updated by MiCOM Labs personnel. Any changes will be noted in the Document History section of the report. MiCOM Labs, 575 Boulder Court, Pleasanton, California 94566 USA, Phone: 925.462.0304, Fax: 925.462.0306, www.micomlabs.com Aruba Networks APIN0214, APIN0 215 FCC 47 CFR Part 15.247 & IC RSS-210 ARUB179-U3 Rev A 24th June 2014 CONDUCTED SPURIOUS EMISSIONS - AVERAGE Variant: 802.11b, Channel: 2412.00 MHz, Chain b, Temp: Ambient, Voltage: 12 Vdc Analyser Setup Marker : Frequency : Amplitude Test Results Detector = AVERAGE Sweep Count = 0 RF Atten (dB) = 10 Trace Mode = VIEW M1 : 2371.984 MHz : -15.085 dBm M2 : 6951.864 MHz : -66.480 dBm Limit: -45.09 dBm Margin: -21.39 dB Back to the Matrix Title: To: Serial #: Issue Date: Page: 260 of 405 This test report may be reproduced in full only. The document may only be updated by MiCOM Labs personnel. Any changes will be noted in the Document History section of the report. MiCOM Labs, 575 Boulder Court, Pleasanton, California 94566 USA, Phone: 925.462.0304, Fax: 925.462.0306, www.micomlabs.com Aruba Networks APIN0214, APIN0 215 FCC 47 CFR Part 15.247 & IC RSS-210 ARUB179-U3 Rev A 24th June 2014 CONDUCTED SPURIOUS EMISSIONS - AVERAGE Variant: 802.11b, Channel: 2412.00 MHz, Chain c, Temp: Ambient, Voltage: 12 Vdc Analyser Setup Marker : Frequency : Amplitude Test Results Detector = AVERAGE Sweep Count = 0 RF Atten (dB) = 10 Trace Mode = VIEW M1 : 2371.984 MHz : -15.451 dBm M2 : 6951.864 MHz : -67.504 dBm Limit: -45.45 dBm Margin: -22.05 dB Back to the Matrix Title: To: Serial #: Issue Date: Page: 261 of 405 This test report may be reproduced in full only. The document may only be updated by MiCOM Labs personnel. Any changes will be noted in the Document History section of the report. MiCOM Labs, 575 Boulder Court, Pleasanton, California 94566 USA, Phone: 925.462.0304, Fax: 925.462.0306, www.micomlabs.com Aruba Networks APIN0214, APIN0 215 FCC 47 CFR Part 15.247 & IC RSS-210 ARUB179-U3 Rev A 24th June 2014 CONDUCTED SPURIOUS EMISSIONS - AVERAGE Variant: 802.11b, Channel: 2437.00 MHz, Chain a, Temp: Ambient, Voltage: 12 Vdc Analyser Setup Marker : Frequency : Amplitude Test Results Detector = AVERAGE Sweep Count = 0 RF Atten (dB) = 10 Trace Mode = VIEW M1 : 2424.028 MHz : -16.163 dBm M2 : 6951.864 MHz : -66.480 dBm Limit: -46.16 dBm Margin: -20.32 dB Back to the Matrix Title: To: Serial #: Issue Date: Page: 262 of 405 This test report may be reproduced in full only. The document may only be updated by MiCOM Labs personnel. Any changes will be noted in the Document History section of the report. MiCOM Labs, 575 Boulder Court, Pleasanton, California 94566 USA, Phone: 925.462.0304, Fax: 925.462.0306, www.micomlabs.com Aruba Networks APIN0214, APIN0 215 FCC 47 CFR Part 15.247 & IC RSS-210 ARUB179-U3 Rev A 24th June 2014 CONDUCTED SPURIOUS EMISSIONS - AVERAGE Variant: 802.11b, Channel: 2437.00 MHz, Chain b, Temp: Ambient, Voltage: 12 Vdc Analyser Setup Marker : Frequency : Amplitude Test Results Detector = AVERAGE Sweep Count = 0 RF Atten (dB) = 10 Trace Mode = VIEW M1 : 2424.028 MHz : -15.599 dBm M2 : 6951.864 MHz : -66.480 dBm Limit: -45.60 dBm Margin: -20.88 dB Back to the Matrix Title: To: Serial #: Issue Date: Page: 263 of 405 This test report may be reproduced in full only. The document may only be updated by MiCOM Labs personnel. Any changes will be noted in the Document History section of the report. MiCOM Labs, 575 Boulder Court, Pleasanton, California 94566 USA, Phone: 925.462.0304, Fax: 925.462.0306, www.micomlabs.com Aruba Networks APIN0214, APIN0 215 FCC 47 CFR Part 15.247 & IC RSS-210 ARUB179-U3 Rev A 24th June 2014 CONDUCTED SPURIOUS EMISSIONS - AVERAGE Variant: 802.11b, Channel: 2437.00 MHz, Chain c, Temp: Ambient, Voltage: 12 Vdc Analyser Setup Marker : Frequency : Amplitude Test Results Detector = AVERAGE Sweep Count = 0 RF Atten (dB) = 10 Trace Mode = VIEW M1 : 2424.028 MHz : -16.362 dBm M2 : 6951.864 MHz : -67.504 dBm Limit: -46.36 dBm Margin: -21.14 dB Back to the Matrix Title: To: Serial #: Issue Date: Page: 264 of 405 This test report may be reproduced in full only. The document may only be updated by MiCOM Labs personnel. Any changes will be noted in the Document History section of the report. MiCOM Labs, 575 Boulder Court, Pleasanton, California 94566 USA, Phone: 925.462.0304, Fax: 925.462.0306, www.micomlabs.com Aruba Networks APIN0214, APIN0 215 FCC 47 CFR Part 15.247 & IC RSS-210 ARUB179-U3 Rev A 24th June 2014 CONDUCTED SPURIOUS EMISSIONS - AVERAGE Variant: 802.11b, Channel: 2462.00 MHz, Chain a, Temp: Ambient, Voltage: 12 Vdc Analyser Setup Marker : Frequency : Amplitude Test Results Detector = AVERAGE Sweep Count = 0 RF Atten (dB) = 10 Trace Mode = VIEW M1 : 2424.028 MHz : -16.465 dBm M2 : 6951.864 MHz : -66.480 dBm Limit: -46.47 dBm Margin: -20.01 dB Back to the Matrix Title: To: Serial #: Issue Date: Page: 265 of 405 This test report may be reproduced in full only. The document may only be updated by MiCOM Labs personnel. Any changes will be noted in the Document History section of the rep…

Text truncated - open the document above for the full version.

the wireless lab ARUB179 Test Set up Photos Company Name: Aruba Networks Model Number: APIN0214 & APIN0215 the wireless lab the wireless lab More..... the wireless lab
