Q9DAPINR15515PWireless Access Point

Aruba RAP-155 / RAP-155P Remote Access Point Installation Guide The Aruba RAP-155 and RAP-155P are dual-radio, dual-band wireless access points (AP) that offer wired and wireless network access, zero-touch provisioning, identity-based access control, policy based forwarding, air monitoring, and wireless intrusion protection across the 2.4 GHz and 5 GHz (802.11a/b/g and 802.11n) bands. The Aruba RAP-155 and RAP-155P ship with the Aruba Instant software. Therefore, out of the box, the Aruba RAP-155 and RAP-155P operate as a Virtual Controller (VC) or an Instant AP. However, the Aruba RAP-155 and RAP-155P can be converted to operate as a Remote AP (RAP). For information about the IAP to RAP conversion, see RAP Conversion. The Aruba RAP-155 and RAP-155P provide the following capabilities: Wireless transceiver Protocol-independent networking functionality IEEE 802.11 a/b/g/n operation as a wireless access point IEEE 802.11 a/b/g/n operation as a wireless air monitor Compatibility with IEEE 802.3af and IEEE 802.3at PoE Package Contents 1x Aruba RAP-155 or RAP-155P Access Point 1x Stand 1x Installation Guide (this document) 1x Aruba Instant Quick Start Guide 1x RJ-45 Ethernet Cable 1x 12V Power Adapter, power cord included (RAP-155 only) 1x 54V Power Adapter (RAP-155P only) RAP-155 and RAP-155P Overview Figure 1 Rear View 10/100/1000 Base-T Ethernet Ports The RAP-155 or RAP-155P has five 10/100/1000Base-T (RJ-45) Ethernet ports for wired network connectivity. E0 is an uplink port and E1-E4 are downlink ports. E0: WAN port E1: LAN port E2: LAN port E3: LAN port E4: LAN port On the RAP-155P, port E1 and E2 have PoE power sourcing capability (PSE) to supply power to two 802.3af powered device (class 0-4) on E1 and E2 port or one 802.3at powered device on either E1 or E2 port. DC IN (Power Socket) The RAP-155 or RAP-155P power adapter (included) connects to the DC IN port. The RAP-155 or RAP-155P does not have an On/Off switch. The device turns on when the power adapter is attached and plugged into a power outlet. The device turns off when you disconnect the power adapter from the power source (outlet). USB Port The RAP-155 or RAP-155P is equipped with a USB port to support cellular modems. Figure 2 Front View of RAP-155 Figure 3 Front View of RAP-155P Serial Console Port The serial console port is located at the bottom of RAP-155 or RAP-155P and closed by a rubber insert when not in use. To use this port for troubleshooting, remove the rubber insert and connect the serial adapter cable to the port. LEDs Reset Button The RAP-155 and RAP-155P are equipped with a reset button, that when pushed, resets the device to factory default settings. The reset button is located on the rear of the device and is recessed in a small, round hole. To reset the RAP-155 and RAP-155P, insert a small, narrow object, such as a pin or paperclip, into the hole and press and hold the button for 5-10 seconds while powering on the RAP-155 and RAP-155P. This will return the device to factory default settings. RAP-155 and RAP-155P Installation Tabletop Mounting The RAP-155 and RAP-155P ship with a stand to use on flat (i.e. table top) surfaces. Place the RAP-155 and RAP-155P in the stand (see Figure 4) and place the stand on a flat, level surface. Figure 4 Stand Installation Connecting the Required Cables The RAP-155 or RAP-155P must be connected to a network device that has access to the Internet, such as a router or modem. To complete the installation of the RAP-155 or RAP-155P: 1. Connect one end of the provided RJ-45 cable to port E0 on the RAP-155 or RAP-155P. 2. Connect the other end of the RJ-45 cable to a free RJ-45 port on your modem or router. 3. Attach the provided power adapter to the DC IN port on the RAP-155 or RAP- 155P. 4. Connect the other end of the power adapter to a power outlet. The RAP-155 or RAP-155P is now powered on. To verify this, ensure that the PWR LED is solid green. Verifying Successful Installation Once the RAP-155/RAP-155P’s PWR LED has come up, the device will take 2 to 3 minutes to complete the boot cycle. Once the boot cycle is complete, you can connect to your company or corporate network. RAP Conversion If your network administrator has instructed you to convert the RAP-155 or RAP- 155P to work in RAP mode, follow the process below to complete the RAP conversion. 1. Power up the RAP-155 or RAP-155P. 2. Connect to Instant SSID. 3. Login to the RAP-155 or RAP-155P by navigating to http:// instant.arubanetworks.com and login to the Instant UI. The default username is admin and the default password is admin. See the included Aruba Instant Quick Start Guide for more information. 4. Navigate to the Maintenance tab in the top right. 5. Click on the Convert tab. 6. Select Remote APs managed by a Mobility Controller from the drop down menu. 7. Enter the IP address of the controller. This is provided by your network administrator. 8. Click Convert Now to complete the conversion (see Figure 5). 9. The RAP-155 or RAP-155P will reboot and begin operating in RAP mode. The Aruba RAP-155 and RAP-155P require Aruba Instant 3.3 or higher version when deployed as an Instant AP and ArubaOS 6.3 or higher version when deployed in conjunction with a Mobility Controller. The 54V power adapter that ships with the RAP-155P does not come with a country specific power cord. This cord must be ordered separately. Inform your supplier if there are any incorrect, missing, or damaged parts. If possible, retain the carton, including the original packing materials. Use them to repack the product in case there is a need to return it. Reset button USB port E4 (LAN port) E3 (LAN port) E2 (LAN port) E1 (LAN port) E0 (WAN port) DC IN (Power) The RAP-155 ships with a 12V power supply and the RAP-155P ships with a 54V power supply. These power supplies are not interchangeable. The RAP-155 or RAP-155P does not ship with a serial adapter cable. This cable is available as accessory with the part number AP-CBL-SER and…

Text truncated - open the document above for the full version.

Federal Communications Commission Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MD 21046 April 19, 2013 Re: SDR Certification Company name: Aruba Networks, Inc. FCC ID: Q9DAPINR15515P Gentlemen, In accordance with 0.459 of CFR 47, Aruba Networks, Inc. hereby requests confidentiality of following documents for the subject application:  Electrical Schematics  Block Diagram  Theory of Operations - Operational Description  SDR Security Description Guide - Aruba_Secure_Mobility_System_SDR  Bill of Materials These documents contain detailed system and equipment description and related information about the product which Aruba Networks considers to be proprietary, confidential and a custom design and otherwise would not release to the general public. Since the design is a basis from which future technological products will evolve, Aruba Networks considers that this information would be of benefit to its competitors and that the disclosure of the information in these documents would give competitors an unfair advantage in the market. Sincerely, Signature Ivaylo Tankov Compliance Manager Aruba Networks, Inc. 1344 Crossman Ave., Sunnyvale, CA 94089 Tel: (408) 227 4500 Email: [email protected]

Letter of Authorization April 19, 2013 Company: Aruba Networks, Inc. Address: 1344 Crossman Ave, Sunnyvale, CA 94089 Model: APINR155 and APINR15P including Instant variants We authorize MiCOM Labs, 440 Boulder Court, Suite 200, Pleasanton, CA 94566, USA, to act on our behalf on all matters concerning the above named equipment. This shall include the following: - Testing - Approval applications and procedures - Payment of approval fees We declare that MiCOM Labs, 440 Boulder Court, Suite 200, Pleasanton, CA 94566, USA, is allowed to forward all information related to the approval project to the applied notified body and to the notification entities and to discuss any issues concerning the approval application. Any and all acts carried out by MiCOM Labs on our behalf shall have the same effect as acts of our own. This authorization is valid for 90 (ninety) days. Sincerely, Signature Name:Ivaylo Tankov Title:Compliance Manager Aruba Networks, Inc. 1344 Crossman Ave., Sunnyvale, CA 94089 Tel: (408) 227 4500 Email: [email protected]

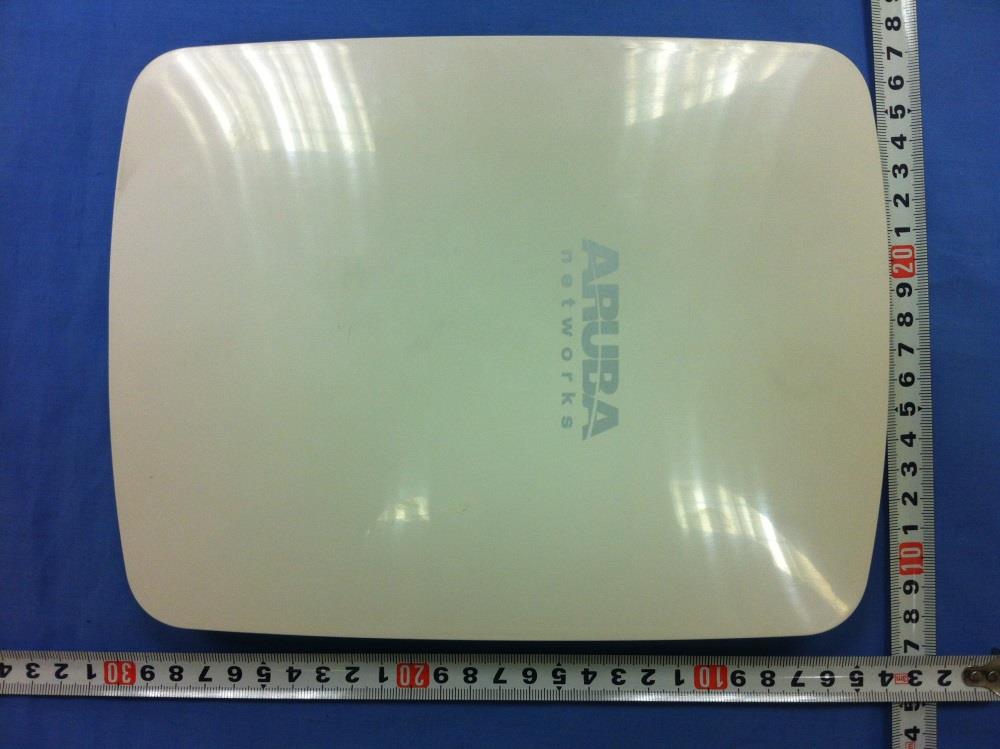

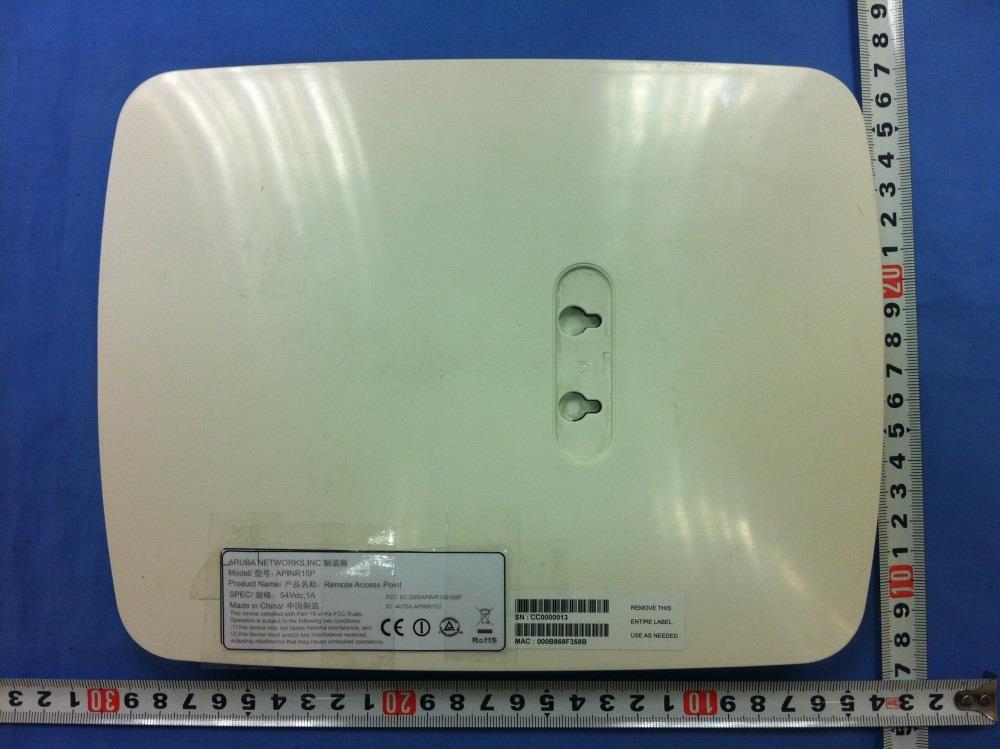

External & Internal Photos for APINR55 Photo 1- Front View Photo 2 – Back View Photo 3 – Port View Photo 4 – LED View External & Internal Photos for APINR5P Photo 5- Front View Photo 6 – Back View Photo 7 – Port View Photo 8 – LED View

Photo 1 – APINR155 Open Co ver View Photo 2 – APINR155 Main Bo ard Front View Photo 3– APINR155 Main Board Back View Photo 4– APINR155 2.4 GHz Radio Front View Photo 5– APINR155 2.4 GHz Radio back View Ph oto 6 – APINR155 5 GHz Radio Front View Photo 7 – APINR155 5 GHz Radio back View Photo 8 – APINR15P Open Cover View Photo 9 – APINR15P Main Board Front View Photo 10– APINR15P Main Board Back View Photo 11– APINR15P 2.4 GHz Radio Front View Photo 12– APINR15P 2.4 GHz Radio back View Photo 13 – APINR15P 5 GHz Radio Front View Photo 14– APINR15P 5 GHz Radio back View

ARUB154 Maximum Permissible Exposure FCC, Part 15 §1.1310 Industry Canada RSS-Gen §5.6 Calculations for Maximum Permissible Exposure Levels Power Density = Pd (mW/cm 2 ) = EIRP/(4πd 2 ) EIRP = P * G P = Peak output power (mW) G = Antenna numeric gain (numeric) d = Separation distance (cm) Numeric Gain = 10 ^ (G (dBi)/10) Because the EUT belongs to the General Population/Uncontrolled Exposure the limit of power density is 1.0 mW/cm 2 The calculations in the table below use highest gain antennas for the client EUT. Where the antenna gain exceeds 6dBi the transmitter power is reduced to meet the EIRP requirements. These calculations represent worst case in terms of the exposure levels. Freq. Band (MHz) Antenna Gain (dBi) Numeric Gain (numeric) Peak Output Power (dBm) Peak Output Power (mW) Calculated Safe Distance @ 1mW/cm 2 Limit(cm) Minimum Separation Distance (cm) 2400 – 2483.5 3.0 2.0 29.80 955 12.3 20 5725 - 5850 3.0 2.0 29.18 828 11.5 20 5150 - 5250 3.0 2.0 16.46 44.2 2.7 20 Note: for mobile or fixed location transmitters the minimum separation distance is 20cm, even if calculations indicate the MPE distance to be less. Specification Maximum Permissible Exposure Limits FCC §1.1310 Limit = 1mW / cm 2 from 1.310 Table 1 RSS-Gen §5.6 Category I and Category II equipment shall comply with the applicable requirements of RSS-102. Laboratory Measurement Uncertainty for Power Measurements Measurement uncertainty ±1.33 dB

COVER PAGE Test of Aruba Networks APINR155, APINR15P To: FCC 47 CFR Part 15.247 & IC RSS-210 Test Report Serial No.: ARUB154-U1 Rev A TITLE PAGE TEST REPORT FROM Test of Aruba Networks APINR155, APINR15P to To FCC 47 CFR Part 15.247 & IC RSS-210 Test Report Serial No.: ARUB154-U1 Rev A Note: this report contains data with regard to the 2400 to 2483.5 MHz and 5725 to 5850 MHz operational modes of the Aruba Networks APINR155 & APINR15P Wireless Access Point. Test data for the 5,150 - 5,250 (non-DFS bands) is reported in MiCOM Labs test report ARUB154-U2 This report supersedes: NONE Applicant: Aruba Networks 1344 Crossman Avenue Sunnyvale California 94089, USA Product Function: Wireless Remote Access Point Copy No: pdf Issue Date: 15th May 2013 MiCOM Labs is an ISO 17025 Accredited Testing Laboratory This Test Report is Issued Under the Authority of; MiCOM Labs, Inc. 440 Boulder Court, Suite 200 Pleasanton, CA 94566 USA Phone: +1 (925) 462-0 304 Fax: +1 (925) 462-0306 TEST CERTIFICATE #2381.01 www.micomlabs.com This test report may be reproduced in full only. The document may only be updated by MiCOM Labs personnel. Any changes will be noted in the Document History section of the report. Title: To: Aruba Networks APINR155, APINR15P FCC 47 CFR Part 15.247 & IC RSS-210 Serial #: Issue Date: Page: 3 of 327 This test report may be reproduced in full only. The document may only be updated by MiCOM Labs personnel. Any changes will be noted in the Document History section of the report. ARUB154-U1 Rev A 15th May 20 13 This page has been left intentionally blank Title: To: Serial #: Issue Date: Page: 4 of 327 This test report may be reproduced in full only. The document may only be updated by MiCOM Labs personnel. Any changes will be noted in the Document History section of the report. MiCOM Labs, 440 Boulder Court, Suite 200, Pleasanton, CA 94566 USA, Phone: 925.462.0304, Fax: 925.462.0306, www.micomlabs.com Aruba Networks APINR155, APINR15P FCC 47 CF R Part 15.247 & IC RSS-210 ARUB154-U1 Rev A 15th May 2013 TABLE OF CONTENTS ACCREDITATION, LISTINGS & RECOGNITION ............................................................ 5 TESTING ACCREDITATION ............................................................................................ 5 RECOGNITION ................................................................................................................. 6 PRODUCT CERTIFICATION ............................................................................................ 7 TEST RESULT CERTIFICATE .......................................................................................... 9 1. REFERENCES AND MEASUREMENT UNCERTAINTY ........................................ 10 1.1. Normative References ............................................................................................. 10 1.2. Test and Uncertainty Procedures ............................................................................ 11 2. PRODUCT DETAILS AND TEST CONFIGURATIONS .......................................... 12 2.1. Technical Details ..................................................................................................... 12 2.2. Scope of Test Program ............................................................................................ 13 2.3. Equipment Model(s) and Serial Number(s) ............................................................. 17 2.4. Antenna Details ....................................................................................................... 17 2.5. Cabling and I/O Ports .............................................................................................. 17 2.6. Test Configurations.................................................................................................. 18 2.7. Equipment Modifications.......................................................................................... 20 2.8. Deviations from the Test Standard .......................................................................... 21 3. TEST EQUIPMENT CONFIGURATION(S) .............................................................. 22 3.1. Conducted RF Emission Test Set-up ...................................................................... 22 3.2. Radiated Spurious Emission Test Set-up > 1 GHz.................................................. 23 3.3. Digital Emissions Test Set-up (0.03 – 1 GHz) ......................................................... 24 3.4. ac Wireline Emission Test Set-up ............................................................................ 25 4. TEST SUMMARY ...................................................................................................... 26 5. TEST RESULTS ........................................................................................................ 28 5.1. Device Characteristics ............................................................................................. 28 5.1.1. Conducted Testing ...................................................................................28 5.1.2. Radiated Emission Testing ......................................................................65 5.1.3. AC Wireline Conducted Emissions (150 kHz – 30 MHz)..........................92 6. PHOTOGRAPHS....................................................................................................... 96 6.1. Test Setup - Digital Emissions below 1 GHz ........................................................... 96 6.2. Radiated Emissions Test Setup >1 GHz – ANT-19 ................................................. 98 7. TEST EQUIPMENT ................................................................................................... 99 APPENDIX ...................................................................................................................... 100 A. SUPPORTING INFORMATION .............................................................................. 100 A.1. CONDUCTED TEST PLOTS ............................…

Text truncated - open the document above for the full version.

Title: Aruba Networks APINR155, APINR15P To: Serial #: Issue Date: Page: 176 of 327 This test report may be reproduced in full only. The document may only be updated by MiCOM Labs personnel. Any changes will be noted in the Document History section of the report. MiCOM Labs, 440 Boulder Court, Suite 200, Pleasanton, CA 94566 USA, Phone: 925.462.0304, Fax: 925.462.0306, www.micomlabs.com FCC 47 CF R Part 15.247 & IC RSS-210 ARUB154-U1 Rev A 15th May 2013 PEAK OUTPUT POWER Variant: 802.11a, Channel: 5785.00 MHz, Chain a, Temp: Ambient, Voltage: 12 Vdc Analyser Setup Marker : Frequency : Amplitude Test Results Detector = MAX PEAK Sweep Count = 0 RF Atten (dB) = 20 Trace Mode = VIEW M1 : 5773.737 MHz : -7.491 dBm M2 : 5790.090 MHz : 13.282 dBm Delta1 : 22.525 MHz : -0.065 dB Channel Power: 23.44 dBm Limit: 25.23 dBm Margin: -1.79 dB Back to the Matrix Title: Aruba Networks APINR155, APINR15P To: Serial #: Issue Date: Page: 177 of 327 This test report may be reproduced in full only. The document may only be updated by MiCOM Labs personnel. Any changes will be noted in the Document History section of the report. MiCOM Labs, 440 Boulder Court, Suite 200, Pleasanton, CA 94566 USA, Phone: 925.462.0304, Fax: 925.462.0306, www.micomlabs.com FCC 47 CF R Part 15.247 & IC RSS-210 ARUB154-U1 Rev A 15th May 2013 PEAK OUTPUT POWER Variant: 802.11a, Channel: 5785.00 MHz, Chain b, Temp: Ambient, Voltage: 12 Vdc Analyser Setup Marker : Frequency : Amplitude Test Results Detector = MAX PEAK Sweep Count = 0 RF Atten (dB) = 20 Trace Mode = VIEW M1 : 5774.379 MHz : -6.816 dBm M2 : 5789.930 MHz : 13.223 dBm Delta1 : 21.403 MHz : -1.452 dB Channel Power: 23.72 dBm Limit: 25.23 dBm Margin: -1.51 dB Back to the Matrix Title: Aruba Networks APINR155, APINR15P To: Serial #: Issue Date: Page: 178 of 327 This test report may be reproduced in full only. The document may only be updated by MiCOM Labs personnel. Any changes will be noted in the Document History section of the report. MiCOM Labs, 440 Boulder Court, Suite 200, Pleasanton, CA 94566 USA, Phone: 925.462.0304, Fax: 925.462.0306, www.micomlabs.com FCC 47 CF R Part 15.247 & IC RSS-210 ARUB154-U1 Rev A 15th May 2013 PEAK OUTPUT POWER Variant: 802.11a, Channel: 5785.00 MHz, Chain c, Temp: Ambient, Voltage: 12 Vdc Analyser Setup Marker : Frequency : Amplitude Test Results Detector = MAX PEAK Sweep Count = 0 RF Atten (dB) = 20 Trace Mode = VIEW M1 : 5774.619 MHz : -7.137 dBm M2 : 5781.754 MHz : 13.072 dBm Delta1 : 21.403 MHz : -3.101 dB Channel Power: 22.95 dBm Limit: 25.23 dBm Margin: -2.28 dB Back to the Matrix Title: Aruba Networks APINR155, APINR15P To: Serial #: Issue Date: Page: 179 of 327 This test report may be reproduced in full only. The document may only be updated by MiCOM Labs personnel. Any changes will be noted in the Document History section of the report. MiCOM Labs, 440 Boulder Court, Suite 200, Pleasanton, CA 94566 USA, Phone: 925.462.0304, Fax: 925.462.0306, www.micomlabs.com FCC 47 CF R Part 15.247 & IC RSS-210 ARUB154-U1 Rev A 15th May 2013 PEAK OUTPUT POWER Variant: 802.11a, Channel: 5825.00 MHz, Chain a, Temp: Ambient, Voltage: 12 Vdc Analyser Setup Marker : Frequency : Amplitude Test Results Detector = MAX PEAK Sweep Count = 0 RF Atten (dB) = 20 Trace Mode = VIEW M1 : 5813.657 MHz : -7.133 dBm M2 : 5823.517 MHz : 13.526 dBm Delta1 : 22.204 MHz : 0.055 dB Channel Power: 23.72 dBm Limit: 25.23 dBm Margin: -1.51 dB Back to the Matrix Title: Aruba Networks APINR155, APINR15P To: Serial #: Issue Date: Page: 180 of 327 This test report may be reproduced in full only. The document may only be updated by MiCOM Labs personnel. Any changes will be noted in the Document History section of the report. MiCOM Labs, 440 Boulder Court, Suite 200, Pleasanton, CA 94566 USA, Phone: 925.462.0304, Fax: 925.462.0306, www.micomlabs.com FCC 47 CF R Part 15.247 & IC RSS-210 ARUB154-U1 Rev A 15th May 2013 PEAK OUTPUT POWER Variant: 802.11a, Channel: 5825.00 MHz, Chain b, Temp: Ambient, Voltage: 12 Vdc Analyser Setup Marker : Frequency : Amplitude Test Results Detector = MAX PEAK Sweep Count = 0 RF Atten (dB) = 20 Trace Mode = VIEW M1 : 5814.218 MHz : -7.294 dBm M2 : 5827.124 MHz : 12.968 dBm Delta1 : 21.323 MHz : 0.110 dB Channel Power: 23.36 dBm Limit: 25.23 dBm Margin: -1.87 dB Back to the Matrix Title: Aruba Networks APINR155, APINR15P To: Serial #: Issue Date: Page: 181 of 327 This test report may be reproduced in full only. The document may only be updated by MiCOM Labs personnel. Any changes will be noted in the Document History section of the report. MiCOM Labs, 440 Boulder Court, Suite 200, Pleasanton, CA 94566 USA, Phone: 925.462.0304, Fax: 925.462.0306, www.micomlabs.com FCC 47 CF R Part 15.247 & IC RSS-210 ARUB154-U1 Rev A 15th May 2013 PEAK OUTPUT POWER Variant: 802.11a, Channel: 5825.00 MHz, Chain c, Temp: Ambient, Voltage: 12 Vdc Analyser Setup Marker : Frequency : Amplitude Test Results Detector = MAX PEAK Sweep Count = 0 RF Atten (dB) = 20 Trace Mode = VIEW M1 : 5814.699 MHz : -7.703 dBm M2 : 5820.391 MHz : 12.474 dBm Delta1 : 20.922 MHz : -0.651 dB Channel Power: 22.54 dBm Limit: 25.23 dBm Margin: -2.69 dB Back to the Matrix Title: Aruba Networks APINR155, APINR15P To: Serial #: Issue Date: Page: 182 of 327 This test report may be reproduced in full only. The document may only be updated by MiCOM Labs personnel. Any changes will be noted in the Document History section of the report. MiCOM Labs, 440 Boulder Court, Suite 200, Pleasanton, CA 94566 USA, Phone: 925.462.0304, Fax: 925.462.0306, www.micomlabs.com FCC 47 CF R Part 15.247 & IC RSS-210 ARUB154-U1 Rev A 15th May 2013 PEAK OUTPUT POWER Variant: 802.11n HT-20, Channel: 5745.00 MHz, Chain a, Temp: Ambient, Voltage: 12 Vdc Analyser Setup Marker : Frequency : Amplitude Test Results Detector = MAX PEAK Sweep Count = 0 RF Atten (dB) = 20 Trace Mode = VIEW M1 : 5733.818 MHz : -7.099 dBm M2 : 5741.834 MHz : 12.940 dBm Delta1 : 22.365 MHz : -0.167 dB Channel Power: 23.07 dBm Limit: 25.23 dBm Margin: -2.1…

Text truncated - open the document above for the full version.

Aruba Networks ARUB154- APINR155/ APINR15P Conducted Test Setup 1.1. Test Setup - Digital Emissions below 1 GHz 1.2. Radiated Emissions Test Setup >1 GHz
