Q9DARUBA6061802.11.a/.b/.g Access Point

Aruba 60/61 Wireless Access Point Installation Guide TM 60 61 ii Aruba 60/61Part 0500034-05 Installation GuideOctober 2004 Copyright Copyright © 2004 Aruba Wireless Networks, Inc. All rights reserved. Specifications in this manual are subject to change without notice. Originated in the USA. Trademarks Aruba AP60, Aruba AP61, Aruba 5000, Aruba 2400, Aruba 800, and AirOS are trademarks of Aruba Wireless Networks in the United States and certain other countries. The K & Lock design is a registered trademark of the Kensington Technology Group in the United States and certain other countries. Any other trademarks appearing in this manual are owned by their respective companies. Contents iii Contents Chapter 1Introduction . . . . . . . . . . . . . . . . . . . 1 Front View . . . . . . . . . . . . . . . . . . . . . 2 Back View . . . . . . . . . . . . . . . . . . . . . 4 The Aruba AP Setup Process . . . . . . . . . . . . . . 5 Chapter 2 Provisioning Access Points . . . . . . . 7 Aruba Discovery Protocol . . . . . . . . . . . . . . . . 8 AP Reprovisioning . . . . . . . . . . . . . . . . . 9 AP Provisioning . . . . . . . . . . . . . . . . . . . . 10 Manual Provisioning . . . . . . . . . . . . . . . . . . 14 Requirements . . . . . . . . . . . . . . . . . . . 14 Connecting the Console Terminal . . . . . . . . . . . . 15 Console Access to the AP . . . . . . . . . . . . . . 15 Setting Aruba 60/61 Parameters . . . . . . . . . . . . 18 Chapter 3 AP Deployment . . . . . . . . . . . . . . . 23 Mounting the Aruba 60/61 . . . . . . . . . . . . . . . 23 Aruba AP 60 Detachable Antennas . . . . . . . . . 24 Free-Standing Placement . . . . . . . . . . . . . . 26 Using the Built-In Mounting Slots . . . . . . . . . 28 Using the Optional Mounting Kits . . . . . . . . . 29 Connecting Required Cables . . . . . . . . . . . . . . 30 Selecting an FE Cable . . . . . . . . . . . . . . . 30 Connecting Cables & Power . . . . . . . . . . . . 31 iv Aruba 60/61Part 0500034-05 Installation GuideOctober 2004 Appendix APort Specifications. . . . . . . . . . . . . 33 FE Port . . . . . . . . . . . . . . . . . . . . . . . . 33 Serial Breakout Adapter . . . . . . . . . . . . . . . . 34 DB-9 Specification . . . . . . . . . . . . . . . . . 35 “To AP” Specifications . . . . . . . . . . . . . . . 35 “To Network” Specifications . . . . . . . . . . . . 35 Appendix B Troubleshooting . . . . . . . . . . . . . . . 37 Accessing the AP Support Prompt . . . . . . . . . . . 37 Direct SPOE Connection to WLAN Switch . . . . . 37 Direct Terminal Connection . . . . . . . . . . . . 38 Remote Telnet Connection . . . . . . . . . . . . . 39 AP Support . . . . . . . . . . . . . . . . . . . . . . 40 Access Levels . . . . . . . . . . . . . . . . . . . 40 User Commands . . . . . . . . . . . . . . . . . . 40 Privileged Commands . . . . . . . . . . . . . . . 40 Appendix C Product Specifications. . . . . . . . . . 41 Compliance . . . . . . . . . . . . . . . . . . . . . . 41 Certifications . . . . . . . . . . . . . . . . . . . . . . 43 Product Features . . . . . . . . . . . . . . . . . . . . 44 Ethernet Compatibility . . . . . . . . . . . . . . . 44 Radio Characteristics . . . . . . . . . . . . . . . . 44 Power Over Ethernet . . . . . . . . . . . . . . . . 45 Physical Description . . . . . . . . . . . . . . . . . . 45 Package Contents . . . . . . . . . . . . . . . . . . 45 Optional Items . . . . . . . . . . . . . . . . . . . 45 Aruba AP-60 Access Point . . . . . . . . . . . . . . . 46 Aruba AP-61 Access Point . . . . . . . . . . . . . . . 52 Related Documents . . . . . . . . . . . . . . . . . . . 58 Text Conventions . . . . . . . . . . . . . . . . . . . 59 Contacting Aruba Wireless Networks . . . . . . . . . . 60 Notes . . . . . . . . . . . . . . . . . . . . . . . 61 Introduction 1 Chapter 1 CHAPTER 1 Introduction The Aruba 60/61 (also known as the AP 60/61) is part of a comprehensive wireless network solution. The device works in conjunction with the Aruba WLAN Switch and can act as a wireless access point or air monitor. As a wireless Access Point (AP), the Aruba 60/61 provides transparent, secure, high-speed data communications between wireless network devices (fixed, portable, or mobile computers with IEEE 802.11a or IEEE 802.11b/g wireless adapters) and the wired LAN. As a wireless Air Monitor (AM), a feature unique to Aruba products, the Aruba 60/61 enhances wireless networks by collecting statistics, monitoring traffic, detecting intrusions, enforcing security policies, balancing wireless traffic load, self-healing coverage gaps, and more. NoteInstalling the AP 60/61 requires setting the antenna power, which requires profes- sional training. The AP60/61 installer must be trained to perform this configura- tion. 2Aruba60/61Part 0500034-05 Installation GuideOctober 2004 Front View FIGURE1-1 Aruba 60/61 Front View 1 2 3 4 5 AB CBA Introduction 3 Chapter 1 Antenna fixtures for Wireless Communications Depending on the model, the AP will have one of the following: Aruba AP60–Two Reverse Polarity SMA (RP-SMA) connectors for attaching separate antennas (not included). For details, see “Aruba AP 60 Detachable Antennas” on page 24. Aruba AP61–Built-in swivel array with dual, tri-band, omnidirectional antennas Indicator LEDs During operation, the Aruba 60/61 LEDs provide the following information: NoteLEDs on the Aruba WLAN Switch provide additional status and security informa- tion about connected APs.See the Aruba AirOS User Guide for more information. Air Vents These vents promote proper air circulation for cooling the device. Do not allow these vents to be obstructed by mounting equipment, network cables, or any other material. FE Port This port attaches the Aruba 60/61 to a 10Base-T/100Base-TX (twisted-pair) Ethernet LAN segment. This port also supports Serial and Power Over Ethernet (SPOE). See Appendix A for port and cable specifications. TABLE1-1Aruba 60/61 LEDs LEDStateDescription PWROffThe device is off - no power. Green-Solid The device is powered and ope…

Text truncated - open the document above for the full version.

Provisioning Access Points 11 Chapter 2 3Select the Port or Port range for provisioning. To set the Port Range, select the first and the last ports of your range. All the ports in between are automatically selected. (Ports have to be sequentially assigned.) 4Enter the required information and click Enable.The Port Range screen displays. FIGURE2-2 Port Range Screen 5Specify the AP 60/61-specific parameters. Configure the gain value appropriate for the location in which this AP will be deployed. (See Ta b l e 3 - 1for appropriate antenna gain values.) Complete specifying Master Discovery and IP Settings and click Apply. 12 Aruba 60/61Part 0500034-05 Installation GuideOctober 2004 6Plug the AP into one of the ports configured for provisioning. If your AP is already plugged into the port, unplug it and plug it in again. If AP is connected through POE, enter (in interface mode) no poe followed by poe. The AP will come up with an IP from the provisioning subnet After the AP comes up it should be in the provisioning list. Provisioning list shows the list of APs which are plugged into the provisioning ports. 7Click the Refresh link (not the browser Refresh option) to see if the AP entry has displayed.(This might take a moment.) If you cannot see the entry after 1-2 minutes, click Refresh again. The Clear Table button appears after an entry in the list appears. To erase all the table entries, click Clear Table. (You cannot clear selected entries.) If a number of APs are provisioned and you click Clear Table, only the entries which come up afterwards can be provisioned. If the entry does not show up in the AP list, check network connectivity. Go to the AP console and verify if the AP has come up with the IP from the provisioning subnet. 8After the entry shows up on the page, configure the location, Host IP/Name, Master IP address. If AP is going to be assigned a static IP, click Use the following IP Address and enter the IP address, Netmask, Gateway IP. If the AP is going to obtain an IP address using DHCP, click Use IP Address Using DHCP. 9After configuring the required parameters, select the entry from the list (AP to which the configuration has to be applied) and click Apply. The State field changes from U (Unprovisioned) to In Progress. 10 After a few seconds, click the Refresh link again and the State will have changed to P (Provisioned). NoteCheck that the configured parameters are reflected in the AP list entry. NoteAruba Networks recommends that you provision each AP for a unique location as suggested by site-survey planning. Label each AP with this location information and place the AP in its proper location. Failure to place APs in the location for which they were provisioned will reduce the effectiveness of such RF features as triangulation. Provisioning Access Points 13 Chapter 2 11 Click Back to go into the previous page We can see that the Subnet is still configured and Port/s are selected. 12 When finished provisioning APs, click Disable to disable AP Provisioning. NoteDisable AP Provisioning after all the required APs are provisioned. Ports that are enabled for provisioning do not handle traffic. Therefore plugging an already provisioned AP into a port still set to provisioning mode will pre- vent that AP from functioning. Now the AP is configured with the Parameters given 13 Reboot the AP so the AP will come up with the new configured parameters. Use the Reprovisioning tab for APs which are already deployed but need to be reconfigured. See the AirOS User Guide for information on reprovisioning. 14 Aruba 60/61Part 0500034-05 Installation GuideOctober 2004 Manual Provisioning Requirements zA console terminal (or workstation with terminal emulation software) with an available serial communications port using a DB-9 male connector. zAn Aruba serial breakout adapter kit, Part Number CA-SPOE-ADAPT-3, (not included). (See “Connecting the Console Terminal” on page 15.) zAccess to the Aruba 60/61 FE port through one of the following: zDirect contact with the AP, or zIf the AP is already deployed, you must have access to the end of the FE cable that leads directly to the AP with no intervening hubs, routers, or other networking equipment. The cable must be an 8-conductor, Category5 UTP, straight-through FE cable with RJ-45 connectors. zA power source for the Aruba 60/61. Use one of the following: zAn optional AC power adapter (not included) and an AC power outlet rated at 100~240 V, 50~60 Hz, or zThe Aruba 60/61 FE port connected to an Aruba 800, 2400, or 5000 WLAN switch that supports IEEE 802.3af Power Over Ethernet (POE) via a 4- or 8-conductor, Category 5 UTP, straight-through FE cable. 1 NoteOnly IEEE 802.3af Power Over Ethernet is supported for manual provisioning. “Inline” or “midspan” POE devices requires Aruba serial breakout adapter, Part Number CA-SPOE-ADAPT-4. 1.IEEE 802.3af-complaint devices like the AP60 and AP61 use the same wire pairs for data versus for power. Within the 802.3af standard, there are two sub-specifications on how wire pairs are as- signed. Aruba conforms to 802.3af, subparagraph a. If your POE installation uses all-Aruba equip- ment, you are assured proper operation. However, if you use non-Aruba POE equipment, make sure it conforms to the same standard that Aruba uses. Using POE equipment using IEEE 802.3af subparagraph b wiring assignments, or POE equipment not conforming to the 803.2af standard may result in damaged equipment. Provisioning Access Points 15 Chapter 2 Connecting the Console Terminal Manual provisioning requires this procedure. You must use the serial console breakout adapter cable to be able to access the serial console interface to the AP60/61 while allowing the device to be powered by the AC adapter or POE (from an Aruba WLAN switch). FIGURE2-3 Aruba 60/61 Console Topologies NoteThe LAN connections are optional unless POE is used to power the AP. Console Access to the AP FIGURE2-4 Connecting Directly to the AP 1Connect the adapter’s “To AP…

Text truncated - open the document above for the full version.

Page 1 of 1

Page 1 of 1

To the FCC, Re: FCC ID Q9DARUBA6061 Date: 12 May 2005 This is a request to correct a misreported power level on the FCC grant. We wish to place the filing on Audit mode to perform the necessary corrections. There are no changes to the product as originally tested. FCC ID Q9DARUBA6061, upon review it was discovered that there is an error in reporting the output power. The proper power levels were tested and reported, however, an erroneous assumption on page 19 and page 36 of the test report resulted in a reduced power level reported on the 731. The erroneous assumption determined that when multiple antennas with various gains were used, one were to subtract from the maximum output power the amount of gain above 6 dB. This incorrectly applied formula resulted in the wrong reported power level as the equipment operated well below the 30 dBm +6 dB maximum allowable levels. (sections 4.2.1.2 pg. 19 and 4.2.2.2 pg. 36) As tested and reported in sections 4.2.1.2 and 4.2.2.2 of the report, the maximum output power should be changed to the correctly measured and allowable levels on the Grant. No other changes are requested. No changes to the equipment have occurred. No changes in classification of the equipment have occurred nor requested No changes to the RF Exposure MPE have occurred nor requested. The proper maximum values were used in the computation and reporting of the minimum safe distance using the maximum measured output power and antenna gain as shown in section 4.2.1.3 page 21 of the report. Sincerely Yours, Hans Mellberg Compliance Manager Aruba Wireless Networks, Inc.

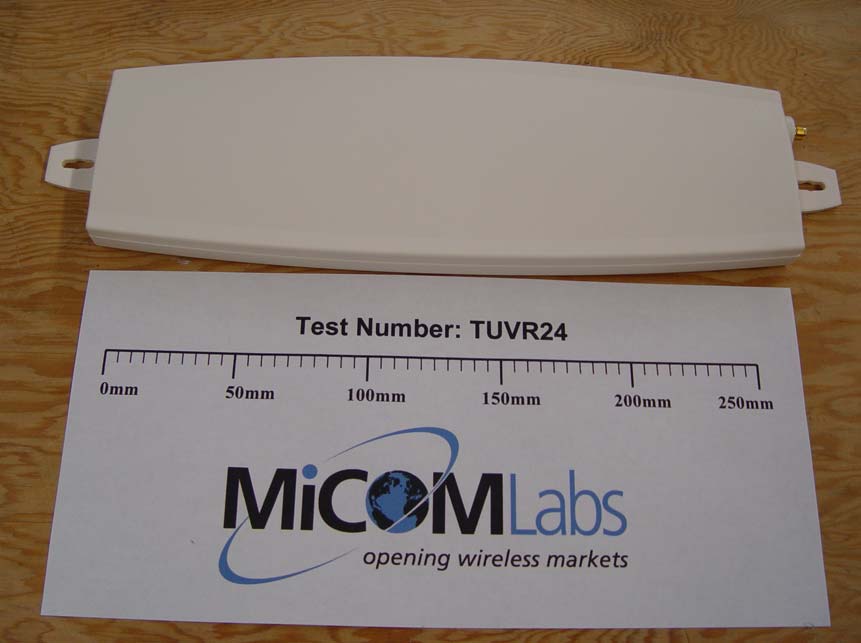

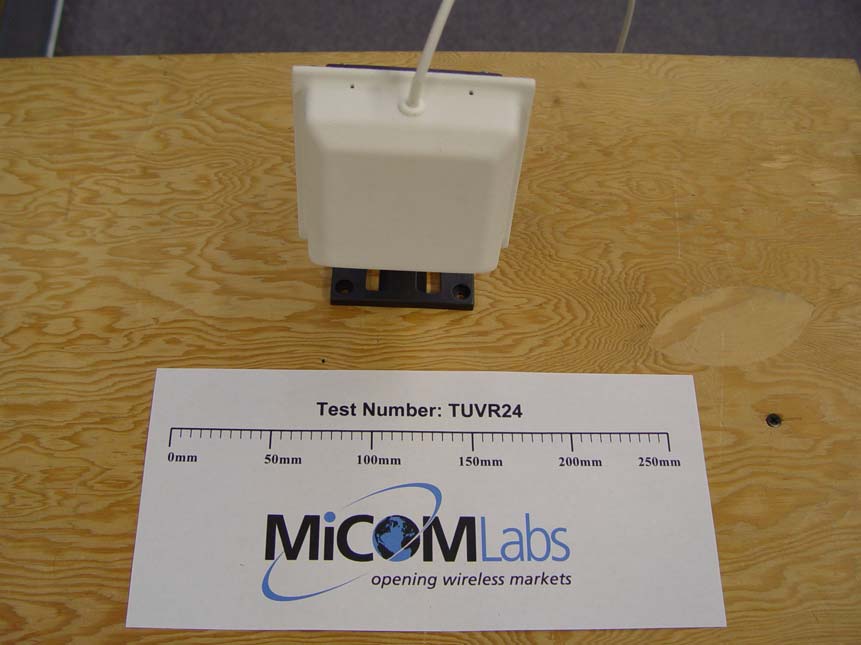

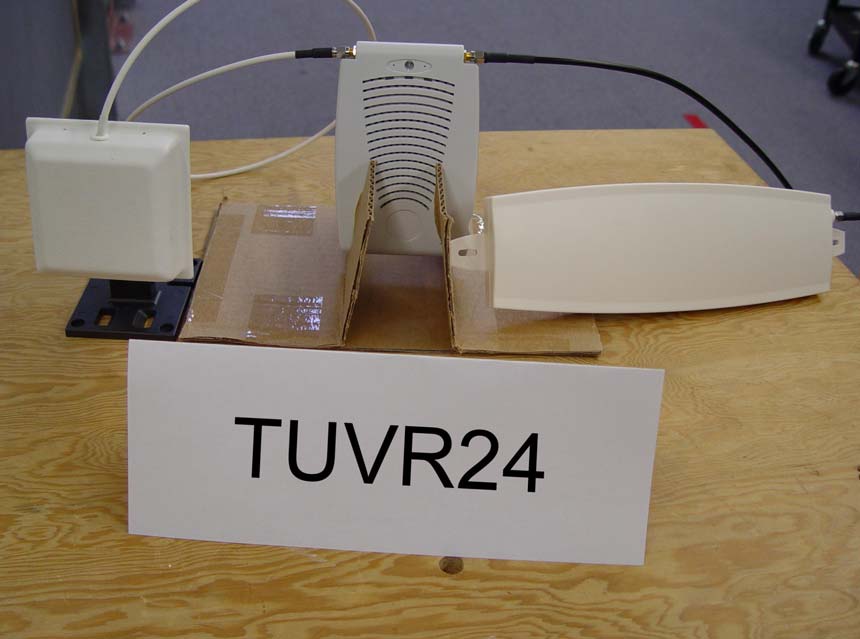

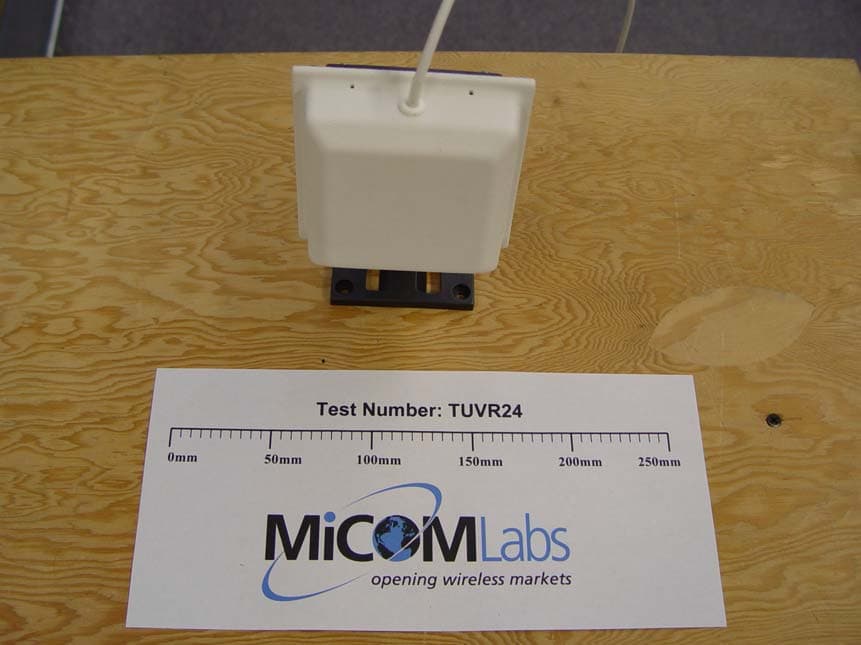

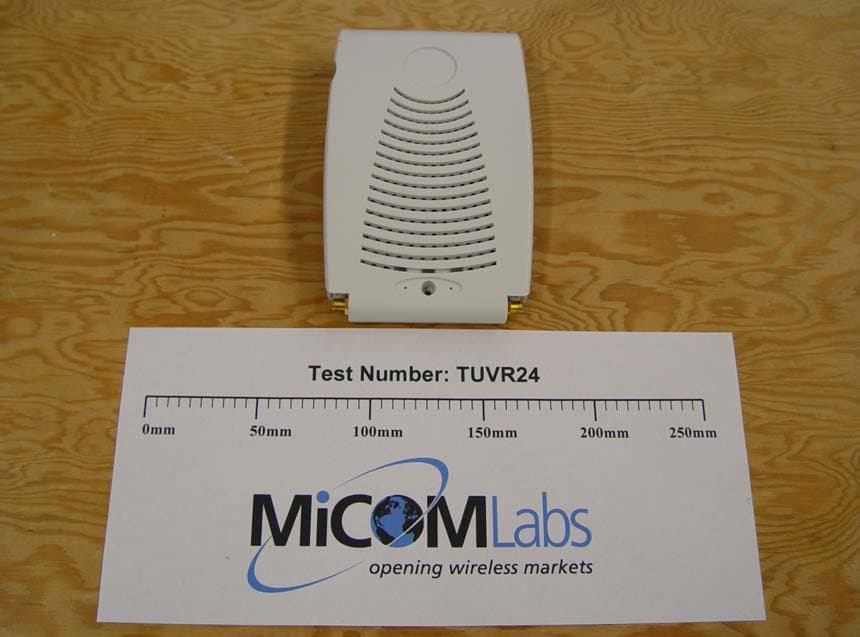

External Photos Model: AP60/61 Page 1 of 5 Picture 1 2.4GHz Antenna External Photos Model: AP60/61 Page 2 of 5 Picture 2 5GHz Antenna External Photos Model: AP60/61 Page 3 of 5 Picture 3 AP60 Side External Photos Model: AP60/61 Page 4 of 5 Picture 4 AP60 Front External Photos Model: AP60/61 Page 5 of 5 Picture 5 AP60 with Antennas

ARUBA WIRELESS NETWORKS INC. MADE IN USA MODEL NAME: AP60/AP61 FCC ID:Q9DARUBA6061 E234335 I.T .E. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation 0560 ! TITLE: LABEL,AGENCY,ACCESS POINT DWG NO: 4000077REV 02 ARUBA WIRELESS NETWORKS INC. R2.38 R.56 1.97 1.74 1.06 80.0° .68 .34 SCALE 1.000 NOTES: UNLESS OTHERWISE SPECIFIED 1. MATERIAL: WHITE MYLAR, GLOSSY. ADHESIVE BACKED 2. PRINT: GRAPHICS & TEXT: 100% BLACK 3 LABEL PERIPHERY, NO PRINTED BORDER UL2043

Internal Photos Model: AP60/61 Page 1 of 6 Picture 1 Internal Photos Model: AP60/61 Page 2 of 6 Picture 2 Internal Photos Model: AP60/61 Page 3 of 6 Picture 3 Internal Photos Model: AP60/61 Page 4 of 6 Picture 4 Internal Photos Model: AP60/61 Page 5 of 6 Picture 5 Internal Photos Model: AP60/61 Page 6 of 6 Picture 6

September 8, 2004 To Whom It May Concern:, Aruba Networks declares that the following 6 antennas are all of the same type (Directional Patch) and that we have tested the antennas with the highest gain. AP-ANT-12 High-Gain, Directional Patch Antenna S52514WP36RSM 14.0 dBi AP-ANT-7 High-Gain, Directional Patch Antenna PCW24-08012-AFL/HD19656 11.5 dBi AP-ANT-4 High-Gain, Directional Patch Antenna ID240-RPSMA/CAF94379 9.0 dBi AP-ANT-9 High-Gain, Directional Patch Antenna S240790PA36RSM 7.0 dBi AP-ANT-6 High-Gain, Directional Patch Antenna SR24135DA36RSM 5.0 dBi AP-ANT-3 High-Gain, Directional Patch Antenna IB2450-RPSMA 5.0 dBi Sincerely, Loren Vorreiter Compliance Engineer Aruba Wirelesss Networks

Title: Test of Aruba Networks AP60 802.11a/b/g To: Serial #: Issue Date: Page: Access Point FCC 47 CFR Part 15.247,15.407,IC RSS-210 TUVR24-A4 REV E 3rd September 2004 20 of 102 4.2.1.3 Maximum Permissible Exposure FCC, Part 15 Subpart C §15.247(b)(5) Industry Canada RSS-210 §14 Calculations for Maximum Permissible Exposure Levels Given E = √(30 * P * G) / d and S = E 2 / 3770 where E = field strength in volts/meter P = power in watts G = numeric antenna gain d = distance in meters S = power density in milliwatts / square centimeter Combining and rearranging the terms to express the distance as a function of the variables, yields: d = √(30 * P * G) / (3770 * S) Rearrange to milliwatts and centimeters P(mw) = P(watts) / 1000 d(cm) = d(m) * 100 yields d = 100 * √(30 * (P / 1000) * G) / (3770 * S) d = 0.282 * √(P * G / S) where d = distance in centimetres P = Power in mW G = Numeric Antenna Gain S = Power Density in centimetres 2 Substituting the logarithmic form of power and gain using: P(mW) = 10 ^ (P(dBm)/10) and Title: Test of Aruba Networks AP60 802.11a/b/g To: Serial #: Issue Date: Page: Access Point FCC 47 CFR Part 15.247,15.407,IC RSS-210 TUVR24-A4 REV E 3rd September 2004 21 of 102 G(numeric) = 10 ^ (G(dBi) /10) Yields: d = 0.282 * 10 ^ ((P + G / 20) √ S where d = MPE distance in centimetres P = Power in dBm G = Antenna Gain in dBi S = Power Density Limit in mW / centimetres 2 (Limit S = 1mW / cm 2 from §1.310 Table 1) Maximum output power observed from power measurements – +19.7dBm Power Density Limit (mW / cm 2 ) Maximum Measured Output Power (dBm) Antenna Gain (dBi) MPE Distance (cm) 1 +19.7 12 38.5 Specification Maximum Permissible Exposure Limits §15.247 (b)(5) Systems operating under the provisions of this section shall be operated in a manner that ensures that the public is not exposed to radio frequency levels in excess of the Commission’s guidelines. See §1.1307 (b)(1) of this chapter. Limit S = 1mW / cm 2 from 1.310 Table 1 Note: for mobile or fixed location transmitters the minimum separation distance is 20cm, even if calculations indicate the MPE distance to be less. Traceability METHOD TEST EQUIPMENT USED Measurements were made per work instruction WI-01 ‘Measuring RF Output Power’ Bar 1, RVA 01, K-CBL 8, K-CBL 10, S-Anlr 1 Laboratory Measurement Uncertainty for Power Measurements Measurement uncertainty (dB) ±1.33

Title: Test of Aruba Networks AP60 802.11a/b/g To: Serial #: Issue Date: Page: Access Point FCC 47 CFR Part 15.247,15.407,IC RSS-210 TUVR24-A4 REV E 3rd September 2004 43 of 102 4.2.2.6 RF Radiation Exposure FCC, Part 15 Subpart C §15.247(f) Industry Canada RSS-210 §6.2.2(q1)(iv)(g) Calculations for Maximum Permissible Exposure Levels Given E = √(30 * P * G) / d and S = E 2 / 3770 where E = field strength in volts/meter P = power in watts G = numeric antenna gain d = distance in meters S = power density in milliwatts / square centimeter Combining and rearranging the terms to express the distance as a function of the variables, yields: d = √(30 * P * G) / (3770 * S) Rearrange to milliwatts and centimeters P(mw) = P(watts) / 1000 d(cm) = d(m) * 100 yields d = 100 * √(30 * (P / 1000) * G) / (3770 * S) d = 0.282 * √(P * G / S) where d = distance in centimetres P = Power in mW G = Numeric Antenna Gain S = Power Density in centimetres 2 Substituting the logarithmic form of power and gain using: P(mW) = 10 ^ (P(dBm)/10) and G(numeric) = 10 ^ (G(dBi) /10) Title: Test of Aruba Networks AP60 802.11a/b/g To: Serial #: Issue Date: Page: Access Point FCC 47 CFR Part 15.247,15.407,IC RSS-210 TUVR24-A4 REV E 3rd September 2004 44 of 102 Yields: d = 0.282 * 10 ^ ((P + G) / 20) /√ S where d = MPE distance in centimetres P = Power in dBm G = Antenna Gain in dBi S = Power Density Limit in mW / centimetres 2 (Limit S = 1mW / cm 2 from §1.310 Table 1) Maximum output power observed from power measurements – +16.91dBm Maximum antenna gain – 14dBi Power Density Limit (mW / cm 2 ) Maximum Measured Output Power (dBm) Antenna Gain (dBi) MPE Distance (cm) 1 16.91 14 9.9 Specification Maximum Permissible Exposure Limits §15.247 (b)(5) Systems operating under the provisions of this section shall be operated in a manner that ensures that the public is not exposed to radio frequency levels in excess of the Commission’s guidelines. See §1.1307 (b)(1) of this chapter. Limit S = 1mW / cm 2 from 1.310 Table 1 Note: for mobile or fixed location transmitters the minimum separation distance is 20cm, even if calculations indicate the MPE distance to be less. Traceability METHOD TEST EQUIPMENT USED Measurements were made per work instruction WI-01 ‘Measuring RF Output Power’ Bar 1, PMtr 1, PSnsr 1, coupler, 3dB & 30dB pads Laboratory Measurement Uncertainty for Power Measurements Measurement uncertainty (dB) ±1.33

Test of Aruba Networks AP60 802.11a/b/g Access Point To FCC 47 CFR Part 15.247, 15.407, IC RSS-210 Test Report Serial No.: TUVR24-A4 Rev E TEST REPORT FROM Test of Aruba Networks AP60 802.11a/b/g Access Point To FCC 47 CFR Part 15.247,15.407,IC RSS-210 Test Report Serial No.: TUVR24-A4 REV E This report supersedes TUVR24-A4 REV D Remarks: Equipment complied with the specification [X] Equipment did not comply with the specification [ ] This Test Report is issued Under the Authority of: Gordon Hurst President & CEO Copy No: pdf Issue date: 3rd September 2004 Manufacturer: Aruba Networks 180 Great Oaks Boulevard, Suite B San Jose, California 95119 2106 U.S.A. This test report may be reproduced in full only Title: Test of Aruba Networks AP60 802.11a/b/g To: Serial #: Issue Date: Page: Access Point FCC 47 CFR Part 15.247,15.407,IC RSS-210 TUVR24-A4 REV E 3rd September 2004 2 of 102 This page has been left intentionally blank Title: Test of Aruba Networks AP60 802.11a/b/g To: Serial #: Issue Date: Page: Access Point FCC 47 CFR Part 15.247,15.407,IC RSS-210 TUVR24-A4 REV E 3rd September 2004 3 of 102 CONTENTS 1 Executive Summary................................................................................................................. 5 2 Technical Details.......................................................................................................................6 *Note - only integral antennas are permitted in the frequency band 5,150-5,250MHz......................7 2.1 Normative References............................................................................................................. 7 2.2 Test and Uncertainty Procedures............................................................................................7 3 Test Summary...........................................................................................................................8 3.1 List of Measurements.............................................................................................................. 8 3.1.1 2.4GHz – 802.11b/g........................................................................................................8 3.1.2 5GHz 802.11a FCC 15.407 and RSS-210.......................................................................9 3.1.3 General Common Test Requirements FCC 15.247, 15.407 and RSS-210....................10 3.1.4 Test Configurations.......................................................................................................11 3.1.4.1 2.4GHz 802.11b/g Test Configurations..................................................................................11 3.1.4.2 5GHz 802.11a (UNII Band) Test Configurations..................................................................11 3.1.5 Photographs AP60 - all indoor Access Point Complete with Antennas.......................12 4 Measurements, Examinations and Derived Results..........................................................14 4.1 General observations............................................................................................................. 14 4.2 Test Results...........................................................................................................................15 4.2.1 2.4GHz Device Characteristics.....................................................................................15 4.2.1.1 6dB Bandwidth.......................................................................................................................15 4.2.1.2 Output Power.........................................................................................................................17 4.2.1.3 Maximum Permissible Exposure............................................................................................20 4.2.1.4 Band-Edge Measurement .......................................................................................................22 4.2.1.5 Peak Power Spectral Density.................................................................................................25 4.2.1.6 Spurious emissions above 1GHz (1-25GHz) ..........................................................................28 4.2.2 5GHz UNII Band Device Characteristics.....................................................................31 4.2.2.1 26dB Emission Bandwidth and Power Limits........................................................................31 4.2.2.2 Output Power.........................................................................................................................34 4.2.2.3 Peak Power Spectral Density.................................................................................................37 4.2.2.4 Peak Excursion Ratio............................................................................................................. 40 4.2.2.5 Frequency Stability................................................................................................................42 4.2.2.6 RF Radiation Exposure..........................................................................................................43 4.2.2.7 Spurious emissions above 1GHz (1-40GHz) ..........................................................................45 4.2.2.8 Conducted Spurious Emissions above 1GHz (1-40GHz).......................................................50 4.2.3 Common Device Characteristics for the 2.4GHz and 5GHz Bands.............................52 4.2.3.1 AC Wireline Conducted Emissions (150KHz – 30MHz) ........................................................52 4.2.3.2 Spurious Emissions (30MHz – 1GHz)....................................................................................55 5 Photographs.............................................................................................................................58 5.1 Radiated Emissions Test Set Up (30MHz-1GHz)................................................................58 5.2 Spurious Emissions Test Set Up Above 1GHz.…

Text truncated - open the document above for the full version.

TEST OF Wireless Access Point AP60/61 802.11a/b/g To FCC Part 15.247/407 & IC RSS-210 Test Report Serial No.:TUVR51-A1 REV A TEST REPORT FROM Test of Wireless Access Point AP60/61 802.11a/b/g To FCC 47 CFR Part 15.247/407 & IC RSS-210 Test Report Serial No.: TUVR51-A1 REV A This report supersedes NONE Manufacturer: Aruba Wireless Networks 180 Great Oaks Blvd San Jose California, 95119 USA Copy No: pdf Issue date: 26th October '04 This Test Report is Issued Under the Authority of MiCOM Labs, Inc. UKAS (United Kingdom Accreditation Service) Testing Laboratory No. 2106 2106 This test report may be reproduced in full only Title: Wireless Access Point AP60/61 802.11a/b/g To: Serial #: Issue Date: Page: FCC 47 CFR Part 15.247/407 & IC RSS-210 TUVR51-A1 REV A 26th October '04 2 of 55 This test report may be reproduced in full only. This document may be updated by MiCOM Labs personnel only and changes noted in the Document History section of this report This page has been left intentionally blank MiCOM Labs: 3922 Valley Avenue, ‘Suite ‘B’ Pleasanton, California 94566, USA Telephone #: +1 925 462 0304 Fax #: +1 925 462 0306 www.micomlabs.com Title: Wireless Access Point AP60/61 802.11a/b/g To: Serial #: Issue Date: Page: FCC 47 CFR Part 15.247/407 & IC RSS-210 TUVR51-A1 REV A 26th October '04 3 of 55 This test report may be reproduced in full only. This document may be updated by MiCOM Labs personnel only and changes noted in the Document History section of this report TABLE OF CONTENTS ACCREDITATION & LISTINGS...........................................................................................5 1. TEST RESULT CERTIFICATE.....................................................................................8 2. REFERENCES AND MEASUREMENT UNCERTAINTY............................................9 2.1. Normative References............................................................................................9 2.2. Test and Uncertainty Procedures...........................................................................9 3. PRODUCT DETAILS AND TEST CONFIGURATIONS............................................10 3.1. Technical Details..................................................................................................10 3.2. Scope of Test Program.........................................................................................11 3.3. Equipment Model(s) and Serial Number(s)..........................................................14 3.4. Antenna Details....................................................................................................14 3.5. Cabling and I/O Ports...........................................................................................14 3.6. Test Configurations...............................................................................................15 3.7. Equipment Modifications.......................................................................................15 3.8. Deviations from the Test Standard.......................................................................15 3.9. Subcontracted Testing..........................................................................................16 4. TEST SUMMARY........................................................................................................17 5. TEST RESULTS..........................................................................................................18 5.1. Device Characteristics..................................................................................…
