Q9DASIN0302Wireless Network Sensor with LTE

UX-G5C RMN: ASIN0302 India RoHS material content declarationThis product complies with the “India E-waste (Management) Rules, 2016” and prohibits use of lead, mercury, hexavalent chromium, polybrominated biphenyls or polybrominated diphenyl ethers in concentrations exceeding 0.1% weight % and 0.01% weight % for cadmium except for the exemptions set in Schedule II of the Rule GSM900 880-915 25.8 dBm GSM1800 (DCS) 1710-1785 22.8 dBm WCDMA/UTRA 1920-1980 30.5 dBm 880-915 25 dBm 824-849 25 dBm LTE (B1) 1920-1980 30.5 dBm LTE (B3) 1710-1785 30.5 dBm LTE (B5) 824-849 25 dBm LTE (B7) 2500-2570 28.5 dBm LTE (B8) 880-915 25 dBm LTE (B20) 832-862 25 dBm LTE (B28) 703-748 25 dBm LTE (B38) 2570-2620 28.5 dBm LTE (B40) 2300-2400 28.5 dBm

Declaration of Conformity based on ISO/IEC 17050-1 and EN 17050-1 DoC #: ASIN0302 R1.0 / en 1 / 1 Manufacturer's Name: Hewlett Packard Enterprise Company Manufacturer's Address: 3333 Scott Blvd, Santa Clara, CA 95054, USA declare, under its sole responsibility that the product: Product Name and/or Model: Aruba User Experience Insight Sensor, UX-G5C Regulatory Model Number: ASIN0302 Product Options: All conforms to the following product specifications and regulations: Safety Electromagnetic Compatibility Spectrum EN 60950-1:2006 + A11:2009 +A1:2010 +A12:2011 +A2:2013 EN 62368-1:2014 EN 50385:2017 EN 55032:2012 Class B EN 55024:2010 EN 301 489-1 V2.2.0 EN 301 489-17 V3.2.0 EN 301 489-52 V1.1.1 EN 61000-3-2:2014 EN 61000-3-3:2013 EN 300 328 V2.1.1 EN 301 893 V2.1.1 EN 301 511 V12.5.1 EN 301 908-01 V11.1.1 EN 301 908-02 V11.1.2 EN 301 908-13 V11.1.2 Restriction of the use of certain hazardous substances EN 50581:2012 The product herewith complies with the requirements of Directive 2014/53/EU relating to the making available on the market of radio equipment, Directive 2011/65/EU as amended on the restriction of the use of certain hazardous substances in electrical and electronic equipment and carries the CE marking accordingly. This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Additional Information This product is assigned a Regulatory Model Number which stays with the regulatory aspects of the design. The Regulatory Model Number is the main product identifier in the regulatory documentation and test reports, this number should not be confused with the marketing name or the product numbers. Santa Clara , CA Robert Hastings, Regulatory Manager 16.12.2019 Aruba, a Hewlett Packard Enterprise company Local contact for regulatory topics only EU: HPE, Postfach 0001, 1122 Wien, Austria US: Hewlett Packard Enterprise, 3000 Hanover St., Palo Alto, CA 94304, U.S.A. 844-806-3425 http://www.hpe.com/eu/certificates Декларация за Cъответствие съгласно ISO/IEC 17050-1 и EN 17050-1 ДзC #: ASIN0302 R1.0 / bg 1 / 1 Име на производителя: Hewlett Packard Enterprise Company Адрес на производителя: 3333 Scott Blvd, Santa Clara, CA 95054, USA декларира на собствена отговорност, че продуктът: име и/или модел на продукта: Aruba User Experience Insight Sensor, UX-G5C нормативен номер на модела: ASIN0302 опции на продукта: целият съответства на следните спецификации на продукта и регламенти: безопасност Eлектромагнитната Cъвместимост спектър EN 60950-1:2006 + A11:2009 +A1:2010 +A12:2011 +A2:2013 EN 62368-1:2014 EN 50385:2017 EN 55032:2012 Class B EN 55024:2010 EN 301 489-1 V2.2.0 EN 301 489-17 V3.2.0 EN 301 489-52 V1.1.1 EN 61000-3-2:2014 EN 61000-3-3:2013 EN 300 328 V2.1.1 EN 301 893 V2.1.1 EN 301 511 V12.5.1 EN 301 908-01 V11.1.1 EN 301 908-02 V11.1.2 EN 301 908-13 V11.1.2 Oграничението за употребата на определени опасни вещества EN 50581:2012 Този продукт отговаря на изискванията на Директива 2014/53/ЕС във връзка с предоставянето на пазара на радиосъоръжения , Директива 2011/65/ЕС в текущата версия относно ограничението за употребата на определени опасни вещества в електрическото и електронното оборудване и носи съответната маркировка CE. Допълнителна информация Този продукт има нормативен номер на модела, който съответства на нормативните аспекти на дизайна. Нормативният номер на модела е основният идентификатор на продукта в нормативната документация и протоколите от тестовете, като този номер не трябва да се бърка с търговското име или номерата на продукта. Santa Clara , CA Robert Hastings, Регулаторен мениджър 16.12.2019 Aruba, a Hewlett Packard Enterprise company Информация за връзка в съответния регион само по правни въпроси ЕС: HPE, Postfach 0001, 1122 Wien, Austria САЩ: Hewlett Packard Enterprise, 3000 Hanover St., Palo Alto, CA 94304, U.S.A. 844-806-3425 http://www.hpe.com/eu/certificates Prohlášení o Shodě na základě ISO/IEC 17050-1 a EN 17050-1 PoS #: ASIN0302 R1.0 / cs 1 / 1 Název výrobce: Hewlett Packard Enterprise Company Adresa výrobce: 3333 Scott Blvd, Santa Clara, CA 95054, USA prohlašuje na svou odpovědnost, že výrobek: Název Produktu a/nebo model: Aruba User Experience Insight Sensor, UX-G5C Regulační číslo modelu: ASIN0302 Možnosti výrobku: Všichni je v souladu s následující specializací výrobků a nařízeními: Bezpečnost Elektromagnetické Kompatibility Spektrum EN 60950-1:2006 + A11:2009 +A1:2010 +A12:2011 +A2:2013 EN 62368-1:2014 EN 50385:2017 EN 55032:2012 Class B EN 55024:2010 EN 301 489-1 V2.2.0 EN 301 489-17 V3.2.0 EN 301 489-52 V1.1.1 EN 61000-3-2:2014 EN 61000-3-3:2013 EN 300 328 V2.1.1 EN 301 893 V2.1.1 EN 301 511 V12.5.1 EN 301 908-01 V11.1.1 EN 301 908-02 V11.1.2 EN 301 908-13 V11.1.2 Omezení používání některých nebezpečných látek EN 50581:2012 Tento výrobek splňuje požadavky Směrnice 2014/53/EU týkajících se dodávání rádiových zařízení na trh, Směrnice 2011/65/EU v aktuální verzi o omezení používání některých nebezpečných látek v elektrických a elektronických zařízeních a je správně CE označený. Další informace Výrobek má přidělené regulační číslo modelu, které je v souladu s regulačními aspekty designu. Regulační číslo modelu je hlavní identifikátor výrobku v regulační dokumentaci a v protokolu o zkoušce a není možné ho zaměňovat s obchodním názvem nebo číslem výrobku. Santa Clara , CA Robert Hastings, Manažer regulační 16.12.2019 Aruba, a Hewlett Packard Enterprise company Místní kontakt výhradně pro regulační záležitosti EU: HPE, Postfach 0001, 1122 Wien, Austria USA: Hewlett Packard Enterprise, 3000 Hanover St., Palo Alto, CA 94304, U.S.A. 844-806-3425 http://www.hpe.com/eu/certificates Overensstemmelseserklæring baseret på ISO/IEC 17050-1 og EN 17050-1 OE #: ASIN0302 R1.0 / da 1 / 1 Producents navn: Hewlett Packard Enterprise Company Producents adresse: 3333…

Text truncated - open the document above for the full version.

Attn: Director of Certification Authority to Act as Agent I appoint MiCOM Labs to act as our agent in the preparation of this application for equipment certification. I certify that submitted documents properly describe the device or system for which equipment certification is sought. I also certify that each unit manufactured, imported or marketed, as defined in Canada’s regulations will have affixed to it a label identical to that submitted for approval with this application. For instances where our authorized agent signs the application for certification on our behalf, I acknowledge that all responsibility for complying with the terms and conditions for Certification, as specified by MiCOM Labs TCB, still resides with Hewlett Packard Enterprise, 3333 Scotts Blvd. Santa Clara CA. 95054 Dated this September 19, 2019. Agency Agreement Expiration Date: 12months By: _____________ Robert Hastings . (Signature) (Print name) Title: Manager Regulatory Compliance On behalf of: Hewlett Packard Enterprise (Company Name) Telephone: 650-236-9611

Office of Engineering Technology Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 Date: December 16, 2019 Subject; Request for Confidentiality FCC ID: Q9DASIN0302 To Whom It May Concern, Pursuant to the provisions of Sections 0.457 and 0.459 of Commission's rules (47CFR0.457, 0.459), we are requesting the Commission to withhold the following attachment(s) as confidential document from public disclosure indefinitely. • Operational Description • Block Diagram • Schematics Above mentioned document contains detailed system and equipment description are considered as proprietary information in operation of the equipment. The public disclosure of above documents might be harmful to our company and would give competitor an unfair advantage in the market. In additional to above mentioned documents, pursuant to Public Notice DA 04-1705 of the Commission' s policy, in order to comply with the marketing regulations in 47 CFT §2.803 and the importation rules in 47 CFR §2.1204, while ensuring that business sensitive information remains confidential until the actual marketing of newly authorized devices. We are requesting the commission to grant shot-term confidentiality request on the following attachment(s) for 180 days after the grant as outlined in Public Notice DA 04-1705. • Test Setup Photos • Internal and External Photographs • User Manual It is our understanding that all measurement test reports, FCC ID label format and correspondent during certification review process cannot be granted as confidential documents and those information will be available for public review once the grant of equipment authorization is issued. Sincerely, Signature: Name: Robert Hastings Title: Manager, Regulatory Compliance

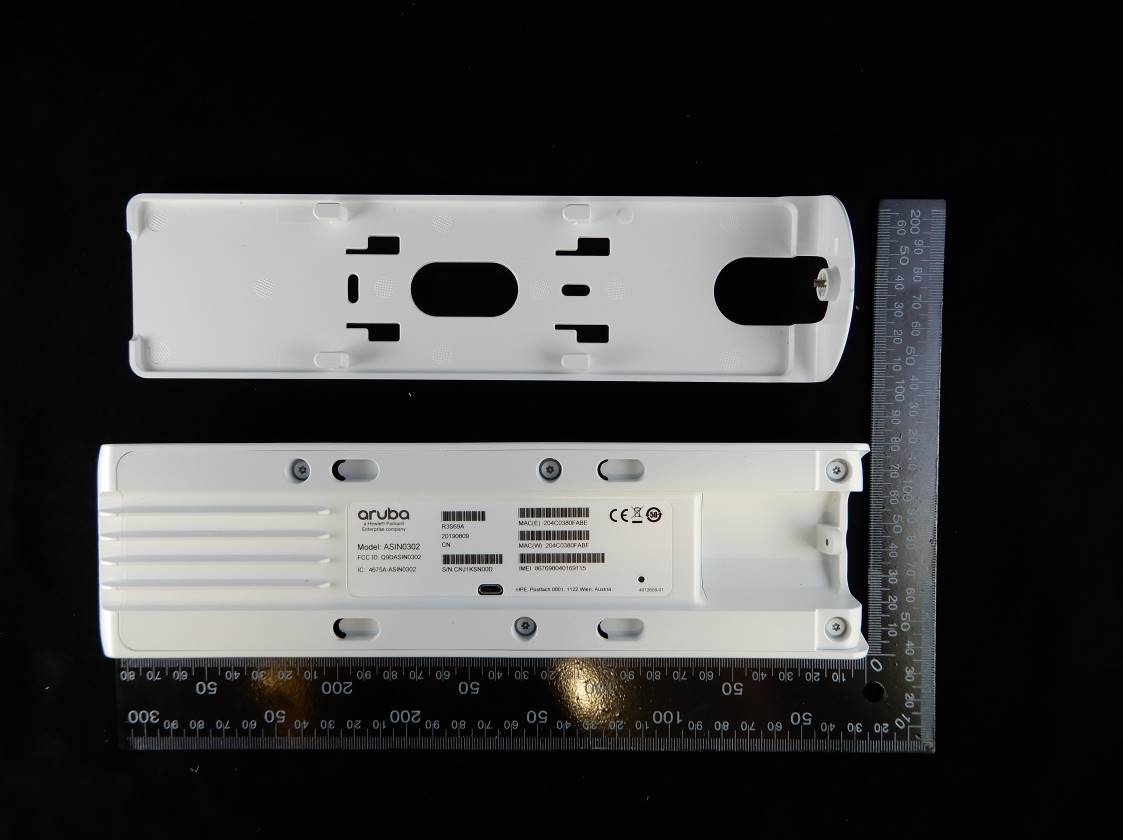

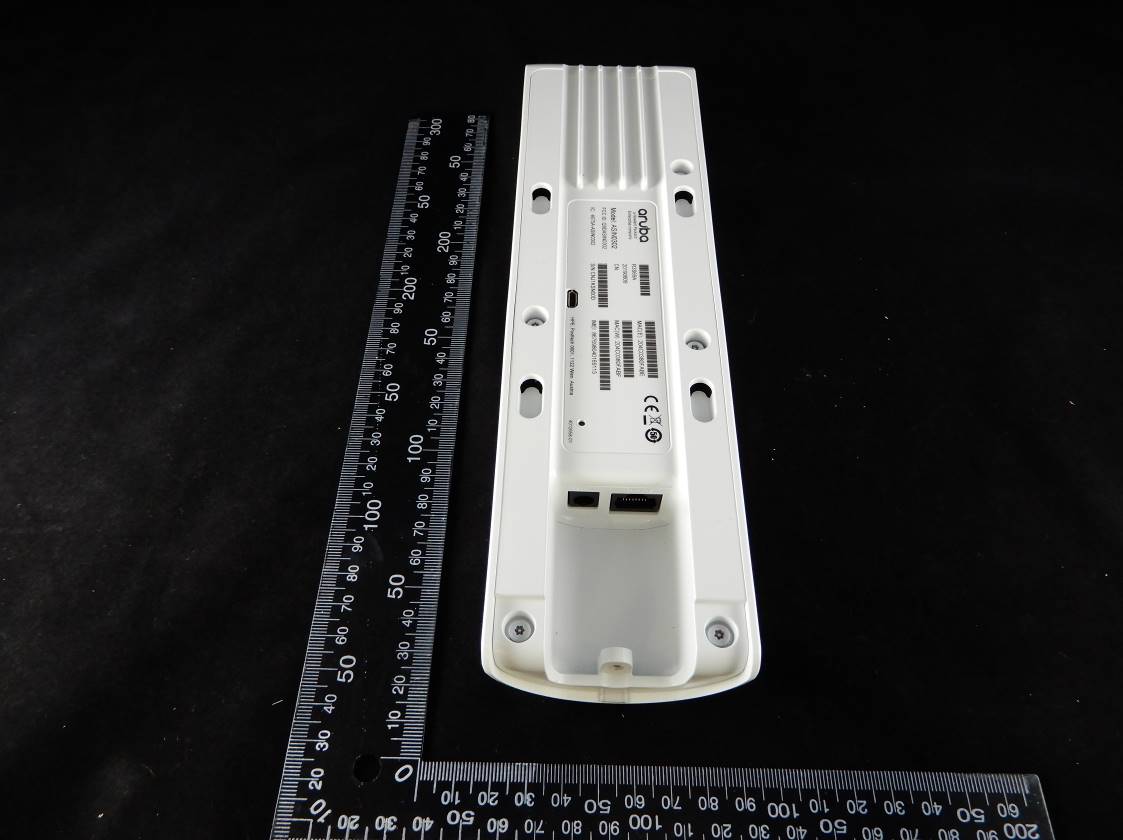

FCC ID: Q9DASIN0302 RMN: ASIN0302 IC ID: 4675A-ASIN0302 External Photographs FCC ID: Q9DASIN0302 RMN: ASIN0302 IC ID: 4675A-ASIN0302 External Photographs

ZONE NEW RELEASE EDWARD SU WNC CONFIDENTIAL CATHY CHEN CATHY CHEN EDWARD SU A3 2 0.2 A B A B 12 DIELINES LABEL FORM SN NOTES: 1. MATERIAL: WHITE PET, t=0.05 ,HTYL50(EB) ADHESIVE: , t=0.035mm FINISH: PET,T=0.025mm 2. COLOR: a. BACKGROUND b. PMS BLACK C c.DIELINES , 3. 捲狀出貨,離型紙左右間距各3±0.5mm上下間距各3±0.3mm 4. TEMPERATURE RESISTANT= 120 ̊C. 5. : 6.:30mm~120mm±0.3mm,120~315mm±0.5mm,315±0.8mm 7.UL APPROVED, PGJI2,CM-100-KPT搭配碳帶RICOH B110C,B110CR,B110CW 8.TEST REQUIREMENTS TEST ITEMTEST SPECTEST CONDITIONCRITERIA 1 ����� ISO Class.: 1 ASTM Class.: 4 B ASTM D3359-02/ ISO 2409:2007 Detach ment of small flake s of the co ating at the interse ct ions of the cu ts. A cr oss-cu t area not si gnifica ntly greater than 5% is affect ed. 4L.RVPMA.00101 LABEL,AGENCY,RVPM-A1 *1 10.75 10.38 5.5 9.4 57.26 R1.45 4 R3.25,4PLS *32.5 *1 *2 3 4 5 6 7 8 9 10 2.9±0.5 3.3±0.5 11 12 (25.6)(41.5) (5.47) (21.5) (R10.7) Ø4.5,THR. P/N: UX-G5C 9.BLACK COLORED ITEMS ARE PRINTED AT VENDOR,RED COLORED ITEMS ARE PRINTED AT WNC. C 10/04/19 C 10/04/19 10/04/19 10/04/19

FCC ID: Q9DASIN0302 RMN: ASIN0302 IC ID: 4675A-ASIN0302 Internal Photographs FCC ID: Q9DASIN0302 RMN: ASIN0302 IC ID: 4675A-ASIN0302 Internal Photographs FCC ID: Q9DASIN0302 RMN: ASIN0302 IC ID: 4675A-ASIN0302 Internal Photographs FCC ID: Q9DASIN0302 RMN: ASIN0302 IC ID: 4675A-ASIN0302 Internal Photographs

MPE/RF EXPOSURE TEST REPORT FCC CFR 47 Part 1.1310 REPORT No: HPEN149-U2a_MPE Rev A Company: Hewlett Packard Enterprise Model: ASIN0302 MPE/RF EXPOSURE TEST REPORT Company: Hewlett Packard Enterprise Model: ASIN0302 To: FCC CFR 47 Part 1.1310 Test Report Serial No.: HPEN141-U2a_MPE Rev A This report supersedes: NONE Applicant: Hewlett Packard Enterprise 3333 Scott Blvd. Santa Clara, California 95054 USA Issue Date: 18 th November 2019 This Test Report is Issued Under the Authority of: MiCOM Labs, Inc. 575 Boulder Court Pleasanton California 94566 USA Phone: +1 (925) 462-0304 Fax: +1 (925) 462-0306 www.micomlabs.com MiCOM Labs is an ISO 17025 Accredited Testing Laboratory Title: Hewlett Packard Enterprise, Aruba User Experience Insight To: FCC CFR 47 Part 1.1310 Serial #: HPEN149-U2a_MPE Rev A Issue Date: 18 th November 2019 Page: 3 of 5 This test report may be reproduced in full only. The document may only be updated by MiCOM Labs personnel. All changes will be noted in the Document History section of the report. MiCOM Labs, 575 Boulder Court, Pleasanton, California 94566 USA, Phone: +1 (925) 462 0304, Fax: +1 (925) 462 0306, www.micomlabs.com 1. MAXIMUM PERMISSABLE EXPOSURE Calculations for Maximum Permissible Exposure Levels Power Density = Pd (mW/cm 2 ) = EIRP/(4*π*d 2 ) EIRP = P * G P = Peak output power (mW) G = Antenna numeric gain (numeric) d = Separation distance (cm) Numeric Gain = 10 ^ (G (dBi)/10) The calculations in the table below use the highest conducted power values together with the lowest antenna gain specified for the EUT. These calculations represent worst case in terms of the exposure levels. Unlicensed Frequency Bands Freq. Band (MHz) Ant Gain (dBi) Numeric Gain (numeric) Peak Output Power (dBm) Peak Output Power (mW) Calculated Power Density (mW/cm 2 ) @ 20cm Power Density Limit (mW/cm 2 ) Min Calculated safe distance for Limit (cm) Calculated Power Density (mW/cm 2 ) @ Safe Distance 5150.0 - 5250.0 5.00 3.16 20.55 134.00 0.084 1.00 5.8 1.00 5470.0 - 5725.0 5.00 3.16 21.19 131.77 0.083 1.00 5.9 1.00 5725.0 - 5850.0 5.00 3.16 21.18 131.26 0.083 1.00 5.7 1.00 5250.0 - 5350.0 5.00 3.16 20.72 118.03 0.074 1.00 5.5 1.00 2400.0 - 2483.5 (Wi-Fi) 1.00 1.26 21.41 138.21 0.034 1.00 3.7 1.00 2400.0 - 2483.5 (BLE) 2.00 1.58 3.06 2.00 0.001 1.00 0.7 1.00 Licensed Frequency Bands MPE measurement results for licensed bands was provided through 3 rd Party Test Report: SGS-CSTC HR/2019/1001602 Date: 28 th February 2019 Simultaneous Operation Assessment The Aruba User Experience Insight ASIN0302 can operate simultaneously in two different configurations; 1).. BLE + Wi-Fi 2).. BLE + Licensed Bands The three technologies BLE + Wi-Fi + Licensed Bands can never operate simultaneously. Title: Hewlett Packard Enterprise, Aruba User Experience Insight To: FCC CFR 47 Part 1.1310 Serial #: HPEN149-U2a_MPE Rev A Issue Date: 18 th November 2019 Page: 4 of 5 This test report may be reproduced in full only. The document may only be updated by MiCOM Labs personnel. All changes will be noted in the Document History section of the report. MiCOM Labs, 575 Boulder Court, Pleasanton, California 94566 USA, Phone: +1 (925) 462 0304, Fax: +1 (925) 462 0306, www.micomlabs.com Option 1: Simultaneous Operation BLE + Wi-Fi Assessment Only the BLE and highest Wi-Fi Power Density was used for simultaneous operation. Freq. Band (MHz) Ant Gain (dBi) Numeric Gain (numeric) Peak Output Power (dBm) Peak Output Power (mW) Power Density Limit (mW/cm 2 ) E ref Power Density (mW/cm 2 ) E i /E ref 2400.0 - 2483.5 (BLE) 2.00 1.58 3.09 2.00 1.00 0.001 0.001 5470.0 - 5725.0 5.00 3.16 21.19 131.50 1.00 0.083 0.083 Summation of Ratio: 0.084 The Total Evaluation was calculated using the formula: Where Ei: calculated E-field Strength for transmitter Eref: E-field strength related limit The summation is <1 therefore the ASIN0302 complies NOTE 1: for mobile or fixed location transmitters the minimum separation distance is 20cm, even if calculations indicate the MPE distance to be less. NOTE 2: BLE has a negligible effect on the result Option 2: BLE + Licensed Frequency Band Assessment for Simultaneous Operation: In reviewing the licensed band EIRP transmit power the BLE transmitter will have negligible effect on the result therefore no further calculation was required. Specification - Maximum Permissible Exposure Limits The Limit(s) for Occupational / Controlled Exposure are provided in FCC §1.1310 Table 1(A) The Limit(s) for General Population / Uncontrolled Exposure are provided in FCC §1.1310 Table 1(B) 575 Boulder Court Pleasanton, California 94566, USA Tel: +1 (925) 462 0304 Fax: +1 (925) 462 0306 www.micomlabs.com

REGULATORY COMPLIANCE TEST REPORT FCC CFR 47 15.247, RSS-247 Issue 2 Report No.: HPEN149-U2 PCA 3.2 Rev A (BLE) Company: Hewlett Packard Enterprise Model Name: ASIN0302 REGULATORY COMPLIANCE TEST REPORT Company: Hewlett Packard Enterprise Model Name: ASIN0302 To: FCC CFR47 Part 15 Subpart C 15.247 (DTS), RSS-247 Issue 2 Test Report Serial No.: HPEN149-U2 PCA3.2 Rev A (BLE) This report supersedes: NONE Applicant: Hewlett Packard Enterprise Company 3333 Scott Blvd. Santa Clara, California 95054 USA Issue Date: 18 th November 2019 This Test Report is Issued Under the Authority of: MiCOM Labs, Inc. 575 Boulder Court Pleasanton California 94566 USA Phone: +1 (925) 462-0304 Fax: +1 (925) 462-0306 www.micomlabs.com MiCOM Labs is an ISO 17025 Accredited Testing Laboratory Title: Hewlett Packard Enterprise, ASIN0302 To: FCC CFR 47 Part 15 Subpart C 15.247 (DTS) Serial #: HPEN149-U2 PCA 3.2 Rev A (BLE) Issue Date: 18 th November 2019 Page: 3 of 59 This test report may be reproduced in full only. The document may only be updated by MiCOM Labs personnel. All changes will be noted in the Document History section of the report. MiCOM Labs, 575 Boulder Court, Pleasanton, California 94566 USA, Phone: +1 (925) 462 0304, Fax: +1 (925) 462 0306, www.micomlabs.com Table of Contents 1. ACCREDITATION, LISTINGS & RECOGNITION ................................................................................ 4 1.1. TESTING ACCREDITATION ........................................................................................................ 4 1.2. RECOGNITION ............................................................................................................................. 5 1.3. PRODUCT CERTIFICATION ........................................................................................................ 6 2. DOCUMENT HISTORY ......................................................................................................................... 7 3. TEST RESULT CERTIFICATE ............................................................................................................. 8 4. REFERENCES AND MEASUREMENT UNCERTAINTY ..................................................................... 9 4.1. Normative References .................................................................................................................. 9 4.2. Test and Uncertainty Procedure ................................................................................................. 10 5. PRODUCT DETAILS AND TEST CONFIGURATIONS ..................................................................... 11 5.1. Technical Details ......................................................................................................................... 11 5.2. Scope Of Test Program .............................................................................................................. 12 5.3. Equipment Model(s) and Serial Number(s) ................................................................................. 14 5.4. Antenna Details ........................................................................................................................... 14 5.5. Cabling and I/O Ports .................................................................................................................. 14 5.6. Test Configurations ..................................................................................................................... 14 5.7. Equipment Modifications ............................................................................................................. 15 5.8. Deviations from the Test Standard ............................................................................................. 15 6. TEST SUMMARY ................................................................................................................................ 16 7. TEST EQUIPMENT CONFIGURATION(S) ......................................................................................... 17 7.1. Conducted Test Setup ................................................................................................................ 17 7.2. Radiated Emissions - 3m Chamber ............................................................................................ 18 8. MEASUREMENT AND PRESENTATION OF TEST DATA ............................................................... 20 9. TEST RESULTS .................................................................................................................................. 21 9.1. 6 dB & 99% Bandwidth ............................................................................................................... 21 9.2. Conducted Output Power ............................................................................................................ 23 9.3. Power Spectral Density ............................................................................................................... 26 9.4. Emissions .................................................................................................................................... 28 9.4.1. Conducted Emissions ........................................................................................................... 28 9.4.1.1. Conducted Spurious Emissions ..................................................................................... 28 9.4.1.2. Conducted Band-Edge Emissions ................................................................................. 30 9.4.2. Radiated Emissions .............................................................................................................. 32 9.4.2.3. TX Spurious & Restricted Band Emissions ................................................................... 32 9.4.2.4. Restricted Edge & Band-Edge Emissions ..................................................................... 37 A. APPENDIX - GRAPHICAL IMAGES ...............................................................…

Text truncated - open the document above for the full version.

REGULATORY COMPLIANCE TEST REPORT FCC CFR 47 15.247, RSS-247 Issue 2 Report No.: HPEN149-U4 PCA 3.2 Rev A (Wi-Fi) Company: Hewlett Packard Enterprise Model Name: ASIN0302 REGULATORY COMPLIANCE TEST REPORT Company: Hewlett Packard Enterprise Model Name: ASIN0302 To: FCC CFR47 Part 15 Subpart C 15.247 (DTS), RSS-247 Issue 2 Test Report Serial No.: HPEN149-U4 PCA 3.2 Rev A (Wi-Fi) This report supersedes: NONE Applicant: Hewlett Packard Enterprise Company 3333 Scott Blvd. Santa Clara, California 95054 USA Issue Date: 18 th November 2019 This Test Report is Issued Under the Authority of: MiCOM Labs, Inc. 575 Boulder Court Pleasanton California 94566 USA Phone: +1 (925) 462-0304 Fax: +1 (925) 462-0306 www.micomlabs.com MiCOM Labs is an ISO 17025 Accredited Testing Laboratory Title: Hewlett Packard Enterprise, Aruba User Experience Insight To: FCC Part 15 Subpart C 15.247 (DTS), RSS-247 Issue 2 Serial #: HPEN141-U4 PCA 3.2 Rev A (Wi-Fi) Issue Date: 18 th November 2019 Page: 3 of 172 This test report may be reproduced in full only. The document may only be updated by MiCOM Labs personnel. All changes will be noted in the Document History section of the report. MiCOM Labs, 575 Boulder Court, Pleasanton, California 94566 USA, Phone: +1 (925) 462 0304, Fax: +1 (925) 462 0306, www.micomlabs.com Table of Contents 1. ACCREDITATION, LISTINGS & RECOGNITION ................................................................................ 4 1.1. TESTING ACCREDITATION ........................................................................................................ 4 1.2. RECOGNITION ............................................................................................................................. 5 1.3. PRODUCT CERTIFICATION ........................................................................................................ 6 2. DOCUMENT HISTORY ......................................................................................................................... 7 3. TEST RESULT CERTIFICATE ............................................................................................................. 8 4. REFERENCES AND MEASUREMENT UNCERTAINTY ..................................................................... 9 4.1. Normative References .................................................................................................................. 9 4.2. Test and Uncertainty Procedure ................................................................................................. 10 5. PRODUCT DETAILS AND TEST CONFIGURATIONS ..................................................................... 11 5.1. Technical Details ......................................................................................................................... 11 5.2. Scope Of Test Program .............................................................................................................. 12 5.3. Equipment Model(s) and Serial Number(s) ................................................................................. 13 5.4. Antenna Details ........................................................................................................................... 13 5.5. Cabling and I/O Ports .................................................................................................................. 13 5.6. Test Configurations ..................................................................................................................... 13 5.7. Equipment Modifications ............................................................................................................. 14 5.8. Deviations from the Test Standard ............................................................................................. 14 6. TEST SUMMARY ................................................................................................................................ 15 7. TEST EQUIPMENT CONFIGURATION(S) ......................................................................................... 16 7.1. Conducted Test Setup ................................................................................................................ 16 7.2. Radiated Emissions - 3m Chamber ............................................................................................ 17 7.3. ac Wireline Emissions .............................................................................................................. 19 8. MEASUREMENT AND PRESENTATION OF TEST DATA ............................................................... 20 9. TEST RESULTS .................................................................................................................................. 21 9.1. 6 dB & 99% Bandwidth ............................................................................................................... 21 9.2. Conducted Output Power ............................................................................................................ 26 9.3. Power Spectral Density ............................................................................................................... 32 9.4. Emissions .................................................................................................................................... 37 9.4.1. Conducted Emissions ........................................................................................................... 37 9.4.1.1. Conducted Spurious Emissions ..................................................................................... 37 9.4.1.2. Conducted Band-Edge Emissions ................................................................................. 42 9.4.2. Radiated Emissions .............................................................................................................. 50 9.4.2.1. TX Spurious & Restricted Band Emissions ................................................................... 50 9.4.2.2. Restricted Edge & Band-Ed…

Text truncated - open the document above for the full version.

PHOTOS - TEST SETUP Company: Aruba Networks, Hewlett Packard Enterprise Company Product Name: Three Ships Variant 2 Report No.: HPEN149 – FCC & IC Test Setup Photos Title: HPEN149 FCC & IC Test Setup Photos To: Serial #: Issue Date: 31 October 2019 Page: 2 of 11 This test report may be reproduced in full only. The document may only be updated by MiCOM Labs personnel. All changes will be noted in the Document History section of the report. MiCOM Labs, 575 Boulder Court, Pleasanton, California 94566 USA, Phone: +1 (925) 462 0304, Fax: +1 (925) 462 0306, www.micomlabs.com 1. Test Setup Photographs 1.1.1. Test Setup - CE - AC Conducted Emissions POE AC Mains Title: HPEN149 FCC & IC Test Setup Photos To: Serial #: Issue Date: 31 October 2019 Page: 3 of 11 This test report may be reproduced in full only. The document may only be updated by MiCOM Labs personnel. All changes will be noted in the Document History section of the report. MiCOM Labs, 575 Boulder Court, Pleasanton, California 94566 USA, Phone: +1 (925) 462 0304, Fax: +1 (925) 462 0306, www.micomlabs.com POE AC Mains side Title: HPEN149 FCC & IC Test Setup Photos To: Serial #: Issue Date: 31 October 2019 Page: 4 of 11 This test report may be reproduced in full only. The document may only be updated by MiCOM Labs personnel. All changes will be noted in the Document History section of the report. MiCOM Labs, 575 Boulder Court, Pleasanton, California 94566 USA, Phone: +1 (925) 462 0304, Fax: +1 (925) 462 0306, www.micomlabs.com PS AC Mains Title: HPEN149 FCC & IC Test Setup Photos To: Serial #: Issue Date: 31 October 2019 Page: 5 of 11 This test report may be reproduced in full only. The document may only be updated by MiCOM Labs personnel. All changes will be noted in the Document History section of the report. MiCOM Labs, 575 Boulder Court, Pleasanton, California 94566 USA, Phone: +1 (925) 462 0304, Fax: +1 (925) 462 0306, www.micomlabs.com PS AC Mains side Title: HPEN149 FCC & IC Test Setup Photos To: Serial #: Issue Date: 31 October 2019 Page: 6 of 11 This test report may be reproduced in full only. The document may only be updated by MiCOM Labs personnel. All changes will be noted in the Document History section of the report. MiCOM Labs, 575 Boulder Court, Pleasanton, California 94566 USA, Phone: +1 (92…
