Q9DMSR1200Indoor Wireless Mesh Router

1 MSR1200 High Performance Indoor Dual-radio Wireless Access Point/ Wireless Mesh Router Features and Benefits • Advanced 802.11n technology, greatly improving network bandwidth and coverage • Uses proprietary Adaptive Wireless Routing (AWR) technology to form a reliable and scalable wireless network, offering automatic network optimization and restoration and supporting multiple gateways • Uses proprietary fast roaming technology to realize seamless roaming • Uses proprietary intelligent RF technology, offering automatic network forming, automatic channel optimization and power control to reduce interference and improve performance • Uses proprietary wireless video optimization technology, greatly improving the quality of video over wireless • Uses proprietary multi-hop and long-distance transmission optimization technology, greatly improving the network flexibility • Centralized device and configuration management effectively increases network deployment and operation efficiency • Supports both centralized forwarding and local forwarding • Supports IPv6, meeting users’ requirement for the next generation Internet • Supports China WLAN security standard WAPI • Able to establish highly reliable, secure, high performance, scalable, easy-to-deploy and easy-to-manage wireless broadband network with other wireless APs, mesh routers, multi-service wireless controllers and wireless network management systems 2 Technical Specification
Radio:  Dual radio modules  Supports 802.11a/b/g/n*(*802.11n needs to purchase licenses)  Frequency Bands (country-specific restrictions apply): 2.400-2.483GHz, 4.90-4.99GHz, 5.15-5.35GHz, 5.47-5.725GHz, 5.725-5.85GHz
Modulation:  DSSS (CCK, DQPSK, DBPSK)  OFDM (BPSK, QPSK, 16QAM, 64QAM)
Association Rates (Mbps):  802.11a: 6, 9, 12, 18, 24, 36, 48, 54Mbps  802.11b: 1, 2, 5.5 and 11Mbps  802.11g: 6, 9, 12, 18, 24, 36, 48, 54Mbps  802.11n 20MHz: 1Nss: 65Mbps @ 800GI, 72.2Mbps @ 400GI (Max.)；2Nss: 130Mbps @ 800GI, 144.4Mbps @ 400GI (Max.)  802.11n 40MHz: 1Nss: 135Mbps @ 800GI, 150Mbps @ 400GI (Max.)；2Nss: 270Mbps @ 800GI, 300Mbps @ 400GI (Max.)
Receiver sensitivity:  802.11a: -95dBm@6Mbps, -95dBm@9Mbps, -94dBm@12Mbps, -92dBm@18Mbps, -88dBm@24Mbps, -85dBm@36Mbps, -81dBm@48Mbps, -79dBm@54Mbps  802.11b: -95dBm@1Mbps, [email protected], -91dBm@11Mbps  802.11g: -95dBm@6Mbps, -95dBm@9Mbps, -94dBm@12Mbps, -93dBm@18Mbps, -90dBm@24Mbps, -86dBm@36Mbps, -82dBm@48Mbps, -80dBm@54Mbps  802.11a/n(HT20): -95dBm@MCS0, -93dBm@MCS1, -90dBm@MCS2, -87dBm@MCS3, -84dBm@ MCS4, -80dBm@ MCS5, -79dBm@ MCS6, -77dBm@ MCS7  802.11a/n(HT40): -91dBm@MCS0, -90dBm@MCS1, -87dBm@MCS2, -84dBm@MCS3, -82dBm@ MCS4, -78dBm@ MCS5, -76dBm@ MCS6, -74dBm@ MCS7  802.11b/g/n(HT20): -95dBm@MCS0, -94dBm@MCS1, -92dBm@MCS2, -88dBm@MCS3, -85dBm@MCS4, -80dBm@MCS5, -79dBm@MCS6, -77dBm@MCS7  802.11b/g/n(HT40): -90dBm@MCS0, -90dBm@MCS1, -89dBm@MCS2, -85dBm@MCS3, -82dBm@MCS4, -78dBm@MCS5, -77dBm@MCS6, 3 -74dBm@MCS7 Mesh Features
Auto network forming
Auto topology optimization
Auto routing optimization
Multi-hop backhaul
Multiple gateways
Adaptive Wireless Routing (AWR)
Fast roaming
Supports L2/L3 networking mode
Supports centralized forwarding/local forwarding mode
Supports centralized/non-centralized control mode 802.11n Basic Capability
2x2 MIMO, PHY data rate up to 300 Mbps
20 MHz and 40MHz frequency bands Software Features
Software image: Azalea AOS4.1 or above
Roaming technology: Supports cross L2 and L3 roaming
Load balance: based on the number of users or traffic
Link check: supports uplink reachability check
Wireless video optimization technology
Wireless security management and control
Long-distance transmission optimization
Power control: supports manual and auto adjustment
Channel selection: supports manual configuration and auto selection
Routing technology: static route, OSPF
Adaptive Wireless Routing (AWR)
Supports IPv6
Supports VLAN, STP IPv4/IPv6
IPv4 and IPv6 dual-stack
DHCPv4/v6 Server 4
DHCPv4/v6 Relay
DHCPv4/v6 Client
IPv6 ND
Pingv4/v6, TraceRTv4/v6
IPv4/IPv6 static routing QoS
Supports WMM
Bandwidth control
Azalea wireless video optimization technology
Supports the mapping from wireless QoS to/from VLAN and IP QoS Security
802.11i, WEP, WPA, WPA2
TKIP (128bit), PSK, AES (128 bit), TLS and TTLS
MAC address filter
User isolation
802.1x, Web Portal authentication
SSID hide
Supports WAPI
Rouge AP detect Management
SNMP v1/v2/v3c
Telnet, FTP, HTTP, HTTPS
NTP: NTP Client Interfaces
10/100/1000M BASE-T Ethernet interface (RJ-45)
Console port
Antenna connector: 4 RP-SMA Hardware Features
Dimensions: 260 x 160 x 48 mm (W x L x H)
Weight: 1.60 kg 5
Environment: ─ Storage temperature: -25 to 85°C; Operating temperature: 0 to 50°C ─ Storage humidity: 5%~95% (non-condensing); Operating humidity: 10%~95% (non-condensing)
Shock & Vibration: ETSI 300-19-2-4 SpecT41.E class 4M3
System memory: 128 MB DRAM; 16 MB flash
Power supply: ─ PoE in: 802.3af ─ AC input (power adaptor): Input 100-245VAC, output 48V 38W
LED indicators: Power, Ethernet port, Radio port
Supports Reset button
Power consumption: <10W
Transport: ISTA 2A Accessories A variety of accessories are available for use with the Azalea routers. These include indoor antennas, outdoor antennas, feeders, RF cables, power splitters, arresters, waterproof accessories, Ethernet cables, power cables, console cables. Please see your local representative for additional details. Caution This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. This equipment has been tested a…

Text truncated - open the document above for the full version.

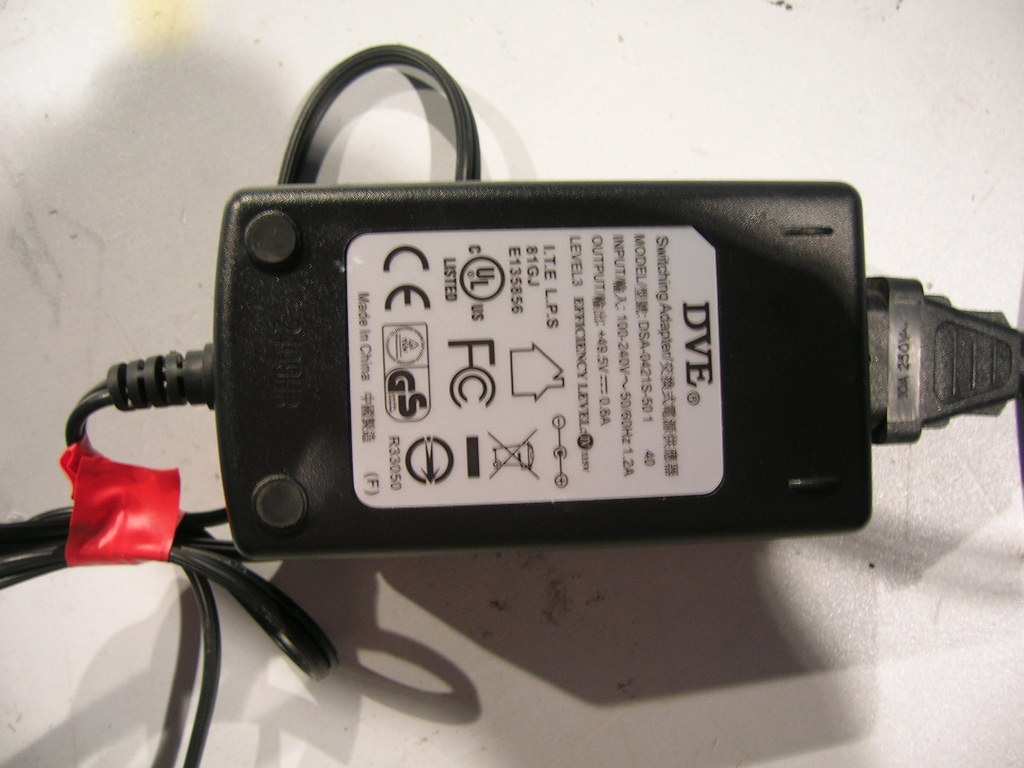

FCC ID: Q9DMSR1200 IC: 4675A-MSR1200 Page 1 of 6 External Picture FCC ID: Q9DMSR1200 IC: 4675A-MSR1200 Page 2 of 6 FCC ID: Q9DMSR1200 IC: 4675A-MSR1200 Page 3 of 6 FCC ID: Q9DMSR1200 IC: 4675A-MSR1200 Page 4 of 6 Antenna POE FCC ID: Q9DMSR1200 IC: 4675A-MSR1200 Page 5 of 6 Adapter FCC ID: Q9DMSR1200 IC: 4675A-MSR1200 Page 6 of 6 An FTP CAT5e cable with two cores would be offered by the manufactory together with the EUT.

FCC ID: Q9DMSR1200 IC: 4675A-MSR1200 FCC ID & IC Label FCC ID: Q9DMSR1200 IC: 4675A-MSR1200

FCC ID: Q9DMSR1200 IC: 4675A-MSR1200 Page 1 of 6 Internal Picture FCC ID: Q9DMSR1200 IC: 4675A-MSR1200 Page 2 of 6 FCC ID: Q9DMSR1200 IC: 4675A-MSR1200 Page 3 of 6 FCC ID: Q9DMSR1200 IC: 4675A-MSR1200 Page 4 of 6 FCC ID: Q9DMSR1200 IC: 4675A-MSR1200 Page 5 of 6 RF module FCC ID: Q9DMSR1200 IC: 4675A-MSR1200 Page 6 of 6

FCC ID: Q9DMSR1200 IC: 4675A-MSR1200 Page 161 of 182 802.11n, 2.4GHz, HT40, GI=1, card 1, Chain 0 + Chain1 Channel L FCC ID: Q9DMSR1200 IC: 4675A-MSR1200 Page 162 of 182 Channel M Channel H FCC ID: Q9DMSR1200 IC: 4675A-MSR1200 Page 163 of 182 802.11n, 5.8GHz, HT20, card 1, Chain 0 Channel L FCC ID: Q9DMSR1200 IC: 4675A-MSR1200 Page 164 of 182 Channel M FCC ID: Q9DMSR1200 IC: 4675A-MSR1200 Page 165 of 182 Channel H FCC ID: Q9DMSR1200 IC: 4675A-MSR1200 Page 166 of 182 802.11n, 5.8GHz, HT20, card 1, Chain 0 + Chain1 Channel L FCC ID: Q9DMSR1200 IC: 4675A-MSR1200 Page 167 of 182 Channel M Channel H FCC ID: Q9DMSR1200 IC: 4675A-MSR1200 Page 168 of 182 802.11n, 5.8GHz, HT40, GI=0, card 1, Chain 0 Channel L FCC ID: Q9DMSR1200 IC: 4675A-MSR1200 Page 169 of 182 Channel H FCC ID: Q9DMSR1200 IC: 4675A-MSR1200 Page 170 of 182 802.11n, 5.8GHz, HT40, GI=0, card 1, Chain 0 + Chain1 Channel L FCC ID: Q9DMSR1200 IC: 4675A-MSR1200 Page 171 of 182 Channel H FCC ID: Q9DMSR1200 IC: 4675A-MSR1200 Page 172 of 182 802.11n, 5.8GHz, HT40, GI=1, card 1, Chain 0 Channel L FCC ID: Q9DMSR1200 IC: 4675A-MSR1200 Page 173 of 182 Channel H FCC ID: Q9DMSR1200 IC: 4675A-MSR1200 Page 174 of 182 802.11n, 5.8GHz, HT40, GI=1, card 1, Chain 0 + Chain1 Channel L FCC ID: Q9DMSR1200 IC: 4675A-MSR1200 Page 175 of 182 Channel H FCC ID: Q9DMSR1200 IC: 4675A-MSR1200 Page 176 of 182 FCC ID: Q9DMSR1200 IC: 4675A-MSR1200 Page 177 of 182 7. Conducted Emission POE powered FCC ID: Q9DMSR1200 IC: 4675A-MSR1200 Page 178 of 182 Adapter powered FCC ID: Q9DMSR1200 IC: 4675A-MSR1200 Page 179 of 182 8. Spurious emission for receiver POE powered, Horizontal 0 10 20 30 40 50 60 70 80 Level [dBμV/m] 30M 50M 70M 100M 200M 300M 500M 700M 1G Frequency [Hz] x x x x x x x x x x x x x MES 1200_H222_red MES 1200_H222_pre LIM FCC 15 F 3 QP Field Strength QP FCC ID: Q9DMSR1200 IC: 4675A-MSR1200 Page 180 of 182 POE powered, Vertical 0 10 20 30 40 50 60 70 80 Level [dBμV/m] 30M 50M 70M 100M 200M 300M 500M 700M 1G Frequency [Hz] x x x x x x x x x MES 1200_V222_red MES 1200_V222_pre LIM FCC 15 F 3 QP Field Strength QP FCC ID: Q9DMSR1200 IC: 4675A-MSR1200 Page 181 of 182 Adapter powered, horizontal 0 10 20 30 40 50 60 70 80 Level [dBμV/m] 30M 50M 70M 100M 200M 300M 500M 700M 1G Frequency [Hz] x x x x x x x MES 1200ada_H2_red MES 1200ada_H2_pre LIM FCC 15 F 3 QP Field Strength QP FCC ID: Q9DMSR1200 IC: 4675A-MSR1200 Page 182 of 182 Adapter powered, vertical 0 10 20 30 40 50 60 70 80 Level [dBμV/m] 30M 50M 70M 100M 200M 300M 500M 700M 1G Frequency [Hz] x x x x x x x MES 1200ada_V2_red MES 1200ada_V2_pre LIM FCC 15 F 3 QP Field Strength QP

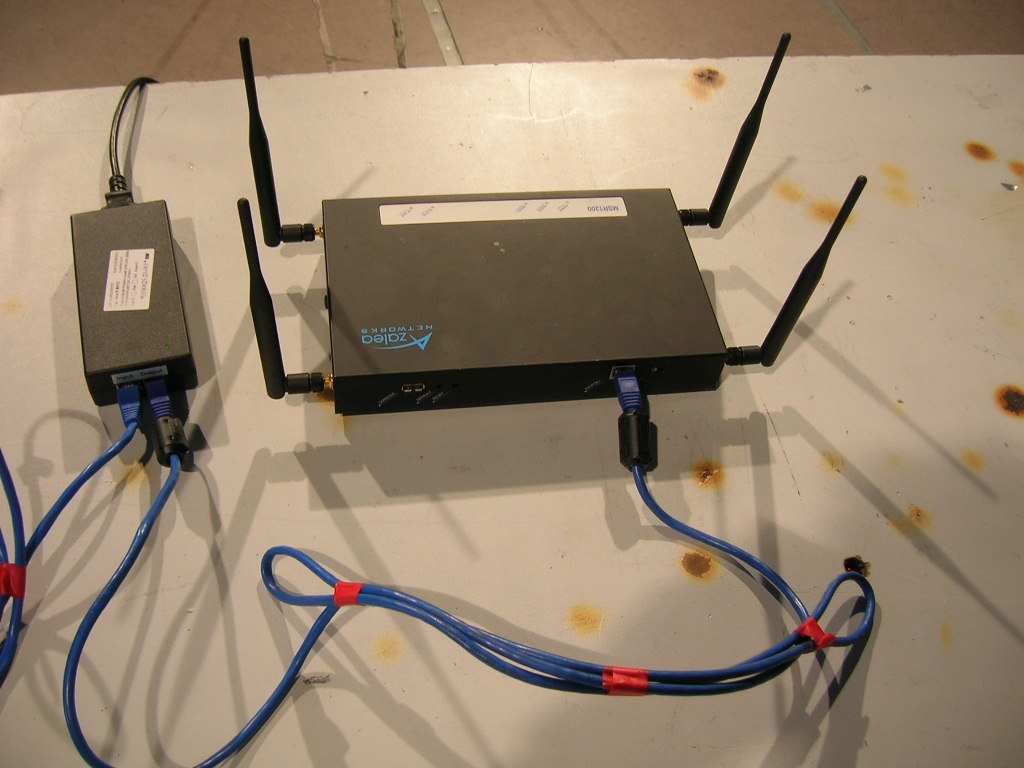

FCC ID: Q9DMSR1200 IC: 4675A-MSR1200 Page 1 of 5 Test Setup FCC ID: Q9DMSR1200 IC: 4675A-MSR1200 Page 2 of 5 1. Radiated Emission 30MHz-1000MHz, powered by adapter 30MHz-1000MHz, powered by POE FCC ID: Q9DMSR1200 IC: 4675A-MSR1200 Page 3 of 5 Higher than 1GHz FCC ID: Q9DMSR1200 IC: 4675A-MSR1200 Page 4 of 5 2. Minimum 6dB Bandwidth & Maximum peak output power & Power spectrum density & Emission outside the frequency band & Occupied bandwidth FCC ID: Q9DMSR1200 IC: 4675A-MSR1200 Page 5 of 5 3. Conducted Emission Powered by adapter Powered by POE
