Q9DMSR1200NIndoor Wireless Mesh Router

1 MSR1200, MSR1K2SN0, MSR1K2SN0-US High Performance Indoor Dual-radio Wireless Access Point/ Wireless Mesh Router Features and Benefits • Advanced 802.11n technology, greatly improving network bandwidth and coverage • Uses proprietary Adaptive Wireless Routing (AWR) technology to form a reliable and scalable wireless network, offering automatic network optimization and restoration and supporting multiple gateways • Uses proprietary fast roaming technology to realize seamless roaming • Uses proprietary intelligent RF technology, offering automatic network forming, automatic channel optimization and power control to reduce interference and improve performance • Uses proprietary wireless video optimization technology, greatly improving the quality of video over wireless • Uses proprietary multi-hop and long-distance transmission optimization technology, greatly improving the network flexibility • Centralized device and configuration management effectively increases network deployment and operation efficiency • Supports both centralized forwarding and local forwarding • Supports IPv6, meeting users’ requirement for the next generation Internet • Supports China WLAN security standard WAPI • Able to establish highly reliable, secure, high performance, scalable, easy-to-deploy and easy-to-manage wireless broadband network with other wireless APs, mesh routers, multi-service wireless controllers and wireless network management systems 2 Technical Specification
Radio:  Dual radio modules  Supports 802.11a/b/g/n*(*802.11n needs to purchase licenses)  Frequency Bands (country-specific restrictions apply): 2.400-2.483GHz, 4.90-4.99GHz, 5.15-5.35GHz, 5.47-5.725GHz, 5.725-5.85GHz
Modulation:  DSSS (CCK, DQPSK, DBPSK)  OFDM (BPSK, QPSK, 16QAM, 64QAM)
Association Rates (Mbps):  802.11a: 6, 9, 12, 18, 24, 36, 48, 54Mbps  802.11b: 1, 2, 5.5 and 11Mbps  802.11g: 6, 9, 12, 18, 24, 36, 48, 54Mbps  802.11n 20MHz: 1Nss: 65Mbps @ 800GI, 72.2Mbps @ 400GI (Max.)；2Nss: 130Mbps @ 800GI, 144.4Mbps @ 400GI (Max.)  802.11n 40MHz: 1Nss: 135Mbps @ 800GI, 150Mbps @ 400GI (Max.)；2Nss: 270Mbps @ 800GI, 300Mbps @ 400GI (Max.)
Receiver sensitivity:  802.11a: -95dBm@6Mbps, -95dBm@9Mbps, -94dBm@12Mbps, -92dBm@18Mbps, -88dBm@24Mbps, -85dBm@36Mbps, -81dBm@48Mbps, -79dBm@54Mbps  802.11b: -95dBm@1Mbps, [email protected], -91dBm@11Mbps  802.11g: -95dBm@6Mbps, -95dBm@9Mbps, -94dBm@12Mbps, -93dBm@18Mbps, -90dBm@24Mbps, -86dBm@36Mbps, -82dBm@48Mbps, -80dBm@54Mbps  802.11a/n(HT20): -95dBm@MCS0, -93dBm@MCS1, -90dBm@MCS2, -87dBm@MCS3, -84dBm@ MCS4, -80dBm@ MCS5, -79dBm@ MCS6, -77dBm@ MCS7  802.11a/n(HT40): -91dBm@MCS0, -90dBm@MCS1, -87dBm@MCS2, -84dBm@MCS3, -82dBm@ MCS4, -78dBm@ MCS5, -76dBm@ MCS6, -74dBm@ MCS7  802.11b/g/n(HT20): -95dBm@MCS0, -94dBm@MCS1, -92dBm@MCS2, -88dBm@MCS3, -85dBm@MCS4, -80dBm@MCS5, -79dBm@MCS6, -77dBm@MCS7  802.11b/g/n(HT40): -90dBm@MCS0, -90dBm@MCS1, -89dBm@MCS2, -85dBm@MCS3, -82dBm@MCS4, -78dBm@MCS5, -77dBm@MCS6, Note: The device, for sale in USA market, cannot be chosen country specification and the choice for working frequency range is fixed. 3 -74dBm@MCS7 Mesh Features
Auto network forming
Auto topology optimization
Auto routing optimization
Multi-hop backhaul
Multiple gateways
Adaptive Wireless Routing (AWR)
Fast roaming
Supports L2/L3 networking mode
Supports centralized forwarding/local forwarding mode
Supports centralized/non-centralized control mode 802.11n Basic Capability
2x2 MIMO, PHY data rate up to 300 Mbps
20 MHz and 40MHz frequency bands Software Features
Software image: Azalea AOS4.1 or above
Roaming technology: Supports cross L2 and L3 roaming
Load balance: based on the number of users or traffic
Link check: supports uplink reachability check
Wireless video optimization technology
Wireless security management and control
Long-distance transmission optimization
Power control: supports manual and auto adjustment
Channel selection: supports manual configuration and auto selection
Routing technology: static route, OSPF
Adaptive Wireless Routing (AWR)
Supports IPv6
Supports VLAN, STP IPv4/IPv6
IPv4 and IPv6 dual-stack
DHCPv4/v6 Server 4
DHCPv4/v6 Relay
DHCPv4/v6 Client
IPv6 ND
Pingv4/v6, TraceRTv4/v6
IPv4/IPv6 static routing QoS
Supports WMM
Bandwidth control
Azalea wireless video optimization technology
Supports the mapping from wireless QoS to/from VLAN and IP QoS Security
802.11i, WEP, WPA, WPA2
TKIP (128bit), PSK, AES (128 bit), TLS and TTLS
MAC address filter
User isolation
802.1x, Web Portal authentication
SSID hide
Supports WAPI
Rouge AP detect Management
SNMP v1/v2/v3c
Telnet, FTP, HTTP, HTTPS
NTP: NTP Client Interfaces
10/100/1000M BASE-T Ethernet interface (RJ-45)
Console port
Antenna connector: 4 RP-SMA Hardware Features
Dimensions: 260 x 160 x 48 mm (W x L x H)
Weight: 1.60 kg 5
Environment: ─ Storage temperature: -25 to 85°C; Operating temperature: 0 to 50°C ─ Storage humidity: 5%~95% (non-condensing); Operating humidity: 10%~95% (non-condensing)
Shock & Vibration: ETSI 300-19-2-4 SpecT41.E class 4M3
System memory: 128 MB DRAM; 16 MB flash
Power supply: ─ PoE in: 802.3af ─ AC input (power adaptor): Input 100-245VAC, output 48V 38W
LED indicators: Power, Ethernet port, Radio port
Supports Reset button
Power consumption: <10W
Transport: ISTA 2A Accessories A variety of accessories are available for use with the Azalea routers. These include indoor antennas, outdoor antennas, feeders, RF cables, power splitters, arresters, waterproof accessories, Ethernet cables, power cables, console cables. Please see your local representative for additional details. Caution This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation Changes or modifica…

Text truncated - open the document above for the full version.

AUTHORIZATION LETTER FCC ID:Q9DMSR1200N Data: January 11, 2011 To whom it may concern: We, the undersigned, hereby authorize Intertek Shanghai of China to act on our behalf, as our agent, in the following matters related to the FCC approval of our products: report submittal, related correspondence, the signing of all documents relating to these matters, and any other lawful activity necessary to obtain such certification. Any act carried out by Intertek Shanghai within the scope of this authorization shall have the same effects as our own. This authorization shall expire 6 months from original data. If you have any questions regarding the authorization, please don’t hesitate to contact me. Thank you. Sincerely, Ivaylo Tankov Compliance Manager Aruba Networks, Inc. Tel: +1 408 754 3035 Email: [email protected]

CONFIDENTIALITY REQUEST FCC ID: Q9DMSR1200N Pursuant to Sections 0.457 and 0.459 of the Federal Communications Commission’s Rules, the Applicant hereby requests confidential treatment of information accompanying this Application as outlined below: 1) Schematic diagram 2) Block diagram 3) Operational description 4) BOM The above material contains trade secrets or technical data which Aruba Networks, Inc. deems to be proprietary. Therefore this information would customarily be guarded from competitors and cannot be accessible to the general public. Thank you Sincerely, Ivaylo Tankov Compliance Manager Aruba Networks, Inc. Tel: +1 408 754 3035 Email: [email protected]

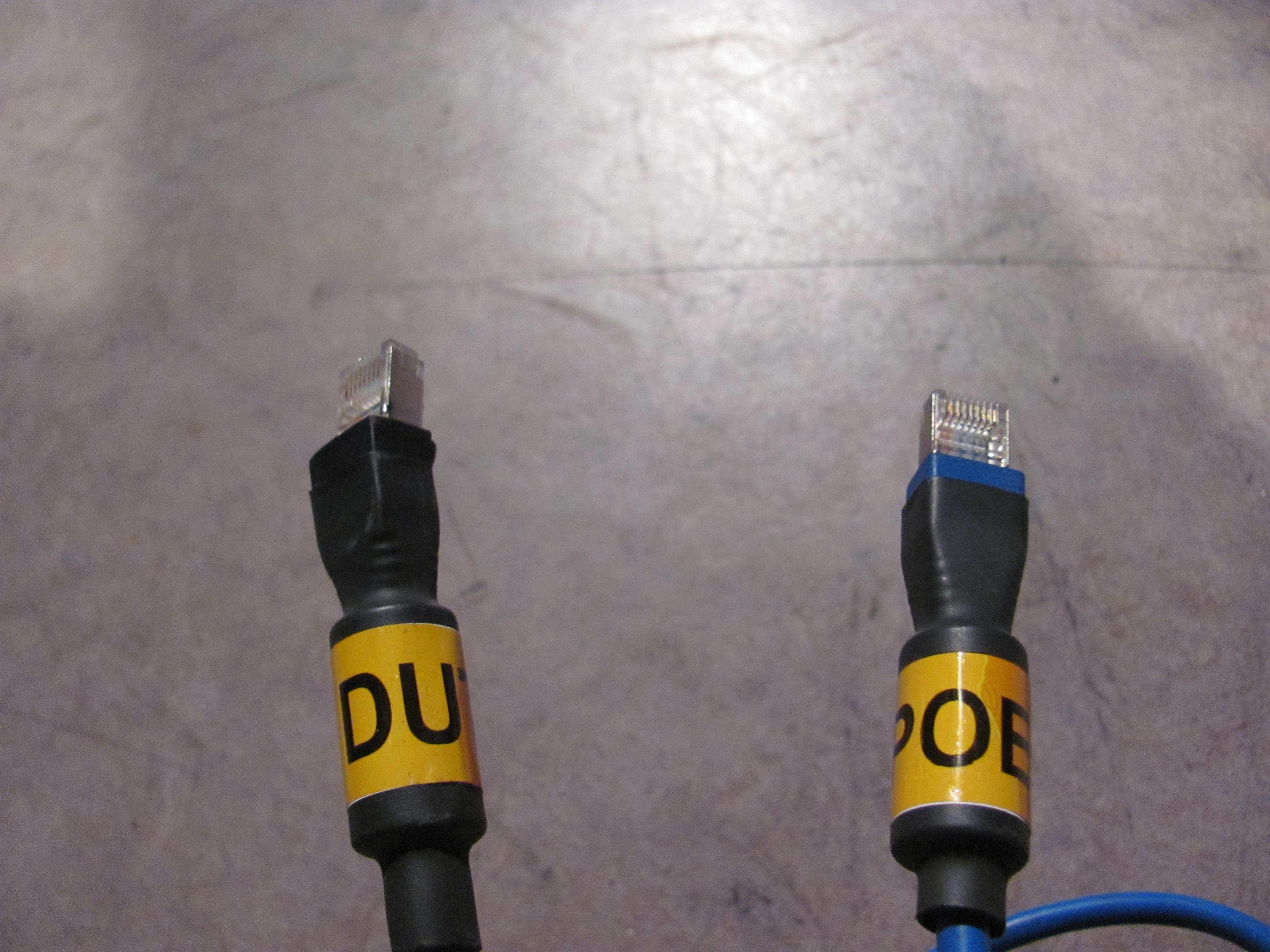

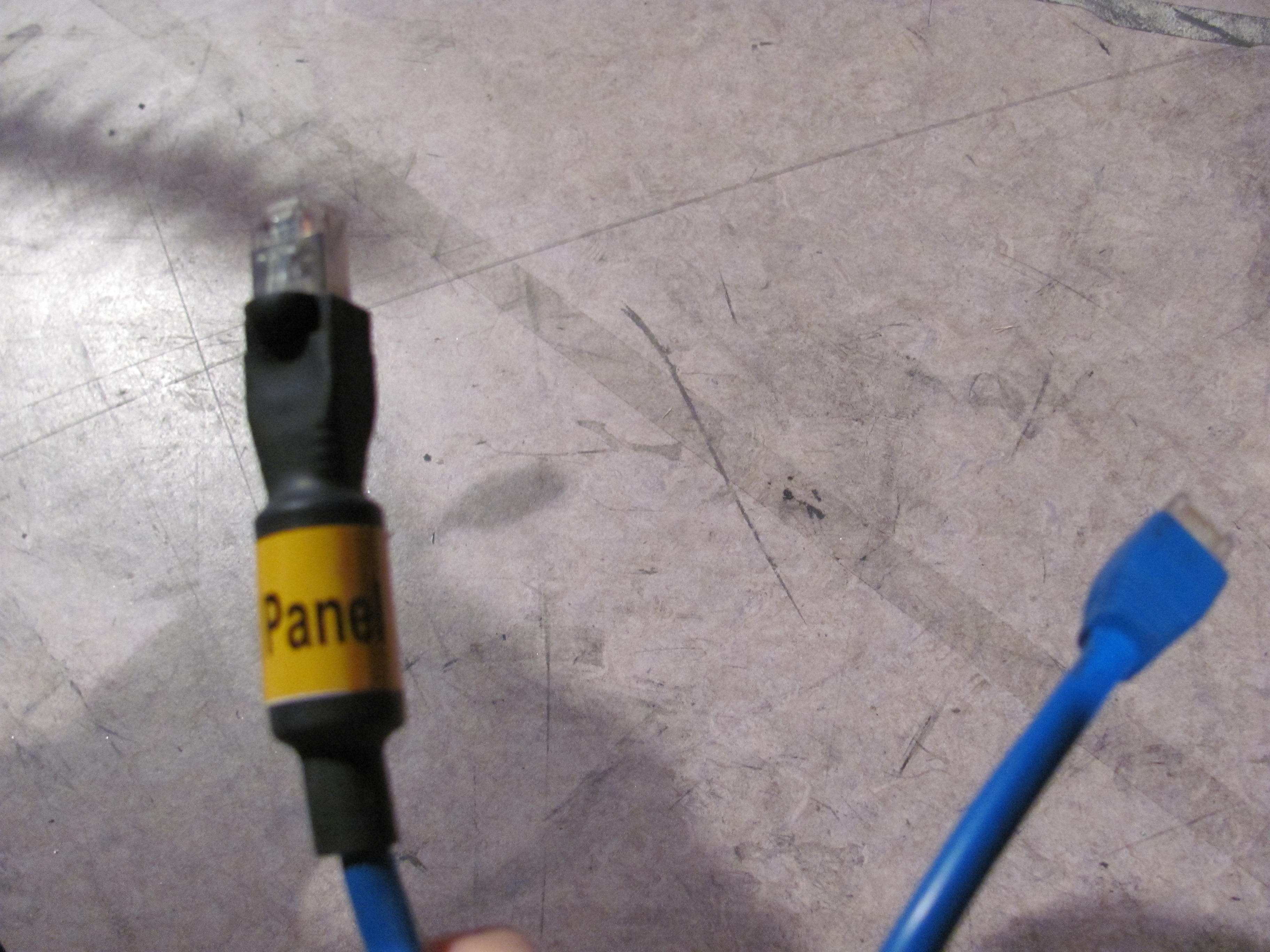

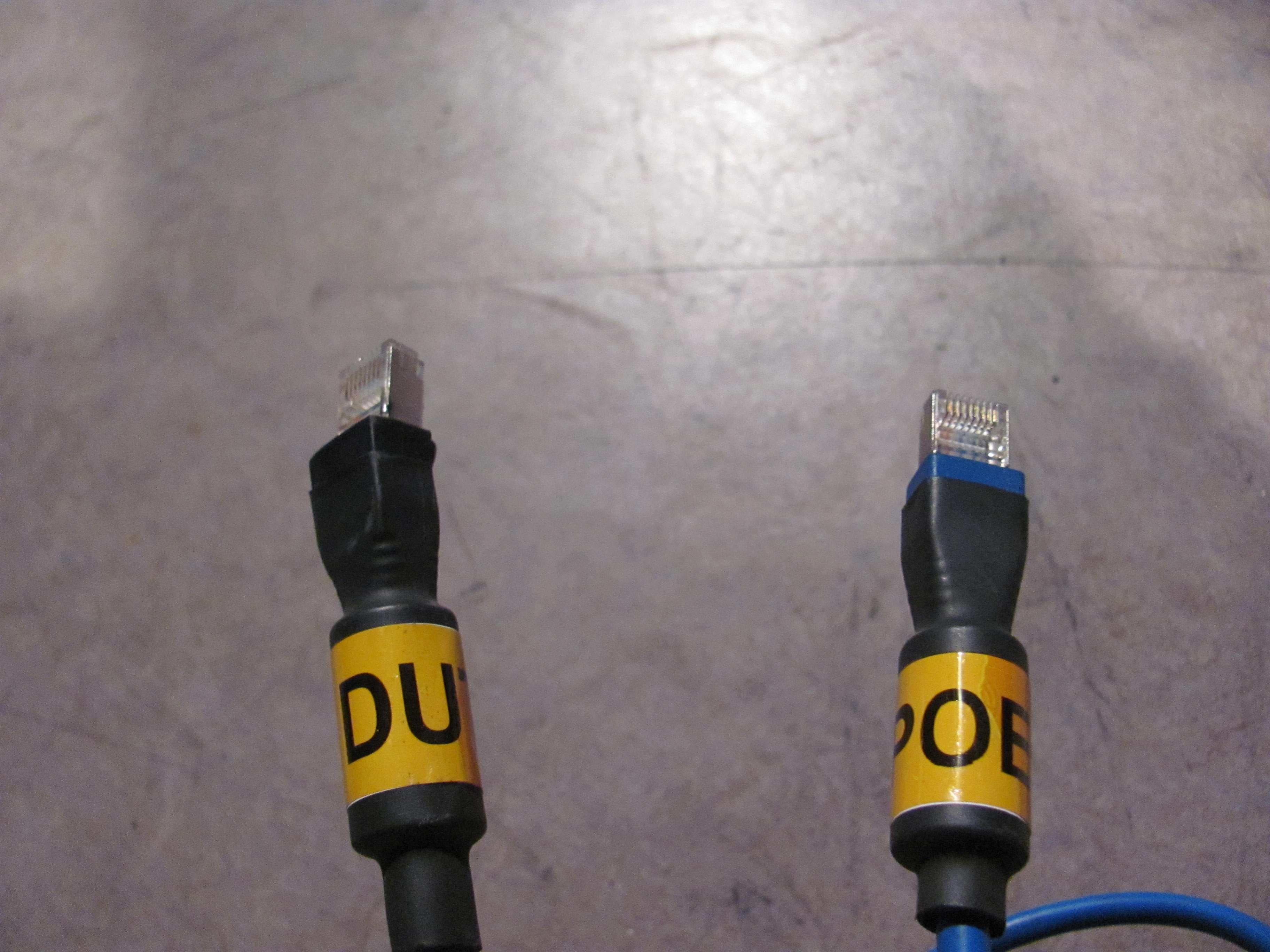

FCC ID: Q9DMSR1200N IC: 4675A-MSR1200N Page 1 of 7 External Picture FCC ID: Q9DMSR1200N IC: 4675A-MSR1200N Page 2 of 7 FCC ID: Q9DMSR1200N IC: 4675A-MSR1200N Page 3 of 7 FCC ID: Q9DMSR1200N IC: 4675A-MSR1200N Page 4 of 7 Antenna POE FCC ID: Q9DMSR1200N IC: 4675A-MSR1200N Page 5 of 7 Adapter FCC ID: Q9DMSR1200N IC: 4675A-MSR1200N Page 6 of 7 Two FTP CAT5e cables with cores would be offered by the manufactory together with the EUT. DUT port POE port FCC ID: Q9DMSR1200N IC: 4675A-MSR1200N Page 7 of 7 LAN port of PC POE port
