Q9DRAP3WNRemote Access point

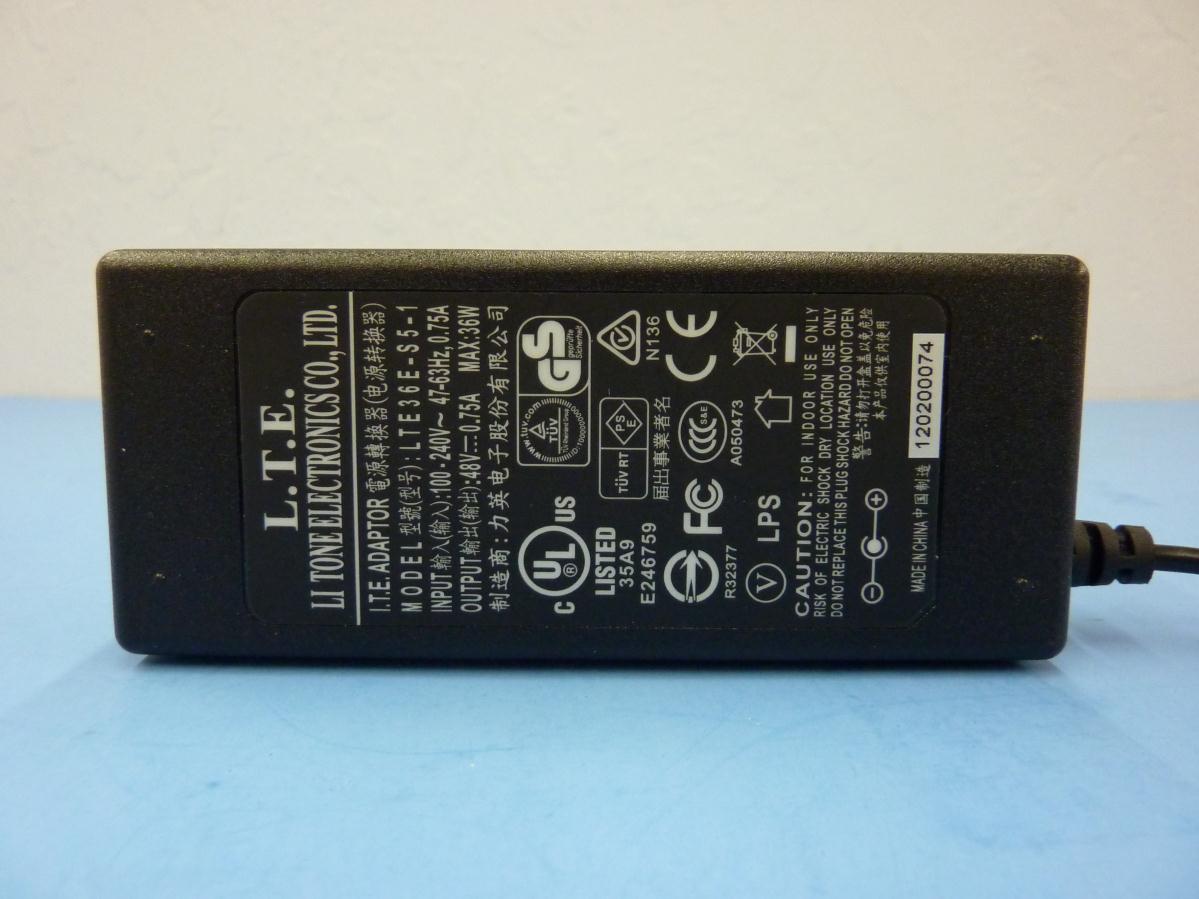

Aruba RAP-3 Remote Access Point Installation Guide The Aruba RAP-3WN and RAP-3WNP are single-radio, single-band wireless access points (AP) that support the IEEE 802.11n standard for high-performance WLAN. These access points use MIMO (Multiple-in, Multiple-out) technology and other high-throughput mode techniques to deliver high-performance, 802.11n 2.4 GHz functionality while simultaneously supporting existing 802.11 b/g wireless services. The RAP-3 ships with Aruba Instant software. Therefore, out of the box, the RAP-3 will operate as a Virtual Controller (VC) or an Instant AP. However, the RAP-3 can be converted to operate as a Remote AP (RAP). For information about the IAP to RAP conversion, see RAP Conversion. Wireless transceiver Protocol-independent networking functionality IEEE 802.11b/g/n operation as a wireless access point IEEE 802.11b/g/n operation as a wireless air monitor Compatibility with IEEE 802.3af PoE Package Contents 1x RAP-3WN or RAP-3WNP Access Point 1x Installation Guide (this document) 1x Aruba Instant Quick Start Guide 1x RJ-45 Ethernet Cable 1x 12V Power Adapter (RAP-3WN only) 1x 48V Power Adapter (RAP-3WNP only) Before You Begin Before installing your RAP-3 Remote Access Point, please ensure you have the following: RAP-3 (included) 1 x RJ-45 Ethernet Cable (included) 1 x Power Adapter (included) RAP-3 Overview Figure 1 Rear View (RAP-3WN Shown) 10/100Base-T Ethernet Ports The RAP-3 has three 10/100Base-T (RJ-45) Ethernet ports for wired network connectivity. E0: WAN port (top) E1: LAN port (middle) E2: LAN port (bottom) On the RAP-3WNP, port E2 has PoE power sourcing capability (PSE) to supply power to any compliant 802.3af powered device (class 0-4). Figure 2 Fast Ethernet Port Pin Out DC IN (Power Socket) The RAP-3 power adapter (included) connects to the DC IN port. The RAP-3 does not have an On/Off switch. The device turns on when the power adapter is attached and plugged into a power outlet. The device turns off when you disconnect the power adapter from the power source (outlet). Top View Figure 3 Top View USB Port The RAP-3 is equipped with a USB port to support cellular modems. Figure 4 Bottom View (RAP-3WNP Shown) LEDs The RAP-3WN has five LED indicators that display the status of the device. The RAP-3WNP has an additional LED called PSE. PWR: When lit, the RAP-3 is powered on E0:Indicates activity and/or status on this port. E1: Indicates activity and/or status on this port E2: Indicates activity and/or status on this port WLAN: Indicates wireless status and activity PSE (RAP-3WNP only): Indicated the PSE status on the RAP-3WNP Reset Button The RAP-3 is equipped with reset button, that when pushed, resets the device to factory default settings. The reset button is located on the bottom of the device and is recessed in a small, round hole. To reset the RAP-3, insert a small, narrow object, such as a pin or paperclip, into the hole and press and hold the button while powering on the RAP-3. This will return the device to factory default settings. RAP-3 Installation Tabletop Mounting The RAP-3 is shipped with a stand to use on flat (i.e. table top) surfaces. Place the RAP-3 in the stand (see Figure 5) and place the stand on a flat, level surface. Figure 5 Stand Installation Connecting the Required Cables The RAP-3 must be connected to a network device that has access to the Internet, such as a router or modem. To complete the installation of the RAP-3: 1. Connect one end of the provided RJ-45 cable to port E0 on the RAP-3. 2. Connect the other end of the RJ-45 cable to a free RJ-45 port on your modem or router. 3. Attach the provided power adapter to the DC IN port on the RAP-3. 4. Connect the other end of the power adapter to a power outlet. The RAP-3 is now powered on. To verify this, ensure that the PWR LED is solid green. Verifying Successful Installation Once the RAP-3’s PWR LED has come up, the device will take 2 to 3 minutes to complete the boot cycle. Once the boot cycle is complete, you can connect to your company or corporate network. RAP Conversion If your network administrator has instructed you to convert the RAP-3 to work in RAP mode, follow the process below to complete the RAP conversion. 1. Power up the RAP-3. 2. Connect to Instant SSID. 3. Login to the RAP-3 by navigating to http://instant.arubanetworks.com and login to the Instant WebUI. The default username is admin and the default password is admin. See the included Aruba Instant Quick Start Guide for more information. 4. Navigate to the Maintenance tab in the top right. 5. Click on the Convert tab. 6. Select Remote APs managed by a Mobility Controller from the drop down menu. 7. Enter the IP address of the controller. This is provided by your network administrator. 8. Click Convert Now to complete the conversion (see Figure 6). 9. The RAP-3 will reboot and begin operating in RAP mode. Figure 6 IAP-RAP Conversion over the Internet The RAP-3 requires Aruba Instant 3.0 to operate as a Instant AP and ArubaOS 6.1.4.0 to operate as a Remote AP. The 48V power adapter that ships with the RAP-3WNP does not come with a country specific power cord. This cord must be ordered separately. Inform your supplier if there are any incorrect, missing, or damaged parts. If possible, retain the carton, including the original packing materials. Use them to repack the product in case there is a need to return it. IAP-23_01 E0 (WAN port) E1 (LAN port) E2 (LAN port) The RAP-3WN ships with a 12V power supply and the RAP-3WNP ships with a 48V power supply. These power supplies are not interchangeable. LEDColor(s)ActivityAction PWRGreenOnPower on OffNo power WLANGreenOffWireless is inactive OnWireless is active FlashingRadio mode Ports (E0, E1, E2) GreenOffNo link OnLink established FlashingEthernet activity IAP-23_03 IAP-23_02 Pwr E0 E1 E2 WLAN PSE PSEGreenOffNot sourcing PoE power OnSourcing PoE power to an 802.3af Powered Device FlashingPoE power sourcing error LEDColor(s)ActivityActi…

Text truncated - open the document above for the full version.

Request for Confidentiality Date: ___03/27/2012_____ Subject: Confidentiality Request for FCC ID: Q9DRAP3WN Pursuant to FCC 47 CRF 0.457(d) and 0.459 and IC RSP-100, Section 10, the applicant requests that a part of the subject FCC/IC application be held confidential. Type of Confidentiality Requested Exhibit Short Term Permanent Block Diagrams Short Term Permanent Internal Photos Short Term Permanent Operation Description/Theory of Operation Short Term Permanent Tune-Up Procedure Short Term Permanent Schematics Short Term Permanent BOM Short Term Permanent User’s Manual Aruba Networks, Inc. has spent substantial effort in developing this product and it is one of the first of its kind in industry. Having the subject information easily available to "competition" would negate the advantage they have achieved by developing this product. Not protecting the details of the design will result in financial hardship. Permanent Confidentiality: The applicant requests the exhibits listed above as permanently confidential be permanently withheld from public review due to materials that contain trade secrets and proprietary information not customarily released to the public. Short-Term Confidentiality: The applicant requests the exhibits selected above as short term confidential be withheld from public view for a period of 180 days from the date of the Grant of Equipment Authorization and prior to marketing. This is to avoid premature release of sensitive information prior to marketing or release of the product to the public. Applicant is also aware that they are responsible to notify TUV Rheinland in the event information regarding the product or the product is made available to the public. TUV Rheinland will then release the documents listed above for public disclosure pursuant to FCC Public Notice DA 04-1705. Sincerely, Signature of applicant Name: Ivaylo Tankov Title: Compliance Manager Phone: (408) 227 4500

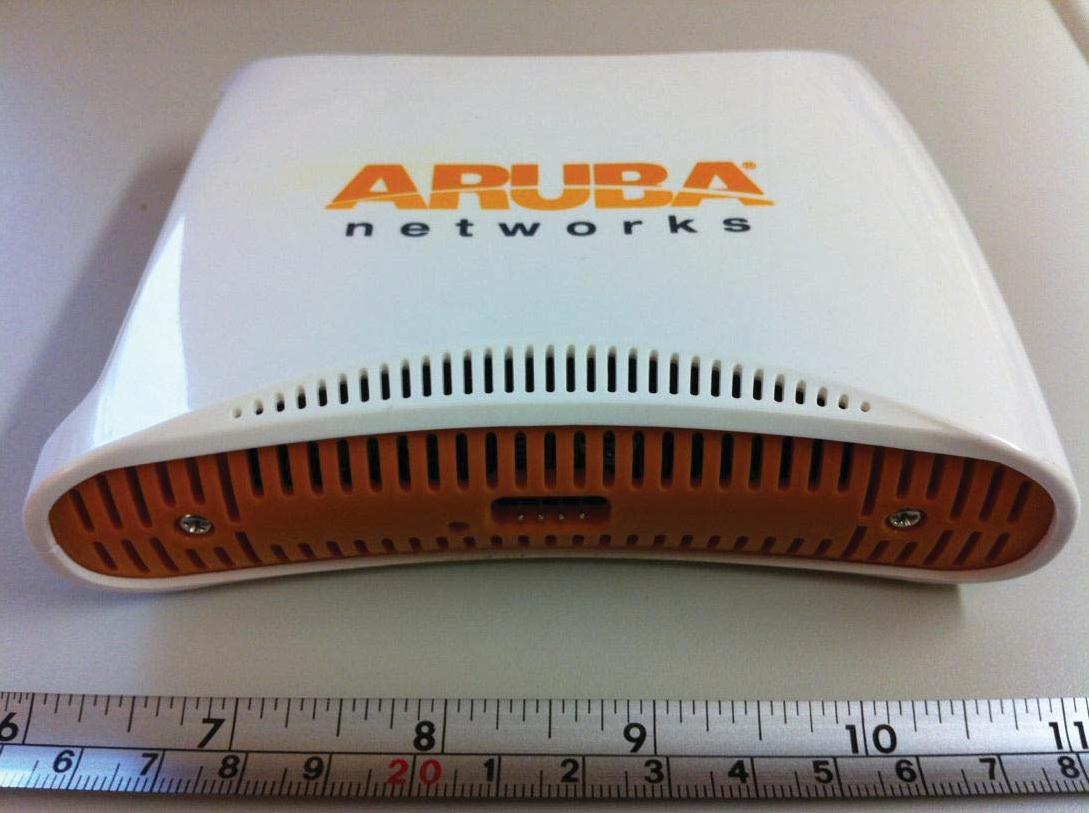

TUV Rheinland Product Under Test Photo 1279 Quarry Lane, Ste. A, Pleasanton, CA 95466 Tel: (925) 249-9123, Fax: (925) 249-9124 Report Number: 31250477.001 Page 1 of 10 EUT: Wireless Remote Access Point Model: RAP-3WN and RAP-3WNP EMC / Rev 3/26/2012 FCCID: Q9DRAP3WN, IC ID: 4675A-RAP3WN 1.1 Product Under Test Photo Figure 1: External Photo of RAP-3WN (Front) TUV Rheinland Product Under Test Photo 1279 Quarry Lane, Ste. A, Pleasanton, CA 95466 Tel: (925) 249-9123, Fax: (925) 249-9124 Report Number: 31250477.001 Page 2 of 10 EUT: Wireless Remote Access Point Model: RAP-3WN and RAP-3WNP EMC / Rev 3/26/2012 FCCID: Q9DRAP3WN, IC ID: 4675A-RAP3WN Figure 2: External Photo of RAP-3WN – Side View TUV Rheinland Product Under Test Photo 1279 Quarry Lane, Ste. A, Pleasanton, CA 95466 Tel: (925) 249-9123, Fax: (925) 249-9124 Report Number: 31250477.001 Page 3 of 10 EUT: Wireless Remote Access Point Model: RAP-3WN and RAP-3WNP EMC / Rev 3/26/2012 FCCID: Q9DRAP3WN, IC ID: 4675A-RAP3WN Figure 3: External Photo of RAP-3WN – Rear View TUV Rheinland Product Under Test Photo 1279 Quarry Lane, Ste. A, Pleasanton, CA 95466 Tel: (925) 249-9123, Fax: (925) 249-9124 Report Number: 31250477.001 Page 4 of 10 EUT: Wireless Remote Access Point Model: RAP-3WN and RAP-3WNP EMC / Rev 3/26/2012 FCCID: Q9DRAP3WN, IC ID: 4675A-RAP3WN Figure 4: External Photo of RAP-3WN – Power Supply TUV Rheinland Product Under Test Photo 1279 Quarry Lane, Ste. A, Pleasanton, CA 95466 Tel: (925) 249-9123, Fax: (925) 249-9124 Report Number: 31250477.001 Page 5 of 10 EUT: Wireless Remote Access Point Model: RAP-3WN and RAP-3WNP EMC / Rev 3/26/2012 FCCID: Q9DRAP3WN, IC ID: 4675A-RAP3WN Figure 5: External Photo of RAP-3WNP (Front) TUV Rheinland Product Under Test Photo 1279 Quarry Lane, Ste. A, Pleasanton, CA 95466 Tel: (925) 249-9123, Fax: (925) 249-9124 Report Number: 31250477.001 Page 6 of 10 EUT: Wireless Remote Access Point Model: RAP-3WN and RAP-3WNP EMC / Rev 3/26/2012 FCCID: Q9DRAP3WN, IC ID: 4675A-RAP3WN Figure 6: External Photo of RAP-3WNP – Side View TUV Rheinland Product Under Test Photo 1279 Quarry Lane, Ste. A, Pleasanton, CA 95466 Tel: (925) 249-9123, Fax: (925) 249-9124 Report Number: 31250477.001 Page 7 of 10 EUT: Wireless Remote Access Point Model: RAP-3WN and RAP-3WNP EMC / Rev 3/26/2012 FCCID: Q9DRAP3WN, IC ID: 4675A-RAP3WN Figure 7: External Photo of RAP-3WNP – Rear View TUV Rheinland Product Under Test Photo 1279 Quarry Lane, Ste. A, Pleasanton, CA 95466 Tel: (925) 249-9123, Fax: (925) 249-9124 Report Number: 31250477.001 Page 8 of 10 EUT: Wireless Remote Access Point Model: RAP-3WN and RAP-3WNP EMC / Rev 3/26/2012 FCCID: Q9DRAP3WN, IC ID: 4675A-RAP3WN Figure 8: External Photo of RAP-3WNP – Power Supply TUV Rheinland Product Under Test Photo 1279 Quarry Lane, Ste. A, Pleasanton, CA 95466 Tel: (925) 249-9123, Fax: (925) 249-9124 Report Number: 31250477.001 Page 9 of 10 EUT: Wireless Remote Access Point Model: RAP-3WN and RAP-3WNP EMC / Rev 3/26/2012 FCCID: Q9DRAP3WN, IC ID: 4675A-RAP3WN Figure 9: External Photo of RAP-3WNP – Top TUV Rheinland Product Under Test Photo 1279 Quarry Lane, Ste. A, Pleasanton, CA 95466 Tel: (925) 249-9123, Fax: (925) 249-9124 Report Number: 31250477.001 Page 10 of 10 EUT: Wireless Remote Access Point Model: RAP-3WN and RAP-3WNP EMC / Rev 3/26/2012 FCCID: Q9DRAP3WN, IC ID: 4675A-RAP3WN Figure 10: External Photo of RAP-3WNP – Bottom

TUV Rheinland Internal Photo 1279 Quarry Lane, Ste. A, Pleasanton, CA 95466 Tel: (925) 249-9123, Fax: (925) 249-9124 Report Number: 31250477.001 Page 1 of 7 EUT: Wireless Remote Access Point Model: RAP-3WN and RAP-3WNP EMC / Rev 3/26/2012 FCCID: Q9DRAP3WN, IC ID: 4675A-RAP3WN 1 Photo 1.1 Internal Photo Figure 1: RAP-3WNP – Component Side TUV Rheinland Internal Photo 1279 Quarry Lane, Ste. A, Pleasanton, CA 95466 Tel: (925) 249-9123, Fax: (925) 249-9124 Report Number: 31250477.001 Page 2 of 7 EUT: Wireless Remote Access Point Model: RAP-3WN and RAP-3WNP EMC / Rev 3/26/2012 FCCID: Q9DRAP3WN, IC ID: 4675A-RAP3WN Figure 2: RAP-3WNP – Soldered Side TUV Rheinland Internal Photo 1279 Quarry Lane, Ste. A, Pleasanton, CA 95466 Tel: (925) 249-9123, Fax: (925) 249-9124 Report Number: 31250477.001 Page 3 of 7 EUT: Wireless Remote Access Point Model: RAP-3WN and RAP-3WNP EMC / Rev 3/26/2012 FCCID: Q9DRAP3WN, IC ID: 4675A-RAP3WN Figure 3: RAP-3WN – Component Side TUV Rheinland Internal Photo 1279 Quarry Lane, Ste. A, Pleasanton, CA 95466 Tel: (925) 249-9123, Fax: (925) 249-9124 Report Number: 31250477.001 Page 4 of 7 EUT: Wireless Remote Access Point Model: RAP-3WN and RAP-3WNP EMC / Rev 3/26/2012 FCCID: Q9DRAP3WN, IC ID: 4675A-RAP3WN Figure 4: RAP-3WN – Soldered Side TUV Rheinland Internal Photo 1279 Quarry Lane, Ste. A, Pleasanton, CA 95466 Tel: (925) 249-9123, Fax: (925) 249-9124 Report Number: 31250477.001 Page 5 of 7 EUT: Wireless Remote Access Point Model: RAP-3WN and RAP-3WNP EMC / Rev 3/26/2012 FCCID: Q9DRAP3WN, IC ID: 4675A-RAP3WN Figure 5: Chipset w/o RF Shielding. TUV Rheinland Internal Photo 1279 Quarry Lane, Ste. A, Pleasanton, CA 95466 Tel: (925) 249-9123, Fax: (925) 249-9124 Report Number: 31250477.001 Page 6 of 7 EUT: Wireless Remote Access Point Model: RAP-3WN and RAP-3WNP EMC / Rev 3/26/2012 FCCID: Q9DRAP3WN, IC ID: 4675A-RAP3WN Figure 6: Omni-directional Antenna (Top) TUV Rheinland Internal Photo 1279 Quarry Lane, Ste. A, Pleasanton, CA 95466 Tel: (925) 249-9123, Fax: (925) 249-9124 Report Number: 31250477.001 Page 7 of 7 EUT: Wireless Remote Access Point Model: RAP-3WN and RAP-3WNP EMC / Rev 3/26/2012 FCCID: Q9DRAP3WN, IC ID: 4675A-RAP3WN Figure 7: Omni-directional Antenna (Bottom)

Report Number: 31250477.001 Page 1 of 148 EUT: Wireless Remote Access Point Model: RAP-3WN and RAP-3WNP EMC / Rev 3/27/2012 FCCID: Q9DRAP3WN, IC ID: 4675A-RAP3WN Emissions Test Report EUT Name: Wireless Remote Access Point Model No.: RAP-3WN and RAP-3WNP CFR 47 Part 15.247:2010 and RSS 210:2010 Prepared for: Ivaylo Tankov Aruba Networks 1344 Crossman Avenue Sunnyvale, CA 94089 Tel: (408) 227 4500 Fax: (408) 227 4550 Prepared by: TUV Rheinland of North America, Inc. 1279 Quarry Lane Pleasanton, CA 94566 Tel: (925) 249-9123 Fax: (925) 249-9124 http://www.tuv.com Report/Issue Date: March 27, 2012 Report Number: 31250477.001 Statement of Compliance Report Number: 31250477.001 Page 2 of 148 EUT: Wireless Remote Access Point Model: RAP-3WN and RAP-3WNP EMC / Rev 3/27/2012 FCCID: Q9DRAP3WN, IC ID: 4675A-RAP3WN Manufacturer: Aruba Networks 1344 Crossman Avenue Sunnyvale, CA 94089 (408) 227 4500 Requester / Applicant: Ivaylo Tankov Name of Equipment: Wireless Remote Access Point Model No. RAP-3WN and RAP-3WNP Type of Equipment: Intentional Radiator Application of Regulations: CFR 47 Part 15.247:2010 and RSS 210:2010 Test Dates: February 20, 2012 to March 9, 2012 Guidance Documents: Emissions: ANSI C63.10: 2009 Test Methods: Emissions: ANSI C63.10: 2009 The electromagnetic compatibility test and documented data described in this report has been performed and recorded by TUV Rheinland, in accordance with the standards and procedures listed herein. As the responsible authorized agent of the EMC laboratory, I hereby declare that the equipment described above has been shown to be compliant with the EMC requirements of the stated regulations and standards based on these results. If any special accessories and/or modifications were required for compliance, they are listed in the Executive Summary of this report. This report must not be used to claim product endorsement by NVLAP or any agency of the U.S. Government. This report contains data that are not covered by NVLAP accreditation. This report shall not be reproduced except in full, without the written authorization of TUV Rheinland of North America. Jeremy Luong March 27, 2012 Conan Boyle March 27, 2012 Test Engineer Date NVLAP Signatory Date Industry Canada NVLAPCODE 500011-0 US5254 2932M-1 Table of Contents Report Number: 31250477.001 Page 3 of 148 EUT: Wireless Remote Access Point Model: RAP-3WN and RAP-3WNP EMC / Rev 3/27/2012 FCCID: Q9DRAP3WN, IC ID: 4675A-RAP3WN 1 Executive Summary _______________________________________________________ 6 1.1 Scope______________________________________________________________________ 6 1.2 Purpose____________________________________________________________________ 6 1.3 Summary of Test Results _____________________________________________________ 6 1.4 Special Accessories __________________________________________________________ 6 1.5 Equipment Modifications _____________________________________________________ 6 2 Laboratory Information ____________________________________________________ 7 2.1 Accreditations & Endorsements _______________________________________________ 7 2.1.1 US Federal Communications Commission _______________________________________________ 7 2.1.2 NIST / NVLAP ____________________________________________________________________ 7 2.1.3 Canada – Industry Canada ___________________________________________________________ 7 2.1.4 Japan – VCCI _____________________________________________________________________ 7 2.1.5 Acceptance by Mutual Recognition Arrangement _________________________________________ 7 2.2 Test Facilities _______________________________________________________________ 8 2.2.1 Emission Test Facility ______________________________________________________________ 8 2.2.2 Immunity Test Facility ______________________________________________________________ 8 2.3 Measurement Uncertainty ____________________________________________________ 8 2.3.1 Sample Calculation – radiated & conducted emissions _____________________________________ 9 2.3.2 Measurement Uncertainties __________________________________________________________ 9 2.4 Calibration Traceability _____________________________________________________ 10 3 Product Information ______________________________________________________ 11 3.1 Product Description ________________________________________________________ 11 3.2 Equipment Configuration ___________________________________________________ 11 3.3 Operating Mode ___________________________________________________________ 11 3.4 Unique Antenna Connector __________________________________________________ 12 3.4.1 Results _________________________________________________________________________ 12 4 Emissions ______________________________________________________________ 13 4.1 Output Power Requirements _________________________________________________ 13 4.1.1 Test Method _____________________________________________________________________ 13 4.1.2 Results _________________________________________________________________________ 14 4.2 Occupied Bandwidth _______________________________________________________ 29 4.2.1 Test Method _____________________________________________________________________ 29 4.2.2 Results _________________________________________________________________________ 30 4.3 Unwanted Emissions into Non-Restricted Frequency Bands _______________________ 36 4.3.1 Test Method _____________________________________________________________________ 36 4.3.2 Test Result ______________________________________________________________________ 37 4.4 Peak Power Spectral Density _________________________________________________ 62 4.4.1 Test Method _____________________________________________________________________ 62 4.4.2 Results _________________________________________________________________________ 63 Table of Contents Report Number: 31250477.001 Page 4 of 148 EUT: Wireless Remote Access Point Model: RAP-3WN and RAP-3WNP EMC / Rev 3/27/2012 FCCID: …

Text truncated - open the document above for the full version.

Report Number: 31250477.001 Page 1 of 148 EUT: Wireless Remote Access Point Model: RAP-3WN and RAP-3WNP EMC / Rev 3/27/2012 FCCID: Q9DRAP3WN, IC ID: 4675A-RAP3WN Emissions Test Report EUT Name: Wireless Remote Access Point Model No.: RAP-3WN and RAP-3WNP CFR 47 Part 15.247:2010 and RSS 210:2010 Prepared for: Ivaylo Tankov Aruba Networks 1344 Crossman Avenue Sunnyvale, CA 94089 Tel: (408) 227 4500 Fax: (408) 227 4550 Prepared by: TUV Rheinland of North America, Inc. 1279 Quarry Lane Pleasanton, CA 94566 Tel: (925) 249-9123 Fax: (925) 249-9124 http://www.tuv.com Report/Issue Date: March 27, 2012 Report Number: 31250477.001 Statement of Compliance Report Number: 31250477.001 Page 2 of 148 EUT: Wireless Remote Access Point Model: RAP-3WN and RAP-3WNP EMC / Rev 3/27/2012 FCCID: Q9DRAP3WN, IC ID: 4675A-RAP3WN Manufacturer: Aruba Networks 1344 Crossman Avenue Sunnyvale, CA 94089 (408) 227 4500 Requester / Applicant: Ivaylo Tankov Name of Equipment: Wireless Remote Access Point Model No. RAP-3WN and RAP-3WNP Type of Equipment: Intentional Radiator Application of Regulations: CFR 47 Part 15.247:2010 and RSS 210:2010 Test Dates: February 20, 2012 to March 9, 2012 Guidance Documents: Emissions: ANSI C63.10: 2009 Test Methods: Emissions: ANSI C63.10: 2009 The electromagnetic compatibility test and documented data described in this report has been performed and recorded by TUV Rheinland, in accordance with the standards and procedures listed herein. As the responsible authorized agent of the EMC laboratory, I hereby declare that the equipment described above has been shown to be compliant with the EMC requirements of the stated regulations and standards based on these results. If any special accessories and/or modifications were required for compliance, they are listed in the Executive Summary of this report. This report must not be used to claim product endorsement by NVLAP or any agency of the U.S. Government. This report contains data that are not covered by NVLAP accreditation. This report shall not be reproduced except in full, without the written authorization of TUV Rheinland of North America. Jeremy Luong March 27, 2012 Conan Boyle March 27, 2012 Test Engineer Date NVLAP Signatory Date Industry Canada NVLAPCODE 500011-0 US5254 2932M-1 Table of Contents Report Number: 31250477.001 Page 3 of 148 EUT: Wireless Remote Access Point Model: RAP-3WN and RAP-3WNP EMC / Rev 3/27/2012 FCCID: Q9DRAP3WN, IC ID: 4675A-RAP3WN 1 Executive Summary _______________________________________________________ 6 1.1 Scope______________________________________________________________________ 6 1.2 Purpose____________________________________________________________________ 6 1.3 Summary of Test Results _____________________________________________________ 6 1.4 Special Accessories __________________________________________________________ 6 1.5 Equipment Modifications _____________________________________________________ 6 2 Laboratory Information ____________________________________________________ 7 2.1 Accreditations & Endorsements _______________________________________________ 7 2.1.1 US Federal Communications Commission _______________________________________________ 7 2.1.2 NIST / NVLAP ____________________________________________________________________ 7 2.1.3 Canada – Industry Canada ___________________________________________________________ 7 2.1.4 Japan – VCCI _____________________________________________________________________ 7 2.1.5 Acceptance by Mutual Recognition Arrangement _________________________________________ 7 2.2 Test Facilities _______________________________________________________________ 8 2.2.1 Emission Test Facility ______________________________________________________________ 8 2.2.2 Immunity Test Facility ______________________________________________________________ 8 2.3 Measurement Uncertainty ____________________________________________________ 8 2.3.1 Sample Calculation – radiated & conducted emissions _____________________________________ 9 2.3.2 Measurement Uncertainties __________________________________________________________ 9 2.4 Calibration Traceability _____________________________________________________ 10 3 Product Information ______________________________________________________ 11 3.1 Product Description ________________________________________________________ 11 3.2 Equipment Configuration ___________________________________________________ 11 3.3 Operating Mode ___________________________________________________________ 11 3.4 Unique Antenna Connector __________________________________________________ 12 3.4.1 Results _________________________________________________________________________ 12 4 Emissions ______________________________________________________________ 13 4.1 Output Power Requirements _________________________________________________ 13 4.1.1 Test Method _____________________________________________________________________ 13 4.1.2 Results _________________________________________________________________________ 14 4.2 Occupied Bandwidth _______________________________________________________ 29 4.2.1 Test Method _____________________________________________________________________ 29 4.2.2 Results _________________________________________________________________________ 30 4.3 Unwanted Emissions into Non-Restricted Frequency Bands _______________________ 36 4.3.1 Test Method _____________________________________________________________________ 36 4.3.2 Test Result ______________________________________________________________________ 37 4.4 Peak Power Spectral Density _________________________________________________ 62 4.4.1 Test Method _____________________________________________________________________ 62 4.4.2 Results _________________________________________________________________________ 63 Table of Contents Report Number: 31250477.001 Page 4 of 148 EUT: Wireless Remote Access Point Model: RAP-3WN and RAP-3WNP EMC / Rev 3/27/2012 FCCID: …

Text truncated - open the document above for the full version.

TUV Rheinland Test Setup Photo 1279 Quarry Lane, Ste. A, Pleasanton, CA 95466 Tel: (925) 249-9123, Fax: (925) 249-9124 Report Number: 31250477.001 Page 1 of 11 EUT: Wireless Remote Access Point Model: RAP-3WN and RAP-3WNP EMC / Rev 3/26/2012 FCCID: Q9DRAP3WN, IC ID: 4675A-RAP3WN 1 Photo 1.1 Test Setup Photo Figure 1: Test Setup for 30 MHz to 1000MHz (Front View) TUV Rheinland Test Setup Photo 1279 Quarry Lane, Ste. A, Pleasanton, CA 95466 Tel: (925) 249-9123, Fax: (925) 249-9124 Report Number: 31250477.001 Page 2 of 11 EUT: Wireless Remote Access Point Model: RAP-3WN and RAP-3WNP EMC / Rev 3/26/2012 FCCID: Q9DRAP3WN, IC ID: 4675A-RAP3WN Figure 2: Test Setup for 30 MHz to 1000MHz (Rear View) TUV Rheinland Test Setup Photo 1279 Quarry Lane, Ste. A, Pleasanton, CA 95466 Tel: (925) 249-9123, Fax: (925) 249-9124 Report Number: 31250477.001 Page 3 of 11 EUT: Wireless Remote Access Point Model: RAP-3WN and RAP-3WNP EMC / Rev 3/26/2012 FCCID: Q9DRAP3WN, IC ID: 4675A-RAP3WN Figure 3: Test Setup for 1GHz to 18GHz (Front View) TUV Rheinland Test Setup Photo 1279 Quarry Lane, Ste. A, Pleasanton, CA 95466 Tel: (925) 249-9123, Fax: (925) 249-9124 Report Number: 31250477.001 Page 4 of 11 EUT: Wireless Remote Access Point Model: RAP-3WN and RAP-3WNP EMC / Rev 3/26/2012 FCCID: Q9DRAP3WN, IC ID: 4675A-RAP3WN Figure 4: Test Setup for 1GHz to 18GHz (Rear View) TUV Rheinland Test Setup Photo 1279 Quarry Lane, Ste. A, Pleasanton, CA 95466 Tel: (925) 249-9123, Fax: (925) 249-9124 Report Number: 31250477.001 Page 5 of 11 EUT: Wireless Remote Access Point Model: RAP-3WN and RAP-3WNP EMC / Rev 3/26/2012 FCCID: Q9DRAP3WN, IC ID: 4675A-RAP3WN Figure 5: Test Setup for 18 GHz to 26GHz (Front View) TUV Rheinland Test Setup Photo 1279 Quarry Lane, Ste. A, Pleasanton, CA 95466 Tel: (925) 249-9123, Fax: (925) 249-9124 Report Number: 31250477.001 Page 6 of 11 EUT: Wireless Remote Access Point Model: RAP-3WN and RAP-3WNP EMC / Rev 3/26/2012 FCCID: Q9DRAP3WN, IC ID: 4675A-RAP3WN Figure 6: Test Setup for 18 GHz to 26GHz (Rear View) TUV Rheinland Test Setup Photo 1279 Quarry Lane, Ste. A, Pleasanton, CA 95466 Tel: (925) 249-9123, Fax: (925) 249-9124 Report Number: 31250477.001 Page 7 of 11 EUT: Wireless Remote Access Point Model: RAP-3WN and RAP-3WNP EMC / Rev 3/26/2012 FCCID: Q9DRAP3WN, IC ID: 4675A-RAP3WN Figure 7: RF Conducted Test Setup TUV Rheinland Test Setup Photo 1279 Quarry Lane, Ste. A, Pleasanton, CA 95466 Tel: (925) 249-9123, Fax: (925) 249-9124 Report Number: 31250477.001 Page 8 of 11 EUT: Wireless Remote Access Point Model: RAP-3WN and RAP-3WNP EMC / Rev 3/26/2012 FCCID: Q9DRAP3WN, IC ID: 4675A-RAP3WN Figure 8: AC Conducted Emission Test Setup for RAP-3WNP (Front View) TUV Rheinland Test Setup Photo 1279 Quarry Lane, Ste. A, Pleasanton, CA 95466 Tel: (925) 249-9123, Fax: (925) 249-9124 Report Number: 31250477.001 Page 9 of 11 EUT: Wireless Remote Access Point Model: RAP-3WN and RAP-3WNP EMC / Rev 3/26/2012 FCCID: Q9DRAP3WN, IC ID: 4675A-RAP3WN Figure 9: AC Conducted Emission Test Setup for RAP-3WNP (Side View) TUV Rheinland Test Setup Photo 1279 Quarry Lane, Ste. A, Pleasanton, CA 95466 Tel: (925) 249-9123, Fax: (925) 249-9124 Report Number: 31250477.001 Page 10 of 11 EUT: Wireless Remote Access Point Model: RAP-3WN and RAP-3WNP EMC / Rev 3/26/2012 FCCID: Q9DRAP3WN, IC ID: 4675A-RAP3WN Figure 10: AC Conducted Emission Test Setup for RAP-3WN (Front View) TUV Rheinland Test Setup Photo 1279 Quarry Lane, Ste. A, Pleasanton, CA 95466 Tel: (925) 249-9123, Fax: (925) 249-9124 Report Number: 31250477.001 Page 11 of 11 EUT: Wireless Remote Access Point Model: RAP-3WN and RAP-3WNP EMC / Rev 3/26/2012 FCCID: Q9DRAP3WN, IC ID: 4675A-RAP3WN Figure 11: AC Conducted Emission Test Setup for RAP-3WN (Side View)
